I-Tech Power Q-6000 Plus User manual

USER MANUAL
MNPG80 Rev. 1 Edition 06/05/2016
Compressive Limbs Therapy model
Power
Q-6000
Plus

I.A.C.E.R. Srl
Via S. Pertini 24/A –30030
Martellago (VE) ITALY
Tel. [phone] • Fax [phone]
e-mail: [e-mail] http://www.iacer.ve.it

Summary
Summary 3
Compressive Limbs Therapy 3
Machine body 5
Graphic display detail 5
Accessories 6
Accessories size 7
Specifications 8
Technical Specifications 8
Purpose 8
Labelling 9
Working instructions 10
Troubleshooting 15
Warnings 16
Warranty 20
Assistance 20
Spare parts 21
MDD 93/42/EEC Compliance
Compressive Limbs Therapy

IACER SRL Page 4 di 22 MNPG80-01 of 06/05/2016
Compressive limbs therapy is able to promote a right venous
circulation by decreasing muscle tension caused by stress or
chronic and acute pains: thanks to its pump action it favorites
venous return by increasing tissues blood circulation and finally
their physiological renewal.
Compressive limbs therapy can solve blood stagnation problem
in damaged sanguine vessels or in body zones not correctly
bedewed.
External compression allows excess interstitial fluids to return in
circulatory system in order to be quickly removed.
Most common applications are:
Body massage increase;
Blood flow promotion thanks to a slow and progressive
pressure;
Lymphatic drainage;
Lower limbs relief and comfort;
Substances stagnation prevention in peripheral tissues;
Blood insufficiency prevention caused by an inadequate
pump action;
Muscle tone loss in disabled or paralyzed patients.
Compressive limbs therapy substitutes the manual
massage for trophic purposes.

IACER SRL Page 5 di 22 MNPG80-01 of 06/05/2016
Machine body

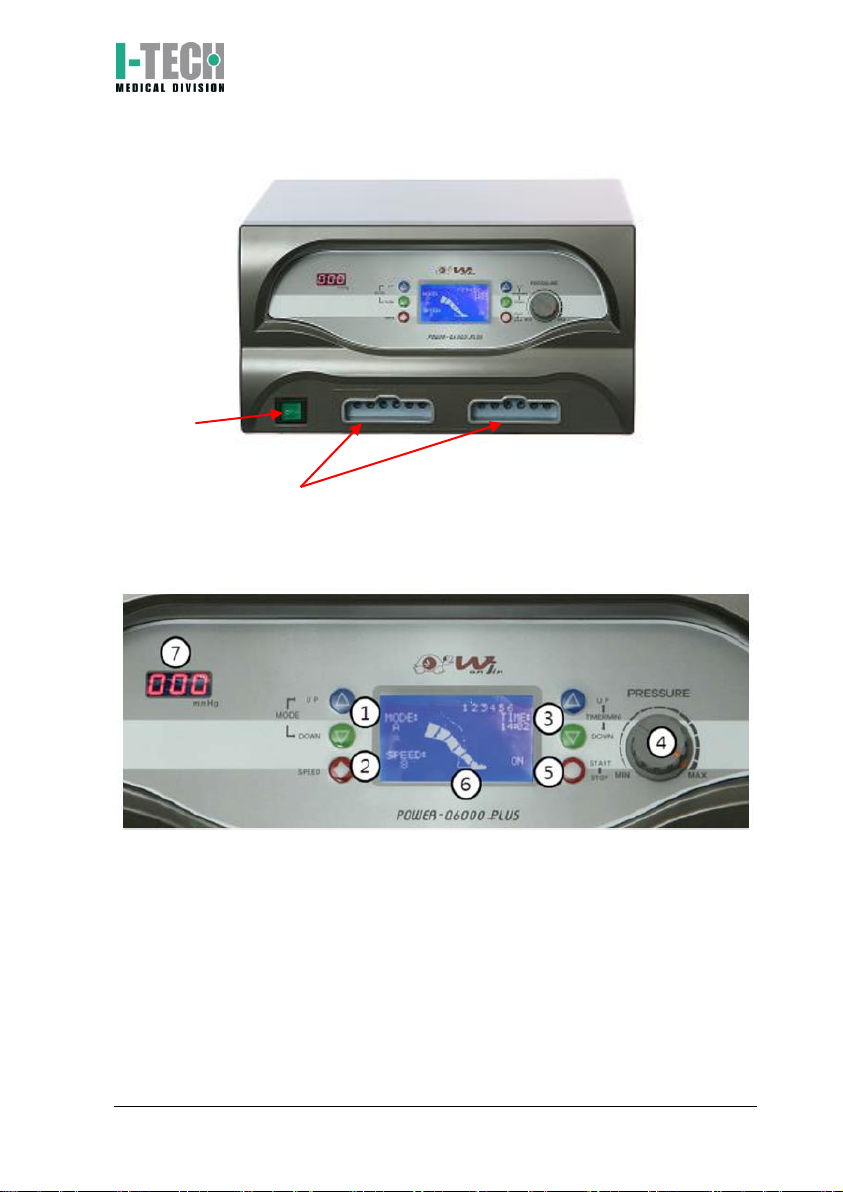

Graphic display detail
(1) MODE: mode selector (A1, A2, B, C, D1, D2, D3, D4, D5
,D6)
(2) SPEED: speed selector
Speed 7 –42 sec
Speed 8 –48 sec
Speed 9 –54 sec
Air discharge output
ON/OFF

IACER SRL Page 6 di 22 MNPG80-01 of 06/05/2016
Speed 10 –60 sec
Speed 11 –66 sec
Speed 12 –72 sec
Speed 13 –78 sec
Speed 14 –84 sec
(3) TIMER UP/DOWN: time selector (from 0 to 99 minutes by
step of 5)
(4) PRESSURE: pressure selector ( from 0 to 240 mmHg by
step of 1)
(5) START/STOP: start/stop selector
(6) LCD graphic display
Accessories
(1)
DOUBLE LEGGINGS
2 DERIVATIONS
CONNECTION TUBES
FOR LEGGINGS
(7)
1 DERIVATION
CONNECTION TUBES FOR
ARMBANDS
1 DERIVATION
CONNECTION TUBES FOR
ABDOMINAL BAND
(5)
(2)
(3)
PRESSURE
PLANTARS
(4)
ABDOMINAL
BAND
(6)
ARMBAND
(8)
EXTENSIONS FOR LEGGINGS (OPTIONALS)

IACER SRL Page 7 di 22 MNPG80-01 of 06/05/2016
Power Q-6000 Plus is equipped with:
machine body
double leggings (1)
2 derivations connection tubes for leggings (2)
2 pressure plantars (3)
abdominal band (4)
1 derivation connection tubes for abdominal band (5)
armband (6)
1 derivation connection tubes for armband (7)
2 pairs of TNT leggings
air stopped jack
power supply cable
Optional accessories:
extensions for leggings (8)
Accessories size
Legging:
Length around 86 cm (from upper side to heel)
Thigh circumference around 71 cm
Ankle circumference around 42 cm
Armband:
Max. length around 86 cm
Biceps circumference around 50 cm
Wrist circumference around 36 cm
Abdominal band:
Length around 136 cm
Height around 46 cm
Velcro height around 31 cm

IACER SRL Page 8 di 22 MNPG80-01 of 06/05/2016
Extensions:
Max. width around 13 cm
Min. width around 6 cm
Specifications
Power Q-6000 Plus has the following specifications:
Class IIa equipment (Directive 93/42/EEC, annexed IX, rule
9);
Class I, applied part type BF (Classif. CEI EN 60601-1);
Equipment not protected against liquids penetration;
Equipment and accessories not subjected to sterilization;
Use of the equipment is prohibited close to flammable
substances or in environments with high concentrations of
oxygen;
Continuous operating mode equipment;
Equipment not suited to be used in external.
Technical Specifications
Power supply
220-240 VAC,
50-60 Hz
Therapy time
Adjustable (0
÷99 minutes)
Max output
power
80 VA
Max
pressure
240 mm Hg
(±10%)
Weight
9,5 Kg
Purpose
Clinical purpose: Therapeutic
Use: Clinic and domestic use

IACER SRL Page 9 di 22 MNPG80-01 of 06/05/2016
Labelling
Warning
Product subject to WEEE regulations concerning separate
waste collection of electronic equipment
Part applied BF
Class II equipment
Compliance with Directive 93/42/EEC and following
modifications
Manufacturing date (month/year)
Attention, consult operating instructions
Operating instructions

IACER SRL Page 10 di 22 MNPG80-01 of 06/05/2016
Not protected against liquids entrance, keep dry
Relative humidity
Admission temperatures
Don’t push the device
Don’t sit on the device
Don’t climb on top of the device
Working instructions
1) Connect cable to the domestic plug 220-240 VAC, then turn
ON the ON/OFF switch;
2) Wear the applicators
N.B. The two machine outputs can be used indifferently with
any accessory.

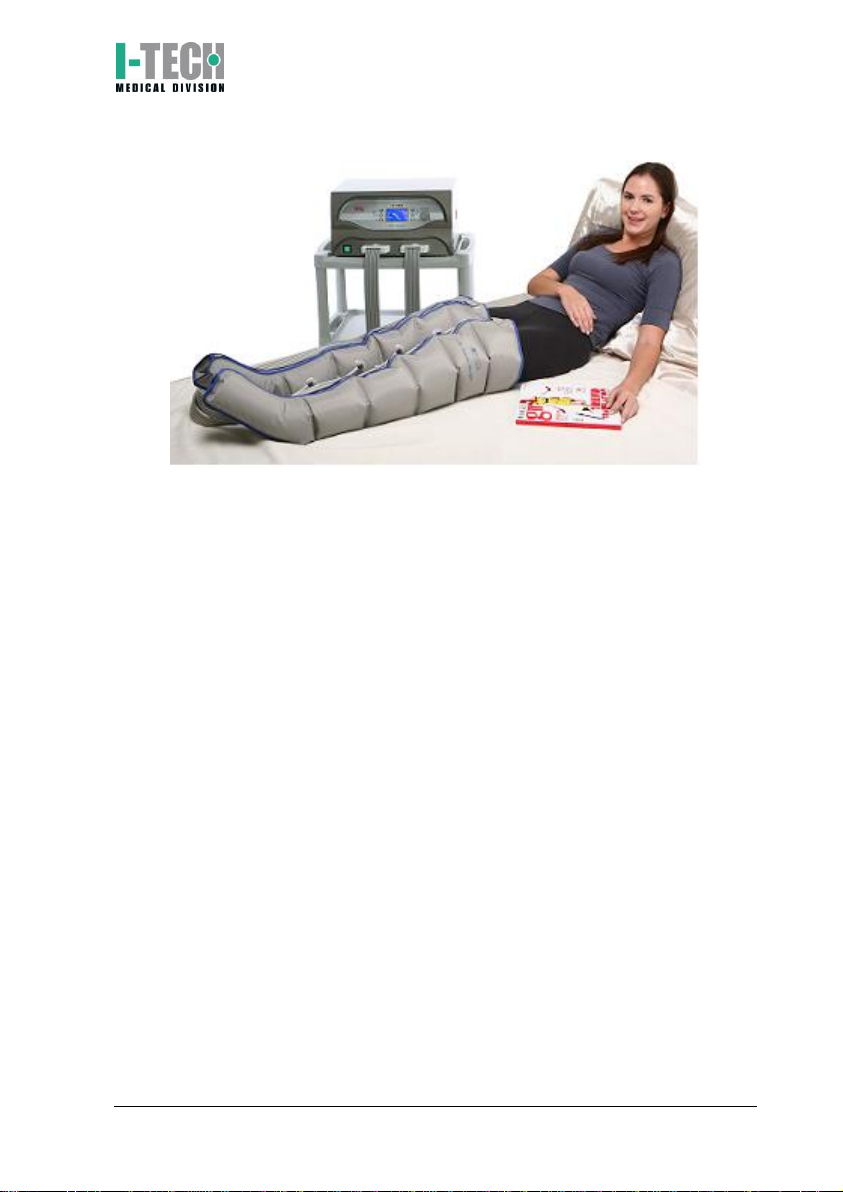

a) Leggings use
i) Wear the leggings and close the zip up to the end,
then close the retaining Velcro straps; in case of wide
circumferences legs, connect the extensions available
as accessories;

IACER SRL Page 11 di 22 MNPG80-01 of 06/05/2016
ii) Insert the pressure plantars under the feet;
iii) When wearing the leggings pay attention to position
the tubes connection cables in the internal side of
each legging;
iv) Connect 6 tubes to the 6 plugs positioned on each
legging, paying attention to connect the longer tube to
the higher position connector of legging (thigh): both
the longer tube and the higher position connector
have a darker color;
v) After connecting the tubes to the relatives leggings,
connect the tubes to one of the two air discharge
outputs.
b) Abdominal band use
i) Wear the band and connect the tubes to the band
plugs, paying attention to connect the longer tube to
the higher position connector on abdominal band;
ii) After connecting the tubes to the band, connect the
tubes to one of the two air discharge outputs.

IACER SRL Page 12 di 22 MNPG80-01 of 06/05/2016
iii) When using only a single output pay attention to
close the free output with the air stopped jack
(equipped with the body machine).
c) Armband use
i) Wear the armband and connect the tubes to the
armband plugs, paying attention to connect the longer
tube to the higher position connector on armband;
ii) After connecting the tubes to the armband connect the
tubes to one of the two air discharge outputs.
iii) When using only a single output pay attention to
close the free output with the air stopped jack
(equipped with the body machine).
d) Simultaneous use of abdominal band and leggings
i) Wear the leggings (please read Leggings use
paragraph) and the abdominal band (please read
Abdominal band use paragraph);
ii) Insert the pressure plantars under the feet;
iii) Connect 12 tubes of the two derivations connection
tubes to the 12 plugs positioned respectively on two
leggings (6 plugs on left legging + 6 plugs on right
legging). Paying attention to connect the longer tube
to the higher position connector of legging (thigh).
iv) Connect 6 tubes of 1 derivations connection tube to
the 6 plugs positioned on the abdominal band.
v) After connecting the tubes to the leggings and to the
abdominal band, connect the tubes to the air
discharge outputs.

IACER SRL Page 13 di 22 MNPG80-01 of 06/05/2016
N.B. Follow the same instructions in case of simultaneous use of
armband and leggings.

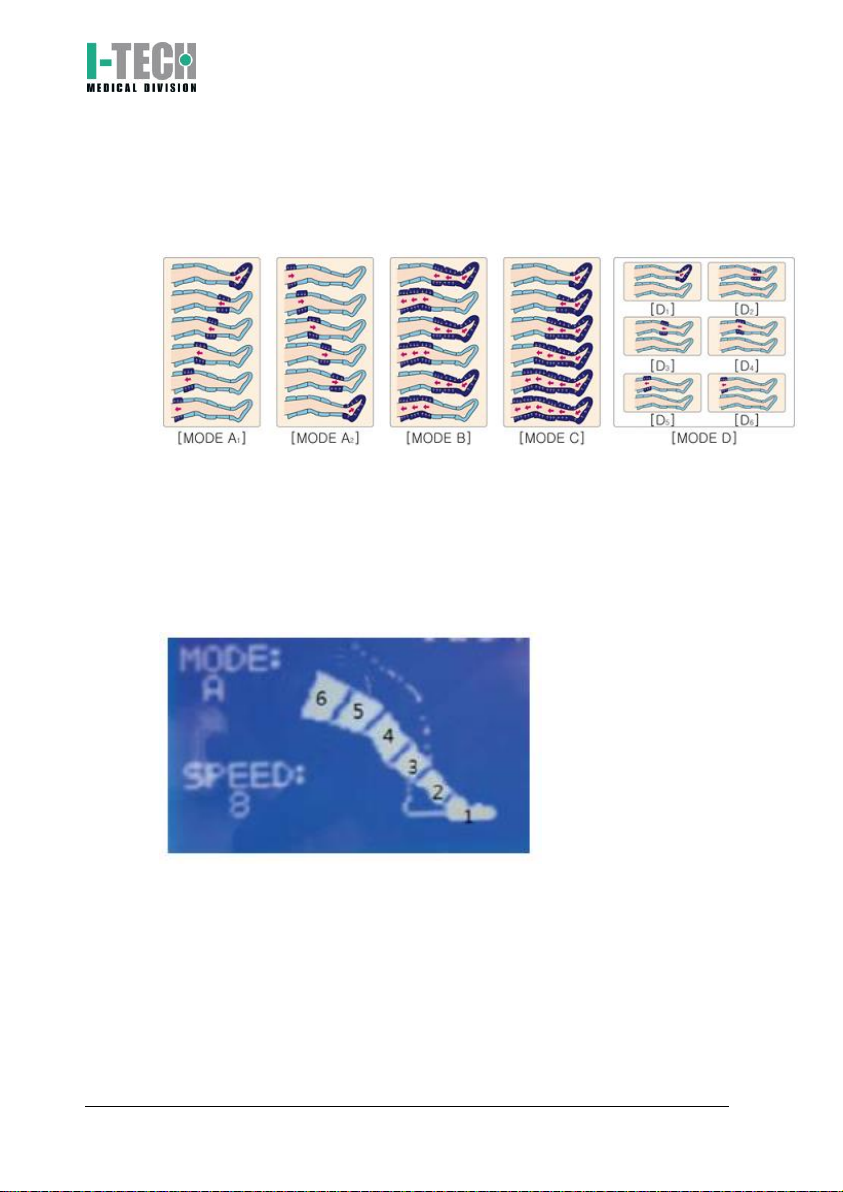

3) Program selection (MODE selector on graphic display)
a) Select the program by pressing on MODE button. There
are 5 different programs:
A1: Air flows in compression chambers till they reach
pressure regime. Then air flows in the first chamber
(lower limb) according to adjusted pressure and
sequentially in the other chambers in a distal-proximal
way.
A2: Air flows in compression chambers till they reach
pressure regime. Then air flows in the sixth chamber
(upper limb) according to adjusted pressure and
sequentially in the other chambers in a proximal-distal
way.
B: Air flows in compression chambers till they reach
pressure regime. Then air flows in the first three
chambers. When adjusted pressure is reached air flows in
the last three chambers (distal-proximal way).
C: Air flows in compression chambers till they reach
pressure regime. Then air flows in the first chamber
(lower limb) according to adjusted pressure and
sequentially in the other chambers (distal-proximal way )
by keeping swelled up the previous chamber every time.

IACER SRL Page 14 di 22 MNPG80-01 of 06/05/2016
D(1-2-3-4-5-6): Air flows in compression chambers till
they reach pressure regime. After that air flows only in the
selected compression chamber (mode D1 chamber 1;
mode D2 chamber 2; ….; mode D6 chamber 6).
4) Speed selection (SPEED selector on graphic display)
a) Select airflow speed by pressing SPEED button. You can
choose between 8 speed levels.
b) It’s not possible to change airflow speed during the
treatment.
5) Therapy time selection (TIMER UP/DOWN selector on
graphic display)
a) Therapy time can be adjusted from 0 to 99 minutes by
pressing UP (increase) and DOWN (decrease) buttons
(by step of 5 minutes);
b) We suggest to start with treatment of 5-10 minutes and
increase it progressively according to your needs.

IACER SRL Page 15 di 22 MNPG80-01 of 06/05/2016
c) It’s not possible to change therapy time during the
treatment.
6) Pressure selection (selector on the graphic display)
a) Pressure can be adjusted from 0 to maximum pressure
(240 mmHg ± 10%) by rotating the know in clockwise;
b) Air start to flow in the compression chambers when it’s
exceeded 10 mmHg;
c) Start the treatment with a middle pressure and increase it
progressively according to your needs.
7) Therapy start (START/STOP selector on the graphic display)
a) Press START/STOP button to start the therapy; any
moment it’s possible to stop the treatment pressing again
START/STOP button (the device memorizes the adjusted
time);
b) Press STOP button to stop definitively the therapy and
turn OFF the ON/OFF switch.
Troubleshooting
Problem
Solution
Power Q-6000
Plus doesn’t
switch on
Check the connection to the
domestic plug
Check the ON/OFF button
Check the power supply status (no
sign of damages)
Power Q-6000
Plus emits a
strange sound
like air leakage
Check if there are any damages
and/or holes in the tubes and
connectors
Check the applicators right
connection to the main body
Check if the tubes are pressed or
bent

IACER SRL Page 16 di 22 MNPG80-01 of 06/05/2016
There is no
pressure or the
air doesn’t go
into the
chambers
Check the applicators right
connection to the main body
Check if the tubes are pressed or
bent
Check if the compression chambers
swell up in a progressive way
Air goes into the
compression
chambers and/or
an air leakage is
present in the
applicators
Check if there are any holes or
damages in the compression
chambers. If there are not any air
leakages, switch off the device then
switch on it and re-check the right
working
Warnings

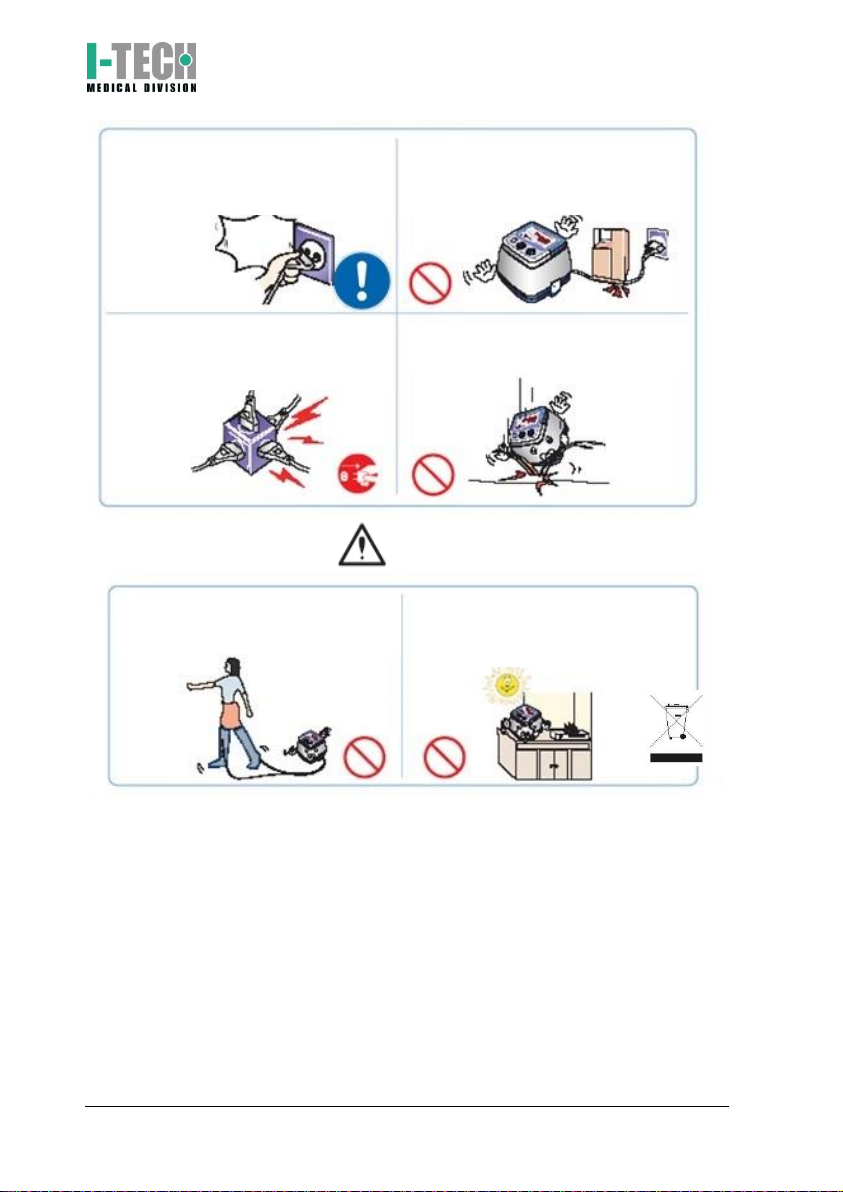

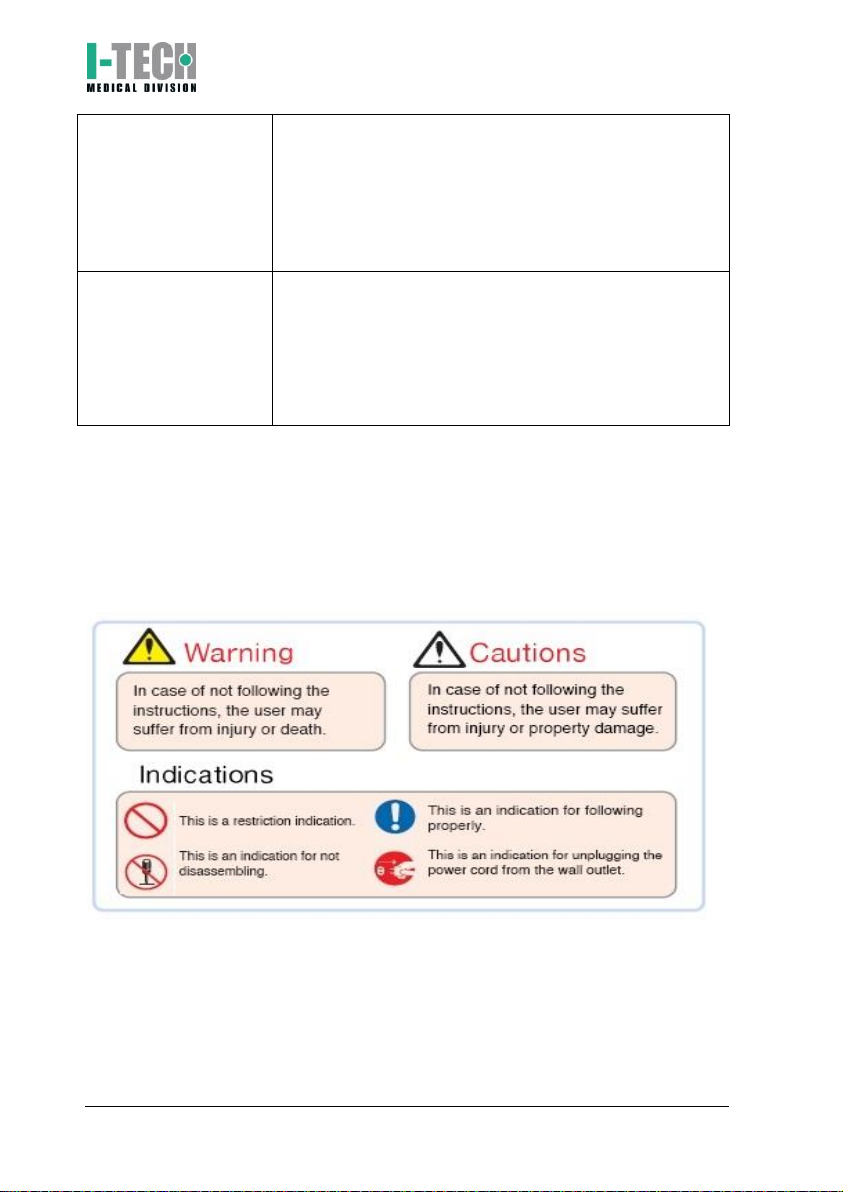

The following warnings guarantee user safety and prevention
against damages and/or lesions.
Please read it carefully before using Power Q-6000 Plus.

IACER SRL Page 17 di 22 MNPG80-01 of 06/05/2016
Warning
Do not use the device if you feel pain or
bad feelings
Do not exceed 20 minutes in the first
treatments. We suggest to start with
treatments of 5/10 minutes.
.
Use only in consenting adults.
Attention do not spill liquids or any
substances on the device. Liquid
penetration could damage the device.
In case of suspected malfunctioning do
not open or repair the device. Do not use
the device. Electric shock risk. Contact
the distributor or fabricant.
.
Do not connect or disconnect the device
from domestic plug with wet hands.
Electric shock risk.
Do not use the device in presence of
acute inflammations or injuries. Infections
risk
Please consult the doctor in case of
cancer, intestinal problems, fractures,
acute thrombosis and other
invalidating pathologies.

IACER SRL Page 18 di 22 MNPG80-01 of 06/05/2016
Use the device only with 220V power
supply. Electric shock risk. Disconnect
the device from domestic plug when not
in use.
.
Do not press, bend or damage the
electric cable. Electric shock risk.
Avoid to connect more devices to the
same multiple plug. Overheating risk
Avoid device hits or drops.
Caution
Use the device only for expected
purposes.
Do not expose the device to the sun
and do not storage it next to heat
sources.

IACER SRL Page 19 di 22 MNPG80-01 of 06/05/2016
Maintenance, carriage and storage
If it is used in accordance with the instructions of the user
manual, the device does not need a particular regular
maintenance.
Carriage precautions
It doesn’t need any particular carriage precautions: however we
recommend to put away Power Q-6000 Plus and its accessories in
their own box after every treatment.
Do not place any objects on the device or
on its parts (connector tubes, applicators,
etc.)
If you not use the device for a long time or
if you use the device in cold places, a
malfunctioning may happen: make it
operating by changing progressively the
intensity for 3-4 times
Clean the device using a dry soft cloth. Do
not use cleaning solvents or other
chemical substances in order to avoid any
damages.
Do not bend or tie the connection tubes.
Use the device only for expected
purposes.
Product subject to WEEE regulations
concerning separate waste collection of
electronic equipment.

IACER SRL Page 20 di 22 MNPG80-01 of 06/05/2016
Storage precautions
Power Q-6000 PLUS is protected till following environmental
conditions:
Outside of the packaging
temperature from +5 to + 40 °C
humidity from 30 to 80%
pressure from 500 to 1060 hPa
Inside of the packaging
Temperature from –10 to +55 °C
Humidity from 10 to 90%
pressure from 500 to 1060 hPa
Warranty
Concerning the warranty make reference to the national laws by
contacting the national distributor (or directly the fabricant
IACER).
Assistance
Every intervention on device must be performed by
manufacturer. For any assistance intervention contact the
national distributor or:
I.A.C.E.R. S.r.l.
Via S. Pertini, 24/a • 30030 Martellago (VE) -ITALY
Tel. [phone] • Fax [phone]
You can get any technical documentation on spare parts but only
prior business authorization.
