I-Tech Power-Q1000 Premium User manual

User manual
PG 102 Rev 03 Editi 031215
Pressotherapy model
Power-Q1000
Premium

I.A.C.E.R. Srl
Via S. Pertini 24/A – 30030
Martellago (VE) ITALY
Tel. [phone] • Fax [phone]
e-mail: [e-mail] http://www.itechmedicaldivision.com

MDD 93/42/EEC Compliance

IACER SRL Page 4 di 24 MNPG102-02 30/07/15
Summary
Summary 4
Pressotherapy 5
Machine body 6
Graphic display detail 6
Accessories 7
Accessories size 8
Configurations 9
Specifications 10
Technical Specifications 10
Purpose 10
Working instructions 11
Warnings 18
Cleaning 21
Disposal 21
Assistance 22
Spare parts 22
Warranty 22

IACER SRL Page 5 di 24 MNPG102-02 30/07/15
Pressotherapy
Compressive limbs therapy is able to promote a right venous circulation
by decreasing muscle tension caused by stress or chronic and acute
pains: thanks to its pump action it favorites venous return by increasing
tissues blood circulation and finally their physiological renewal.
Compressive limbs therapy can solve blood stagnation problem in
damaged sanguine vessels or in body zones not correctly bedewed.
External compression allows excess interstitial fluids to return in
circulatory system in order to be quickly removed.
Most common applications are:
•Body massage increase;
•Blood flow promotion thanks to a slow and progressive
pressure;
•Lymphatic drainage;
•Lower limbs relief and comfort;
•Substances stagnation prevention in peripheral tissues;
•Blood insufficiency prevention caused by an inadequate pump
action;
•Muscle tone loss in disabled or paralyzed patients.
Compressive limbs therapy substitutes the manual massage for
trophic purposes.

IACER SRL Page 6 di 24 MNPG102-02 30/07/15
Machine body
(1) : ON/OFF button
(2) : LCD graphic display
(3) : Programs menu buttons
(4) : Air discharge output
Graphic display detail
(1) MENU’ : menu selector (Mode, Pressure time, Interval, Time,
Pressure).
(2) MOVE : programs menu selector (Mode, Pressure time,
Interval, Time, Pressure).
(3) SET : programs values selector
(4) START/STOP: start/stop selector
(5) SAVE : store button (keeping pressed for 5 seconds)
(6) RESET : reset button (keeping pressed for 5 seconds)
(7) LCD graphic display
(8) PRESSURE (mmHg): pressure value
(9) MODE: mode selector (A1, A2, B, C, D(D1, D2, D3, D4), E)
(10)
INTERVAL : interval time (5,10,15,20,25,30 sec)
(11) TIME (min) : therapy time (5÷99 min)
1
2
3
4
3

IACER SRL Page 7 di 24 MNPG102-02 30/07/15
(12) PRESSURE TIME : air flow speed (5,7,9,11,13,15,17,19,21
sec).
(13) LEG PICTURE: shows the working compression chamber.
Accessories
(8)
PRESSURE
PLANTARS (9)
2 DERIVATIONS
CONNECTION
TUBES FOR
LEGGINGS
(6)
LEGGINGS
(11)
ARMBAND
(12)
ABDOMINAL
BAND
(10)
1 DERIVATION
CONNECTION
TUBES
(7)
EXTENSIONS
FOR LEGGINGS
(13)
SPECIAL SPLITTER FOR SIMULTANEOUS THERAPY ON BOTH LEGS AND
ABDOMINAL BAND

IACER SRL Page 8 di 24 MNPG102-02 30/07/15
Accessories size
Legging:
•Length around 76 cm (from upper side to heel)
•Thigh circumference around 65
•Ankle circumference around 38 cm
Armband:
•Max. length around 86 cm
•Biceps circumference around 50 cm
•Wrist circumference around 36 cm
Abdominal band:
•Abdominal around 136 cm
•Height around 46 cm
•Velcro height around 31 cm
Extensions:
•Max. width around 13 cm
•Min. width around 6 cm

IACER SRL Page 9 di 24 MNPG102-02 30/07/15
Configurations
Power Q1000 Premium can be supplied in 5 different versions:
POWER Q1000 PREMIUM TOT – compressive limb therapy system
comprising machine body, double legging (6), 2 derivations
connection tubes (9), 2 pressure plantars (8), armband (11),
abdominal band (12), 1 derivation connection tubes (10), special
connector for simultaneous therapy on both legs and abdominal
band (13).
POWER Q1000 PREMIUM LEG2-ABD – compressive limb therapy
system comprising machine body, double legging (6), 2
derivations connection tubes (9), 2 pressure plantars (8),
abdominal band (12), 1 derivation connection tubes (10), special
connector for simultaneous therapy on both legs and abdominal
band (13).
POWER Q1000 PREMIUM LEG2 – compressive limb therapy
system comprising machine body, double legging (6), 2
derivations connection tubes (9), 2 pressure plantars (8).
POWER Q1000 PREMIUM LEG1 – compressive limb therapy
system comprising machine body, single legging (6), 1 derivation
connection tubes (10).
POWER Q1000 PREMIUM ARM1 – compressive limb therapy
system comprising machine body, armband (11), 1 derivation
connection tubes (10).
Extensions for wide legs (7) and special connector for simultaneous
therapy on both legs and abdominal band (13) are available as
accessories.
Single accessories are available as optional to complete POWER
Q1000 Premium content and potentiality.

IACER SRL Page 10 di 24 MNPG102-02 30/07/15
Specifications
POWER Q1000 Premium has the following specifications:
•Class IIa equipment (Directive 93/42/EEC, annexed IX, rule 9);
•Class II, applied part type BF (Classif. CEI EN 60601-1);
•CE0476 certificate;
•Equipment not protected against liquids penetration;
•Equipment and accessories not subjected to sterilization;
•Use of the equipment is prohibited close to flammable substances
or in environments with high concentrations of oxygen;
•Continuous operating mode equipment;
•Equipment not suited to be used in external.
Technical Specifications
Power Supply
220
-
240 V
AC,
50-60 Hz
Therapy time
Impostabile
5
÷
99
min.
Current
0,2 A
Max pressure
240
mm H
(±20%)
Max output
power
53
W
Weight
K
2k
Purpose
Clinical Purpose: Therapeutic
Use: Clinic and domestic use

IACER SRL Page 11 di 24 MNPG102-02 30/07/15
Working instructions
Accessories use
a) Leggings use
i) Wear the leggings (or single legging) and close the zip up
to the end, then close the retaining Velcro straps; in case of
wide circumferences legs, connect the extensions available
as accessories;
ii) Insert the pressure plantars under the feet (available only
with double leggings);
iii) When wearing the leggings pay attention to position the
tubes connection cables in the internal side of each legging;
in single legging version connection cables position is not
important;
iv) Connect 4 tubes to the 4 plugs positioned on each legging,
paying attention to connect the longer tube to the higher
position connector (darker color) of legging (thigh);
v) After connecting the tubes to the relatives leggings, connect
the tubes to the air discharge output (5).
CONNECTION
PLUGS
PRESSURE PLANTARS
VELCRO
ZIP

IACER SRL Page 12 di 24 MNPG102-02 30/07/15
b) Abdominal band use
i) Wear the band and connect the tubes to the band plugs,
paying attention to connect the longer tube to the higher
position connector on abdominal band;
ii) After connecting the tubes to the band, connect the tubes to
the air discharge output (5).
c) Simultaneous use of double leggings and abdominal band
i) Connect the special splitter for simultaneous therapy (13) to
the air discharge output (5). Then connect double leggings
and abdominal band connectors to the splitter;
ii) Wear the leggings (or single legging) and close the zip up
to the end, then close the retaining Velcro straps; in case of
wide circumferences legs, connect the extensions available
as accessories;
iii) Insert the pressure plantars under the feet (available only
with double leggings);
iv) When wearing the leggings pay attention to position the
tubes connection cables in the internal side of each legging;
in single legging version connection cables position is not
important;
CONNECTION
PLUGS

IACER SRL Page 13 di 24 MNPG102-02 30/07/15
v) Connect 4 tubes to the 4 plugs positioned on each legging,
paying attention to connect the longer tube to the higher
position connector (darker color) of legging (thigh);
vi) After connecting the tubes to the relatives leggings, connect
the tube to the splitter connected to the air discharge output
(13);
vii) Wear the band and connect the tubes to the band plugs,
paying attention to connect the longer tube to the higher
position connector on abdominal band;
viii) After connecting the tubes to the band, connect the tubes to
the splitter connected to the air discharge output (13).
b) Armband use
i) Wear the armband and connect the tubes to the armband
plugs, paying attention to connect the longer tube to the
higher position connector (darker color) on armband;
ii) After connecting the tubes to the armband connect the
tubes to the air discharge output (5).

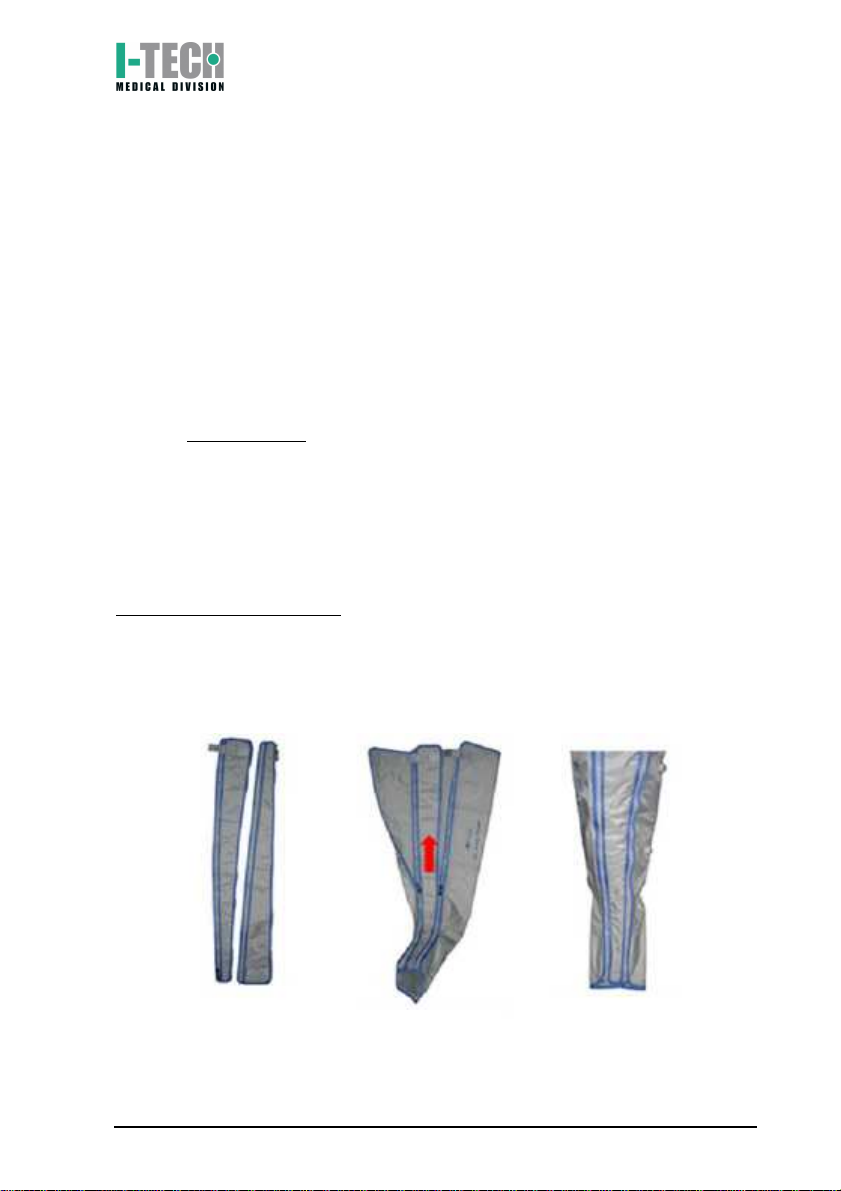

Extensions use (optional)
Extensions are available as optional to increase legging and/or
armband circumference.
Connect the extensions to the zip of the legging/armband (see the
following imagine).

IACER SRL Page 14 di 24 MNPG102-02 30/07/15
Working instructions
1. Connect cable to the domestic plug 220-240 VAC, then turn ON (1)
the ON/OFF switch (1);
2. Select the parameters by pressing on MENU’ button.
3. Press on MOVE button to scroll the menu (MODE, PRESSURE TIME,
INTERVAL, TIME (min), PRESSURE (mmHg)).

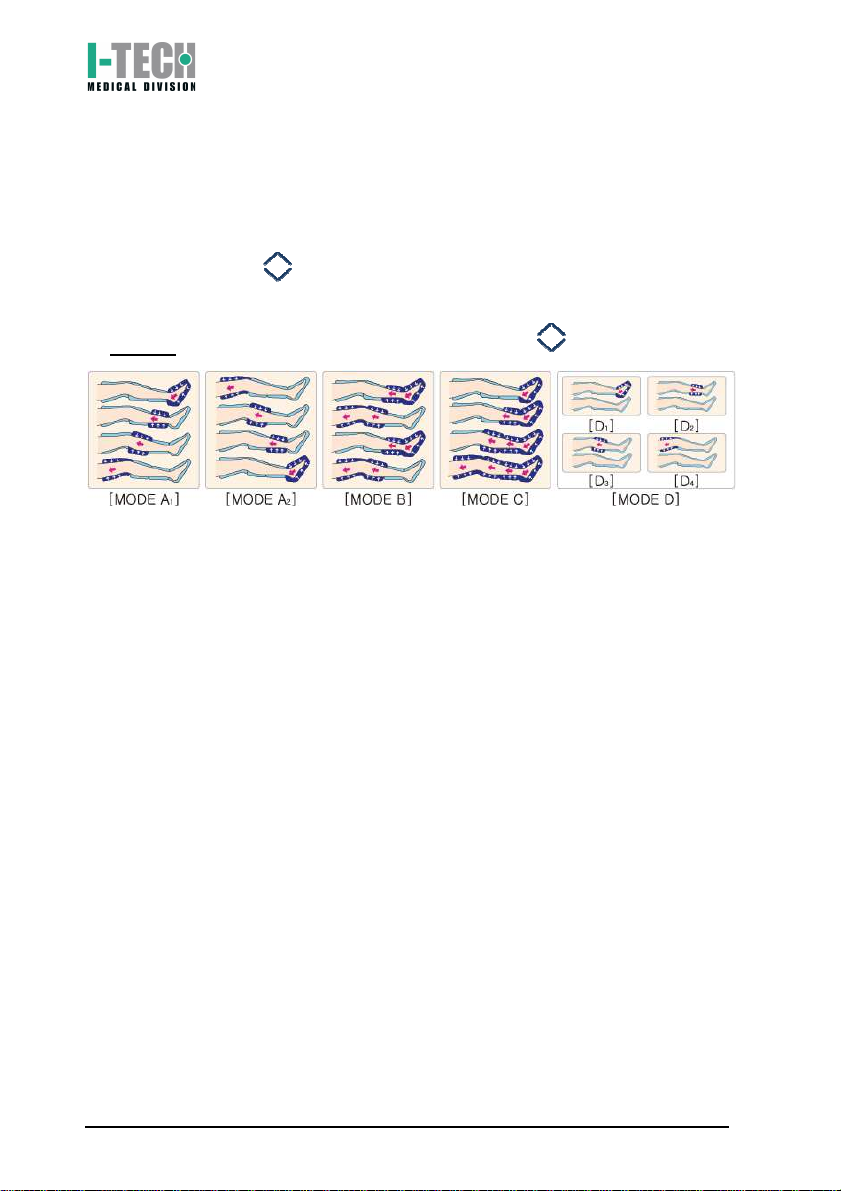

4. MODE. Select the program by pressing on SET button:
MODE A
1
: Air flows in the first chamber (lower limb) according to
adjusted pressure and sequentially in the other chambers in a distal-
proximal way.
MODE A
2
: Air flows in the fourth chamber (upper limb) according to
adjusted pressure and sequentially in the other chambers in a proximal-
distal way.
MODE B: Air flows in the first two chambers. When adjusted pressure is
reached air flows in the last two chambers (distal-proximal way).
MODE C: Air flows in the first chamber (lower limb) according to
adjusted pressure and sequentially in the other chambers (distal-
proximal way ) by keeping swelled up the previous chamber every time.
MODE D (1-2-3-4) : Air flows only in the selected compression chamber
(mode D1 chamber 1 ; mode D2 chamber 2 ; mode D3 chamber 4 ;
mode D4 chamber 4).
MODE E (MODE A
1
+ MODE C) : The machine runs two cycles in
sequence. During the first cycle air flows in the first chamber (lower
limb) according to adjusted pressure and sequentially in the other
chambers in a distal-proximal way. At the end of the first cycle the
machine starts the second cycle and air flows in the first chamber
(lower limb) according to adjusted pressure and sequentially in the
other chambers (distal-proximal way ) by keeping swelled up the
previous chamber every time.

IACER SRL Page 15 di 24 MNPG102-02 30/07/15
These two cycles are repeated in sequence till the end of duration of
the treatment.
5. PRESSURE TIME: Select air flow speed by pressing SET
buttons. You can choose 9 speed levels : 5,7,9,11,13,15,17,19,21
seconds.
Default speed: 7 seconds.
6. INTERVAL: Select interval time by pressing SET buttons. You
can choose 6 time intervals: 5,10,15,20,25,30 seconds. Default interval
time 0 seconds.
7. TIME: Select time therapy by pressing SET buttons. Therapy
time can be adjusted from 5 to 99 minutes. Default therapy time 15
minutes.
We suggest to start with treatment of 10-15 minutes and increase it
progressively according to your needs.
Attention: It’s not possible to change therapy time during the treatment.
8. PRESSURE: Select the pressure by pressing SET buttons. It is
possible to adjust pressure for each compression chamber from 0 to
240 mmHg.
Attention: Start the treatment with a middle pressure and increase it
progressively according to your needs.
9. Press START/STOP button to start the therapy. Any moment it’s
possible to stop the treatment pressing again START/STOP button.
10.Press RESET button to delete adjusted parameters and restore
the default settings.

IACER SRL Page 16 di 24 MNPG102-02 30/07/15
Troubleshooting
Problem
Solution
Power Q1000
Premium doesn’t
switch on
•Check the connection to the domestic
plug
•Check the ON/OFF button
•Check the power supply status (no sign
of damages)
•Check the therapy time
Power Q1000
Premium emits a
strange sound like
air leakage
•Check if there are any damages and/or
holes in the tubes and connectors
•Check the applicators right connection to
the main body
•Check if the tubes are pressed or bent
There is no
pressure or the air •Check the applicators right connection to
the main body

IACER SRL Page 17 di 24 MNPG102-02 30/07/15
doesn’t go into the
chambers •Check if the tubes are pressed or bent
•Check if the compression chambers
swell up in a progressive way
Air goes into the
compression
chambers and/or
an air leakage is
present in the
applicators
•Check if there are any holes or
damages in the compression chambers.
If there are not any air leakages, switch
off the device then switch on it and re-
check the right working
ATTENTION: with POWER Q1000 Premium double leggings version,
always connect both leggings to the connection tube even if you use
only one legging during the treatment.

IACER SRL Page 18 di 24 MNPG102-02 30/07/15

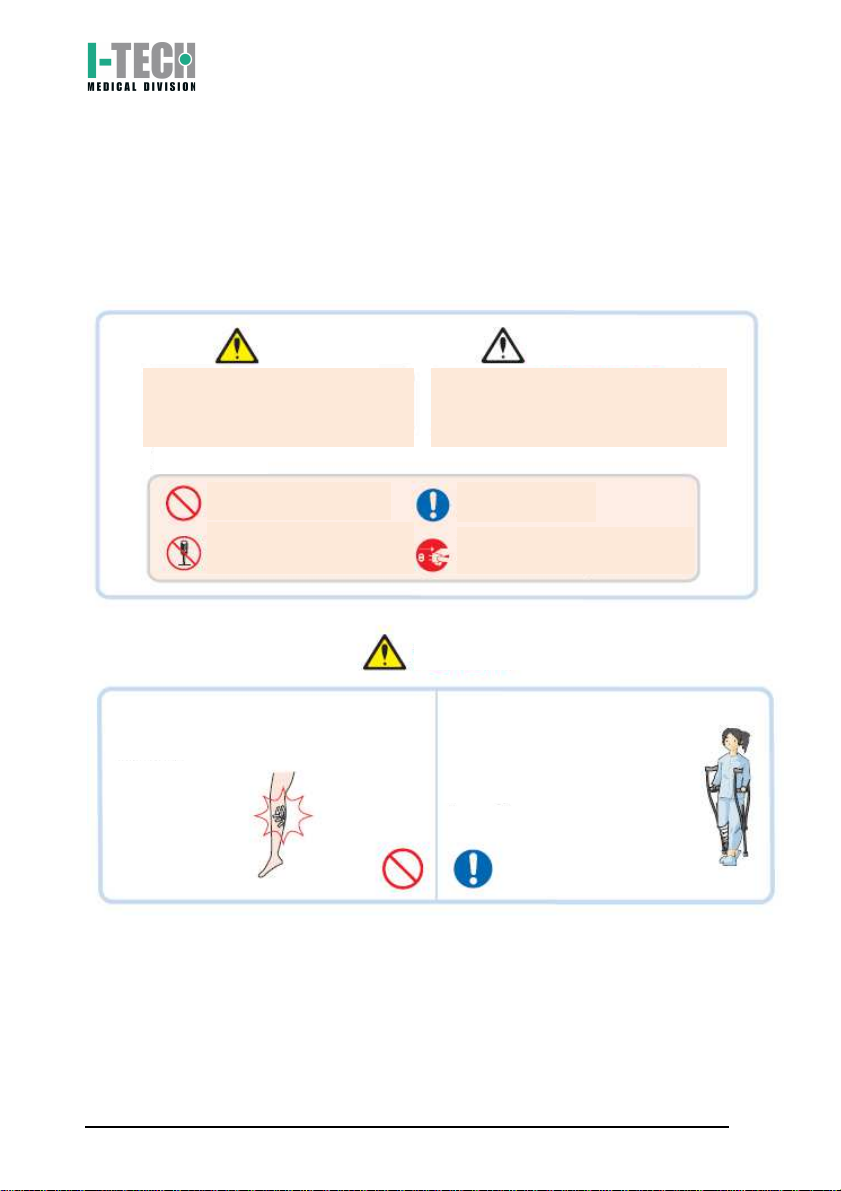

Warnings
The following warnings guarantee user safety and prevention against
damages and/or lesions.
Please read it carefully before using Power Q1000 Premium.
Warning
Caution
In case of not following the instructions
the user may suffer from serious
injuries
In case of not following the instructions the
user may suffer from serious injuries or
device damages
Indications
Prohibition indication Pay attention
This is an indication for
not disassembling Disconnect the cable from
domestic plug
Warning
Do not use the device in presence of acute
inflammations or injuries. Infections risk
Please consult the doctor in case
of cancer, intestinal problems,
fractures, acute thrombosis and
other invalidating pathologies.

IACER SRL Page 19 di 24 MNPG102-02 30/07/15

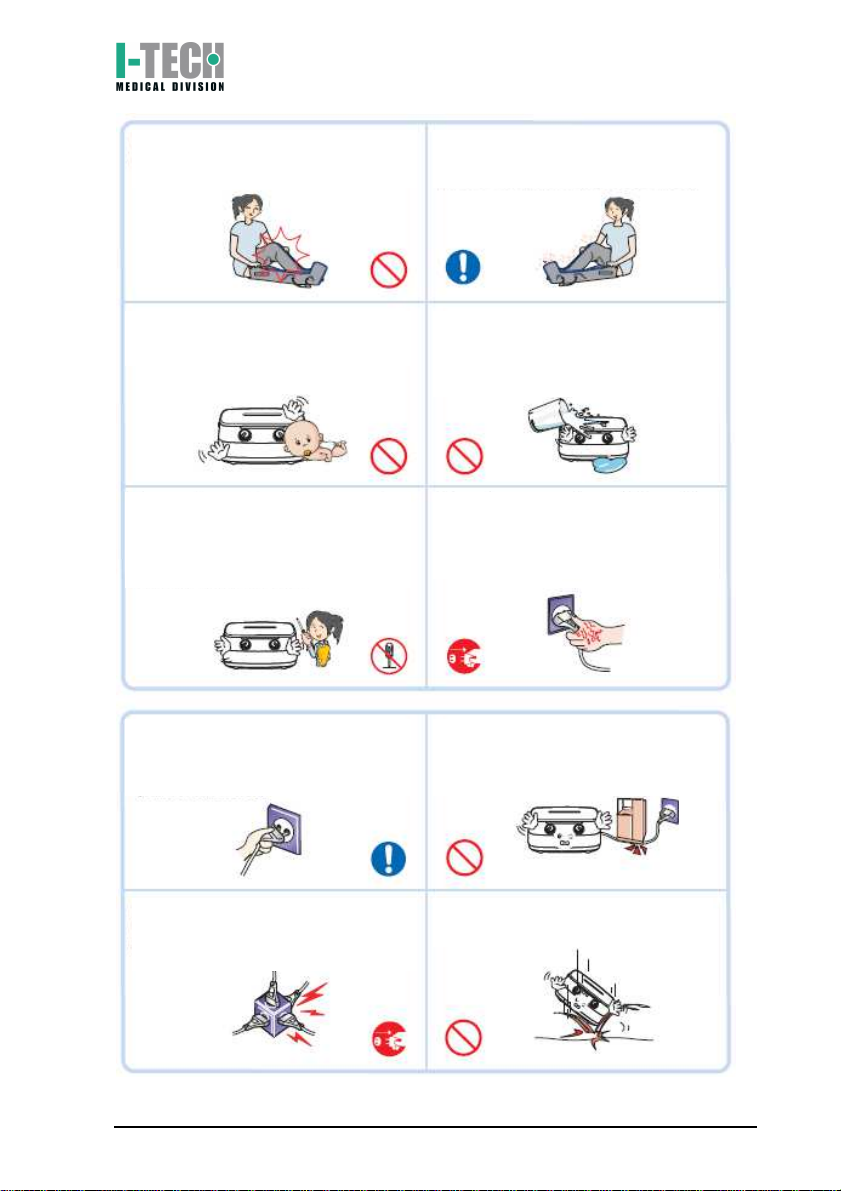

Do not use the device if you feel pain or
bad feelings
Do not exceed 20 minutes in the first
treatments. We suggest to start with
treatments of 5/10 minutes
.
Use only in consenting adults. Attention do not spill liquids or any
substances on the device. Liquid
penetration could damage the device.
In case of suspected malfunctioning do
not open or repair the device. Do not use
the device. Electric shock risk. Contact
the distributor or fabricant.
.
Do not connect or disconnect the device
from domestic plug with wet hands.
Electric shock risk.
Use the device only with 220V power
supply. Electric shock risk. Disconnect
the device from domestic plug when not
in use.
Do not press, bend or damage the
electric cable. Electric shock risk.
Avoid to connect more devices to the
same multiple plug. Overheating risk
Avoid device hits or drops.

IACER SRL Page 20 di 24 MNPG102-02 30/07/15
Caution
Use the device only for expected
purposes.
Do not place any objects on the device or
on its parts (connector tubes, applicators,
etc.)
If you not use the device for a long time or
if you use the device in cold places, a
malfunctioning may happen: make it
operating by changing progressively the
intensity for 3-4 times
Clean the device using a dry soft cloth. Do
not use cleaning solvents or other
chemical substances in order to avoid any
damages.
Do not bend or tie the connection tubes.
Use the device only for expected
purposes.
Product subject to WEEE regulations
concerning separate waste collection of
electronic equipment.
Do not expose the
device to the sun
and
do not storage it
next to heat
sources.
