USER MANUAL
MNPG61 Rev. 2 Edition 11/04/11
Compressive Limbs Therapy model
Power
Q-6000

I.A.C.E.R. Srl
Via S. Pertini 24/A 30030
Martellago (VE) ITALY
Tel. [phone] • Fax [phone]
e-mail: [e-mail] http://www.iacer.ve.it

Summary
Summary 3
Compressive Limbs Therapy 4
Machine body and accessories 5
Accessories size 6
Specifications 7
Technica Specifications 7
Purpose 7
Working instructions 7
Troub eshooting 10
Warnings 11
Warranty 14
Assistance 14
Spare parts 15
MDD 93/42/EEC Compliance
•MD Manufacturer Reg. n°1636
•MD Reg. n°04-1145
•
Electromagnetic
Interference tested
•Agency for Technology
and Standards

IACER SRL Pagina 4 di 16 MNPG61-02 del 11/04/11
Compressive Limbs Therapy
Compressive imbs therapy is ab e to promote a right venous
circu ation by decreasing musc e tension caused by stress or chronic
and acute pains: thanks to its pump action it favorites venous return
by increasing tissues b ood circu ation and fina y their physio ogica
renewa .
Compressive imbs therapy can so ve b ood stagnation prob em in
damaged sanguine vesse s or in body zones not correct y bedewed.
Externa compression a ows excess interstitia f uids to return in
circu atory system in order to be quick y removed.
Most common app ications are:
•Body massage increase;
•B ood f ow promotion thanks to a s ow and progressive
pressure;
•Lymphatic drainage;
•Lower imbs re ief and comfort;
•Substances stagnation prevention in periphera tissues;
•B ood insufficiency prevention caused by an inadequate
pump action;
•Musc e tone oss in disab ed or para yzed patients.
Compressive imbs therapy substitutes the manua massage
for trophic purposes.

IACER SRL Pagina 5 di 16 MNPG61-02 del 11/04/11
Machine body and accessories
(3)
PRESSURE
PLANTARS
(2)
2 DERIVATIONS
CONNECTION
TUBES FOR
LEGGINGS
(1)
LEGGINGS
(6)
ARMBAND
(4)
ABDOMINAL
BAND
(7)
1 DERIVATION
CONNECTION
TUBES FOR
ARMBANDS
(8)
EXTENSIONS
FOR LEGGINGS
(OPTIONALS)
Manometer
Timer
(Incr./Decr.)
On/Off
Pressure adjustment switch
Start/Stop
Air discharge output
Speed
Level 1 - 80 sec. – 0,8 Rpm
Level 2 - 39 sec. – 1,8 Rpm
Level 3 - 26 sec. – 2,0 Rpm
Level 4 - 18 sec. – 3,5 Rpm
Level 5 - 15 sec. – 4,1 Rpm
(5)
1 DERIVATION
CONNECTION
TUBES FOR
ABDOMINAL BAND

IACER SRL Pagina 6 di 16 MNPG61-02 del 11/04/11
Power Q-6000 is equipped with:
• machine body
• double legging (1)
• 2 derivations connection tubes for leggings(2)
• 2 pressure plantars(3)
• abdominal band (4)
• connection tube for abdominal band (5)
• armband (6)
• connection tube for armband (7)
• power supply cable
Optional accessories:
• extensions for leggings(8)
Accessories size
Legging:
•Length around 76 cm (from upper side to heel)
•high circumference around 65
•Ankle circumference around 38 cm
Armband:
•Max. length around 86 cm
•Biceps circumference around 50 cm
•Wrist circumference around 36 cm
Abdominal band:
•Abdominal around 136 cm
•Height around 46 cm
•Velcro height around 31 cm
Extensions:
•Max. width around 13 cm
•Min. width around 6 cm

IACER SRL Pagina 7 di 16 MNPG61-02 del 11/04/11
Specifications
Power Q-6000 has the following specifications:
•Class IIa equipment (Directive 93/42/EEC, annexed IX, rule 9);
•Class I, applied part type BF (Classif. CEI EN 60601-1);
•Equipment not protected against liquids penetration;
•Equipment and accessories not subjected to sterilization;
•Use of the equipment is prohibited close to flammable substances or in environments with
high concentrations of oxygen;
•Continuous operating mode equipment;
•Equipment not suited to be used in external.
Technical Specifications
Power supply
220
-
240 VAC,
50-60 Hz
T
herapy time
Adjustab e
Current
0,2 A
Max pressure
217
mm Hg
(±20%)
Max output
power
25 W
Weight
7,8
Kg
Purpose
Clinical purpose: herapeutic
Use: Clinic and domestic use
Working instructions
1) Connect cab e to the domestic p ug 220-240 VAC, then turn ON (1) the
ON/OFF switch;
2) Wear the app icators

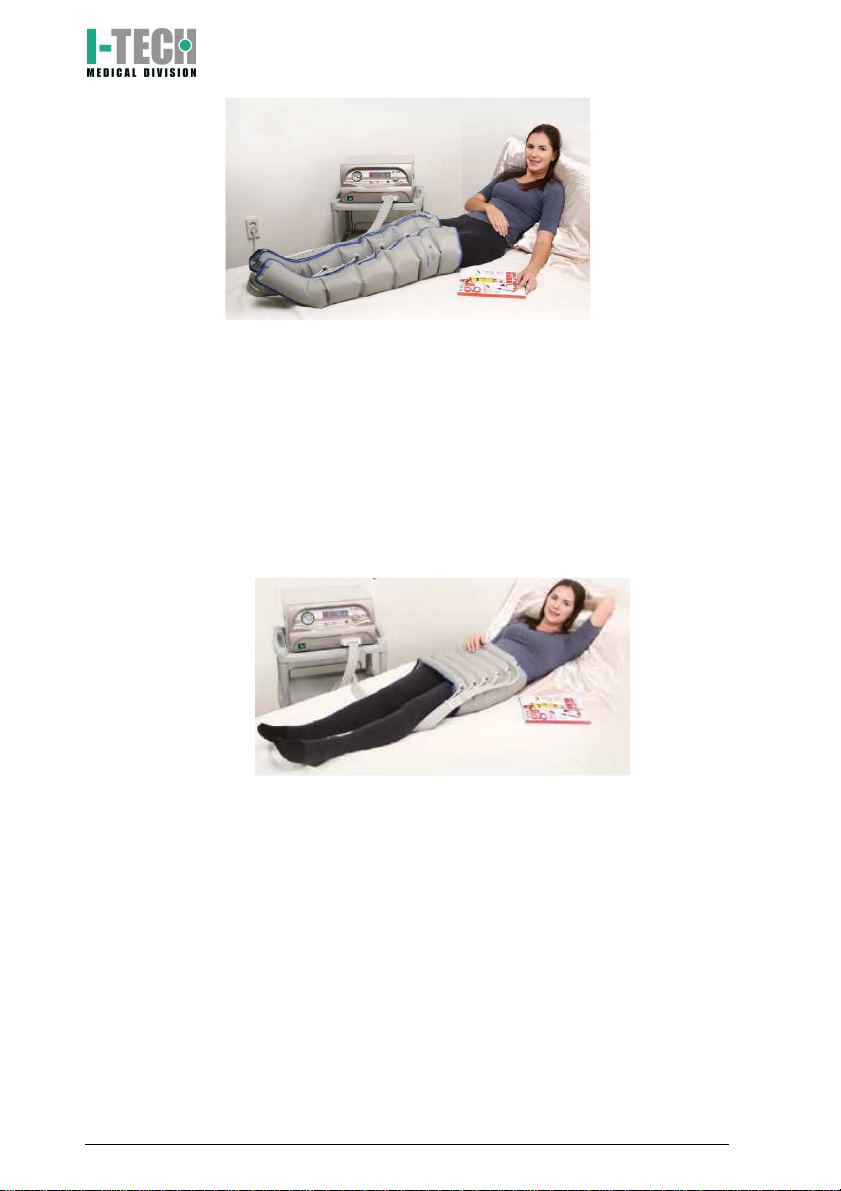

a) Leggings use
i) Wear the leggings (or single legging) and close the zip up to the end, then close
the retaining Velcro straps; in case of wide circumferences legs, connect the
extensions available as accessories;

IACER SRL Pagina 8 di 16 MNPG61-02 del 11/04/11
ii) Insert the pressure plantars under the feet (available only with double leggings);
iii) When wearing the leggings pay attention to position the tubes connection cables
in the internal side of each legging;
iv) Connect 6 tubes to the 6 plugs positioned on each legging, paying attention to
connect the longer tube to the higher position connector of legging (thigh);
v) After connecting the tubes to the relatives leggings, connect the tubes to the air
discharge output.
b) Abdominal band use
i) Wear the band and connect the tubes to the band plugs, paying attention to
connect the longer tube to the higher position connector on abdominal band;
ii) After connecting the tubes to the band, connect the tubes to the air discharge
output.
c) Armband use

IACER SRL Pagina 9 di 16 MNPG61-02 del 11/04/11
i) Wear the armband and connect the tubes to the armband plugs, paying attention
to connect the longer tube to the higher position connector on armband;
ii) After connecting the tubes to the armband connect the tubes to the air discharge
output.
3) Pressure regu ator (se ector on machine body)
a) Air pressure in compression chambers can be adjusted from 0 to maximum pressure
(around 217 mmHg ± 20%) by rotating the knob in clockwise;
b) Start the treatment with a middle pressure and increase it progressively according to
your needs.
4) Speed regu ator (se ector on machine body)
a) he initial speed is set to 3 level when the device is turned on. Adjust the speed value
from 1 to 5 according to your needs.
5) Therapy time (se ector on machine body)
a) With UP and DOWN buttons you can adjust (increase or decrease) the therapy
time;
b) Air spends 2 minutes to go into in the applicator chambers.

IACER SRL Pagina 10 di 16 MNPG61-02 del 11/04/11
Troubleshooting
Pro
blem
Solution
Power
Q
-
6000
doesn’t switch on
•Check the connection to the domestic p ug
•Check the ON/OFF button
•Check the power supp y status (no sign of
damages)
Power
Q
-
6000
emits
a strange sound ike
air eakage
•Check if there are any damages and/or ho es
in the tubes and connectors
•Check the app icators right connection to the
main body
•Check if the tubes are pressed or bent
There
is no pressure
or the air doesn’t go
into the chambers
•Check the app icators right connection to the
main body
•Check if the tubes are pressed or bent
•Check if the compression chambers swe up
in a progressive way
Air goes into the
compression
chambers and/or an
air eakage is present
in the app icators
•Check if there are any ho es or damages in the
compression chambers. If there are not any air
eakages, switch off the device then switch on
it and re-check the right working
ATTENTION: with Power Q-6000 sing e egging use the 1 derivation connection tube (used for the
abdomina band and armband connection).

IACER SRL Pagina 11 di 16 MNPG61-02 del 11/04/11
Warnings
The fo owing warnings guarantee user safety and prevention against
damages and/or esions.
P ease read it carefu y before using Power Q-6000
Warning
Caution
In case of not following the
instructions the user may
suffer from serious injuries
In case of not following the
instructions the user may
suffer from injuries or device
damages
Indications
Prohibition indication
This is an indication for
not disassembling
Pay attention
Disconnect the cable from
domestic plug
Do not use the device in presence of
acute inflammations or injuries. Infections
risk.
Please consult the doctor in case of
cancer, intestinal problems, fractures,
acute thrombosis and other invalidating
pathologies.
Warning

IACER SRL Pagina 12 di 16 MNPG61-02 del 11/04/11
Do not use the device if you feel pain or
bad feelings.
Do not exceed 20 minutes in the first
treatments. We suggest to start with
treatments of 5/10 minutes
Use only in consenting adults
Attention do not spill liquids or any
substances on the device. Liquid
penetration could damage the device
In case of suspected malfunctioning do
not open or repair the device. Do not use
the device. Electric shock risk. Contact
the distributor or fabricant.
Do not connect or disconnect the device
from domestic plug with wet hands.
Electric shock risk.
Use the device only with 220V power
supply. Electric shock risk. Disconnect
the device from domestic plug when not
in use.
Do not press, bend or damage the
electric cable. Electric shock risk.
Avoid to connect more devices to the
same multiple plug. Overheating risk.
Avoid device hits or drops.

IACER SRL Pagina 13 di 16 MNPG61-02 del 11/04/11
Caution
Do not move when the device is working. Do not expose the device to the sun and
do not storage it next to heat sources
Do not place any objects on the device or
on its parts (connector tubes, applicators,
etc.)
If you not use the device for a long time or
if you use the device in cold places, a
malfunctioning may happen: make it
operating by changing progressively the
intensity for 3-4 times.
Clean the device using a dry soft cloth. Do
not use cleaning solvents or other
chemical substances in order to avoid any
damages.
.
Do not bend or tie the connection tubes.
Use the device only for expected
purposes.
Product subject to WEEE regulations
concerning separate waste collection of
electronic equipment.

IACER SRL Pagina 14 di 16 MNPG61-02 del 11/04/11
Maintenance, carriage and storage
If it is used in accordance with the instructions of the user manua , the device
does not need a particu ar regu ar maintenance.
Carriage precautions
It doesn’t need any particu ar carriage precautions: however we recommend to put
away Power Q-6000 and its accessories in their own box after every treatment.
Storage precautions
Power Q-1000 PLUS is protected ti fo owing environmenta conditions:
Outside of the packaging
Temperature from +5 to + 40 °C
Humidity from 30 to 80%
Pressure from 500 to 1060 hPa
Inside of the packaging
Temperature from –10 to +55 °C
Humidity from 10 to 90%
Pressure from 500 to 1060 hPa
Warranty
Concerning the warranty make reference to the nationa aws by contacting the
nationa distributor (or direct y the fabricant IACER)
Assistance
Every intervention on device must be performed by manufacturer. For any
assistance intervention contact the nationa distributor or:
I.A.C.E.R. S.r.l.
Via S. Pertini, 24/a • 30030 Marte ago (VE) -ITALY
Te . [phone] • Fax [phone]
www.iacer.it • [email protected]
You can get any technica documentation on spare parts but on y prior business
authorization.

IACER SRL Pagina 15 di 16 MNPG61-02 del 11/04/11
Spare parts
Contact the distributor or the fabricant for origina spare parts at fo owing
address:
I.A.C.E.R. S.r.l.
Via S. Pertini, 24/a • 30030 Marte ago (VE)
Te . [phone] • Fax [phone]
www.iacer.it • [email protected]
To preserve product warranty, functiona ity and product safety we recommend to use on y
origina spare parts.
POWER Q-6000 is manufactured by:
IACER Sr is the mandatary nominated by the manufacturer in the
European Community with regard to Power Q-6000.
Power Q-6000 is an exc usive distribution of IACER SRL.
Power Q-6000. All rights reserved. logos is owned by I.A.C.E.R. Srl and is registered.
