Introduction
Thank you for purchasing i3 Annexxus 516 IP video encoder device.
Annexxus network video encoders allow to encode analog video into high quality digital video for use and storage on a
hard disk (some models only) or to be transmitted via local area network and stored on your SRX-Pro Server. The benefits
of this technology allow for increased flexibility within the surveillance network.
Annexxus 516 model features 16 BNC video inputs and 16 audio inputs. Optional SATA interface supports up to 4TB of
hard drive storage for on-site redundancy recording, offering an effective and affordable data back-up solution in an NVR
environment.
With video being locally stored on the Ax516, storage loss can be avoided during network interruptions. Additionally,
Ax516 encoder can be used as an IP Network video appliance for transmitting video over the LAN to i3 Digital Video
Management Software (DVMS) software. The Ax516 storage capabilities enable it to function as a conventional stand-
alone DVR as well as a high-quality video streaming encoder. Dual-streaming provides two independent streams per video
input, allowing viewing and recording at two different quality levels to save disk space and bandwidth.
The Ax516 encoder transmits full-motion video at 30 fps (NTSC) or 25 fps (PAL) per channel at the maximum resolution of
960H (960×480 [NTSC]; 960×576 [PAL]). For high-performance, multi-channel surveillance over IP data networks, the
Ax516 is a unique multi-channel encoder that can cost effectively aid the transition from analog video to IP video at the
best possible cost with little worries of video storage lost.

Installation
Warnings and Operation Notes
Installation and servicing must be performed only by qualified and experienced technicians to conform to all local codes
and to maintain your warranty.
WARNING! The use of CSA certified/ UL Listed Class 2 power adapter is required to ensure compliance.
WARNING! To reduce the risk of fire or electric shock, do not expose the product to rain or moisture.
When installing your Annexxus encoder, be sure to avoid:
excessive heat, such as direct sunlight or heating appliances
moisture and humidity
environments without adequate ventilation
contaminants such as dust and smoke
strong magnetic fields
sources of powerful electromagnetic radiation such as radios or TV transmitters
areas with mechanical vibrations
temperatures below -10° Celsius or 14° Fahrenheit and above 55° Celsius or 131° Fahrenheit.
environments with humidity levels in excess of 90%
Power Supply
Ensure the supplied voltage meets the power consumption requirements of this camera before powering the camera on.
Incorrect voltage may cause irreparable damage to the unit and will effectively void the device warranty.
Installation Requirements and Recommendations
1. Use provided brackets for rack mount installations.
2. Ensure ample room for audio and video cables.
3. When installing cables, ensure that the bend radius of the cables is no less than five times
its diameter.
4. Connect both the alarm and RS-485 cables.
5. Allow at least 2 cm (~0.75in) of space between rack mounted devices.
6. Ensure the Encoder is grounded.
7. Environmental temperature must remain within the range of -10ºC ~ 55ºC, 14ºF ~
131ºF.
8. Environmental humidity must remain within the range of 10% ~ 90%.

Annexxus 516 Encoder - User Manual
Unpacking
Check that the items received match those listed on the order form and packing slip. In addition to this manual, the

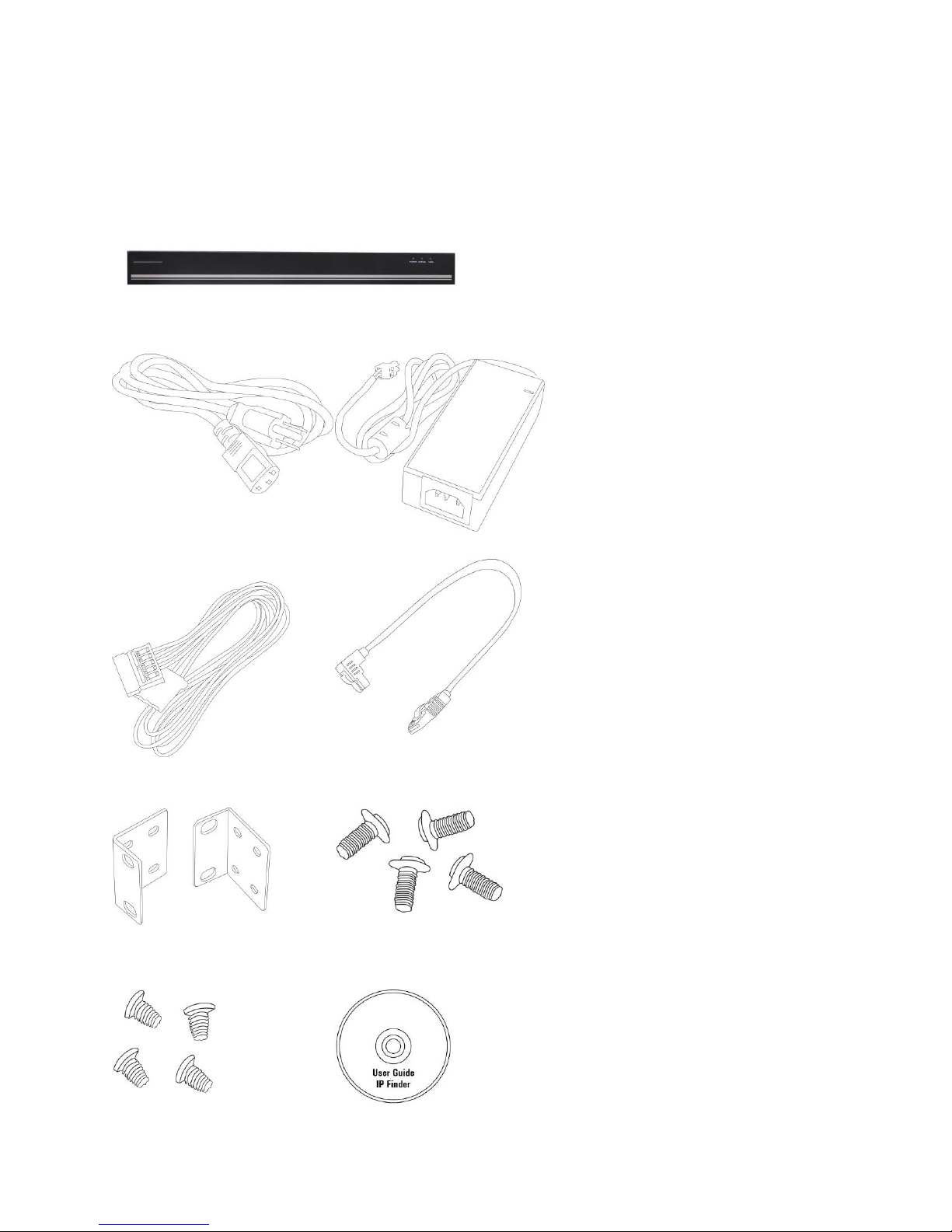

packing box includes:
1 x Annexxus 516 encoder
1x Power cord
1x 12VDC power adapter
1x HDD Power Cable
1x HDD SATA Cable
2x Mounting Brackets
4x Mounting Screws
4x HDD Screws
1x CD (Manual, IP Finder)

Installation
7
If any parts are missing or damaged, contact the dealer you purchased the encoder from.
Hard Disk Installation / Replacement
WARNING! Use only hard disk drives from the i3-approved list.
If you have purchased your Annexxus 516 without a hard disk drive (HDD) or if you need to replace the HDD in your
Annexxus 516 unit, please refer to the following instructions on how to install an i3-approved drive. The installation and
removal of the hard disk must be performed by a qualified and experienced technicians to conform to all local codes and to
maintain your warranty.
Before installing a hard disk drive (HDD) for Annexxus 516, ensure that the power is disconnected from the device. Use
only an i3-approved HDD.
Step 1.
Ground yourself. This will remove any static electrical charge your body might be carrying.
Step 2.
Using a Phillips screwdriver, remove the screws on both sides and on the rear panel of Annexxus 516. Remove the cover
from the chassis.
Step 3.
Place the i3-approved HDD into the hard drive slot of the chassis, face up.

Annexxus 516 Encoder - User Manual
Step 4.
Securely attach the HDD to the bottom of the chassis with the four screws provided.
Step 5.

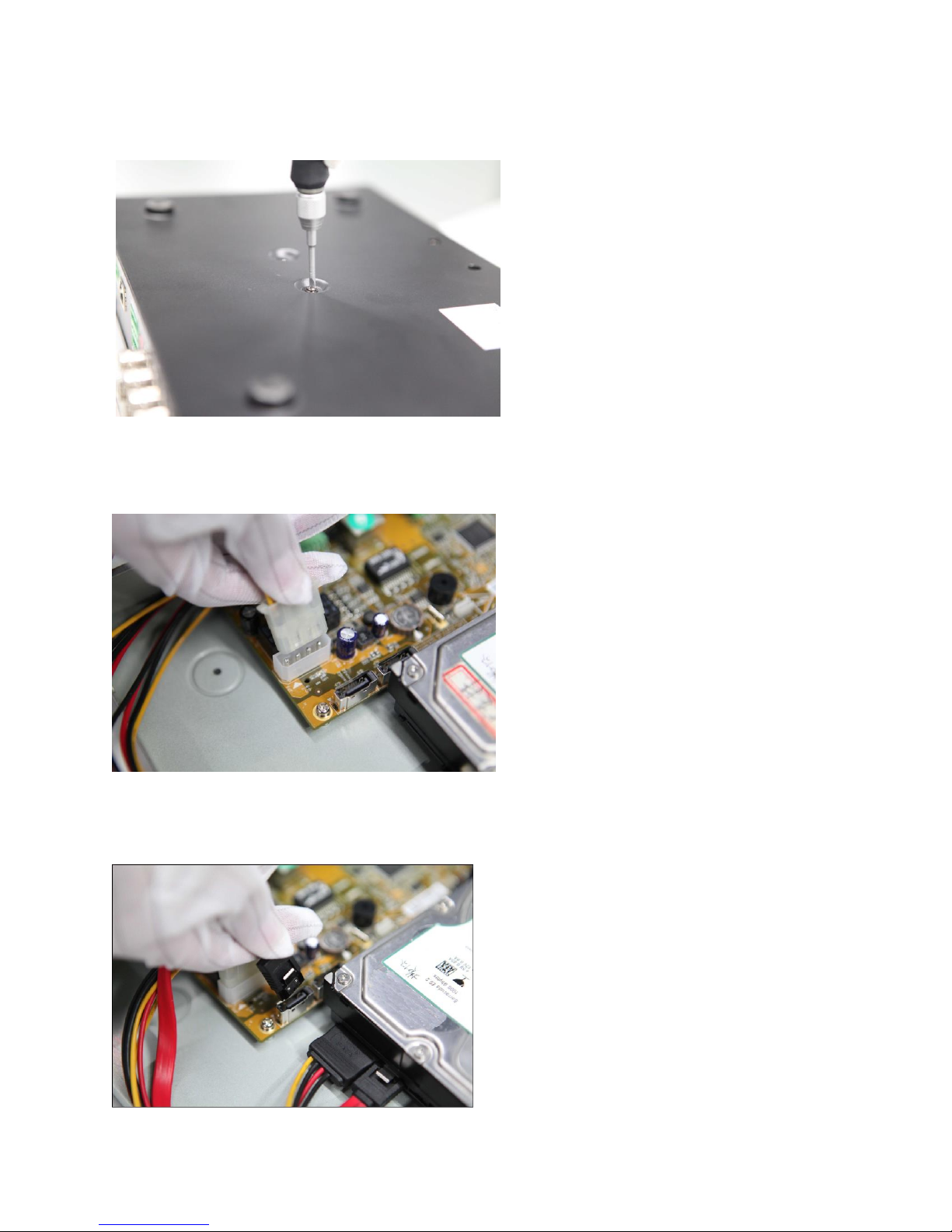

Remove the HDD power cable from the accessories box. Plug one end of the cable into the power port on the HDD and
the other end - into the circuit board, as shown in the image below.
Step 6
Remove the SATA cable from the accessories box. Plug one end of the SATA cable into the SATA port on the HDD and the
other end - into the circuit board, as shown in the image below.

Installation
9
Step 7
Replace the chassis cover and re-tighten the screws on both sides and on the rear panel of the chassis.

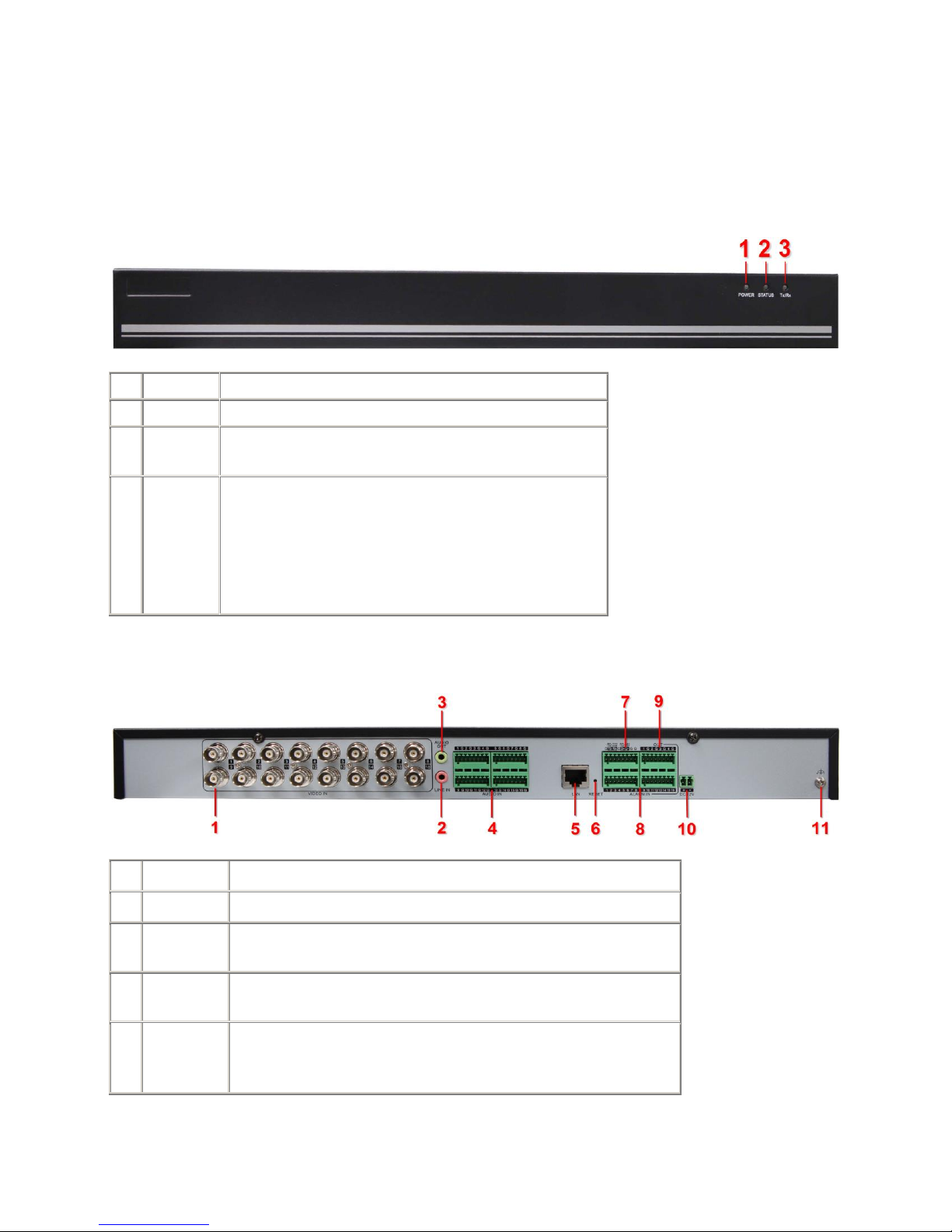

Front Panel
Indicator
Description
1
POWER
LED is red when power is ON
2
STATUS
LED is red when data is being read from or written to the HDD.
Applies only to models with the installed HDD.
3
Tx/Rx
1. LED of OFF when Annexxus 516 is not connected to the
network
2. LED blinks green when the data is being transmitted /
received;
3. LED blinks at higher frequency when the large amounts of
data are being transmitted/received.
Rear Panel
Indicator
Description
1
VIDEO IN
BNC connectors for analog video inputs (1-16)
2
LINE IN
3.5mm two-way audio interface; connect to active pick-up, microphone,
etc.
3
AUDIO OUT
3.5mm audio output interface; connect to audio output device, such as a
speaker, etc.
4
AUDIO IN
Line input interface for audio input. Audio Port number corresponds and is
hard-linked with the Video Port number. Make sure to connect audio inputs
to the corresponding video channels.

Annexxus 516 Encoder - User Manual
5
LAN
10M/100/1000Mbps adaptive Ethernet interface
6
RESET
Restore Annexxus 516 unit to factory default settings by pressing the
RESET pin hole button for 15 seconds after the power is turned OFF
7
RS-485
RS-485 serial interface is provided for Pan/Tilt/Zoom support for PTZ
cameras.
8
ALARM IN
Relay alarm input (up to 16 sensors)
9
ALARM OUT
Relay alarm output (up to 4 controls)
10
DC12V
12V DC power supply
11
GND
Grounding
Installation Instructions
1. Connect up to 16 analog cameras to the BNC VIDEO IN ports on the back of the Annexxus 516 unit
2. Connect the microphone or other two-way audio device to the LINE IN 3.5mm port, if using
3. Connect the speakers, or other audio output device to the AUDIO OUT 3.5mm port, if using
4. Connect up to 16 audio inputs to the AUDIO IN ports, if using. Audio Port number corresponds and is hard-linked
with the Video Port number. Make sure to connect audio inputs to the corresponding video channels.
5. Connect a network cable to the LAN port on the back of the Annexxus 516 unit, plug in the other end of the
cable to SRX-Pro Server for a direct/cross-over connection or plug into the Gigabit switch if using on the network
or connecting multiple Annexxus 516 units.
6. Connect PTZ control cables from PTZ cameras to RS-485 port on the back of the Annexxus 516 unit, if using.
7. Connect up to 16 sensor inputs to ALARM IN ports, if using.
8. Connect up to 4 control relay outputs to ALARM OUT ports, if using.
9. Connect the 12VDC power adapter to your Annexxus 516 unit.
10. Connect the power cable to the 12VDC power adapter.
11. Lastly, plug in the power cable into the power source. The use of UPS (Uninterrupted Power Supply) is highly
recommended to extend the life of your unit. Annexxus 516 unit will power on automatically.

Connecting Encoder to the SRX-Pro Server

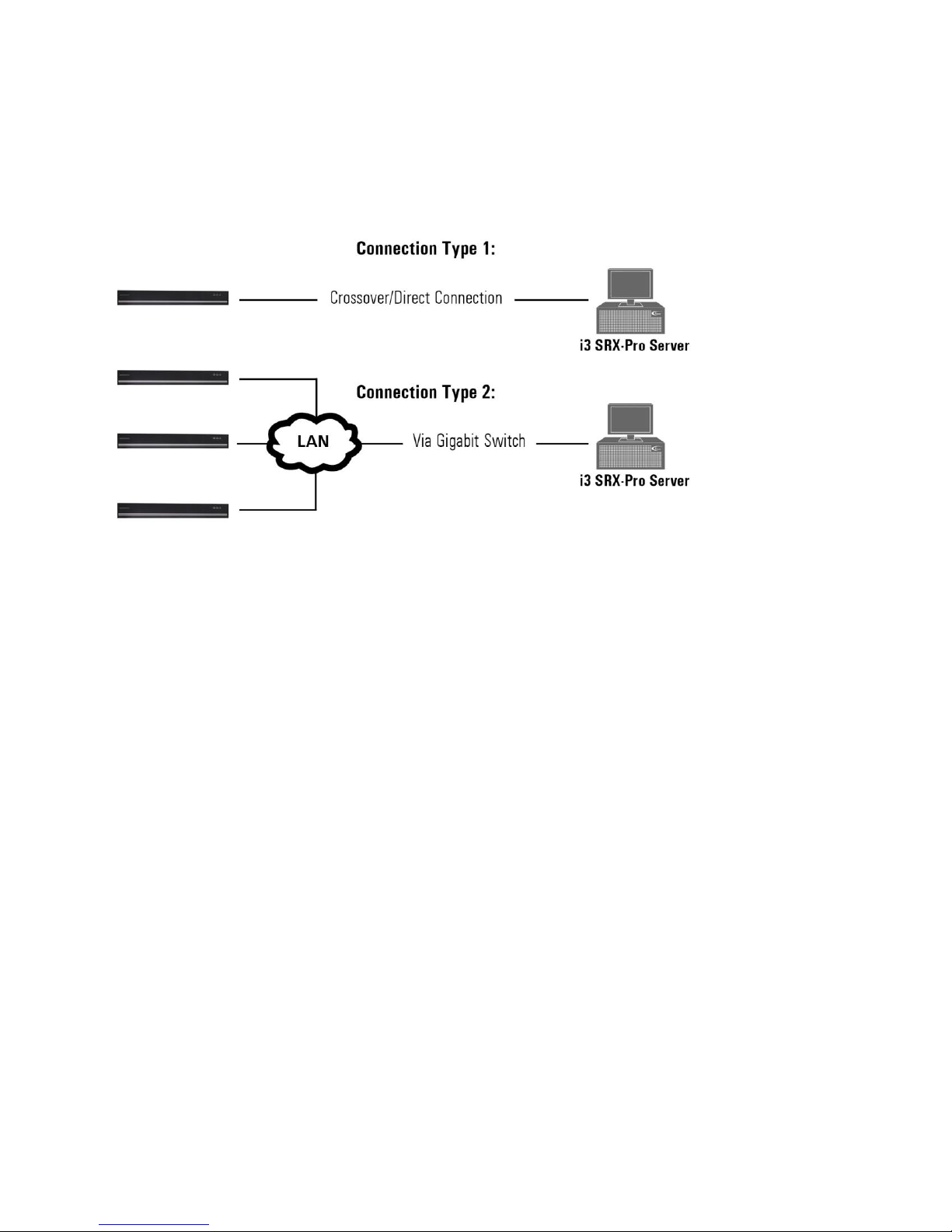

Encoder Connection Options
Hardware/Software Requirements
The following requirements must be met to achieve a successful network connection with the Annexxus 516 encoder.
SRX-Pro Server:
i3 SRX-Pro Version 3.0 or higher
Latest GiPi adapter is installed. GiPi adapters can be downloaded from i3 FTP website. (Please contact i3 Technical Support
for more information.)
Windows XP, XPe, 7 Pro or 7e
Internet Explorer v6.0 and above, Firefox v3.5 and above, Chrome v8 and above, Safari v5.0.2 and above
Note: If you are using Internet Explorer v.10 or v.11, you must first add the Annexxus 516 IP address to the browser's
Compatibility View Settings.
CPU: Intel Pentium Core 2 or higher
Memory: 1GB or more
VGA card--supporting Direct X 9.0 or above
Assigning IP Address to your Annexxus Encoder
To connect your Annexxus encoder to your SRX-Pro Server, follow these instructions:
1. Close SRX-Pro Server software by pressing Alt+Shift+Ctrl+F4.
2. Change the IP address on the onboard NIC (LAN) (or on NIC1 if your SRX-Pro Server has two onboard NIC cards)
of your SRX-Pro Server to 192.0.0.XXX to match the default IP range of your Annexxus IP encoder.
3. Connect the network cable from the SRX-Pro Server (crossover direct connection) or from the Gigabit switch to
your Annexxus encoder.
4. Turn on your Annexxus encoder.

Annexxus 516 Encoder - User Manual
5. Locate the CD that came with your Annexxus encoder and insert it in the CD-ROM drive of your SRX-Pro Server.
6. Double-click “AnnexxusFinder.exe” file to install Annexxus Finder application. Annexxus Finder application
discovers all Annexxus devices connected to your network.
7. Follow the Annexxus Finder installation instructions until the application has been successfully installed on your
SRX-Pro Server.
8. Double-click Annexxus Finder icon on the Desktop to launch the application.

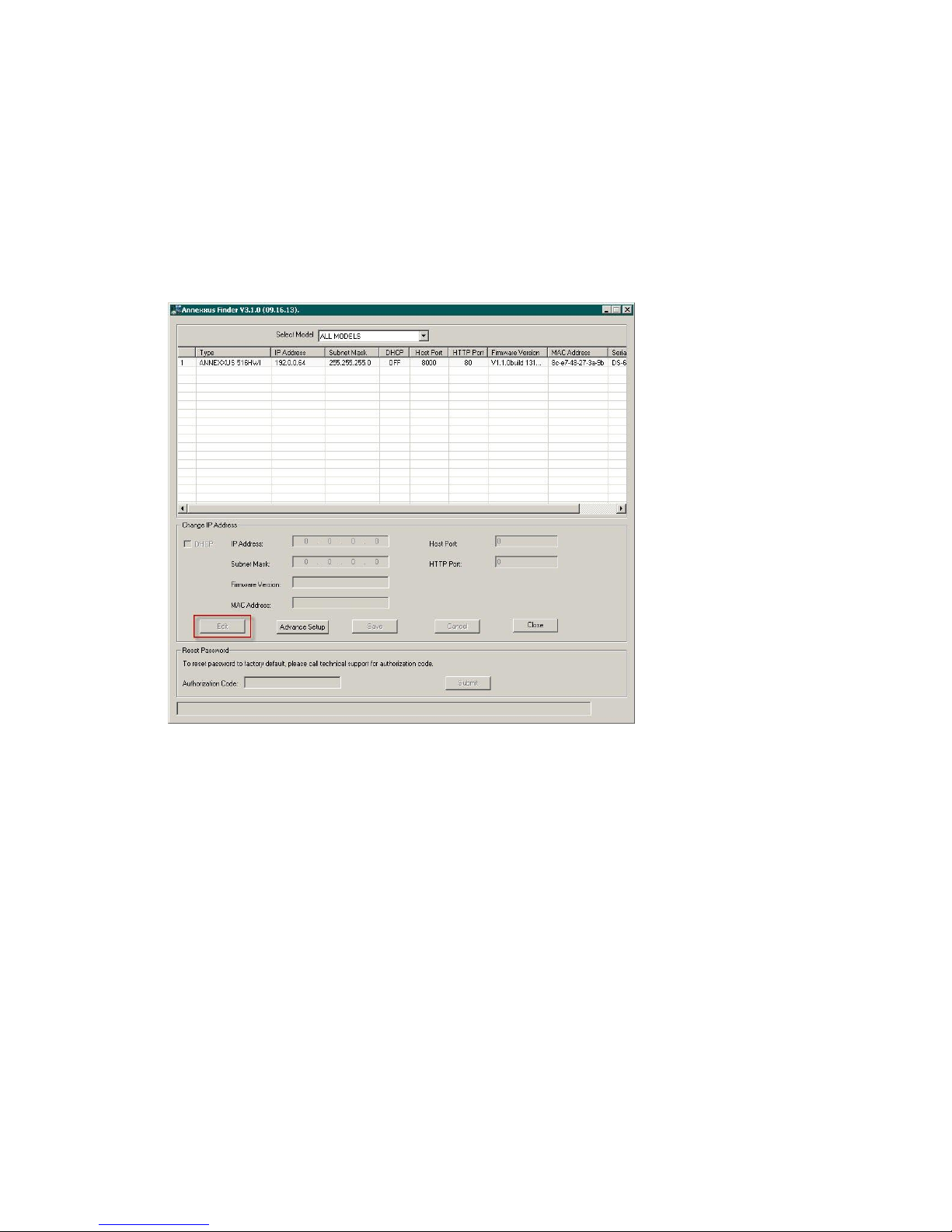

9. The application window will appear displaying a list of active encoders.
10. Next, select desired encoder in the Annexxus Finder software by double-clicking it in the list and click Edit.

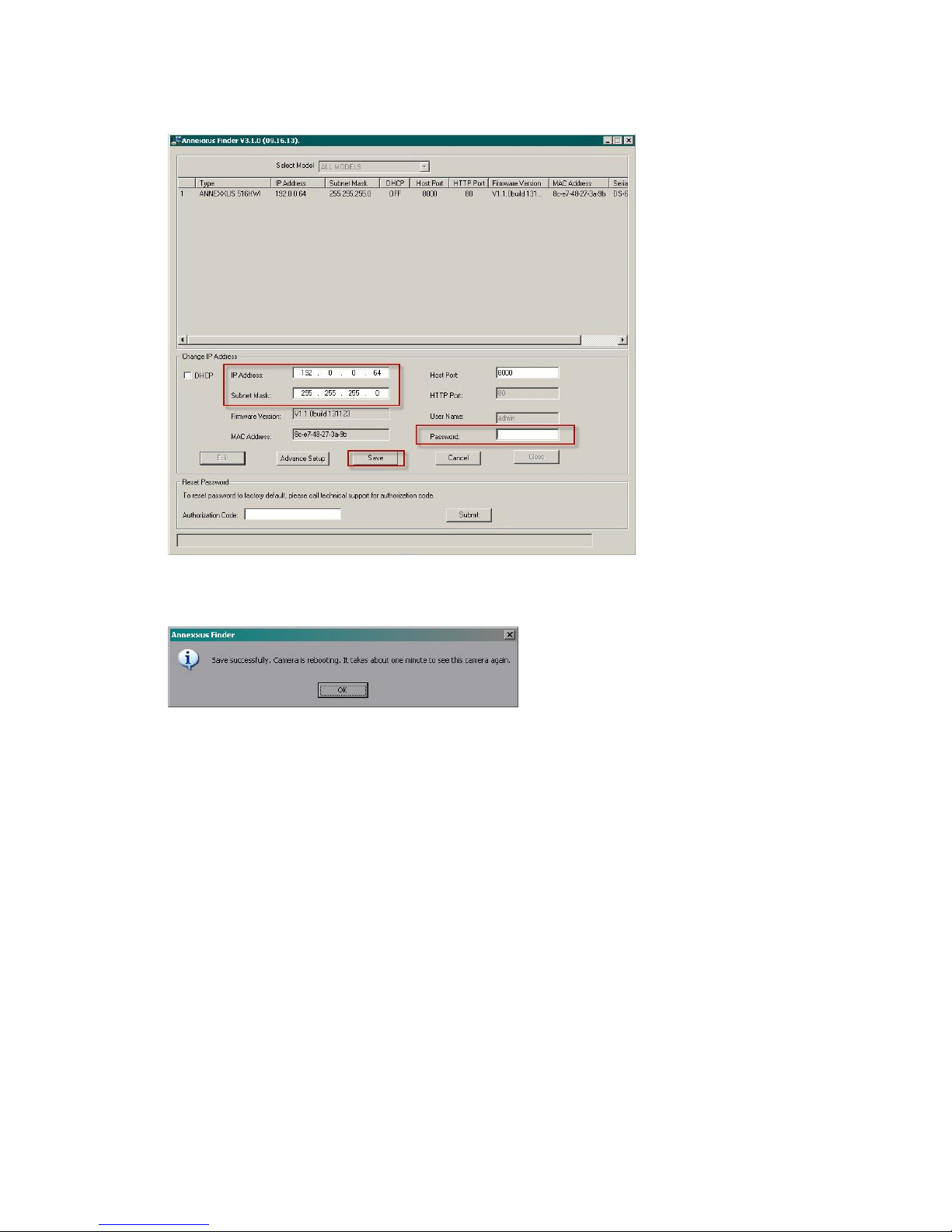

11. Enter the new IP address and Subnet Mask of the encoder in the Change IP Address area. The new
encoder IP address must match the original range of your SRX-Pro LAN or NIC1 card. E.g. If your original SRX-
Pro Server’s IP address was 192.138.10.122, change your Annexxus encoder's IP address to 192.138.10.XXX.

Connecting Encoder to the SRX-Pro Server
13
Remember: Annexxus encoders cannot share an IP address, each encoder requires its own unique IP address.
12. Enter the default encoder password: 1234 in the Input Password field and click Save.
13. Wait a few moments as the new IP address is being applied to your Annexxus device. Wait for the following
message to be displayed. Click OK to close it.
14. Now that the new IP address has been successfully assigned to your encoder, make sure you can connect to it
through the web browser (instructions below).
Accessing via Web Browser
Annexxus 516 encoder can be accessed through Web Browser for live viewing or setup configuration. The following web
browser versions are supported: Internet Explorer v6.0 and above, Firefox v3.5 and above, Chrome v8 and above, Safari
v5.0.2 and above.
Note: If you are using Internet Explorer v.10 or v.11, you must first add the Annexxus 516 IP address to the browser's
Compatibility View Settings.
To access the Annexxus 516 through your web browser,
1. Open web browser window and enter the encoder's IP address. Annexxus 516 default IP address is:
http://192.0.0.16

Annexxus 516 Encoder - User Manual
2. In the login window, enter the encoder User Name and Password. Annexxus 516 default User Name is admin
and default Password: 1234.
3. If accessing for the first time, download and install browser plug-in.
4. Annexxus 516 Live View window will be displayed in your browser window.

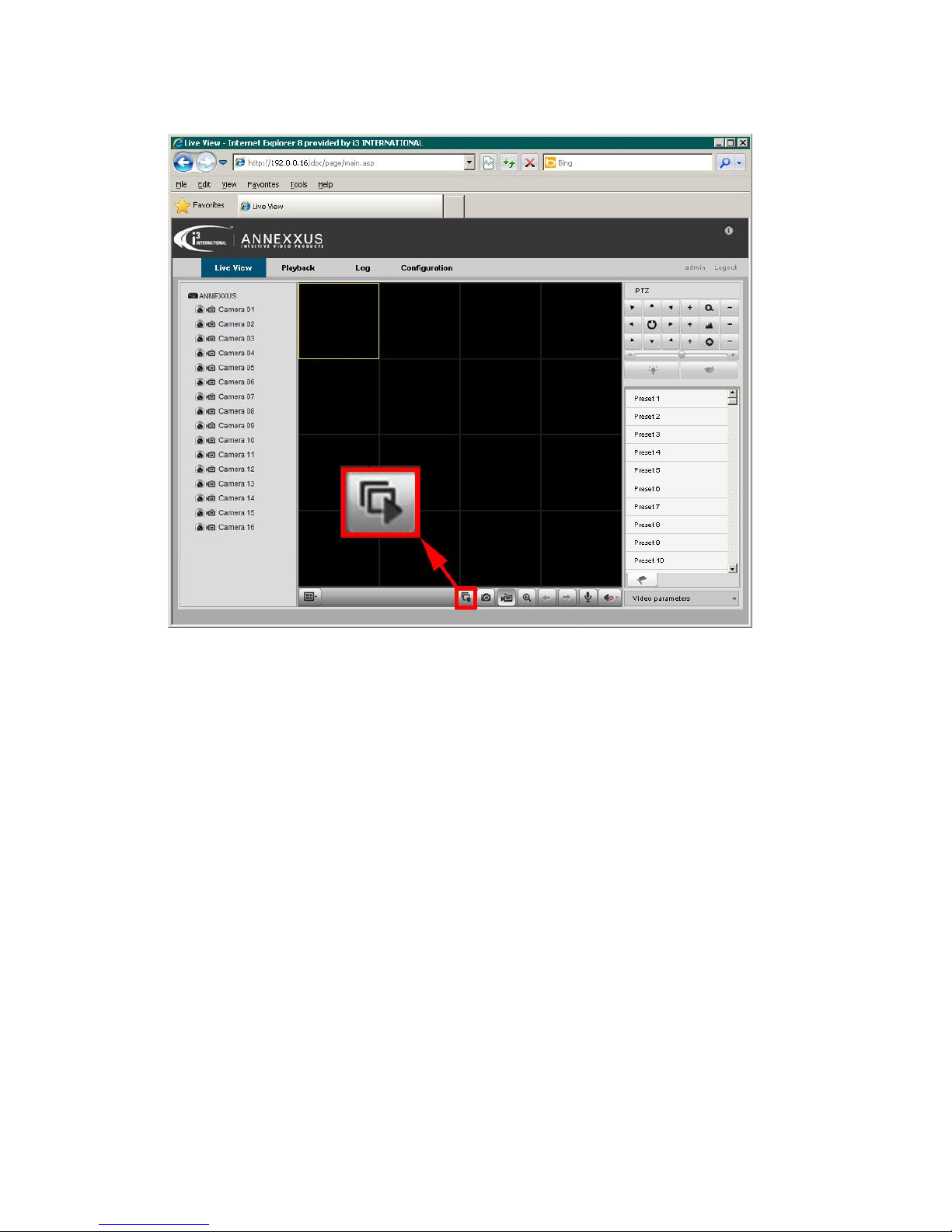

5. Annexxus encoder interface will be displayed in the Internet Explorer window. Click the Play All icon to
display all connected analog cameras.

Connecting Encoder to the SRX-Pro Server
15
6. If you do not see the camera images on the screen, call i3 International tech support for help.

Annexxus 516 Encoder - User Manual
Adding your IP Encoder to your SRX-Pro Server
Make sure that the latest version of GiPi updater is installed on your SRX-Pro Server.
You can download the most recent GiPi installer package from our website: from
http://www.i3international.com/index.php/en/support/downloads-2
1. Once the latest GiPi updater has been installed, restart i3 SRX-Pro Server software.

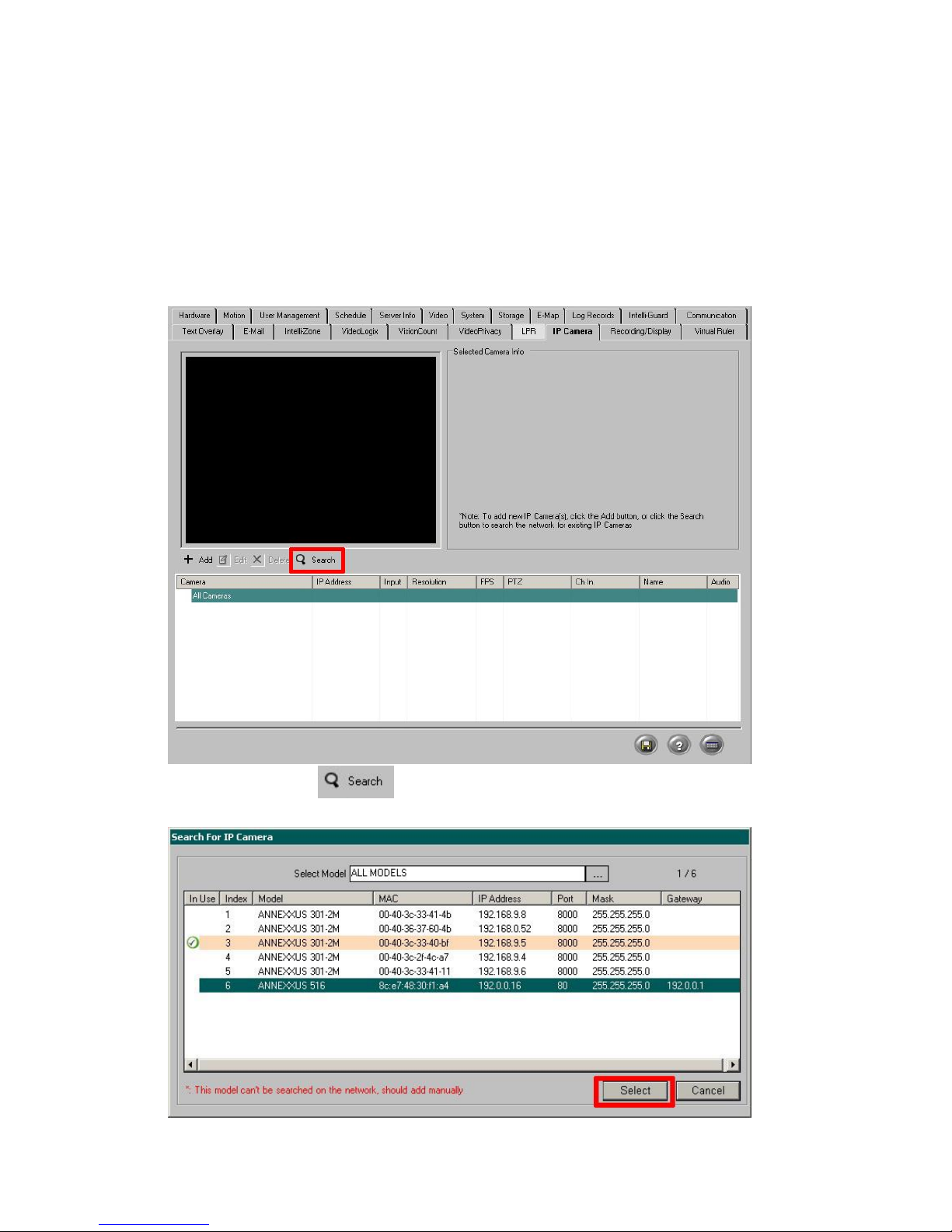

2. Log In and go to the Setup -> IP Camera tab.
3. Click the Search button .
4. Locate ANNEXXUS 516 in the list and click the Select button.
