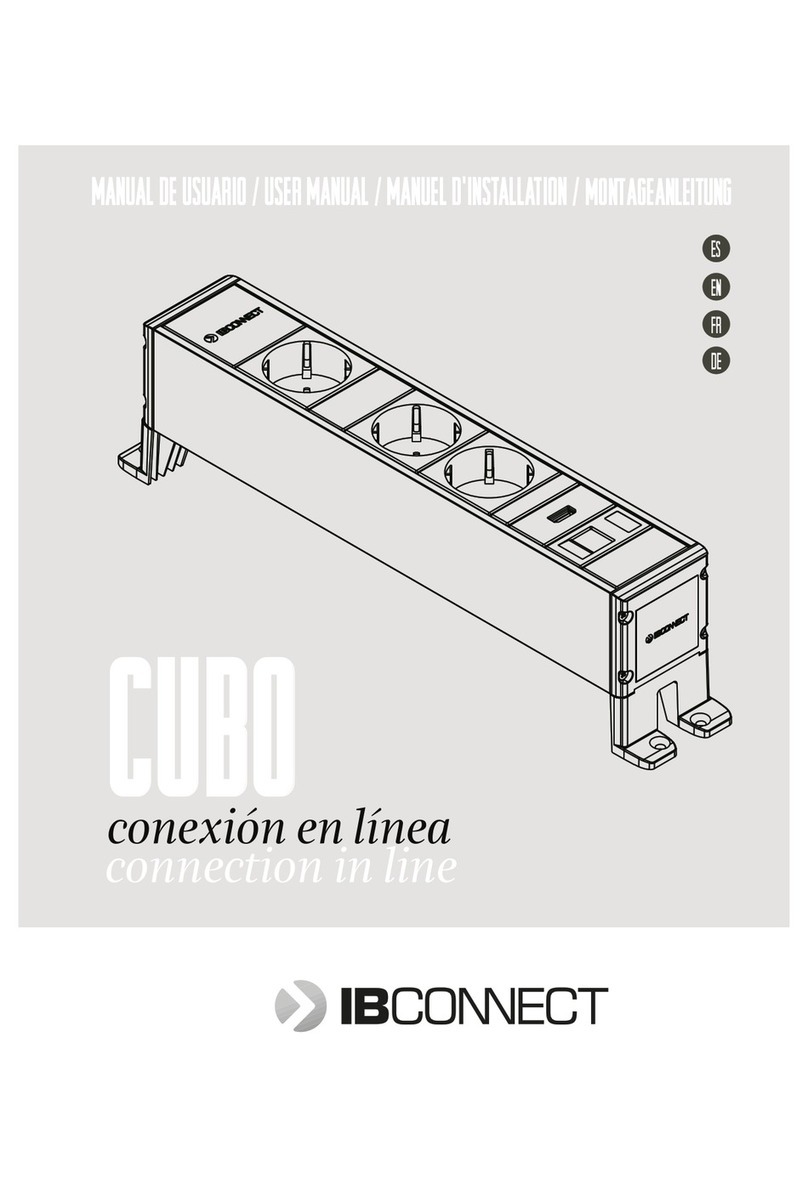

IB Connect Cubo User manual

installation Guide
User manual
connection in line
CUBO
conexión en línea

1 - 2
User Manual
05
06
07
INSTALLATION CUBO RAISED ANCHOR
Use a Phillips head screwdriver to tighten the
screws holding the side anchors.
This time, the entry to the connectors is direct
with I/O connectors.
Connect power to the V/D: insert the cable into
direct opening Band connect to the RJ-45,
connect the other cable to the V/D plate A.
Once the anchor piece has been installed on
the rail, insert tabs 1 and 2 shown in figure A
into the grating, as shown in figure B. The rail
will be securely anchored to the cable grating.
INSTALLATION CUBO CABLE GRATING
To install Cubo on a cable grating, screw part A
to the side anchor as shown in detail A
User Manual
01
02
04
03
INSTALLATION CUBO FLAT ANCHOR
Use a Phillips head screwdriver to tighten the
screws holding the side anchors.
The profile frame is completely installed.
Attach the RJ-45 connectors on the cover
connectors and crimp as shown in figure A.
Put the cover on the rail with the connectors
and gather up the extra cable.
Remove the V/D connectors with a fine-tipped
screwdriver.
Run the V/D cables through the opening in the
end cover.
For any questions on the profile frame, contact
us at:
[email protected]
Strip the wires
08
A
A
B
Detailed view of the rear of the direct access
A
1
2B
INSTALLATION ON SUPPORT
Insert piece 1 into the rear of the rail (H). Insert
the pivots of piece 1 into the holes in piece 3
and secure with screws Aand B. Put piece 2
into the slots in piece 3 (a, b, c, d) depending
on the thickness of the desk, and secure to the
desk with the screws in piece 2.
1
2
3
a
b
c
d
H
AB
DETAIL A
