iBeam TE-4HCM-S User manual

TE-4HCM-S User Manual
iBeamUSA.com
MetraDealer.com
[e-mail]
� TECH SUPPORT
l::: J 800-253-8324

2
Contents
1. Precautions..........................................................................................................3
2. Accessories......................................................................................................... 5
3. Connections........................................................................................................ 6
4. Menu operation and functional specification.....................................................8
4.1IR remote control.........................................................................................8
4.2Menu operation............................................................................................9
4.2.1 Desktop..............................................................................................9
4.2.2 Home Menu.....................................................................................10
4.2.3 Volume.............................................................................................10
4.2.4 Mode................................................................................................ 11
4.2.5 Source.............................................................................................. 11
4.2.6 Setting..............................................................................................12

3
1. Precautions
● Storage and Keeping
1. Do not expose the monitor to excessive heat or cold. The storage temperature of
this device is -30~+80℃, and the operating temperature is -20~+70 ℃. Battery
operating temperature is 0-70℃.The humidity is Rh90%.
2. Never use this device near a bathtub, wash basin, kitchen, damp basement,
swimming pool or similar places.
3. Never use this device in environments with excessive moisture, dust or smoke.
4. Avoid dropping or striking this device.
5. Avoid using this device in enclosed spaces, areas with excessive vibration or
subject to severe impacts.
6. Never puncture, scratch or use abrasive cleaning materials on this device.
7. Do not place cables where they may be pinched or stepped on.
8. Leave at least a 2" space between the monitor and walls, cabinets or other
objects to allow adequate air circulation around the device.
9. The monitor is not designed to be waterproof.
● Operating Precautions
1.The device may be powered by a 12 or 24 volt automotive battery or vehicle
electrical system.
2. Make sure all cables are connected properly. Observe polarity. Improper cable
connections may damage the monitor. Remove the power cable connections when
you do not intend to use the device.
3. The back-up battery can be recharged when the power is on.
4.When it is fully charged,recharging is automatically stopped.
5.It may take longer to charge batteries unused for a long time.

4
Maintenance
1. Remove all the cable connections from the monitor before cleaning the
device.
2. Use a mild household detergent and clean the unit with a slightly damp, soft
cloth.
Never use strong solvents such as thinner or benzine, as they might
damage the finish of the device.

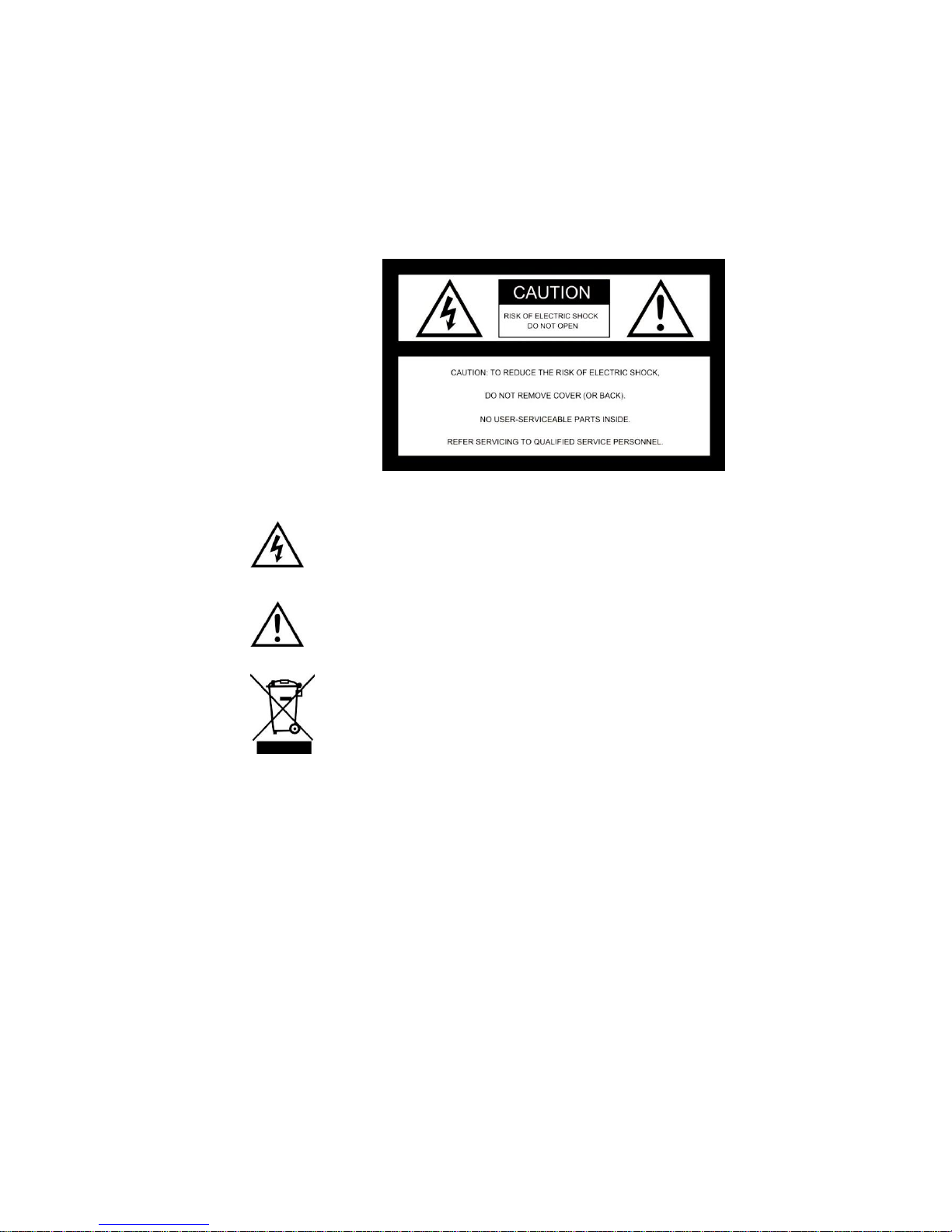

This symbol is intended to alert the user to the
presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This symbol is intended to alert the user not to waste electrical and
electronic equipment.
CAUTION
You are cautioned that any changes or modifications not expressly approved
in this manual could void your warrantee and necessitate expensive repairs.

5
2. Accessories

6
3. Connections
White 4 pin male for Channel Left.
Blue 4 pin male for Channel Right.
Green 4 pin male for Channel Front.
Brown 4 pin male for Channle Back.
Single red wire to positive power supply for DC:10-32V.
Single black wire to GND.
Single white wire to positive power wire of Channel Left.
Single blue wire to positive power wire of Channel Right.
Single green wire to positive power wire of Channel Front.
Single brown wire to positive power wire of Channel Back.

7
4 Channel Single View Monitor HD261
1. Functional Specifications
4 Channel 7’’ HD single-view monitor with LVDS interface, support resolution
1920*1080
Support 4 channel cameras in PAL / NTSC / HD-AHD 、HD-TVI 、HD-CVI
(720P/1080P)
Support 1080P video output.
Image can be set to horizontally flipped, vertically flipped, normal and mirror
Image; menu characters remain normal while being set to mirror image.
Channels can be named.
Support 1 x HDMI video input, easy connection to PC or smart electronic devices
etc.
Capacitive touch-screen
Support 4 x triggers, trigger priority & trigger delay selectable.
Support auto scan, scan channel and time selectable.
Support Automatic Backlight Control and manual selection in 3 levels.
Parking line display
With 1.5W speaker
Menu operation by buttons control, remote control or touch screen control.
Support 9 languages OSD (English, German, Japanese, Russian, Chinese, Italian,
Spanish, French, Dutch)
Working voltage: 10-32V, with short circuit protection and short circuit alarm
function.
Compliance with CE/FCC/EAMARK tests

8
4. Menu Operation and Functional Specification
4.1 IR Remote Control
Pic 4.1
As shown in picture 4.1, IR remote control has 13 buttons and below are
corresponding functions:
●MUTE：Mute or unmute
●Power: Turn on or enter standby mode
●VOL+：Move up the menu cursor, or increase volume
●VOL-：Move up the menu cursor, or decrease volume
●MENU：Call home menu or return to previous menu
●UP：Move up the menu cursor, or switch screen display mode when ther
e is no pop-up menu and signal source is selected as camera
●DOWN：Move down the menu cursor, or switch screen display mode wh
en there is no pop-up menu and signal source is selected as camera
●MODE：Switch input source between CAMERA and HDMI
●SEL：Confirmation button
●P/N：None
●LANG：Enter Language setup Menu
●REST：System reset button
●AV：None

9
4.2 Menu Operation
4.2.1 Desktop
Pic. 4.2.1

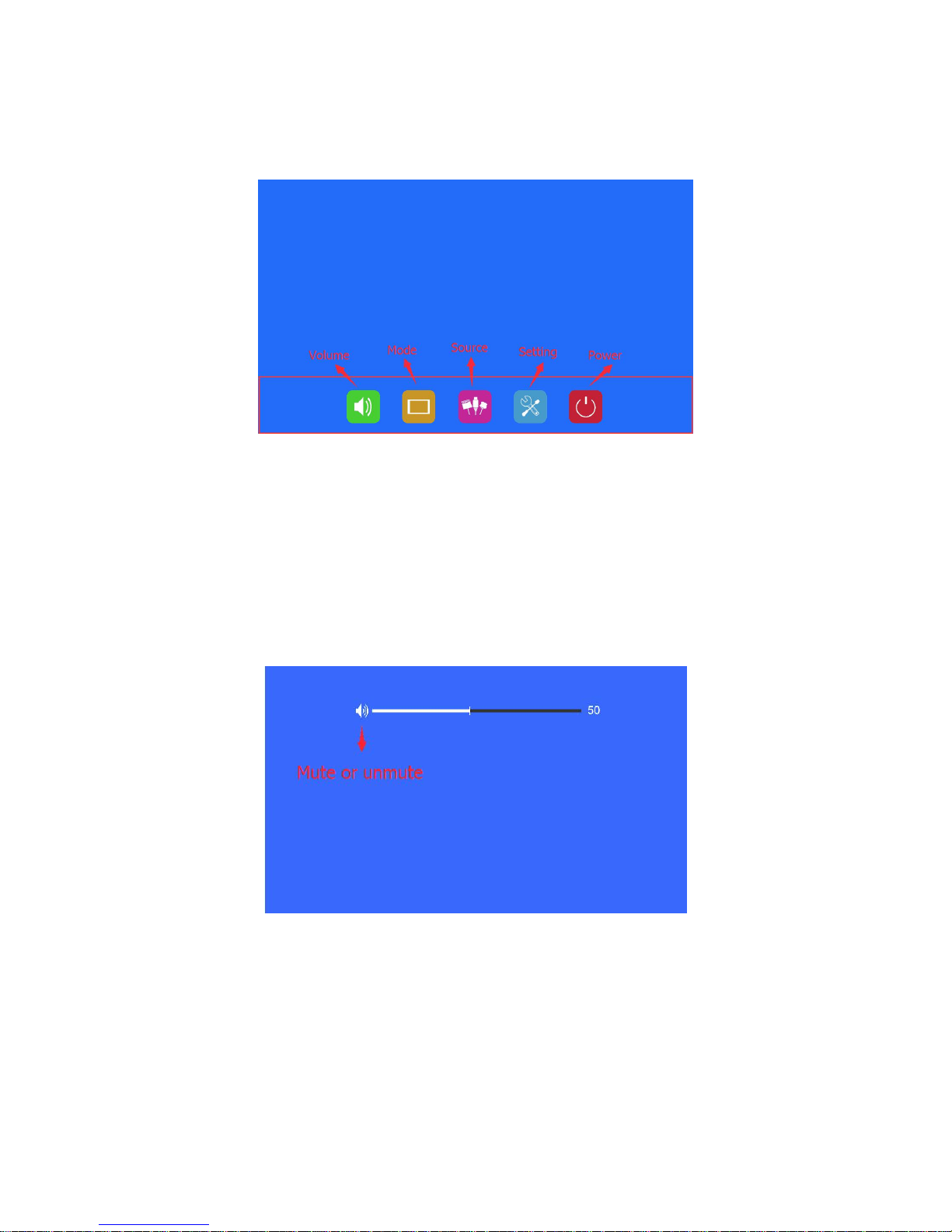

Desktop interface is shown in Pic. 4.2.1. When Home Menu is not displayed,
Touch the area of the Red border shown to pop up home menu.
Pic. 4.2.1
●When signal source is selected to be cameras, cameras can be switched by sl
iding to left/right on screen sequentially: Left->Right->Front->Back-> Left.
.

10
4.2.2 Home Menu
Pic.4.2.2
Home Menu is shown in pic. 4.2.2.
●Touch the icons to enter the next menu or touch the area out of the red border in Pic
4.2.2 to get back to Desktop.
4.2.3 Volume
Pic.4.2.3
Volume (volume setting)is shown in pic 4.2.3. Its operations are as follows,
●Press VOL+, VOL- and MUTE button on remote control to adjust volume or set up
to mute.The value displaying on the bar represents current volume.
● Directly drag the slider on the screen to adjust volume.
Click speaker icon to trun on/off Mute (as shown in pic 4.2.3).

11
4.2.4 Mode
Pic.4.2.4
Mode setting interface（display mode selection) is shown in pic 4.2.4. Its operations are
as follow,
● Press Up, Down, Vol- and Vol+ on remote control to move the cursor up / down /
left / right, then press Sel to switch to the corresponding display mode;
●The corresponding screen display modes can be switched by touching the icons on
OSD.
4.2.5 Source
Pic.4.2.5
Source interface (signal source selecting) is shown in pic 4.2.5. Switch source
by pressing Mode button then selecting desired source.

12
●Support automatic identification for signal output.
●Supports standard definition (NTSC / PAL) and high definition format like
AHD, TVI and CVI; Supports resolution up to 1080P30Hz.
●Multiple HDMI input resolutions: 640x480,720x480,720x576,800x600,1024x768,
1280x720,1280x1024,1366x768,1440x900,1600x900,1920x1080.
4.2.6 Setting
Pic.4.2.6

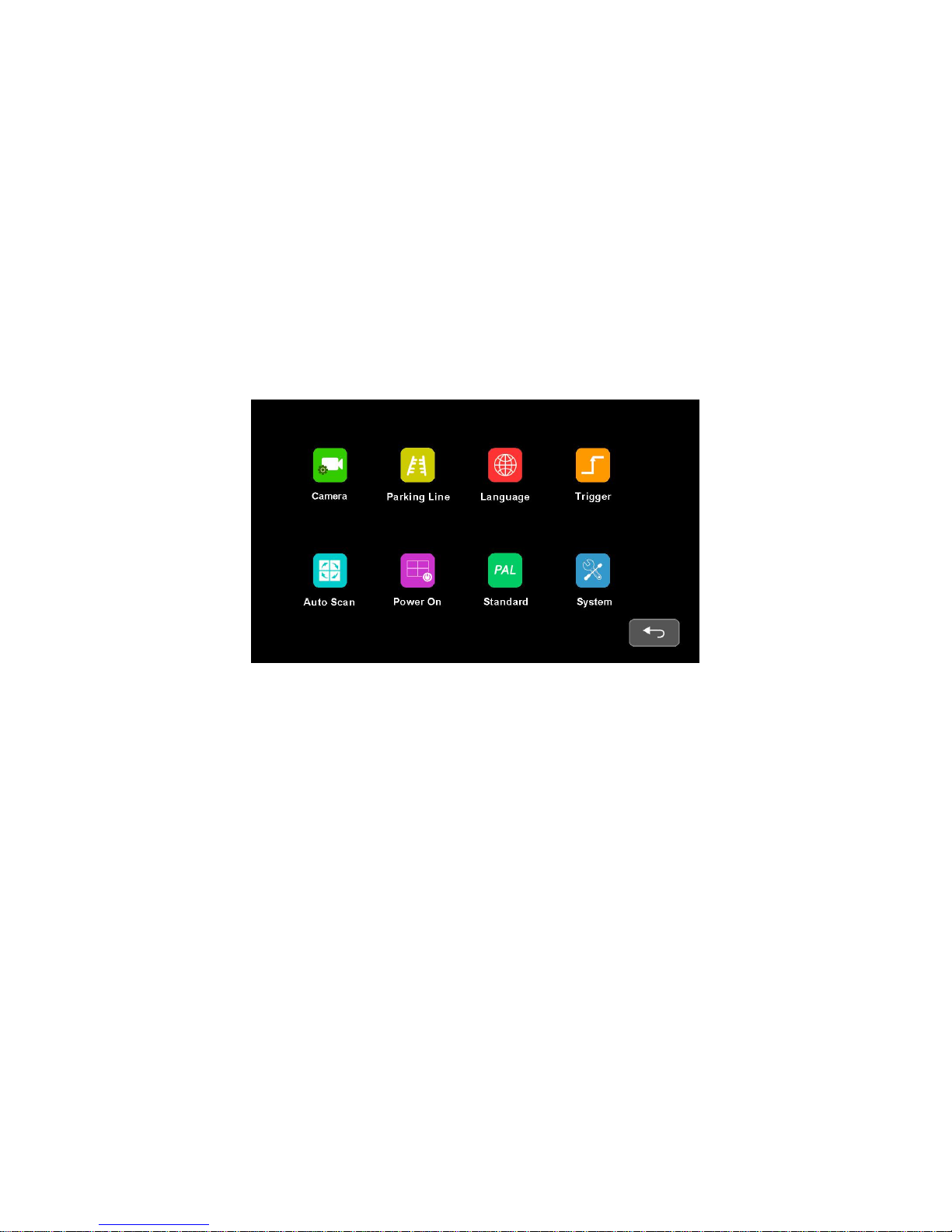

Setting menu interface (for other functions) is shown in pic 4.2.6.

13
4.2.6.1 Camera
Pic.4.2.6.1-1
Camera menu (settings for Camera channel attribute) is shown in pic. 4.2.6.1-1.
●To set other channels, press Menu on IR remote control and move the cursor
to the channel selection area (shown as red border in pic 4.2.6.1). Press Up，
Down，Vol- and Vol+ to select the channel and press Sel to switch to the
corresponding channel for attribute settings.
Pic.4.2.6.1-2
Camera Name setting interface (setting for each channel’s name) , as shown in the pic.
4.2.6.1-2.
●Camera name digits can be a maximum of 8 characters.

14
4.2.6.2 Parking Line
Pic.4.2.6.2

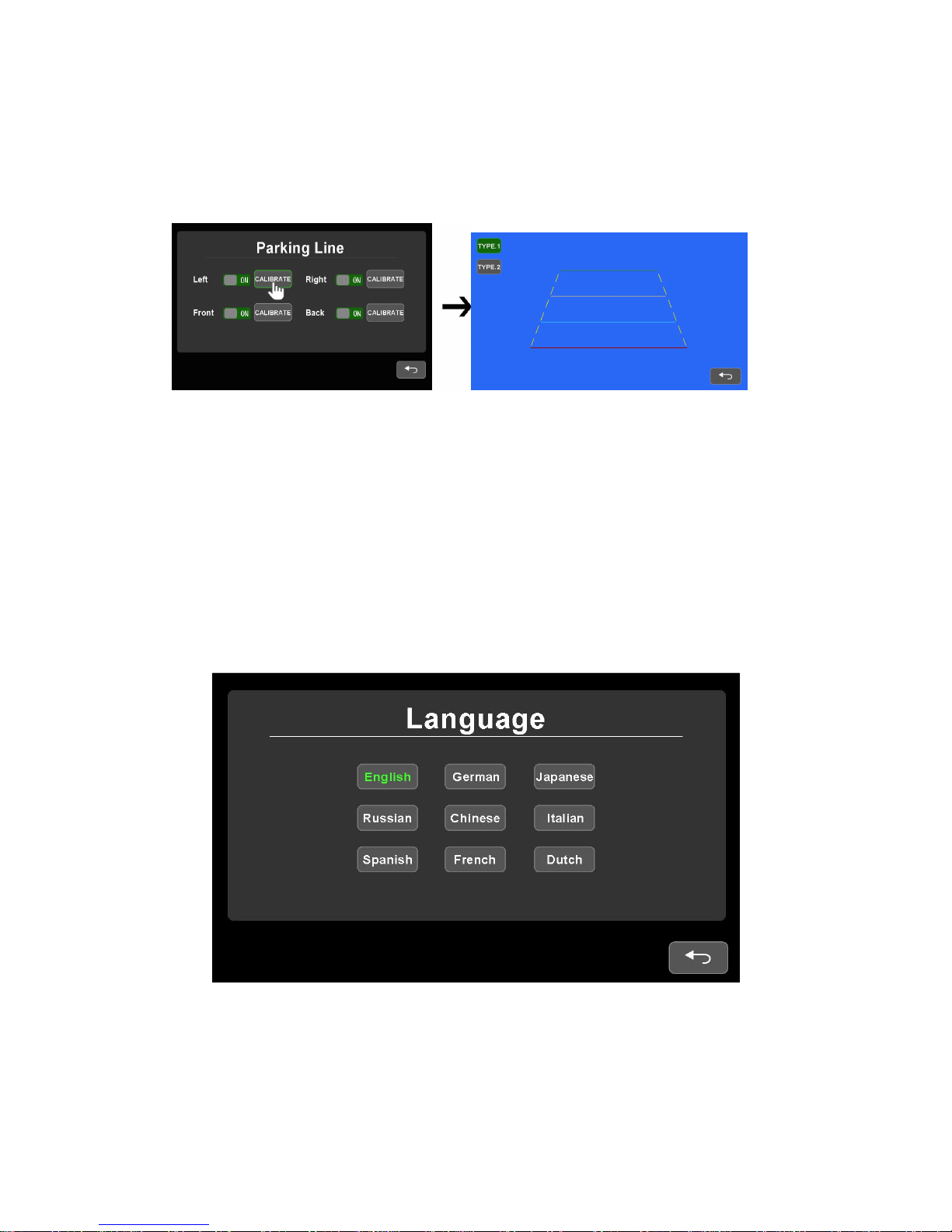

Parking Line setting interface (setting for reverse grid), as shown in the pic. 4.
2.6.2. Touch CALIBRATE icon to set reverse cursor.
●Press SEL or touch TYPE1/TYPE2 on screen to switch reverse cursor mode
and drag the cursor directly to adjust.
4.2.6.3 Language
Pic.4.2.6.3
Language setting interface (setting for system language), as shown in the pic. 4.2.6.3.

15
4.2.6.4 Trigger
Pic.4.2.6.4-1

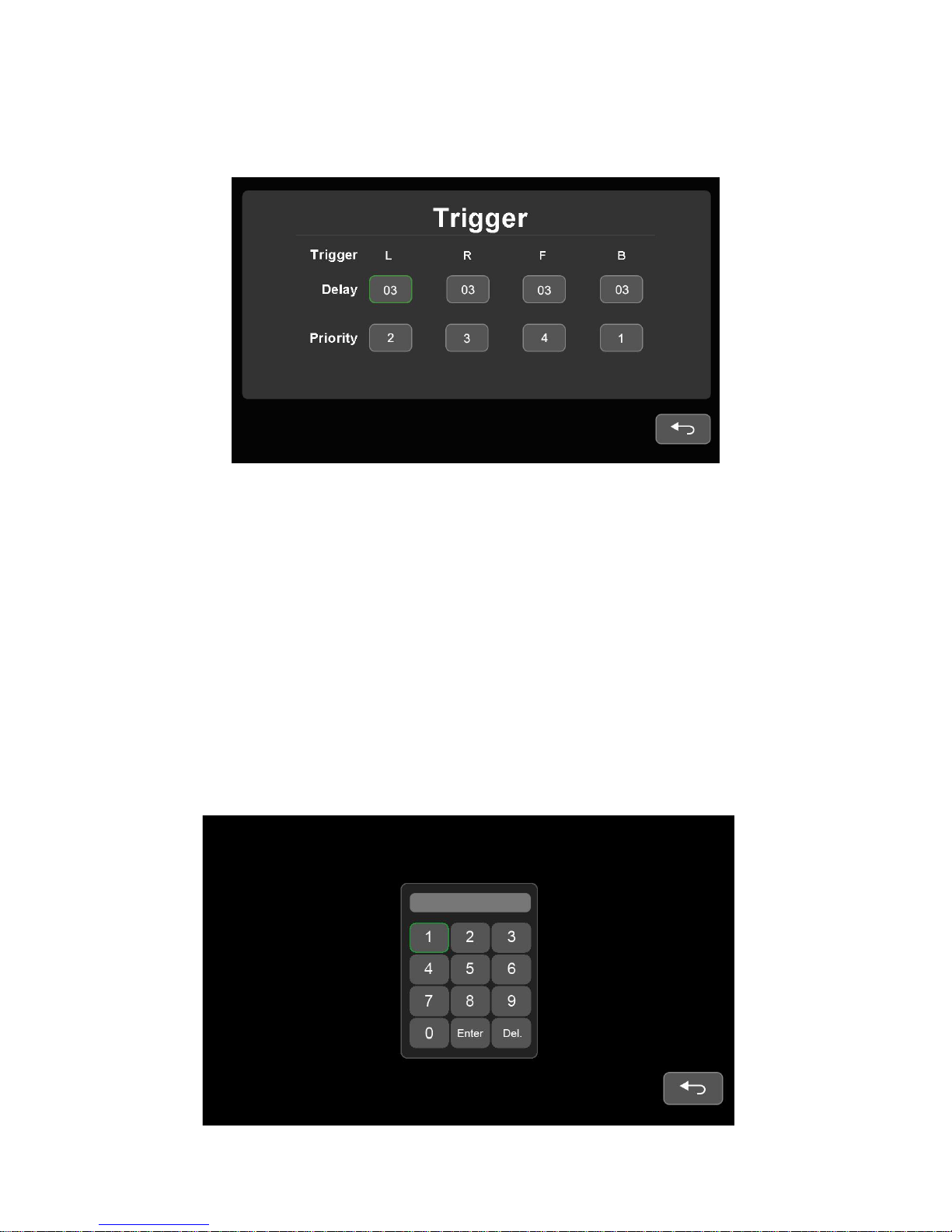

Trigger setting interface (setting for trigger function) as shown in the pic 4.2.6.2-2.
●Trigger delay range: 1~60s;
●Trigger priority: 1~4;
●Trigger function takes priority over Auto Scan function.
●When there is trigger, signal source will be automatically switched to the working
Camera. It will return to the previous signal source after the trigger ends.
●Support standby trigger.

16
4.2.6.5 Auto Scan
Pic.4.2.6.5
Auto Scan setting interface, as shown in the pic 4.2.6.5.
●Delay range:1~60s.
4.2.6.6 Power On
Pic.4.2.6.6
Power- On setting interface (power-on screen display mode setting), as shown in the
pic 4.2.6.6-6.
●Set initial camera to display when monitor is powered on.

17
4.2.6.7 Standard
Pic.4.2.6.7

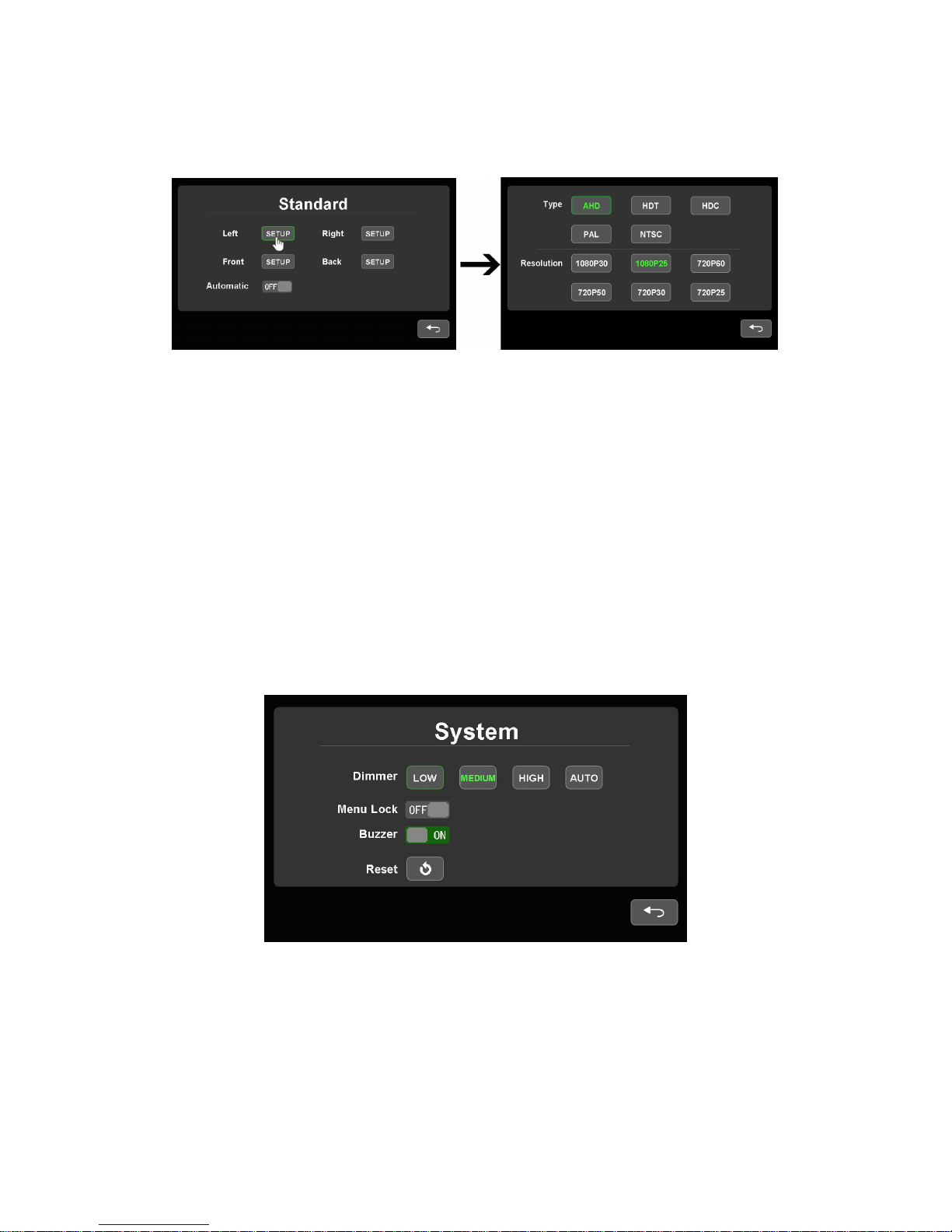

Standard (TV system) setting interface, as shown in pic 4.2.6.7, Its achievable
operations are similar to Mode menu.
●When Automatic is ON，camera will automatically identify TV system;
●When Automatic is OFF，automatic identification of TV system is turned off.
User can set the TV mode in menu according to the camera used, then will show the
normal picture in the monitor.
●Manual setting TV mode is recommended for faster response when switching.
4.2.6.8 System
Pic.4.2.6.8
System setting interface, as shown in the pic 4.2.6.8.
●When Menu Lock is ON, screen touching control will be disabled;
●Menu Lock can be canceled by pressing the physical button on the monitor for long
time when the screen comes back to the beginning camera channel display.

Notes:
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________

_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________

IMPORTANT
If you are having difficulties with the installation
of this product, please call our Tech Support line
at 1-800-253-TECH. Before doing so, look over
the instructions a second time, and make sure
the installation was performed exactly as the
instructions are stated. Please have the vehicle
apart and ready to perform troubleshooting
steps before calling.
When connecting with power cable, please make sure not to mistake the positive and
negative pole, otherwise the fuse will blow immediately for security protection.If ithappens,
please replace the blown fuse with a new one with same specification, after connecting
properly to the right pole. Don’t randomly increase the current rating of the fuse, and NEVER
use metal wire asa substitute.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Version 1.0
