iCatch 24CH IVR User manual

IVR Quick Start Guide V1.0P.1
24CH IVR
Quick Start Guide
1. Packing........................................P. 1
2. Hard Disk Installation................P. 3
3. DVD-RW Installation...................P. 4
4. Front Panel Controls..................P. 8
5. Rear Panel Connectors............P. 10

IVR Quick Start Guide V1.0P.2
1. IVR
2. Quick Start
3. IR Remote Control *Pressed "DVR1" Button before use
4. Battery
5. CD
6. Hard Disk Mount
7. Screws
8. Power Cord
9. SATA Cord
Note: Standard shipping products do not include HDD

IVR Quick Start Guide V1.0P.3
3
Step 1) Fix the HDD to rack mount with the screws as indicated.
Step 2) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.

IVR Quick Start Guide V1.0P.4
4
Step 3) Place the HDD on the HDD plate and screw it as indicated.
Step 4) Connect the power and the SATA cables as indicated.
Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual “Storage Setup”for reference.

IVR Quick Start Guide V1.0P.5
5
DVD-RW Installation
( Standard shipping products do not include HDD and DVD-RW)
Step 1) Remove the riser of DVR-RW.
Step 2) Fix the DVD-RW to rack mount with the screws as indicated
Remove the riser of
DVD-RW

IVR Quick Start Guide V1.0P.6
6
Step 3) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.
Step 4) Fix the DVD-RW rack mount with the screws into to housing as indicated

IVR Quick Start Guide V1.0P.7
7
Step 5) Connect the power and the SATA cables as indicated.

IVR Quick Start Guide V1.0P.8
8

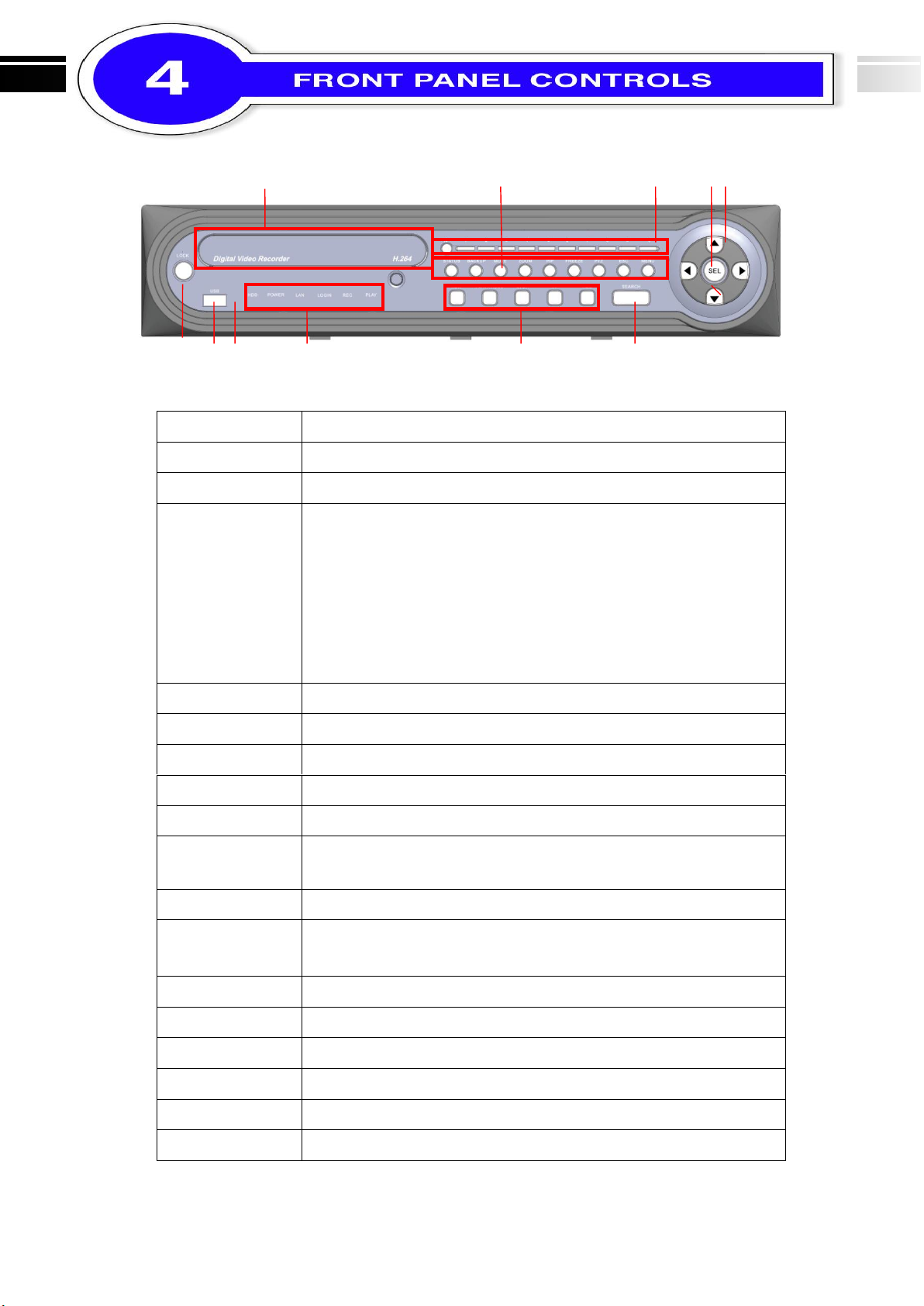

⑪⑩⑨⑧⑦
①②③④⑤
⑥
①LOCK
On / Off Key Lock in live mode.
②USB 2.0
USB port
③IR Sensor
Input sensor for the remote control
④LED Display
(From left to right)
HDD：Hard disk drive
Power：Power is on
LAN：Network connected
LOGIN：User login
REC：Recording
PLAY：DVR play video
⑤REW
In PLAYBACK mode, press to play rewind 4x, 8x, 16x, 32x
⑤PLAY / PAUSE
In PLAYBACK mode, pause / resume playback
⑤STOP
In PLAYBACK mode, stop playback
⑤FF
In PLAYBACK mode, press to play forwards 4x, 8x, 16x, 32x
⑥SEARCH
In LIVE mode, press to display time search menu.
⑦Arrow keys
In SETUP mode, move the cursor up / down, reduce / increase
the value of key.。
⑧SEL
In SETUP mode, press to enter sub-menu
⑨Number 0~9、
10+
Select the full screen channel in live mode.
Select the full screen channel in playback.
⑩STATUS
In live mode, enter the System Information menu
⑩BACKUP
In LIVE mode, press to display the BACKUP menu.
⑩MUTE
In LIVE mode, enable/ disable live audio
⑩ZOOM
In LIVE mode, enlarge the display of a channel.
⑩PIP
In LIVE mode, display with picture in picture format.
⑩FREEZE
In LIVE mode, display can be FREEZE.

IVR Quick Start Guide V1.0P.9
9
⑩PTZ
Display PTZ Menu.
⑩ESC
In SETUP mode, Exit / Return to previous setup menu
⑩MENU
In LIVE mode, press to display menu.
⑪DVD Writer
Optional DVD-RW backup device. (Option)

IVR Quick Start Guide V1.0P.10
10
Rear Panel
1. eSATA
eSATA
2. EXTERNAL I/O
External I/O port.
3. AC-in
AC 100~240V
4. AUDIO OUT
RCA output port for audio signal.
5. AUDIO IN
RCA input port for audio signal.
6. WAN
Connect Router or Internet
7. VGA
VGA Port
8. HDMI
HDMI Port
9. USB 3.0
USB 3.0 Port
10. USB
USB 2.0 Port
11. PoE
Connect IP Camera or PoE Camera (802.11af)
12. LAN
Connect PC or IP Camera
45 6 7 8 9 10 11 12
321
