8CH DVR Quick Start Guide V1.0 P.1
8CH /16CH DVR
Quick Start Guide
1. Packing........................................P.1
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.8
5. Rear Panel Connectors..............P.9

8CH DVR Quick Start Guide V1.0 P.2
1. DVR
2. Quick Start
3. IR Remote Control *Pressed "DVR1" Button before use
4. Battery
5. CD
6. Hard Disk Mount
7. Screws
8. Power Cord
9. SATA Cord
Note: Standard shipping products do not include HDD

Quick Start Guide V1.0 P.3
3
Step 1) Fix the HDD to rack mount with the screws as indicated.
Step 2) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.

Quick Start Guide V1.0 P.4
4
Step 3) Place the HDD on the HDD plate and screw it as indicated.
Step 4) Connect the power and the SATA cables as indicated.
Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual “Storage Setup” for reference.

Quick Start Guide V1.0 P.5
5
DVD-RW Installation
( Standard shipping products do not include HDD and DVD-RW)
Step 1) Remove the riser of DVR-RW.
Step 2) Fix the DVD-RW to rack mount with the screws as indicated
Remove the riser of
DVD
-
R
W

Quick Start Guide V1.0 P.6
6
Step 3) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.
Step 4) Fix the DVD-RW rack mount with the screws into to housing as indicated

Quick Start Guide V1.0 P.7
7
Step 5) Connect the power and the SATA cables as indicated.

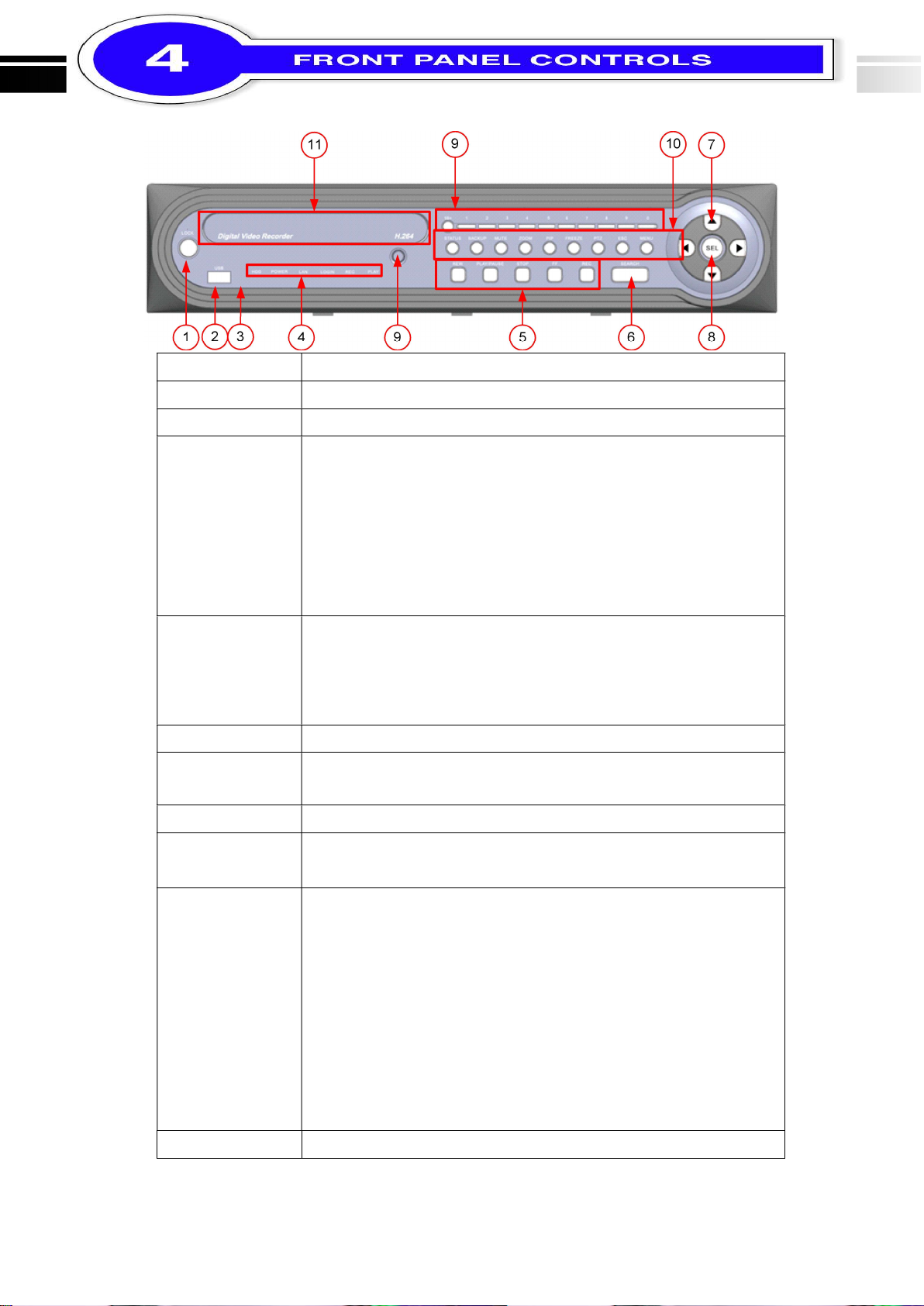

Quick Start Guide V1.0 P.8
8
129 8
711 10
54
9
36
1. LOCK On / Off Key Lock in live mode.
2. USB 2.0 USB port
3. IR Sensor Input sensor for the remote control
4. LED Display
(From left to
right)
HDD：Hard disk drive
Power：Power is on
LAN：Network connected
LOGIN：User login
REC：Recording
PLAY：DVR play video
5.
Playback Keys
REW: In PLAYBACK mode, press to play rewind 4x, 8x, 16x, 32x
PLAY / PAUSE: In PLAYBACK mode, pause / resume playback
STOP: In PLAYBACK mode, stop playback
FF : In PLAYBACK mode, press to play forwards 4x, 8x, 16x, 32x
6. SEARCH In LIVE mode, press to display time search menu.
7. Arrow keys In SETUP mode, move the cursor up / down, reduce / increase
the value of key.。
8. SEL In SETUP mode, press to enter sub-menu
9. Number 0~9、
10+
Select the full screen channel in live mode.
Select the full screen channel in playback.
10. Function Keys
STATUS: In live mode, enter the System Information menu
BACKUP: In LIVE mode, press to display the BACKUP menu.
MUTE : In LIVE mode, enable/ disable live audio
ZOOM: In LIVE mode, enlarge the display of a channel.
PIP : No function
FREEZE: In LIVE mode, display can be FREEZE.
PTZ : Display PTZ Menu.
ESC : In SETUP mode, Exit / Return to previous setup menu
MENU: In LIVE mode, press to display menu.
11. DVD Writer Optional DVD-RW backup device. (Option)

Quick Start Guide V1.0 P.9
9
Rear Panel
 Video IN Video input port for 8 or 16 in total.
 AUDIO OUT RCA output port for audio output, 2 in total.
 HDMI HDMI port
 RS-485 RS-485
 USB 3.0 USB 3.0 Port
 USB USB port
 AC 110/220V Socket for an AC 110/220V input.
 LAN Network port.
 eSATA External SATA hard disks port for expanding recording
space. (depends on model)
 VGA VGA port.
 Main BNC output port for second monitor
 EXTERNAL I/O External I/O port, left and right are two groups, see the
following table function
 AUDIO IN For 8-way audio
1 2 3 4 5 6
7
8
910111213
