ICE Games NBA MEGA MARQUEE User manual

NBA MEGA MARQUEE Assembly Instrucons
Innovave Concepts in Entertainment
10123 Main Street
Clarence, NY 14031 USA
WWW.ICEGAME.COM - [phone]
Revision F 10-26-17
14’ 4.08”

AA6082
AA6212
AA6082
AA6082
AA6082
AA6212
AA6212
AA6212
AA6082 AA6212
NB1202 x 4
X’s 16
** Note **
Harnesses for the wings will have a label that states Le or RIGHT side.
LEFT WING RIGHT WING

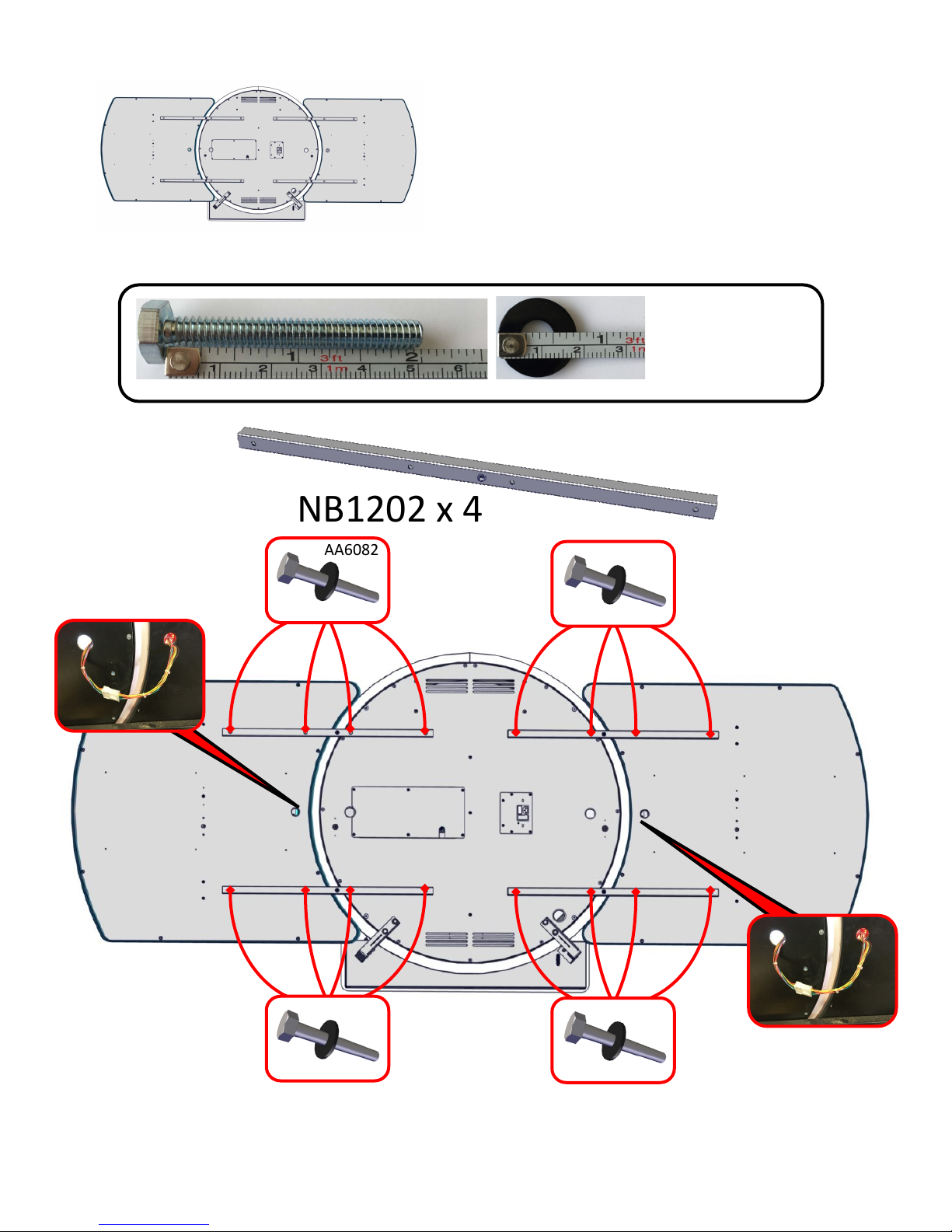

Step 1: Odd Number of Games Instrucons.
Aach the le wing and right wing to the center of the
marquee. Make sure you use the le wing on the le side
and the right wing on the right side. LED’s will light from
the top row down when wings are installed on the correct
side.

AA6082
AA6212
AA6082
AA6212
AA6082
AA6212
NB1201
PC60604

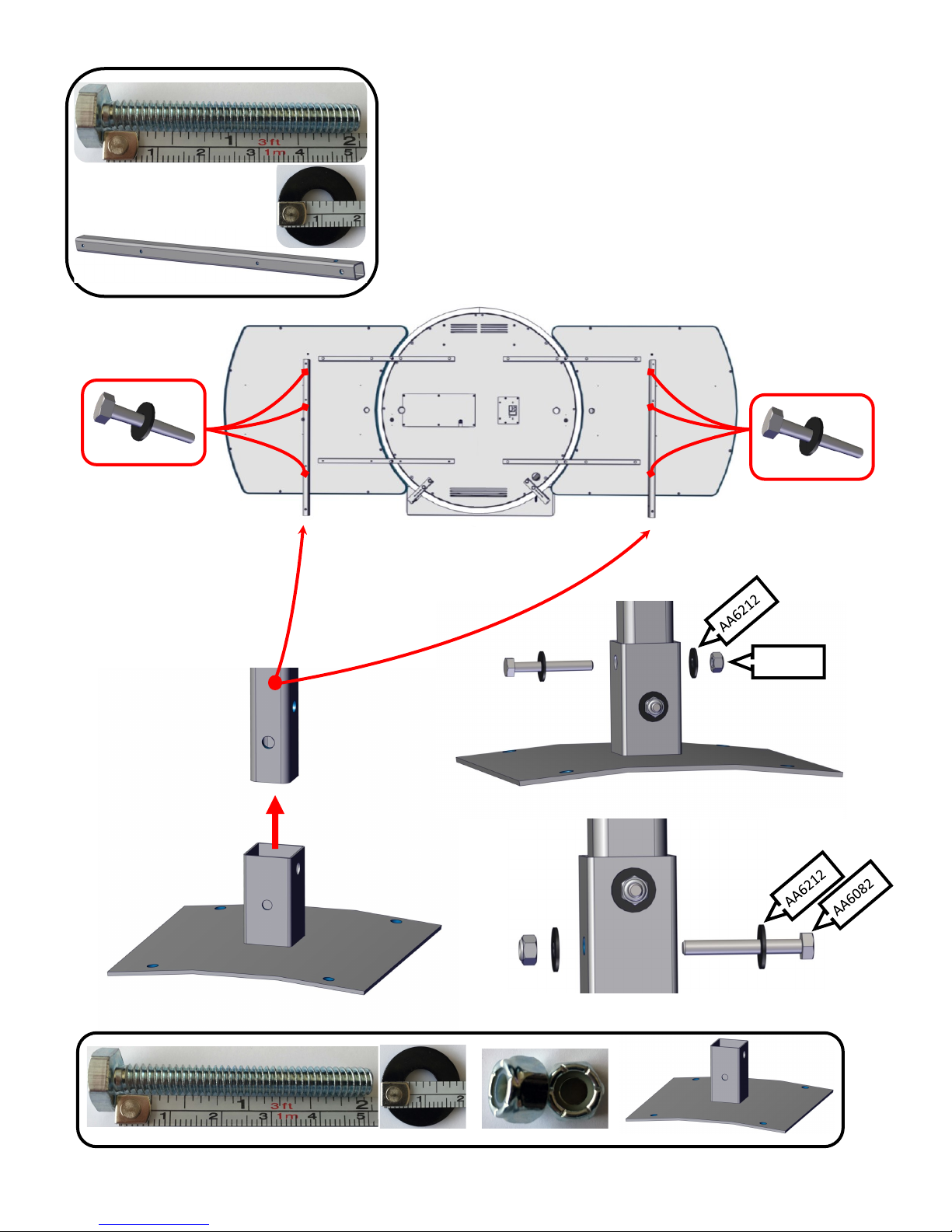

Step 2: Odd Number of Games Instrucons.
Aach the three braces to the marquee using 9 AA6082 bolts
and 9 AA6212 washers. Then slide the cage mounts into each
brace. Aach using two AA6082 bolts, four AA6212 washers, and
two PC60604 nylon nuts.
AA6082 AA6212
PC60604
CB1158

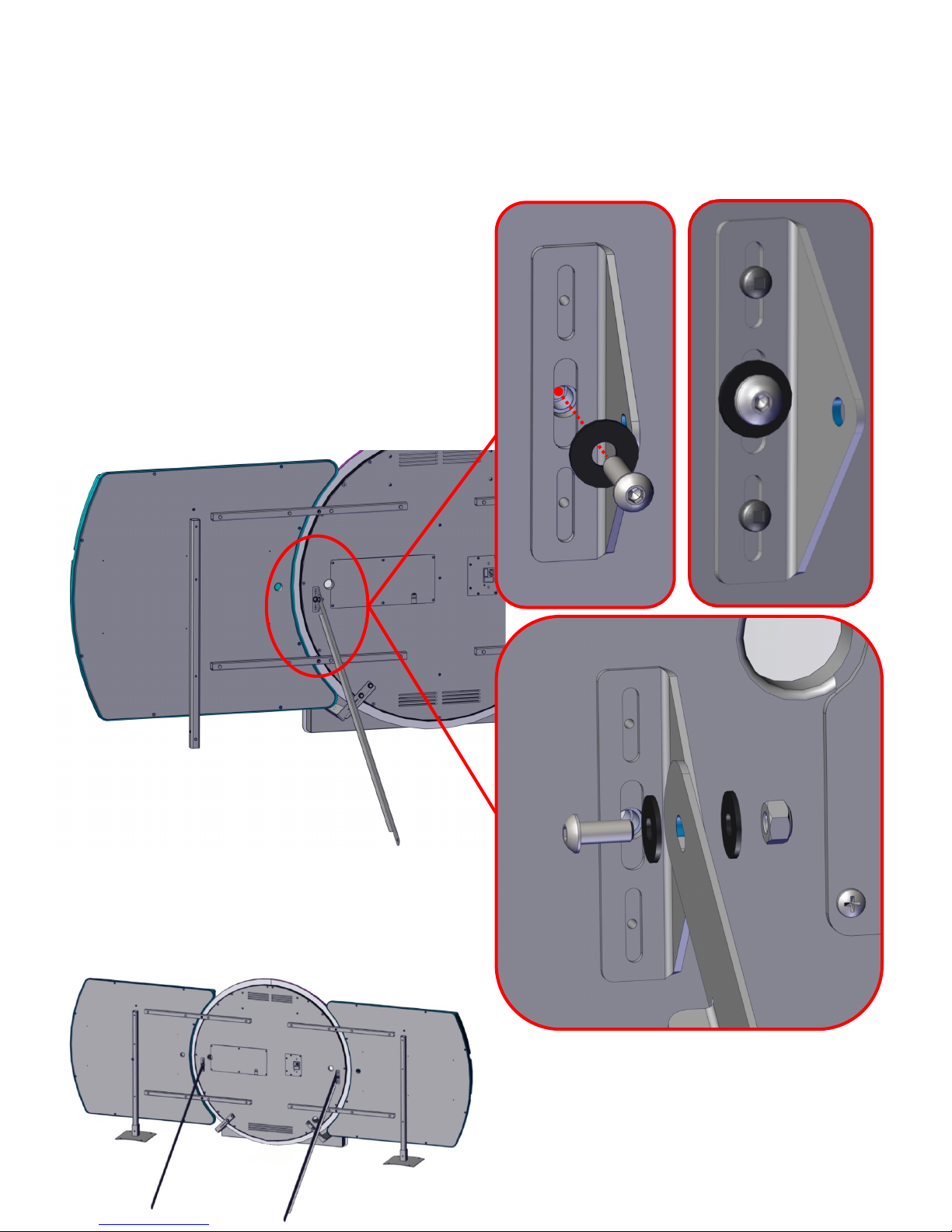

Step 3: Odd Number of Games Instrucons.
Aach the le arm bracket to the marquee using one PC60622 bolt and one AA6212 washer and ghten. Se-
cure bracket with two AA0655 self tapper screws. Then aach one NB1204 arm to the bracket using one
AA6718 bolt, two AA6212 washers and one PC60604 nylon nut.
REPEAT FOR THE RIGHT SIDE.

PC60604
AA6049 PC60604
AA60622

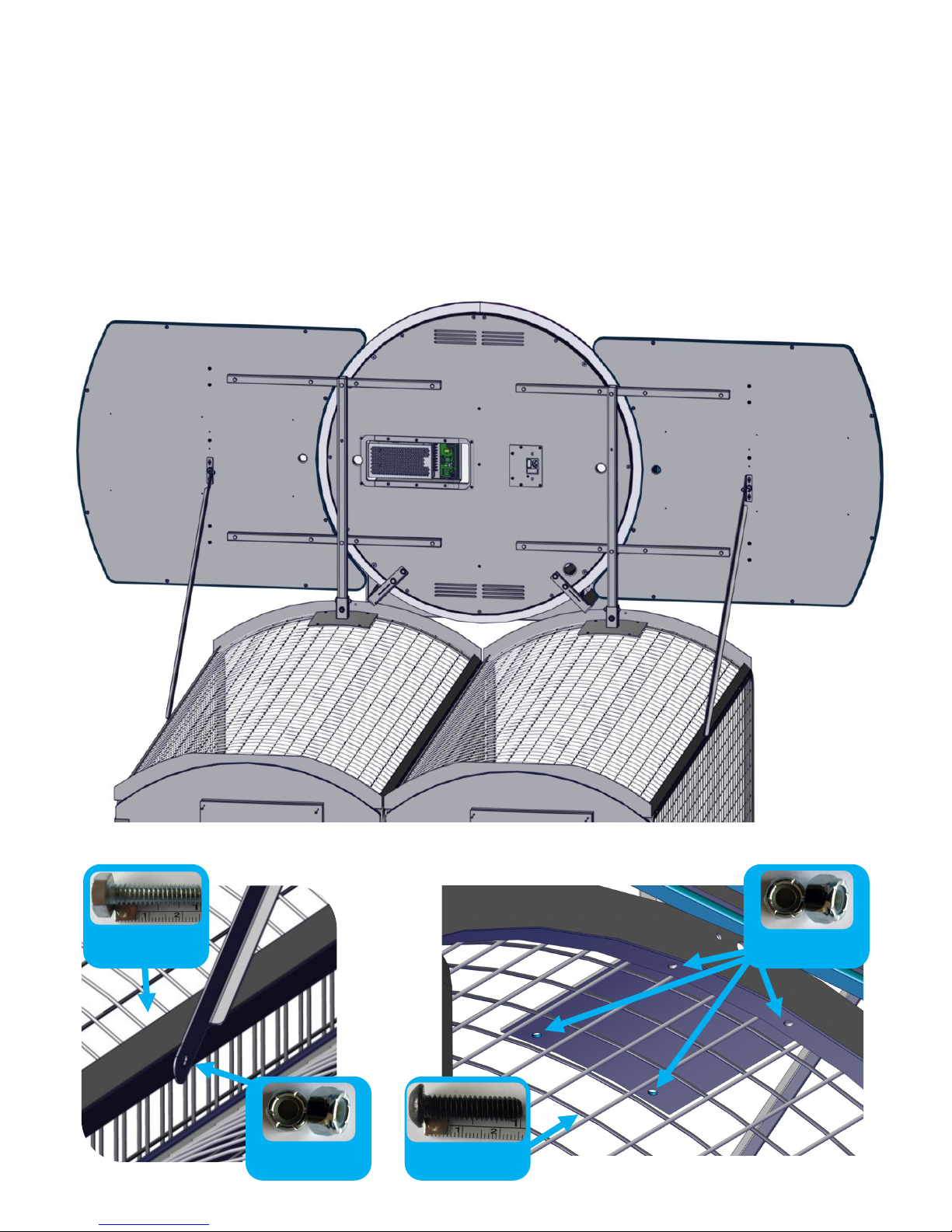

Step 4: Odd Number of Game Instrucons.
Aach the marquee cage mounts using four PC60604 nylon nuts on top of the cage and four AA60622
from inside the cage. The diagram below doesn't show the second support brace at the top of the cage.
Then aach the braces with AA6049 bolts from the inside of the cage and two PC60604 nylon nuts outside
the cage. You can also use PC60622 Allen bolts instead of the hex head bolts if you wish.
You are ready to program the marquee. See program opons for details.

AA6082
AA6212
AA6082
AA6082
AA6082
AA6212
AA6212
AA6212
AA6082 AA6212
NB1202 x 4
X’s 16
** Note **
Harnesses for the wings will have a label that states Le or RIGHT side.
LEFT WING RIGHT WING
Step 1: For Even Number of GAMES.
Aach the le wing and right wing to the center of the
marquee. Make sure you use the le wing on the le side
and the right wing on the right side. LED’s will light from
the top row down when wings are installed on the correct
side.

AA6082
AA6212
AA6082
AA6212
AA6082
AA6212
NB1201
PC60604
Step 2: Even Number of Games Instrucons.
Aach the three braces to the marquee using 9 AA6082 bolts
and 9 AA6212 washers. Then slide the cage mounts into each
brace. Aach using two AA6082 bolts, four AA6212 washers, and
two PC60604 nylon nuts.
AA6082 AA6212
PC60604
CB1158

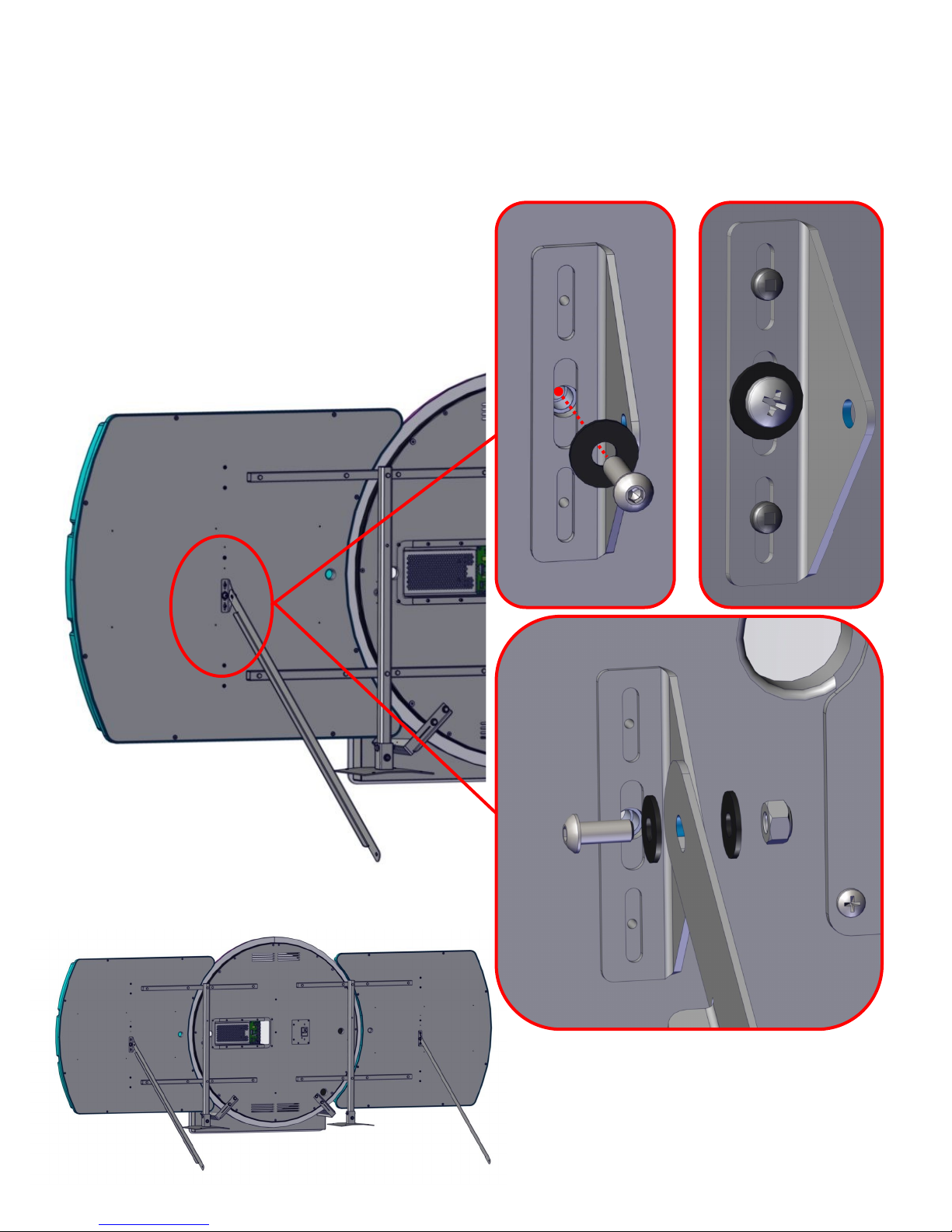

Step 3: Even Number of Games Instrucons.
Aach the le arm bracket to the marquee using one PC60622 bolt and one AA6212 washer and ghten. Se-
cure bracket with two AA0655 self tapper screws. Then aach one NB1204 arm to the bracket using one
AA6718 bolt, two AA6212 washers and one PC60604 nylon nut.
REPEAT FOR THE RIGHT SIDE.

PC60604
AA6049 PC60604
AA60622
Step 4: Even Number of Game Instrucons.
Aach the marquee cage mounts using four PC60604 nylon nuts on top of the cage and four AA60622
from inside the cage. The diagram below doesn't show the second support brace at the top of the cage.
Then aach the braces with AA6049 bolts from the inside of the cage and two PC60604 nylon nuts outside
the cage. You can also use PC60622 Allen bolts instead of the hex head bolts if you wish.
You are ready to program the marquee. See program opons for details.

How to link the marquee to NBA Hoops with Dot Matrix display.
To link the marquee to NBA Hoops with a matrix display, connect one end of a RJ45 linking cable to J5 RJ45
connector (not J22 or J23) on the marquee board. Then connect the other end to the “IN” (J4) jack of Game
one (see diagram below).
Now connect another RJ25 linking cable from the “OUT” (J5) connector of Game one to the “IN” (J4) connector
on Game two. Connue to connect cabinets this way unl you get to the last cabinet. This cabinet you would
connect a cable from the “out” (J5) to the “TERM” (J9) connector of the same cabinet.
No soware opons need to be changed in order to enable linking!
NEVER MOVE GAMES WITH LINK CORD ATTACHED!
Game 3
OUT
TERM
Game 2
IN
OUT
Game 1
IN
OUT
When power is applied, the game will display its version number on the back board,
then pause, show it’s assigned ID, then go into aract mode. If the game shows
dashes instead of a assigned ID number, there was failed communicaon between
the games. Double check connecons go in to out and term is installed in last
game.
J5
J23
J22

Staon ID 0 Staon ID 1 Staon ID 2
=
Programming Opon 19 is Staon ID.
J23
J22
J5
Linking with older NBA Hoops games (no matrix display).
Remove the 5 screws holding the back cover on the back of the marquee.
Insert the phone line into either J22 or J23 jack of the marquee board.
The other end of the phone Cord can connect to either the rst or last game but not to both!
*** Make sure not to use the RJ 45 jack (J5) on the marquee board ***

1
2
Press the “START BUTTON” to advance through the different options.
Press the “PLAYER SELECT BUTTON” to change the value of the option.
Press the “PROGRAM BUTTON” located in the upper coin door to save your changes and exit program mode.
NOTE: Game used to program marquee must be on ID #0.
Programming Opons for NBA Marquee Old (non matrix)
Opon Default Min Max Inc
0Score Base 75 25 250 1 Lowest Score
1 Tickets 100 09975 25 Tickets for High Score
2Games To Dec 50100 1How many Lost games to Dec Score
3Dec Amount 5120 1When Dec change by this amount
4Games to Inc Tickets 10100 1Game losses to Inc Tickets
5Inc Amount 11`20 1How many ckets when Inc’d.
6Save High Score 0011High Score remains for power cycle
7Color 1 0071See color chart list in new programming
8Color 2 4071See color chart list in new programming
9Color 3 2171See color chart list in new programming
10 Color Speed 5020 1Speed of Color cycle.

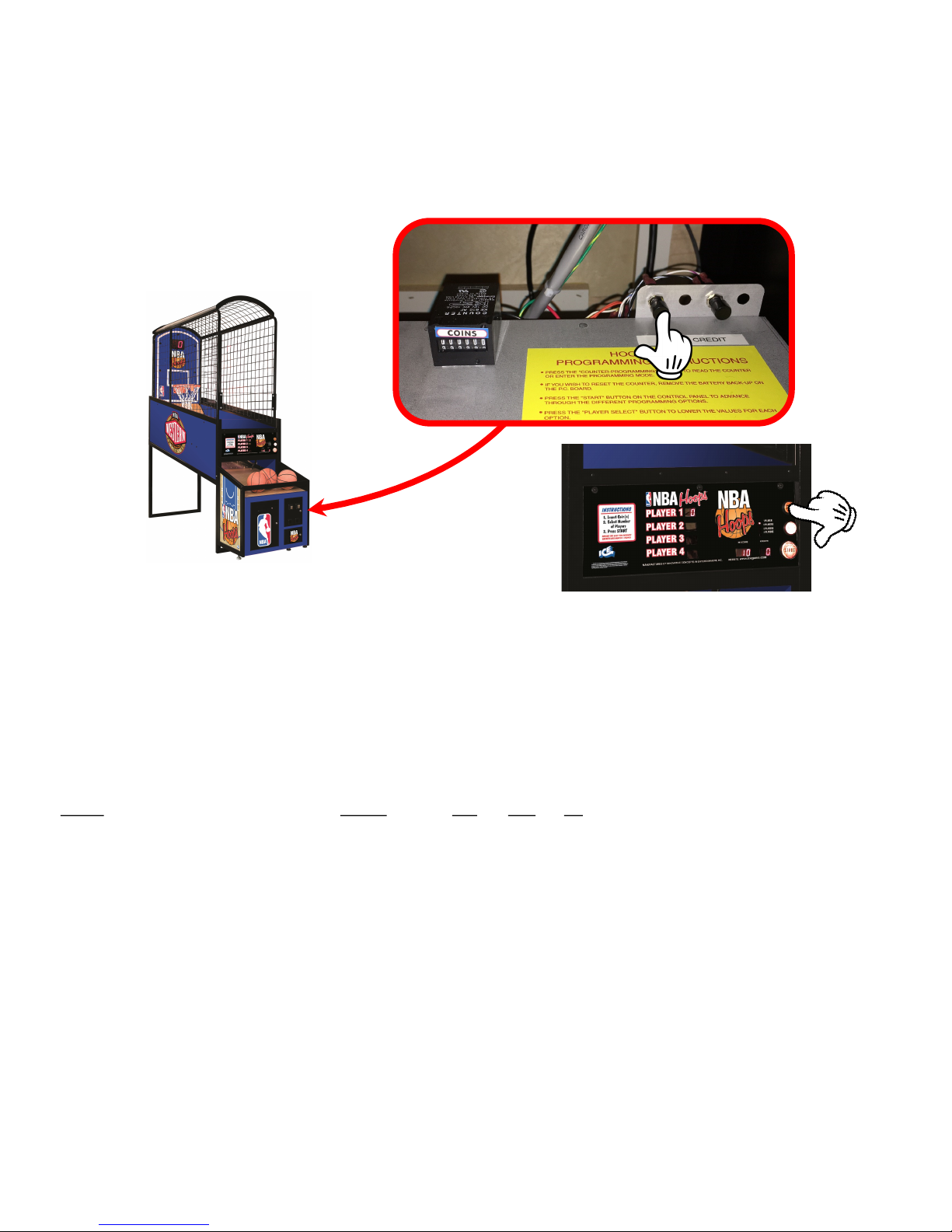

HOW TO ENTER MARQUEE PROGRAM MODE FOR ORIGINAL NBA
1. Open the game’s coin door. This is the upper door located on the upper right side of the lower cabinet.
2. Locate the Program and Credit buttons. The Program / Credit button instruction decal is located on the cash box
enclosure. This will give you a brief description of the features outlined below, as well as how to use them.
3. Press the Program button.
4. Press the “Player Select” button.

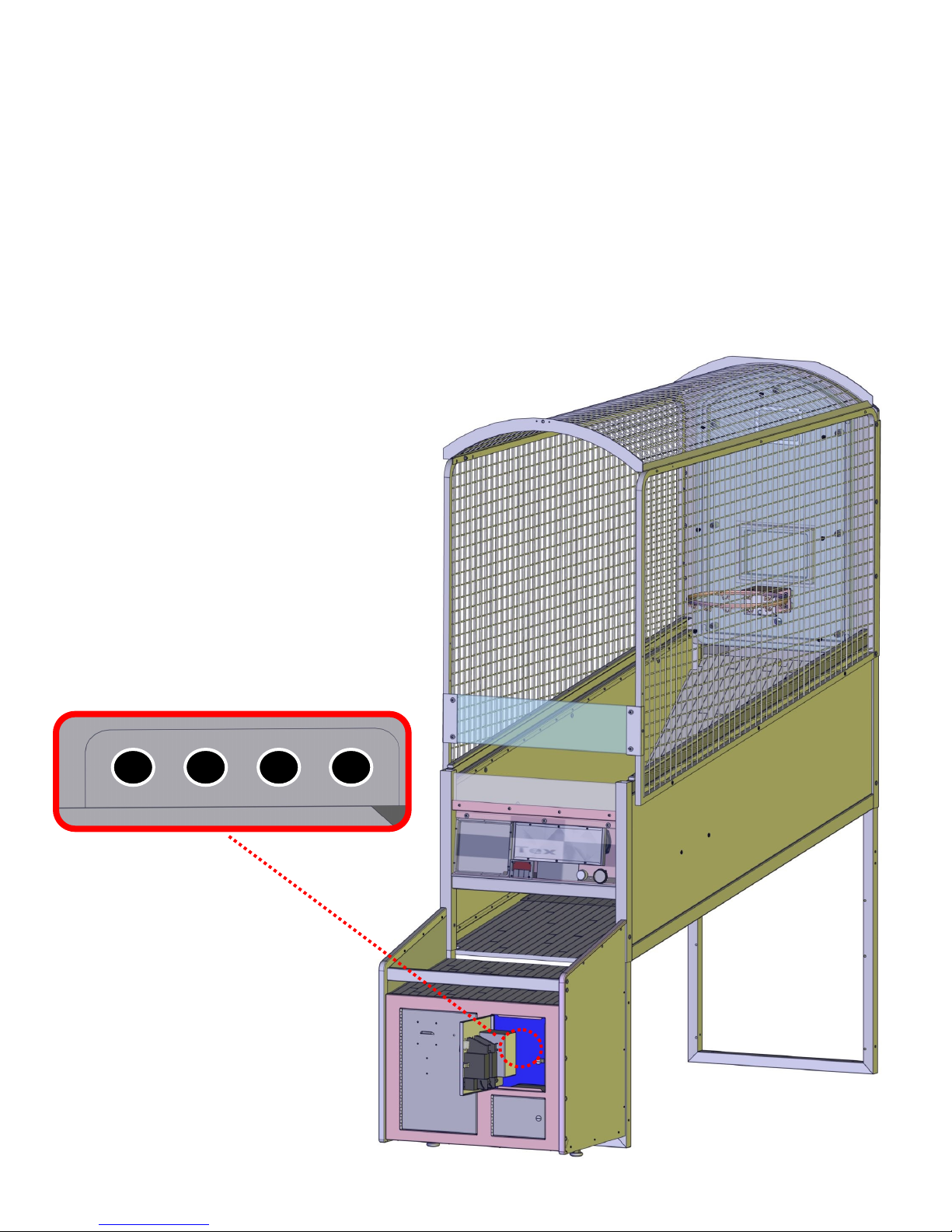

HOW TO ENTER MARQUEE PROGRAM MODE FOR NEW NBA
The game must be in aract mode and not be being played. From the front of the game open the upper coin door and press the
“DOWN” buon. The Marquee will display P0 and a value. The marquee is showing the rst opon and its programmed value.
Pressing the “SELECT” buon will cycle through the opons.
Pressing the “UP” buon will increase the current value for that opon.
Pressing the “DOWN” buon will decrease the current value for that opon.
To exit and save sengs, press the “PROGRAM” buon. If you press the “PROGRAM” buon again, it will enter the game’s pro-
gramming mode and not the marquee programming mode.
PROGRAM SELECT UP DOWN

Programming Opons for NBA Marquee New
Opon Default Min Max Inc
0Score Base 75 25 250 1 Lowest Score
1 Ticket Base 100 09975 25 Tickets for High Score
2Games To Dec 50100 1How many Lost games to Dec Score
3Dec Amount 5120 1When Dec change by this amount
4Games to Inc Tickets 10100 1Game losses to Inc Tickets
5Inc Amount 1120 1How many Tickets when Inc’d
6Save High Score 0011High Score remains for power cycle
7Color 1 0071Color 1
8Color 2 4071Color 2
9Color 3 2171Color 3
10 Color Speed 5020 1Speed of Color Cycle
Selected Color Numbers For both Versions
Color 0 Red
Color 1 White
Color 2 Blue
Color 3 Orange
Color 4 Green
Color 5 Yellow
Color 6 Pink
Color 7 Purple
Note:
To enter programming mode you must be on linked game #1. Press the DN buon to enter programming mode. You cannot be in
game programming mode to do this. Aer that the Marquee will show a P0 and a value. That is opon #0. Pressing the select
buon will cycle thru the modes. Pressing the up buon will increment the opon wrapping if you go to far. Pressing the dn
buon will decrement the opon, again wrapping if you go to low.
To exit MQ programming press the prg buon. Doing this once will exit programming of the marquee and pressing it again will
enter programming for the game.
