Iceco JP30 Series User manual

JP30/40/50

CONTENT

SAFETY INFORMATION
Please read this operating manual carefully before starting the appliance. Keep it in a safe place for
future reference. If the appliance is passed on to another person, this instruction manual must be handed
over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
WARNING
● This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
● Children should be ensured that they do not play with the appliance.
● Cleaning and user maintenance shall not be carried out by children without supervision.
● Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
● Do not use this appliance near direct heat sources, for example, a cooker, radiator or exposing it to
direct sunlight.
● The appliance shall not be exposed to rain. Place the refrigerator on a dry, protected surface, away
from edges.
● Do not use an extension cord.
NOTICE
● No responsible for the damage by ignoring the safety instructions 4WD Supacentre.
● The use of accessories that are not recommended by 4WD Supacentre can cause injuries and will
invalidate any warranty that you may have.
● Place the products so that they do not collide against each other or break when the appliance is in
motion.
● If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
● Disconnect the power cable from the plug before carrying out any maintenance.
INTENDED TO USE
This appliance is intended to be used in household and similar applications such as:
● Staff kitchen areas in shops, offices and other working environments;
● Farm houses and by clients in hotels, motels and other residential type environments;
● Bed and breakfast type environments;
● Catering and similar non-retail applications.
CAUTION
● Keep ventilation openings, clear of obstruction in the appliance enclosure or in the built-in structure.
● Do not use electrical appliances inside the food storage compartments of the appliance, unless they
are of the type recommended by 4WD Supacentre.
● Do not place ice or liquids which are not sealed in containers within the refrigerator.
● Do not place hot products or hot food in this appliance.
CORRECT DISPOSAL OF THIS PRODUCT:
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please
use the recovery systems or contact the retailer that they can take this product for environmental safe
recycling.
DANGER
● Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
● Take off the doors.
● Leave the shelves in place so that children may not easily climb inside.
1

ENGLISH
Please read these instructions and the Safety section carefully before using your refrigerator.
23.0'' (58.5cm)
13.8'' (35.0cm)
15.0'' (38.0cm)
JP40 Series
23.0'' (58.5cm)
13.8'' (35.0cm)
17.5'' (44.5cm)
JP50 Series
23.0'' (58.5cm)
13.8'' (35.0cm)
20.9'' (53.0cm)
AC CONNECTION CABLE DC CONNECTION CABLE
JP30 Series
2
DESCRIPITION

INSTALLATION
- Place the refrigerator on a dry, sheltered, flat surface and away from any edges. The refrigerator must
not be used unsheltered, in the open air or exposed to splashing or rain.
- Your refrigerator requires good ventilation, especially around the back of the refrigerator, allow a gap of
at least 15 cm around the sides, back and top. Never use your refrigerator in the boot of a car or against.
- Do not install the refrigerator near heat sources, sunlight.
- Should you need to leave the device under the sun for long periods, eg：in a car or in other vehicles, make
sure you protect it, to prevent the cover plastic materials from getting damaged or warped.
- To fix it inside the car and to avoid damages during transport, we suggest to secure the fridge trough
metal brackets placed on the sides.
- Avoid introducing liquids or ice not inserted in containers.
- Do not put hot food items into the refrigerator.
- Avoid using the refrigerator under the rain or in presence of water.
This appliance contains fluorinated greenhouse gas R134a within an hermetically sealed system and its
operations depends on the presence of this gas.
Voltage
MODEL
Dimensions
HxWxD
Net
Weight
Storage
Volume
Refrigerant
38.0 x58.5 x35.0(cm)
DC 12/24V &
AC 110-120V
50/60 Hz
JP30 Series
R134a
15.0x 23.0x 13.8(inch)
44.5 x58.5 x35.0(cm)
DC 12/24V &
AC 110-120V
50/60 Hz
JP40 Series
R134a
17.5x 23.0x 13.8(inch)
53.0 x58.5 x35.0(cm)
DC 12/24V &
AC 110-120V
50/60 Hz
JP50 Series
35.3lbs 37.5lbs 40.8lbs
31.7quarts 42.3quarts 52.8quarts
R134a
20.9x 23.0x 13.8(inch)
16 kg 17 kg 18.5 kg
30 liters 40 liters 50 liters
For example: JP30#*S #=B or W or G ；
-- 30with mean capacity;
-- # = B or W or G; with mean different Appearance Color B(black);G(gray);W(white);
-- * = S or D with mean Single Zone or Dual Zone design;
-- S = S with mean app; N with mean no app
3
GETTING STARTED
Naming Method

USING THE REFRIGERATOR IN A VEHICLE
- Connect the feeding cable to a direct current 12 or 24 V DC power source.
- Make sure the polarity is right.
- The supply line is protected by a 15 A fuse located on the box.
- If connected to an existing cigarette plug, carefully check up that power supply is sufficient.
- If the supplied power cable is not used, see the table containing the information related to
the cable section:
CABLE AREA
2
mm (AWG)
MAX CABLE LENGHT METRES (ft)
12V 24V
2,5 (AWG 13) 2,5 (8 FT) 5 (16FT)
4 (AWG 11) 4 (13 FT) 8 (26 FT)
6 (AWG 9) 6 (20 FT) 12 (40 FT)
USE
TIPS
1) Use the product in MAX mode in these cases:
- use of the product as refrigerator with high ambient temperature;
- when the suitable temperature need to be achieved in few time.
2) Use the product in ECO mode in these cases:
- use of the product as refrigerator and, in particular, with low ambient temperature;
- when the vehicle is parked for long time (with engine switched off)
- Plug in the DC or AC power. Press the button “ON/OFF” to run the refrigerator. The LED display on the
control panel would be lighted and the interior temperature would be displayed.
- Press the button and to adjust the temperature. Press the button to increase while the
button to decrease the temperature. When press the above two buttons at the same time, it would
switch the display between °Cand °F.
- Press the ECO key to enter the "ECONOMY" operating mode: the ECO light turns on and the com-
pressor runs at minimum speed by keeping afresh temperature inside the refrigerator. By pressing
the ECO key again, the light turns off and the refrigerator enters in MAX mode (mode (maximum
number of compressor turns)). MAX light will be switched on until having achieved the temperature set .
ECO
MAX
ON/OFF MAX/ECO
4
15A
FUSE
DC12V/24V
DC12V/24V
15
LOWHIGH MED
15
50HZ/60HZ
AC110-120V/220-240V
- When the appliance is on, press the "+" and "-" buttons at the same time to switch back and forth between
Celsius and Fahrenheit.

Compressor station
Functions and features.
This is an electronic device which has the function of piloting the motor of the compressor and carrying
out all the controls and electrical protection of the system.
Its main features are as follows:
a) Protection of the battery through automatic turning off of the compressor when the feeding voltage
reaches the minimum threshold.
b)The compressor will start up again automatically when the voltage goes back to normal values.
Note: these values have been measured at control unit input and/or on the DC socket.
Battery protection (SWITCH POSITION)
LOW
MED
HIGH
Cut-out 12V
9.6
10.1
11.1
Cut-in 12V
10.9
11.4
12.4
Cut-out 24V
21.3
22.3
24.3
Cut-in 24V
22.7
23.7
25.7
- This model can be fed equally using 12/24V or mains power (110V - 120V AC).
- It is equipped with 2 sockets to connect the two different cables for DC respectively AC.
- The refrigerator is provided with automatic switch over from one kind of feeding to the other.
- Should both be present at the same time, the device will always set itself on mains power priority feeding
by 110V - 120V AC.

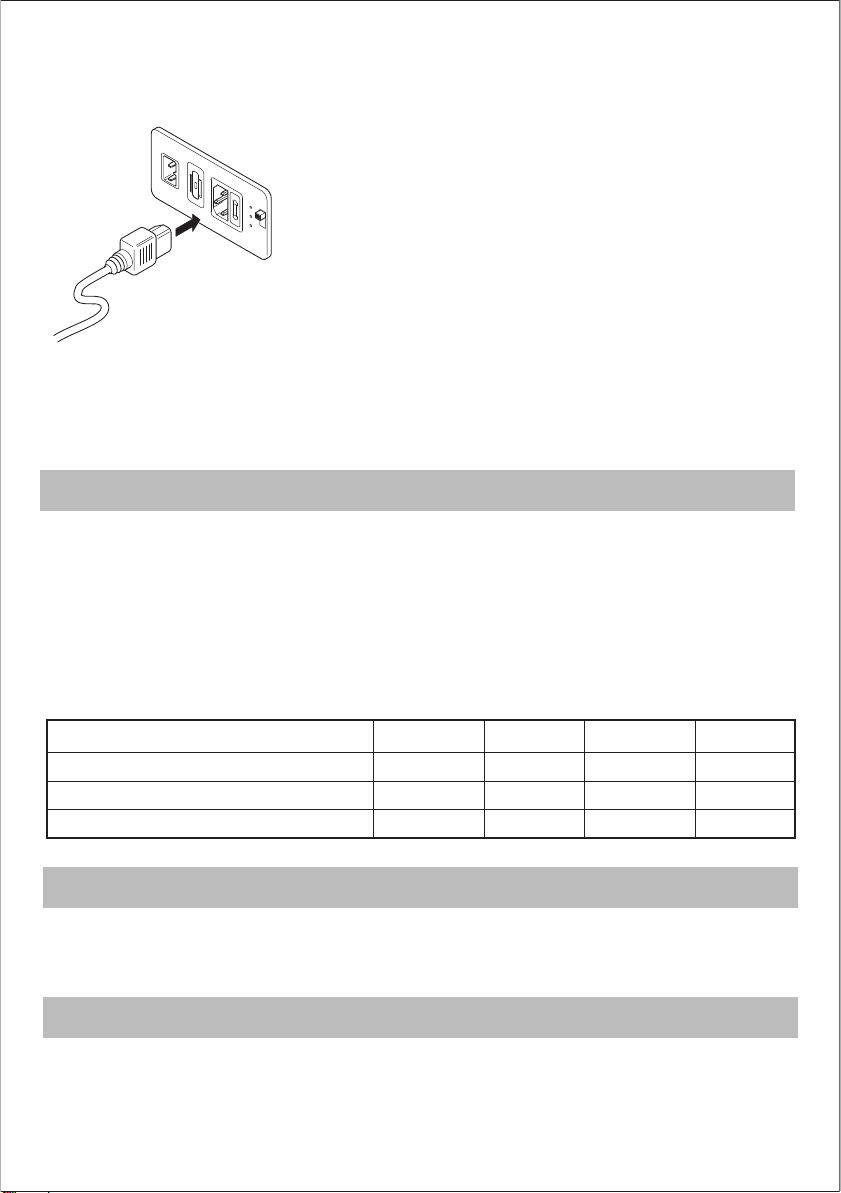

USING THE REFRIGERATOR AT HOME
Do not put hot food items into the refrigerator. Place the products in such a way as to avoid them hitting against
each other or breaking because of the movement of the vehicle.
Make sure that the lid is always well closed and open it for as short a time as possible.
Defrosting is needed when the layer of frost is thicker than 4 mm.
To carry out this operation, turn off the refrigerator.
Do not use sharp or cutting tools to remove the layer of frost or ice.
Wait until complete unfreezing and then turn on again.
5
15A
FUSE
DC12V/24V
DC12V/24V
15
LOWHIGH MED
15
50HZ/60HZ
AC110-120V/220-240V
FILLING
DEFROSTING
ELECTRONIC CONTROL

Before carrying out any maintenance operation on the refrigerator , take the power cable out of its
socket.
•Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent.
• Subsequent to washing, rinse with clean water and dry thoroughly using a soft cloth.
•Do not use the following: special glass and mirror cleaning products, liquid, powder, or spray detergents, alcohol,
ammonia or abrasive products.
•If you are not using the refrigerator, we suggest cleaning it well inside and leaving the door ajar to ven-
tilate the interior.
Should the device fail to work or work badly, before referring to our after-sales service, make sure that:
a) the feeding voltage is not missing;
b) the voltage is the same as the one shown on the plate;
c) the connections and the polarities are right;
d) the airing grids are not covered over;
e) the refrigerator unit is not near any heat source;
f ) the fuse of the feeding line is not blown.
Failure to obey the following notices could result in property damage:
• • Keep sand or dirt away from the cooling system ventilation area.
• Do not leave the cooler on the deck of aboat for an extended period. Salt water damage to the cooling
system, electronics, or metal hardware could occur.
Failure to obey the following warnings could result in death or serious injury:
• ELECTRICAL SHOCK HAZARD. Do not immerse the product in water, or use it in an area that is
excessively muddy.
• Do not use the cooler for any purpose other than as a mobile cooling device.
FALL HAZARD. Do not stand on the cooler. Doing so could damage the unit or cause minor
to moderate injury.
6
MAINTENANCE
CLEANING
SUGGESTIONS
GENERAL SAFETY MESSAGES
NOTIC

• Do not expose the cooler to extreme heat.
• Only use mild soap and water to clean the cooler.
• Do not use aDC extension cord.
• Do not use apower strip or two-way splitter.
• Do not use power cord adapters of any kind other than those provided by the manufacturer.
• Do not use ice cubes or fill the cooler with water. If ice does accumulate at the bottom of the cooler,
defrost the unit and use the drain plug to drain the water.
• Do not modify the unit in any way.
• Do not place hot materials (75 °For higher) in the cooler. Allow materials to cool (50 °For less) before
placing them inside the cooler.
• Do not tip or store the cooler at an angle greater than 30° for extended periods. Compressor oil
contamination of the cooling system could occur.
• Allow 2–4inches of space around the cooler at all times for proper ventilation of the cooling system.
• The cooler must be secured at all times using straps or amounting plate, especially in mobile
applications.
The power supply cable must be replaced only by qualified technical personnel and in any case by
an after sales service authorised by the Manufacturer.
ICECO is not liable in any way if you do not comply strictly with all the previsions in this manual.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Number
of flashes Error type
E1 Battery protection cut-out
(The voltage is outside the cut-out setting).
E2 Fan over-current cut-out
(The fan loads the electronic unit with more than 1Apeak).
E3
Motor start error
(The rotor is blocked or the differential pressure in the refrigeration system is too
high (>5 bar)).
E4
Minimum motor speed error
(If the refrigeration system is too heavily loaded, the motor cannot maintain
minimum speed 1,850 rpm).
E5
Thermal cut-out of electronic unit
(If the refrigeration system has been too heavily loaded, or if the ambient
temperature is high, the electronic unit will run too hot).
7
FAULTS

ICECO product comes with a 3-year warranty on
the compressor and 1 year warranty on all other
parts for your peace of mind. In the unlikely event
this product fails when used according to our user
guide, we will either repair or replace it. For full
warranty terms and conditions on this product,
please see the user guide.
Customer Support
For any technical or warranty
enquires please visit our customer
service portal at:
www.icecofreezer.com
This product is warranted for 3 years on the compressor and 1 year for all other
parts from the date of purchase. Our goods come with guarantees
that cannot be excluded under the Local Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Warranty does not cover products that have not been used in accordance with
user guide or are outside the warranty terms and conditions.
Quality Service Guarantee
QUESTIONS AND COMMENTS
Please visit us at icecofreezer.com or email us at [email protected]
