Iceco STEEL VL60S Series User manual

VL60S/74
If there are any problems, please email us:
offi[e-mail]

Catalogue
Catalogue
1 1
-----------------------
What's Inside
2 2
---------------------------
Operation
3 8
--------------
Care And Maintenance
4 9
- - - - - - - - - - - -
Error Codes & Solutions
5 11
- - - - - - - - - -
Warranty & Return Policy
6 12
- - - - - - - - - - -
Troubleshooting (Q & A)
7 17
- - - - - - - - - - - - - - - -
Safety Instructions

What's Inside
Refrigerator x1 Wired Basket x2
110V AC Wall
Outlet Cable x1
12/24V DC Cigarette
Lighter Plug Cable x1
01
1

Operation
2
ATemp. Setting UP
BTemp. Setting DOWN
CPower (Press & Hold to turn on/off)
DMode Button (MAX / ECO Mode)
02

2.1 Temperature Compensation Mode
In Stand By model (fridge turned off but plugged
into power), press and hold Button D for 3
seconds, with "F1/F2/F3" flashing, short press
Button D to switch between F1, F2 and F3 to
set the Temperature Compensation Mode.
03
Please adjust under the guidance of customer
service. We do not recommend changing the
original setting, which may cause temperature
control problems.
! Attention !

04
2.2 Switch Between °C to °F
With the unit standby (plug-in, without pressing
Power Button C to turn on), press and hold
Button D for 3 seconds to enter adjustment
mode. Short press Button D for times, with
"F/C" flashing, press Button A/B to toggle
between Celsius & Fahrenheit. (Default: °F)

05

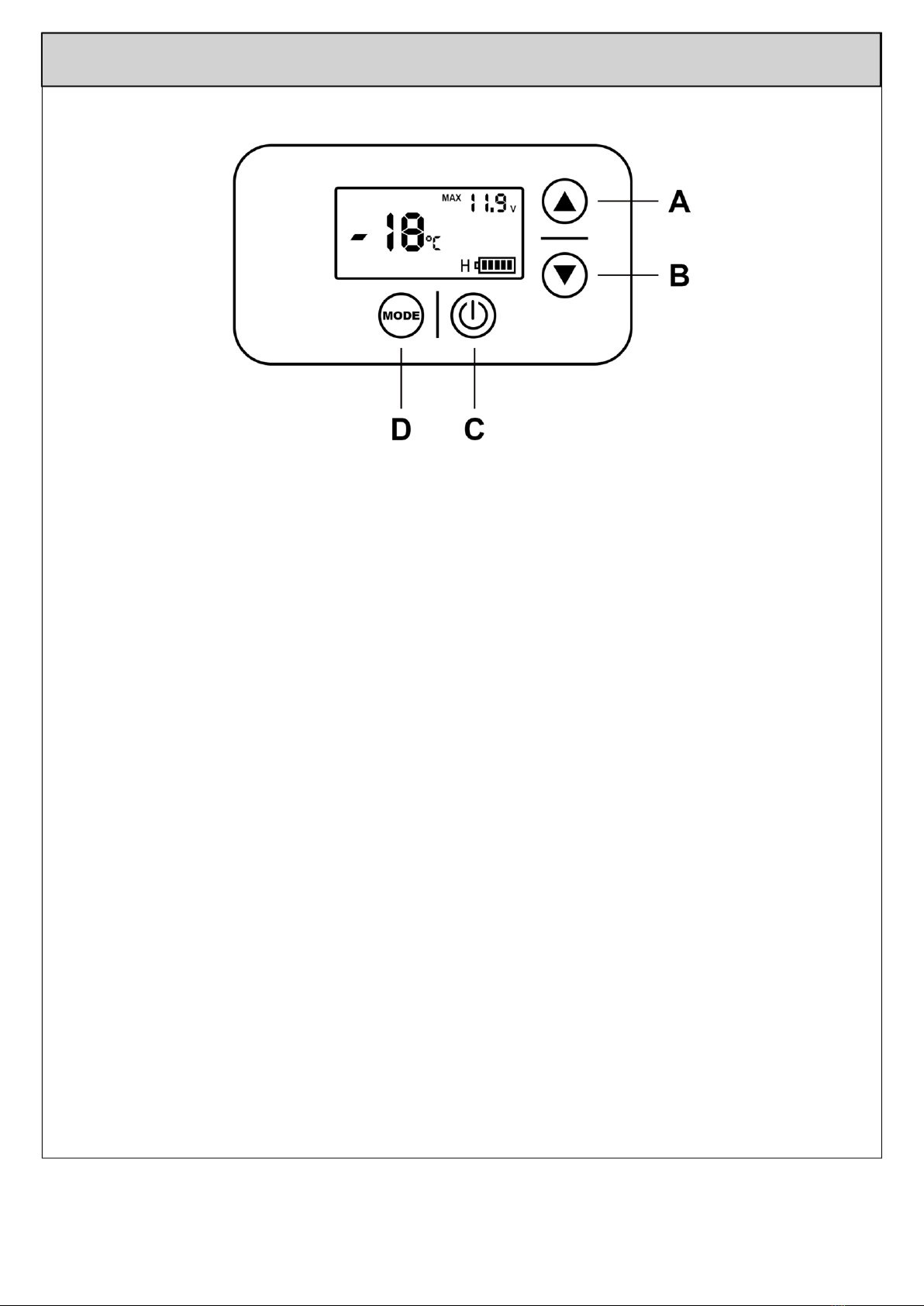

With the unit turned on, the fridge's CURRENT
interior temperature reading will appear on the
display, as a solid / non-flashing number.
To change the fridge's set temperature: Press
either the Temperature UP (A) or Temperature
DOWN (B) Buttons to adjust the fridge's SET
temperature.
The SET temperature will appear as a
FLASHING number, and after the temperature is
SET, the display will return to showing the
fridge's CURRENT interior temperature.
2.3 Setting Temperature

06
2.4 MAX & ECO Mode
With the unit turned on(Press & Hold C/Power
Button), you can press the MODE Button D to
toggle between MAX or ECO compressor speed
for the fridge.
2.4 MAX & ECO Mode

2.4 MAX & ECO Mode
With the unit turned on, short press Mode Button
D to adjust the level of the battery protection
when "H/M/L" appears.
2.5 Triple Battery Protection Operation
NOTE: Details of Battery Protection Mode could
be found in Page 13.
07

08
Care And Maintenance
3
3.1 Cleaning
Please use a wet cloth and warm water mixed
with gentle non-abrasive detergents to clean
the interior and exterior of your fridge.
3.2 DOs and DON'Ts
Please power off and unplug the unit before
cleaning
Please use non-abrasive detergent to
cleaning the interior/exterior of the fridge
Please don't scrap the interior of the fridge to
defrost/de-ice the fridge
Please don't pressure-wash/spray the fridge
with a running water hose

09
Error Codes & Solutions
4
Error Code
※ The cooling fan overloads with more
than 1 A of current.
E2
Motor start error
※ The motor of compressor is blocked or
the pressure difference in the refrigeration
system is too high.
E3
Minimum motor speed error
※ The compressor overloads and the
motor can not maintain its minimun speed
1850 rpms.
E4
Thermal cut-out of electronic unit
※ Thermal cut-out error If the refrigeration
system overloads, or the ambient
temperature is too high, the thermal sensor
is overheated.
E5
※ The DC voltage is below the protection
setting and the battery protection mode is
activated.
E1

10
Solutions
If this error code appears when the fridge is
operating on 12V DC, please try to lower the
battery protection setting and see if the error
is resolved. The battery protection mode may
be triggered prematurely on certain vehicles
due to small wiring imperfections, contributing
to a measured DC voltage drop at compressor
start-up. Lowering the battery protection
setting may resolve this issue.
Please also try to take a voltage reading of your
battery to make sure it is not
depleted/discharged.
If possible, please connect the AC power cord to
try if the refrigerator appears E1 code.
Please contact us directly if the error persists.

11
Warranty & Return Policy
5
30-day money back guaranty upon receiving
goods.
5 year Compressor Warranty.
1 year General Warranty.
For returns or exchanges, please fill out the
following return and exchange registration
form in the package as a proof of return. All
materials must be returned in the original
condition and packaging. Thank you for
your cooperation.
If the product is received damaged or
defective during transportation, you need to
contact our customer service within 2
business days. Make sure to provide relevant
photos or videos, your order ID number and
your name. A customer service agent will
help assist into solving the issue at a timely
manner. (Return, Exchange, or Discount
Compensation) A free return label will be
provided if needed.

12
Troubleshooting (Q & A)
6
1. Heat resistance & water resistance
ICECO refrigerators are engineered to operate
at an ambient temperature of up to 55°C
(131°F).
Heat resistance
ICECO refrigerators can operate under light
rain conditions. Please keep the vents
above clear of water, and please add some
clearances to the bottom of the fridge if the
ground is wet.
Weather Proof
We DO NOT recommend exposing the fridge
to moderate or heavy rain.
As with all electrical appliances, over-exposure
to moisture may shorten the fridge’s life.

2. How long can the ICECO refrigerator
keep the temperature after powering
off?
The following data only represents the situation
when the refrigerator is empty. Due to different
samples, it is normal to have differences.
Insulation Performance
Model Insulation Test
VL60S
VL74
Ambient temperature of 25°C (77°F)，
refrigerator temperature from -18°C
(0°F) to 20°C (68°F) needs 5 hours
on average.
3. Why did it change back to the original
temperature after setting the
temperature?
The Solid/Non-Flashing number on the display
is the CURRENT interior temperature.
The Flashing number is your SET temperature
after adjustment. The compressor will shut off
when the SET temperature is reached.
13

14
4. What should I do if the refrigerator is
upside down when it is delivered?
Please leave your refrigerator upright for
24 hours to allow the compressor lubricant to
resettle before powering on the fridge.
Otherwise it may contribute to certain operation
abnormalities.
5. What is the function of triple battery
protection? How do they work?
The triple battery protection is designed to
prevent over-discharge and battery depletion.
When the measured DC voltage is below the
set value, the compressor is shut off to prevent
battery depletion.
Battery
Protection Cut-out
12V
Cut-in
12V
Cut-out
24V
Cut-in
24V
(SWITCH POSITION)
LOW 9.6 10.6 21.3 22.7
MED 10.1 11.4 22.3 23.7
HIGH 11.1 12.4 24.3 25.7

For example, when you switch to a LOW
MODE, the battery voltage is lower than 9.6
volts, the refrigerator will automatically power
off; When the battery voltage reaches 10.9
volts, the refrigerator will start again.
6. What is the power draw in max/ fast
cooling mode?
Model Electrical
Power
GO12 50W
Model Electrical
Power
JP42 55W
GO20 50W VL35
Series 65W
JP Series 60W VL Series 85W
15
This data is only suitable for laboratory testing,
and the actual power is subject to actual
conditions.

16
8. What kind of cable do I need to use in
the car and at home?
Both the AC and DC cables are provided with
your fridge. You can power your fridge directly
from your wall outlet using the AC cable, or
power it from your vehicle's cigarette lighter
plug using the DC cable.
9. What is the specification of the fuse of
the refrigerator?
The supply line is protected by a 15A fuse
located in the refrigerator.
Because of the sinking nature of cold air,
different temperatures may exist in different
locations in the refrigerator (the temperature
of the bottom will be the lowest). The panel
only shows the center temperature of the
refrigerator.
7. Why is there a temperature difference
(between the actual temperature of the
refrigerator and the set temperature)?

17
Safety Instruction
7
SAFETY INSTRUCTIONS
Please read the user manual and safety
instructions carefully before using the appliance.
By ignoring the safety instructions, the
manufacturer cannot be held responsible for the
damage.
The use of accessories that are not recommended
by manufacturer can cause injuries and will
invalidate any warranty that you may have.
The appliance shall not be exposed to
moderate/heavy rain.
Place the refrigerator on a dry, secure surface,
with adaquate ventilation.

18
Do not leave the refrigerator unattended in
uncovered, outdoor areas exposed to the
elements.
！
Do not use this appliance near direct heat
sources, such as an open flame or radiator.
！
Do not place open containers of liquid
inside the fridge.
！
Please don't put hot/warm food into the
fridge directly without letting it cooling off.
Place/arrange the content of your fridge
securely when using the refrigerator inside
a moving vehicle.
！
To maximize energy savings, please make sure
the lid is closed and secure, and only open the
fridge when you need to.
The power cable must only be replaced by
qualified technical personnel and by an assistant
body authorized by the manufacturer.
Before carrying out any maintenance operations
on the refrigerator, disconnect all power sources
from the fridge.
This appliance is suitable for camping use.
