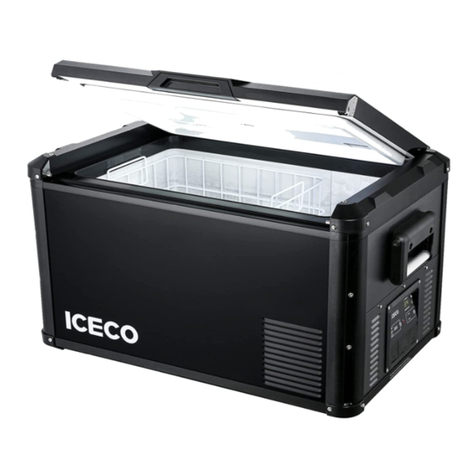

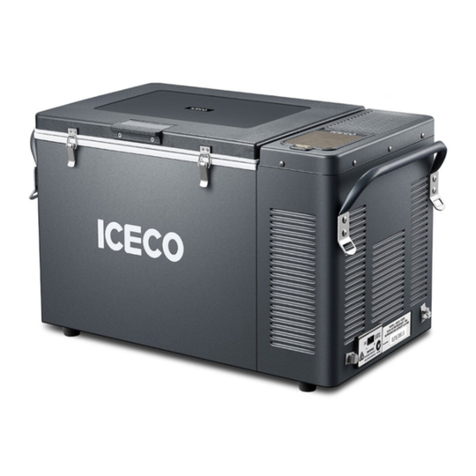

Iceco VL35 Series User manual

VL45/60 ProS
If you have any questions or concerns, please email us at
offi[e-mail]

Catalogue
Catalogue
1 1
- - - - - - - - -
Tips For Opening The Door
2 2
- - - - - - - - - - - - - - - - - - - - - -
Supply Details
3 3
- - - - - - - - - - - - - - - - - - - - - - - - - - -
Operation
4 9
- - - - - - - - - -
Cleaning And Maintenance
5 11
- - - - - - - - - - -
Error Codes & Solutions
6 13
- - - - - - - - - -
Warranty & Return Policy
7 14
- - - - - - - - - - -
Troubleshooting (Q & A)
8 19
-----------------
Safety Instructions

Tips For Opening The Door
1
1. To open the lid left,
keep fingers together
and grip the right latch.
2. Push the latch inwards
and lift up the lid.
3. To open the lid right,
repeat the above steps.
4. Grip the latch on both
sides and push them
inwards to disassemble
the lid.
01

Supply Details
Refrigerator x1 Wire Basket x1
02
2
Drain Plug
x 1
Screws
x 2
Corner Guards
x 4
Handle
x 1
Screwdriver
x 1
Extra Content
110V AC Wall
Outlet Cable X1
12/24V DC Cigarette
Lighter Plug Cable x1

3Operation
03
BPower ON/OFF Button
CCompressor Speed (Eco/Max Mode)
ABattery Protection Settings
DTemp DOWN Button
ETemp UP Button
A B C
D
E
TEMPERATURE

04
3.1 MAX & ECO Mode
With the unit turned on(Press & Hold
B/Power Button), you can press the MODE
Button C to toggle between MAX or ECO
mode for the fridge.
A B C
D
E
TEMPERATURE

05
3.2 Switch Between °C and °F
With the unit turned on(Press & Hold
B/Power Button), press and hold Button C
and Button D for 3 seconds to toggle
between the temperature values of
Celsius & Fahrenheit.
A B C
D
E
TEMPERATURE

06
3.3 Setting Temperature
With the unit turned on, the fridge's
CURRENT interior temperature reading will
appear on the display, as a solid
non-flashing number. To change the
fridge's set temperature:
Press Temperature UP Button E to
adjust the Temperature UP.
Press Temperature DOWN Button D to
adjust the Temperature DOWN.
The SET temperature will appear as a
FLASHING number, and after the
temperature is SET, the display will return
to showing the fridge's CURRENT interior
temperature.
A B C
D
E
TEMPERATURE

3.5 Triple Battery Protection Operation
NOTE: Details of Battery Protection Mode
could be found in Page 16.
07
With the unit turned on, Press Battery
Protection Button A to adjust the fridge's low
battery protection level pre-sets.
A B C
D
E
TEMPERATURE

3.6 USB Connector
TIPS: USB connector only takes effect when
charging in DC power cord.
+
08

Cleaning And Maintenance
4
4.1 Cleaning
Always disconnect the power source
before cleaning the fridge.
You can clean the interior and exterior of
the fridge by using warm water, mixed
with a gentle non-abrasive detergent.
You may use a soft sponge, or micro fiber
cloth.
When not in use, it’s better to leave the
lids open, to reduce odors.
If odors occur, please clean the fridge
thoroughly, or use baking soda in a bowl
to absorb odors.
09

4.2 DO NOT
Use pointed objects to scrape, or defrost
ice.
Use abrasive detergents to clean.
Use heavy duty sponges (due to
scratching).
Clean the fridge with running water or
pressure washer.
Clean the fridge without power input
covers secured.
10

11
Error Codes & Solutions
5
The DC voltage is below the protection
settings and the battery protection
mode is activated.
E1
Code Description
The cooling fan is over-loaded with
more than 1A of current.
E2
Motor start error
The motor of compressor is blocked or the
pressure difference in the refrigeration
system is too high.
E3
Minimum motor speed error
The compressor is over-loaded, and the
motor cannot maintain its minimum speed
of 1850 rpms.
E4
Thermal cut-out of electronic unit
Thermal cut-out error. If the refrigeration
system overloads, or the ambient
temperature is too high, the thermal
sensor is overheated.
E5
NTC failure (open circuit)
LL
NTC failure (short circuit)
HH

1.If error codes appear on the display
If error codes appear when the fridge is
powered by 12v source, please confirm
whether the current voltage is stable.
Because the voltage of the car battery is
unstable during driving, it will activate the
battery protection function and error codes
will display.
Please try to lower the battery protection
setting and see if the error is resolved.
Please also try to take a voltage reading of
your battery to make sure it is not
depleted/discharged.
If you don't have a tool to measure the
voltage, please connect the fridge to 110V
source. If the error code still displays,
please contact us and provide
corresponding videos or pictures which can
help us to solve your problems faster.
2.The refrigerator can't work
If the refrigerator can't work properly,
please contact us. We will provide you with
return or exchange service.
Solutions
12

13
Warranty & Return Policy
6
30-day money back guaranty upon receiving
goods.
For returns or exchanges, please call us,
or fill out the following return and
exchange registration form in the package
as a proof of return. All materials must be
returned in the original condition and
packaging. Thank you for your
cooperation.
If the product is received damaged or
defective during transportation, you
need to contact our customer service
within 2 business days. Make sure to
provide relevant photos or videos, your
order ID number and your name. A
customer service agent will help assist
into solving the issue at a timely manner.
(Return, Exchange, or Discount
Compensation). A free return label will be
provided if needed.
5-year warranty on the compressor.
1-year warranty for other parts or accessories.

14
Troubleshooting (Q & A)
7
1. Heat & Water Resistance
ICECO refrigerators are engineered to
operate at an ambient temperature of up
to 55 °C (131 °F).
Heat resistance
ICECO refrigerators can operate under
light rain conditions.
We DO NOT recommend exposing the
fridge to moderate or heavy rain.
As with all electrical appliances,
over-exposure to moisture may shorten
the fridges' life. Please keep the vents
clear of water, and please add some
clearances to the bottom of the fridge, if
the ground is wet.
Weather Proof

2. Why did it change back to the
original temperature after setting
the temperature?
The Solid/Non-Flashing number on the
display is the CURRENT interior
temperature. The Flashing number is your
SET temperature after adjustment. The
compressor will shut off when the SET
temperature is reached.
3. What should I do if the refrigerator
is upside down when it is
delivered?
Please leave your refrigerator upright for
24 hours to allow the compressor lubricant
to resettle before powering on the fridge.
Otherwise it may contribute to certain
operation abnormalities. If the fridge has
any visible oil or fluid leaks, please contact
us immediately.
15

16
Battery
Protection Cut-out
12V
Cut-in
12V
Cut-out
24V
Cut-in
24V
(ON SWITCH POSITION)
LOW 9.6 10.9 21.3 22.7
MED 10.1 11.4 22.3 23.7
HIGH 11.1 12.4 24.3 25.7
For example, when you switch to a LOW
MODE, the battery voltage is lower than
9.6 volts, the refrigerator will automatically
power off; When the battery voltage
reaches 10.9 volts, the refrigerator will
start again.
4. What is the function of triple
battery protection? How do they
work?
The triple battery protection is designed to
prevent over-discharge and battery
depletion. When the measured DC voltage
is below the set value, the compressor will
shut off to prevent battery depletion.

6. Why is there a temperature
difference (between the actual
temperature of the refrigerator
and the set temperature)?
17
5. What is the electrical power in
max/ fast cooling mode?
Model Electrical
Power Model Electrical Power
GO12 50W JP42 55W
GO20 50W VL35
Series 85W
JP Series 60W VL Series 85W
VL45
ProS
VL60
ProS 47W
45W
VL75
ProD
VL90
ProD 61W
57W
TIPS: This data is only suitable for laboratory
testing, and the actual power is subject to
actual conditions.
