Icharger 3010b User manual

-2-

iCharger Synchronous Balance Charger/Discharger 3010B

Index

Specifications ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 3

Special Features ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3

Unpack Inspection ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 5

External Controls and Connections ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 5

Warnings and Safety Notes ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 6

Program Flow Chart ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 7

Keyboard Basics ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 8

Parameter Setup ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 9

Lithium Battery Program ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 13

Charging Lithium Battery in BALANCE Mode ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 14

Charging a Lithium Battery in Normal CHARGE Mode ．．．．．．．．．．．．．．．．．．．．．．．．． 15

Fast Charging a Lithium Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 15

Pre-charging a Lithium Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 16

“Storage”charge/discharge a Lithium Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．． 16

Discharging a Lithium Battery．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 17

Lithium Battery External Expanding Discharge Mode ．．．．．．．．．．．．．．．．．．．．．．．． 18

Cycle Mode for a Lithium Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 19

Lithium Battery in Monitoring Mode ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 19

NiCd/NiMH Battery Program ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 20

Charging a NiCd/NiHM Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 20

Discharging a NiCd/NiMH Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 20

Cycle Mode for a NiCd/NiMH Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 20

NiCd/NiMH Forming Charge ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 21

Pb (lead-acid) Battery Program ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 22

Charging a Pb Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 22

Discharging a Pb Battery ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 22

Special Modes Program ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 23

Electric Motor Drive ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 23

Foam-Cut Drive ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 23

Measuring Internal Resistance of the Battery．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．24

Data Save/Load Program ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 25

Log Files Management．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 26

General Status Information ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 27

Warning and Error Information ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 28

USB Port Interpretation ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 29

Install USB Driver ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 29

Hardware Upgrading Steps ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．29

Use “logview”for 3010B ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 30

Optional Parts．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 31

Limited Warranty．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．32

-3-

iCharger Synchronous Balance Charger/Discharger 3010B

Thank you for purchasing one of the iCharger series. Please read the entire User‘s Manual completely and

attentively as it contains a wide variety of specific programming and safety information.

Specifications

3010B

Input voltage range: 4.50 –38.0VDC

Charge current range: 0.05 –30.0A

Discharge current range: 0.05 –30.0A

Maximum charge power capacity: 1000W @ input voltage 23V (500W @ input voltage 12V)

Maximum discharge power capacity: 80W

Maximum regenerative discharge power capacity:1000W

Maximum extern discharge power capacity: 1200W @ 40V/30A

Current drain for balancing: <500mA

Balance accuracy: <10mV

Lithium (LiPo/LiIo/LiFe) battery cell count: 1 –10 series (In non-balance mode, expand LiFe to 12s)

NiCd/NiMH battery cell count: 1 –25 series

Pb battery cell count: 1 –18 series (2 –36V)

Log Files storage: 16Mbit (31 hours)

Battery setup memories: 10

Intelligent temperature control: Yes

PC Connect: USB port

Weight: 750g

Dimensions (L X W X D): 143X123X46mm

5.63‖X4.84‖X1.81‖

Special features

High power, high current, high-performance power conversion circuit. The iCharger series uses

advanced Synchronous buck-boost DC/DC converter technology with an output conversion efficiency

that can reach over 90%. This not only saves power and reduces heat build up but also makes the

charger more compact and conveniently mobile.

Input power with 4mm bullet connectors butt-welded alligator clips and wide input voltage ranges from

4.5V to 38V. The output power can be adjusted to align with the available input power, thus preventting

input current overload and protecting the DC source.The iCharger series can be used with three types of

Lithium batteries - LiPo, Lilo, LiFe - and has a fully integrated cell balancer.

The fan will start automatically according to the internal temperature and charge/discharge power, and

protect the charger if overheated. When the internal temperature is over 55℃(131 oF), the output power

is automatically reduced by 25%. If the temperature exceeds 60℃(140 oF) the charge cycle is stopped.

Convenient set of 10 battery profile memories that can be saved and loaded by number.

2x16 backlit LCD screen that provides rich information including active mode, current, voltage, total

charge (mAh), charging time and temperature etc.

Various charging/discharging settings and cycles to meet a wide range of customer needs. For Lithium

batteries: balance charging, normal charging, fast charging, storage, discharging, ext-discharging,

charge/discharge cycling, and battery monitoring. For NiCd/NiMH batteries: charging-auto,

charging-manual, discharging, charge/discharge cycling and forming charge. For Pb batteries: charging

and discharging.

Up to 1000w unique regenerative discharge capability. Regenerative discharge takes most of the output

battery‘s energy and puts it back into the input battery, which is not the same with the traditional methods

of discharge to deplete that energy in the form of heat across a transistor. That is, when you discharge

your LiPo for storage, you will be re-charging your Lead Acid input battery. The amount of current and

voltage that your input battery can accept limit the total amount of power that you can achieve, or 1000W,

whichever is lower.

Unique Lithium battery expanding discharge program. When you connect the external capacity

resistance, you can use it as the maximum discharge power capacity—1200W (@40V/30A).

Unique Lithium battery Monitor program. When you use other equipment to charge or discharge a

Lithium pack, you can use the iCharger to monitor the per-cell voltages, battery temperature and

-4-

iCharger Synchronous Balance Charger/Discharger 3010B

process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the

process has gone on for too long, the iCharger will generate an alarm sound and the related information

will blink.

Electric motor test mode can be used to run-in electric motors, test motor parameters and performance,

check tolerances etc.

Foam-cut drive. In this mode, the charger acts as a convenient power supply for a hot wire foam cutter.

Battery interior resistance measurement. The iCharger can not only measure the internal resistance of

the battery pack, and also can measure the per-cell internal resistance (only available for lithium battery).

Perfect protection. The iCharger has protection for reversed polarity (input or output), low input voltage,

battery temperature, charging capacity and time overrun.

iCharger 3010B has a 16Mbit flash storage, which can log offline charge and discharge data in 36 hours.

Support upgrading the hardware program by USB port. The iCharger also support the ―logview‖

software and can display, plot and analyze the charge and discharge data by it. (See detail information

about logview in the following website: http://www.logview.info)

-5-

iCharger Synchronous Balance Charger/Discharger 3010B

Unpack inspection

The following items are included in the package. Contact your supplier if any items are missing.

Standard items：

One copy of the User‘s manual on CD

One pair of output alligator clip leads（14AWG）

One pair of input alligator clips and input leads with 4mm bullet connectors

One temperature sensor lead (0 –99℃(210 oF))

Four rubber feet

One exclusive Mini-USB data line(1.2 meter)

Optional items:

See details in ―Optional parts‖ (P31)

External controls and connections

3010B

1. Cooling Fan 2. DC input 3. USB port 4. LCD screen 5. Function button

6. Output port 7. Temperature sensor port 8. Balance socket

①

⑤

④

⑦

⑧

③

②

⑥

-6-

iCharger Synchronous Balance Charger/Discharger 3010B

Warnings and Safety notes

Keep the charger away from children and pets at all times.

Never leave the charger unsupervised when charging or discharging. If you leave, disconnect the battery

to prevent any unexpected dangers or damage.

Ensure the charger program and settings match the battery pack otherwise the battery will be damaged

and a dangerous situation may arise, especially for Lithium batteries, which may cause a fire.

Do not mix batteries of different types, different capacities or from different manufacturers.

Do not disassemble the charger.

Do not place the charger or any battery on a flammable surface or near a combustible material while in

use. Do not charge or discharge on a carpet, cluttered workbench, paper, plastic, vinyl, leather or wood,

inside an R/C model or inside a full-sized automobile.

Never block the air intake holes and never use in a refrigerated or high temperature environment. If used

in such an environment, the internal temperature protection may result in abnormal charging/discharging

that could be dangerous.

Do not allow water, moisture, metal wires or other conductive material into the charger.

Never charge or discharge any battery having evidence of leaking, expansion/swelling, damaged outer

cover or case, color-change or distortion.

Do not try to charge ―non-rechargeable‖dry cells.

Do not exceed the battery manufacturer‘s suggested maximum charge rates.

Beware that the external case temperature of the charger will increase during charging/discharging at

high power.

Carefully follow the battery pack manufacturer‘s recommendations and safety advice.

Recommended connecting way:

1. Connect iCharger's input power supply, and turn on it.

2. Connect Li batteries' balance port

3. Connect the main charging port's positive pole to cells' positive pole, and then connect negative pole to

cells' negative pole (this will avoid striking fire while connecting Li cells).

4. Start charging and discharging...

5. After finishing charging and discharging, pls disconnect the cell and charger, and then turn off the charger's

power supply.

Standard battery parameters

LiPo

LiIo

LiFe

NiCd

NiMH

Nominal voltage

3.7 V/cell

3.6 V/cell

3.3 V/cell

1.20 V/cell

2.0 V/cell

Max. charge voltage

4.2 V/cell

4.1 V/cell

3.6 V/cell

1.60 V/cell

2.45 V/cell

Storage voltage

3.85 V/cell

3.75 V/cell

3.3 V/cell

n/a

Allowable fast charge

current

≤ 1C

≤ 4C

1C –2C

≤ 0.4C

Min. discharge voltage

cut-off level

cut off level

≥ 3.0 V/cell

≥ 2.5 V/cell

≥ 2.0 V/cell

≥ 0.85V/cell

≥ 1.0 V/cell

≥ 1.75V/cell

Note: Be very careful to choose the correct voltage for different types of battery otherwise you may cause

damage to the batteries. Incorrect settings could cause the cells to vent, burn or explode leading to injury or

loss of property.

-7-

iCharger Synchronous Balance Charger/Discharger 3010B

Program flow chart

Note: When you turn off the iCharger it will remember the current menu and start from that menu when next

turned on again.

Start

Enter

PROGRAM SELECT

Lithium battery

LiXX BALANCE CHG

X.XA AUTO

LiXX CHARGE

X.XA XX.XV(XS)

LiXX FAST CHARGE

X.XA XX.XV(XS)

Dec

Inc

PROGRAM SELECT

NiMH battery

LiXX STORAGE

X.XA XX.XV(XS)

LiXX DCHG X.XXV

X.XA XX.XV(XS)

LiXX CYCLE X

X:X.XXV->X:X.XXV

NiMH CHARGE Aut

X.XA CUR LIMIT

NiMH CHARGE Man

X.XA CURRENT

NiMH CYCLE X

XXX(XXX)->XXXX

NiMH DISCHARGE

X.XA XX.XV

Dec

Inc

PROGRAM SELECT

NiCd battery

NiCd CHARGE Aut

X.XA CUR LIMIT

NiCd CHARGE Man

X.XA CURRENT

NiCd DISCHARGE

X.XA XX.XV

Batt type

Dec

Inc

Dec

Inc

LiXX MONITOR

X.XXV XX.XV(XS)

Batt type

Dec

Inc

PROGRAM SELECT

Pb battery

PROGRAM SELECT

Settings ->

Wait Time

CHG/DCHG XXmin

Safety timer

XXX XXXmin

Key Beep XXX

Buzzer XXX

Input limit XX.X

Cut-Off XX.XXV

Pb CHARGE

X.XA XX.XV(XS)

Pb DISCHARGE

X.XA XX.XV(XS)

NiCd CYCLE X

XXX(XXX)->XXXX

Watt Limit (W)

CHG:XXXX DCHG:XX

PROGRAM SELECT

Save settings

PROGRAM SELECT

Load settings

SAVE SETTINGS XX

memoryX

LOAD SETTINGS XX

memoryX

Batt type

Dec

Inc

PROGRAM SELECT

Special modes

MOTOR DRV XXmin

X.XA XX.XV

Completion Ring

Beep XXX

Back-light XX%

Cooling fan XXXX

Capacity Cut-Off

XXX XXXXXmAh

NiMH/NiCd/Pb

Trickle XXXmA

NiMH Sensitivity

DeltaV XXmV/Cell

Lithium battery

Check Time XXmin

Bal.Speed XXXXXX

Bal.Trickle XXX

Temp. Cut-Off

XXX XX℃

NiMH/NiCd Check

Delay XXmin

NiCd Sensitivity

DeltaV XXmV/Cell

NiMH FORMING CHG

X.XA XX.XV(XS)

NiCd FORMING CHG

X.XA XX.XV(XS)

Regenerative DSC

XXX XX.XA XX.XXV

Lilo Termination

Voltage X.XXV

LiFe Termination

Voltage X.XXV

FOAM CUT XXmin

X.XA XX.XV

Li Balance ON

XXX

Dec

Inc

Dec

Inc

LiXX DCHG+ X.XXV

X.XA AUTO

Discharge reduce

OFF XX%

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Start

Enter

Dec

Inc

Dec

Inc

Dec

Inc

Start

Enter

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Batt type

Dec

Inc

Batt type

Dec

Inc

Start

Enter

Dec

Inc

Start

Enter

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Batt type

Dec

Inc

Batt type

Dec

Inc

Start

Enter

Start

Enter

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Start

Enter

Dec

Inc

Dec

Inc

Measure Internal

resistance

Dec

Inc

LiPo Termination

Voltage X.XXV

Dec

Inc

Pb Termination

Voltage X.XXV

Dec

Inc

-8-

iCharger Synchronous Balance Charger/Discharger 3010B

Keyboard basics

1. Go to the main menu, press the Incbutton or the Stop/Batt type button to go down, and press the

Dec button to go up: press the Start/Enter button to enter a sub-menu.

2. In a sub-menu, press Start/Enter to blink the chosen item, and then alter the value with Incor Dec.

With nothing blinking you can go to the sub-menu below with Incand above with Dec. Press

Stop/Batt type to go back to the previous screen.

3. In some sub-menus, press and hold Start/Enter for more than 3 seconds to start the process, such as

starting charging or discharging.

4. During the charging/discharging process you can terminate the process at any time by pressing

Stop/Batt type and check the attached information with IncorDec. Press Start/Enter to go back to

the main information screen.

5. During the discharge process, press Start/Enter to alter the discharge current. When the discharge

current blinks, press Incto increase it or Dec to decrease it, then press Start/Enter to confirm the

change.

6. Press Stop/Batt type for more than 3 seconds to start the display of the active test information as per

the following diagram.

Present testing information：

7. Reset to Defaults function. Press Stop/Batt type and Start/Enter together for more than 3 seconds to

obtain this display:

8. Adjust Current, Temp. Cut-Off, Safety timer, Capacity Cut-Off in course of charging and discharging.

Method of Application:

When in charging and discharging interface, press Start/Enter for 3 seconds, and current begins

blinking.

Press IncorDec to adjust current, and press Start/Enter to save changes. If users press Stop/Batt

type or without any operation for 1 minute, it will cancel and quit from the changes.

Note: Adjustment of current is only effective for charging and discharging, which will not saved as user

setting.

When in charging and discharging interface, press Dec for several times to see need-to-be changed

information interface. Press Start/Enter for 3 seconds, and the value begins blinking. The adjust method

is as same as the above.

Note: This change can be saved as user setting.

Resume defaults?

CONFIRM (ENTER)

Vi11.94V Int30℃

Vo 8.23V Ext25℃

Output

Volt.

Input

Volt.

Int.

Temp.

Ext.

Temp.

Inc

1:4.11 4.12 ----

4:---- ---- ----

7:---- ---- ----

A:----

Inc

1: 21 24 mΩ

4: mΩ

Dec

Battery Pack IR

45mΩ

Dec

In this display the output voltage is the idle voltage measured at the

output terminals (that is, the voltage of the connected battery pack).

Individual cell voltage from

the balance port.

Per cell resistance from

the balance port.

Stop/Batt type

>3 seconds

Pressing Start for 3 seconds to monitor the resistance again.

Press Start/Enter to reset all values to the system-default settings.

Pack cells resistance from

the balance port.

-9-

iCharger Synchronous Balance Charger/Discharger 3010B

Parameter setup

Users should check the parameter settings and adjust the parameter values according to the specifications of

the pack to be charged or discharged.

Note: The screen diagram on the left shows the system‘s default setting.

User parameter setup initial display.

iCharger checks the cell count of Lithium batteries automatically at the

beginning of the charge or discharge process in order to detect and avoid

erroneous setting by the user. However, deeply discharged batteries can be

perceived incorrectly. To avoid this problem you can set an initial time during

which to charge the battery at a low current, usually 100mA. Normally 10

minutes is enough to detect the cell count correctly. For batteries of different

capacities, you should adjust the time delay. Note: If you set the time delay

too long for a low capacity battery then the charging process can be finished

within the time delay with an erroneous cell count, which may damage the

battery and could be dangerous.

Range: 1 –10 min. (1min, default)

For balance charging Lithium batteries. If the Bal. Speed is set to Fast, the

CV termination current will be higher, the charging time shorter and the

per-cell voltage lower. When set to Slow, the CV termination current will be

lower, the charging time longer and the per-cell voltage higher. The default

value of Normal is between the Fast and the Slow. If Bal. Trickle is ON, the

iCharger won‘t stop charging until the current falls to around 20mA.

Bal.Speed: Fast, Normal & Slow, (Normal, default).

Bal.Trickle: OFF & ON: (OFF, default)

For balance charging Li battery. There are three balance modes options: CV

phase, storage voltage and always. If the balance mode is set to CV phase,

when any cell‘s voltage reaches the set voltage for CV, it will enable the

balancer. When set to ―always‖, the balancer will be enabled from the

beginning of the charge process. When set to ―storage voltage‖, the

balancer will be enabled when any cell‘s voltage exceeds the default storage

voltage for the configured chemistry.

Balance mode: CV phase, storage voltage, always (CV phase, default)

When running a charge/discharge cycle program for a Lithium, NiMH or

NiCd battery the charger will stop for a while before continuing to the next

phase. This allows the pack to cool down.

Range: 1 –60 min. (10 min default)

You can turn post charge-completion trickle charging. On or Off for NiMH,

NiCd or Pb batteries.

Range: OFF, 10 –500mA. (OFF,default)

Usually, the NiMH battery voltage will drop a little right after reaching full

charge. This is known as -△V. You can alter the iCharger‘s delta-peak

detection sensitivity.

Range: 1 –20mV/Cell. (4mV/Cell, default)

PROGRAM SELECT

Settings ->

Start/Enter

Inc

Dec

Bal.Speed Normal

Bal.Trickle OFF

Inc

Dec

Lithium battery

Check Time 1min

Dec

Inc

Dec

Inc

Inc

Dec

Wait Time

CHG/DCHG 10min

NiMH Sensitivity

DeltaV Default

NiMH/NiCd/Pb

Trickle OFF

Inc

Dec

Inc

Dec

Dec

Inc

Dec

Inc

Dec

Inc

Li Balance ON

CV phase

Dec

Inc

Dec

Inc

-10-

iCharger Synchronous Balance Charger/Discharger 3010B

NiCd Sensitivity

DeltaV Default

Inc

Dec

Dec

Inc

Usually, the NiCd battery voltage will drop a little right after reaching full

charge. This is known as -△V. You can alter the iCharger‘s delta-peak

detection sensitivity.

Range: 1 –20mV/Cell. (8mV/Cell, default)

When NiMH&NiCd batteries are deeply discharged or left unused for a long

time, they will produce a false -△V which stops charging early. You can

disable -△V testing to avoid this problem.

Range: 0 –30min (0, default)

Battery upper temperature limit. The battery temperature can be monitored

with the attached temperature sensor. In order to protect the battery from

damage due to high temperatures the iCharger will stop charging or

discharging immediately if the temperature exceeds the cut-off setting.

Users can choose ℃or oF as the temperature unit

Range: 20 –80℃(68 –176 oF). oF = (9/5)×℃+32.

Charging time upper limit. The charging process will stop immediately if it

exceeds the set value.

Range: 1 –999min

Capacity protection. The charging/discharging process will stop immediately

if the calculated charge input/drained exceeds the set value.

Range: 100 –99900mAh

Input current limit & Input voltage protection lower limit. The

charging/discharging process will stop immediately if the input voltage falls

below the set value.

Voltage Range: 4.50 –32.00V (4.50V, default)

Current Range: 1.0A –50.0A(50.0A, default)

Note: Current limit is not very accurate, which may be 20% difference, max.

Charge/Discharge power limit. The maximum charge/discharge power of

iCharger can be adjusted in order to limit internal temperature and to

protect the input current from over-loading. When the limit is set to AUTO

the iCharger can adjust the output charging power according to the input

capability.

CHG: 50 –1000W and AUTO. DCHG: 5 –80W(60 W, default)

Note: The maximum charge power capacity is also limited by input current.

The maximum input current of 3010B is about 50A, and Wmax ≈Imax *

Vin * 90%. (For example, when the input voltage is 15V, the maximum

charge power capacity ≈50×15×90％＝675W).

Temp. Cut-Off

ON 50℃

Dec

Inc

Safety timer

ON 120min

Capacity Cut-Off

ON 5000mAh

Watt Limit (W)

CHG:AUTO DCHG:60

Inc

Dec

Inc

Dec

NiMH/NiCd Check

Delay 0min

Inc

Dec

Inc

Dec

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

Dec

Inc

NiCd Sensitivity

DeltaV Default

Dec

Inc

Inc

Dec

Inc

Dec

Inc

Dec

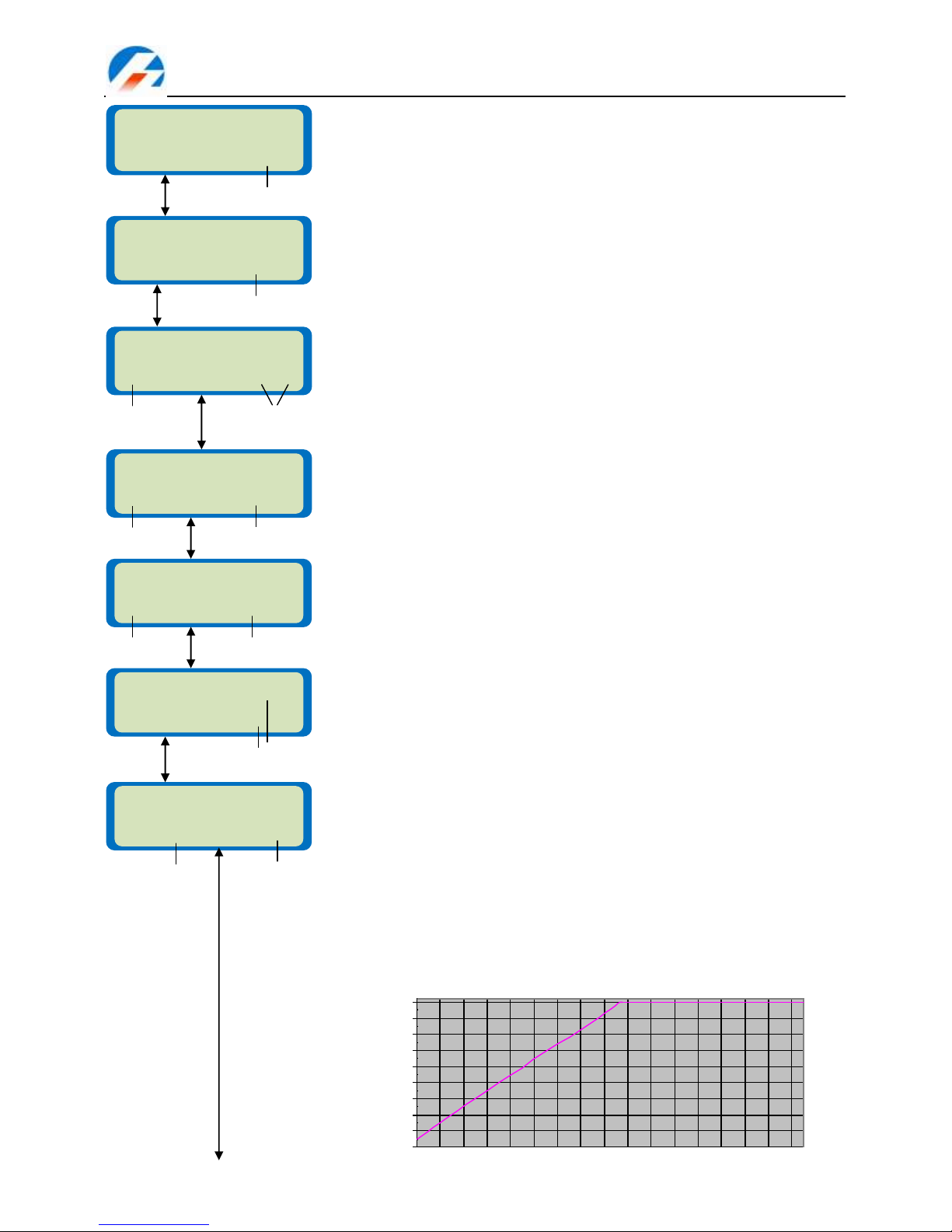

iCharger3010B: MAX. OUTPUT POWER vs. INPUT VOLTAGE

100

200

300

400

500

600

700

800

900

1000

5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37

Input voltage(V)

Max. Output power(W)

Input limit 50.0

Cut-Off 4.50V

Dec

Inc

-11-

iCharger Synchronous Balance Charger/Discharger 3010B

When Regenerative discharge is set to ON, discharging by charger internal consumption turns to charging

power supply (current and voltage limit can be set), which is shown in the following graph.

Note:

1．When in Regenerative discharging, charger‘s power supply needs to be rechargeable. For example,

Pb battery can be used for input power supply, but switch power adapter cannot.

2．The setting of regenerative discharge‘s current and voltage limit should be suit for power supply. For

example, using 12V Pb battery as power supply, the regenerative current and voltage should not be more

than its max charging current and voltage, or it may cause danger.

3．Regenerative discharge max power is the same with charger‘s setting max charging power, not

discharging power. (Restricted by setting regenerative discharge current and voltage limit, and discharge

current limit.)

4．Regenerative current limit is not very accurate, which may be 20% difference, max.

5．If input power supply voltage is more than setting regenerative limit voltage, charger will not start

regenerative discharge and internal discharge instead.

Key Beep ON

Buzzer ON

Dec

Inc

Inc

Dec

Back-light 50%

Cooling fan AUTO

Completion Ring

Beep always

Dec

Inc

Inc

Dec

Dec

Inc

Regenerative DSC

OFF 1.0A 4.50V

Delay 0min

Dec

Inc

Key confirmation and alert tone. If the keyboard sound is ON there will be a

beep when you press any key. If the buzzer is ON the iCharger will

generate an alert tone for certain events.

Key Beep: OFF&ON: (ON, default)

Buzzer: OFF&ON: (ON, default)

Process completion tone. Controls the tones generated at end of charging

or discharging and the cyclic charging/discharging indication.

Options: Beep 5 times, Beep 3 minutes, Beep always (continuous until

user presses STOP), Beep OFF

(Beep always, default)

Back-light and cooling fan control. Adjust the LCD backlight brightness.

There are three cooling fan modes: ON, OFF, AUTO. In AUTO-Mode,

iCharger adjusts the fan automatically to control its internal temperature.

Cooling fan: OFF, ON & AUTO (AUTO, default)

Discharge reduce setting. When you set it to ―ON‖，If the final voltage target

storage voltage is reached, the buzzer will beep for three times, and the left

of the second line display "D>>", and the charger enters into the high

precision discharge process. The process won‘t stop until the current

reaches xx% of the configured discharge current.

Reduce: ON, OFF Range: 1 –99％

Regenerative discharge setting. In the second line, these items are set:

Regenerative discharge ON/OFF, current limit, voltage limit.

Regenerative discharge: OFF, ON (OFF, default)

Regenerative current limit: 1 –30A (1A, default)

Regenerative voltage limit: 4.50 –37.0V (4.50V, default)

Inc

Dec

Discharge reduce

OFF 50%

Delay 0min

Dec

Inc

Dec

Inc

Inc

Dec

Dec

Inc

Dec

Inc

Inc

Dec

Regenerative DSC: OFF

iCharger

User

Batt.

Pack

Output

Power

Supper

Input

Discharge

Current

Regenerative DSC: ON

iCharger

User

Batt.

Pack

Output

Rechargeable

Power Supper

For example:

Pb battery etc.

Input

Discharge

Current

Regenerative discharge OFF

Regenerative discharge ON

-12-

iCharger Synchronous Balance Charger/Discharger 3010B

LiPo Termination

Voltage 4.20V

LiFe Termination

Voltage 3.60V

Delay 0min

Lilo Termination

Voltage 4.10V

Dec

Inc

Dec

Inc

Dec

Inc

Pb Termination

Voltage 2.40V

Dec

Inc

Inc

Dec

Inc

Dec

Inc

Dec

Termination voltage for LiFe. Adjust LiFe‘s charge termination voltage.

Press Start/Enter for more than 3 seconds to blink the ―Voltage‖value,

then press Dec and Incto adjust the termination voltage.

Range: 3.40V –3.90V, Step: 0.01V (3.60V, default)

Termination voltage for Lilo. Adjust Lilo‘s charge termination voltage.

Press Start/Enter for more than 3 seconds to blink the ―Voltage‖value,

then press Dec and Incto adjust the termination voltage.

Range: 3.90V –4.20V, Step: 0.01V (4.10V, default)

Termination voltage for LiPo. Adjust LiPo‘s charge termination voltage.

Press Start/Enter for more than 3 seconds to blink the ―Voltage‖value,

then press Dec and Incto adjust the termination voltage.

Range: 4.00V –4.30V, Step: 0.01V (4.20V, default)

Termination voltage for Pb. Adjust Pb‘s charge termination voltage. Press

Start/Enter for more than 3 seconds to blink the ―Voltage‖value, then

press Dec and Incto adjust the termination voltage.

Range: 2.20V –2.50V, Step: 0.01V (2.40V, default)

Note: The Termination voltage controls the transition from Constant

Current (CC) to Constant Voltage (CV) charging for LiXx and Pb

chemistries. It also defines the per-cell limit for cell overvoltage detection.

If you change the default termination voltage, the charge and discharge

setting screen will note this difference by alternatively blinking battery‘s

type and setting voltage value.

Inc

Dec

-13-

iCharger Synchronous Balance Charger/Discharger 3010B

Lithium battery program

The iCharger provides a number of Lithium programs including Balance, Normal, Fast and Storage. Only the

Balance mode requires the balance lead connected. However, the other modes will provide additional

per-cell over-voltage protection if the balance lead is connected compared to running them without it, where

they can only utilize the total pack voltage.

Balance

connector

required

Balancer

active

Charge termination condition

Balance –Normal

Yes

Icv = Icc/10 OR Vout = (cell_count x cell_max_voltage) + Vloss

Balance –Fast

Yes

Icv = Icc/5 OR Vout = (cell_count x cell_max_voltage) + Vloss

Balance –Slow

Yes

Icv = Icc/40 OR Vout = (cell_count x cell_max_voltage)+ Vloss

Charge

Optional

Icv = Icc/10 AND Vout = cell_count x cell_max_voltage

Fast Charge

Optional

Icv = Icc/5 AND Vout = cell_count x cell_max_voltage

Storage

Optional

Vout = cell_count x cell_storage_voltage

Cycle - charge

Optional

Icv = Icc/10 AND Vout = cell_count x cell_max_voltage

Cycle - discharge

Optional

Vout = cell_count x cell_discharge_voltage

Icc = configured charge current for the CC phase

Icv = charge current during the CV phase

cell_max_voltage = configured termination voltage for the selected chemistry (eg LiPo = 4.2V)

cell_storage_voltage = configured per-cell storage voltage for the selected chemistry

cell_discharge_voltage = configured per-cell storage voltage for the selected chemistry

Icv = charge current during the CV phase

Vloss = 0.2 * (1 + Icv/10A); when in balance charging, charging line loss will compensate voltage.

Any time the battery‘s balance lead is connected the charger will monitor and display the cell voltages.

The balancer is only active during a BALANCE charge (not during the CHARGE or FAST programs)

The balance speed setting (Slow, Normal, Fast) controls the end-of-charging current threshold.

The CHARGE and FAST modes are identical except for the charge-termination threshold which is 1/10

of the charge current setting for CHARGE and 1/5 of the charge current setting for FAST mode.

While the CHARGE and FAST modes do not include any balancing action it is still safer to have the

balance lead connected since then the charger will provide per-cell over-voltage protection as described

below.

In all kinds of charge cycle, if the balance lead is connected and if any cell exceeds the allowable per-cell

peak voltage for the configured chemistry, the charge current will be reduced to ensure the voltage does

not rise any further. This will slow the charging process and if the charge current falls to 1/10 of the

charge current setting this will result in the charge cycle stopping altogether. Note that this is not the

normal CC-to-CV transition which would usually occur when all cells approach the nominal peak voltage

for the configured chemistry, but is a safety measure to respond to unbalanced cells in any mode or at

any time during the charge process.

Note: When Li batteries are in balance charging, charger's max output voltage = (cell_count x

cell_max_voltage) + Vloss

When connecting the Li batteries with main output port and the balance port, the

charger will check cell count automatically, and forbid changing cell count setting

by user himself. This is useful for all Li batteries‘charging and discharging mode.

-14-

iCharger Synchronous Balance Charger/Discharger 3010B

Charging Lithium battery in BALANCE mode

This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the balance mode

the battery balance lead must be connected to the balance port on the right side of the iCharger. The pinout

of the balance port is shown in the diagram below. Charging in this mode is different from the normal

CHARGE mode because the iCharger can monitor the voltage of individual cells and adjust the input current

fed into each cell to normalize the voltage (for example: LiPo battery within 4.2V).

Balance port and Individual Cell connection diagram

Balance charging mode of Lithium battery. The left side of the first line set

the type of battery (LiPo, Lilo or LiFe). The value on the left side of second

line sets the charge current and on the right side of second line, it shows

AUTO. The system will check cell count automatically by cell balance port's

voltage.

Charge current: 0.05 –30A, Voltage: 1 –10 series

Lithium BALANCE charging mode. The screen shows the status during the

charging process. You can stop charging at any time by pressing Batt

type/Stop.Press Incto display each cell‘s voltage (see the balance

voltage information) and press Dec to display the General Status

Information.

LiPo BALANCE CHG

1.0A AUTO

Start/Enter

>3 seconds

Batt type

stop

Li03 1.0A 12.60V

BAL 00993 59m:51

battery

voltage

number

of cells

Series

charged

capacity

charging

time

charge

current

work

State

Dec

Inc

Dec

Inc

Balance port

1 cel l

2 cel l

3 cel l

4 cel l

5 cel l

6 cel l

7 cel l

8 cel l

9 cel l

10cel l

10S

OUTPUT +

OUTPUT -

1 cel l

2 cel l

3 cel l

4 cel l

5 cel l

6 cel l

7 cel l

8 cel l

9 cel l

10cel l

OUTPUT +

OUTPUT -

Balance port

3010B

-15-

iCharger Synchronous Balance Charger/Discharger 3010B

Charging a Lithium battery in normal CHARGE mode

The iCharger first charges with constant current (CC) according to the user setting then constant voltage (CV)

when the charging voltage reaches the peak point. In the CV phase the current gradually falls. The iCharger

will terminate charging when the current falls below than 1/10 of the configured charge current.

Fast charging a Lithium battery

The iCharger first charges with constant current (CC) according to the user setting then constant voltage (CV)

when the charging voltage reaches the peak point. In the CV phase the current gradually falls. The iCharger

will terminate charging when the current falls below than 1/5 of the configured charge current. This will result

in slightly less than 100% charge but will complete sooner than the Normal charge mode.

The left side of the first line set the type of battery (LiPo, Lilo or LiFe). The

value on the left side of second line sets the charge current and the value

on the right side of second line sets the cell count and voltage of the battery

pack. After setting the current and voltage, press Start/Enter for more than

3 seconds to start the next process.

Charge current: 0.05 –30A, Voltage: 1 –10 series ( LiFe to 12 series)

The number of cells you set and the processor detects. If the checking

result is the same, it would enter to the next interface; if not the same, the

left side of the first line ‘R:xxSER‘shows the number of cells detected by the

iCharger and the right side of the first line ‘S:xxSER‘is the number of cells

set by the user. Usually, the auto-detect number won‘t exceed the number

set by the user. You should make sure that the configured number and the

actual number for the battery are the same and then you can start charging

by pressing Start/Enter. If not, press Batt type/Stop to go back to the

previous screen and adjust the setting.

Lithium CHARGE mode. The screen shows the status during the charging

process. You can stop charging at any time by pressing Batt type/Stop.

Press Incto display each cell‘s voltage (see the balance voltage

information) and press Dec to display the General Status information.

battery

voltage

number

of cells

Series

charged

capacity

charging

time

charge

current

work

State

The fast charging mode of Lithium battery. The left side of the first line set

the type of battery (LiPo, Lilo or LiFe). The value on the left side of second

line sets the charge current and the value on the right side of second line

sets the cell count and voltage of the battery pack. After setting the current

and voltage, press Start/Enter for more than 3 seconds to start the next

process.
