ICI 840121412913 Quick start guide

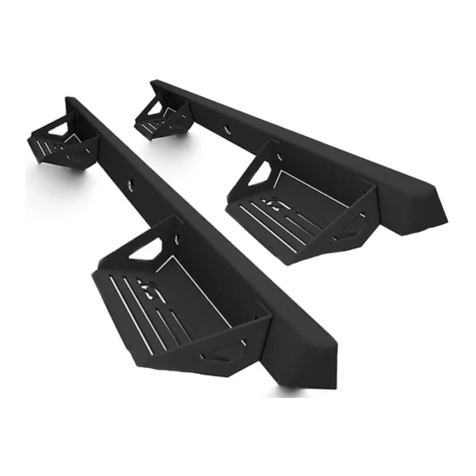

Alumilite Steps
part# 840121412913
DIRECTIONS FOR INSTALLATION & USE
2007 - 2018 Jeep JK - 4 door
For technical support,
call 1-800-626-8746 or email [email protected]
visit icionline.com to download instructions
WARNING: FAILURE TO COMPLY WITH INSTALLATION,
SAFETY, AND PRODUCT USE INSTRUCTIONS MAY RESULT IN
SERIOUS BODILY INJURY OR DEATH.
IMPORTANT NOTES
The contents of this installation and operation manual should be
read and comprehended before initializing the installment of the
above listed product. This will help minimize risk to injury through
the installation process and through the operation of the product.
TABLE OF CONTENTS
SAFETY, WARNINGS, AND OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02
2. PARTS AND TOOLS REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
5. ICI STEP INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 05-07
6. SOCIAL MEDIA REFERENCE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .08
1.
4.
REFERENCE DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 04

SAFETY, WARNINGS, AND OPERATION
•Please ensure that the installer and end-user of this product have
familiarized themselves with the contents in this manual. This
manual provides important information about the possible safety
and operation risks that are involved with the usage of this
product.
•Our number one concern is the safety of our customers. This
product is intended to be installed by a professional to minimize
risk of an improper installation. Improper installations can lead to
product damage, vehicle damage, and bodily injury. We ask that
you reach out for professional assistance if this installation is
beyond your capabilities.
•Please ensure to safeguard this installation and operation manual
to reference in the future or to pass on to a future owner of the
product.
•Please follow all instructions and take all safety precautions
necessary throughout the entirety of the installation process.
SYMBOL DESCRIPTION
HAZARDOUS WARNING
WARNING: SHARP ELEMENTS
WARNING: CRUSHING OF HANDS
WARNING: HOT SURFACE
MANDATORY: WEAR EYE PROTECTION
PARTS AND TOOLS REQUIRED
TOOL DESCRIPTION
RATCHET/SOCKET
WRENCH
SOCKETS : 10mm
and 13mm
10mm and 13mm
(Allen wrench
included)
EYE PROTECTION
PARTS AND TOOLS REQUIRED
02 03
Hardware Kit includes:
(1). Qty x 16 = M8 x 30mm Hex Countersunk Bolts
(2). Qty x 16 = M8 Finish Washers
(3). Qty x 6 = M8 x 35mm Hex Head Bolts
(4). Qty x 6 = M8 Lock Washers
(5). Qty x 16 = M8 x 24 x 2mm Flat Washers
(6). Qty X 6 = M8 x 28 x 3mm Flat Washers
(7). Qty x 16 = M8 Nylock Nuts
(8). Qty x 12 = M6 x 25mm Hex Head Bolts
(9). Qty x 24 = M6 x 22 x 2mm Flat Washers
(10). Qty x 12 = M6 Nylock Nuts
(11). Qty x 4 = M8-1.25 U-Clip Nuts
Components List:
(a). Side Bars - Qty x 2
1 Driver / 1 Passenger
(b). Front Brackets - Qty x 2
1 Driver / 1 Passenger (100549)
(c). Middle Brackets - Qty x 2
1 Driver / 1 Passenger (100550)
(d). Rear Brackets - Qty x 2
1 Driver / 1 Passenger (100551)
(e). Hoop Steps - QTY x 4

REFERENCE DIAGRAM
05
DRIVER SIDE example
below:
ICI STEP INSTALLATION
Step 1 (Prep)
Beginning on the Driver's side,
remove any steps if equipped.
Next, locate the 3 sets of
mounting points on the
underside of the vehicle.
Please note that your Jeep will
have OE factory U-clip Nuts
located in the underside floor
holes, fig. 1. Leave attached
and reuse for instalation.
Figure 1.
Step 3 (Hang bar
on Brackets)
Next, locate the driver side bar,
the distance from the front of
the bar to the first step hoop is
greater than the distance from
the rear of the bar to the
second step hoop, reference
the diagram on page 4. The top
of the bar has a small lip, use
the lip to hang the bar on the
brackets. This will make the
installation process easier and
hands-free.
Figure 2.
Step 2 (Install
Brackets to Jeep)
Begin with the driver front bracket
100549, loose fit. For the 2 pinch
weld holes, you will need (2 sets) of
M6x25mm hex head bolts, M6
Nylock Nuts, and (2) of M6x22x2mm
flat washers. Use a 10mm socket.
For the floorboard hole, you will
need (1 set) of M8x28x3mm flat
washer, M8 lock washers, and
M8x35mm hex head bolts. Use a
13mm socket. Once the front
bracket is attached, move on to the
middle bracket, then the rear
bracket, repeating the steps above.
Figure 3.
100549
Front
Bracket
100550
Middle
Bracket
100551
Rear
Bracket
DRIVER SIDE example
below:
04

ICI STEP INSTALLATION

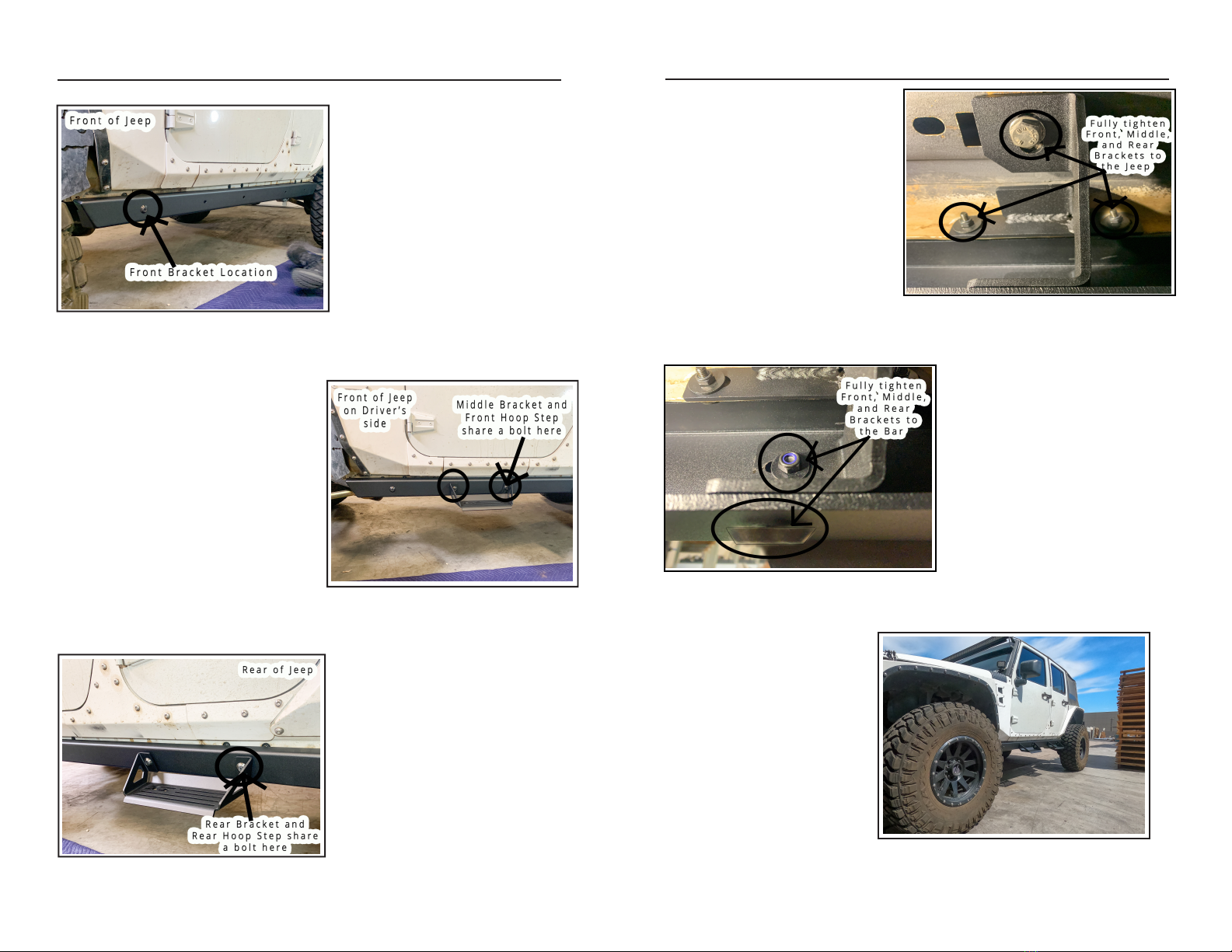

Figure 4.
0607
Figure 5.
Step 5 (Bolt Middle
Bracket to Bar and
Front Hoop Step)
Bolt the middle bracket (100550) to
the front hoop step and bar. Note
that the hoop step and middle
bracket share a bolt. Then, finish
bolting the front hoop step to the
bar. Use (3 sets) of M8 finish
washers, M8x24x2mm flat washers,
M8x35mm hex countersunk bolts,
and M8 Nylock Nuts. Use a 13mm
socket and the provided Allen
wrench. Do not fully tighten.
Step 4 (Bolt Front
Bracket to Bar)
Next, bolt the front bracket
(100549) to the bar. Use (2
sets) of M8 finish washers,
M8x24x2mm flat washers,
M8x35mm hex countersunk
bolts, and M8 Nylock Nuts.
Use a 13mm socket and the
provided Allen wrench. Do
not fully tighten. See diagram
on page 4 for reference.
ICI STEP INSTALLATION
STEP 7 (Tighten
Brackets to Truck)
Make sure all 3 brackets, the
bar, and the 2 hoops steps are
loosely fitted to each other and
to the vehicle. Using a 10mm
and 13mm socket, fully tighten
the front bracket to the vehicle,
make sure the bracket is flush
with the mounting surface.
Repeat on the middle and rear
bracket checking the bracket
alignment as needed.
STEP 8 (Tighten
Brackets to the Bar
and Hoop-Steps)
Now, adjust the bar from
front to back and tighten the
bar to the brackets with a
13mm socket and provided
Allen wrench. Make sure the
bar is flush with the front and
bottom face of the brackets
as you are tightening them.
Figure 8.
STEP 6 (Bolt Rear
Bracket to Bar
and Rear Bracket)
Then, bolt the rear bracket (100551)
to the rear hoop step and bar. Note
that the hoop step and rear bracket
share a bolt. Then, finish bolting the
rear hoop step to the bar. Use (3
sets) of M8 finish washers,
M8x24x2mm flat washers,
M8x35mm hex countersunk bolts,
and M8 Nylock Nuts. Use a 13mm
socket and the provided Allen
wrench. Do not fully tighten.
Figure 6.
Figure 7.
*PRO TIP: When tightening the Finish Washers, hold the Allen Key tight so the Bolt
does not spin. Then, tighten the Nut on the backside.
This will prevent the Bolt and Finish Washer from spoinning and scratching the Bar.
Figure 9.
STEP 9 (Finish)
Check all hardware and
make sure they are fully
tightened. Reference
diagram on page 3 for
hardware locations. Repeat
Steps 1-9 for the Passenger
Side.

08
www.facebook.com/InnovativeCreationsInd
www.instagram.com/ici_usa Hashtags:
#ICIUSA
#ICIAlumilite
#AlumiliteSteps
#AlumiliteBumpers
TAG ICI ON SOCIAL MEDIA
AMAZING!
You have successfully completed the
installation of your new Alumilite steps.
Time to flex on your friends through
Social Media! Don't forget to Tag us!
Drop us a Review!
