ICI Alumilite Steps 840121412920 Quick start guide

WARNING: FAILURE TO COMPLY WITH INSTALLATION,
SAFETY, AND PRODUCT USE INSTRUCTIONS MAY RESULT IN
SERIOUS BODILY INJURY OR DEATH.
IMPORTANT NOTES
The contents of this installation and operation manual should be
read and comprehended before initializing the installment of the
above listed product. This will help minimize risk to injury through
the installation process and through the operation of the product.
TABLE OF CONTENTS
SAFETY, WARNINGS, AND OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02
2. PARTS AND TOOLS REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
3.
ICI STEP INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 04-07
4.
SOCIAL MEDIA REFERENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
1.
Alumilite Steps
part# 840121412920
DIRECTIONS FOR INSTALLATION & USE
2019-2021 CHEVROLET SILVERADO 1500 ;
2020-2021 CHEVROLET SILVERADO 2500/3500; 2019-2021
GMC SIERRA 1500 ;
2020-2021 GMC SIERRA 2500/3500;
CREW CAB (FULL 4-DOOR)
For technical support,
call 1-800-626-8746 or email [email protected]
visit icionline.com to download instructions

SAFETY, WARNINGS, AND OPERATION
•Please ensure that the installer and end-user of this product have
familiarized themselves with the contents in this manual. This
manual provides important information about the possible safety
and operation risks that are involved with the usage of this
product.
•Our number one concern is the safety of our customers. This
product is intended to be installed by a professional to minimize
risk of an improper installation. Improper installations can lead to
product damage, vehicle damage, and bodily injury. We ask that
you reach out for professional assistance if this installation is
beyond your capabilities.
•Please ensure to safeguard this installation and operation manual
to reference in the future or to pass on to a future owner of the
product.
•Please follow all instructions and take all safety precautions
necessary throughout the entirety of the installation process.
SYMBOL DESCRIPTION
HAZARDOUS WARNING
WARNING: SHARP ELEMENTS
WARNING: CRUSHING OF HANDS
WARNING: HOT SURFACE
MANDATORY: WEAR EYE PROTECTION
PARTS AND TOOLS REQUIRED
TOOL DESCRIPTION
RATCHET/SOCKET
WRENCH
SOCKETS : 13mm
13mm
(Allen wrench
included)
EYE PROTECTION
13
PARTS AND TOOLS REQUIRED
02
Front:
Rear:
Hardware Kit includes:
(1). Qty x 16 = M8 x 30mm Hex
Head Bolts
(2). Qty x 16 = M8 Lock Washers
(3). Qty x 36 = M8 x 24 x 2mm Flat
Washers
(4). Qty x 20 = M8 x 35mm Hex
Countersunk Bolts
(5). Qty x 20 = M8 Finish Washers
(6). Qty x 20 = M8 Nylock Nuts
(7). Allen Wrench included
Components List:
(a). Side Bars - Qty x 2
1 Driver / 1 Passenger
(b). Front/Middle/Rear Brackets
Qty x 8 (4 Driver / 4 Passenger)
(100534)
(c). Hoop Steps (bolt on) - Qty x 4
2 Driver / 2 Passenger (100524)
Reference Diagram:
DRIVER SIDE example below:
03

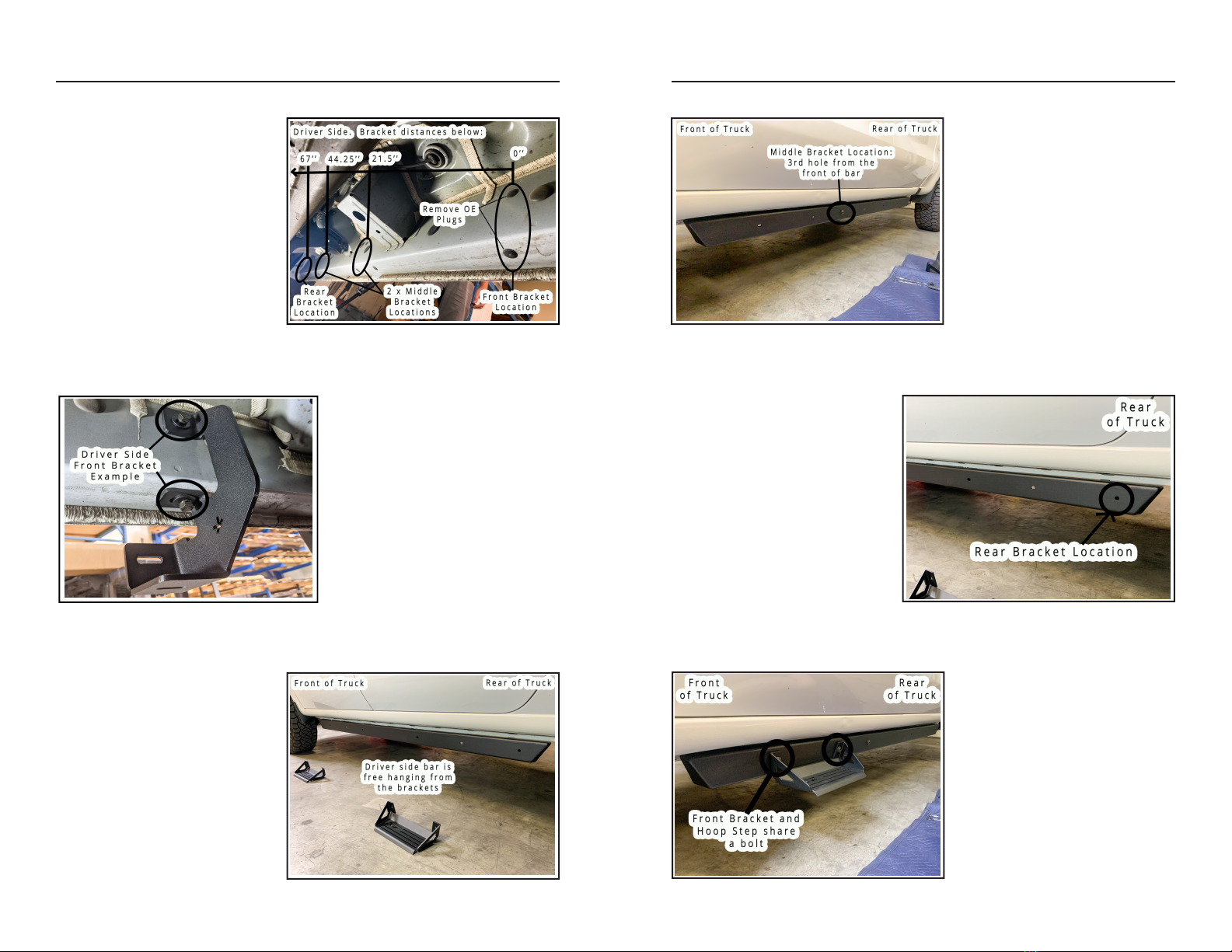

ICI STEP INSTALLATION
Step 1 (Prep)
Beginning on the Driver's side,
remove any steps if equipped.
Next, locate the 4 sets of
mounting points on the
underside of the vehicle (Fig. 1).
Please note that your vehicle
may have factory plugs or tape
covering up the mounting
locations. These will need to be
removed so that the mounting
locations can be accessed.
ICI STEP INSTALLATION
Figure 1.
Step 3 (Hang bar
on Brackets)
Next, locate the driver side bar.
The distance from the front tip
of the bar to the first bolt hole
is greater than the distance
from the rear tip to the rear
bolt hole. Reference diagram
on page 3. The top of the bar
has a small lip, use the lip to
hang the bar on the brackets.
This will make the installation
process easier and hands-free.
Figure 6.
Figure 5.
04 05
Figure 2.
Step 2 (Install
Brackets to Truck)
Begin with the driver front bracket
100534. You will need (2 sets) of
M8x30mm hex bolts, M8 flat
washers, and M8 lock washers.
Use a 13mm socket and do not
fully tighten yet. Once the front
bracket is attached, move on to
the middle and rear brackets,
repeating the steps above for
each bracket.
Figure 4.
Figure 3.
Step 4 (Bolt 2nd
bracket to Bar)
Start by bolting the middle
bracket to the bar. It is the
3rd bolt hole from the front.
You will need (2 sets) of M8
nylock nuts, M8x35mm hex
countersunk bolts, M8 flat
washers, and M8 finish
washers. Use a 13mm wrench
and the provided Allen
wrench. Do not fully tighten
until all brackets and steps
have been attached.
Step 5 (Bolt Rear
Bracket to Bar)
Next, bolt the rear bracket to
the bar. You will need (2 sets) of
M8 nylock nuts, M8x35mm hex
countersunk bolts, M8 flat
washers, and M8 finish washers.
Use a 13mm wrench and the
provided Allen wrench. See the
diagram on page 3 for
reference. Do not fully tighten
yet.
Step 6 (Bolt Front
Bracket to Bar and
Front Hoop Step)
Then, begin bolting the front
bracket to the bar and hoop
step. Note that the hoop step
and front bracket share a bolt.
You will need (3 sets) of M8
nylock nuts, M8x35mm hex
countersunk bolts, M8 flat
washers, and M8 finish
washers. Use a 13mm wrench
and the provided Allen wrench.
Leave loosely fitted for now.

ICI STEP INSTALLATION
STEP 9 (Tighten
Brackets to the Bar)
Once the 4 brackets are fully
tightened to the truck, adjust
the bar from front to back and
tighten the bar to the brackets
with a 13mm socket and
provided Allen wrench. Make
sure the bar is flush with the
front and bottom face of the
brackets as you are tightening
them. Then, tighten the Hoop
Steps to the bar.
STEP 10 (Finish)
Check all hardware and
make sure they are fully
tightened. Reference
diagram on page 3 for
hardware locations. Repeat
Steps 1-10 for the Passenger
Side.
06
Figure 10.
07
STEP 8 (Tighten
Brackets to Truck)
Make sure all 4 brackets are
loosely fit to the vehicle and bar.
Using a 13mm socket, fully
tighten the front bracket to the
vehicle. Make sure the bracket is
flush with the mounting surface.
Repeat on the middle and rear
brackets, checking the bracket
alignment as needed. Leave bar
loose for now.
www.facebook.com/InnovativeCreationsInd
www.instagram.com/ici_usa Hashtags:
#ICIUSA
#ICIAlumilite
#AlumiliteSteps
#AlumiliteBumpers
Figure 8.
Figure 9.
ICI STEP INSTALLATION
STEP 7 (Bolt Last
Middle Bracket to Bar
and Rear Hoop Step)
Next, bolt the last middle bracket
(3rd from front) to the bar and rear
hoop step. Note that the rear hoop
step and middle bracket share a
bolt. You will need (3 sets) of M8
nylock nuts, M8x35mm hex
countersunk bolts, M8 flat washers,
and M8 finish washers. Use a 13mm
wrench and the provided Allen
wrench. Leave loosely fitted for now.
Figure 7.
*PRO TIP: When tightening the Finish Washers, hold the Allen Key tight so the Bolt does not spin.
Then, tighten the Nut on the backside.
This will prevent the Bolt and Finish Washer from spoinning and scratching the Bar.
AMAZING!
You have successfully completed the
installation of your new Alumilite steps.
Time to flex on your friends through
Social Media! Don't forget to Tag us!
Drop us a Review!
