Icom IC-F4160 SERIES User manual

SERVICE MANUAL
ADDENDUM
CONTENTS
REPLACEMENT PAGES . . . . . . . . . . . . . . . . . . . . . . 4-1 and 4-2
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 23
Jun. 2009

(Replacement page)
4 - 1
SECTION 4 OPTIONAL UNIT INSTALLATION
Jun. 2009

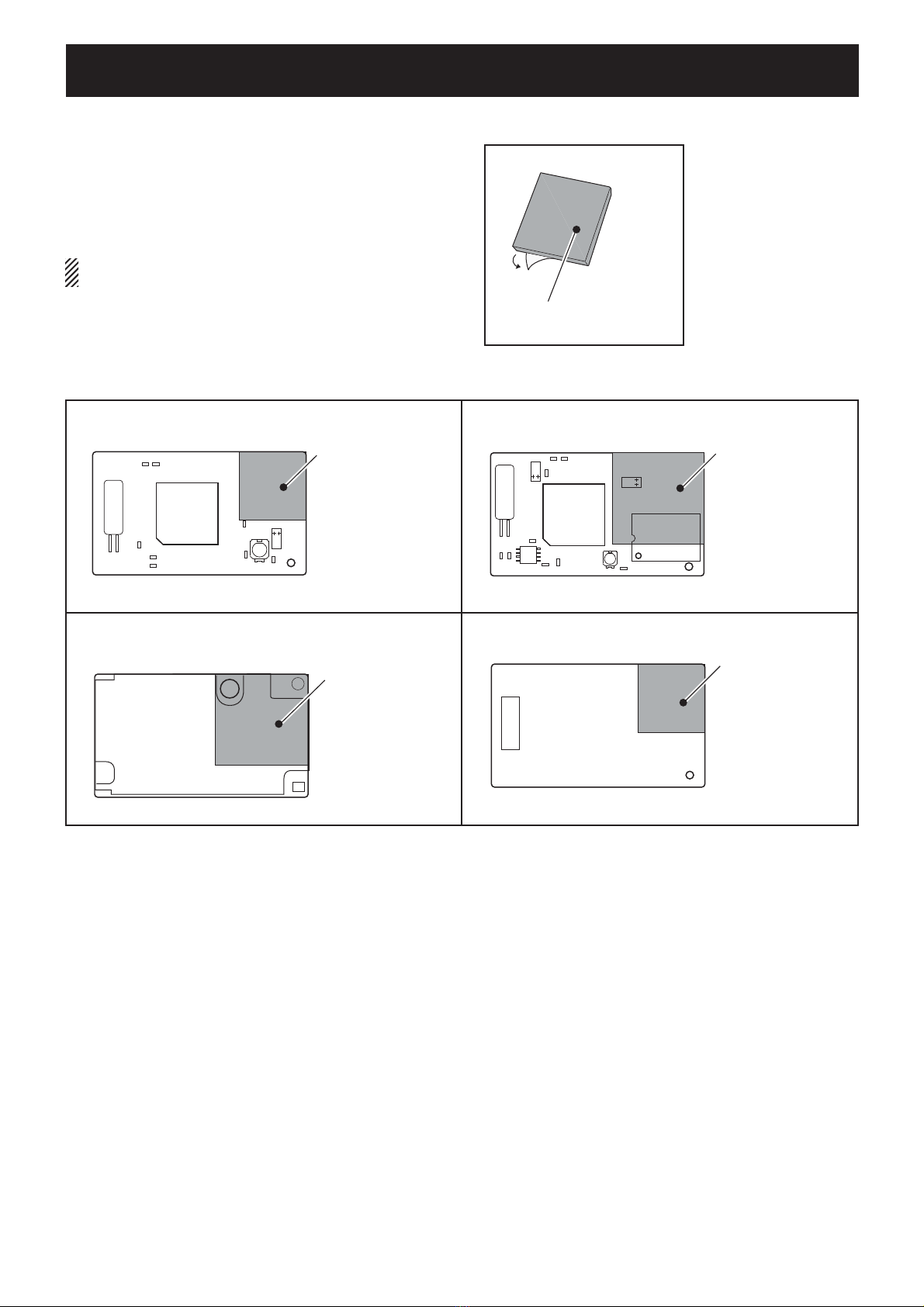

Before installing optional units, the supplied sponge
must be attached. Remove the bottom protective
paper, and attach the sponge to the specified position
on the optional units as shown below.
PBEFORE INSTALLING OPTIONAL UNITS
Sponge
Sponge
• UT-96R
Sponge
• UT-124R
• UT-109R/UT-110R
• UT-126H
Sponge
Sponge
(Supplied with the unit)
NOTE: Attach the sponge by pressing it gently
but ensure that it is attached to the unit securely.

(Replacement page)
4 - 2
Jun. 2009
CAUTION! Optional unit installation should be done at authorized Icom service centers only.
The waterproof capability of the transceiver cannot be guaranteed if you install the unit yourself, or have it done
at a non-authorised dealer/service center.
A
BC
D
Install the optional unit as follows.
qRotate [VOL] to turn the power OFF, and remove the battery pack.
wRemove the anntena and antenna nut A.
eRemove the rotary selector knob Band volume control knob C.
rUnscrew two screws D, then take off the chassis from the front panel in the direction of the arrow.
BE CAREFUL! Flat cable is connected between the MAIN unit on the chassis and front panel.
t Install the optional unit as below.
J1
• UT-96R, UT-109R*, UT-110R* and UT-124R installation
• UT-126H installation
*;The following PC bord modification is required when installing optional UT-109R and UT-110R.
Re-solder
NOTE: When uninstalling the unit
Be sure to re-solder the disconnected
points as below when you remove the
unit. Otherwise, no TX modulation or AF
output is available.
Cut the pattern on the PC board at "MIC" and "AFOUT" as shown below.
MIC
AFOUT
DO NOT attach the unit to
the connector "J2." Other-
wise no TX modulation or
AF output is available.
DO NOT attach the unit to
the connector "J1." Other-
wise no TX modulation or
AF output is available.
OPTIONAL UNIT
OK NG
OPTIONAL UNIT
NOTE: When installing the unit
Be sure that the unit is inserted correctly.

Jun. 2009
1
SECTION 6.
SECTION 6. PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
IC1 1130010100 S.IC LMX2352TMX/NOPB B 58.2/18.3
IC3 1110003491 S.IC TA31136FNG(D,EL) B 76.6/32.9
IC4 1190001350 S.IC M62364FP 600D B 42.1/18.1
IC5 1110006221 S.IC AK2346P-E2/P B 51.3/36.4
IC6 1110005350 S.IC NJM2870F05-TE1-#FZZB T 103.2/18.9
IC8 1110005771 S.IC S-80942CNMC-G9CT2G B 13.8/30.1
IC9 1110005340 S.IC NJM12902V-TE1-#ZZZB B 42.4/29.6
IC10 1130012960 S.IC BU8872FS-E2 B 5.4/15.5
IC13 1140013200 S.IC CD4053BPWR B 41.7/8.2
IC14 1140013200 S.IC CD4053BPWR B 49.1/8.2
IC15 1110005310 S.IC AN6123MS T 49.7/23.8
IC17 1110005340 S.IC NJM12902V-TE1-#ZZZB B 25.6/38.1
IC18 1140010191 S.IC HD64F2268TF20V(EMPTY) B 23/23.1
IC19 1140012950 S.IC 24LC512T-I/SM B 25/6.7
IC20 1190001340 S.IC M62334FP 600C T 99.4/34.7
IC21 1110003800 S.IC NJM2904V-TE1-#FMZB B 57.1/30
IC22 1140013200 S.IC CD4053BPWR B 4.7/29.2
IC24 1130011760 S.IC CD4094BPWR B 14.7/7.3
Q1 1530002920 S.TRA 2SC4226-T1 R25 T 72.4/11.7
Q2 1530002920 S.TRA 2SC4226-T1 R25 T 72.4/18.2
Q3 1530002920 S.TRA 2SC4226-T1 R25 T 73.1/24.7
Q4 1530003311 S.TRA 2SC5107-O(TE85R,F) T 77.3/16
Q5 1530003980 S.TRA 2SC5700WB-TR-E T 80.6/20
Q6 1530003311 S.TRA 2SC5107-O(TE85R,F) T 80.2/10.5
Q7 1530003311 S.TRA 2SC5107-O(TE85R,F) B 91.2/15
Q8 1590003291 S.TRA UNR9213G0L B 93.8/27.5
Q9 1580000800 S.FET 3SK324UG-TL-E B 92.6/8.3
Q10 1580000731 S.FET 3SK293(TE85L,F) B 105.2/13.2
Q11 1560000841 S.FET 2SK1829(TE85R,F) T 104.4/9.2
Q12 1520000460 S.TRA 2SB1132 T100 R T 98.6/23.9
Q13 1590001190 S.TRA XP6501-(TX).AB B 99.7/24.4
Q14 1510000920 S.TRA 2SA1577 T106 Q B 97.2/23.8
Q15 1510000920 S.TRA 2SA1577 T106 Q B 94.7/21.2
Q16 1510000920 S.TRA 2SA1577 T106 Q T 95.7/11.2
Q17 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 78.8/23.3
Q18 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 66.7/29.6
Q19 1560000541 S.FET 2SK880-Y(T5RICOM,F) B 62/27.4
Q21 1590001400 S.TRA XP1214(TX) B 73.2/11.8
Q22 1590001400 S.TRA XP1214(TX) B 73.3/22
Q23 1590003291 S.TRA UNR9213G0L B 70.6/11.8
Q24 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 78.3/38.6
Q25 1530002601 S.TRA 2SC4215-O(TE85R,F) B 80.5/28.4
Q26 1590003231 S.TRA UNR9113G0L B 68.4/34.3
Q27 1590003231 S.TRA UNR9113G0L T 86/13.7
Q28 1590001650 S.TRA XP4601(TX) B 63.2/36.3
Q30 1590003321 S.FET TPC6103(TE85L,F) T 99.9/19.7
Q31 1590003291 S.TRA UNR9213G0L T 28.9/25
Q32 1560001360 S.FET 2SK3019 TL B 61.1/13
Q34 1590003291 S.TRA UNR9213G0L B 34.7/35.8
Q35 1590003291 S.TRA UNR9213G0L T 12/27.2
Q40 1590003231 S.TRA UNR9113G0L B 9.2/11.2
Q41 1530002851 S.TRA 2SC4116-BL(TE85R,F) T 86.5/18.4
Q42 1530002851 S.TRA 2SC4116-BL(TE85R,F) T 92/15.5
Q43 1560001360 S.FET 2SK3019 TL B 51.3/25.2
D1 1750001150 S.VAR HVC383BTRF-E T 65.9/9.1
D2 1750000711 S.VAR HVC350BTRF-E T 68.3/11
D5 1750001150 S.VAR HVC383BTRF-E T 65.9/15.6
D6 1750000711 S.VAR HVC350BTRF-E T 68.3/17.5
D9 1750001150 S.VAR HVC383BTRF-E [1] T 65.9/22
1750001150 S.VAR HVC383BTRF-E [2]
1750001150 S.VAR HVC383BTRF-E [3]
1750000711 S.VAR HVC350BTRF-E [4]
1750000711 S.VAR HVC350BTRF-E [5]
1750001150 S.VAR HVC383BTRF-E [6]
1750001150 S.VAR HVC383BTRF-E [7]
1750001150 S.VAR HVC383BTRF-E [8]
1750000711 S.VAR HVC350BTRF-E [9]
1750000711 S.VAR HVC350BTRF-E [10]
D10 1750000711 S.VAR HVC350BTRF-E T 68.3/23.8
D11 1720000570 S.VAR MA368(TX) B 69.5/26.4
D14 1790001621 S.DIO 1SV308(TPL3,F) B 85.8/13.3
D15 1790001261 S.DIO MA2S077G0L B 85.8/12
D16 1790001261 S.DIO MA2S077G0L T 77.6/21.1
D17 1790001261 S.DIO MA2S077G0L T 77.1/25.3
D19 1790001621 S.DIO 1SV308(TPL3,F) T 103.9/25.9
D21 1750000711 S.VAR HVC350BTRF-E B 102.7/22.6
D22 1750000711 S.VAR HVC350BTRF-E B 101.4/22.6
D23 1750000711 S.VAR HVC350BTRF-E B 102.6/19.1
D24 1750000711 S.VAR HVC350BTRF-E B 101.4/19.1
D25 1790001251 S.DIO MA2S1110GL T 100/10.1
D28 1750000711 S.VAR HVC350BTRF-E B 101.6/12
D29 1750000711 S.VAR HVC350BTRF-E B 97.9/11.2
D32 1750001070 S.DIO DAN235ETL T 70.9/39.5
D33 1750001070 S.DIO DAN235ETL T 70.7/34.2
D34 1750001070 S.DIO DAN235ETL T 89.8/13.4
D35 1750001070 S.DIO DAN235ETL B 84.7/26.7
D36 1160000060 S.DIO DAN202U T106 T 31.3/25.3
D37 1730002321 S.ZEN MAZ8051GML T 9/27.1
D38 1790001261 S.DIO MA2S077G0L B 14.4/33.1
D40 1160000050 S.DIO DAP202U T106 B 19/35.5
D41 1790001251 S.DIO MA2S1110GL B 46.5/25
D42 1160000140 S.DIO DAP222 TL T 18.6/12.7
[VERSION LIST]
MODEL VERSION SYMBOL
F4061T USA-01 [1]
USA-02 [4]
F4062T EUR-01 [3]
F4063T GEN-01 [2]
GEN-02 [5]
F4061S USA-01 [6]
USA-02 [9]
F4062S EUR-01 [8]
F4063S GEN-01 [7]
GEN-02 [10]
F4161T USA-01 [11]
USA-02 [14]
F4162T EUR-01 [13]
F4163T EXP-01 [12]
EXP-02 [15]
F4161S USA-01 [16]
USA-02 [19]
F4162S EUR-01 [18]
F4163S EXP-01 [17]
EXP-02 [20]
F4161DT
(Incl. UT-126H)
USA-01 [21]
USA-02 [24]
CHN-01 [23]
F4161DS
(Incl. UT-126H)
USA-01 [25]
USA-02 [27]
F4162DT EUR-02 [22]
F4162DS EUR-02 [26]

Jun. 2009
2
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
FI1 2030000500 S.MON DSF753SBF 46.35 MHz (FL-401) B 90/23.2
FI2 2020002240 S.CER CFWKA450KGFA-R0 T 65/35
FI3 2020002180 S.CER CFWKA450KHFA-R0 T 76.7/35
FI4 2030000150 S.MON DSF753SB 46.350 MHz (FL-335) T 90/23.2
X1 6050012380 S.XTA CR-826 DSA535SD 15.3 MHz B 56.6/25.8
X2 6050011720 S.XTA CR-764 SMD-49TB 19.6608 MHz T 2.9/32.4
X3 6050011730 S.XTA CR-765 SMD-49TA 3.6864 MHz T 50.9/35.6
X4 6050012320 S.XTA CR-818 SMD-49 4.194304 MHz T 2.9/15.2
X5 6070000191 S.DIS CDBKB450KCAY24-R0 T 84.6/38.2
L2 6200004741 S.COI NLV25T-1R2J T 64/9.6
L3 6200012970 S.COI 0.30-0.91-4TR 8.6N <COMO> T 69.2/9.1
L4 6200004741 S.COI NLV25T-1R2J T 64/22.6
L5 6200002851 S.COI NLV25T-R82J T 74.2/9
L6 6200004741 S.COI NLV25T-1R2J T 66/12.6
L7 6200004741 S.COI NLV25T-1R2J T 64/16.1
L8 6200012970 S.COI 0.30-0.91-4TR 8.6N <COMO> T 69.2/15.6
L9 6200002851 S.COI NLV25T-R82J T 73.9/15.5
L10 6200004741 S.COI NLV25T-1R2J T 66/19.1
L11 6200012390 S.COI 0.30-0.92-3TR 5.8N <COMO> T 69.2/22.1
L12 6200002851 S.COI NLV25T-R82J T 73.9/22
L14 6200004741 S.COI NLV25T-1R2J T 65.3/25.6
L15 6200005711 S.COI ELJRE 27NGFA T 78.9/18
L16 6200005671 S.COI ELJRE 12NGFA [1] T 80.8/22.8
6200005671 S.COI ELJRE 12NGFA [2]
6200005671 S.COI ELJRE 12NGFA [3]
6200005661 S.COI ELJRE 10NGFA [4]
6200005661 S.COI ELJRE 10NGFA [5]
6200005671 S.COI ELJRE 12NGFA [6]
6200005671 S.COI ELJRE 12NGFA [7]
6200005671 S.COI ELJRE 12NGFA [8]
6200005661 S.COI ELJRE 10NGFA [9]
6200005661 S.COI ELJRE 10NGFA [10]
L17 6200005721 S.COI ELJRE 33NGFA [1] T 80.3/12.4
6200005721 S.COI ELJRE 33NGFA [2]
6200005721 S.COI ELJRE 33NGFA [3]
6200005711 S.COI ELJRE 27NGFA [4]
6200005711 S.COI ELJRE 27NGFA [5]
6200005721 S.COI ELJRE 33NGFA [6]
6200005721 S.COI ELJRE 33NGFA [7]
6200005721 S.COI ELJRE 33NGFA [8]
6200005711 S.COI ELJRE 27NGFA [9]
6200005711 S.COI ELJRE 27NGFA [10]
L18 6200005691 S.COI ELJRE 18NGFA [1] B 91.4/16.9
6200005691 S.COI ELJRE 18NGFA [2]
6200005691 S.COI ELJRE 18NGFA [3]
6200005671 S.COI ELJRE 12NGFA [4]
6200005671 S.COI ELJRE 12NGFA [5]
6200005691 S.COI ELJRE 18NGFA [6]
6200005691 S.COI ELJRE 18NGFA [7]
6200005691 S.COI ELJRE 18NGFA [8]
6200005671 S.COI ELJRE 12NGFA [9]
6200005671 S.COI ELJRE 12NGFA [10]
L30 6200007720 S.COI LQW2BHN33NJ03L B 104.4/25.9
L31 6200007700 S.COI LQW2BHN22NJ03L [1] B 104.9/22.3
6200007700 S.COI LQW2BHN22NJ03L [2]
6200007700 S.COI LQW2BHN22NJ03L [3]
6200007690 S.COI LQW2BHN18NJ03L [4]
6200007690 S.COI LQW2BHN18NJ03L [5]
6200007700 S.COI LQW2BHN22NJ03L [6]
6200007700 S.COI LQW2BHN22NJ03L [7]
6200007700 S.COI LQW2BHN22NJ03L [8]
6200007690 S.COI LQW2BHN18NJ03L [9]
6200007690 S.COI LQW2BHN18NJ03L [10]
L32 6200007700 S.COI LQW2BHN22NJ03L [1] B 104.9/18.7
6200007700 S.COI LQW2BHN22NJ03L [2]
6200007700 S.COI LQW2BHN22NJ03L [3]
6200007690 S.COI LQW2BHN18NJ03L [4]
6200007690 S.COI LQW2BHN18NJ03L [5]
6200007700 S.COI LQW2BHN22NJ03L [6]
6200007700 S.COI LQW2BHN22NJ03L [7]
6200007700 S.COI LQW2BHN22NJ03L [8]
6200007690 S.COI LQW2BHN18NJ03L [9]
6200007690 S.COI LQW2BHN18NJ03L [10]
L33 6200007680 S.COI LQW2BHN12NJ03L [1] B 103.2/8.8
6200007680 S.COI LQW2BHN12NJ03L [2]
6200007680 S.COI LQW2BHN12NJ03L [3]
6200007670 S.COI LQW2BHN10NJ03L [4]
6200007670 S.COI LQW2BHN10NJ03L [5]
6200007680 S.COI LQW2BHN12NJ03L [6]
6200007680 S.COI LQW2BHN12NJ03L [7]
6200007680 S.COI LQW2BHN12NJ03L [8]
6200007670 S.COI LQW2BHN10NJ03L [9]
6200007670 S.COI LQW2BHN10NJ03L [10]
L34 6200007230 S.COI LQW2BHN15NJ03L [1] B 97.8/9
6200007230 S.COI LQW2BHN15NJ03L [2]
6200007230 S.COI LQW2BHN15NJ03L [3]
6200007680 S.COI LQW2BHN12NJ03L [4]
6200007680 S.COI LQW2BHN12NJ03L [5]
6200007230 S.COI LQW2BHN15NJ03L [6]
6200007230 S.COI LQW2BHN15NJ03L [7]
6200007230 S.COI LQW2BHN15NJ03L [8]
6200007680 S.COI LQW2BHN12NJ03L [9]
6200007680 S.COI LQW2BHN12NJ03L [10]
L38 6200005721 S.COI ELJRE 33NGFA B 93.5/10.8
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
L40 6200007931 S.COI ELJRF 12NJFB [1] T 78.2/25.6
6200007931 S.COI ELJRF 12NJFB [2]
6200007931 S.COI ELJRF 12NJFB [3]
6200007941 S.COI ELJRF 10NJFB [4]
6200007941 S.COI ELJRF 10NJFB [5]
6200007931 S.COI ELJRF 12NJFB [6]
6200007931 S.COI ELJRF 12NJFB [7]
6200007931 S.COI ELJRF 12NJFB [8]
6200007941 S.COI ELJRF 10NJFB [9]
6200007941 S.COI ELJRF 10NJFB [10]
L45 6200004480 S.COI MLF1608D R82K-T B 72.5/29
L46 6200003540 S.COI MLF1608D R22K-T B 68.7/30.8
L49 6200010740 S.COI C2520C-R27G-A T 93/8.3
L50 6200004660 S.COI MLF1608A 1R8K-T B 78.6/28.7
R1 7030005230 S.RES ERJ2GEJ 334 X (330K) B 52.7/29.6
R2 7030005050 S.RES ERJ2GEJ 103 X (10K) B 53/25.5
R3 7030005230 S.RES ERJ2GEJ 334 X (330K) B 50.9/29.5
R4 7030005000 S.RES ERJ2GEJ 471 X (470) T 57.9/22.4
R5 7030005700 S.RES ERJ2GEJ 274 X (270K) B 52.3/30.8
R6 7410001130 S.ARR EXB28V102JX B 53/15.7
R7 7030010040 S.RES ERJ2GEJ-JPW B 63.7/21.5
R8 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 64/24.5
R11 7030005050 S.RES ERJ2GEJ 103 X (10K) B 64/26.5
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 64/22.7
R14 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/8.6
R15 7030006020 S.RES RR0510P-682-D (6.8K) T 70.6/12
R16 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/15.1
R17 7030006020 S.RES RR0510P-682-D (6.8K) T 70.6/18.5
R18 7030005530 S.RES ERJ2GEJ 100 X (10) T 69/25.2
R19 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/21.5
R20 7030006020 S.RES RR0510P-682-D (6.8K) T 71.1/25.5
R21 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) T 71.1/24.6
R22 7030005000 S.RES ERJ2GEJ 471 X (470) [1] B 75.2/11.2
7030005000 S.RES ERJ2GEJ 471 X (470) [2]
7030005000 S.RES ERJ2GEJ 471 X (470) [3]
7030005010 S.RES ERJ2GEJ 681 X (680) [4]
7030005010 S.RES ERJ2GEJ 681 X (680) [5]
7030005000 S.RES ERJ2GEJ 471 X (470) [6]
7030005000 S.RES ERJ2GEJ 471 X (470) [7]
7030005000 S.RES ERJ2GEJ 471 X (470) [8]
7030005010 S.RES ERJ2GEJ 681 X (680) [9]
7030005010 S.RES ERJ2GEJ 681 X (680) [10]
R23 7030005000 S.RES ERJ2GEJ 471 X (470) B 75.2/13.3
R24 7030005000 S.RES ERJ2GEJ 471 X (470) B 75.2/22
R25 7030005050 S.RES ERJ2GEJ 103 X (10K) B 71/22.7
R26 7030005120 S.RES ERJ2GEJ 102 X (1K) B 73.2/16.8
R27 7030005050 S.RES ERJ2GEJ 103 X (10K) B 73.2/14.2
R28 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 78.8/21.5
R29 7030005090 S.RES ERJ2GEJ 104 X (100K) T 76.8/18.2
R30 7030004980 S.RES ERJ2GEJ 101 X (100) T 77.3/19.4
R31 7030005310 S.RES ERJ2GEJ 124 X (120K) T 81.3/18.4
R32 7030004980 S.RES ERJ2GEJ 101 X (100) T 81.6/24.2
R33 7030005530 S.RES ERJ2GEJ 100 X (10) T 77.6/12.4
R34 7030005070 S.RES ERJ2GEJ 683 X (68K) T 78.5/12.4
R35 7030005530 S.RES ERJ2GEJ 100 X (10) T 79.9/14.4
R36 7030010040 S.RES ERJ2GEJ-JPW T 78.3/9.5
R37 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 84.1/12.9
R38 7030004980 S.RES ERJ2GEJ 101 X (100) B 86.8/14.7
R40 7030005050 S.RES ERJ2GEJ 103 X (10K) B 86.8/16.3
R41 7030007340 S.RES ERJ2GEJ 153 X (15K) B 89.3/14.6
R44 7030004970 S.RES ERJ2GEJ 470 X (47) B 88.3/17.4
R59 7030003860 S.RES ERJ3GE JPW V T 104.6/31.4
R60 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.3/22
R61 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.3/18.7
R62 7030005050 S.RES ERJ2GEJ 103 X (10K) B 100.9/20.8
R63 7030005080 S.RES ERJ2GEJ 823 X (82K) B 105.5/15.7
R64 7030005240 S.RES ERJ2GEJ 473 X (47K) B 106.7/14.8
R65 7030004980 S.RES ERJ2GEJ 101 X (100) B 103/15.6
R66 7030005530 S.RES ERJ2GEJ 100 X (10) B 106.1/11.1
R68 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 102.1/8.3
R69 7030005170 S.RES ERJ2GEJ 474 X (470K) T 102.1/10.1
R70 7030005110 S.RES ERJ2GEJ 224 X (220K) T 102.1/9.2
R71 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.9/13.6
R72 7030005530 S.RES ERJ2GEJ 100 X (10) T 103.1/12.2
R73 7030004970 S.RES ERJ2GEJ 470 X (47) B 103.4/7.3
R74 7030005120 S.RES ERJ2GEJ 102 X (1K) [1] B 103.2/10.3
7030005120 S.RES ERJ2GEJ 102 X (1K) [2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [3]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [4]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [5]
7030005120 S.RES ERJ2GEJ 102 X (1K) [6]
7030005120 S.RES ERJ2GEJ 102 X (1K) [7]
7030005120 S.RES ERJ2GEJ 102 X (1K) [8]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [9]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [10]
R75 7030005090 S.RES ERJ2GEJ 104 X (100K) B 101.2/10.1
R76 7030005090 S.RES ERJ2GEJ 104 X (100K) B 99.6/10.1
R77 7030005050 S.RES ERJ2GEJ 103 X (10K) B 100.5/11.3
R84 7030007340 S.RES ERJ2GEJ 153 X (15K) T 78.3/22.8
R85 7030007340 S.RES ERJ2GEJ 153 X (15K) T 77.1/23.2
R86 7030005050 S.RES ERJ2GEJ 103 X (10K) B 88.1/12.4
R87 7030004980 S.RES ERJ2GEJ 101 X (100) B 90.5/12.4
R88 7030005580 S.RES ERJ2GEJ 560 X (56) B 63.7/16
R89 7030007270 S.RES ERJ2GEJ 151 X (150) T 88.4/17.9
R90 7030007270 S.RES ERJ2GEJ 151 X (150) T 89.3/17
R91 7030007270 S.RES ERJ2GEJ 151 X (150) T 88.8/28.3
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) T 85.5/20.3
R93 7030007280 S.RES ERJ2GEJ 331 X (330) T 91.5/17.8
R94 7030005050 S.RES ERJ2GEJ 103 X (10K) T 88/15.6
R95 7030005110 S.RES ERJ2GEJ 224 X (220K) B 80.8/26.2
R96 7030007280 S.RES ERJ2GEJ 331 X (330) T 90.2/17
R97 7030007280 S.RES ERJ2GEJ 331 X (330) B 88.4/28.1
R99 7030005530 S.RES ERJ2GEJ 100 X (10) B 77.2/27.8

Jun. 2009
3
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
R100 7030005090 S.RES ERJ2GEJ 104 X (100K) T 81.7/33.5
R101 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 82.6/33.5
R102 7030007270 S.RES ERJ2GEJ 151 X (150) B 74.1/28.7
R103 7030004970 S.RES ERJ2GEJ 470 X (47) B 75.7/28.7
R104 7030005600 S.RES ERJ2GEJ 273 X (27K) B 70.2/33.2
R105 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 69.9/35.8
R106 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) T 69.1/34.6
R107 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 71.6/37.5
R108 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 72.3/34.6
R109 7030007060 S.RES ERJ2GEJ 684X (680K) B 64.8/29.4
R110 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 66.6/32.3
R111 7030005600 S.RES ERJ2GEJ 273 X (27K) T 70.9/41.5
R112 7030005000 S.RES ERJ2GEJ 471 X (470) B 79.9/36.3
R113 7030005050 S.RES ERJ2GEJ 103 X (10K) B 48/17.9
R114 7030005090 S.RES ERJ2GEJ 104 X (100K) T 86.8/15.4
R115 7030005600 S.RES ERJ2GEJ 273 X (27K) T 89.7/11.8
R116 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 88/14
R117 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 88/13.1
R118 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 86.3/26
R119 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 85.8/26.2
R120 7030005600 S.RES ERJ2GEJ 273 X (27K) B 83.6/25.4
R121 7030005090 S.RES ERJ2GEJ 104 X (100K) B 72.2/35
R122 7030005000 S.RES ERJ2GEJ 471 X (470) B 75/36.6
R123 7030005100 S.RES ERJ2GEJ 154 X (150K) B 73.2/38.2
R124 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 74.1/38.2
R125 7030005240 S.RES ERJ2GEJ 473 X (47K) B 53.4/9.1
R126 7030005060 S.RES ERJ2GEJ 333 X (33K) B 35.7/8.9
R128 7030005160 S.RES ERJ2GEJ 105 X (1M) B 46.2/34.5
R130 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 61.3/36.8
R131 7030005090 S.RES ERJ2GEJ 104 X (100K) B 63.6/38.1
R132 7030005070 S.RES ERJ2GEJ 683 X (68K) B 62/38.1
R133 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 65.2/36.3
R134 7030007340 S.RES ERJ2GEJ 153 X (15K) B 64.1/34.5
R135 7030005050 S.RES ERJ2GEJ 103 X (10K) B 62.5/34.5
R136 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 60.9/34.5
R137 7030005220 S.RES ERJ2GEJ 223 X (22K) B 66.1/36.9
R138 7030005220 S.RES ERJ2GEJ 223 X (22K) B 66.8/38.1
R139 7030005220 S.RES ERJ2GEJ 223 X (22K) B 67.3/36.9
R140 7030011660 S.RES ERJ2RKF 1002 (10K) B 57.4/40.2
R141 7030011670 S.RES ERJ2RKF 3902 (39K) B 57.7/41.4
R142 7030011660 S.RES ERJ2RKF 1002 (10K) B 56.5/38.3
R143 7030011670 S.RES ERJ2RKF 3902 (39K) T 54.4/37.7
R144 7030005120 S.RES ERJ2GEJ 102 X (1K) B 45.8/38
R145 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 46.9/31.2
R146 7030010040 S.RES ERJ2GEJ-JPW T 44.2/29.1
R147 7030005230 S.RES ERJ2GEJ 334 X (330K) T 55.6/39.3
R148 7030005060 S.RES ERJ2GEJ 333 X (33K) T 55.6/38.4
R149 7030005600 S.RES ERJ2GEJ 273 X (27K) T 56.2/37.2
R150 7030005000 S.RES ERJ2GEJ 471 X (470) B 33.3/7.4
R151 7030005000 S.RES ERJ2GEJ 471 X (470) T 45.9/19.2
R152 7030005090 S.RES ERJ2GEJ 104 X (100K) B 46.2/36.8
R153 7030005050 S.RES ERJ2GEJ 103 X (10K) T 45.7/35.8
R154 7030005050 S.RES ERJ2GEJ 103 X (10K) T 44.5/36.2
R155 7030007340 S.RES ERJ2GEJ 153 X (15K) B 45.3/4.4
R156 7030005210 S.RES ERJ2GEJ 822 X (8.2K) B 52.5/6.5
R157 7030005240 S.RES ERJ2GEJ 473 X (47K) B 54.3/9.7
R158 7030005060 S.RES ERJ2GEJ 333 X (33K) B 45/39.8
R159 7030005090 S.RES ERJ2GEJ 104 X (100K) B 45/38.9
R161 7030010040 S.RES ERJ2GEJ-JPW B 38/29.3
R162 7030005050 S.RES ERJ2GEJ 103 X (10K) B 41.4/34
R164 7030005230 S.RES ERJ2GEJ 334 X (330K) B 37.1/29.3
R165 7030005080 S.RES ERJ2GEJ 823 X (82K) B 38/30.9
R166 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 38.1/6.4
R167 7030005220 S.RES ERJ2GEJ 223 X (22K) B 36.5/5.5
R168 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 49.1/30.2
R169 7030011650 S.RES ERJ2GEJ 243X (24K) B 46.9/31.1
R170 7030005530 S.RES ERJ2GEJ 100 X (10) T 53.2/25.8
R171 7030005160 S.RES ERJ2GEJ 105 X (1M) T 55.7/20.5
R173 7030005090 S.RES ERJ2GEJ 104 X (100K) B 60.4/31.8
R174 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 51.6/25.8
R175 7030009270 S.RES ERJ2GEJ 821 X (820) T 52.1/27.4
R176 7030005090 S.RES ERJ2GEJ 104 X (100K) B 45.7/11.9
R177 7030005240 S.RES ERJ2GEJ 473 X (47K) B 53.4/10.7
R178 7030005070 S.RES ERJ2GEJ 683 X (68K) B 38.4/33.5
R179 7030005070 S.RES ERJ2GEJ 683 X (68K) T 40.5/29.6
R180 7030008300 S.RES ERJ2GEJ 184 X (180K) B 40.2/33.5
R181 7030011680 S.RES ERJ2RKF 2703 (270K) T 22/35.5
R182 7030010040 S.RES ERJ2GEJ-JPW B 41.5/25.4
R183 7030005110 S.RES ERJ2GEJ 224 X (220K) B 46.9/27.1
R184 7030009140 S.RES ERJ2GEJ 272 X (2.7K) B 47.8/28.3
R185 7030005230 S.RES ERJ2GEJ 334 X (330K) B 47.8/29.5
R186 7030007340 S.RES ERJ2GEJ 153 X (15K) B 48.3/25.5
R187 7030005050 S.RES ERJ2GEJ 103 X (10K) B 58.2/32.8
R188 7030005090 S.RES ERJ2GEJ 104 X (100K) B 61.5/30.5
R189 7030010040 S.RES ERJ2GEJ-JPW B 97.2/21.9
R190 7030005700 S.RES ERJ2GEJ 274 X (270K) B 99.1/17.8
R191 7030005090 S.RES ERJ2GEJ 104 X (100K) T 97.3/18.4
R192 7030005050 S.RES ERJ2GEJ 103 X (10K) T 95.4/24.3
R193 7030004980 S.RES ERJ2GEJ 101 X (100) B 98.8/20.9
R194 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 101.7/24.3
R195 7030005050 S.RES ERJ2GEJ 103 X (10K) B 95.4/24.2
R196 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 94.2/24.6
R197 7030005050 S.RES ERJ2GEJ 103 X (10K) B 96.1/19.6
R198 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 94.8/19.2
R199 7030005050 S.RES ERJ2GEJ 103 X (10K) T 93.7/12.5
R200 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 97.5/12
R201 7030005090 S.RES ERJ2GEJ 104 X (100K) B 61.6/11.4
R202 7030005110 S.RES ERJ2GEJ 224 X (220K) B 60.1/24.5
R203 7030005000 S.RES ERJ2GEJ 471 X (470) B 61.8/29.3
R204 7030008310 S.RES ERJ2GEJ 564 X (560K) B 35.8/14.8
R205 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 60.2/27.9
R206 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 27.9/33.7
R207 7030005240 S.RES ERJ2GEJ 473 X (47K) B 32.5/36.2
R208 7030005240 S.RES ERJ2GEJ 473 X (47K) B 26.3/32.8
R209 7030005240 S.RES ERJ2GEJ 473 X (47K) B 24.5/33.7
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
R210 7030005240 S.RES ERJ2GEJ 473 X (47K) B 22.6/34.3
R211 7030005700 S.RES ERJ2GEJ 274 X (270K) T 10.7/19.6
R212 7030005070 S.RES ERJ2GEJ 683 X (68K) B 22.1/36.8
R213 7030005070 S.RES ERJ2GEJ 683 X (68K) B 21.5/38
R214 7030005070 S.RES ERJ2GEJ 683 X (68K) B 22.4/41.3
R215 7030005070 S.RES ERJ2GEJ 683 X (68K) B 20.9/40.5
R216 7030005070 S.RES ERJ2GEJ 683 X (68K) B 20.6/38
R217 7030005080 S.RES ERJ2GEJ 823 X (82K) B 41.5/26.3
R219 7030004980 S.RES ERJ2GEJ 101 X (100) T 18.2/29.2
R220 7030005720 S.RES ERJ2GEJ 563 X (56K) B 39.9/26.3
R221 7410001130 S.ARR EXB28V102JX B 32/18.4
R222 7410001130 S.ARR EXB28V102JX T 30.2/20.4
R223 7410001130 S.ARR EXB28V102JX B 30.2/16.6
R225 7410001130 S.ARR EXB28V102JX B 28.1/14.5
R226 7410001130 S.ARR EXB28V102JX B 26.3/12.6
R227 7410001130 S.ARR EXB28V102JX T 21.3/15.6
R228 7030005000 S.RES ERJ2GEJ 471 X (470) T 104/35.2
R229 7030005050 S.RES ERJ2GEJ 103 X (10K) B 30.7/8.7
R230 7030005090 S.RES ERJ2GEJ 104 X (100K) B 30.7/7.5
R231 7030005050 S.RES ERJ2GEJ 103 X (10K) T 98.9/39.1
R232 7030005090 S.RES ERJ2GEJ 104 X (100K) T 15.1/26.5
R233 7410001140 S.ARR EXB28V104JX T 22.2/21.2
R234 7030005050 S.RES ERJ2GEJ 103 X (10K) T 16/26.5
R235 7410001130 S.ARR EXB28V102JX B 16.7/15.5
R236 7410001140 S.ARR EXB28V104JX T 24.1/19.5
R238 7030004980 S.RES ERJ2GEJ 101 X (100) B 12.7/21.7
R240 7030005090 S.RES ERJ2GEJ 104 X (100K) T 37.5/24.8
R242 7410001130 S.ARR EXB28V102JX B 34.5/20.1
R243 7030005530 S.RES ERJ2GEJ 100 X (10) T 7.7/28.7
R244 7030005160 S.RES ERJ2GEJ 105 X (1M) T 6.5/29.1
R245 7030008010 S.RES ERJ2GEJ 123 X (12K) B 16.2/32.3
R246 7030008010 S.RES ERJ2GEJ 123 X (12K) B 12.4/32.8
R247 7030008010 S.RES ERJ2GEJ 123 X (12K) B 11.1/28.5
R248 7030005120 S.RES ERJ2GEJ 102 X (1K) T 22.6/26.9
R249 7030005090 S.RES ERJ2GEJ 104 X (100K) T 21.4/24.4
R250 7030005090 S.RES ERJ2GEJ 104 X (100K) T 43.8/13.8
R251 7030005050 S.RES ERJ2GEJ 103 X (10K) T 27.6/33.2
R252 7030005050 S.RES ERJ2GEJ 103 X (10K) T 27.6/32.3
R253 7410001140 S.ARR EXB28V104JX T 29.4/28
R255 7410001130 S.ARR EXB28V102JX T 25.8/29.5
R257 7410001130 S.ARR EXB28V102JX B 31.3/28.6
R258 7410001140 S.ARR EXB28V104JX T 31.5/29.3
R259 7410001130 S.ARR EXB28V102JX B 33.1/26.8
R260 7030010040 S.RES ERJ2GEJ-JPW B 29.2/36.7
R261 7030005220 S.RES ERJ2GEJ 223 X (22K) T 26.1/35.1
R262 7030005050 S.RES ERJ2GEJ 103 X (10K) T 23.6/33.9
R263 7030008300 S.RES ERJ2GEJ 184 X (180K) T 25.7/23.6
R264 7030005720 S.RES ERJ2GEJ 563 X (56K) T 25.7/24.6
R265 7030005220 S.RES ERJ2GEJ 223 X (22K) T 25.7/25.6
R266 7030005120 S.RES ERJ2GEJ 102 X (1K) T 22.3/34.3
R267 7030005050 S.RES ERJ2GEJ 103 X (10K) B 12.9/18.6
R268 7030005050 S.RES ERJ2GEJ 103 X (10K) T 12.3/21.2
R269 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 23.2/36.1
R272 7030004970 S.RES ERJ2GEJ 470 X (47) B 90.4/7.1
R273 7030005090 S.RES ERJ2GEJ 104 X (100K) B 95.4/8.9
R274 7030005120 S.RES ERJ2GEJ 102 X (1K) T 93/6.2
R275 7030004980 S.RES ERJ2GEJ 101 X (100) T 95.9/7.5
R276 7030005090 S.RES ERJ2GEJ 104 X (100K) B 8.4/22.2
R277 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.3/22.2
R279 7030005090 S.RES ERJ2GEJ 104 X (100K) B 24.3/11.8
R280 7510001730 S.THE ERTJOEP 473J B 57.1/7.3
R281 7030010080 S.RES ERJ2RHD 104 X (100K) B 56.2/5.4
R282 7030005110 S.RES ERJ2GEJ 224 X (220K) T 68.1/25.2
R283 7030005090 S.RES ERJ2GEJ 104 X (100K) B 35.8/16.9
R284 7030008290 S.RES ERJ2GEJ 183 X (18K) B 66.2/26
R285 7030005070 S.RES ERJ2GEJ 683 X (68K) [1] B 66.5/27.2
7030005070 S.RES ERJ2GEJ 683 X (68K) [2]
7030005070 S.RES ERJ2GEJ 683 X (68K) [3]
7030005070 S.RES ERJ2GEJ 683 X (68K) [6]
7030005070 S.RES ERJ2GEJ 683 X (68K) [7]
7030005070 S.RES ERJ2GEJ 683 X (68K) [8]
R286 7030005090 S.RES ERJ2GEJ 104 X (100K) B 64/27.4
R287 7030005090 S.RES ERJ2GEJ 104 X (100K) T 28.6/40.9
R288 7030005720 S.RES ERJ2GEJ 563 X (56K) B 29.8/39
R289 7030005310 S.RES ERJ2GEJ 124 X (120K) B 30.1/41.4
R290 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.9/40.9
R291 7030005000 S.RES ERJ2GEJ 471 X (470) B 41.8/23.9
R292 7030005240 S.RES ERJ2GEJ 473 X (47K) T 39.2/19.3
R293 7030005700 S.RES ERJ2GEJ 274 X (270K) T 38.3/19.3
R294 7030005310 S.RES ERJ2GEJ 124 X (120K) B 94.4/8.9
R295 7030005310 S.RES ERJ2GEJ 124 X (120K) B 95.5/10.1
R296 7030005090 S.RES ERJ2GEJ 104 X (100K) B 95.5/11.9
R297 7030007340 S.RES ERJ2GEJ 153 X (15K) B 95.5/11
R298 7030005160 S.RES ERJ2GEJ 105 X (1M) T 46.1/24.3
R301 7030005090 S.RES ERJ2GEJ 104 X (100K) T 104.6/36.8
R302 7030010040 S.RES ERJ2GEJ-JPW B 56.5/40.2
R303 7030010040 S.RES ERJ2GEJ-JPW B 45.3/36.8
R304 7030005050 S.RES ERJ2GEJ 103 X (10K) B 78.3/36.6
R305 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 80.6/37.9
R306 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.2/10.1
R307 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.4/8.7
R308 7030005090 S.RES ERJ2GEJ 104 X (100K) T 37.5/26.3
R309 7030005090 S.RES ERJ2GEJ 104 X (100K) B 33.7/14.4
R310 7030005090 S.RES ERJ2GEJ 104 X (100K) B 32.4/15.3
R312 7030005090 S.RES ERJ2GEJ 104 X (100K) T 45/13.4
R313 7030007340 S.RES ERJ2GEJ 153 X (15K) T 6.8/33.9
R314 7030007340 S.RES ERJ2GEJ 153 X (15K) T 9/31.8
R315 7030007340 S.RES ERJ2GEJ 153 X (15K) T 10.5/31.8
R316 7030005160 S.RES ERJ2GEJ 105 X (1M) B 6.5/38.2
R317 7030005160 S.RES ERJ2GEJ 105 X (1M) B 12.2/12.5
R318 7030005160 S.RES ERJ2GEJ 105 X (1M) B 5.3/35.9
R319 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.9/17.2
R320 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.4/9.6
R328 7510001730 S.THE ERTJOEP 473J T 55.3/37.2
R329 7030005060 S.RES ERJ2GEJ 333 X (33K) T 55.6/36

Jun. 2009
4
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
R330 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 55.8/34.8
R331 7030007340 S.RES ERJ2GEJ 153 X (15K) T 47.1/16.5
R332 7030005010 S.RES ERJ2GEJ 681 X (680) B 52.5/27.1
R333 7030005090 S.RES ERJ2GEJ 104 X (100K) T 17.1/31.8
R335 7030005090 S.RES ERJ2GEJ 104 X (100K) T 58.3/8
R336 7030005090 S.RES ERJ2GEJ 104 X (100K) B 34.4/4.7
R337 7030007340 S.RES ERJ2GEJ 153 X (15K) B 52.1/28.4
R338 7030007340 S.RES ERJ2GEJ 153 X (15K) B 51.6/27.1
R339 7030003860 S.RES ERJ3GE JPW V B 65.1/12.5
R340 7030005000 S.RES ERJ2GEJ 471 X (470) B 88.6/9.6
R341 7030005530 S.RES ERJ2GEJ 100 X (10) B 88.8/10.8
R342 7030005000 S.RES ERJ2GEJ 471 X (470) B 90/10.1
R343 7030005120 S.RES ERJ2GEJ 102 X (1K) B 62.7/21.8
R344 7030005090 S.RES ERJ2GEJ 104 X (100K) T 19.8/29.2
C1 4030017420 S.CER ECJ0EC1H470J B 51.8/29.6
C2 4030017620 S.CER ECJ0EC1H100C [1] T 57.9/24
4030017620 S.CER ECJ0EC1H100C [2]
4030017620 S.CER ECJ0EC1H100C [3]
4030017380 S.CER ECJ0EC1H050B [4]
4030017380 S.CER ECJ0EC1H050B [5]
4030017620 S.CER ECJ0EC1H100C [6]
4030017620 S.CER ECJ0EC1H100C [7]
4030017620 S.CER ECJ0EC1H100C [8]
4030017380 S.CER ECJ0EC1H050B [9]
4030017380 S.CER ECJ0EC1H050B [10]
C3 4030017430 S.CER ECJ0EC1H101J T 57.9/20.8
C4 4030016930 S.CER ECJ0EB1A104K B 55.1/23.2
C5 4030016930 S.CER ECJ0EB1A104K B 52.8/20.7
C7 4030017460 S.CER ECJ0EB1E102K B 53.7/20.7
C8 4030017650 S.CER ECJ0EC1H270J [1] B 62.7/20
4030017650 S.CER ECJ0EC1H270J [2]
4030017650 S.CER ECJ0EC1H270J [3]
4030017630 S.CER ECJ0EC1H120J [4]
4030017630 S.CER ECJ0EC1H120J [5]
4030017650 S.CER ECJ0EC1H270J [6]
4030017650 S.CER ECJ0EC1H270J [7]
4030017650 S.CER ECJ0EC1H270J [8]
4030017630 S.CER ECJ0EC1H120J [9]
4030017630 S.CER ECJ0EC1H120J [10]
C9 4030017420 S.CER ECJ0EC1H470J B 62.7/17.5
C10 4030016930 S.CER ECJ0EB1A104K B 52.8/13.7
C11 4030017420 S.CER ECJ0EC1H470J B 51.4/14.3
C12 4030017420 S.CER ECJ0EC1H470J B 49.9/16.6
C13 4030017420 S.CER ECJ0EC1H470J B 51.3/17
C14 4030006900 S.CER C1608 JB 1H 103K-T B 65.4/19.6
C16 4550000550 S.TAN TEESVA 1V 224M8R B 67.4/24.4
C17 4030017460 S.CER ECJ0EB1E102K B 63/14.7
C18 4030017460 S.CER ECJ0EB1E102K B 66.9/13.7
C19 4550000510 S.TAN TEESVA 1V 473M8R B 67.4/22.3
C21 4030017420 S.CER ECJ0EC1H470J B 64/8.5
C22 4030017420 S.CER ECJ0EC1H470J T 63.6/13.6
C23 4030017460 S.CER ECJ0EB1E102K B 66.9/18.6
C24 4030017590 S.CER ECJ0EC1H070C [1] T 66.2/10.8
4030017590 S.CER ECJ0EC1H070C [2]
4030017590 S.CER ECJ0EC1H070C [3]
4030017580 S.CER ECJ0EC1H060C [4]
4030017580 S.CER ECJ0EC1H060C [5]
4030017590 S.CER ECJ0EC1H070C [6]
4030017590 S.CER ECJ0EC1H070C [7]
4030017590 S.CER ECJ0EC1H070C [8]
4030017580 S.CER ECJ0EC1H060C [9]
4030017580 S.CER ECJ0EC1H060C [10]
C25 4030017620 S.CER ECJ0EC1H100C [1] T 67.3/9.8
4030017620 S.CER ECJ0EC1H100C [2]
4030017620 S.CER ECJ0EC1H100C [3]
4030017590 S.CER ECJ0EC1H070C [4]
4030017590 S.CER ECJ0EC1H070C [5]
4030017620 S.CER ECJ0EC1H100C [6]
4030017620 S.CER ECJ0EC1H100C [7]
4030017620 S.CER ECJ0EC1H100C [8]
4030017590 S.CER ECJ0EC1H070C [9]
4030017590 S.CER ECJ0EC1H070C [10]
C26 4030017570 S.CER ECJ0EC1H040B [1] T 67.7/8.6
4030017570 S.CER ECJ0EC1H040B [2]
4030017570 S.CER ECJ0EC1H040B [3]
4030017350 S.CER ECJ0EC1H020B [4]
4030017350 S.CER ECJ0EC1H020B [5]
4030017570 S.CER ECJ0EC1H040B [6]
4030017570 S.CER ECJ0EC1H040B [7]
4030017570 S.CER ECJ0EC1H040B [8]
4030017350 S.CER ECJ0EC1H020B [9]
4030017350 S.CER ECJ0EC1H020B [10]
C27 4030017630 S.CER ECJ0EC1H120J T 70.4/10.8
C28 4030017380 S.CER ECJ0EC1H050B [1] T 71.3/9.8
4030017380 S.CER ECJ0EC1H050B [2]
4030017380 S.CER ECJ0EC1H050B [3]
4030017360 S.CER ECJ0EC1H030B [4]
4030017360 S.CER ECJ0EC1H030B [5]
4030017380 S.CER ECJ0EC1H050B [6]
4030017380 S.CER ECJ0EC1H050B [7]
4030017380 S.CER ECJ0EC1H050B [8]
4030017360 S.CER ECJ0EC1H030B [9]
4030017360 S.CER ECJ0EC1H030B [10]
C29 4030017600 S.CER ECJ0EC1H080C [1] T 72.1/8.6
4030017600 S.CER ECJ0EC1H080C [2]
4030017600 S.CER ECJ0EC1H080C [3]
4030017570 S.CER ECJ0EC1H040B [4]
4030017570 S.CER ECJ0EC1H040B [5]
4030017600 S.CER ECJ0EC1H080C [6]
4030017600 S.CER ECJ0EC1H080C [7]
4030017600 S.CER ECJ0EC1H080C [8]
4030017570 S.CER ECJ0EC1H040B [9]
4030017570 S.CER ECJ0EC1H040B [10]
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
C30 4030016930 S.CER ECJ0EB1A104K T 73.4/13.4
C31 4030017460 S.CER ECJ0EB1E102K T 71.4/13.4
C32 4030017460 S.CER ECJ0EB1E102K T 71.4/19.9
C33 4030016930 S.CER ECJ0EB1A104K T 73.4/19.9
C34 4030017640 S.CER ECJ0EC1H150J T 70.4/17.3
C35 4030017600 S.CER ECJ0EC1H080C [1] T 71.3/16.3
4030017600 S.CER ECJ0EC1H080C [2]
4030017600 S.CER ECJ0EC1H080C [3]
4030017570 S.CER ECJ0EC1H040B [4]
4030017570 S.CER ECJ0EC1H040B [5]
4030017600 S.CER ECJ0EC1H080C [6]
4030017600 S.CER ECJ0EC1H080C [7]
4030017600 S.CER ECJ0EC1H080C [8]
4030017570 S.CER ECJ0EC1H040B [9]
4030017570 S.CER ECJ0EC1H040B [10]
C36 4030017630 S.CER ECJ0EC1H120J [1] T 71.7/15.1
4030017630 S.CER ECJ0EC1H120J [2]
4030017630 S.CER ECJ0EC1H120J [3]
4030017590 S.CER ECJ0EC1H070C [4]
4030017590 S.CER ECJ0EC1H070C [5]
4030017630 S.CER ECJ0EC1H120J [6]
4030017630 S.CER ECJ0EC1H120J [7]
4030017630 S.CER ECJ0EC1H120J [8]
4030017590 S.CER ECJ0EC1H070C [9]
4030017590 S.CER ECJ0EC1H070C [10]
C37 4030017380 S.CER ECJ0EC1H050B [1] T 67.7/15.1
4030017380 S.CER ECJ0EC1H050B [2]
4030017380 S.CER ECJ0EC1H050B [3]
4030017360 S.CER ECJ0EC1H030B [4]
4030017360 S.CER ECJ0EC1H030B [5]
4030017380 S.CER ECJ0EC1H050B [6]
4030017380 S.CER ECJ0EC1H050B [7]
4030017380 S.CER ECJ0EC1H050B [8]
4030017360 S.CER ECJ0EC1H030B [9]
4030017360 S.CER ECJ0EC1H030B [10]
C38 4030017630 S.CER ECJ0EC1H120J [1] T 67.3/16.3
4030017630 S.CER ECJ0EC1H120J [2]
4030017630 S.CER ECJ0EC1H120J [3]
4030017610 S.CER ECJ0EC1H090C [4]
4030017610 S.CER ECJ0EC1H090C [5]
4030017630 S.CER ECJ0EC1H120J [6]
4030017630 S.CER ECJ0EC1H120J [7]
4030017630 S.CER ECJ0EC1H120J [8]
4030017610 S.CER ECJ0EC1H090C [9]
4030017610 S.CER ECJ0EC1H090C [10]
C39 4030017390 S.CER ECJ0EC1H180J [1] T 66.2/17.3
4030017390 S.CER ECJ0EC1H180J [2]
4030017390 S.CER ECJ0EC1H180J [3]
4030017580 S.CER ECJ0EC1H060C [4]
4030017580 S.CER ECJ0EC1H060C [5]
4030017390 S.CER ECJ0EC1H180J [6]
4030017390 S.CER ECJ0EC1H180J [7]
4030017390 S.CER ECJ0EC1H180J [8]
4030017580 S.CER ECJ0EC1H060C [9]
4030017580 S.CER ECJ0EC1H060C [10]
C40 4030016930 S.CER ECJ0EB1A104K T 74.5/26.1
C41 4030017460 S.CER ECJ0EB1E102K B 72.3/26.6
C42 4030017640 S.CER ECJ0EC1H150J [1] T 70.4/23.7
4030017640 S.CER ECJ0EC1H150J [2]
4030017640 S.CER ECJ0EC1H150J [3]
4030017390 S.CER ECJ0EC1H180J [4]
4030017390 S.CER ECJ0EC1H180J [5]
4030017640 S.CER ECJ0EC1H150J [6]
4030017640 S.CER ECJ0EC1H150J [7]
4030017640 S.CER ECJ0EC1H150J [8]
4030017390 S.CER ECJ0EC1H180J [9]
4030017390 S.CER ECJ0EC1H180J [10]
C43 4030017580 S.CER ECJ0EC1H060C T 71.2/22.7
C44 4030017610 S.CER ECJ0EC1H090C T 71.7/21.5
C45 4030017560 S.CER ECJ0EC1H2R5B [1] T 67.7/21.5
4030017560 S.CER ECJ0EC1H2R5B [2]
4030017560 S.CER ECJ0EC1H2R5B [3]
4030017550 S.CER ECJ0EC1H1R5B [4]
4030017550 S.CER ECJ0EC1H1R5B [5]
4030017560 S.CER ECJ0EC1H2R5B [6]
4030017560 S.CER ECJ0EC1H2R5B [7]
4030017560 S.CER ECJ0EC1H2R5B [8]
4030017550 S.CER ECJ0EC1H1R5B [9]
4030017550 S.CER ECJ0EC1H1R5B [10]
C46 4030017340 S.CER ECJ0EC1H010B T 69.9/25.2
C47 4030017340 S.CER ECJ0EC1H010B T 69.5/26.4
C48 4030017650 S.CER ECJ0EC1H270J [1] T 67.3/22.7
4030017650 S.CER ECJ0EC1H270J [2]
4030017650 S.CER ECJ0EC1H270J [3]
4030017630 S.CER ECJ0EC1H120J [4]
4030017630 S.CER ECJ0EC1H120J [5]
4030017650 S.CER ECJ0EC1H270J [6]
4030017650 S.CER ECJ0EC1H270J [7]
4030017650 S.CER ECJ0EC1H270J [8]
4030017630 S.CER ECJ0EC1H120J [9]
4030017630 S.CER ECJ0EC1H120J [10]
C49 4030017660 S.CER ECJ0EC1H330J T 66/23.7
C50 4030017420 S.CER ECJ0EC1H470J B 66/20.7
C51 4030017420 S.CER ECJ0EC1H470J B 67.4/27
C52 4030016930 S.CER ECJ0EB1A104K B 65.6/27.2
C53 4030017530 S.CER ECJ0EC1H0R5B T 74.2/11.3
C54 4030017530 S.CER ECJ0EC1H0R5B T 74.4/17.3
C55 4030017530 S.CER ECJ0EC1H0R5B T 74.4/19.9
C56 4030017460 S.CER ECJ0EB1E102K B 73.7/20.2
C57 4030017460 S.CER ECJ0EB1E102K B 67.7/12.6
C58 4550006250 S.TAN TEESVA 1A 106M8R B 79.6/18.6
C59 4030016790 S.CER ECJ0EB1C103K B 81.1/23.2
C60 4030017460 S.CER ECJ0EB1E102K T 77.7/18.2
C61 4030017730 S.CER ECJ0EB1E471K T 76.2/20.6
C62 4030017580 S.CER ECJ0EC1H060C T 80/18

Jun. 2009
5
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
C63 4030017460 S.CER ECJ0EB1E102K T 81.3/21.6
C65 4030017460 S.CER ECJ0EB1E102K T 80/24.4
C66 4030017380 S.CER ECJ0EC1H050B T 77.6/14
C67 4030017460 S.CER ECJ0EB1E102K T 79.9/13.5
C68 4030017460 S.CER ECJ0EB1E102K T 81.1/15.5
C69 4030017620 S.CER ECJ0EC1H100C B 82.7/13.3
C71 4030017460 S.CER ECJ0EB1E102K B 85.9/16.3
C73 4030017380 S.CER ECJ0EC1H050B B 88.1/13.5
C75 4030017570 S.CER ECJ0EC1H040B B 91.7/18
C76 4030017420 S.CER ECJ0EC1H470J B 89.7/17
C77 4030017460 S.CER ECJ0EB1E102K B 88.8/16.2
C78 4030017460 S.CER ECJ0EB1E102K B 86.8/18.5
C79 4030017380 S.CER ECJ0EC1H050B B 93.5/17.3
C100 4030017420 S.CER ECJ0EC1H470J T 48.5/18.7
C101 4030017420 S.CER ECJ0EC1H470J T 57.9/14.6
C103 4030017420 S.CER ECJ0EC1H470J T 56.3/13.7
C113 4030017730 S.CER ECJ0EB1E471K T 56.6/7.1
C118 4030017460 S.CER ECJ0EB1E102K T 105.5/26.9
C119 4030017510 S.CER ECJ0EC1H680J B 105.9/27.4
C120 4030017590 S.CER ECJ0EC1H070C B 106/24.2
C121 4030017600 S.CER ECJ0EC1H080C B 104.8/23.8
C122 4030017400 S.CER ECJ0EC1H220J B 103.2/20.8
C123 4030017460 S.CER ECJ0EB1E102K B 100/19.9
C124 4030017460 S.CER ECJ0EB1E102K T 103.1/21.1
C125 4030017560 S.CER ECJ0EC1H2R5B [1] B 106.1/20.5
4030017560 S.CER ECJ0EC1H2R5B [2]
4030017560 S.CER ECJ0EC1H2R5B [3]
4030017350 S.CER ECJ0EC1H020B [4]
4030017350 S.CER ECJ0EC1H020B [5]
4030017560 S.CER ECJ0EC1H2R5B [6]
4030017560 S.CER ECJ0EC1H2R5B [7]
4030017560 S.CER ECJ0EC1H2R5B [8]
4030017350 S.CER ECJ0EC1H020B [9]
4030017350 S.CER ECJ0EC1H020B [10]
C126 4030017400 S.CER ECJ0EC1H220J B 103.2/17.2
C127 4030017600 S.CER ECJ0EC1H080C B 104.8/20.2
C128 4030017590 S.CER ECJ0EC1H070C B 105.3/16.9
C129 4030017460 S.CER ECJ0EB1E102K B 103/13.8
C130 4030017420 S.CER ECJ0EC1H470J B 103/14.7
C131 4030017420 S.CER ECJ0EC1H470J B 104.9/11.4
C132 4030017460 S.CER ECJ0EB1E102K T 104.7/11.4
C133 4030017460 S.CER ECJ0EB1E102K T 100.6/8.1
C134 4030016930 S.CER ECJ0EB1A104K T 104/13.6
C135 4030016930 S.CER ECJ0EB1A104K T 104.3/14.8
C136 4030017460 S.CER ECJ0EB1E102K T 102.8/11
C137 4030017420 S.CER ECJ0EC1H470J B 105.3/9.5
C138 4030017460 S.CER ECJ0EB1E102K B 105.7/8.3
C139 4030017460 S.CER ECJ0EB1E102K B 100.3/7.3
C141 4030017350 S.CER ECJ0EC1H020B [1] B 103/12.9
4030017350 S.CER ECJ0EC1H020B [2]
4030017350 S.CER ECJ0EC1H020B [3]
4030017550 S.CER ECJ0EC1H1R5B [4]
4030017550 S.CER ECJ0EC1H1R5B [5]
4030017350 S.CER ECJ0EC1H020B [6]
4030017350 S.CER ECJ0EC1H020B [7]
4030017350 S.CER ECJ0EC1H020B [8]
4030017550 S.CER ECJ0EC1H1R5B [9]
4030017550 S.CER ECJ0EC1H1R5B [10]
C142 4030017630 S.CER ECJ0EC1H120J B 103/11.3
C143 4030017630 S.CER ECJ0EC1H120J [1] B 99.3/8.9
4030017630 S.CER ECJ0EC1H120J [2]
4030017630 S.CER ECJ0EC1H120J [3]
4030017620 S.CER ECJ0EC1H100C [4]
4030017620 S.CER ECJ0EC1H100C [5]
4030017630 S.CER ECJ0EC1H120J [6]
4030017630 S.CER ECJ0EC1H120J [7]
4030017630 S.CER ECJ0EC1H120J [8]
4030017620 S.CER ECJ0EC1H100C [9]
4030017620 S.CER ECJ0EC1H100C [10]
C144 4030017520 S.CER ECJ0EC1H0R3B B 100.7/8.4
C145 4030017460 S.CER ECJ0EB1E102K B 99.6/11.3
C146 4030017460 S.CER ECJ0EB1E102K T 100.9/11.7
C147 4030017340 S.CER ECJ0EC1H010B B 96.3/8.9
C148 4030017380 S.CER ECJ0EC1H050B B 96/7.7
C151 4030017550 S.CER ECJ0EC1H1R5B T 79/21.4
C152 4030017340 S.CER ECJ0EC1H010B T 79.1/24
C153 4030017460 S.CER ECJ0EB1E102K B 75.7/24.6
C154 4030017340 S.CER ECJ0EC1H010B T 78.2/24
C156 4030017350 S.CER ECJ0EC1H020B T 76/25.1
C157 4030017460 S.CER ECJ0EB1E102K B 63.7/17.6
C159 4030017420 S.CER ECJ0EC1H470J B 92.1/11.1
C160 4030017460 S.CER ECJ0EB1E102K B 92.1/12
C161 4030017380 S.CER ECJ0EC1H050B B 92.1/10.2
C164 4030017580 S.CER ECJ0EC1H060C [1] B 87.5/11.2
4030017580 S.CER ECJ0EC1H060C [2]
4030017580 S.CER ECJ0EC1H060C [3]
4030017360 S.CER ECJ0EC1H030B [4]
4030017360 S.CER ECJ0EC1H030B [5]
4030017580 S.CER ECJ0EC1H060C [6]
4030017580 S.CER ECJ0EC1H060C [7]
4030017580 S.CER ECJ0EC1H060C [8]
4030017360 S.CER ECJ0EC1H030B [9]
4030017360 S.CER ECJ0EC1H030B [10]
C166 4030017460 S.CER ECJ0EB1E102K B 89.3/12
C173 4030016790 S.CER ECJ0EB1C103K T 85.8/16.6
C174 4030016790 S.CER ECJ0EB1C103K T 85.5/23
C177 4030017640 S.CER ECJ0EC1H150J B 86.5/22
C180 4030017460 S.CER ECJ0EB1E102K B 78.4/26.9
C181 4030016790 S.CER ECJ0EB1C103K B 79.6/26.1
C182 4030016790 S.CER ECJ0EB1C103K B 75.6/27.8
C183 4030016790 S.CER ECJ0EB1C103K B 81.4/30.1
C184 4030017460 S.CER ECJ0EB1E102K B 81.5/31.6
C185 4550005980 S.TAN TEESVA 1A 475M8R B 85.6/34.9
C186 4030017420 S.CER ECJ0EC1H470J B 81.5/32.5
C187 4030017680 S.CER ECJ0EC1H820J B 81.5/34.3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
C188 4030017460 S.CER ECJ0EB1E102K B 75.5/29.6
C189 4030016930 S.CER ECJ0EB1A104K B 71.8/33.2
C191 4030016930 S.CER ECJ0EB1A104K T 69.3/39.9
C192 4030016930 S.CER ECJ0EB1A104K B 71.9/31.6
C193 4030016930 S.CER ECJ0EB1A104K T 72.5/39.9
C194 4030016930 S.CER ECJ0EB1A104K T 71.7/32.2
C195 4030016930 S.CER ECJ0EB1A104K T 72.3/35.8
C196 4030017360 S.CER ECJ0EC1H030B B 73.9/29.6
C197 4030017590 S.CER ECJ0EC1H070C B 71.3/29.4
C198 4030017570 S.CER ECJ0EC1H040B B 70.1/29.9
C199 4030017500 S.CER ECJ0EC1H560J B 70.1/29
C200 4030016790 S.CER ECJ0EB1C103K B 66.6/31.4
C201 4030017620 S.CER ECJ0EC1H100C [1] T 59.7/20.8
4030017620 S.CER ECJ0EC1H100C [2]
4030017620 S.CER ECJ0EC1H100C [3]
4030017380 S.CER ECJ0EC1H050B [4]
4030017380 S.CER ECJ0EC1H050B [5]
4030017620 S.CER ECJ0EC1H100C [6]
4030017620 S.CER ECJ0EC1H100C [7]
4030017620 S.CER ECJ0EC1H100C [8]
4030017380 S.CER ECJ0EC1H050B [9]
4030017380 S.CER ECJ0EC1H050B [10]
C202 4030016930 S.CER ECJ0EB1A104K B 75.9/36.6
C203 4030017460 S.CER ECJ0EB1E102K B 81.5/33.4
C204 4030017460 S.CER ECJ0EB1E102K B 81.5/36.3
C205 4030016930 S.CER ECJ0EB1A104K B 47.6/14.7
C206 4030016790 S.CER ECJ0EB1C103K T 90.2/15.4
C207 4030016790 S.CER ECJ0EB1C103K T 89.3/15.4
C208 4030016790 S.CER ECJ0EB1C103K T 89.7/10.2
C210 4030017390 S.CER ECJ0EC1H180J T 86.5/22.1
C212 4030016790 S.CER ECJ0EB1C103K B 86.7/27.2
C213 4030016790 S.CER ECJ0EB1C103K T 85.8/27.1
C215 4030016790 S.CER ECJ0EB1C103K B 82.4/26.2
C216 4030017730 S.CER ECJ0EB1E471K B 74.1/36.6
C217 4030017730 S.CER ECJ0EB1E471K B 73.2/36.6
C218 4030017460 S.CER ECJ0EB1E102K B 72.3/38.2
C219 4030017710 S.CER ECJ0EC1H181J B 37.1/30.9
C220 4030017400 S.CER ECJ0EC1H220J T 52.6/29.2
C221 4030017400 S.CER ECJ0EC1H220J T 52.6/42.1
C222 4030016970 S.CER ECJ0EB1C223K B 62.5/33.6
C223 4030016930 S.CER ECJ0EB1A104K B 65.2/38.1
C224 4030017790 S.CER ECJ0EB1E682K B 66.1/35.3
C225 4030016940 S.CER ECJ0EB1A393K B 68.4/38.1
C226 4550006250 S.TAN TEESVA 1A 106M8R B 41.5/39.2
C227 4030017460 S.CER ECJ0EB1E102K B 44.4/36.8
C228 4550000460 S.TAN TEESVA 1C 105M8R T 57.8/40.9
C229 4550000460 S.TAN TEESVA 1C 105M8R B 60.4/39.7
C230 4030017460 S.CER ECJ0EB1E102K B 56.1/41.4
C231 4030017420 S.CER ECJ0EC1H470J T 57.7/33.5
C232 4030017420 S.CER ECJ0EC1H470J T 56.7/33.5
C233 4030017420 S.CER ECJ0EC1H470J T 58.6/36.4
C234 4030017420 S.CER ECJ0EC1H470J T 57.4/36.8
C235 4030017420 S.CER ECJ0EC1H470J B 44.6/34.8
C236 4030017420 S.CER ECJ0EC1H470J B 43.7/34.8
C237 4030016970 S.CER ECJ0EB1C223K T 42.7/40.3
C238 4030016930 S.CER ECJ0EB1A104K T 46.9/32.1
C239 4030017420 S.CER ECJ0EC1H470J T 43.3/29.1
C240 4030017420 S.CER ECJ0EC1H470J T 54.4/39.3
C241 4030017750 S.CER ECJ0EB1E122K T 57.4/37.7
C242 4030016930 S.CER ECJ0EB1A104K T 55.8/33.2
C243 4030018860 S.CER ECJ0EB0J105K T 45.7/36.7
C244 4030018080 S.CER ECJ0EB1H182K B 45.3/5.3
C245 4030017900 S.CER ECJ0EB1C123K B 45.3/6.2
C246 4030016930 S.CER ECJ0EB1A104K B 45.1/10.7
C247 4030016930 S.CER ECJ0EB1A104K B 52.5/10.7
C248 4030017710 S.CER ECJ0EC1H181J B 46.2/39.2
C249 4030016930 S.CER ECJ0EB1A104K B 50.6/30.8
C250 4030017460 S.CER ECJ0EB1E102K B 54.3/8.1
C251 4030016930 S.CER ECJ0EB1A104K B 41.4/33.1
C252 4030016930 S.CER ECJ0EB1A104K B 34.2/8.9
C253 4030016930 S.CER ECJ0EB1A104K B 42.7/23.9
C254 4030016930 S.CER ECJ0EB1A104K T 42.9/13.2
C255 4030016790 S.CER ECJ0EB1C103K B 36.5/6.4
C256 4030017760 S.CER ECJ0EB1H222K B 36.5/4.6
C257 4030016930 S.CER ECJ0EB1A104K B 45.1/7.4
C258 4030017730 S.CER ECJ0EB1E471K B 47.8/31.1
C259 4550006250 S.TAN TEESVA 1A 106M8R T 54/24.2
C260 4550006250 S.TAN TEESVA 1A 106M8R T 54/22.1
C261 4030018860 S.CER ECJ0EB0J105K T 46.9/23.1
C262 4030016790 S.CER ECJ0EB1C103K T 43.9/24
C264 4030017460 S.CER ECJ0EB1E102K B 36.6/8.9
C266 4030017780 S.CER ECJ0EB1E472K B 53.7/6.8
C267 4030017730 S.CER ECJ0EB1E471K B 46.9/29.5
C268 4030016960 S.CER ECJ0EB1C183K B 47.8/27.1
C269 4030016960 S.CER ECJ0EB1C183K B 47.7/24
C271 4030016930 S.CER ECJ0EB1A104K B 51/31.7
C272 4030016930 S.CER ECJ0EB1A104K T 7.3/15.9
C273 4030017460 S.CER ECJ0EB1E102K T 10.7/10.5
C274 4030016930 S.CER ECJ0EB1A104K T 40.5/31.2
C275 4030016930 S.CER ECJ0EB1A104K B 39.3/33.5
C276 4030017460 S.CER ECJ0EB1E102K B 97.8/18
C277 4550007080 S.TAN TEESVA 1C 106M8R T 95.1/19.8
C278 4030017460 S.CER ECJ0EB1E102K T 97.3/19.3
C279 4030016790 S.CER ECJ0EB1C103K T 105/16.4
C280 4030016930 S.CER ECJ0EB1A104K B 98.8/19.6
C281 4030016790 S.CER ECJ0EB1C103K B 97.9/19.6
C282 4550005980 S.TAN TEESVA 1A 475M8R T 104/22.7
C283 4030017460 S.CER ECJ0EB1E102K B 102.2/25.4
C284 4030016790 S.CER ECJ0EB1C103K B 94.2/25.5
C285 4030017460 S.CER ECJ0EB1E102K T 94.5/23.7
C286 4030017460 S.CER ECJ0EB1E102K T 93.5/21.7
C287 4030016790 S.CER ECJ0EB1C103K B 93.6/19.4
C288 4030017460 S.CER ECJ0EB1E102K B 97/19.6
C289 4030017460 S.CER ECJ0EB1E102K T 92.1/12.5
C290 4030016790 S.CER ECJ0EB1C103K T 98.3/10.3

Jun. 2009
6
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
C291 4030017460 S.CER ECJ0EB1E102K T 91.8/11.3
C292 4030017460 S.CER ECJ0EB1E102K B 96.9/18
C294 4030016930 S.CER ECJ0EB1A104K B 66.2/15.4
C295 4030016930 S.CER ECJ0EB1A104K B 61/25.4
C296 4030017460 S.CER ECJ0EB1E102K B 62.2/25.5
C297 4030017460 S.CER ECJ0EB1E102K B 62.4/30.5
C298 4030017460 S.CER ECJ0EB1E102K T 58.6/27.8
C299 4030016930 S.CER ECJ0EB1A104K B 32.5/35.3
C300 4030017420 S.CER ECJ0EC1H470J B 32/37.4
C301 4030017750 S.CER ECJ0EB1E122K B 27.2/31.9
C302 4030016930 S.CER ECJ0EB1A104K B 26.3/33.7
C303 4030016960 S.CER ECJ0EB1C183K B 22.7/33.4
C304 4030016930 S.CER ECJ0EB1A104K T 10.7/18.3
C305 4030017420 S.CER ECJ0EC1H470J T 25.1/34.7
C306 4030017430 S.CER ECJ0EC1H101J B 22.4/38
C307 4030017910 S.CER ECJ0EB1H152K B 22.1/35.9
C308 4030017420 S.CER ECJ0EC1H470J B 22.1/39.2
C309 4030017690 S.CER ECJ0EC1H121J B 21.2/41.7
C310 4030017760 S.CER ECJ0EB1H222K B 22.1/40.1
C311 4030017460 S.CER ECJ0EB1E102K B 19.7/40.5
C312 4030016930 S.CER ECJ0EB1A104K T 23.9/35.2
C313 4030016930 S.CER ECJ0EB1A104K B 39.9/25.4
C314 4030017460 S.CER ECJ0EB1E102K T 18.8/40.6
C315 4030018560 S.CER C2012 JB 1A 475K-T B 30.4/33.8
C316 4030016930 S.CER ECJ0EB1A104K T 26.3/21.4
C317 4030016930 S.CER ECJ0EB1A104K B 30.3/5.3
C318 4030016930 S.CER ECJ0EB1A104K T 102.8/35.6
C319 4550006780 S.TAN TEESVB2 0J 476M8R T 94.9/35.3
C320 4030017420 S.CER ECJ0EC1H470J T 25/17.3
C321 4030017420 S.CER ECJ0EC1H470J T 23.6/16.1
C322 4030016930 S.CER ECJ0EB1A104K B 12.7/22.6
C323 4030016930 S.CER ECJ0EB1A104K B 12.7/20.8
C324 4030016930 S.CER ECJ0EB1A104K B 10.2/22.2
C325 4030016930 S.CER ECJ0EB1A104K B 13.2/27.7
C326 4030017030 S.CER ECJ0EB1A273K T 15.3/30.9
C328 4030017420 S.CER ECJ0EC1H470J T 37.4/20.5
C329 4030017580 S.CER ECJ0EC1H060C T 4.7/39
C330 4030017630 S.CER ECJ0EC1H120J T 4.7/25.8
C331 4030017640 S.CER ECJ0EC1H150J B 11.1/29.7
C332 4030017420 S.CER ECJ0EC1H470J T 21.4/25.9
C333 4030017420 S.CER ECJ0EC1H470J T 25.5/33.1
C336 4030017420 S.CER ECJ0EC1H470J T 34.1/31.5
C339 4030017420 S.CER ECJ0EC1H470J B 37.6/26.3
C340 4030017420 S.CER ECJ0EC1H470J T 34.7/30
C341 4030017460 S.CER ECJ0EB1E102K T 27/35.1
C342 4030016930 S.CER ECJ0EB1A104K B 14.5/18.6
C343 4030016930 S.CER ECJ0EB1A104K T 12.3/23
C344 4030017420 S.CER ECJ0EC1H470J B 90.4/8.9
C345 4030017460 S.CER ECJ0EB1E102K B 90.4/8
C346 4030017670 S.CER ECJ0EC1H390J T 93/10.5
C347 4030016790 S.CER ECJ0EB1C103K T 94.6/6.2
C348 4030017460 S.CER ECJ0EB1E102K T 95.9/9.2
C349 4030017460 S.CER ECJ0EB1E102K T 97.1/7
C352 4550006250 S.TAN TEESVA 1A 106M8R B 35.5/32.3
C353 4030016930 S.CER ECJ0EB1A104K B 12.2/11.6
C354 4030017420 S.CER ECJ0EC1H470J T 29.8/22.3
C355 4030017420 S.CER ECJ0EC1H470J T 21.8/17.9
C358 4030017420 S.CER ECJ0EC1H470J B 32.1/9.2
C359 4030017420 S.CER ECJ0EC1H470J T 33.6/12.3
C360 4030017420 S.CER ECJ0EC1H470J T 93.5/17.5
C361 4030017420 S.CER ECJ0EC1H470J T 31.3/15.3
C362 4030017420 S.CER ECJ0EC1H470J T 31.9/23.3
C363 4030017420 S.CER ECJ0EC1H470J T 12/30
C364 4030017420 S.CER ECJ0EC1H470J T 12/29
C365 4030016930 S.CER ECJ0EB1A104K B 54.4/5.9
C366 4030017030 S.CER ECJ0EB1A273K B 35.8/16
C367 4030016930 S.CER ECJ0EB1A104K B 39.7/39.4
C368 4030016930 S.CER ECJ0EB1A104K B 43.1/26.3
C369 4030016930 S.CER ECJ0EB1A104K B 28.9/39
C370 4030016930 S.CER ECJ0EB1A104K B 68.8/36.9
C371 4030016930 S.CER ECJ0EB1A104K T 57.8/30.6
C372 4030016930 S.CER ECJ0EB1A104K B 29.2/37.6
C373 4030011600 S.CER C1608 JB 1E 104K-T T 103.3/16.6
C374 4030017490 S.CER C1608 JB 1A 105K-T T 105.6/19.3
C376 4030016790 S.CER ECJ0EB1C103K B 14.4/34.2
C378 4030016930 S.CER ECJ0EB1A104K B 8.1/25.6
C381 4030017460 S.CER ECJ0EB1E102K B 71/21.8
C383 4030016930 S.CER ECJ0EB1A104K B 80.6/38.8
C384 4030016930 S.CER ECJ0EB1A104K B 76/38.6
C385 4030016930 S.CER ECJ0EB1A104K T 19.3/25
C386 4030017460 S.CER ECJ0EB1E102K T 40.2/41.1
C387 4030017660 S.CER ECJ0EC1H330J T 4.7/8.6
C388 4030017660 S.CER ECJ0EC1H330J T 4.7/21.8
C389 4030016790 S.CER ECJ0EB1C103K B 7.2/11.2
C392 4030017590 S.CER ECJ0EC1H070C B 77.5/29.1
C394 4030017460 S.CER ECJ0EB1E102K T 46.6/17.7
C395 4030016930 S.CER ECJ0EB1A104K T 45.4/16.9
C396 4030017460 S.CER ECJ0EB1E102K T 28/38.1
C397 4030017460 S.CER ECJ0EB1E102K T 30.3/31
C398 4030017460 S.CER ECJ0EB1E102K T 15.6/20.2
C399 4030017420 S.CER ECJ0EC1H470J B 51.9/19.2
C400 4030017420 S.CER ECJ0EC1H470J T 7.5/25.7
C401 4030017420 S.CER ECJ0EC1H470J T 58.8/12.8
C402 4030018860 S.CER ECJ0EB0J105K B 34/5.9
C403 4030018860 S.CER ECJ0EB0J105K T 7.5/24.8
C404 4030017460 S.CER ECJ0EB1E102K T 104.5/33.3
C405 4030017400 S.CER ECJ0EC1H220J B 80.6/39.7
C406 4030017420 S.CER ECJ0EC1H470J T 98.9/11.7
C407 4030017420 S.CER ECJ0EC1H470J T 56.3/8.9
C408 4030017420 S.CER ECJ0EC1H470J B 80/14.4
J1 6510026770 S.CON AXK540147YG T 14.5/36.4
J2 6510026770 S.CON AXK540147YG T 36.5/36.4
J3 6510025190 S.CON IMSA-9639S-20Y905() T 52.6/12.7
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (For F4060 series)
J4 6510023970 S.CON 20P3.5-JMCS-G-B-TF(N) T 109/34.7
S3 2260002840 SWI SKHLLFA010
S4 2260002800 S.SWI SW-167 (SKQTLAE010) T 53.5/44.2
S5 2260002800 S.SWI SW-167 (SKQTLAE010) T 63.4/44.2
S6 2260002800 S.SWI SW-167 (SKQTLAE010) T 106.4/44.2
EP2 6910015370 S.BEA ACZ1005Y-102-T B 53/23.9
EP3 6910015370 S.BEA ACZ1005Y-102-T B 53/22.3
EP4 6910015370 S.BEA ACZ1005Y-102-T B 58.6/23
EP5 6910015370 S.BEA ACZ1005Y-102-T B 71.9/17
EP6 6910015370 S.BEA ACZ1005Y-102-T B 72.3/24.4

Jun. 2009
7
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[FRONT UNIT] (For F4060 series)
IC501 1180002401 S.REG S-812C30AMC-C2K-G B 66.7/35.7
IC505 1110007330 S.IC M62320FP-DF5G B 74/36.8
IC506 1110007330 S.IC M62320FP-DF5G B 56.8/24.5
IC508 1110006770 S.IC TDA8547TS/N B 76.4/8.7
IC509 1110005330 S.IC NJM12904V-TE1-#ZZZB B 80.1/20.5
Q501 1520000460 S.TRA 2SB1132 T100 R B 68.7/24.3
Q502 1590001190 S.TRA XP6501-(TX).AB B 72.9/25
Q505 1590002230 S.TRA UMG2N TR B 80.7/28.4
Q506 1590003231 S.TRA UNR9113G0L B 83.3/41
Q507 1590003291 S.TRA UNR9213G0L B 70.7/8.4
Q508 1590001330 S.TRA DTA114EUA T106 B 71.6/11.2
Q509 1590000980 S.TRA DTB123EK T146 B 71.8/14.3
Q512 1590003291 S.TRA UNR9213G0L B 75/21
Q513 1590003291 S.TRA UNR9213G0L B 73/16.7
Q514 1590003231 S.TRA UNR9113G0L B 56.8/12
Q515 1560001360 S.FET 2SK3019 TL B 81/32.2
Q516 1590003291 S.TRA UNR9213G0L B 80.9/36
D502 1790001241 S.DIO MA2S7280GL B 53.4/16.3
D503 1790001241 S.DIO MA2S7280GL B 54/13.5
D504 1790001251 S.DIO MA2S1110GL B 72.8/30.3
D505 1160000140 S.DIO DAP222 TL B 63.6/21.9
D506 1160000140 S.DIO DAP222 TL B 63.6/26
D508 1160000060 S.DIO DAN202U T106 B 73.8/28.2
R503 7030009140 S.RES ERJ2GEJ 272 X (2.7K) B 73.4/23.2
R504 7030008290 S.RES ERJ2GEJ 183 X (18K) B 75.4/24
R505 7030005120 S.RES ERJ2GEJ 102 X (1K) B 75.4/25.8
R506 7030005120 S.RES ERJ2GEJ 102 X (1K) B 74/14.1
R508 7030005050 S.RES ERJ2GEJ 103 X (10K) B 80.4/14.6
R509 7030005050 S.RES ERJ2GEJ 103 X (10K) B 77.2/15.5
R510 7030005720 S.RES ERJ2GEJ 563 X (56K) B 79.1/14.1
R511 7030005090 S.RES ERJ2GEJ 104 X (100K) B 75.8/14.1
R512 7030005530 S.RES ERJ2GEJ 100 X (10) B 87.6/16.2
R513 7030005050 S.RES ERJ2GEJ 103 X (10K) B 85.2/41.1
R514 7030005060 S.RES ERJ2GEJ 333 X (33K) B 87.5/38.8
R515 7030005080 S.RES ERJ2GEJ 823 X (82K) B 81.8/34
R516 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.4/32.4
R517 7030010040 S.RES ERJ2GEJ-JPW B 52.9/14.7
R518 7030010040 S.RES ERJ2GEJ-JPW B 54.3/11.4
R519 7030005050 S.RES ERJ2GEJ 103 X (10K) B 82.6/28
R520 7030005050 S.RES ERJ2GEJ 103 X (10K) B 80.8/26.6
R521 7030005050 S.RES ERJ2GEJ 103 X (10K) B 72.4/31.5
R522 7030005090 S.RES ERJ2GEJ 104 X (100K) B 53.6/18.8
R523 7030005090 S.RES ERJ2GEJ 104 X (100K) B 54.6/18.8
R524 7030005090 S.RES ERJ2GEJ 104 X (100K) B 55.6/18.8
R525 7030005090 S.RES ERJ2GEJ 104 X (100K) B 56.6/18.8
R526 7030005090 S.RES ERJ2GEJ 104 X (100K) B 65.2/22.1
R527 7030005090 S.RES ERJ2GEJ 104 X (100K) B 63.6/23.5
R528 7030005090 S.RES ERJ2GEJ 104 X (100K) B 63.6/24.4
R529 7030005090 S.RES ERJ2GEJ 104 X (100K) B 65/24.7
R530 7030009280 S.RES ERJ2GEJ 391 X B 69.7/15.8
R531 7030005000 S.RES ERJ2GEJ 471 X (470) B 82.7/33
R532 7030005090 S.RES ERJ2GEJ 104 X (100K) B 54.6/35.6
R533 7030010040 S.RES ERJ2GEJ-JPW B 63.5/27.6
R534 7030010040 S.RES ERJ2GEJ-JPW B 63.5/28.5
R535 7030004970 S.RES ERJ2GEJ 470 X (47) B 69.7/3.4
R536 7030004970 S.RES ERJ2GEJ 470 X (47) B 69.7/5.4
R537 7030005120 S.RES ERJ2GEJ 102 X (1K) B 69.7/4.4
R538 7030005120 S.RES ERJ2GEJ 102 X (1K) B 72/3.1
R539 7030005050 S.RES ERJ2GEJ 103 X (10K) B 69.7/2.4
R540 7030007340 S.RES ERJ2GEJ 153 X (15K) B 79.1/16.8
R541 7030005090 S.RES ERJ2GEJ 104 X (100K) B 80.4/16.4
R542 7030005220 S.RES ERJ2GEJ 223 X (22K) B 82.3/22.7
R543 7030007340 S.RES ERJ2GEJ 153 X (15K) B 76.8/19
R544 7030004980 S.RES ERJ2GEJ 101 X (100) B 81/25.3
R545 7030005050 S.RES ERJ2GEJ 103 X (10K) B 56.4/10.1
R546 7030009280 S.RES ERJ2GEJ 391 X [1] B 69.7/16.8
7030009280 S.RES ERJ2GEJ 391 X [2]
7030009280 S.RES ERJ2GEJ 391 X [3]
7030009280 S.RES ERJ2GEJ 391 X [4]
7030009280 S.RES ERJ2GEJ 391 X [5]
R547 7030009280 S.RES ERJ2GEJ 391 X [1] B 69.7/17.8
7030009280 S.RES ERJ2GEJ 391 X [2]
7030009280 S.RES ERJ2GEJ 391 X [3]
7030009280 S.RES ERJ2GEJ 391 X [4]
7030009280 S.RES ERJ2GEJ 391 X [5]
R548 7030005230 S.RES ERJ2GEJ 334 X (330K) B 71.8/28.3
R552 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.8/24.8
R553 7030005090 S.RES ERJ2GEJ 104 X (100K) [6] B 71/42
7030005090 S.RES ERJ2GEJ 104 X (100K) [7]
7030005090 S.RES ERJ2GEJ 104 X (100K) [8]
7030005090 S.RES ERJ2GEJ 104 X (100K) [9]
7030005090 S.RES ERJ2GEJ 104 X (100K) [10]
R554 7030005090 S.RES ERJ2GEJ 104 X (100K) [1] B 72.6/42
7030005090 S.RES ERJ2GEJ 104 X (100K) [2]
7030005090 S.RES ERJ2GEJ 104 X (100K) [3]
7030005090 S.RES ERJ2GEJ 104 X (100K) [4]
7030005090 S.RES ERJ2GEJ 104 X (100K) [5]
R555 7030005050 S.RES ERJ2GEJ 103 X (10K) B 72/27.1
R557 7030004970 S.RES ERJ2GEJ 470 X (47) B 87.6/35.6
R558 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 75.1/22.8
R559 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 74.9/14.1
R560 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 74.9/15.7
R561 7030005000 S.RES ERJ2GEJ 471 X (470) B 82.7/20.4
R562 7030005000 S.RES ERJ2GEJ 471 X (470) B 83.2/22.7
R563 7030005050 S.RES ERJ2GEJ 103 X (10K) B 77.9/14.1
R564 7030005050 S.RES ERJ2GEJ 103 X (10K) B 77/14.1
R566 7030010040 S.RES ERJ2GEJ-JPW B 77.3/16.8
R567 7030005090 S.RES ERJ2GEJ 104 X (100K) B 80.8/30.6
C501 4550006760 S.TAN TEESVB21A336M8R B 93.4/37.3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[FRONT UNIT] (For F4060 series)
C502 4550006760 S.TAN TEESVB21A336M8R B 96.7/37.3
C506 4550006250 S.TAN TEESVA 1A 106M8R B 65.8/29.5
C507 4550006250 S.TAN TEESVA 1A 106M8R B 67.9/29.5
C508 4550006250 S.TAN TEESVA 1A 106M8R B 70/29.5
C509 4030017460 S.CER ECJ0EB1E102K B 72.4/8.8
C510 4030016930 S.CER ECJ0EB1A104K B 72.9/21.4
C511 4030017460 S.CER ECJ0EB1E102K B 75.4/24.9
C514 4550006250 S.TAN TEESVA 1A 106M8R B 77.9/3.8
C515 4030016930 S.CER ECJ0EB1A104K B 80.4/15.5
C517 4030016930 S.CER ECJ0EB1A104K B 78.8/15.5
C518 4030017460 S.CER ECJ0EB1E102K B 69.1/21.3
C519 4030016950 S.CER ECJ0EB1A473K B 87.6/14.6
C520 4030017460 S.CER ECJ0EB1E102K B 87/41.1
C522 4030016930 S.CER ECJ0EB1A104K B 84.7/39.9
C523 4030016930 S.CER ECJ0EB1A104K B 80/34
C524 4030017460 S.CER ECJ0EB1E102K B 54.7/10.1
C525 4030016930 S.CER ECJ0EB1A104K B 80.9/34
C526 4030017460 S.CER ECJ0EB1E102K B 74/31.5
C527 4030017460 S.CER ECJ0EB1E102K B 86.1/41.1
C528 4030016930 S.CER ECJ0EB1A104K B 80/40.6
C529 4030016930 S.CER ECJ0EB1A104K B 58/29.5
C530 4030017460 S.CER ECJ0EB1E102K B 80/41.6
C531 4030017460 S.CER ECJ0EB1E102K B 56.4/29.5
C532 4550007090 S.TAN TEESVA 1A 226M8R B 65.3/40.2
C534 4030016930 S.CER ECJ0EB1A104K B 64.3/35.2
C535 4030016790 S.CER ECJ0EB1C103K B 64.3/36.8
C536 4550005980 S.TAN TEESVA 1A 475M8R B 67.4/40.2
C537 4030016930 S.CER ECJ0EB1A104K B 55/37.7
C538 4550000460 S.TAN TEESVA 1C 105M8R B 54.6/31.9
C539 4030016930 S.CER ECJ0EB1A104K B 81.9/25.3
C540 4030018140 S.CER ECJ0EB1H391K B 80.4/17.3
C541 4030016930 S.CER ECJ0EB1A104K B 71.8/29.2
C542 4030017440 S.CER ECJ0EC1H221J B 79.8/23.8
C543 4550006250 S.TAN TEESVA 1A 106M8R B 71.3/19.4
C544 4030017460 S.CER ECJ0EB1E102K B 77.7/19
C559 4030016790 S.CER ECJ0EB1C103K T 87.8/27.1
C560 4030017770 S.CER ECJ0EB1E332K B 78.2/16.8
C561 4030016930 S.CER ECJ0EB1A104K B 82.4/31.1
C563 4030017420 S.CER ECJ0EC1H470J B 64.3/32.2
J501 6510025242 S.CON IMSA-9631S-20Y930 B 63.5/11.4
J502 6510025252 S.CON IMSA-9631S-08Y930 B 58.8/35.5
J503 6510025260 S.CON IMSA-9631S-10Y912 B 89.8/24.4
DS501 5040002961 S.LED SML-A12MT T86J T 82.9/33.6
DS502 5040002961 S.LED SML-A12MT T86J T 82.9/23.1
DS503 5040002961 S.LED SML-A12MT T86J T 82.9/12.6
DS504 5040002420 S.LED SML-310MT T86 T 38.1/12.9
DS505 5040002420 S.LED SML-310MT T86 T 38.1/30.9
DS506 5040002420 S.LED SML-310MT T86 [1] T 29.2/14.9
5040002420 S.LED SML-310MT T86 [2]
5040002420 S.LED SML-310MT T86 [3]
5040002420 S.LED SML-310MT T86 [4]
5040002420 S.LED SML-310MT T86 [5]
DS507 5040002420 S.LED SML-310MT T86 [1] T 29.2/28.9
5040002420 S.LED SML-310MT T86 [2]
5040002420 S.LED SML-310MT T86 [3]
5040002420 S.LED SML-310MT T86 [4]
5040002420 S.LED SML-310MT T86 [5]
DS508 5040002420 S.LED SML-310MT T86 [1] T 11.7/14.9
5040002420 S.LED SML-310MT T86 [2]
5040002420 S.LED SML-310MT T86 [3]
5040002420 S.LED SML-310MT T86 [4]
5040002420 S.LED SML-310MT T86 [5]
DS509 5040002420 S.LED SML-310MT T86 [1] T 11.7/28.9
5040002420 S.LED SML-310MT T86 [2]
5040002420 S.LED SML-310MT T86 [3]
5040002420 S.LED SML-310MT T86 [4]
5040002420 S.LED SML-310MT T86 [5]
DS510 5030003140 LCD M7-0626TIZ
MC501 7700002760 MIC EM6027P-46C33-G-01 <HOR>
W501 9028930010 WIR 23/04/020/W02/W02 <TJM>
W502 9014506004 WIR 23/00/025/W02/W02 <TJM>
MP505 6910014760 S.PLA OG-503040 B 93.7/32.4

Jun. 2009
8
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
IC601 1110002751 S.IC TA75S01F(TE85R,F) T 24.4/23.1
Q601 1560001232 S.FET RD07MVS2-T112 B 8/6.5
Q602 1560001241 S.FET RD01MUS1-T113 B 3.5/13.2
Q603 1530000371 S.TRA 2SC3356-T1B S (R25) B 7.5/17.5
Q606 1590003291 S.TRA UNR9213G0L T 21/20.4
D601 1750000581 S.DIO 1SV307(TPH3,F) T 20.3/10
D602 1750000581 S.DIO 1SV307(TPH3,F) T 22.1/10
D603 1750000581 S.DIO 1SV307(TPH3,F) B 19.2/14
D604 1790001670 S.DIO RB706F-40T106 T 17.4/6.1
D606 1790001251 S.DIO MA2S1110GL T 29.8/21.7
D607 1790001670 S.DIO RB706F-40T106 B 28.1/16.2
D608 1730002431 S.ZEN MAZ8150GML T 16/20.5
FI601 2040001440 S.LC NFE31PT152Z1E9L
(NFM60R20T152) B 14.7/17.1
L601 6200012490 S.COI 0.30-0.9-6TR 13.6N <COMO> B 30.7/9.4
L602 6200012490 S.COI 0.30-0.9-6TR 13.6N <COMO> B 30/12.1
L603 6200013010 S.COI 0.30-0.9-5TL 10.3N <COMO> B 26.2/12.7
L604 6200012480 S.COI 0.30-0.9-7TL 16N <COMO> B 21.1/13.9
L605 6200002851 S.COI NLV25T-R82J T 24.3/11
L606 6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [3] B 19.8/5.5
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [4]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [5]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [8]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [9]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [10]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [11]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [12]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [13]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [14]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [15]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [16]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [17]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [18]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [19]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [20]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [21]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [22]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [23]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [24]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [25]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [26]
6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> [27]
L607 6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> B 16.9/5.6
L608 6200012610 S.COI 0.40-0.9-2TL 2.8N <COMO> B 14.8/5.5
L609 6200012980 S.COI 0.40-1.4-5TR 18.3N <COMO> B 9.4/11.7
L611 6200007981 S.COI ELJRF 4N7DFB (4.7) B 8.7/22.5
L612 6200005681 S.COI ELJRE 15NGFA [1] B 5.3/18.5
6200005681 S.COI ELJRE 15NGFA [2]
6200005681 S.COI ELJRE 15NGFA [3]
6200005661 S.COI ELJRE 10NGFA [4]
6200005661 S.COI ELJRE 10NGFA [5]
6200005681 S.COI ELJRE 15NGFA [6]
6200005681 S.COI ELJRE 15NGFA [7]
6200005681 S.COI ELJRE 15NGFA [8]
6200005661 S.COI ELJRE 10NGFA [9]
6200005661 S.COI ELJRE 10NGFA [10]
6200005681 S.COI ELJRE 15NGFA [11]
6200005681 S.COI ELJRE 15NGFA [12]
6200005681 S.COI ELJRE 15NGFA [13]
6200005661 S.COI ELJRE 10NGFA [14]
6200005661 S.COI ELJRE 10NGFA [15]
6200005681 S.COI ELJRE 15NGFA [16]
6200005681 S.COI ELJRE 15NGFA [17]
6200005681 S.COI ELJRE 15NGFA [18]
6200005661 S.COI ELJRE 10NGFA [19]
6200005661 S.COI ELJRE 10NGFA [20]
6200005681 S.COI ELJRE 15NGFA [21]
6200005681 S.COI ELJRE 15NGFA [22]
6200005681 S.COI ELJRE 15NGFA [23]
6200005661 S.COI ELJRE 10NGFA [24]
6200005681 S.COI ELJRE 15NGFA [25]
6200005681 S.COI ELJRE 15NGFA [26]
6200005661 S.COI ELJRE 10NGFA [27]
L613 6200006190 S.COI BLM21PG300SN1D
(BLM21P300S) T 13.1/20.2
L614 6200008001 S.COI ELJRF 3N3DFB (3.3) [1] B 4/8.2
6200008001 S.COI ELJRF 3N3DFB (3.3) [2]
6200008001 S.COI ELJRF 3N3DFB (3.3) [6]
6200008001 S.COI ELJRF 3N3DFB (3.3) [7]
L615 6200006190 S.COI BLM21PG300SN1D
(BLM21P300S) B 21.1/24.5
R601 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 29/8.1
R603 7030009140 S.RES ERJ2GEJ 272 X (2.7K) B 18.4/4.2
R604 7030005120 S.RES ERJ2GEJ 102 X (1K) T 17.7/9
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
R605 7030005050 S.RES ERJ2GEJ 103 X (10K) [1] T 17.7/10
7030005050 S.RES ERJ2GEJ 103 X (10K) [2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [4]
7030005050 S.RES ERJ2GEJ 103 X (10K) [5]
7030005050 S.RES ERJ2GEJ 103 X (10K) [6]
7030005050 S.RES ERJ2GEJ 103 X (10K) [7]
7030005050 S.RES ERJ2GEJ 103 X (10K) [8]
7030005050 S.RES ERJ2GEJ 103 X (10K) [9]
7030005050 S.RES ERJ2GEJ 103 X (10K) [10]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [11]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [12]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [13]
7030005050 S.RES ERJ2GEJ 103 X (10K) [14]
7030005050 S.RES ERJ2GEJ 103 X (10K) [15]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [16]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [17]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [18]
7030005050 S.RES ERJ2GEJ 103 X (10K) [19]
7030005050 S.RES ERJ2GEJ 103 X (10K) [20]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [21]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [22]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [23]
7030005050 S.RES ERJ2GEJ 103 X (10K) [24]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [25]
7030005040 S.RES ERJ2GEJ 472 X (4.7K) [26]
7030005050 S.RES ERJ2GEJ 103 X (10K) [27]
R606 7030005050 S.RES ERJ2GEJ 103 X (10K) T 27.8/20.4
R607 7030005100 S.RES ERJ2GEJ 154 X (150K) [1] T 19/20.4
7030005100 S.RES ERJ2GEJ 154 X (150K) [2]
7030005100 S.RES ERJ2GEJ 154 X (150K) [3]
7030005070 S.RES ERJ2GEJ 683 X (68K) [4]
7030005070 S.RES ERJ2GEJ 683 X (68K) [5]
7030005100 S.RES ERJ2GEJ 154 X (150K) [6]
7030005100 S.RES ERJ2GEJ 154 X (150K) [7]
7030005100 S.RES ERJ2GEJ 154 X (150K) [8]
7030005070 S.RES ERJ2GEJ 683 X (68K) [9]
7030005070 S.RES ERJ2GEJ 683 X (68K) [10]
7030005100 S.RES ERJ2GEJ 154 X (150K) [11]
7030005100 S.RES ERJ2GEJ 154 X (150K) [12]
7030005100 S.RES ERJ2GEJ 154 X (150K) [13]
7030005070 S.RES ERJ2GEJ 683 X (68K) [14]
7030005070 S.RES ERJ2GEJ 683 X (68K) [15]
7030005100 S.RES ERJ2GEJ 154 X (150K) [16]
7030005100 S.RES ERJ2GEJ 154 X (150K) [17]
7030005100 S.RES ERJ2GEJ 154 X (150K) [18]
7030005070 S.RES ERJ2GEJ 683 X (68K) [19]
7030005070 S.RES ERJ2GEJ 683 X (68K) [20]
7030005100 S.RES ERJ2GEJ 154 X (150K) [21]
7030005100 S.RES ERJ2GEJ 154 X (150K) [22]
7030005100 S.RES ERJ2GEJ 154 X (150K) [23]
7030005070 S.RES ERJ2GEJ 683 X (68K) [24]
7030005100 S.RES ERJ2GEJ 154 X (150K) [25]
7030005100 S.RES ERJ2GEJ 154 X (150K) [26]
7030005070 S.RES ERJ2GEJ 683 X (68K) [27]
R608 7030005110 S.RES ERJ2GEJ 224 X (220K) T 26.6/22
R609 7030005530 S.RES ERJ2GEJ 100 X (10) B 24.6/24.6
R610 7030007290 S.RES ERJ2GEJ 222 X (2.2K) [1] T 28.6/22
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [2]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [3]
7030005120 S.RES ERJ2GEJ 102 X (1K) [4]
7030005120 S.RES ERJ2GEJ 102 X (1K) [5]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [6]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [7]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [8]
7030005120 S.RES ERJ2GEJ 102 X (1K) [9]
7030005120 S.RES ERJ2GEJ 102 X (1K) [10]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [11]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [12]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [13]
7030005120 S.RES ERJ2GEJ 102 X (1K) [14]
7030005120 S.RES ERJ2GEJ 102 X (1K) [15]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [16]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [17]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [18]
7030005120 S.RES ERJ2GEJ 102 X (1K) [19]
7030005120 S.RES ERJ2GEJ 102 X (1K) [20]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [21]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [22]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [23]
7030005120 S.RES ERJ2GEJ 102 X (1K) [24]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [25]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [26]
7030005120 S.RES ERJ2GEJ 102 X (1K) [27]
R611 7030004990 S.RES ERJ2GEJ 221 X (220) T 29.4/20
R613 7030005720 S.RES ERJ2GEJ 563 X (56K) B 4.2/7
R614 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 2.4/8.2
R616 7030005720 S.RES ERJ2GEJ 563 X (56K) B 2.5/17.2
R617 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 3.7/17.4
R618 7030009160 S.RES ERJ2GEJ 181 X (180) B 4.2/16.2
R619 7030003860 S.RES ERJ3GE JPW V B 6.7/13.5

Jun. 2009
9
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
R621 7030007350 S.RES ERJ2GEJ 393 X (39K) [1] B 6.5/20.7
7030007350 S.RES ERJ2GEJ 393 X (39K) [2]
7030007350 S.RES ERJ2GEJ 393 X (39K) [3]
7030005600 S.RES ERJ2GEJ 273 X (27K) [4]
7030005600 S.RES ERJ2GEJ 273 X (27K) [5]
7030007350 S.RES ERJ2GEJ 393 X (39K) [6]
7030007350 S.RES ERJ2GEJ 393 X (39K) [7]
7030007350 S.RES ERJ2GEJ 393 X (39K) [8]
7030005600 S.RES ERJ2GEJ 273 X (27K) [9]
7030005600 S.RES ERJ2GEJ 273 X (27K) [10]
7030007350 S.RES ERJ2GEJ 393 X (39K) [11]
7030007350 S.RES ERJ2GEJ 393 X (39K) [12]
7030007350 S.RES ERJ2GEJ 393 X (39K) [13]
7030005600 S.RES ERJ2GEJ 273 X (27K) [14]
7030005600 S.RES ERJ2GEJ 273 X (27K) [15]
7030007350 S.RES ERJ2GEJ 393 X (39K) [16]
7030007350 S.RES ERJ2GEJ 393 X (39K) [17]
7030007350 S.RES ERJ2GEJ 393 X (39K) [18]
7030005600 S.RES ERJ2GEJ 273 X (27K) [19]
7030005600 S.RES ERJ2GEJ 273 X (27K) [20]
7030007350 S.RES ERJ2GEJ 393 X (39K) [21]
7030007350 S.RES ERJ2GEJ 393 X (39K) [22]
7030007350 S.RES ERJ2GEJ 393 X (39K) [23]
7030005600 S.RES ERJ2GEJ 273 X (27K) [24]
7030007350 S.RES ERJ2GEJ 393 X (39K) [25]
7030007350 S.RES ERJ2GEJ 393 X (39K) [26]
7030005600 S.RES ERJ2GEJ 273 X (27K) [27]
R624 7030005120 S.RES ERJ2GEJ 102 X (1K) T 8.2/16.7
R625 7520000240 S.POS PRF18C471QB1RB [1] T 6.4/12.5
7520000240 S.POS PRF18C471QB1RB [2]
7520000240 S.POS PRF18C471QB1RB [3]
7520000240 S.POS PRF18C471QB1RB [4]
7520000240 S.POS PRF18C471QB1RB [5]
7520000240 S.POS PRF18C471QB1RB [6]
7520000240 S.POS PRF18C471QB1RB [7]
7520000240 S.POS PRF18C471QB1RB [8]
7520000240 S.POS PRF18C471QB1RB [9]
7520000240 S.POS PRF18C471QB1RB [10]
7520000240 S.POS PRF18C471QB1RB [11]
7520000240 S.POS PRF18C471QB1RB [12]
7520000240 S.POS PRF18C471QB1RB [13]
7520000240 S.POS PRF18C471QB1RB [14]
7520000240 S.POS PRF18C471QB1RB [15]
7520000240 S.POS PRF18C471QB1RB [16]
7520000240 S.POS PRF18C471QB1RB [17]
7520000240 S.POS PRF18C471QB1RB [18]
7520000240 S.POS PRF18C471QB1RB [19]
7520000240 S.POS PRF18C471QB1RB [20]
7520000240 S.POS PRF18C471QB1RB [21]
7520000241 S.POS PRF18C471QB5RB [22]
7520000240 S.POS PRF18C471QB1RB [23]
7520000240 S.POS PRF18C471QB1RB [24]
7520000240 S.POS PRF18C471QB1RB [25]
7520000241 S.POS PRF18C471QB5RB [26]
7520000240 S.POS PRF18C471QB1RB [27]
R626 7030008290 S.RES ERJ2GEJ 183 X (18K) T 7.7/20.2
R628 7030003370 S.RES ERJ3GEYJ 271 V (270) T 26.7/17
R629 7030003370 S.RES ERJ3GEYJ 271 V (270) T 25.4/17
R631 7030005100 S.RES ERJ2GEJ 154 X (150K) T 21.7/18.6
R632 7030009140 S.RES ERJ2GEJ 272 X (2.7K) [1] B 28.1/13.9
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [2]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [3]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [4]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [5]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [6]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [7]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [8]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [9]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [10]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [11]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [12]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [13]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [14]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [15]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [16]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [17]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [18]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [19]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [20]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [21]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [22]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [23]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [24]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [25]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [26]
7030008410 S.RES ERJ2GEJ 392 X (3.9K) [27]
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
R633 7030009140 S.RES ERJ2GEJ 272 X (2.7K) [1] B 28.3/19
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [2]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [3]
7030005120 S.RES ERJ2GEJ 102 X (1K) [4]
7030005120 S.RES ERJ2GEJ 102 X (1K) [5]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [6]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [7]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [8]
7030005120 S.RES ERJ2GEJ 102 X (1K) [9]
7030005120 S.RES ERJ2GEJ 102 X (1K) [10]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [11]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [12]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [13]
7030005120 S.RES ERJ2GEJ 102 X (1K) [14]
7030005120 S.RES ERJ2GEJ 102 X (1K) [15]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [16]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [17]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [18]
7030005120 S.RES ERJ2GEJ 102 X (1K) [19]
7030005120 S.RES ERJ2GEJ 102 X (1K) [20]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [21]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [22]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [23]
7030005120 S.RES ERJ2GEJ 102 X (1K) [24]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [25]
7030009140 S.RES ERJ2GEJ 272 X (2.7K) [26]
7030005120 S.RES ERJ2GEJ 102 X (1K) [27]
R634 7030004970 S.RES ERJ2GEJ 470 X (47) [3]
7030004970 S.RES ERJ2GEJ 470 X (47) [4]
7030004970 S.RES ERJ2GEJ 470 X (47) [5]
7030004970 S.RES ERJ2GEJ 470 X (47) [8]
7030004970 S.RES ERJ2GEJ 470 X (47) [9]
7030004970 S.RES ERJ2GEJ 470 X (47) [10]
7030004970 S.RES ERJ2GEJ 470 X (47) [11]
7030004970 S.RES ERJ2GEJ 470 X (47) [12]
7030004970 S.RES ERJ2GEJ 470 X (47) [13]
7030004970 S.RES ERJ2GEJ 470 X (47) [14]
7030004970 S.RES ERJ2GEJ 470 X (47) [15]
7030004970 S.RES ERJ2GEJ 470 X (47) [16]
7030004970 S.RES ERJ2GEJ 470 X (47) [17]
7030004970 S.RES ERJ2GEJ 470 X (47) [18]
7030004970 S.RES ERJ2GEJ 470 X (47) [19]
7030004970 S.RES ERJ2GEJ 470 X (47) [20]
7030004970 S.RES ERJ2GEJ 470 X (47) [21]
7030004970 S.RES ERJ2GEJ 470 X (47) [22]
7030004970 S.RES ERJ2GEJ 470 X (47) [23]
7030004970 S.RES ERJ2GEJ 470 X (47) [24]
7030004970 S.RES ERJ2GEJ 470 X (47) [25]
7030004970 S.RES ERJ2GEJ 470 X (47) [26]
7030004970 S.RES ERJ2GEJ 470 X (47) [27]
R635 7030010040 S.RES ERJ2GEJ-JPW [1] T 20.5/18.6
7030010040 S.RES ERJ2GEJ-JPW [2]
7030010040 S.RES ERJ2GEJ-JPW [3]
7030010040 S.RES ERJ2GEJ-JPW [4]
7030010040 S.RES ERJ2GEJ-JPW [5]
7030010040 S.RES ERJ2GEJ-JPW [6]
7030010040 S.RES ERJ2GEJ-JPW [7]
7030010040 S.RES ERJ2GEJ-JPW [8]
7030010040 S.RES ERJ2GEJ-JPW [9]
7030010040 S.RES ERJ2GEJ-JPW [10]
7030005090 S.RES ERJ2GEJ 104 X (100K) [11]
7030005090 S.RES ERJ2GEJ 104 X (100K) [12]
7030005090 S.RES ERJ2GEJ 104 X (100K) [13]
7030005090 S.RES ERJ2GEJ 104 X (100K) [14]
7030005090 S.RES ERJ2GEJ 104 X (100K) [15]
7030005090 S.RES ERJ2GEJ 104 X (100K) [16]
7030005090 S.RES ERJ2GEJ 104 X (100K) [17]
7030005090 S.RES ERJ2GEJ 104 X (100K) [18]
7030005090 S.RES ERJ2GEJ 104 X (100K) [19]
7030005090 S.RES ERJ2GEJ 104 X (100K) [20]
7030005090 S.RES ERJ2GEJ 104 X (100K) [21]
7030005090 S.RES ERJ2GEJ 104 X (100K) [22]
7030005090 S.RES ERJ2GEJ 104 X (100K) [23]
7030005090 S.RES ERJ2GEJ 104 X (100K) [24]
7030005090 S.RES ERJ2GEJ 104 X (100K) [25]
7030005090 S.RES ERJ2GEJ 104 X (100K) [26]
7030005090 S.RES ERJ2GEJ 104 X (100K) [27]

Jun. 2009
10
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
C601 4030009350 S.CER C1608 CH 1H 3R5B-T [1] B 30.6/6.4
4030009350 S.CER C1608 CH 1H 3R5B-T [2]
4030009530 S.CER C1608 CH 1H 030B-T [3]
4030009500 S.CER C1608 CH 1H 0R5B-T [4]
4030009500 S.CER C1608 CH 1H 0R5B-T [5]
4030009350 S.CER C1608 CH 1H 3R5B-T [6]
4030009350 S.CER C1608 CH 1H 3R5B-T [7]
4030009530 S.CER C1608 CH 1H 030B-T [8]
4030009500 S.CER C1608 CH 1H 0R5B-T [9]
4030009500 S.CER C1608 CH 1H 0R5B-T [10]
4030009530 S.CER C1608 CH 1H 030B-T [11]
4030009530 S.CER C1608 CH 1H 030B-T [12]
4030009530 S.CER C1608 CH 1H 030B-T [13]
4030009500 S.CER C1608 CH 1H 0R5B-T [14]
4030009500 S.CER C1608 CH 1H 0R5B-T [15]
4030009530 S.CER C1608 CH 1H 030B-T [16]
4030009530 S.CER C1608 CH 1H 030B-T [17]
4030009530 S.CER C1608 CH 1H 030B-T [18]
4030009500 S.CER C1608 CH 1H 0R5B-T [19]
4030009500 S.CER C1608 CH 1H 0R5B-T [20]
4030009530 S.CER C1608 CH 1H 030B-T [21]
4030009530 S.CER C1608 CH 1H 030B-T [22]
4030009530 S.CER C1608 CH 1H 030B-T [23]
4030009500 S.CER C1608 CH 1H 0R5B-T [24]
4030009530 S.CER C1608 CH 1H 030B-T [25]
4030009530 S.CER C1608 CH 1H 030B-T [26]
4030009500 S.CER C1608 CH 1H 0R5B-T [27]
C602 4030007000 S.CER C1608 CH 1H 090D-T [1] B 28.3/9.2
4030007000 S.CER C1608 CH 1H 090D-T [2]
4030007000 S.CER C1608 CH 1H 090D-T [3]
4030006990 S.CER C1608 CH 1H 080D-T [4]
4030006990 S.CER C1608 CH 1H 080D-T [5]
4030007000 S.CER C1608 CH 1H 090D-T [6]
4030007000 S.CER C1608 CH 1H 090D-T [7]
4030007000 S.CER C1608 CH 1H 090D-T [8]
4030006990 S.CER C1608 CH 1H 080D-T [9]
4030006990 S.CER C1608 CH 1H 080D-T [10]
4030007000 S.CER C1608 CH 1H 090D-T [11]
4030007000 S.CER C1608 CH 1H 090D-T [12]
4030007000 S.CER C1608 CH 1H 090D-T [13]
4030006990 S.CER C1608 CH 1H 080D-T [14]
4030006990 S.CER C1608 CH 1H 080D-T [15]
4030007000 S.CER C1608 CH 1H 090D-T [16]
4030007000 S.CER C1608 CH 1H 090D-T [17]
4030007000 S.CER C1608 CH 1H 090D-T [18]
4030006990 S.CER C1608 CH 1H 080D-T [19]
4030006990 S.CER C1608 CH 1H 080D-T [20]
4030007000 S.CER C1608 CH 1H 090D-T [21]
4030007000 S.CER C1608 CH 1H 090D-T [22]
4030007000 S.CER C1608 CH 1H 090D-T [23]
4030006990 S.CER C1608 CH 1H 080D-T [24]
4030007000 S.CER C1608 CH 1H 090D-T [25]
4030007000 S.CER C1608 CH 1H 090D-T [26]
4030006990 S.CER C1608 CH 1H 080D-T [27]
C603 4030009520 S.CER C1608 CH 1H 020B-T B 28.3/11.8
C604 4030011770 S.CER C1608 CH 1H 060B-T [1] B 26.9/10.4
4030011770 S.CER C1608 CH 1H 060B-T [2]
4030011770 S.CER C1608 CH 1H 060B-T [3]
4030009920 S.CER C1608 CH 1H 050B-T [4]
4030009920 S.CER C1608 CH 1H 050B-T [5]
4030011770 S.CER C1608 CH 1H 060B-T [6]
4030011770 S.CER C1608 CH 1H 060B-T [7]
4030011770 S.CER C1608 CH 1H 060B-T [8]
4030009920 S.CER C1608 CH 1H 050B-T [9]
4030009920 S.CER C1608 CH 1H 050B-T [10]
4030011770 S.CER C1608 CH 1H 060B-T [11]
4030011770 S.CER C1608 CH 1H 060B-T [12]
4030011770 S.CER C1608 CH 1H 060B-T [13]
4030009920 S.CER C1608 CH 1H 050B-T [14]
4030009920 S.CER C1608 CH 1H 050B-T [15]
4030011770 S.CER C1608 CH 1H 060B-T [16]
4030011770 S.CER C1608 CH 1H 060B-T [17]
4030011770 S.CER C1608 CH 1H 060B-T [18]
4030009920 S.CER C1608 CH 1H 050B-T [19]
4030009920 S.CER C1608 CH 1H 050B-T [20]
4030011770 S.CER C1608 CH 1H 060B-T [21]
4030011770 S.CER C1608 CH 1H 060B-T [22]
4030011770 S.CER C1608 CH 1H 060B-T [23]
4030009920 S.CER C1608 CH 1H 050B-T [24]
4030011770 S.CER C1608 CH 1H 060B-T [25]
4030011770 S.CER C1608 CH 1H 060B-T [26]
4030009920 S.CER C1608 CH 1H 050B-T [27]
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
C605 4030009520 S.CER C1608 CH 1H 020B-T [1] B 25/10.9
4030009520 S.CER C1608 CH 1H 020B-T [2]
4030009520 S.CER C1608 CH 1H 020B-T [3]
4030009540 S.CER C1608 CH 1H 1R5B-T [4]
4030009540 S.CER C1608 CH 1H 1R5B-T [5]
4030009520 S.CER C1608 CH 1H 020B-T [6]
4030009520 S.CER C1608 CH 1H 020B-T [7]
4030009520 S.CER C1608 CH 1H 020B-T [8]
4030009540 S.CER C1608 CH 1H 1R5B-T [9]
4030009540 S.CER C1608 CH 1H 1R5B-T [10]
4030009520 S.CER C1608 CH 1H 020B-T [11]
4030009520 S.CER C1608 CH 1H 020B-T [12]
4030009520 S.CER C1608 CH 1H 020B-T [13]
4030009540 S.CER C1608 CH 1H 1R5B-T [14]
4030009540 S.CER C1608 CH 1H 1R5B-T [15]
4030009520 S.CER C1608 CH 1H 020B-T [16]
4030009520 S.CER C1608 CH 1H 020B-T [17]
4030009520 S.CER C1608 CH 1H 020B-T [18]
4030009540 S.CER C1608 CH 1H 1R5B-T [19]
4030009540 S.CER C1608 CH 1H 1R5B-T [20]
4030009520 S.CER C1608 CH 1H 020B-T [21]
4030009520 S.CER C1608 CH 1H 020B-T [22]
4030009520 S.CER C1608 CH 1H 020B-T [23]
4030009540 S.CER C1608 CH 1H 1R5B-T [24]
4030009520 S.CER C1608 CH 1H 020B-T [25]
4030009520 S.CER C1608 CH 1H 020B-T [26]
4030009540 S.CER C1608 CH 1H 1R5B-T [27]
C606 4030011770 S.CER C1608 CH 1H 060B-T B 23.1/10.4
C607 4030006860 S.CER C1608 JB 1H 102K-T B 23.4/12.3
C610 4030009920 S.CER C1608 CH 1H 050B-T [1] B 20.9/10.7
4030009920 S.CER C1608 CH 1H 050B-T [2]
4030009920 S.CER C1608 CH 1H 050B-T [3]
4030009910 S.CER C1608 CH 1H 040B-T [4]
4030009910 S.CER C1608 CH 1H 040B-T [5]
4030009920 S.CER C1608 CH 1H 050B-T [6]
4030009920 S.CER C1608 CH 1H 050B-T [7]
4030009920 S.CER C1608 CH 1H 050B-T [8]
4030009910 S.CER C1608 CH 1H 040B-T [9]
4030009910 S.CER C1608 CH 1H 040B-T [10]
4030009920 S.CER C1608 CH 1H 050B-T [11]
4030009920 S.CER C1608 CH 1H 050B-T [12]
4030009920 S.CER C1608 CH 1H 050B-T [13]
4030009910 S.CER C1608 CH 1H 040B-T [14]
4030009910 S.CER C1608 CH 1H 040B-T [15]
4030009920 S.CER C1608 CH 1H 050B-T [16]
4030009920 S.CER C1608 CH 1H 050B-T [17]
4030009920 S.CER C1608 CH 1H 050B-T [18]
4030009910 S.CER C1608 CH 1H 040B-T [19]
4030009910 S.CER C1608 CH 1H 040B-T [20]
4030009920 S.CER C1608 CH 1H 050B-T [21]
4030009920 S.CER C1608 CH 1H 050B-T [22]
4030009920 S.CER C1608 CH 1H 050B-T [23]
4030009910 S.CER C1608 CH 1H 040B-T [24]
4030009920 S.CER C1608 CH 1H 050B-T [25]
4030009920 S.CER C1608 CH 1H 050B-T [26]
4030009910 S.CER C1608 CH 1H 040B-T [27]
C611 4030017620 S.CER ECJ0EC1H100C [1] B 21.1/16.1
4030017620 S.CER ECJ0EC1H100C [2]
4030017620 S.CER ECJ0EC1H100C [3]
4030017580 S.CER ECJ0EC1H060C [4]
4030017580 S.CER ECJ0EC1H060C [5]
4030017620 S.CER ECJ0EC1H100C [6]
4030017620 S.CER ECJ0EC1H100C [7]
4030017620 S.CER ECJ0EC1H100C [8]
4030017580 S.CER ECJ0EC1H060C [9]
4030017580 S.CER ECJ0EC1H060C [10]
4030017620 S.CER ECJ0EC1H100C [11]
4030017620 S.CER ECJ0EC1H100C [12]
4030017620 S.CER ECJ0EC1H100C [13]
4030017580 S.CER ECJ0EC1H060C [14]
4030017580 S.CER ECJ0EC1H060C [15]
4030017620 S.CER ECJ0EC1H100C [16]
4030017620 S.CER ECJ0EC1H100C [17]
4030017620 S.CER ECJ0EC1H100C [18]
4030017580 S.CER ECJ0EC1H060C [19]
4030017580 S.CER ECJ0EC1H060C [20]
4030017620 S.CER ECJ0EC1H100C [21]
4030017620 S.CER ECJ0EC1H100C [22]
4030017620 S.CER ECJ0EC1H100C [23]
4030017580 S.CER ECJ0EC1H060C [24]
4030017620 S.CER ECJ0EC1H100C [25]
4030017620 S.CER ECJ0EC1H100C [26]
4030017580 S.CER ECJ0EC1H060C [27]
C612 4030006860 S.CER C1608 JB 1H 102K-T T 20.3/7
C613 4030017460 S.CER ECJ0EB1E102K T 25.7/13.2
C614 4030017460 S.CER ECJ0EB1E102K T 25.3/19.2
C616 4030006860 S.CER C1608 JB 1H 102K-T [1] B 20.2/7.3
4030006860 S.CER C1608 JB 1H 102K-T [2]
4030011770 S.CER C1608 CH 1H 060B-T [3]
4030006860 S.CER C1608 JB 1H 102K-T [6]
4030006860 S.CER C1608 JB 1H 102K-T [7]
4030011770 S.CER C1608 CH 1H 060B-T [8]
4030011770 S.CER C1608 CH 1H 060B-T [11]
4030011770 S.CER C1608 CH 1H 060B-T [12]
4030011770 S.CER C1608 CH 1H 060B-T [13]
4030011770 S.CER C1608 CH 1H 060B-T [16]
4030011770 S.CER C1608 CH 1H 060B-T [17]
4030011770 S.CER C1608 CH 1H 060B-T [18]
4030011770 S.CER C1608 CH 1H 060B-T [21]
4030011770 S.CER C1608 CH 1H 060B-T [22]
4030011770 S.CER C1608 CH 1H 060B-T [23]
4030011770 S.CER C1608 CH 1H 060B-T [25]
4030011770 S.CER C1608 CH 1H 060B-T [26]
C617 4030017460 S.CER ECJ0EB1E102K T 18.4/4.2
C618 4030017460 S.CER ECJ0EB1E102K T 17.8/8

Jun. 2009
11
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
C620 4030009910 S.CER C1608 CH 1H 040B-T [1] B 18.3/8
4030009910 S.CER C1608 CH 1H 040B-T [2]
4030009910 S.CER C1608 CH 1H 040B-T [3]
4030009520 S.CER C1608 CH 1H 020B-T [4]
4030009520 S.CER C1608 CH 1H 020B-T [5]
4030009910 S.CER C1608 CH 1H 040B-T [6]
4030009910 S.CER C1608 CH 1H 040B-T [7]
4030009910 S.CER C1608 CH 1H 040B-T [8]
4030009520 S.CER C1608 CH 1H 020B-T [9]
4030009520 S.CER C1608 CH 1H 020B-T [10]
4030009910 S.CER C1608 CH 1H 040B-T [11]
4030009910 S.CER C1608 CH 1H 040B-T [12]
4030009910 S.CER C1608 CH 1H 040B-T [13]
4030009520 S.CER C1608 CH 1H 020B-T [14]
4030009520 S.CER C1608 CH 1H 020B-T [15]
4030009910 S.CER C1608 CH 1H 040B-T [16]
4030009910 S.CER C1608 CH 1H 040B-T [17]
4030009910 S.CER C1608 CH 1H 040B-T [18]
4030009520 S.CER C1608 CH 1H 020B-T [19]
4030009520 S.CER C1608 CH 1H 020B-T [20]
4030009910 S.CER C1608 CH 1H 040B-T [21]
4030009910 S.CER C1608 CH 1H 040B-T [22]
4030009910 S.CER C1608 CH 1H 040B-T [23]
4030009520 S.CER C1608 CH 1H 020B-T [24]
4030009910 S.CER C1608 CH 1H 040B-T [25]
4030009910 S.CER C1608 CH 1H 040B-T [26]
4030009520 S.CER C1608 CH 1H 020B-T [27]
C623 4030019030 S.CER GQM1882C1H220JB01D [1] B 15.1/7.3
4030019030 S.CER GQM1882C1H220JB01D [2]
4030019030 S.CER GQM1882C1H220JB01D [3]
4030019040 S.CER GQM1882C1H180JB01D [4]
4030019040 S.CER GQM1882C1H180JB01D [5]
4030019030 S.CER GQM1882C1H220JB01D [6]
4030019030 S.CER GQM1882C1H220JB01D [7]
4030019030 S.CER GQM1882C1H220JB01D [8]
4030019040 S.CER GQM1882C1H180JB01D [9]
4030019040 S.CER GQM1882C1H180JB01D [10]
4030019030 S.CER GQM1882C1H220JB01D [11]
4030019030 S.CER GQM1882C1H220JB01D [12]
4030019030 S.CER GQM1882C1H220JB01D [13]
4030019040 S.CER GQM1882C1H180JB01D [14]
4030019040 S.CER GQM1882C1H180JB01D [15]
4030019030 S.CER GQM1882C1H220JB01D [16]
4030019030 S.CER GQM1882C1H220JB01D [17]
4030019030 S.CER GQM1882C1H220JB01D [18]
4030019040 S.CER GQM1882C1H180JB01D [19]
4030019040 S.CER GQM1882C1H180JB01D [20]
4030019030 S.CER GQM1882C1H220JB01D [21]
4030019030 S.CER GQM1882C1H220JB01D [22]
4030019030 S.CER GQM1882C1H220JB01D [23]
4030019040 S.CER GQM1882C1H180JB01D [24]
4030019030 S.CER GQM1882C1H220JB01D [25]
4030019030 S.CER GQM1882C1H220JB01D [26]
4030019040 S.CER GQM1882C1H180JB01D [27]
C624 4030019110 S.CER GQM1882C1H390JB01D B 13.3/6.5
C628 4030017460 S.CER ECJ0EB1E102K T 28.2/17.6
C629 4030016790 S.CER ECJ0EB1C103K T 22.2/22.2
C630 4030017460 S.CER ECJ0EB1E102K B 21.1/20.2
C631 4030016950 S.CER ECJ0EB1A473K T 27.6/22
C632 4030017460 S.CER ECJ0EB1E102K B 25.9/18.7
C633 4030016930 S.CER ECJ0EB1A104K T 24.5/25.3
C634 4030017460 S.CER ECJ0EB1E102K T 28.6/18.8
C635 4030017460 S.CER ECJ0EB1E102K [1] B 13.8/14.2
4030017460 S.CER ECJ0EB1E102K [2]
4030017460 S.CER ECJ0EB1E102K [3]
4030017420 S.CER ECJ0EC1H470J [4]
4030017420 S.CER ECJ0EC1H470J [5]
4030017460 S.CER ECJ0EB1E102K [6]
4030017460 S.CER ECJ0EB1E102K [7]
4030017460 S.CER ECJ0EB1E102K [8]
4030017420 S.CER ECJ0EC1H470J [9]
4030017420 S.CER ECJ0EC1H470J [10]
4030017460 S.CER ECJ0EB1E102K [11]
4030017460 S.CER ECJ0EB1E102K [12]
4030017420 S.CER ECJ0EC1H470J [14]
4030017420 S.CER ECJ0EC1H470J [15]
4030017460 S.CER ECJ0EB1E102K [16]
4030017460 S.CER ECJ0EB1E102K [17]
4030017420 S.CER ECJ0EC1H470J [19]
4030017420 S.CER ECJ0EC1H470J [20]
4030017460 S.CER ECJ0EB1E102K [21]
4030017460 S.CER ECJ0EB1E102K [23]
4030017420 S.CER ECJ0EC1H470J [24]
4030017460 S.CER ECJ0EB1E102K [25]
4030017420 S.CER ECJ0EC1H470J [27]
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
C636 4030016790 S.CER ECJ0EB1C103K [1] B 13.8/15.1
4030016790 S.CER ECJ0EB1C103K [2]
4030016790 S.CER ECJ0EB1C103K [3]
4030016790 S.CER ECJ0EB1C103K [4]
4030016790 S.CER ECJ0EB1C103K [5]
4030016790 S.CER ECJ0EB1C103K [6]
4030016790 S.CER ECJ0EB1C103K [7]
4030016790 S.CER ECJ0EB1C103K [8]
4030016790 S.CER ECJ0EB1C103K [9]
4030016790 S.CER ECJ0EB1C103K [10]
4030016790 S.CER ECJ0EB1C103K [11]
4030016790 S.CER ECJ0EB1C103K [12]
4030016790 S.CER ECJ0EB1C103K [14]
4030016790 S.CER ECJ0EB1C103K [15]
4030016790 S.CER ECJ0EB1C103K [16]
4030016790 S.CER ECJ0EB1C103K [17]
4030016790 S.CER ECJ0EB1C103K [19]
4030016790 S.CER ECJ0EB1C103K [20]
4030016790 S.CER ECJ0EB1C103K [21]
4030016790 S.CER ECJ0EB1C103K [23]
4030016790 S.CER ECJ0EB1C103K [24]
4030016790 S.CER ECJ0EB1C103K [25]
4030016790 S.CER ECJ0EB1C103K [27]
C637 4030017460 S.CER ECJ0EB1E102K B 8.3/14.1
C639 4030017460 S.CER ECJ0EB1E102K B 2.2/7
C640 4030017420 S.CER ECJ0EC1H470J B 3.2/7
C642 4030017460 S.CER ECJ0EB1E102K T 3.1/8.9
C643 4030017620 S.CER ECJ0EC1H100C [1] B 3.5/9.3
4030017620 S.CER ECJ0EC1H100C [2]
4030017400 S.CER ECJ0EC1H220J [3]
4030017400 S.CER ECJ0EC1H220J [4]
4030017400 S.CER ECJ0EC1H220J [5]
4030017620 S.CER ECJ0EC1H100C [6]
4030017620 S.CER ECJ0EC1H100C [7]
4030017400 S.CER ECJ0EC1H220J [8]
4030017400 S.CER ECJ0EC1H220J [9]
4030017400 S.CER ECJ0EC1H220J [10]
4030017400 S.CER ECJ0EC1H220J [11]
4030017400 S.CER ECJ0EC1H220J [12]
4030017400 S.CER ECJ0EC1H220J [14]
4030017400 S.CER ECJ0EC1H220J [15]
4030017400 S.CER ECJ0EC1H220J [16]
4030017400 S.CER ECJ0EC1H220J [17]
4030017400 S.CER ECJ0EC1H220J [19]
4030017400 S.CER ECJ0EC1H220J [20]
4030017400 S.CER ECJ0EC1H220J [21]
4030017400 S.CER ECJ0EC1H220J [23]
4030017400 S.CER ECJ0EC1H220J [24]
4030017400 S.CER ECJ0EC1H220J [25]
4030017400 S.CER ECJ0EC1H220J [27]
C644 4030017420 S.CER ECJ0EC1H470J [1] B 4.7/9.8
4030017420 S.CER ECJ0EC1H470J [2]
4030017420 S.CER ECJ0EC1H470J [3]
4030017670 S.CER ECJ0EC1H390J [4]
4030017670 S.CER ECJ0EC1H390J [5]
4030017420 S.CER ECJ0EC1H470J [6]
4030017420 S.CER ECJ0EC1H470J [7]
4030017420 S.CER ECJ0EC1H470J [8]
4030017670 S.CER ECJ0EC1H390J [9]
4030017670 S.CER ECJ0EC1H390J [10]
4030017420 S.CER ECJ0EC1H470J [11]
4030017420 S.CER ECJ0EC1H470J [12]
4030017420 S.CER ECJ0EC1H470J [13]
4030017670 S.CER ECJ0EC1H390J [14]
4030017670 S.CER ECJ0EC1H390J [15]
4030017420 S.CER ECJ0EC1H470J [16]
4030017420 S.CER ECJ0EC1H470J [17]
4030017420 S.CER ECJ0EC1H470J [18]
4030017670 S.CER ECJ0EC1H390J [19]
4030017670 S.CER ECJ0EC1H390J [20]
4030017420 S.CER ECJ0EC1H470J [21]
4030017420 S.CER ECJ0EC1H470J [22]
4030017420 S.CER ECJ0EC1H470J [23]
4030017670 S.CER ECJ0EC1H390J [24]
4030017420 S.CER ECJ0EC1H470J [25]
4030017420 S.CER ECJ0EC1H470J [26]
4030017670 S.CER ECJ0EC1H390J [27]
C646 4030017460 S.CER ECJ0EB1E102K B 2.5/16.2
C647 4030017420 S.CER ECJ0EC1H470J T 2.6/17.1
C648 4030017460 S.CER ECJ0EB1E102K T 4.4/17.7
C650 4030017350 S.CER ECJ0EC1H020B [1] B 7/15.3
4030017350 S.CER ECJ0EC1H020B [2]
4030017350 S.CER ECJ0EC1H020B [3]
4030017350 S.CER ECJ0EC1H020B [6]
4030017350 S.CER ECJ0EC1H020B [7]
4030017350 S.CER ECJ0EC1H020B [8]
4030017350 S.CER ECJ0EC1H020B [11]
4030017350 S.CER ECJ0EC1H020B [12]
4030017350 S.CER ECJ0EC1H020B [13]
4030017350 S.CER ECJ0EC1H020B [16]
4030017350 S.CER ECJ0EC1H020B [17]
4030017350 S.CER ECJ0EC1H020B [18]
4030017350 S.CER ECJ0EC1H020B [21]
4030017350 S.CER ECJ0EC1H020B [22]
4030017350 S.CER ECJ0EC1H020B [23]
4030017350 S.CER ECJ0EC1H020B [25]
4030017350 S.CER ECJ0EC1H020B [26]
C651 4030017620 S.CER ECJ0EC1H100C B 5.5/16.4

Jun. 2009
12
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[RF UNIT]
C652 4030017530 S.CER ECJ0EC1H0R5B [3] B 6.7/19.7
4030017530 S.CER ECJ0EC1H0R5B [8]
4030017530 S.CER ECJ0EC1H0R5B [11]
4030017530 S.CER ECJ0EC1H0R5B [12]
4030017530 S.CER ECJ0EC1H0R5B [13]
4030017530 S.CER ECJ0EC1H0R5B [16]
4030017530 S.CER ECJ0EC1H0R5B [17]
4030017530 S.CER ECJ0EC1H0R5B [18]
4030017530 S.CER ECJ0EC1H0R5B [21]
4030017530 S.CER ECJ0EC1H0R5B [22]
4030017530 S.CER ECJ0EC1H0R5B [23]
4030017530 S.CER ECJ0EC1H0R5B [25]
4030017530 S.CER ECJ0EC1H0R5B [26]
C653 4030017420 S.CER ECJ0EC1H470J B 8.3/19.7
C654 4030017420 S.CER ECJ0EC1H470J T 5.5/19
C655 4030017460 S.CER ECJ0EB1E102K B 5.8/21.9
C656 4030017460 S.CER ECJ0EB1E102K T 6.7/22.6
C657 4030017460 S.CER ECJ0EB1E102K T 17/14.9
C659 4030017460 S.CER ECJ0EB1E102K T 8.7/20.2
C660 4030017360 S.CER ECJ0EC1H030B B 8.7/20.9
C661 4030016930 S.CER ECJ0EB1A104K T 14.8/15.1
C662 4030017460 S.CER ECJ0EB1E102K T 13.8/15.1
C663 4030017420 S.CER ECJ0EC1H470J T 12.8/15.1
C667 4030017420 S.CER ECJ0EC1H470J [1] B 7.2/11.2
4030017420 S.CER ECJ0EC1H470J [2]
4030017420 S.CER ECJ0EC1H470J [3]
4030017460 S.CER ECJ0EB1E102K [4]
4030017460 S.CER ECJ0EB1E102K [5]
4030017420 S.CER ECJ0EC1H470J [6]
4030017420 S.CER ECJ0EC1H470J [7]
4030017420 S.CER ECJ0EC1H470J [8]
4030017460 S.CER ECJ0EB1E102K [9]
4030017460 S.CER ECJ0EB1E102K [10]
4030017420 S.CER ECJ0EC1H470J [11]
4030017420 S.CER ECJ0EC1H470J [12]
4030017420 S.CER ECJ0EC1H470J [13]
4030017460 S.CER ECJ0EB1E102K [14]
4030017460 S.CER ECJ0EB1E102K [15]
4030017420 S.CER ECJ0EC1H470J [16]
4030017420 S.CER ECJ0EC1H470J [17]
4030017420 S.CER ECJ0EC1H470J [18]
4030017460 S.CER ECJ0EB1E102K [19]
4030017460 S.CER ECJ0EB1E102K [20]
4030017420 S.CER ECJ0EC1H470J [21]
4030017420 S.CER ECJ0EC1H470J [22]
4030017420 S.CER ECJ0EC1H470J [23]
4030017460 S.CER ECJ0EB1E102K [24]
4030017420 S.CER ECJ0EC1H470J [25]
4030017420 S.CER ECJ0EC1H470J [26]
4030017460 S.CER ECJ0EB1E102K [27]
C668 4030017460 S.CER ECJ0EB1E102K B 28.3/18.1
J601 6910017940 CON IMSA-9230B-1-05Z118-PT1
J602 6910017940 CON IMSA-9230B-1-05Z118-PT1
F601 5210000970 S.FUS ERBSE3R00U T 13.9/22.4
EP602 6910015370 S.BEA ACZ1005Y-102-T T 6.7/20.2
MP601 8510017600 S.PLA OG-363050 B 14.1/21.8
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[VR UNIT]
Q701 1590001400 S.TRA XP1214(TX) T 32.2/6.2
R701 7410001140 S.ARR EXB28V104JX T 11.4/1.8
R702 7030007280 S.RES ERJ2GEJ 331 X (330) T 31.7/8.6
R703 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 32.7/8.6
R704 7210003061 VAR TP76N00N-15F-A103-2251A
R705 7030005090 S.RES ERJ2GEJ 104 X (100K) T 13.2/2.8
C701 4030017420 S.CER ECJ0EC1H470J T 10.1/5.2
C702 4030017420 S.CER ECJ0EC1H470J T 11.1/5.2
C703 4030017420 S.CER ECJ0EC1H470J T 12.1/5.2
C704 4030017420 S.CER ECJ0EC1H470J T 14.3/3.2
J701 6510024930 S.CON 20RF-JMCSG1BTF(N)(LF)(SN) B 11.4/4.1
DS701 5040002670 S.LED CL-165HR/YG T 33.5/11.1
S701 2250000490 ENC TP70TF5163-15.9F-2775
S702 2230001060 S.SWI EVQ-PUL 02K T 8/10.4

Jun. 2009
13
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[JACK UNIT]
D801 1790001810 S.VAR AVR-M1005C080MTABB B 13.7/1.7
D802 1790001810 S.VAR AVR-M1005C080MTABB B 14.7/3.8
D803 1790001810 S.VAR AVR-M1005C080MTABB B 13.8/3.8
D804 1790001810 S.VAR AVR-M1005C080MTABB B 14.1/2.6
D805 1790001810 S.VAR AVR-M1005C080MTABB B 13.5/0.8
J801 6510025142 S.CON 10FLT-SM2-TB(LF)(SN)(M) B 5/2.6
EP801 6910012350 S.BEA MMZ1608Y 102BT B 10/3.7
EP802 6910012350 S.BEA MMZ1608Y 102BT B 10/2.2
EP803 6910012350 S.BEA MMZ1608Y 102BT B 10/0.9
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
IC1 1130010100 S.IC LMX2352TMX/NOPB B 58.2/18.3
IC3 1110003491 S.IC TA31136FNG(D,EL) B 76.6/32.9
IC4 1190001350 S.IC M62364FP 600D B 42.1/18.1
IC5 1110006221 S.IC AK2346P-E2/P B 51.3/36.4
IC6 1110005350 S.IC NJM2870F05-TE1-#FZZB T 103.2/18.9
IC8 1110005771 S.IC S-80942CNMC-G9CT2G B 13.8/30
IC9 1110005340 S.IC NJM12902V-TE1-#ZZZB B 42.4/29.6
IC10 1130012960 S.IC BU8872FS-E2 B 5.4/15.5
IC13 1140013200 S.IC CD4053BPWR B 41.7/8.2
IC14 1140013200 S.IC CD4053BPWR B 49.1/8.2
IC15 1110005310 S.IC AN6123MS T 49.9/23.7
IC17 1110005340 S.IC NJM12902V-TE1-#ZZZB B 25.6/38.1
IC18 1140015010 S.IC HD64F2506RBR26DV(EMPTY) B 23/23.1
IC19 1140014160 S.IC 24LC1025T-I/SM B 25.3/6.7
IC20 1190001340 S.IC M62334FP 600C T 99.4/34.7
IC21 1110003800 S.IC NJM2904V-TE1-#FMZB B 57.7/30.1
IC25 1110006230 S.IC NJM2711F-TE1-#ZZZB B 69.1/41.4
IC26 1130009981 S.IC TC7W53FK(TE85L,F) B 52.8/24.6
Q1 1530002920 S.TRA 2SC4226-T1 R25 T 72.4/11.7
Q2 1530002920 S.TRA 2SC4226-T1 R25 T 72.4/18.2
Q3 1530002920 S.TRA 2SC4226-T1 R25 T 73.4/24.7
Q4 1530003311 S.TRA 2SC5107-O(TE85R,F) T 77.3/16T
Q5 1530003980 S.TRA 2SC5700WB-TR-E [11] T 80.6/20T
1530003980 S.TRA 2SC5700WB-TR-E [12]
1530003980 S.TRA 2SC5700WB-TR-E [13]
1530003980 S.TRA 2SC5700WB-TR-E [14]
1530003980 S.TRA 2SC5700WB-TR-E [15]
1530003980 S.TRA 2SC5700WB-TR-E [16]
1530003980 S.TRA 2SC5700WB-TR-E [17]
1530003980 S.TRA 2SC5700WB-TR-E [18]
1530003980 S.TRA 2SC5700WB-TR-E [19]
1530003980 S.TRA 2SC5700WB-TR-E [20]
1530003980 S.TRA 2SC5700WB-TR-E [21]
1530004110 S.TRA MT3S37T(TE85L,F) [22]
1530003980 S.TRA 2SC5700WB-TR-E [23]
1530003980 S.TRA 2SC5700WB-TR-E [24]
1530003980 S.TRA 2SC5700WB-TR-E [25]
1530004110 S.TRA MT3S37T(TE85L,F) [26]
1530003980 S.TRA 2SC5700WB-TR-E [27]
Q6 1530003311 S.TRA 2SC5107-O(TE85R,F) T 80.2/10.5
Q7 1530003311 S.TRA 2SC5107-O(TE85R,F) B 91.2/15B
Q8 1590003291 S.TRA UNR9213G0L B 93.8/27.5
Q9 1580000800 S.FET 3SK324UG-TL-E B 92.6/8.3
Q10 1580000731 S.FET 3SK293(TE85L,F) B 105.2/13.2
Q11 1560000841 S.FET 2SK1829(TE85R,F) T 104.4/9.2
Q12 1520000460 S.TRA 2SB1132 T100 R T 98.6/23.9
Q13 1590001190 S.TRA XP6501-(TX).AB B 99.7/24.4
Q14 1510000920 S.TRA 2SA1577 T106 Q B 97.2/23.8
Q15 1510000920 S.TRA 2SA1577 T106 Q B 94.7/21.2
Q16 1510000920 S.TRA 2SA1577 T106 Q T 95.7/11.2
Q17 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 78.8/23.3
Q18 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 66.7/29.6
Q19 1560000541 S.FET 2SK880-Y(T5RICOM,F) B 62.1/27.3
Q21 1590001400 S.TRA XP1214(TX) B 72.4/12.5
Q22 1590001400 S.TRA XP1214(TX) B 73.3/22
Q23 1590003291 S.TRA UNR9213G0L B 69.9/12.5
Q25 1530002601 S.TRA 2SC4215-O(TE85R,F) B 80.5/28.4
Q26 1590003231 S.TRA UNR9113G0L B 68.1/34.4
Q27 1590003231 S.TRA UNR9113G0L T 86.2/13.2
Q28 1590001650 S.TRA XP4601(TX) B 63.2/36.3
Q30 1590003321 S.FET TPC6103(TE85L,F) T 99.9/19.7
Q31 1590003291 S.TRA UNR9213G0L T 29.2/24.7
Q32 1560001360 S.FET 2SK3019 TL B 61.1/13
Q34 1590003291 S.TRA UNR9213G0L B 34.4/35.8
Q35 1590003291 S.TRA UNR9213G0L T 11.8/27.2
Q40 1590003231 S.TRA UNR9113G0L B 9.2/11.2
Q41 1530002851 S.TRA 2SC4116-BL(TE85R,F) T 86.5/18.4
Q42 1530002851 S.TRA 2SC4116-BL(TE85R,F) T 92/15.5
Q47 1590003291 S.TRA UNR9213G0L B 59.4/5.2
Q48 1590003321 S.FET TPC6103(TE85L,F) T 48.1/3.5
Q49 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 73.3/40.3
Q50 1560001360 S.FET 2SK3019 TL B 51.4/21.8
Q51 1590003291 S.TRA UNR9213G0L T 99/10.2
Q52 1560001360 S.FET 2SK3019 TL B 76/38.4
D1 1750001150 S.VAR HVC383BTRF-E T 65.9/9.1
D2 1750000711 S.VAR HVC350BTRF-E T 68.3/11
D5 1750001150 S.VAR HVC383BTRF-E T 65.9/15.6
D6 1750000711 S.VAR HVC350BTRF-E T 68.3/17.5
D9 1750001150 S.VAR HVC383BTRF-E [11] T 65.9/22
1750001150 S.VAR HVC383BTRF-E [12]
1750001150 S.VAR HVC383BTRF-E [13]
1750000711 S.VAR HVC350BTRF-E [14]
1750000711 S.VAR HVC350BTRF-E [15]
1750001150 S.VAR HVC383BTRF-E [16]
1750001150 S.VAR HVC383BTRF-E [17]
1750001150 S.VAR HVC383BTRF-E [18]
1750000711 S.VAR HVC350BTRF-E [19]
1750000711 S.VAR HVC350BTRF-E [20]
1750001150 S.VAR HVC383BTRF-E [21]
1750001150 S.VAR HVC383BTRF-E [22]
1750001150 S.VAR HVC383BTRF-E [23]
1750000711 S.VAR HVC350BTRF-E [24]
1750001150 S.VAR HVC383BTRF-E [25]
1750001150 S.VAR HVC383BTRF-E [26]
1750000711 S.VAR HVC350BTRF-E [27]
D10 1750000711 S.VAR HVC350BTRF-E T 68.3/23.8
D11 1720000570 S.VAR MA368(TX) B 69.5/26.4
D14 1790001621 S.DIO 1SV308(TPL3,F) B 85.8/13.3
D15 1790001261 S.DIO MA2S077G0L B 85.8/12
D16 1790001261 S.DIO MA2S077G0L T 77.6/21.1
D17 1790001261 S.DIO MA2S077G0L T 77.1/25.3

Jun. 2009
14
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
D19 1790001621 S.DIO 1SV308(TPL3,F) T 103.9/25.8
D21 1750000711 S.VAR HVC350BTRF-E B 102.7/22.6
D22 1750000711 S.VAR HVC350BTRF-E B 101.4/22.6
D23 1750000711 S.VAR HVC350BTRF-E B 102.6/19.1
D24 1750000711 S.VAR HVC350BTRF-E B 101.4/19.1
D25 1790001251 S.DIO MA2S1110GL T 101.8/11.8
D28 1750000711 S.VAR HVC350BTRF-E B 101.6/12
D29 1750000711 S.VAR HVC350BTRF-E B 97.9/11.2
D32 1750001070 S.DIO DAN235ETL T 70.7/38.5
D33 1750001070 S.DIO DAN235ETL T 70.7/34.2
D34 1750001070 S.DIO DAN235ETL T 89.8/13.4
D35 1750001070 S.DIO DAN235ETL B 84.7/26.7
D36 1160000060 S.DIO DAN202U T106 T 32.6/25.4
D37 1730002321 S.ZEN MAZ8051GML T 9/27.1
D38 1790001261 S.DIO MA2S077G0L B 13.8/32.9
D40 1160000050 S.DIO DAP202U T106 B 19/35.5
D41 1790001251 S.DIO MA2S1110GL B 46.1/25
D42 1160000140 S.DIO DAP222 TL T 20.9/12.7
D43 1790001251 S.DIO MA2S1110GL T 26.2/22.4
FI1 2030000500 S.MON DSF753SBF 46.35 MHz (FL-401) B 90/23.2
FI2 2020002240 S.CER CFWKA450KGFA-R0 T 65/35
FI3 2020002180 S.CER CFWKA450KHFA-R0 T 76.7/35
FI4 2030000670 S.MON DSF753SBF 46.35 MHz (FL-420) T 90/23.2
X1 6050012380 S.XTA CR-826 DSA535SD 15.3 MHz B 58/25.4
X2 6050011720 S.XTA CR-764 SMD-49TB 19.6608 MHz T 2.9/32.4
X3 6050011730 S.XTA CR-765 SMD-49TA 3.6864 MHz T 50.9/35.6
X4 6050012320 S.XTA CR-818 SMD-49 4.194304 MHz T 2.9/15.2
X5 6070000191 S.DIS CDBKB450KCAY24-R0 T 84.6/38.2
L2 6200004741 S.COI NLV25T-1R2J T 64/9.6
L3 6200012970 S.COI 0.30-0.91-4TR 8.6N <COMO> T 69.2/9.1
L4 6200004741 S.COI NLV25T-1R2J T 64/22.6
L5 6200002851 S.COI NLV25T-R82J T 74.2/9
L6 6200004741 S.COI NLV25T-1R2J T 66/12.6
L7 6200004741 S.COI NLV25T-1R2J T 64/16.1
L8 6200012970 S.COI 0.30-0.91-4TR 8.6N <COMO> T 69.2/15.6
L9 6200002851 S.COI NLV25T-R82J T 73.9/15.5
L10 6200004741 S.COI NLV25T-1R2J T 66/19.1
L11 6200012390 S.COI 0.30-0.92-3TR 5.8N <COMO> T 69.2/22.1
L12 6200002851 S.COI NLV25T-R82J T 73.9/22
L14 6200004741 S.COI NLV25T-1R2J T 65.3/25.6
L15 6200005711 S.COI ELJRE 27NGFA T 78.9/18
L16 6200005671 S.COI ELJRE 12NGFA [11] T 80.8/22.8
6200005671 S.COI ELJRE 12NGFA [12]
6200005671 S.COI ELJRE 12NGFA [13]
6200005661 S.COI ELJRE 10NGFA [14]
6200005661 S.COI ELJRE 10NGFA [15]
6200005671 S.COI ELJRE 12NGFA [16]
6200005671 S.COI ELJRE 12NGFA [17]
6200005671 S.COI ELJRE 12NGFA [18]
6200005661 S.COI ELJRE 10NGFA [19]
6200005661 S.COI ELJRE 10NGFA [20]
6200005671 S.COI ELJRE 12NGFA [21]
6200005671 S.COI ELJRE 12NGFA [22]
6200005671 S.COI ELJRE 12NGFA [23]
6200005661 S.COI ELJRE 10NGFA [24]
6200005671 S.COI ELJRE 12NGFA [25]
6200005671 S.COI ELJRE 12NGFA [26]
6200005661 S.COI ELJRE 10NGFA [27]
L17 6200005721 S.COI ELJRE 33NGFA [11] T 80.3/12.4
6200005721 S.COI ELJRE 33NGFA [12]
6200005721 S.COI ELJRE 33NGFA [13]
6200005711 S.COI ELJRE 27NGFA [14]
6200005711 S.COI ELJRE 27NGFA [15]
6200005721 S.COI ELJRE 33NGFA [16]
6200005721 S.COI ELJRE 33NGFA [17]
6200005721 S.COI ELJRE 33NGFA [18]
6200005711 S.COI ELJRE 27NGFA [19]
6200005711 S.COI ELJRE 27NGFA [20]
6200005721 S.COI ELJRE 33NGFA [21]
6200005721 S.COI ELJRE 33NGFA [22]
6200005721 S.COI ELJRE 33NGFA [23]
6200005711 S.COI ELJRE 27NGFA [24]
6200005721 S.COI ELJRE 33NGFA [25]
6200005721 S.COI ELJRE 33NGFA [26]
6200005711 S.COI ELJRE 27NGFA [27]
L18 6200005691 S.COI ELJRE 18NGFA [11] B 91.4/16.9
6200005691 S.COI ELJRE 18NGFA [12]
6200005691 S.COI ELJRE 18NGFA [13]
6200005671 S.COI ELJRE 12NGFA [14]
6200005671 S.COI ELJRE 12NGFA [15]
6200005691 S.COI ELJRE 18NGFA [16]
6200005691 S.COI ELJRE 18NGFA [17]
6200005691 S.COI ELJRE 18NGFA [18]
6200005671 S.COI ELJRE 12NGFA [19]
6200005671 S.COI ELJRE 12NGFA [20]
6200005691 S.COI ELJRE 18NGFA [21]
6200005691 S.COI ELJRE 18NGFA [22]
6200005691 S.COI ELJRE 18NGFA [23]
6200005671 S.COI ELJRE 12NGFA [24]
6200005691 S.COI ELJRE 18NGFA [25]
6200005691 S.COI ELJRE 18NGFA [26]
6200005671 S.COI ELJRE 12NGFA [27]
L30 6200007720 S.COI LQW2BHN33NJ03L B 104.4/25.9
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
L31 6200007700 S.COI LQW2BHN22NJ03L [11] B 104.9/22.3
6200007700 S.COI LQW2BHN22NJ03L [12]
6200007700 S.COI LQW2BHN22NJ03L [13]
6200007690 S.COI LQW2BHN18NJ03L [14]
6200007690 S.COI LQW2BHN18NJ03L [15]
6200007700 S.COI LQW2BHN22NJ03L [16]
6200007700 S.COI LQW2BHN22NJ03L [17]
6200007700 S.COI LQW2BHN22NJ03L [18]
6200007690 S.COI LQW2BHN18NJ03L [19]
6200007690 S.COI LQW2BHN18NJ03L [20]
6200007700 S.COI LQW2BHN22NJ03L [21]
6200007700 S.COI LQW2BHN22NJ03L [22]
6200007700 S.COI LQW2BHN22NJ03L [23]
6200007690 S.COI LQW2BHN18NJ03L [24]
6200007700 S.COI LQW2BHN22NJ03L [25]
6200007700 S.COI LQW2BHN22NJ03L [26]
6200007690 S.COI LQW2BHN18NJ03L [27]
L32 6200007700 S.COI LQW2BHN22NJ03L [11] B 104.9/18.7
6200007700 S.COI LQW2BHN22NJ03L [12]
6200007700 S.COI LQW2BHN22NJ03L [13]
6200007690 S.COI LQW2BHN18NJ03L [14]
6200007690 S.COI LQW2BHN18NJ03L [15]
6200007700 S.COI LQW2BHN22NJ03L [16]
6200007700 S.COI LQW2BHN22NJ03L [17]
6200007700 S.COI LQW2BHN22NJ03L [18]
6200007690 S.COI LQW2BHN18NJ03L [19]
6200007690 S.COI LQW2BHN18NJ03L [20]
6200007700 S.COI LQW2BHN22NJ03L [21]
6200007700 S.COI LQW2BHN22NJ03L [22]
6200007700 S.COI LQW2BHN22NJ03L [23]
6200007690 S.COI LQW2BHN18NJ03L [24]
6200007700 S.COI LQW2BHN22NJ03L [25]
6200007700 S.COI LQW2BHN22NJ03L [26]
6200007690 S.COI LQW2BHN18NJ03L [27]
L33 6200007680 S.COI LQW2BHN12NJ03L [11] B 103.2/8.8
6200007680 S.COI LQW2BHN12NJ03L [12]
6200007680 S.COI LQW2BHN12NJ03L [13]
6200007670 S.COI LQW2BHN10NJ03L [14]
6200007670 S.COI LQW2BHN10NJ03L [15]
6200007680 S.COI LQW2BHN12NJ03L [16]
6200007680 S.COI LQW2BHN12NJ03L [17]
6200007680 S.COI LQW2BHN12NJ03L [18]
6200007670 S.COI LQW2BHN10NJ03L [19]
6200007670 S.COI LQW2BHN10NJ03L [20]
6200007680 S.COI LQW2BHN12NJ03L [21]
6200007680 S.COI LQW2BHN12NJ03L [22]
6200007680 S.COI LQW2BHN12NJ03L [23]
6200007670 S.COI LQW2BHN10NJ03L [24]
6200007680 S.COI LQW2BHN12NJ03L [25]
6200007680 S.COI LQW2BHN12NJ03L [26]
6200007670 S.COI LQW2BHN10NJ03L [27]
L34 6200007230 S.COI LQW2BHN15NJ03L [11] B 97.8/9
6200007230 S.COI LQW2BHN15NJ03L [12]
6200007230 S.COI LQW2BHN15NJ03L [13]
6200007680 S.COI LQW2BHN12NJ03L [14]
6200007680 S.COI LQW2BHN12NJ03L [15]
6200007230 S.COI LQW2BHN15NJ03L [16]
6200007230 S.COI LQW2BHN15NJ03L [17]
6200007230 S.COI LQW2BHN15NJ03L [18]
6200007680 S.COI LQW2BHN12NJ03L [19]
6200007680 S.COI LQW2BHN12NJ03L [20]
6200007230 S.COI LQW2BHN15NJ03L [21]
6200007230 S.COI LQW2BHN15NJ03L [22]
6200007230 S.COI LQW2BHN15NJ03L [23]
6200007680 S.COI LQW2BHN12NJ03L [24]
6200007230 S.COI LQW2BHN15NJ03L [25]
6200007230 S.COI LQW2BHN15NJ03L [26]
6200007680 S.COI LQW2BHN12NJ03L [27]
L38 6200005721 S.COI ELJRE 33NGFA B 93.5/10.8
L40 6200007931 S.COI ELJRF 12NJFB [11] T 78.2/25.6
6200007931 S.COI ELJRF 12NJFB [12]
6200007931 S.COI ELJRF 12NJFB [13]
6200007941 S.COI ELJRF 10NJFB [14]
6200007941 S.COI ELJRF 10NJFB [15]
6200007931 S.COI ELJRF 12NJFB [16]
6200007931 S.COI ELJRF 12NJFB [17]
6200007931 S.COI ELJRF 12NJFB [18]
6200007941 S.COI ELJRF 10NJFB [19]
6200007941 S.COI ELJRF 10NJFB [20]
6200007931 S.COI ELJRF 12NJFB [21]
6200007931 S.COI ELJRF 12NJFB [22]
6200007931 S.COI ELJRF 12NJFB [23]
6200007941 S.COI ELJRF 10NJFB [24]
6200007931 S.COI ELJRF 12NJFB [25]
6200007931 S.COI ELJRF 12NJFB [26]
6200007941 S.COI ELJRF 10NJFB [27]
L45 6200004480 S.COI MLF1608D R82K-T B 72.5/29
L46 6200003540 S.COI MLF1608D R22K-T B 68.7/30.8
L49 6200010740 S.COI C2520C-R27G-A T 93/8.3
L50 6200004660 S.COI MLF1608A 1R8K-T B 78.6/28.7
L51 6200002861 S.COI NLV25T-4R7J B 35.3/30.2
L52 6200011031 S.COI ELJRF R10JFB B 59.2/23
R1 7030005230 S.RES ERJ2GEJ 334 X (330K) B 52.7/28.8
R2 7030005050 S.RES ERJ2GEJ 103 X (10K) B 54.6/28
R3 7030005230 S.RES ERJ2GEJ 334 X (330K) B 51/30
R4 7030005000 S.RES ERJ2GEJ 471 X (470) T 58.6/23
R5 7030005700 S.RES ERJ2GEJ 274 X (270K) B 52.7/30.4
R6 7410001130 S.ARR EXB28V102JX B 53/15.7
R7 7030010040 S.RES ERJ2GEJ-JPW B 63.5/21.3
R8 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 63.5/22.9
R11 7030005050 S.RES ERJ2GEJ 103 X (10K) B 64.1/26.6
R12 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 64.4/21.3
R14 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/8.6

Jun. 2009
15
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
R15 7030006020 S.RES RR0510P-682-D (6.8K) T 70.6/12
R16 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/15.1
R17 7030006020 S.RES RR0510P-682-D (6.8K) T 70.6/18.5
R18 7030005530 S.RES ERJ2GEJ 100 X (10) T 69.3/25.2
R19 7030006020 S.RES RR0510P-682-D (6.8K) T 70.7/21.5
R20 7030006020 S.RES RR0510P-682-D (6.8K) T 71.4/25.5
R21 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) T 71.4/24.6
R22 7030005000 S.RES ERJ2GEJ 471 X (470) [11] B 74.7/11.8
7030005000 S.RES ERJ2GEJ 471 X (470) [12]
7030005000 S.RES ERJ2GEJ 471 X (470) [13]
7030005010 S.RES ERJ2GEJ 681 X (680) [14]
7030005010 S.RES ERJ2GEJ 681 X (680) [15]
7030005000 S.RES ERJ2GEJ 471 X (470) [16]
7030005000 S.RES ERJ2GEJ 471 X (470) [17]
7030005000 S.RES ERJ2GEJ 471 X (470) [18]
7030005010 S.RES ERJ2GEJ 681 X (680) [19]
7030005010 S.RES ERJ2GEJ 681 X (680) [20]
7030005000 S.RES ERJ2GEJ 471 X (470) [21]
7030005000 S.RES ERJ2GEJ 471 X (470) [22]
7030005000 S.RES ERJ2GEJ 471 X (470) [23]
7030005010 S.RES ERJ2GEJ 681 X (680) [24]
7030005000 S.RES ERJ2GEJ 471 X (470) [25]
7030005000 S.RES ERJ2GEJ 471 X (470) [26]
7030005010 S.RES ERJ2GEJ 681 X (680) [27]
R23 7030005000 S.RES ERJ2GEJ 471 X (470) B 74.1/14.4
R24 7030005000 S.RES ERJ2GEJ 471 X (470) B 75.2/22
R25 7030005050 S.RES ERJ2GEJ 103 X (10K) B 71/22.7
R26 7030005120 S.RES ERJ2GEJ 102 X (1K) B 73.2/16.8
R27 7030005050 S.RES ERJ2GEJ 103 X (10K) B 72.4/14.4
R28 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 78.8/21.5
R29 7030005090 S.RES ERJ2GEJ 104 X (100K) T 76.8/18.2
R30 7030004980 S.RES ERJ2GEJ 101 X (100) T 77.3/19.4
R31 7030005310 S.RES ERJ2GEJ 124 X (120K) [11] T 81.3/18.4
7030005310 S.RES ERJ2GEJ 124 X (120K) [12]
7030005310 S.RES ERJ2GEJ 124 X (120K) [13]
7030005310 S.RES ERJ2GEJ 124 X (120K) [14]
7030005310 S.RES ERJ2GEJ 124 X (120K) [15]
7030005310 S.RES ERJ2GEJ 124 X (120K) [16]
7030005310 S.RES ERJ2GEJ 124 X (120K) [17]
7030005310 S.RES ERJ2GEJ 124 X (120K) [18]
7030005310 S.RES ERJ2GEJ 124 X (120K) [19]
7030005310 S.RES ERJ2GEJ 124 X (120K) [20]
7030005310 S.RES ERJ2GEJ 124 X (120K) [21]
7030005240 S.RES ERJ2GEJ 473 X (47K) [22]
7030005310 S.RES ERJ2GEJ 124 X (120K) [23]
7030005310 S.RES ERJ2GEJ 124 X (120K) [24]
7030005310 S.RES ERJ2GEJ 124 X (120K) [25]
7030005240 S.RES ERJ2GEJ 473 X (47K) [26]
7030005310 S.RES ERJ2GEJ 124 X (120K) [27]
R32 7030004980 S.RES ERJ2GEJ 101 X (100) [11] T 81.6/24.2
7030004980 S.RES ERJ2GEJ 101 X (100) [12]
7030004980 S.RES ERJ2GEJ 101 X (100) [13]
7030004980 S.RES ERJ2GEJ 101 X (100) [14]
7030004980 S.RES ERJ2GEJ 101 X (100) [15]
7030004980 S.RES ERJ2GEJ 101 X (100) [16]
7030004980 S.RES ERJ2GEJ 101 X (100) [17]
7030004980 S.RES ERJ2GEJ 101 X (100) [18]
7030004980 S.RES ERJ2GEJ 101 X (100) [19]
7030004980 S.RES ERJ2GEJ 101 X (100) [20]
7030004980 S.RES ERJ2GEJ 101 X (100) [21]
7030008280 S.RES ERJ2GEJ 271 X (270) [22]
7030004980 S.RES ERJ2GEJ 101 X (100) [23]
7030004980 S.RES ERJ2GEJ 101 X (100) [24]
7030004980 S.RES ERJ2GEJ 101 X (100) [25]
7030008280 S.RES ERJ2GEJ 271 X (270) [26]
7030004980 S.RES ERJ2GEJ 101 X (100) [27]
R33 7030005530 S.RES ERJ2GEJ 100 X (10) T 77.6/12.4
R34 7030005070 S.RES ERJ2GEJ 683 X (68K) T 78.5/12.4
R35 7030005530 S.RES ERJ2GEJ 100 X (10) T 79.9/14.4
R36 7030010040 S.RES ERJ2GEJ-JPW T 78.3/9.5
R37 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 84.1/12.9
R38 7030004980 S.RES ERJ2GEJ 101 X (100) B 86.9/14.7
R40 7030005050 S.RES ERJ2GEJ 103 X (10K) B 86.8/16.3
R41 7030007340 S.RES ERJ2GEJ 153 X (15K) B 89.3/14.6
R44 7030004970 S.RES ERJ2GEJ 470 X (47) B 88.3/17.4
R59 7030003860 S.RES ERJ3GE JPW V T 104.6/31.4
R60 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.2/22
R61 7030005090 S.RES ERJ2GEJ 104 X (100K) B 100.3/18.7
R62 7030005050 S.RES ERJ2GEJ 103 X (10K) B 100.9/20.8
R63 7030005080 S.RES ERJ2GEJ 823 X (82K) B 105.5/15.7
R64 7030005240 S.RES ERJ2GEJ 473 X (47K) B 106.7/14.8
R65 7030004980 S.RES ERJ2GEJ 101 X (100) B 103/15.6
R66 7030005530 S.RES ERJ2GEJ 100 X (10) B 106.1/11.1
R68 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 102.1/8.3
R69 7030005170 S.RES ERJ2GEJ 474 X (470K) T 102.1/10.1
R70 7030005110 S.RES ERJ2GEJ 224 X (220K) T 102.1/9.2
R71 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.9/13.6
R72 7030005530 S.RES ERJ2GEJ 100 X (10) T 103.2/12.2
R73 7030004970 S.RES ERJ2GEJ 470 X (47) B 103.4/7.3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
R74 7030005120 S.RES ERJ2GEJ 102 X (1K) [11] B 103.2/10.3
7030005120 S.RES ERJ2GEJ 102 X (1K) [12]
7030005120 S.RES ERJ2GEJ 102 X (1K) [13]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [14]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [15]
7030005120 S.RES ERJ2GEJ 102 X (1K) [16]
7030005120 S.RES ERJ2GEJ 102 X (1K) [17]
7030005120 S.RES ERJ2GEJ 102 X (1K) [18]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [19]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [20]
7030005120 S.RES ERJ2GEJ 102 X (1K) [21]
7030005120 S.RES ERJ2GEJ 102 X (1K) [22]
7030005120 S.RES ERJ2GEJ 102 X (1K) [23]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [24]
7030005120 S.RES ERJ2GEJ 102 X (1K) [25]
7030005120 S.RES ERJ2GEJ 102 X (1K) [26]
7030007290 S.RES ERJ2GEJ 222 X (2.2K) [27]
R75 7030005090 S.RES ERJ2GEJ 104 X (100K) B 101.2/10.1
R76 7030005090 S.RES ERJ2GEJ 104 X (100K) B 99.6/10.1
R77 7030005050 S.RES ERJ2GEJ 103 X (10K) B 100.5/11.3
R84 7030007340 S.RES ERJ2GEJ 153 X (15K) T 78.3/22.8
R85 7030007340 S.RES ERJ2GEJ 153 X (15K) T 77.1/23.2
R86 7030005050 S.RES ERJ2GEJ 103 X (10K) B 88.1/12.4
R87 7030004980 S.RES ERJ2GEJ 101 X (100) B 90.5/12.4
R88 7030005580 S.RES ERJ2GEJ 560 X (56) B 63.7/16
R89 7030007270 S.RES ERJ2GEJ 151 X (150) T 88.4/17.9
R90 7030007270 S.RES ERJ2GEJ 151 X (150) T 89.3/17T
R91 7030005530 S.RES ERJ2GEJ 100 X (10) T 88.8/28.3
R92 7030005050 S.RES ERJ2GEJ 103 X (10K) T 85.5/20.3
R93 7030007280 S.RES ERJ2GEJ 331 X (330) T 91.5/17.8
R94 7030005050 S.RES ERJ2GEJ 103 X (10K) T 88/15.6
R95 7030005110 S.RES ERJ2GEJ 224 X (220K) B 80.8/26.2
R96 7030007280 S.RES ERJ2GEJ 331 X (330) T 90.2/17
R97 7030007280 S.RES ERJ2GEJ 331 X (330) B 88.4/28.1
R99 7030005530 S.RES ERJ2GEJ 100 X (10) B 77.2/27.8
R100 7030005090 S.RES ERJ2GEJ 104 X (100K) T 81.7/33.5
R101 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 82.6/33.5
R102 7030007270 S.RES ERJ2GEJ 151 X (150) B 74.1/28.7
R103 7030004970 S.RES ERJ2GEJ 470 X (47) B 75.7/28.7
R104 7030005600 S.RES ERJ2GEJ 273 X (27K) B 71.4/33.4
R105 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 69.3/36.2
R106 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) T 69.2/35
R107 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 70.7/36.5
R108 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 72.3/34.3
R109 7030007060 S.RES ERJ2GEJ 684X (680K) B 64.8/29.4
R110 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 66.6/32.3
R111 7030005600 S.RES ERJ2GEJ 273 X (27K) T 70.7/40.5
R112 7030005000 S.RES ERJ2GEJ 471 X (470) B 79.9/36.3
R113 7030005050 S.RES ERJ2GEJ 103 X (10K) B 48.2/17.2
R114 7030005090 S.RES ERJ2GEJ 104 X (100K) T 86.8/15.7
R115 7030005600 S.RES ERJ2GEJ 273 X (27K) T 89.7/11.8
R116 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 88/14
R117 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 88/13.1
R118 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 86.3/26
R119 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 85.8/26.2
R120 7030005600 S.RES ERJ2GEJ 273 X (27K) B 83.6/25.4
R121 7030005240 S.RES ERJ2GEJ 473 X (47K) B 72.3/35B
R122 7030008280 S.RES ERJ2GEJ 271 X (270) B 74.1/38.2
R123 7030005080 S.RES ERJ2GEJ 823 X (82K) [11] B 73.2/36.6
7030005080 S.RES ERJ2GEJ 823 X (82K) [12]
7030005080 S.RES ERJ2GEJ 823 X (82K) [13]
7030005070 S.RES ERJ2GEJ 683 X (68K) [14]
7030005070 S.RES ERJ2GEJ 683 X (68K) [15]
7030005080 S.RES ERJ2GEJ 823 X (82K) [16]
7030005080 S.RES ERJ2GEJ 823 X (82K) [17]
7030005080 S.RES ERJ2GEJ 823 X (82K) [18]
7030005070 S.RES ERJ2GEJ 683 X (68K) [19]
7030005070 S.RES ERJ2GEJ 683 X (68K) [20]
7030005080 S.RES ERJ2GEJ 823 X (82K) [21]
7030005080 S.RES ERJ2GEJ 823 X (82K) [22]
7030005080 S.RES ERJ2GEJ 823 X (82K) [23]
7030005070 S.RES ERJ2GEJ 683 X (68K) [24]
7030005080 S.RES ERJ2GEJ 823 X (82K) [25]
7030005080 S.RES ERJ2GEJ 823 X (82K) [26]
7030005070 S.RES ERJ2GEJ 683 X (68K) [27]
R124 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 73.2/38.2
R125 7030005240 S.RES ERJ2GEJ 473 X (47K) B 53.4/9.1
R126 7030005060 S.RES ERJ2GEJ 333 X (33K) B 37.7/9.1
R128 7030005160 S.RES ERJ2GEJ 105 X (1M) B 46.2/34.5
R130 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 61.3/36.7
R131 7030005090 S.RES ERJ2GEJ 104 X (100K) B 63.6/38.1
R132 7030005070 S.RES ERJ2GEJ 683 X (68K) B 62/38.1
R133 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 65.2/36
R134 7030007340 S.RES ERJ2GEJ 153 X (15K) B 64.1/34.5
R135 7030005050 S.RES ERJ2GEJ 103 X (10K) B 62.5/34.5
R136 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 60.9/34.5
R137 7030005220 S.RES ERJ2GEJ 223 X (22K) B 66.1/36.9
R138 7030005220 S.RES ERJ2GEJ 223 X (22K) B 66.8/38.1
R139 7030005220 S.RES ERJ2GEJ 223 X (22K) B 67/36.9
R140 7030011660 S.RES ERJ2RKF 1002 (10K) B 57.4/40.2
R141 7030005060 S.RES ERJ2GEJ 333 X (33K) B 57.4/41.8
R142 7030011660 S.RES ERJ2RKF 1002 (10K) B 56.5/38.3
R143 7030005060 S.RES ERJ2GEJ 333 X (33K) T 54.4/37.7
R144 7030005120 S.RES ERJ2GEJ 102 X (1K) B 45.8/38
R145 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 46.9/31.2
R146 7030010040 S.RES ERJ2GEJ-JPW T 44.2/29.1
R147 7030005170 S.RES ERJ2GEJ 474 X (470K) T 55.6/39.3
R148 7030008410 S.RES ERJ2GEJ 392 X (3.9K) T 55.6/38.4
R149 7030010040 S.RES ERJ2GEJ-JPW T 56.2/37.2
R150 7030005530 S.RES ERJ2GEJ 100 X (10) B 34.2/7.7
R151 7030004980 S.RES ERJ2GEJ 101 X (100) T 44.9/18.9
R152 7030005090 S.RES ERJ2GEJ 104 X (100K) B 46.2/36.8
R153 7030005050 S.RES ERJ2GEJ 103 X (10K) T 45.7/36.1
R154 7030005050 S.RES ERJ2GEJ 103 X (10K) T 44.5/36.5
R155 7030007340 S.RES ERJ2GEJ 153 X (15K) B 45.3/5.6

Jun. 2009
16
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
R156 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 52.4/6.5
R157 7030005240 S.RES ERJ2GEJ 473 X (47K) B 54.3/9.7
R158 7030005060 S.RES ERJ2GEJ 333 X (33K) B 45/39.8
R159 7030005090 S.RES ERJ2GEJ 104 X (100K) B 45/38.9
R161 7030010040 S.RES ERJ2GEJ-JPW B 38/29.3
R162 7030005050 S.RES ERJ2GEJ 103 X (10K) B 40.2/33.5
R164 7030005100 S.RES ERJ2GEJ 154 X (150K) [11] B 37.1/29.3
7030005230 S.RES ERJ2GEJ 334 X (330K) [12]
7030005230 S.RES ERJ2GEJ 334 X (330K) [13]
7030005100 S.RES ERJ2GEJ 154 X (150K) [14]
7030005230 S.RES ERJ2GEJ 334 X (330K) [15]
7030005100 S.RES ERJ2GEJ 154 X (150K) [16]
7030005230 S.RES ERJ2GEJ 334 X (330K) [17]
7030005230 S.RES ERJ2GEJ 334 X (330K) [18]
7030005100 S.RES ERJ2GEJ 154 X (150K) [19]
7030005230 S.RES ERJ2GEJ 334 X (330K) [20]
7030005100 S.RES ERJ2GEJ 154 X (150K) [21]
7030005230 S.RES ERJ2GEJ 334 X (330K) [22]
7030005230 S.RES ERJ2GEJ 334 X (330K) [23]
7030005100 S.RES ERJ2GEJ 154 X (150K) [24]
7030005100 S.RES ERJ2GEJ 154 X (150K) [25]
7030005230 S.RES ERJ2GEJ 334 X (330K) [26]
7030005100 S.RES ERJ2GEJ 154 X (150K) [27]
R165 7030005080 S.RES ERJ2GEJ 823 X (82K) B 38/30.9
R167 7030005220 S.RES ERJ2GEJ 223 X (22K) B 36.2/5.9
R168 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 49.1/30.2
R169 7030011650 S.RES ERJ2GEJ 243X (24K) B 46.9/31.4
R170 7030005530 S.RES ERJ2GEJ 100 X (10) T 53.6/25.9
R171 7030005160 S.RES ERJ2GEJ 105 X (1M) T 55.7/20.5
R173 7030005090 S.RES ERJ2GEJ 104 X (100K) B 61/31.8
R174 7030005290 S.RES ERJ2GEJ 682 X (6.8K) T 50.4/25.9
R175 7030007280 S.RES ERJ2GEJ 331 X (330) T 52/25.9
R176 7030005090 S.RES ERJ2GEJ 104 X (100K) B 45.7/11.9
R177 7030005240 S.RES ERJ2GEJ 473 X (47K) B 53.4/10.7
R178 7030005070 S.RES ERJ2GEJ 683 X (68K) B 38.2/33.5
R179 7030005070 S.RES ERJ2GEJ 683 X (68K) T 40.5/29.6
R180 7030008300 S.RES ERJ2GEJ 184 X (180K) T 39.3/31.5
R181 7030005310 S.RES ERJ2GEJ 124 X (120K) T 39.3/30.6
R182 7030010040 S.RES ERJ2GEJ-JPW B 41.5/25.4
R183 7030005110 S.RES ERJ2GEJ 224 X (220K) B 46.9/27.4
R184 7030009140 S.RES ERJ2GEJ 272 X (2.7K) B 47.8/28.6
R185 7030005230 S.RES ERJ2GEJ 334 X (330K) B 47.8/29.8
R186 7030007340 S.RES ERJ2GEJ 153 X (15K) B 47.8/26.2
R187 7030005050 S.RES ERJ2GEJ 103 X (10K) B 57.5/32.8
R188 7030005090 S.RES ERJ2GEJ 104 X (100K) B 62/30.6
R189 7030010040 S.RES ERJ2GEJ-JPW B 97.2/21.9
R190 7030005700 S.RES ERJ2GEJ 274 X (270K) B 99.1/17.8
R191 7030005090 S.RES ERJ2GEJ 104 X (100K) T 97.3/18.4
R192 7030005050 S.RES ERJ2GEJ 103 X (10K) T 95.4/24.3
R193 7030004980 S.RES ERJ2GEJ 101 X (100) B 98.8/20.9
R194 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 101.7/24.3
R195 7030005050 S.RES ERJ2GEJ 103 X (10K) B 95.4/24.2
R196 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 94.2/24.6
R197 7030005050 S.RES ERJ2GEJ 103 X (10K) B 96.1/19.6
R198 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 94.8/19.2
R199 7030005050 S.RES ERJ2GEJ 103 X (10K) T 93.7/12.5
R200 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 97.5/10.8
R201 7030005090 S.RES ERJ2GEJ 104 X (100K) B 61.6/11.4
R202 7030005110 S.RES ERJ2GEJ 224 X (220K) B 61.7/23.6
R203 7030005000 S.RES ERJ2GEJ 471 X (470) B 62.4/29.4
R204 7030008310 S.RES ERJ2GEJ 564 X (560K) B 35.9/14.4
R205 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 59.8/27.4
R206 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 27.9/33.8
R207 7030005240 S.RES ERJ2GEJ 473 X (47K) B 32.4/36.2
R208 7030005240 S.RES ERJ2GEJ 473 X (47K) B 26/32.5
R209 7030005240 S.RES ERJ2GEJ 473 X (47K) B 23.3/33.8
R210 7030005240 S.RES ERJ2GEJ 473 X (47K) B 22/34.2
R211 7030005700 S.RES ERJ2GEJ 274 X (270K) T 10.7/20.6
R212 7030005070 S.RES ERJ2GEJ 683 X (68K) B 21.2/37.3
R213 7030005070 S.RES ERJ2GEJ 683 X (68K) B 21.2/38.2
R214 7030005070 S.RES ERJ2GEJ 683 X (68K) B 22.1/40.9
R215 7030005070 S.RES ERJ2GEJ 683 X (68K) B 20.4/40.9
R216 7030005070 S.RES ERJ2GEJ 683 X (68K) B 19.6/38.5
R217 7030005080 S.RES ERJ2GEJ 823 X (82K) B 41.5/26.3
R219 7030004980 S.RES ERJ2GEJ 101 X (100) T 18.4/29.4
R220 7030005720 S.RES ERJ2GEJ 563 X (56K) B 39.9/26.3
R221 7410001130 S.ARR EXB28V102JX B 30.5/27
R222 7410001130 S.ARR EXB28V102JX B 24.7/12.9
R223 7410001130 S.ARR EXB28V102JX T 16.3/22.9
R224 7030005090 S.RES ERJ2GEJ 104 X (100K) B 38.6/34.7
R225 7410001130 S.ARR EXB28V102JX B 28.7/17.6
R226 7410001130 S.ARR EXB28V102JX B 21/13.6
R227 7410001130 S.ARR EXB28V102JX B 32.4/25.1
R228 7030005000 S.RES ERJ2GEJ 471 X (470) T 104/35.2
R229 7030005050 S.RES ERJ2GEJ 103 X (10K) B 31.1/8.6
R230 7030005090 S.RES ERJ2GEJ 104 X (100K) B 31.1/6.8
R231 7030005050 S.RES ERJ2GEJ 103 X (10K) T 98.9/39.1
R232 7030005090 S.RES ERJ2GEJ 104 X (100K) T 13.4/27.2
R233 7030005090 S.RES ERJ2GEJ 104 X (100K) T 26.2/24.2
R234 7030005050 S.RES ERJ2GEJ 103 X (10K) T 15/27.2
R235 7410001130 S.ARR EXB28V102JX B 19.2/15.4
R236 7030005090 S.RES ERJ2GEJ 104 X (100K) B 6.9/35.7
R237 7030005090 S.RES ERJ2GEJ 104 X (100K) B 50.1/41.1
R238 7030004980 S.RES ERJ2GEJ 101 X (100) B 12.7/21.7
R239 7030005090 S.RES ERJ2GEJ 104 X (100K) T 27.8/36.5
R240 7030005090 S.RES ERJ2GEJ 104 X (100K) B 26.6/10.2
R241 7030005090 S.RES ERJ2GEJ 104 X (100K) T 55.5/35.1
R242 7410001130 S.ARR EXB28V102JX T 21.5/19.1
R243 7030005530 S.RES ERJ2GEJ 100 X (10) T 7.7/28.7
R244 7030005160 S.RES ERJ2GEJ 105 X (1M) T 6.5/29.1
R245 7030008010 S.RES ERJ2GEJ 123 X (12K) B 15.8/32.2
R246 7030008010 S.RES ERJ2GEJ 123 X (12K) B 10.9/31.5
R247 7030008010 S.RES ERJ2GEJ 123 X (12K) B 10.9/29.7
R248 7030005120 S.RES ERJ2GEJ 102 X (1K) T 24.8/25.1
R249 7030005090 S.RES ERJ2GEJ 104 X (100K) T 24.8/26T
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
R250 7030005090 S.RES ERJ2GEJ 104 X (100K) T 43.8/13.8
R251 7030005050 S.RES ERJ2GEJ 103 X (10K) T 27.7/32.3
R252 7030005050 S.RES ERJ2GEJ 103 X (10K) B 31.7/29.8
R253 7410001140 S.ARR EXB28V104JX T 27.9/28.4
R255 7410001130 S.ARR EXB28V102JX B 28.5/29
R257 7410001130 S.ARR EXB28V102JX T 25.4/31.6
R258 7410001140 S.ARR EXB28V104JX T 32.5/29.8
R259 7410001130 S.ARR EXB28V102JX B 19.8/32.2
R260 7030010040 S.RES ERJ2GEJ-JPW B 29.9/36.8
R261 7030005220 S.RES ERJ2GEJ 223 X (22K) T 23.9/35.3
R262 7030005050 S.RES ERJ2GEJ 103 X (10K) T 21.9/36.5
R263 7030008300 S.RES ERJ2GEJ 184 X (180K) T 24.2/30
R264 7030005720 S.RES ERJ2GEJ 563 X (56K) T 24.9/28.8
R265 7030005220 S.RES ERJ2GEJ 223 X (22K) T 24/28.8
R266 7030005120 S.RES ERJ2GEJ 102 X (1K) T 22.2/35.3
R267 7030005050 S.RES ERJ2GEJ 103 X (10K) T 12.9/19.1
R268 7030005050 S.RES ERJ2GEJ 103 X (10K) T 12.9/20.6
R269 7030010040 S.RES ERJ2GEJ-JPW B 34.8/38.9
R272 7030004970 S.RES ERJ2GEJ 470 X (47) B 90.4/7.1
R273 7030005090 S.RES ERJ2GEJ 104 X (100K) B 95.4/8.9
R274 7030005120 S.RES ERJ2GEJ 102 X (1K) T 93/6.2
R275 7030004980 S.RES ERJ2GEJ 101 X (100) T 95.9/8.3
R276 7030005090 S.RES ERJ2GEJ 104 X (100K) B 8.4/23.2
R277 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.2/23.2
R279 7030005090 S.RES ERJ2GEJ 104 X (100K) T 30.3/30
R280 7510001730 S.THE ERTJOEP 473J B 57.1/7.3
R281 7030010080 S.RES ERJ2RHD 104 X (100K) B 54.7/5.5
R282 7030005110 S.RES ERJ2GEJ 224 X (220K) T 68.4/25.2
R283 7030005090 S.RES ERJ2GEJ 104 X (100K) B 35.9/16.2
R284 7030008290 S.RES ERJ2GEJ 183 X (18K) B 66.5/26
R285 7030005070 S.RES ERJ2GEJ 683 X (68K) [11] B 66.5/27.2
7030005070 S.RES ERJ2GEJ 683 X (68K) [12]
7030005070 S.RES ERJ2GEJ 683 X (68K) [13]
7030005070 S.RES ERJ2GEJ 683 X (68K) [16]
7030005070 S.RES ERJ2GEJ 683 X (68K) [17]
7030005070 S.RES ERJ2GEJ 683 X (68K) [18]
7030005070 S.RES ERJ2GEJ 683 X (68K) [21]
7030005070 S.RES ERJ2GEJ 683 X (68K) [22]
7030005070 S.RES ERJ2GEJ 683 X (68K) [23]
7030005070 S.RES ERJ2GEJ 683 X (68K) [25]
7030005070 S.RES ERJ2GEJ 683 X (68K) [26]
R286 7030005090 S.RES ERJ2GEJ 104 X (100K) B 64.1/27.5
R287 7030005090 S.RES ERJ2GEJ 104 X (100K) T 28.6/40.9
R288 7030005720 S.RES ERJ2GEJ 563 X (56K) T 27.7/40.9
R289 7030005090 S.RES ERJ2GEJ 104 X (100K) B 35.3/41.4
R290 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.9/40.9
R291 7030005000 S.RES ERJ2GEJ 471 X (470) B 41.8/23.9
R292 7030005240 S.RES ERJ2GEJ 473 X (47K) T 39.3/19.3
R293 7030005700 S.RES ERJ2GEJ 274 X (270K) T 38.4/19.3
R294 7030005310 S.RES ERJ2GEJ 124 X (120K) B 94.4/8.9
R295 7030005310 S.RES ERJ2GEJ 124 X (120K) B 95.5/10.1
R296 7030005090 S.RES ERJ2GEJ 104 X (100K) B 95.5/11.9
R297 7030007340 S.RES ERJ2GEJ 153 X (15K) B 95.5/11
R298 7030005160 S.RES ERJ2GEJ 105 X (1M) T 45.5/24.4
R302 7030010040 S.RES ERJ2GEJ-JPW B 56.5/40.2
R303 7030010040 S.RES ERJ2GEJ-JPW B 45.3/36.8
R306 7030005090 S.RES ERJ2GEJ 104 X (100K) T 20/25.5
R308 7030005090 S.RES ERJ2GEJ 104 X (100K) B 7.9/31.6
R309 7030005090 S.RES ERJ2GEJ 104 X (100K) B 45.9/13.1
R310 7030005090 S.RES ERJ2GEJ 104 X (100K) T 29/36.4
R312 7030005090 S.RES ERJ2GEJ 104 X (100K) B 22.1/10.8
R313 7030007340 S.RES ERJ2GEJ 153 X (15K) T 6.8/33.9
R314 7030007340 S.RES ERJ2GEJ 153 X (15K) T 9.5/32.3
R315 7030007340 S.RES ERJ2GEJ 153 X (15K) T 11.1/31.7
R316 7030005160 S.RES ERJ2GEJ 105 X (1M) B 6.5/29.7
R317 7030005160 S.RES ERJ2GEJ 105 X (1M) T 14.3/24.6
R318 7030005160 S.RES ERJ2GEJ 105 X (1M) B 6.9/34.7
R319 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.5/17.2
R330 7030007340 S.RES ERJ2GEJ 153 X (15K) T 55.5/33.9
R331 7030007340 S.RES ERJ2GEJ 153 X (15K) T 47.1/16
R333 7030005090 S.RES ERJ2GEJ 104 X (100K) T 16.6/31.7
R335 7030005090 S.RES ERJ2GEJ 104 X (100K) T 58.3/7.8
R336 7030005090 S.RES ERJ2GEJ 104 X (100K) B 34.5/5
R337 7030007340 S.RES ERJ2GEJ 153 X (15K) B 53.7/28
R338 7030007340 S.RES ERJ2GEJ 153 X (15K) B 54.2/26.4
R339 7030003860 S.RES ERJ3GE JPW V B 65.1/12.5
R340 7030005000 S.RES ERJ2GEJ 471 X (470) B 88.6/9.6
R341 7030005530 S.RES ERJ2GEJ 100 X (10) B 88.8/10.8
R342 7030005000 S.RES ERJ2GEJ 471 X (470) B 90/10.1
R343 7030005120 S.RES ERJ2GEJ 102 X (1K) B 62.5/22B
R344 7030005090 S.RES ERJ2GEJ 104 X (100K) T 20.7/32.2
R345 7030005090 S.RES ERJ2GEJ 104 X (100K) T 50.5/3.3
R346 7030005700 S.RES ERJ2GEJ 274 X (270K) T 50.3/4.5
R347 7030010040 S.RES ERJ2GEJ-JPW B 49.5/31.8
R348 7030010040 S.RES ERJ2GEJ-JPW B 52/26.4
R351 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 75.9/42.3
R352 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 75/42.3
R353 7030004980 S.RES ERJ2GEJ 101 X (100) B 75.2/40.7
R354 7030008300 S.RES ERJ2GEJ 184 X (180K) B 71.4/39.8
R355 7030005120 S.RES ERJ2GEJ 102 X (1K) B 73.2/42.3
R356 7030004980 S.RES ERJ2GEJ 101 X (100) B 66.9/40.6
R357 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 66/42.3
R358 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 50/23.7
R359 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 49.2/20.6
R360 7030005090 S.RES ERJ2GEJ 104 X (100K) T 23/24
R362 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.2/26.4
R363 7030005090 S.RES ERJ2GEJ 104 X (100K) T 26.4/21.3
R364 7030005090 S.RES ERJ2GEJ 104 X (100K) T 29.3/26.7
R366 7030005090 S.RES ERJ2GEJ 104 X (100K) T 19/22.3
R367 7030005090 S.RES ERJ2GEJ 104 X (100K) B 16.8/17.2
R368 7030005090 S.RES ERJ2GEJ 104 X (100K) B 16.8/18.1
R369 7030005090 S.RES ERJ2GEJ 104 X (100K) T 19/20.4
R374 7030005090 S.RES ERJ2GEJ 104 X (100K) B 15.4/26.5
R375 7030005090 S.RES ERJ2GEJ 104 X (100K) B 52.5/12.3
R376 7030005090 S.RES ERJ2GEJ 104 X (100K) T 26.4/20.4

Jun. 2009
17
REF PARTS DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN-A UNIT] (For F4160 series)
R377 7030005120 S.RES ERJ2GEJ 102 X (1K) B 56.6/23
R378 7030005090 S.RES ERJ2GEJ 104 X (100K) T 59.5/7.8
R379 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.8/15.3
R380 7030005090 S.RES ERJ2GEJ 104 X (100K) B 7.5/20
R381 7030005120 S.RES ERJ2GEJ 102 X (1K) T 26.4/18.4
R382 7030010040 S.RES ERJ2GEJ-JPW B 71.4/42.3
C1 4030017420 S.CER ECJ0EC1H470J B 51.8/28.8
C2 4030017620 S.CER ECJ0EC1H100C [11] T 58.6/24.6
4030017620 S.CER ECJ0EC1H100C [12]
4030017620 S.CER ECJ0EC1H100C [13]
4030017380 S.CER ECJ0EC1H050B [14]
4030017380 S.CER ECJ0EC1H050B [15]
4030017620 S.CER ECJ0EC1H100C [16]
4030017620 S.CER ECJ0EC1H100C [17]
4030017620 S.CER ECJ0EC1H100C [18]
4030017380 S.CER ECJ0EC1H050B [19]
4030017380 S.CER ECJ0EC1H050B [20]
4030017620 S.CER ECJ0EC1H100C [21]
4030017620 S.CER ECJ0EC1H100C [22]
4030017620 S.CER ECJ0EC1H100C [23]
4030017380 S.CER ECJ0EC1H050B [24]
4030017620 S.CER ECJ0EC1H100C [25]
4030017620 S.CER ECJ0EC1H100C [26]
4030017380 S.CER ECJ0EC1H050B [27]
C3 4030017430 S.CER ECJ0EC1H101J T 57.9/20.1
C4 4030016930 S.CER ECJ0EB1A104K B 55/23
C5 4030016930 S.CER ECJ0EB1A104K B 53/20
C7 4030017460 S.CER ECJ0EB1E102K B 53.9/20
C9 4030017420 S.CER ECJ0EC1H470J B 62.7/17.5
C10 4030016930 S.CER ECJ0EB1A104K B 50.5/14.9
C11 4030017420 S.CER ECJ0EC1H470J B 51.4/14.9
C12 4030017420 S.CER ECJ0EC1H470J B 50.5/17.1
C13 4030017420 S.CER ECJ0EC1H470J B 51.4/17.1
C14 4030006900 S.CER C1608 JB 1H 103K-T B 65.4/19.6
C16 4550000550 S.TAN TEESVA 1V 224M8R B 67.7/24.4
C17 4030017460 S.CER ECJ0EB1E102K B 63/14.7
C18 4030017460 S.CER ECJ0EB1E102K B 66.9/13.7
C19 4550000510 S.TAN TEESVA 1V 473M8R B 67.7/22.3
C21 4030017420 S.CER ECJ0EC1H470J B 64/8.5
C22 4030017420 S.CER ECJ0EC1H470J T 63.6/13.6
C23 4030017460 S.CER ECJ0EB1E102K B 66.9/18.6
C24 4030017590 S.CER ECJ0EC1H070C [11] T 66.2/10.8
4030017590 S.CER ECJ0EC1H070C [12]
4030017590 S.CER ECJ0EC1H070C [13]
4030017580 S.CER ECJ0EC1H060C [14]
4030017580 S.CER ECJ0EC1H060C [15]
4030017590 S.CER ECJ0EC1H070C [16]
4030017590 S.CER ECJ0EC1H070C [17]
4030017590 S.CER ECJ0EC1H070C [18]
4030017580 S.CER ECJ0EC1H060C [19]
4030017580 S.CER ECJ0EC1H060C [20]
4030017590 S.CER ECJ0EC1H070C [21]
4030017590 S.CER ECJ0EC1H070C [22]
4030017590 S.CER ECJ0EC1H070C [23]
4030017580 S.CER ECJ0EC1H060C [24]
4030017590 S.CER ECJ0EC1H070C [25]
4030017590 S.CER ECJ0EC1H070C [26]
4030017580 S.CER ECJ0EC1H060C [27]
C25 4030017620 S.CER ECJ0EC1H100C [11] T 67.3/9.8
4030017620 S.CER ECJ0EC1H100C [12]
4030017620 S.CER ECJ0EC1H100C [13]
4030017590 S.CER ECJ0EC1H070C [14]
4030017590 S.CER ECJ0EC1H070C [15]
4030017620 S.CER ECJ0EC1H100C [16]
4030017620 S.CER ECJ0EC1H100C [17]
4030017620 S.CER ECJ0EC1H100C [18]
4030017590 S.CER ECJ0EC1H070C [19]
4030017590 S.CER ECJ0EC1H070C [20]
4030017620 S.CER ECJ0EC1H100C [21]
4030017620 S.CER ECJ0EC1H100C [22]
4030017620 S.CER ECJ0EC1H100C [23]
4030017590 S.CER ECJ0EC1H070C [24]
4030017620 S.CER ECJ0EC1H100C [25]
4030017620 S.CER ECJ0EC1H100C [26]
4030017590 S.CER ECJ0EC1H070C [27]
C26 4030017570 S.CER ECJ0EC1H040B [11] T 67.7/8.6
4030017570 S.CER ECJ0EC1H040B [12]
4030017570 S.CER ECJ0EC1H040B [13]
4030017350 S.CER ECJ0EC1H020B [14]
4030017350 S.CER ECJ0EC1H020B [15]
4030017570 S.CER ECJ0EC1H040B [16]
4030017570 S.CER ECJ0EC1H040B [17]
4030017570 S.CER ECJ0EC1H040B [18]
4030017350 S.CER ECJ0EC1H020B [19]
4030017350 S.CER ECJ0EC1H020B [20]
4030017570 S.CER ECJ0EC1H040B [21]
4030017570 S.CER ECJ0EC1H040B [22]
4030017570 S.CER ECJ0EC1H040B [23]
4030017350 S.CER ECJ0EC1H020B [24]
4030017570 S.CER ECJ0EC1H040B [25]
4030017570 S.CER ECJ0EC1H040B [26]
4030017350 S.CER ECJ0EC1H020B [27]
C27 4030017630 S.CER ECJ0EC1H120J T 70.4/10.8
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS DESCRIPTION M. H/V
NO. NO. LOCATION
[MAIN-A UNIT] (For F4160 series)
C28 4030017380 S.CER ECJ0EC1H050B [11] T 71.3/9.8
4030017380 S.CER ECJ0EC1H050B [12]
4030017380 S.CER ECJ0EC1H050B [13]
4030017360 S.CER ECJ0EC1H030B [14]
4030017360 S.CER ECJ0EC1H030B [15]
4030017380 S.CER ECJ0EC1H050B [16]
4030017380 S.CER ECJ0EC1H050B [17]
4030017380 S.CER ECJ0EC1H050B [18]
4030017360 S.CER ECJ0EC1H030B [19]
4030017360 S.CER ECJ0EC1H030B [20]
4030017380 S.CER ECJ0EC1H050B [21]
4030017380 S.CER ECJ0EC1H050B [22]
4030017380 S.CER ECJ0EC1H050B [23]
4030017360 S.CER ECJ0EC1H030B [24]
4030017380 S.CER ECJ0EC1H050B [25]
4030017380 S.CER ECJ0EC1H050B [26]
4030017360 S.CER ECJ0EC1H030B [27]
C29 4030017600 S.CER ECJ0EC1H080C [11] T 72.1/8.6
4030017600 S.CER ECJ0EC1H080C [12]
4030017600 S.CER ECJ0EC1H080C [13]
4030017570 S.CER ECJ0EC1H040B [14]
4030017570 S.CER ECJ0EC1H040B [15]
4030017600 S.CER ECJ0EC1H080C [16]
4030017600 S.CER ECJ0EC1H080C [17]
4030017600 S.CER ECJ0EC1H080C [18]
4030017570 S.CER ECJ0EC1H040B [19]
4030017570 S.CER ECJ0EC1H040B [20]
4030017600 S.CER ECJ0EC1H080C [21]
4030017600 S.CER ECJ0EC1H080C [22]
4030017600 S.CER ECJ0EC1H080C [23]
4030017570 S.CER ECJ0EC1H040B [24]
4030017600 S.CER ECJ0EC1H080C [25]
4030017600 S.CER ECJ0EC1H080C [26]
4030017570 S.CER ECJ0EC1H040B [27]
C30 4030016930 S.CER ECJ0EB1A104K T 73.4/13.4
C31 4030017460 S.CER ECJ0EB1E102K T 71.4/13.4
C32 4030017710 S.CER ECJ0EC1H181J T 71.4/19.9
C33 4030017620 S.CER ECJ0EC1H100C T 73.4/19.9
C34 4030017640 S.CER ECJ0EC1H150J T 70.4/17.3
C35 4030017600 S.CER ECJ0EC1H080C [11] T 71.3/16.3
4030017600 S.CER ECJ0EC1H080C [12]
4030017600 S.CER ECJ0EC1H080C [13]
4030017570 S.CER ECJ0EC1H040B [14]
4030017570 S.CER ECJ0EC1H040B [15]
4030017600 S.CER ECJ0EC1H080C [16]
4030017600 S.CER ECJ0EC1H080C [17]
4030017600 S.CER ECJ0EC1H080C [18]
4030017570 S.CER ECJ0EC1H040B [19]
4030017570 S.CER ECJ0EC1H040B [20]
4030017600 S.CER ECJ0EC1H080C [21]
4030017600 S.CER ECJ0EC1H080C [22]
4030017600 S.CER ECJ0EC1H080C [23]
4030017570 S.CER ECJ0EC1H040B [24]
4030017600 S.CER ECJ0EC1H080C [25]
4030017600 S.CER ECJ0EC1H080C [26]
4030017570 S.CER ECJ0EC1H040B [27]
C36 4030017630 S.CER ECJ0EC1H120J [11] T 71.7/15.1
4030017630 S.CER ECJ0EC1H120J [12]
4030017630 S.CER ECJ0EC1H120J [13]
4030017590 S.CER ECJ0EC1H070C [14]
4030017590 S.CER ECJ0EC1H070C [15]
4030017630 S.CER ECJ0EC1H120J [16]
4030017630 S.CER ECJ0EC1H120J [17]
4030017630 S.CER ECJ0EC1H120J [18]
4030017590 S.CER ECJ0EC1H070C [19]
4030017590 S.CER ECJ0EC1H070C [20]
4030017630 S.CER ECJ0EC1H120J [21]
4030017630 S.CER ECJ0EC1H120J [22]
4030017630 S.CER ECJ0EC1H120J [23]
4030017590 S.CER ECJ0EC1H070C [24]
4030017630 S.CER ECJ0EC1H120J [25]
4030017630 S.CER ECJ0EC1H120J [26]
4030017590 S.CER ECJ0EC1H070C [27]
C37 4030017380 S.CER ECJ0EC1H050B [11] T 67.7/15.1
4030017380 S.CER ECJ0EC1H050B [12]
4030017380 S.CER ECJ0EC1H050B [13]
4030017360 S.CER ECJ0EC1H030B [14]
4030017360 S.CER ECJ0EC1H030B [15]
4030017380 S.CER ECJ0EC1H050B [16]
4030017380 S.CER ECJ0EC1H050B [17]
4030017380 S.CER ECJ0EC1H050B [18]
4030017360 S.CER ECJ0EC1H030B [19]
4030017360 S.CER ECJ0EC1H030B [20]
4030017380 S.CER ECJ0EC1H050B [21]
4030017380 S.CER ECJ0EC1H050B [22]
4030017380 S.CER ECJ0EC1H050B [23]
4030017360 S.CER ECJ0EC1H030B [24]
4030017380 S.CER ECJ0EC1H050B [25]
4030017380 S.CER ECJ0EC1H050B [26]
4030017360 S.CER ECJ0EC1H030B [27]
