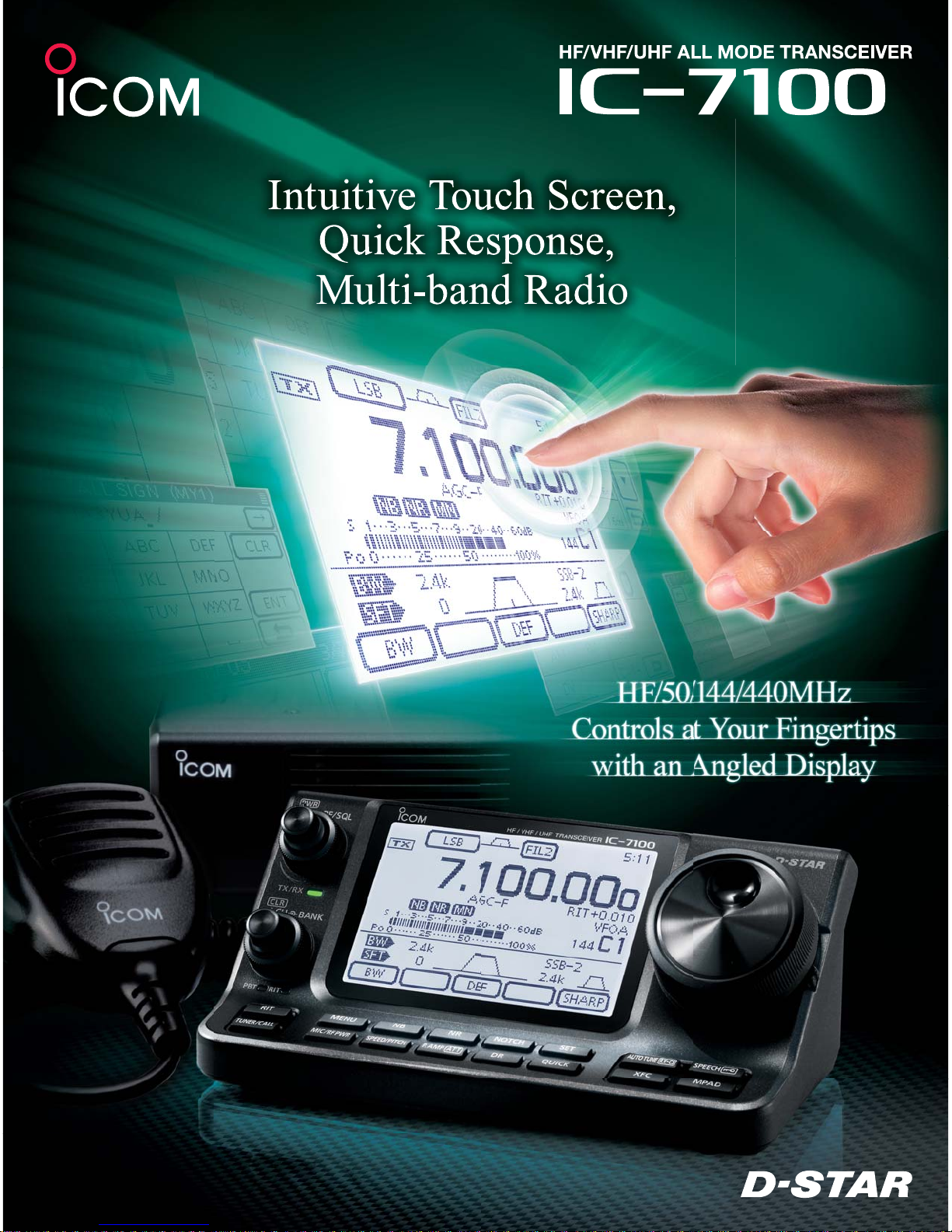

Icom IC-7100 User manual


Intuitive Touch Screen,
Quick Response, Multi-band Radio
Fingertip Controls
Angled Display
75.9 m
75.9 m
m
m
; 2.99 in
;2.99in
48.6 mm;
1.91 in
SPEAKER
Controller Rear Panel View
PHONES/SP
ELEC-KEY
MIC
MAIN UNIT
Intuitive Touch Screen Interface
The innovative touch screen interface provides quick and smooth
operation for setting and editing various functions and memories.
Controller
Main unit
Main unit
Touch Screen Control Portal
The radio control head features a large, multi-function, "touch screen"'
dot-matrix LCD display that is positioned for easy view and operation.
The controller is compact in size, making it ideal for limited vehicle or
desktop space.
For example, if you want to change the operating
band, tap the frequency on the display. The band keys
will be shown to select the operating band. Touching
the multi-function meter indicator for 1 second will
quickly change the transmit meter functions.
One Touch Selection
Resistive
Touch Screen
The 48.6×75.9 mm; 1.91×2.99 in
large resistive touch screen
display can be operated while
wearing gloves.
Controller Mounted Speaker and Jacks
The unique remote head design is
perfect for providing loud, clear
audio as well as jacks for an external
speaker/headphones as well as a key
and microphone.
Straight Forward Operation
Just tap the mode, filter, function
etc, you need to change. The touch
screen responds naturally, changing
your settings.
Software Keypad
Entering frequency, callsign or editing
memory channels has never been
this easy. The software keypad on the
touch screen allows you to input
alphanumeric characters incredibly
quickly.
H:64 mm;
2.52 in
D:78.5 mm; 3.09 in
W:165 mm; 6.5 in
Separation cable
(Up to 5m; 16ft with option OPC-2254
)

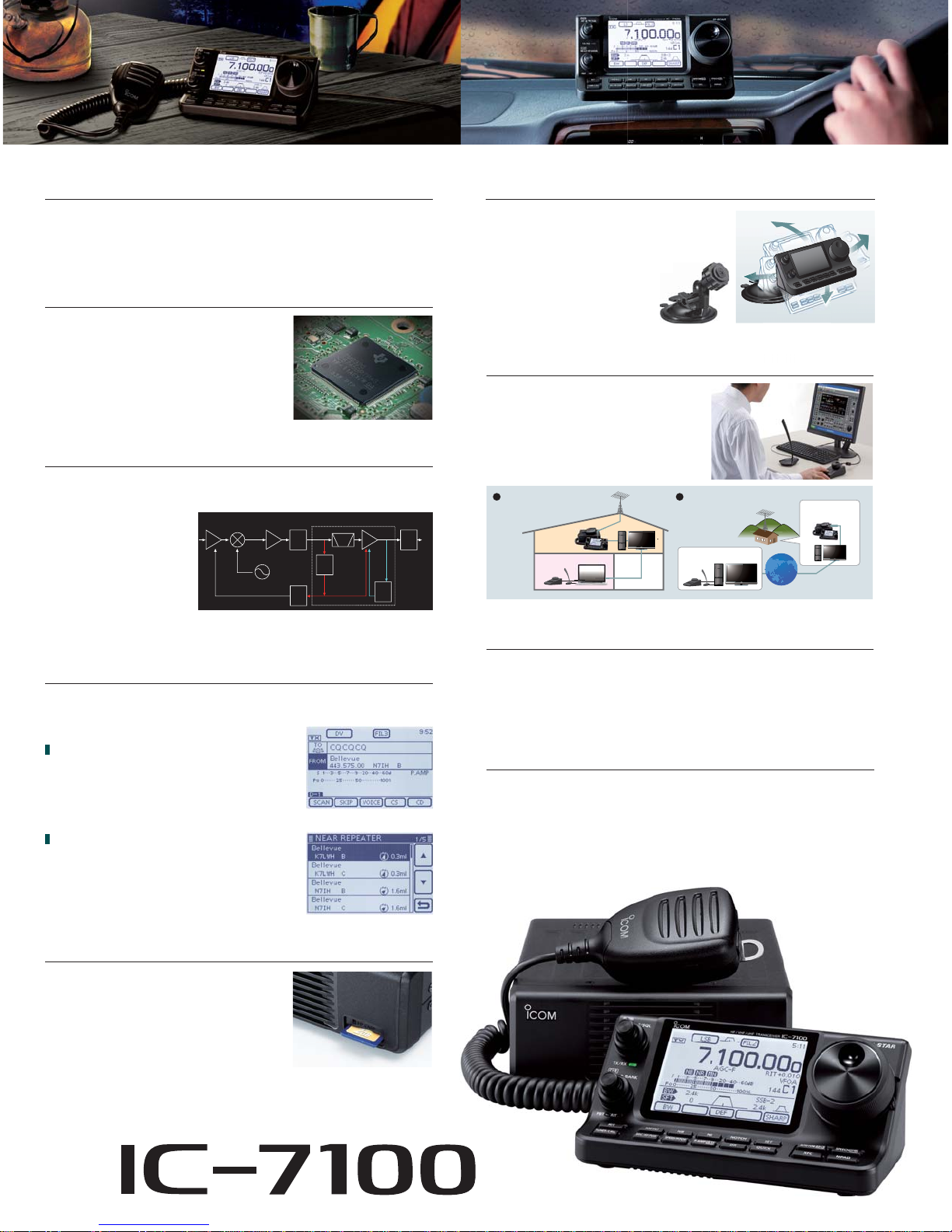

HF/VHF/UHF ALL MODE TRANSCEIVER
HF/50/144/430/440MHz Multi-band, Multi-mode
The IC-7100 fully covers the HF, 50, 144, 430/440 MHz amateur bands in
multiple modes, providing 100W on HF/50MHz bands, 50W on 144MHz
band and 35W on 430/440MHz band.
●CW full break-in, CW receive reverse, CW auto tuning ●Optional multi-function microphone,
HM-151●Band scope and SWR graphic display ●RF speech compressor controlled by the DSP
●Voice memory function ●Multi-function Meter ●495 regular, 4 call, 6 scan edge and 900
DR mode repeater channels ●4 channels TX voice memories ●±0.5ppm frequency stability
●Auto reply function* ●Digital callsign squelch and digital code squelch* ●12.5 k Hz I F o ut pu t
for DRM
(
Digital Radio Mondiale
)
receive
* D-STAR DV mode only
Other Features
AGC function loop
IF
AMP
IF
AMP AMP
AD DA
DA
AGC
DET
AGC
DET
AFBPF
455kHz 36kHz
AGC loop
DSP
DSP Controlled AGC Function Loop
The digital signal processing is incorporated into the AGC function loop.
The results of signal processing provide feedback to the AGC function.
The AGC function works on the
intended signal and produces
a constant audio output.
The AGC time constants are
flexibly adjustable from slow,
middle, fast (or AGC off) for
each operating mode.
Digital Features Controlled by the IF DSP
A high-performance 32-bit floating point IF
DSP delivers rich digital signal processing
features, including digital IF filter, digital
twin PBT, noise reduction, CW auto tune, etc.
Those digital features work on all bands from
HF to V/UHF bands.
32-bit floating point IF DSP
SD Memory Card Slot for Saving Data
When used with an SD card, the SD card can
store various contents including voice memory,
memory channels, D-STAR repeater memories
and other personal settings can be saved to the
SD card and can be loaded to the transceiver.
SD memory card slot
Near Repeater Function
With an external, 3rd party GPS*, search the internal
database based on your location.
* External GPS receiver or manual data input required.
DR
(
D-STAR Repeater
)
Mode Operation
The DR mode operation makes the D-STAR operation
simple and straight forward, even if you are new to
D-STAR operation.
D-STAR DV Mode
(
Digital Voice + Data
)
The IC-7100 provides D-STAR DV mode digital voice and low speed data
communication.
DR mode display
Near repeater function
Built-in RTTY Functions
The built-in RTTY decoder allows you to instantly read an RTTY message on
the display. No external TNC or PC required for reading. The eight RTTY
memories can memorize and transmit often used RTTY sentences. The RTTY
memory is 70 character per memory channel.
Optional RS-BA1 IP Remote Control Software
The optional RS-BA1 software allows you
to operate the IC-7100 from a remote PC
over the Internet or local home network.
IP Remote Control
through your Home Network
IP Remote Control
over the Internet
RS-BA1
RS-BA1
RS-BA1
IP Network
RS-BA1
Remote location
Tr a n s c e i v e r l o c a t i o n
Internet
RC-28
IC-7100
IC-7100
RC-28
MBF-1
Easy Vehicle Mounting with Optional MBF-1
The combination of the optional MBF-1 suction
cup mounting base and MBA-1 controller bracket
provides easy tilt and swivel adjustments for
mobile operation. The large suction
cup can mount to dashboards or
other flat surfaces and can be
removed easily.
i
on
ac
k
et
t
s fo
r
tware

More than Less than
SSB
(
BW=2.4kHz, sharp
)
2.4kHz/–6dB 3.4kHz/–40dB
CW
(
BW=500Hz, sharp
)
500Hz/–6dB 700Hz/–40dB
RTTY
(
BW=500Hz
)
500Hz/–6dB 800Hz/–40dB
AM
(
BW=6kHz
)
6.0kHz/–6dB 10kHz/–40dB
FM
(
BW=15kHz
)
12kHz/–6dB 22kHz/–40dB
DV
(
12.5kHz spacing
)
–50dB
–
13GS016A © 2013 Icom Inc.
HF/VHF/UHF ALL MODE TRANSCEIVER
SPECIFICATIONS
GENERAL
Frequency coverage*1
(
Unit: MHz
)
Receiver 0.030–199.999*2
400.000–470.000
*2
Transm it
1.800–1.999 3.500–3.999
5.255–5.405*2
7.000–7.300
10.100–10.150 14.000 –14.350
18.068–18.168
21.000–21.450
24.890–24.990 28.000–29.700
50.000–54.000
144.000–148.000
430.000–450.000
*1 Showing USA version. Varies according to version.
*2 Some frequency bands are not guaranteed.
Mode USB, LSB, CW, RTTY, AM, DV, FM, WFM
(
Rx only
)
No of memory channels 495 regular, 4 call, 6 scan edges, 900 D-STAR repeater channels
Antenna connector SO-239×2
(
one each for HF/50MHz and 144/430/440MHz, 50
)
Operating Temp. range –10°C to +60°C; +14°F to +140°F
Frequency stability ±0.5ppm
(
0°C to +50°C @ 430MHz
)
Power supply requirement
13.8V DC ±15%
Current drain
TX
(
Max. power
)
: 22A
(
HF/50MHz
),
16A
(
144/440MHz
)
(
at 13.8V DC
)
RX
(
Max. audio/standby
)
: 1.2A/0.9A
Dimensions
(
W×H×D, Main unit 167×58×225 mm; 6.57×2.28×8.86 in
projections not included
)
Controller 165×64×78.5 mm; 6.5×2.52×3.09 in
Weight
(
approx.
)
Main unit 2.3 kg; 5.1 lb Controller 0.5 kg; 1.1 lb
TRANSMITTER
Output power
(
at 13.8V DC
)
Modulation system
SSB : Digital P.S.N. modulation, AM : Digital low power modulation
FM : Digital phase modulation, DV : GMSK digital phase modulation
Spurious emissions Less than –50dB
(
HF bands
)
, Less than –63dB
(
50MHz
)
Less than –60dB
(
144/430/440MHz
)
Carrier suppression More than 50dB
Unwanted sideband More than 50dB
HF/50MHz 144MHz 430/440MHz
SSB/CW/RTTY/FM/DV 2–100W 2–50W 2–35W
AM 1–30W – –
RECEIVER
Intermediate frequencies
SSB/CW/AM/FM/RTTY/DV
124.487MHz, 455kHz, 36kHz
WFM
134.732MHz, 10.700MHz
Selectivity
Spurious and image More than 70dB
(
HF/ 50MHz
)
, More than 65dB
(
144/430/440MHz
)
rejection ratio
(
except 1/2 IF through on 50MHz, IF through on 144MHz
)
Audio output power More than 2.0W
(
10% distortion, 8 load, 13.8V DC
)
All stated specifications are subject to change without notice or obligation.
Supplied accessories:
(
* May differ depending on version
)
•Hand microphone, HM-198 •DC power cable •CW keyer plug • Spare fuses
•Separation cable, OPC-2253 •13-pin plug ACC cable •USB cable • Ferrite bead*
•OPC-599 CABLE ADAPTER
Converts 13-pin ACC connector to 7-pin + 8-pin
ACC connector for connection with IC-PW1.
•OPC-1529R DATA CABLE for DV mode
Data 1 Jack (IC-7100) to RS-232C cable.
•OPC-2218LU DATA CABLE for DV mode
Data 1 Jack (IC-7100) to USB cable.
OPTIONS Some options may not be available in some countries. Please ask your dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated
(
Japan
)
in the United States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries.
All other trademarks are the properties of their respective holders.
D-STAR
(
Digital Smart Technology for Amateur Radio
)
is a digital radio protocol developed by JARL
(
Japan Amateur Radio League
)
.
Antennna connector
for 144/430/440MHz
Microphone
connector
External speaker jack
CI-V remote jack
Data2 jack Data1 jack
USB connector
ACC socket
Keyer jack
Controller
connector
Antennna connector
for HF/50MHz Tuner socket
GND
DC power socket
Rear Panel View
(
Main unit
)
Sensitivity
(
HF: Preamp-1 ON, 50MHz: Preamp-2 ON, 144/430/440MHz: Preamp ON
)
0.5–1.8MHz
1.8–29.9MHz
50–54MHz
144/430/440MHz
SSB/CW – 0.15μV 0.12μV 0.11μV
AM 13μV 2μV 1μV 1μV
FM 0.5μV
(
28–29.7MHz
)
0.25μV 0.18μV
DV 1μV
(
28–29.7MHz
)
0.63μV 0.35μV
WFM – – 10μV
(
76–108MHz
)
• CS-7100 CLONING SOFTWARE
•CT-17 CI-V LEVEL CONVERTER
•OPC-2253
SEPARATION CABLE 3.5m
(
11ft
)
•OPC-2254
SEPARATION CABLE 5m
(
16ft
)
• OPC-2321 CONTROL CABLE ADAPTER FOR
AH-740
• OPC-589 MODULAR 8-PIN CABLE ADAPTER
DESKTOP MICROPHONES
PS-126
DC POWER SUPPLY
13.8V DC, 25A max.
HM-151
Remote-
control microphone
HAND MICROPHONES
Covers 3.5–54MHz with a 7m
(
23ft
)
or longer wire antenna.
AH-4 HF+50MHz AUTO-
MATIC ANTENNA TUNER
Covers 7–54MHz. Use with AH-4.
Covers 2.5-30MHz
(
amateur band
)
.
OPC-2321 is required.
IC-PW1 HF+50MHz 1kW HF LINEAR AMPLIFIER
AH-2b ANTENNA
ELEMENT
AH-740
AUTOMATIC
TUNING
ANTENNA
HM-198
Same as supplied
AT-180 HF+50MHz
AUTOMATIC ANTENNA
TUNER
SP-35
EXTERNAL
SPEAKER
MOUNTING BRACKETS
MBF-1 Mounting
base for the controller.
MBA-1 is required.
MB-62 Mobile
mounting bracket
for the main unit.
MBA-1
Controller
bracket
RS-BA1 IP REMOTE
CONTROL SOFTWARE
RC-28 USB REMOTE
ENCODER
HM-103
Compact type
HM-36
OPC-589 is required.
OPC-599 is required.
For use with RS-BA1
SM-50 Dynamic mic
OPC-589 is required.
SM-30
OPC-589 is required.
AH-5NV NVIS KIT
Fiberglass mobile mounting antenna element for
use with AH-740. Covers 2.2-30MHz
(
amateur band
)
with AH-740.
1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013
Count on us!
www.icom.co.jp/world
Printed in Japan
2380 116th Avenue NE,
Bellevue, WA 98004, U.S.A.
Phone : +1 (425)454-8155
Fax : +1
(425)454-1509
URL : http://www.icomamerica.com
Unit 1 / 103 Garden Road,
Clayton, VIC 3168 Australia
Phone : +61 (03) 9549 7500
Fax : +61 (03) 9549 7505
URL : http://www.icom.net.au
Blacksole House, Altira Park,
Herne Bay, Kent, CT6 6GZ, U.K.
Phone : +44 (0) 1227 741741
Fax : +44 (0) 1227 741742
URL : http://www.icomuk.co.uk
Zac de la Plaine,
1 Rue Brindejonc des Moulinais, BP 45804,
31505 Toulouse Cedex 5, France
Phone : +33 (5) 61 36 03 03
Fax : +33 (5) 61 36 03 00
URL : http://www.icom-france.com
Ctra. Rubi, No. 88 "Edificio Can Castanyer"
Bajos A 08174, Sant Cugat del Valles,
Barcelona, Spain
Phone : +34 (93)590 26 70
Fax : +34
(93)589 04 46
URL : http://www.icomspain.com
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062
Fax : +64 (09) 274 4708
URL : http://www.icom.co.nz
Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : +1 (604)952-4266
Fax : +1
(604)952-0090
URL : http://www.icomcanada.com
Your local distributor/dealer:
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
URL : http://www.asia-icom.com
80-286 Gdansk, Jaskowa Dolina St. 75, Poland
Phone : +48 (58)551 0484
Fax : +48
(58)551 4720
URL : http://www.icompolska.com.pl
Rua Itororó, 444 Padre Eustáquio
Belo Horizonte MG,
CEP: 30130-150, Brazil
Phone : +55 (31)3582 8847
Fax : +55
(31)3582 8987
Communication Equipment
Auf der Krautweide 24
65812 Bad Soden am Taunus, Germany
Phone : +49 (6196) 76685-0
Fax : +49 (6196) 76685-50
URL : http://www.icomeurope.com
No.101, Building 9, Caifuxingyuan Park,
No.188 Maoting Road, Chedun Town,
Songjiang District, Shanghai, 201611, China
Phone : +86 (021) 6153 2768
Fax : +86 (021) 5765 9987
URL : http://www.bjicom.com
Other manuals for IC-7100
10
Table of contents
Other Icom Transceiver manuals

Icom
Icom IC-F3GT User manual

Icom
Icom IC-H10 User manual

Icom
Icom IC-706MKIIG User manual

Icom
Icom I706MKTMG User manual

Icom
Icom IC-7000 Instruction Manual

Icom
Icom IC-M401E User manual

Icom
Icom IC-737 User manual

Icom
Icom IC-3210A User manual

Icom
Icom ID-5100E Installation guide

Icom
Icom IC-2GAT User manual

Icom
Icom ID-880H User manual

Icom
Icom IC-F5120D Series User manual

Icom
Icom i9100 User manual

Icom
Icom IC-2820H User manual

Icom
Icom IC-A110EURO User manual

Icom
Icom IC-V8000 User manual

Icom
Icom ID-5100A Installation instructions

Icom
Icom IC-F9011B User manual

Icom
Icom iF3031S User manual

Icom
Icom IC-3200A User manual
