PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TX/RX
1234
P0 P1 P2 P3
q
e
SpeakerFunction LED (p. 2)
rw
■Front panel
qAF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the audio output level.
 •Minimumaudiolevelispre-set.(p.10)
wMICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
e DEALER-PROGRAMMABLE KEYS
Desired functions can be independently programmed by
your dealer. (p. 3)
rPOWER KEY [ ]
Push to turn the power ON or OFF.
 •ThefollowingoptionalfunctionsareavailableatpowerON:
- Automatic scan start
- Password prompt
- User Set mode

2
1PANEL DESCRIPTION
■Function LED
q CHANNEL INDICATORS
➥Indicates the operating channel.
➥Blinks when receiving a signal during a scan.
➥All LEDs blink while entering the power ON password.
w TX/RX INDICATOR
➥Lights red while transmitting.
➥Lights green while the channel is busy (receiving).
➥Blinks orange when the specified 2-tone, 5-tone call is
received.
➥Alternately blinks green and red when a cloning error
has occurred.
e ACTIVATED KEY INDICATORS (P0/P1/P2)
Lights when a pre-programmed key function is activated.
NOTE: When the supplied DC voltage is high, all LEDs
blink
. Check the DC voltage.
DMICROPHONE
The supplied or optional microphone has a PTT switch and
a hanger hook.
•ThefollowingfunctionsareavailablewhenthemicrophoneisONor
OFFhook(dependingonthepreprogramming):
- Automatic scan start when you put it ON hook.
- Scan is cancelled when you take it OFF hook
- Scan is paused when you take it OFF hook
- Automatically selects the Priority A channel when you take it OFF
hook.
- Sets to ‘Inaudible’ mode (muted state) when you put it ON hook.
- Sets to ‘Audible’ mode (unmuted state) when you take it OFF
hook.
TX/RX
1234
q
we

3
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Programmable function keys
The following functions can be assigned to [P0], [P1], [P2]
and [P3] programmable function keys.
Consult your Icom dealer or system operator for details con-
cerning your transceivers programming.
CH UP AND DOWN KEYS
Push to select an operating channel.
SCAN A START/STOP KEY
Push to start or cancel a scan.
SCAN B START/STOP KEY
Push to start or cancel a scan.
When a scan started with the Power ON Scan or by pushing
this key, push to cancel it. If the scan is cancelled except
by pushing this key, the cancelled scan resumes after the
specified time period.
SCAN ADD/DEL (TAG) KEY
While scan is paused by a detected signal, on a channel
other than a priority channel, push this key to clear the chan-
nel from the scan list.
Depending on the preprogramming, the cleared channel is
added to the scan list again after the scan is cancelled.
PRIO A/B KEYS
➥Push to select Priority Channel A or B.
➥To rewrite the operating channel as Priority A or Priority
B, hold down [Prio A (Rewrite)] or [Prio B (Rewrite)] for
1 second.
MR-CH 1/2/3/4 KEYS
Push to directly select memory channels 1 to 4.
MONI (AUDI) KEY
➥Push to turn the CTCSS (DTCS) or 2/5-tone squelch Mute
ON or OFF.
 •OnlyduringLMRoperation,holddowntoopenanysquelch
functions, or deactivate any mute functions.
 •OnlyduringPMRoperation,pushtoactivateoneortwoofthe
following functions* on each channel.
- Hold down to unmute the channel (Audible mode).
- Push to mute the channel (Inaudible mode).
- Push to send a ‘reset code’ after the communication is fin-
ished.
*Ask your dealer for details.
NOTE: After a specified period, the un-muted state (‘Au-
dible’ mode) may automatically return to the muted state
(‘Inaudible’ mode), depending on the preprogramming.
➥Hold down this key for 1 second to cancel a scan, depend-
ing on the preprogramming.

4
1PANEL DESCRIPTION
■Programmable function keys (continued)
LOCK KEY
Hold down to electronically lock all programmable keys ex-
ceptthefollowing:
[Moni(Audi)], [Lock], [Call] (incl. Call A and Call B), [Emer-
gency], [Surveillance], [Siren], [Lone Worker] and [OPT 1/2/3].
LONE WORKER KEY
Push to turn the Lone Worker function ON or OFF.
•IftheLoneWorkerfunctionisactivated,theEmergencyfunctionis
automatically turned ON after the specified time period has passed
with no operation performed.
HIGH/LOW KEY
Push to select the transmit output power level temporarily or
permanently, depending on the preprogramming.
•Askyourdealerfortheoutputpowerlevelforeachselection.
TALK AROUND KEY
Push to turn the talk around function ON or OFF.
•Thetalkaroundfunctionequalizesthetransmitfrequencytothe
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
•Thewidepassbandwidthcanbeselectedfrom25.0or20.0kHz
using the CS-F3020/F5010/F5020 cloning software. (PMR op-
eration only) Ask your dealer for details.
DTMF AUTODIAL KEY
Push to transmit a DTMF code.
RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
•TXmemoriesareclearedafterturningOFFthetransceiver.
CALL KEYS
Push to transmit a 2/5-tone ID code.
•Tonecalltransmissionmaybenecessarybeforeyoucallanother
station, depending on your signalling system.
•[CallA]and/or[CallB]maybeselectablewhenyoursystemem-
ploys selective ‘Individual/Group’ calls. Ask your dealer which call
is assigned to each key.
EMERGENCY KEY
Hold down for a specified period to transmit an emergency
call.
•Beepssoundwhentheemergencycallistransmitted.
•Thetransceivercantransmitanemergencycallwithoutthebeep
sounding and the LED indicator lighting. Ask your dealer for de-
tails.
•Ifyouwanttocanceltheemergencycall,holddownthekeyagain,
before transmitting the call.
•Theemergencycallistransmittedonlyonetime,orrepeatedlyuntil
receiving an acknowledgement signal, or until the power is turned
OFF.
When a matched 5-tone code signal is received, the emergency
function can be cancelled depending on the presetting. (PMR op-
eration only)

5
1
PANEL DESCRIPTION
1
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beeps do not sound
the LED does not light when a signal is received or a key is
pushed.
SIREN
Hold down for 1 second to sound the siren.
This function can be used for situations other than an emer-
gency alert, such as a security alarm for example.
•ThesirencanonlybestoppedbyturningOFFthetransceiver
power.
SCRAMBLER KEY
Push to turn the voice scrambler function ON or OFF.
HOOK SCAN
When the Hook Scan function is pre-programmed, push this
key to temporarily disable the function. Push this key again to
enable the function.
USER SET MODE KEY
➥Hold down for 1 second to enter the User Set mode.
 •DuringUserSetmode,pushthiskeytoselectanitem*,and
change the value or setting using [P2]/[P3].
*Selectable items may differ depending on the pre-setting.
➥ Hold down this key for 1 second again to exit the User Set
mode.
OPT 1/2/3 OUT KEYS
Push to output the control signal to option connector. Ask
your dealer for details.
OPT 1/2/3 MOMENTARY KEYS
Outputs the control signal to the option connector while hold-
ing down this key. Ask your dealer for details.

6
1PANEL DESCRIPTION
■Programmable function keys (continued)
Ext. CH Sel Mode KEY
Push to turn the Ext. CH Select function ON or OFF.
When the function is turned ON, memory channels can be
selected with external input operation only.
When the function is turned OFF, memory channels can be
selected with [CH Up] or [CH Down] operation, or with exter-
nal input operation.
•Thisfunctionisavailablewhentheexternalunit,suchasadimmer
control is connected to the transceiver with the optional OPC-1939
or OPC-2078 cable (p. 16).
•Askyourdealerfordetailsofexternalinputoperation.

7
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Turning ON the power
qPush [ ] to turn ON the power.
wIf the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
 •Thekeysshownbelowcanbeusedforpasswordinput:
The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.
eIf all channel indicator LEDs still blink after inputting 4 dig-
its, the input code number may be incorrect. Turn OFF the
power and re-enter your password.
■Channel selection
There are several methods to select channels, and they may
differ, according to your system set up.
Push [CH Up] or [CH Down] to sequentially select the desired
operating channel, or push one of the [MR-CH 1] to [MR-CH 4]
keys to select a channel directly.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turn-
ing ON power, the transceiver automatically starts scanning.
Scanning stops when a signal is detected.
KEY
NUMBER 0
5
4
9
3
8
2
7
1
6
P0 P1 P2 P3

8
2BASIC OPERATION
■Call procedure
When your system employs tone signaling (excluding CTCSS
and DTCS), a call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec-
tive calling system which allows you to call specific station(s)
only and prevents unwanted stations from contacting you.
qSelect the desired TX code channel and a 2/5-tone code,
according to your System Operator’s instructions.
 •Thismaynotbenecessary,dependingonthepreprogram-
ming.
 •Refertopages9and10forselection.
wPush [Call] (assigned to one of the dealer programmable
keys).
eAfter transmitting, the remainder of your communication
can be carried out in the normal fashion.
Selective calling Non-selective calling
■Receiving and transmitting
Receiving:
qHold down []for 1 second to turn ON the power.
wPush [CH Up] or [CH Down] to select a channel.
eWhen receiving a call, rotate [VOL] to adjust the audio out-
put level to a comfortable listening level.
NOTE: Depending on the preprogramming, the transceiver
automatically transmits the microphone audio for the specified
time period* when a matched RX code signal is received.
•HM-148GorHM-152h a n d m i c r o p h o n e is required.
* Depending on the preprogramming. Ask your dealer for details.
Transmitting:
Wait for the channel to become clear to avoid interference.
qTake the microphone off hook.
 •The‘audible’conditionisselected.
 •Aprioritychannelmaybeautomaticallyselected.
wWait for the channel to become clear.
 • The channel is busy when the TX/RX indicator lights green.
eWhile holding down [PTT], speak into the microphone at
your normal voice level.
rRelease [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak into the microphone at a normal
voice level.

9
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DTransmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmissionunderthefollowingconditions:
- The channel is muted (‘Inaudible’ mode)
- The channel is busy.
- Un-matched CTCSS is received.
(Or matched, depending on the preprogramming)
- The selected channel is a ‘receive only’ channel.
• Time-out timer
After continuously transmitting for the pre-programmed time
period, the time-out timer is activated, causing the trans-
ceiver to stop transmitting.
• Penalty timer
Once the time-out timer is activated, transmission is further
inhibited for a period, determined by the penalty timer.
• PTTID call
The transceiver automatically sends the 5-tone, DTMF or
digital ANI ID code when [PTT] is pushed (beginning of the
transmission), and/or when it is released (end of transmis-
sion), depending on the preprogramming.
A PTTID call also be made with the MDC 1200 signal-
ing system. (p. 13)
DDTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the au-
tomatic DTMF transmission function can be used.
Push [DTMF Autodial] to transmit the DTMF code.

10
2BASIC OPERATION
■User Set mode
If the transceiver has [User Set Mode] assigned to it, you can
“customize” the transceiver operation to suit your preferences
and operating style.
Entering the User Set mode:
qHold down [User Set Mode] for 1 second to enter the User
Set mode.
wPush [P0] to select the appropriate item.
Then push [P2] or [P3] to set the desired value or option.
 •IntheUserSetmode,theselectableitemsarepresetbyyour
dealer.Thepresetableitemsare:
<Items> <Value or option>
Backlight :OFF/OFFAuto/OFFAuto2/DimAuto/Dim/ON
Beep :OFF/ON
Beep Level :1to5
SQL Level :0to9
AF Min Level :0to255
Mic Gain :1to5
Horn :OFF/ON
Signal Moni :OFF/ON
Lone Worker :OFF/ON
- Pushing [P3] increases the value, or selects the right side option;
pushing [P2] decreases the value, or selects the left side option.
- When the maximum value or “ON” is selected, an error beep
sounds if [P3] is pushed. When the minimum value or “OFF” is
selected, an error beep sounds if [P2] is pushed.
 •TheChannelindicatorandActivatedkeyindicatorlighttoshow
the selected item, as shown to the right.
ePush and hold [User Set Mode] for 1 second again to exit
the User Set mode.
•Lighting combination of two indicators to show the se-
lected item

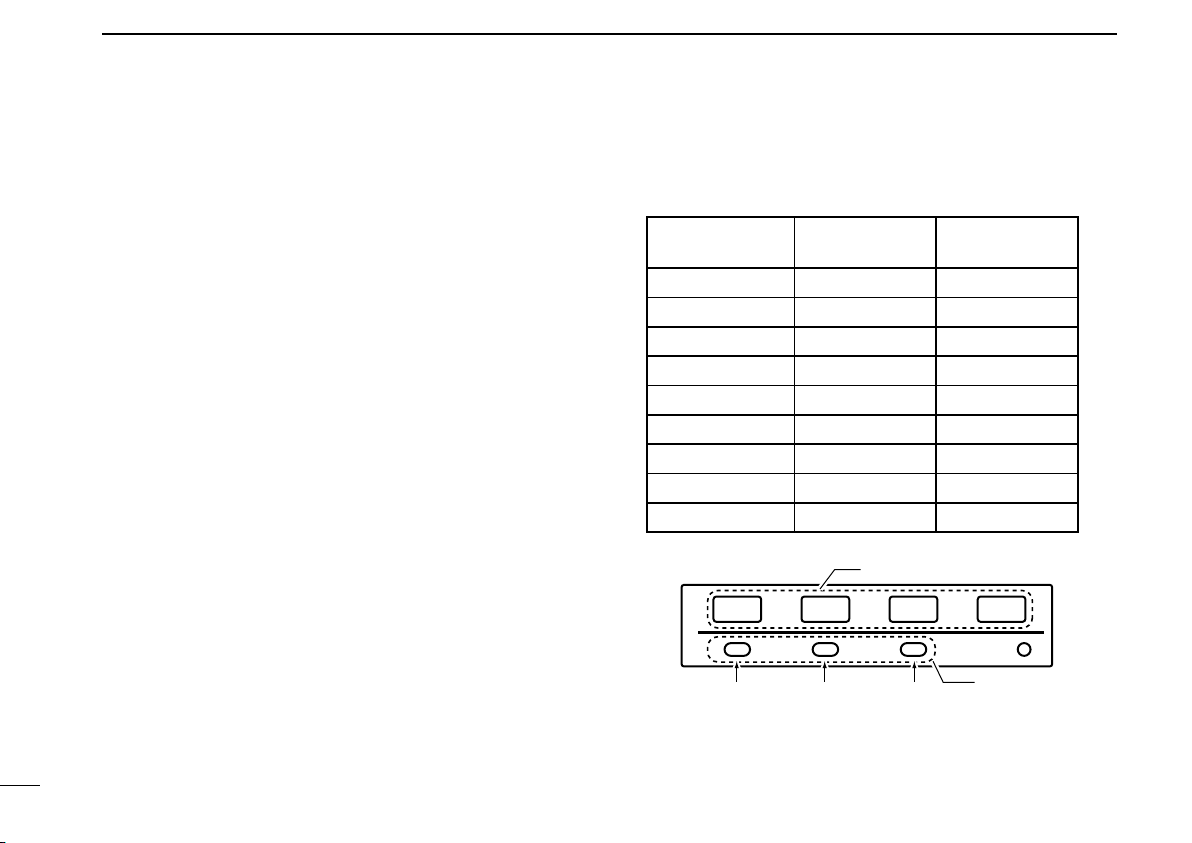

Item Channel
indicator
Activated
key indicator
Backlight 1 A
Beep 2 A
Beep Level 3 A
SQL Level 4 A
AF Min Level 1 B
Mic Gain 2 B
Horn 3 B
Signal Moni 4 B
Lone Worker 1 C
TX/RX
1234
Channel indicator
Activated key
indicator
CBA

11
2
BASIC OPERATION
2
■Scrambler function
The Voice Scrambler function provides private communica-
tion between stations.
The optional Rolling or Non-rolling type can be used.
Push [Scrambler] to turn ON the Scrambler function.
•Push[Scrambler]againtoturnOFFthefunction.
■Stun function
The dispatcher can send a 2/5-tone signal that will stun, kill
or revive your transceiver.
When the Stun ID is received, a beep sounds*, and the trans-
ceiver becomes unusable. Receiving a Revive command or
entering the password* (p. 7) is necessary to operate the
transceiver again in this case.
When the Kill ID is received, a beep sounds*, and the trans-
ceiver becomes unusable (the transceiver switches to the
cloning required condition). Cloning the transceiver is neces-
sary to operate the transceiver again in this case.
* Depending on the preprogramming. Ask your dealer for de-
tails.
Stun function is also available with the MDC 1200 signaling
system. (p. 13)
■Priority A channel selection
When one of the following operations is performed, the trans-
ceiver automatically selects the Priority A channel.
 •TurningONthepower
The Priority A channel is selected each time the trans-
ceiver power is turned ON.
 •OFFhook.
The Priority A channel is selected when you take the mi-
crophone OFF hook.

12
2BASIC OPERATION
■Emergency transmission
When [Emergency] is held down for the specified time pe-
riod*, the emergency signal is transmitted on the specified
emergency channel once, or repeatedly.
When no emergency channel is specified, the call is transmit-
ted on the operating channel.
The repeat emergency signal is automatically transmitted
until you turn OFF the power.
Depending on the preprogramming, receiving a matching
5-tone code cancels the transmission.
If you want to cancel the Emergency function, hold down
[Emergency] for the pre-programmed time period again be-
fore transmitting the call.
If your transceiver is programmed for Silent operation, you
can transmit emergency calls without the beep sounding and
the LEDs lighting.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation
.
DNOTES
Depending on the preprogramming, the following functions
are automatically activated. Ask your dealer for details.
• Auto TX function
After the emergency call transmission, audio from the micro-
phone is automatically transmitted for a specified time pe-
riod.*
•TheHM-148GorHM-152handmicrophoneisrequired.
• Auto RX function
After the emergency call transmission, the transceiver stands
by in the audible mode for the specified time period.*
* Depending on the preprogramming. Ask your dealer for de-
tails.

13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■MDC 1200 system operation
The MDC 1200 signaling system enhances your transceiver’s
capabilities with PTT ID* and Emergency signaling
.
*When [PTT] is pushed and/or released, the transceiver transmits its
own station ID.
DTransmitting an Emergency Call
The MDC 1200 system’s Emergency feature can be ac-
cessed using the [Emergency] key (p. 4). The transceiver
will send an Emergency MDC 1200 system command once,
or repeatedly for a programmed number of times, until it re-
ceives an acknowledgement signal.
The emergency call can be transmitted without a beep sound,
depending on the preprogramming. Ask your dealer for de-
tails.
DReceiving a Stun and Revive
The dispatcher can send MDC 1200 system signals that
will stun or revive your transceiver. If a Stun command that
matches your station ID is received, the transceiver will not
receive or transmit. When a Revive command that matches
your station ID is received, normal operation is restored.
2
BASIC OPERATION

e
r
Antenna
Black
Red
12V
Battery
Solder
Crimp
NOTE: Use the terminals as shown
for the cable connections.
qANTENNA CONNECTOR
Connect to an antenna. Ask your
dealer about antenna selection
and placement.
qw
wEXTERNAL SPEAKER JACK
Connect to a 4 to 8 øexternal speaker.
eMICROPHONE HANGER
Connect the supplied micro-
phone hanger to the vehicle’s
ground for microphone on/off
hook functions. (See page 2)
r
OPTIONAL CABLE (OPC-1939, OPC-2078 )
t
tDC POWER RECEPTACLE
Connect to a 12 V DC battery.
Pay attention to polarities.
Optional speaker
Connect an external modem,
dimmer control, etc.
RWARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
RWARNING! NEVER remove the
fuse-holders from the DC power cable.
(Depending on version, the fuse holder
may not be attached to the black cable.)
■Rear panel connection
3CONNECTION AND MAINTENANCE
14

■Supplied Accessories ■Mounting the transceiver
The universal mounting bracket supplied with your trans-
ceiver also allows overhead mounting.
•Mountthetransceiversecurelywiththe4suppliedscrews
to a thick surface which can support more than 1.5 kg
(3.3 lb).
Flat washer
Felt*
Spring washer
When using
self-tapping screws
Felt*
*Felt reduces the effects of vibration.
CONNECTION AND MAINTENANCE 3
1
2
16
15
14
13
12
11
10
9
8
7
6
5
4
15
3
Microphone Microphone hanger
and screw set
Microphone
hanger cable
DC power cable
Flat washers
Spring washers Bracket bolts
Mounting screws
(5×12)
Self-tapping screws
(5×20)
Nuts
Function name
stickers*
Used for labelling the programmable function
keys, according to their assinged functions.
*
Mounting bracket

16
3CONNECTION AND MAINTENANCE
■Antenna
A key element in the performance of any communication sys-
tems is the antenna. Contact your dealer for more information
regarding antennas and how to install them.
■Fuse replacement
A fuse is installed in each fuse holder of the supplied DC
power cable*. If a fuse blows or the transceiver stops func-
tioning, track down the source of the problem if possible, re-
paire it and then replace the damaged fuse with a new rated
one.
*Depending on the version, only 1 fuse holder may be attached.
❑Fuserating:10A(for1fuseholder)/20A(for2fuseholders)
USE the applicable fuse only.
■Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage the transceiver sur-
faces.
■Options
• OPC-1132A/OPC-347 d c p o w e r c a b l e
2 fuse holders are attached. USE only a 20 A fuse.
 OPC-1132A:3m(9.8ft)
 OPC-347 :7m(23ft)
• OPC-1939/OPC-2078 a c c c a b l e
Allows you to connect to an external terminal.
 OPC-1939:D-sub15-pin,OPC-2078:D-sub25-pin
•HM-152/HM-152T/HM-148G/HM-148T h a n d m i c r o p h o n e
 HM-152 :Handmicrophone
 HM-152T:DTMFmicrophone
 HM-148G:Selfgroundingheavydutymicrophone
 HM-148T:SelfgroundingheavydutyDTMFmicrophone
•SM-26 d e s k t o p m i c r o p h o n e
•SP-22/SP-30/SP-35 e x t e r n a l s p e a k e r s
 Inputimpedance:4ø
 Max.inputpower:
7 W (SP-22/SP-35)/30W (SP-30)
 SP-22/SP-35:Compactandeasy-to-install.
 SP-30 :Highinputpower level.
•UT-108R d t m f d e c o d e r u n i t
provides pager and code squelch capabilities.
•UT-109R/UT-110R v o i c e s c r a m b l e r u n i t
Non-rolling type (UT-109R) and Rolling type (UT-110R)
voice scrambler units provides higher communication secu-
rity.
