INSTRUCTION MANUAL
iM3EURO
VHF MARINE TRANSCEIVER
TRI
DW
SCAN
H
/
L
SQL
C
CH
TAG
LOCK
i M 3EURO
16
VHF MARINE
I/U
IC-M3EURO-(2) 02.3.11 5:09 PM Page A (1,1)

i
FOREWORD
Thank you for purchasing this Icom product. The IC-M3EURO
VHF MARINE TRANSCEIVER is designed and built with Icom’s
superior technology and craftsmanship. With proper care this
product should provide you with years of trouble-free operation.
IMPORTANT
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL—This in-
struction manual contains important operating instructions for
the IC-M3EURO.
EXPLICIT DEFINITIONS
FEATURES
☞Dual watch and tri-watch functions
Convenient functions which allow you to monitor the dis-
tress channel (ch 16) while receiving a channel of your
choice—dual watch; or monitor the distress channel and
another channel while receiving a channel of your
choice—tri-watch.
☞Large, easy-to-read LCD
With dimensions of 18(H) ×32(W) mm, the IC-
M3EURO’s function display is easy to read and shows
operating conditions at a glance. Backlighting and con-
trast can be adjusted to suit your preferences.
☞Simple operation
Ergonomic design with a minimum number of switches
and controls provides simple intuitive operation.
WORD DEFINITION
RWARNING Personal injury, fire hazard or electric shock
may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
IC-M3EURO-(2) 02.3.11 5:09 PM Page ii (1,1)

ii
CAUTIONS
RWARNING! NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
RWARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
away from the lips and the transceiver is vertical.
NEVER connect the transceiver to a power source other
than the BP-204. Such a connection will ruin the transceiver.
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –15°C (5°F) or above
+55°C (+131°F).
Place unit in a secure place to avoid inadvertent use by chil-
dren.
KEEP the transceiver at least 1 meter away from your ves-
sel’s magnetic navigation compass.
IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a distress call on channel 16.
❍USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...........................”(name of vessel)
3. Your call sign or other indication of the ves-
sel.
4. “LOCATED AT .....................”(your position)
5. The nature of the distress and assistance re-
quired.
6. Any other information which might facilitate
the rescue.
IC-M3EURO-(2) 02.3.11 5:09 PM Page iii (1,1)

iii
FOREWORD ........................................................................ i
IMPORTANT ........................................................................ i
EXPLICIT DEFINITIONS ...................................................... i
FEATURES .......................................................................... i
CAUTIONS .......................................................................... ii
IN CASE OF EMERGENCY ................................................ ii
TABLE OF CONTENTS ...................................................... iii
1 OPERATING RULES ...................................................... 1
2 PANEL DESCRIPTION ............................................... 2–4
■Front panel .................................................................. 2
■Top and side panels .................................................... 3
■Function display .......................................................... 4
3 BASIC OPERATION ................................................... 5–8
■Channel selection ........................................................ 5
■Lock function ............................................................... 6
■Adjusting the squelch level .......................................... 6
■Receiving and transmitting .......................................... 7
■Call channel programming .......................................... 8
■Automatic backlighting ................................................ 8
4 DUALWATCH/TRI-WATCH ............................................ 9
■Description .................................................................. 9
TABLE OF CONTENTS
■Operation ..................................................................... 9
5 SCAN OPERATION ................................................ 10–11
■Scan types ................................................................. 10
■Setting tag channels .................................................. 11
■Starting a scan ........................................................... 11
6 SET MODE ............................................................. 12–13
■SET mode programming ........................................... 12
■SET mode items ........................................................ 12
7 BATTERY CHARGING ........................................... 14–15
■Installing batteries in the battery case ....................... 14
■Battery charging ........................................................ 14
■Battery cautions ......................................................... 15
8 SUPPLIED ACCESSORIES ......................................... 16
9 TROUBLESHOOTING .................................................. 17
10 CHANNEL LIST ........................................................... 18
11 SPECIFICATIONS AND OPTIONS .............................19
■Specifications ............................................................ 19
■Options ...................................................................... 19
IC-M3EURO-(2) 02.3.11 5:09 PM Page iv (1,1)

1
1
OPERATING RULES
DPriorities
•Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
•You must monitor channel 16 when you are not operating
on another channel.
•False or fraudulent distress calls are prohibited under law.
DPrivacy
•Information overheard but not intended for you cannot law-
fully be used in any way.
•Indecent or profane language is prohibited.
DRadio licenses
SHIP STATION LICENSE
When your craft is equipped with a VHF FM transceiver, you
must have a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license. This license in-
cludes the call sign which is your craft’s identification for radio
purposes.
OPERATOR’S LICENSE
A restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
The Restricted Radiotelephone Operator Permit must be
posted near the transceiver or be kept with the operator. Only
a licensed radio operator may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
A current copy of the applicable government rules and regu-
lations is only required to be on hand for vessels in which a
radio telephone is compulsory. However, even if you are not
required to have these on hand it is your responsibility to be
thoroughly acquainted with all pertinent rules and regulations.
IC-M3EURO-(2) 02.3.11 5:09 PM Page 1 (1,1)

2
2PANEL DESCRIPTION
■Front panel
qDUALWATCH /TRI-WATCH SWITCH
[DW•TRI]
•Starts dualwatch when pushed momentarily.
•Starts tri-watch when pushed for 1 sec.
•Stops dualwatch/tri-watch when either is ac-
tivated.
wSQUELCH SWITCH [SQL]
•Push this switch, then set the squelch level
with the UP/DOWN [ ]/[ ] switches. (p.
6)
eCHANNEL 16 SWITCH [16 •C]
•Selects channel 16 when pushed.
•Selects the call channel when pushed for 1
sec.
•Enters call channel write mode when the
call channel is selected and this switch is
pushed for 3 sec.
rCHANNEL SWITCH [CH•I/U]
•Selects the regular channels when pushed
momentarily.
•Selects INT or U.S.A. channels in sequence
when pushed for 1 sec. (UK and Italy ver-
sion only.)
tSCAN/TAG SWITCH [SCAN •TAG]
•Starts and stops normal or priority scan
when tag channels are programmed.
•Sets and clear the displayed channel as a
tag (scanned) channel when pushed for 1
sec.
•While pushing this switch, turn the power
ON to clears all tag channels in the selected
regular channel group.
yTRANSMIT POWER/LOCK SWITCH
[H/L •LOCK]
•Toggles high and low power when pushed.
•Toggles the lock function ON/OFF when
pushed for 1 sec.
uCHANNEL UP/DOWN SWITCHES
[ ]/[ ]
•Select an operating channel in the selected
channel group.
•Selects the set mode condition of the item.
TRI
DW
SCAN
H
/
L
SQL
C
CH
TAG
LOCK
i M 3EURO
16
VHF MARINE
I/U
w
q
e
r
t
y
u
IC-M3EURO-(2) 02.3.11 5:09 PM Page 2 (1,1)

3
2
PANEL DESCRIPTION
■Top and side panels
qPTT SWITCH [PTT]
Push and hold to transmit;
release to receive.
wVOLUME CONTROL
[OFF/VOL]
Turns power ON and ad-
justs the audio level.
eEXTERNAL SPEAKER
AND MICROPHONE
JACKS [SP/MIC]
Connect an optional
speaker-microphone or
headset, if desired. The in-
ternal microphone and
speaker will not function
when either is connected.
rANTENNA CONNECTOR
Connects the supplied antenna.
q
w
r
e
ïBATTERY CASE RELEASE BUTTON
To remove the battery case:
Push and hold the battery release button downwards, then
open the battery case as shown below.
To attach the battery case:
Mate the notched ends of the transceiver and battery
case,and click the battery case into place.
IC-M3EURO-(2) 02.3.11 5:09 PM Page 3 (1,1)

4
2PANEL DESCRIPTION
■Function display
qTRANSMIT INDICATOR
Appears while transmitting. (p. 7)
wBUSY INDICATOR
Appears when receiving a signal or when the squelch level
is set to the “OFF”position. (p. 7)
eCALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 9)
rLOW POWER INDICATOR (p. 7)
Shows that low output power is selected.
tLOW BATTERY INDICATOR
Blinks when the battery voltage drops to approx. 6 V or
below. The attached Ni-Cd batteries require charging in this
case.
yLOCK INDICATOR (p. 6)
Appears while the lock function activated.
uSCAN INDICATOR (p. 11)
Blinks while scanning.
iDUALWATCH/TRI-WATCH INDICATORS
“DUAL”appears during dualwatch; “TRI”appears during
tri-watch. (p. 9)
oDUPLEX INDICATOR
Appears when a duplex channel is selected.
!0 SET MODE INDICATOR
Shows the set mode items. (pgs. 12, 13)
!1 CHANNEL INDICATOR
•Indicates the selected operating channel number. (p. 5)
•In set mode, indicates the selected condition. (p. 12)
!2 MODE INDICATORS (p. 5)
•“USA”shows that USA channels are selected. (UK and
Italy version only)
•“INT”shows that international channels are selected.
!3 TAG CHANNEL INDICATOR (p. 11)
Appears when a tag channel is selected.
BATT
CALL LOW
DUP
USA
INT
BUSYTX
DUAL TRI
SCAN
TAG
qwerty
!3
!2
!1 !0
u
i
o
IC-M3EURO-(2) 02.3.11 5:09 PM Page 4 (1,1)

5
3
BASIC OPERATION
■Channel selection
DChannel 16
Channel 16 is the distress channel. It is used for
establishing initial contact with another station and for
emergency communications. Channel 16 is monitored
during dualwatch/tri-watch. While standing by you are
required to monitor channel 16.
DCall channel
Each regular channel group has a separate leisure-use call
channel. The call channel is monitored during tri-watch. The
call channels can be programmed (p. 9) and are used to
store your most often-used channels in each channel group
for quick recall.
Push [16] for 1 sec. to select the
call channel for the selected
channel group.
•“CALL”and call channel number
appear.
•Each channel group can have its
own call channel after changing a
call channel. (UK and Italy version only)
Push
C
16
INT
CALL
TAG
INT

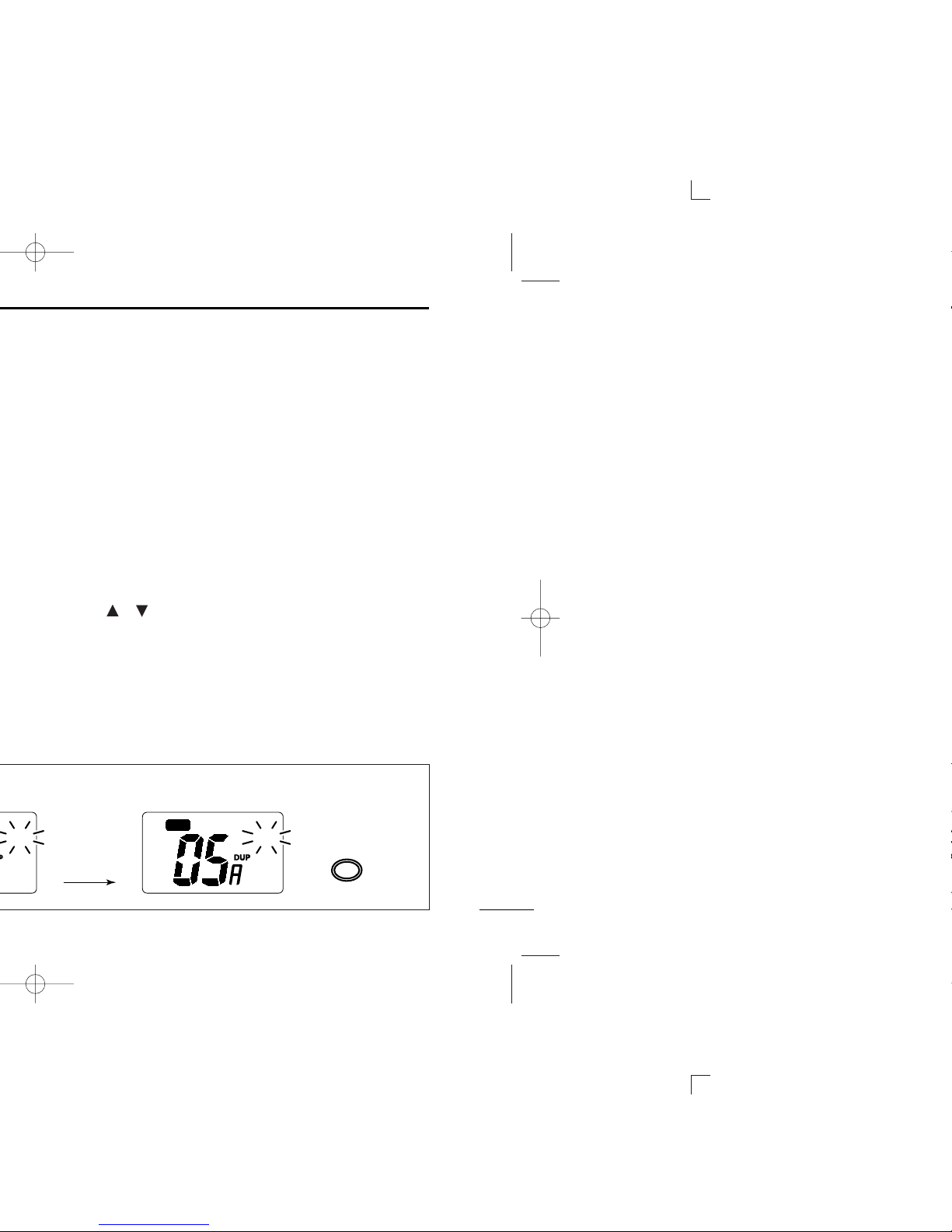

DInternational channels
There are 55 international channels for the IC-M3EURO.
qPush [CH •I/U] to select a regular channel.
wPush [ ]/[ ] switches to select a channel.
•“DUP”appears for duplex channels.
DU.S.A. channels (UK and Italy versions only)
For the U.K. and Italy versions, there are 61 U.S.A. channels
in addition to 55 international channels. These channels
groups may be specified for the operating area.
➀Push [CH •I/U] to select a regular channel.
➁Push and hold [CH •I/U] for 1 sec. to toggle the interna-
tional and U.S.A. channels.
➂Push [UP]/[DN] to select a channel.
•Channels are memorized separately for each channel group.
IC-M3EURO-(2) 02.3.11 5:09 PM Page 5 (1,1)

6
3BASIC OPERATION
■Lock function
This function electronically locks all keys and switches to pre-
vent accidental frequency changes and function access.
Push [H/L •LOCK] for 1 sec. to turn the lock function ON and
OFF.
•Only [PTT], [H/L] and [SQL] are functional.
DUP
INT
Appears when the
lock function is in use.
■Adjusting the squelch level
The IC-M3EURO has a squelch
even though there is no control
knob for it. In order to receive
signals properly, as well as for
scan to function, the squelch
must be adjusted to a suitable
level.
qPush [SQL], then select the squelch level with the [ ]/[ ]
keys.
•There are 11 squelch levels to choose from: OFF is completely
open; 10 is the maximum squelch level.
•When no key is pushed for 5 sec., the display returns to normal
indication.
wPush [SQL] once more when the desired squelch level is
indicated in the function display.
•The display returns to normal indication.
Level 10: Max. squelch level
IC-M3EURO-(2) 02.3.11 5:09 PM Page 6 (1,1)
