Icom IC-V8000 User manual

SERVICE
MANUAL
VHF FM TRANSCEIVER
1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003, Japan S-13815IZ-C1
© 2002 Icom Inc.

INTRODUCTION DANGER
This service manual describes the latest service information
for the IC-V8000 VHF FM TRANSCEIVER at the time of pub-
lication.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003200 S.IC TA31136FN IC-V8000 MAIN UNIT 5 pieces
8810006050 Screw Icom screw E7 IC-V8000 Chassis 10 pieces
Addresses are provided on the inside back cover for your
convenience.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. This will ruin the
transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100mW)
to the antenna connector. This could damage the trans-
ceiver's front end.
REPAIR NOTES
1. Make sure a problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is dis-
connected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulat-
ed turning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the trans-
ceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a deviation meter or spectrum ana-
lyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
VERSION
Asia
C.S.America
U.S.A.
SYMBOL
SEA
CSA
CSA-1
USA-2
USA-3
SUPPLIED MICROPHONE
HM-118N
HM-118TN
HM-133V
HM-118TAN

SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY AND OPTION INSTRUCTIONS
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
4-3 PLL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4-4 POWER SUPPLY CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4-5 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
SECTION 5 PARTS LIST
SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
6-1 IC-V8000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6-2 HM-133V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
SECTION 7 SEMI-CONDUCTOR INFORMATION
SECTION 8 BOARD LAYOUTS
8-1 HM-133V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
8-2 LOGIC BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
8-3 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
SECTION 9 BLOCK DIAGRAM
SECTION 10 VOLTAGE DIAGRAM
10-1 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
10-2 LOGIC BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2
10-3 HM-133V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-3
TABLE OF CONTENTS

1 - 1
‘‘GENERAL
• Frequency coverage :
*Specifications Guaranteed: 144–148 MHz only
• Type of emission : FM (F2D / F3E)
• Frequency stability : ± 10 ppm (–10˚C to +60˚C; +14˚F to +140˚F)
• Tuning steps : 5, 10, 12.5, 15, 20, 25, 30 or 50 kHz
• Antnna connector : SO-239 (50 Ω)
• Power supply requirement : 13.8 V DC (Operable voltage range: 11.7 to 15.9 V)
(negative ground)
• Number of memory channel : 207 channels (including 6 scan edges and 1 call channel)
• Call channel : 1 channel
• Scanning mode : Full, Program, Priority, Memory, Channel, Skip, Tone, DTCS, Bank and WX
• Current drain (approx.) :
• Usable temperature range : –10˚C to +60˚C; +14˚F to +140˚F
• Dimensions (projections not included) : 150(W) × 50(H) × 150(D) mm; 5 29⁄32(W) × 1 31⁄32(H) × 5 29⁄32(D) in.
• Weight : 1.09 kg; 12.3 oz.; 38.4 oz
‘‘TRANSMITTER
• RF output power (at 13.8 V DC) : 75 W / 25 W / 10 W / 5 W (High / Middle High / Middle Low / Low)
• Modulation system : Variable reactance frequency modulation
• Maximum frequency deviation : Narrow: ±2.5 kHz*; Wide: ±5.0 kHz
• Spurious emissions : Less than –60 dB
• Microphone connector : 8-pins modular (600 Ω)
‘‘RECEIVER
• Receive system : Double conversion superheterodyne system
• Intermediate frequencies : 1st 21.7 MHz
2nd 450 kHz
• Sensitivity : 0.15 µV at 12 dB SINAD (typical)
• Squelch sensitivity : 0.08 µV at threshold (typical)
• Selectivity : Narrow; More than ±3.0 kHz at –6 dB, Less than ±9.0 kHz at –55 dB*
Wide; More than ±6.0 kHz at –6 dB, Less than ±14.0 kHz at –60 dB
• Spurious and image rejection : 60 dB (typical)
• Audio output power (at 7.2 V DC) : More than 2.0 W at 10% distortion with an 8 Ωload
• Ext. speaker connector : 3-conductor 3.5(d) mm (1⁄8”)/8 Ω
*[USA] version only
All stated specifications are subject to change without notice or obligation.
Transmit
Receiving
SECTION 1 SPECIFICATIONS
Version
[USA]
[SEA]
[CSA]
Receive
136.000–174.000 MHz*
Transmit
144.000–148.000 MHz
140.000–150.000 MHz*
136.000–174.000 MHz*
15 A
9.0 A
6.0 A
5.0 A
1.0 A
0.8 A
High (75 W)
Middle High (25 W)
Middle Low (10 W)
Low (5 W)
Max. audio
Stand-by

SECTION 2 INSIDE VIEWS
2 - 1
•MAIN UNIT
•LOGIC BOARD
Reference oscillator
(X1: CR-659)
VCO circuit
Antenna switching circuit
(D12, D27: XB15A407,
D19: XB15A308,
D16: HVU131TRF)
AF power amplifier
(Q23: RD70HVF1)
1st IF filter
(FI3, FI4: FL-310)
2nd IF filter
(FI1: CFWS450F,
FI2: CFWS450HT)
EEPROM
(IC5: HN58X2432TI)
CPU
(IC7: HD6433876B53H)
System clock
(X1: CR-663)
Speaker
Reset IC
(IC4: S-80942ANMP-DD6) LOGIC board

SECTION 3 DISASSEMBLY AND OPTION INSTRUCTIONS
3 - 1
Cover MP10
Front panel Chassis
MP9
MP6
MP15
J5 (MF1)
J6 (SP7)
Chassis
Main unit
MP6 MP6
MP7 MP4
J1
A

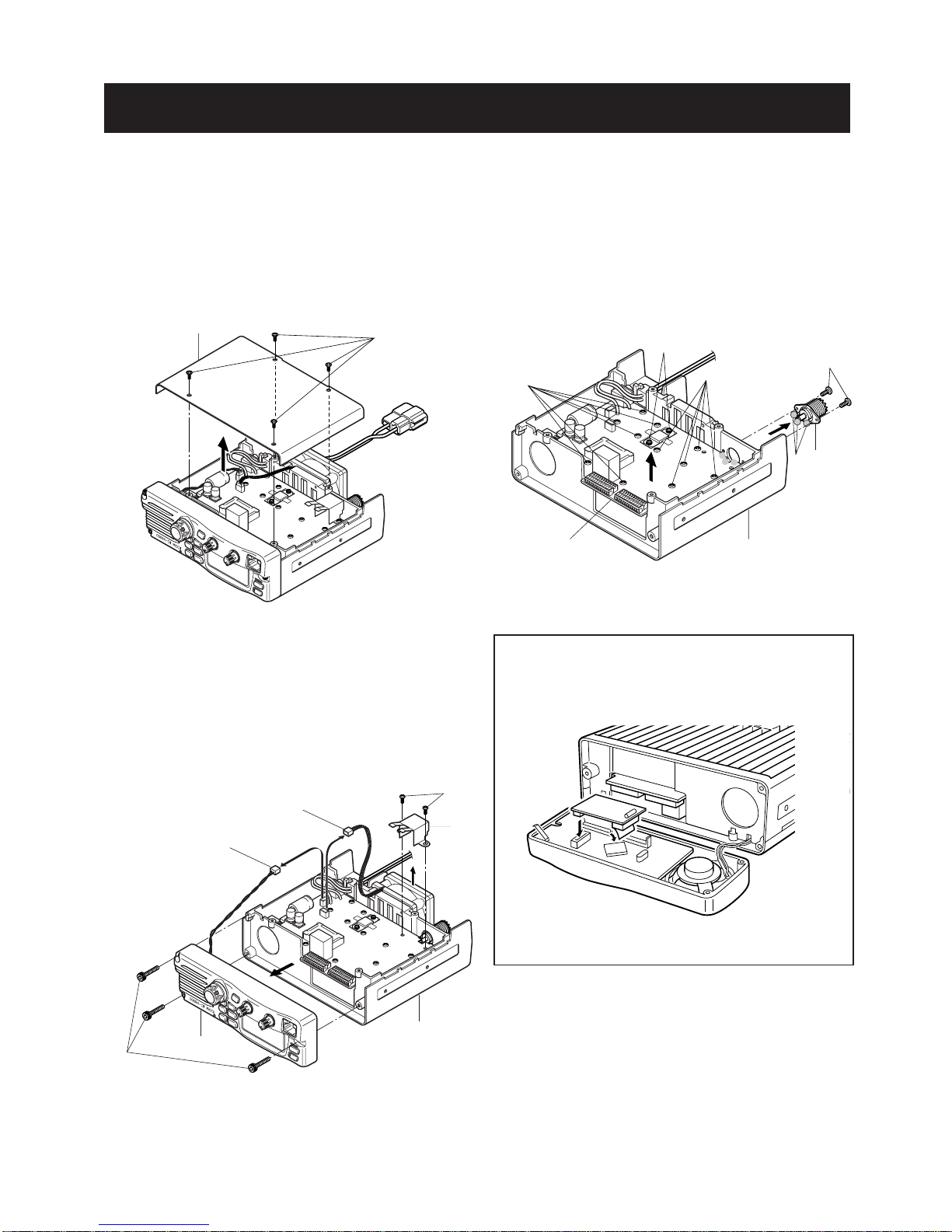

• REMOVING THE COVER
1Unscrew 4 screws, MP10.
2Remove the cover in the direction of the arrow.
• REMOVING THE FRONT PANEL
1Unscrew 3 screws, MP9.
2Unplug J6 to separate front panel and chassis.
3Remove the front panel in the direction of the arrow.
4Unplug J5 to separate fan and chassis.
5Unscrew 2 screws, MP6, to separate MP15 and chassis.
• REMOVING THE MAIN UNIT
1Unscrew 11 screws, MP6, and 2 screws, MP7, and 2
screws, MP4.
2Unsolder 3 points, A, to remove the antenna connector.
3Remove the Main unit in the direction of the arrow.
• OPTIONAL UNIT INSTALLATION
1Install the optional unit as illustrated below. Insert it tight-
ly to avoid bad contact.

4 - 1
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
4-1-1 ANTENNA SWITCHING CIRCUIT
(MAIN UNIT)
Received signals passed through the low-pass filter (L44,
L47, L48, L51, C190, C197, C203, C208, C210, C217,
C218). The filtered signals are applied to the 1/4 λtype
antenna switching circuit (D16, D19).
The antenna swtiching circuit functions as a low-pass filter
while transmitting. However, its impedance becomes very
high while D16 and D19 are turn ON. Thus transmit signals
are blocked from entering the receiver circuits. The antenna
switching circuit employs a 1/4 λtype diode swtiching sys-
tem. The passed signals are then applied to the RF amplifi-
er circuit.
4-1-2 RF CIRCUIT (MAIN UNIT)
The RF circuit amplifies signals within the range of frequen-
cy coverage and filters out-of-band signals.
The signals from the antenna switching circuit are applied to
the limitter (D15), and are then passed through the band-
pass filter (D13, L43, C183, C182). The filtered signals are
amplified at the RF amplifier (Q27), then applied to the 1st
mixer circuit after out-of-band signals are suppressed at the
bandpass filter (D9–D11).
D9–D11, D13 employ varactor diodes that track the band-
pass filters and are controlled by the T1–T3 signals from the
D/A convertor (IC5, pins 10, 11, 23). These diodes tune the
center frequency of an RF passband for wide bandwidth
receiving and good image response rejection.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
(MAIN UNIT)
The 1st mixer circuit converts the received signal to a fixed
frequency of the 1st IF signal with a PLL output frequency.
By changing the PLL frequency, only the desired frequency
will pass through two crystal filters at the next stage of the
1st mixer.
The signals from the RF circuit are mixed at the 1st mixer
(Q19) with a 1st LO signal coming from the VCO circuit to
produce a 21.70 MHz 1st IF signal.
The 1st IF signal is applied to two crystal filters (FI3 and FI4)
to suppress out-of-band signals. The filtered 1st IF signal is
applied to the IF amplifier (Q16), then applied to the 2nd
mixer circuit (IC4, pin 16).
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. Adouble conversion superheterodyne system (which
converts receive signal twice) improves the image rejection
ratio and obtain stable receiver gain.
The 1st IF signal from the IF amplifier is applied to the 2nd
mixer section of the FM IF IC (IC4, pin 16), and is mixed with
the 2nd LO signal to be converted to a 450 kHz 2nd IF sig-
nal.
The FM IF IC contains the 2nd mixer, limiter amplifier, quad-
rature detector and active filter circuits.A21.25 MHz 2nd LO
signal is produced at the PLL circuit.
The 2nd IF signal from the 2nd mixer (IC4, pin 3) passes
through a ceramic filter (FI1; When wide is selected, F2;
When Narrow is selected. (Narrow is [USA] version only.)) to
remove unwanted heterodyned frequencies. It is then ampli-
fied at the limiter amplifier (IC4, pin 5) and applied to the
quadrature detector (IC4, pins 10, 11) to demodulate the 2nd
IF signal into AF signals.
4-1-5 AF CIRCUIT (MAIN AND LOGIC UNITS)
The AF amplifier circuit amplifies the demodulated AF sig-
nals to drive a speaker.
AF signals from the FM IF IC (IC2, pin 9) are applied to the
analog swtich (LOGIC UNIT; IC6, pin 1) via the high pass fil-
ter (IC3c, pins 9, 8). The output signals from pin 11 are
applied to the volume adjustment pot (LOGIC UNIT; R31).
The signals are applied to the AF power amplifier (IC9, pin
1) after passing through the AFmute swtich (Q29).

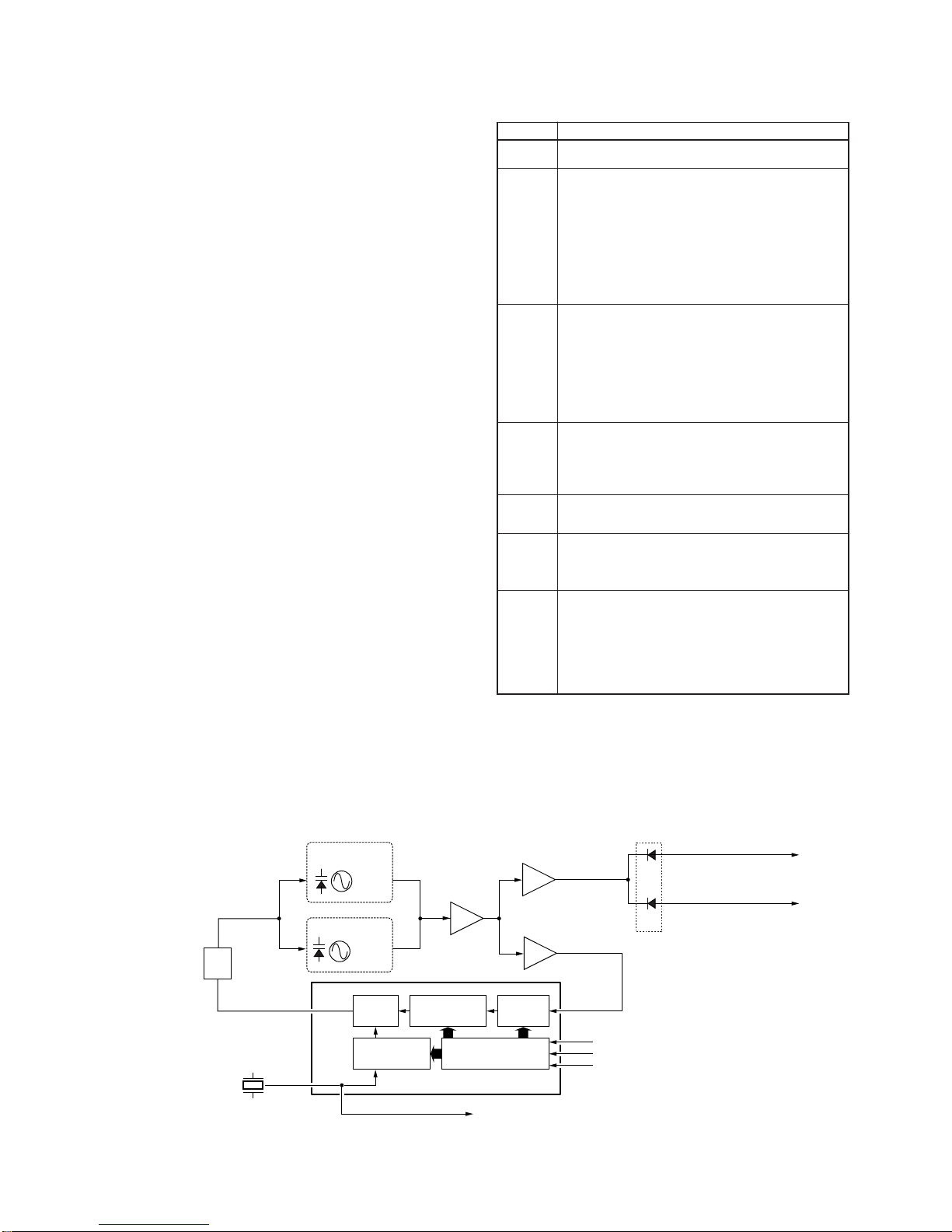

Mixer
16
Limiter
amp.
2nd IF filter
450 kHz PLL IC
IC1
X1
21.25 MHz
IC4 TA31136F
12 1st IF from the IF amplifier (Q16)
"SD" signal to the CPU pin 97
11109
87 5 3
AF signal "DETO"
R5V
X2
R55
C84 C85
R64R59
R71
"SQLIN" signal from the
D/A convertor (IC5, pin 214
R73
C105 C101
C116
2
16 1
Active
filter
FI2
Noise
detector
FM
detector
13
"NOIS" signal to the CPU pin 19
RSSI
Noise
comp.
R63
LPF
• 2ND IF AND DEMODULATOR CIRCUITS

4 - 2
The AF signals are applied to the AF power amplifier circuit
(IC9, pin 1) to obtain the specified audio level. The amplified
AF signals, output from pin 4, are applied to the internal
speaker (CHASSIS UNIT; SP1) via the speaker jack (J6)
when no plug is connected to the external speaker jack (J1).
4-1-6 SQUELCH CIRCUIT
(MAIN AND LOGIC UNITS)
Asquelch circuit cuts outAF signals when no RF signals are
received. By detecting noise components in the AF signals,
the squelch switches the analog swtich.
Aportion of the AF signals from the FM IF IC (IC4, pin 9) are
applied to the D/A converter (IC5, pin 13) as the DETO sig-
nal. The signals from the D/A converter (IC5, pin 14) are
applied to the FM IF IC active filter section (IC4, pin 8) where
noise components are amplified and detected with an inter-
nal noise detector via the SQLIN line.
The trigger circuit converts the detected signals to a HIGH
or LOW signal and applies this (from pin 13) to the CPU
(LOGIC UNIT; IC7, pin 19) as the NOIS signal.The CPU
controls the analog swtich IC (LOGIC UNIT; IC6) via the
expander IC (LOGIC UNIT; IC8). When the CPU receives a
HIGH level NOIS signal, the CPU controls the RMUT line to
cut the AF signals at the analog swtich IC (LOGIC UNIT;
IC6). At the same time, the AFON line controls the AF mute
circuit (Q29) to cut out the VOLOUT signal for the AF power
amplifier (IC9).
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
(LOGIC AND MAIN UNITS)
The microphone amplifier circuit amplifies audio signals with
+6 dB/octave pre-emphasis from the microphone to a level
needed for the modulation circuit.
The AF signals from the microphone pass through the MIC
switch (IC2, D4) and high-pass filter (IC3a, pin 2), and are
then applied to the microphone amplifier circuit (IC3d, pin
12) via the R39 and C47 for +6 dB/octave pre-emphasis.
The amplified AF signals are applied to the analog swtich
(IC6, pin 4), and are then applied to the D/Aconverter (MAIN
UNIT; IC5, pin 1) via the MODIN signal. The AF signals are
applied to the modulator circuit via the MOD signal.
4-2-2 MODULATION CIRCUIT (MAIN UNIT)
The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signals.
The audio signals (SHIFT) change the reactance of D2 to
modulate an oscillated signal at the VCO (Q6, D4). The
oscillated signal is amplified at the LO (Q9) and buffer (Q11)
amplifiers, then applied to the TX/RX switch circuit (D6, D7).
4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS
(MAIN UNIT)
The signal from the VCO circuit passes through the TX/RX
swtiching circuit (D6) and is amplified at the pre-drive (Q17),
drive (Q18, Q20) and power (Q23) amplifiers to obtain 75 W
of RF power (at 13.8 V DC/typical). The amplified signal
passes through the low-pass filter (L37, L39, C151, C156,
C159, C167, C176, C227–C229), and then applied to the
antenna swtiching circuit (D12). The signal is applied to the
antenna connector (CHASSIS UNIT; J1) after being passed
through the low-pass filter (L44, L47, L48, L51, C190, C197,
C203, C208, C210, C217, C218).
The bias current of the drive (Q18, Q20) and power (Q23)
amplifiers is controlled by theAPC circuit to stabilize the out-
put power.

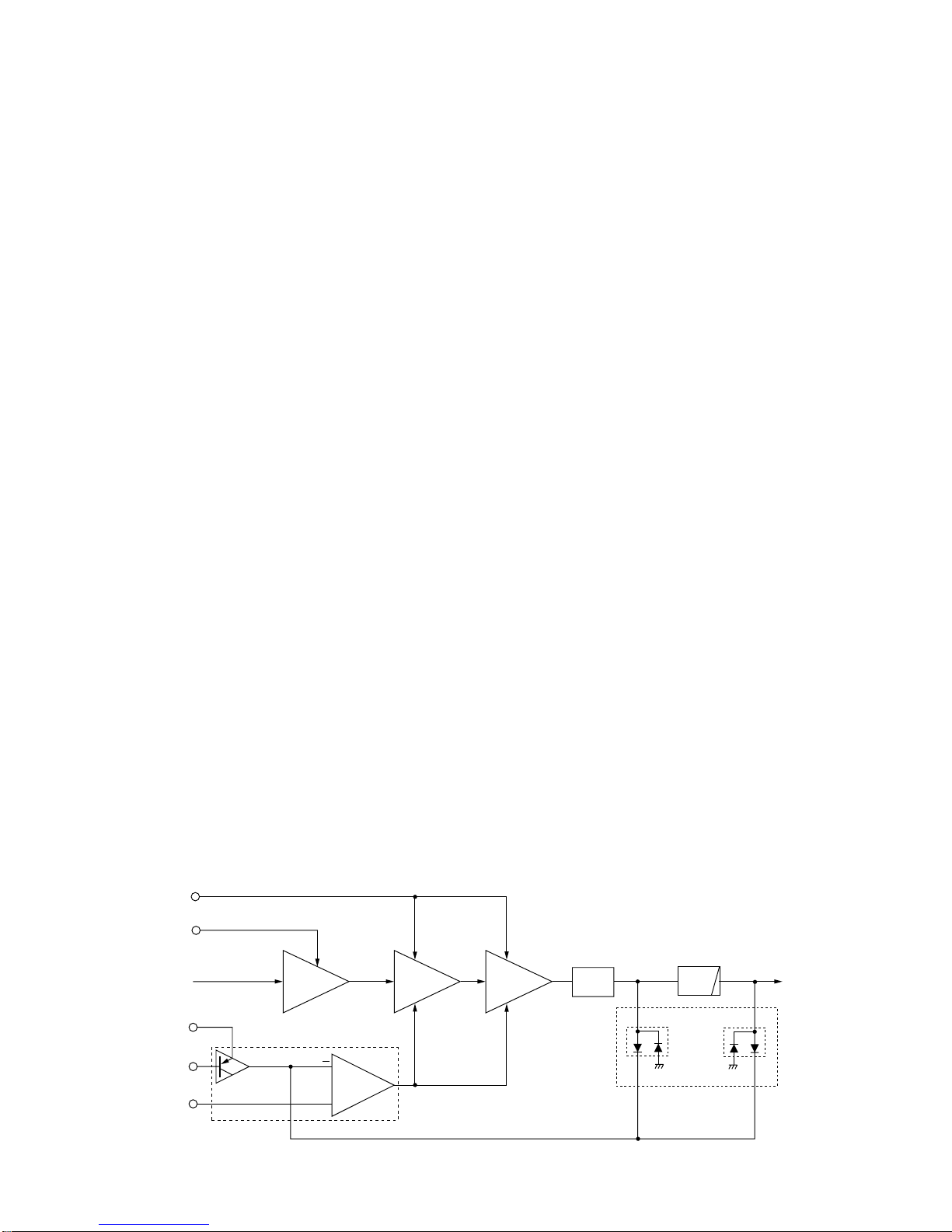

4-2-4 APC CIRCUIT (MAIN UNIT)
The APC (Automatic Power Control) circuit (IC6a, Q26) pro-
tects drive and power amplifiers from excessive currents
and selects HIGH or LOW output power.
The output voltage from the power detector circuit (D14,
D17) is applied to the differential amplifier (IC6a, pin 2), and
the “T3” signal from the D/A converter (IC5, pin 23) is
applied to the other input for reference.
When the driving current increases, the input voltage of the
differential amplifier (IC6a, pin 2) will be increased. In such
cases, the differential amplifier output voltage (pin 1) is
decreased to reduce the drive current.
Q26 is controlled by the TXC signal from the expander IC
(IC2, pin 14) to select HIGH or LOW output power.
Q23
Power
amp.
Q20
Driver
amp.
Q18
Driver
amp.
IC6a
+
HV
RF signal from
PLL IC (IC1) to antenna
T1
TXC Q26
+5V
APC control circuit
Power detector
circuit (D12, D14)
D14 D12
L44, C190, C191,
C196, C197
LPF
ANT
SW
SWHV
2
31
• APC CIRCUIT

4 - 3
4-3 PLL CIRCUITS
4-3-1 PLL CIRCUIT (MAIN AND LOGIC UNITS)
A PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.
An oscillated signal from the TX and RX-VCO circuits pass-
es through the LO and buffer amplifiers (Q9, Q12) is applied
to the PLL IC (IC1, pin 6) and is prescaled in the PLL IC
based on the divided ratio (N-data). The reference signal is
generated at the reference oscillator (X1) and is also applied
to the PLL IC. The PLL IC detects the out-of-step phase
using the reference frequency and outputs it from pin 15.
The output signal is passed through the loop filter(Q2) and
is then applied to the TX and RX-VCO circuits as lock volt-
age.
The lock voltage is also used for the receiver tunable band-
pass filters to match the filter’s center frequency to the
desired receive frequency. The lock voltage is passed
through the loop filter (Q2), and then applied to the DC
amplifier (Q10). The amplified signal is applied to the CPU
(LOGIC unit; IC7, pin 98) via the “LVIN” signal. The signal is
analyzed at the CPU, and then applied to bandpass filters
(D9–D11, D13) as “T1”, “T2”, “T3” signals via the D/A con-
verter.
4-3-2 VCO CIRCUIT (MAIN UNIT)
The VCO circuit contains a separate TX-VCO (Q6, D2, D4)
and RX-VCO (Q7, D5). The oscillated signal is amplified at
the LO (Q9) and buffer (Q11) amplifiers, and is then Tx/Rx
switching circuit (D6, D7). Then Tx and Rx signals are
applied to the pre-driver (Q17) and 1st mixer circuit (Q19)
respectively.
A portion of the signal from LO amplifier (Q9) is amplified at
the buffer amplifier (Q12) and is then fed back to the PLL IC
(IC1, pin 6) as the comparison signal.
Shift register
Prescaler
Phase
detector
Loop
filter
Programable
divider
Reference
divider
X1
25.25 MHz
Q6,
D2,
D4
TX VCO
RX VCO LO D7
D6
Q12
Q9
Q2
2
3
4PLLCK
IC1 (PLL IC)
PLLDATA
PLLSTB
to transmitter circuit
to 1st mixer circuit (Q19)
1
96
Q7,
D5
Buff.
Q11
TX/RX
switch
Buff.
25.25 MHz 2nd LO signal
to the 2nd IF IC (IC4, pin 2)
• PLL CIRCUIT
LINE
HV
SWHV
C5V
+8V
+5V
T8
R5V
DESCRIPTION
The voltage from the power supply.
The same voltage as HV line which is controlled
by the HVSW circuit (Q28, Q30, Q31). When the
[POWER] switch is pushed, the CPU outputs the
“PWRON” control signal via the expander IC
(IC2). The signal is applied to the HVSW circuit
to turn the circuit ON.
The output voltage is applied to the drive ampli-
fier (Q18), +8V regulator circuit (IC7), etc.
Common 5 V for the CPU converted from the HV
line by the C5V regulator circuit (IC8). The circuit
outputs the voltage regardless of the power
ON/OFF condition.
The output voltage is applied to the EEPROM
(LOGIC UNIT; IC5), CPU (LOGIC UNIT; IC7),
etc.
Common 8 V converted from the 13.8 V line by
the +8V regulator circuit (IC7).
The output voltage is applied to the LO (Q9) and
buffer (Q11) amplifiers, etc.
Common 5 V converted from the +8 V line by the
+5V regulator circuit (Q21, Q22).
Transmit 8 V controlled by the T8V regulator cir-
cuit (Q14, Q15) using the “TXC” signal from the
I/O expander IC (IC2).
Receive 5 V controlled by the R5V regulator cir-
cuit (Q25) using “RXC” signal from the I/O
expander IC (IC2).
The output voltage is applied to the FM IC IC
(IC4), IF (Q16) and RF (Q27) amplifiers, etc.
4-4 POWER SUPPLY CIRCUITS
VOLTAGE LINE

4 - 4
Pin Port Description
number name Pin Port Description number name
4-5 PORT ALLOCATIONS
4-5-1 CPU (LOGIC UNIT: IC7)
1
9
11
12
14
15
16
17
19
20
21
22
23
26
32–35
36–39
40
41
44
45
47
49–51
53
DETO
RESET
CSHIFT
SCK
SO
PTT
CLIN
CLOUT
NOIS
COLOR
DIM1
DIM0
REMO
UNLK
COM4–
COM1
KR3–
KR0
EXTMIC
OPV2
PLLSTB
PLLCK
EXSTB
OPV3
OPT1–
OPT3
DUSE
Input port for the weather alert signal
detection.
Input port for reset signal.
Outputs reference oscillator for the
CPU control signal.
Outputs serial clock signal to the
expander IC (MAIN unit; IC2, pin 3),
D/A convertor IC (MAIN unit, IC5, pin
7), etc.
Outputs serial signals to the D/A con-
vertor IC (MAIN unit; IC5, pin 8),etc.
Input port for the [PTT] switch.
High : While [PTT] switch is pushed.
Input port for the cloning signal.
Outputs the cloning signal.
Input port for noise signals (pulse
type).
Outputs LCD back light color control
signal.
Low : While choosing umber color.
Outputs LCD contrast control signal.
Input port for the remote signals from
a remote microphone (HM-133V) via
the [MIC] jack.
Input port for PLL unlock signal from
the PLL IC (MAIN unit; IC1, pin 14).
Outputs LCD common signals.
Input port for initial matrix.
Low : While keys are pushing.
Input port for the remote control micro-
phone (HM-133V) connecting detec-
tion.
Low : While HM-133V is connected.
Input port for the optional unit detec-
tion signal.
Outputs strobe signals to the PLL IC
(IC1, pin 4).
Outputs PLL IC (IC1, pin 2) clock sig-
nal.
• Outputs strobe signal to the
expander IC (IC2, pin 1).
• Input port for the optional unit detec-
tion signal.
I/O port for optional unit control signal.
Outputs low-pass filter cut-off frequen-
cy control signal when DTCS is acti-
vated.
54
55
56–88
90
91
95
96
97
98
99
100
Outputs EEPROM (LOGIC unit; IC5,
pin 6) clock signal.
I/O port for the data signals from/to the
EEPROM (LOGIC unit; IC5, pin 5).
Output LCD driver signals.
Outputs CTCSS and DTCS tone sig-
nal.
Outputs DTMF, BEEP and 1750 Hz
tone signal.
Input port for the squelch level detec-
tion.
Input port for the microphone up/down
signal while connecting the micro-
phone.
Input port for the RSSI detection.
Input port for the PLL lock voltage.
Input port for the power detector volt-
age.
Input port for the transceiver’s internal
tempareture detection.
ESCK
ESDA
SEG1–
SEG32
CTCC
TONE
SQLV
MICUD
SD
LVIN
PDET
TEMP

4 - 5
Pin Port Description
number name
2
3
10
11, 23
14
15
22
MOD
SQLATT
T1
T2, T3
SQLIN
DTC
FC
Outputs transmit devetion control sig-
nal.
Outputs attenuator control signal.
• Outputs tunable bandpass filter con-
trol signal while receiving.
• Outputs TX power control signal
while transmitting.
Output tunable bandpass filter control
signals.
Outputs squelch control signal.
Outputs DTCS’s gradient control sig-
nal.
Outputs reference frequency control
signal to X1.
4-5-2 D/A CONVERTOR IC (MAIN UNIT: IC5)
Pin Port Description
number name
4
7
12
6
11
13
14
FANC1
FANC
FANC2
AFMUTE
SHIFT
RXC
TXC
Outputs cooling fan control signal.
The fan speed is depended as shown
below.
Outputs AF mute circuit control signal.
High : While AF mute is ON.
Outputs TX and RX VCO’s regulator
control signals.
High : While receiving.
Low : While transmitting.
Outputs R5 regulator control signal.
Low : While receiving.
Outputs TX power control signal.
High : While transmitting.
4-5-3 I/O EXPANDER IC (MAIN UNIT: IC2)
Fan speed
Hi
Middle
Low
FANC
H
H
H
FANC1
H
L
H
FANC2
H
H
L

S.=Surface mount
IC1 1110002860 S.IC TA75S393F (TE85R)
IC2 1130004200 S.IC TC4S66F (TE85R)
IC3 1110005340 S.IC NJM12902V-TE1
IC4 1130009110 S.IC S-80942ANMP-DD6-T2
IC5 1130009680 S.IC HN58X2432TI
IC6 1130008090 S.IC BU4066BCFV-E1
IC7 1140010400 S.IC HD6433876B53H (FX-2509A)
IC8 1130007570 S.IC BU4094BCFV-E2
Q1 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R)
Q2 1590000430 S.TRANSISTOR DTC144EUA T106
Q3 1590001650 S.TRANSISTOR XP4601 (TX)
Q4 1590000430 S.TRANSISTOR DTC144EUA T106
Q5 1590000660 S.TRANSISTOR DTC144TU T106
Q6 1510000510 S.TRANSISTOR 2SA1576A T106R
Q7 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R)
Q8 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R)
Q9 1590000430 S.TRANSISTOR DTC144EUA T106
Q12 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R)
D1 1730002280 S.ZENER MA8091-M (TX)
D2 1790001250 S.DIODE MA2S111-(TX)
D3 1730002280 S.ZENER MA8091-M (TX)
D4 1750000520 S.DIODE DAN222TL
D6 1750000370 S.DIODE DA221 TL
D7 1750000520 S.DIODE DAN222TL
D8 1750000520 S.DIODE DAN222TL
D9 1750000520 S.DIODE DAN222TL
D13 1790001250 S.DIODE MA2S111-(TX) [SEA], [USA] only
D15 1790001250 S.DIODE MA2S111-(TX) [USA] only
D20 1750000520 S.DIODE DAN222TL
D21 1750000520 S.DIODE DAN222TL
D22 1790001250 S.DIODE MA2S111-(TX) [SEA] only
D23 1790001250 S.DIODE MA2S111-(TX) [SEA] only
D24 1790001240 S.DIODE MA2S728-(TX)
X1 6050010870 S.XTAL CR-663 (9.200 MHz)
R1 7030004780 S.RESISTOR ERJ3GEYF 123 V (12 kΩ)
R2 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R3 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R4 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R5 7030005521 S.RESISTOR ERA3YKD 334V
R6 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R7 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R8 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R9 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R10 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R11 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R12 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R13 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R14 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R15 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R16 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R17 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R18 7210001860 VARIABLE EVU-F2AF20 B14 (10KB)
R19 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R20 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R21 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R22 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R23 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R24 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R25 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R26 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R27 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R28 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R29 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R30 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R31 7210001870 VARIABLE EVU-F2AF20 A14 (10KA)
R32 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R34 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R35 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R36 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R37 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R38 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R39 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R40 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R41 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R42 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R43 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R44 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R45 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R46 7410000950 S.ARRAY EXB-V8V 102JV
R47 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R48 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R49 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R50 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R51 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R52 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R53 7030003820 S.RESISTOR ERJ3GEYJ 155 V (1.5 MΩ)
R54 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) [USA] only
R55 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
[SEA], [CSA] only
R56 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω)
R57 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R58 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R59 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R60 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R61 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R62 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R64 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R67 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R69 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R70 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R71 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R72 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R73 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R74 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R75 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R76 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R77 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R78 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R79 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R80 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R81 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R82 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R83 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω)
R84 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R85 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R86 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω)
R87 7410000950 S.ARRAY EXB-V8V 102JV
R89 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R91 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R92 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R93 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R94 7030003310 S.RESISTOR ERJ3GEYJ 820 V (82 Ω)
R96 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R97 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R99 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R100 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R101 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R102 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R103 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R104 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
[SEA], [CSA]
7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) [USA]
R105 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R106 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R107 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R108 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R109 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
[USA] only
R110 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R111 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
C1 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C4 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
5 - 1
SECTION 5 PARTS LIST
REF ORDER DESCRIPTION
NO. NO.
[LOGIC BOARD] REF ORDER DESCRIPTION
NO. NO.
[LOGIC BOARD]

5 - 2
S.=Surface mount
C5 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C8 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C10 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C11 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C13 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C14 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C16 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C19 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C23 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C28 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C30 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C31 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C32 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C33 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C34 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A
C35 4030008900 S.CERAMIC C1608 JB 1H 333K-T-A
C36 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C37 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C38 4030009970 S.CERAMIC C1608 JB 1H 182K-T-A
C39 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C40 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C41 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C42 4030008920 S.CERAMIC C1608 JB 1H 473K-T-A
C43 4030008920 S.CERAMIC C1608 JB 1H 473K-T-A
C44 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C45 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C46 4030008880 S.CERAMIC C1608 JB 1H 223K-T-A
C47 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C48 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C49 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C50 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C51 4030008890 S.CERAMIC C1608 JB 1H 273K-T-A
C52 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C53 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A
C54 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C55 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C56 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A
C57 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A
C59 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C62 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C64 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C65 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C66 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C67 4510004630
S.ELECTROLYTIC ECEV1CA100SR
C68 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C69 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C70 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C71 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C72 4030008900 S.CERAMIC C1608 JB 1H 333K-T-A
C73 4510005860 S.ELECTROLYTIC ECEV1HA2R2SR
C74 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C75 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A
C76 4030008900 S.CERAMIC C1608 JB 1H 333K-T-A
C77 4510005860 S.ELECTROLYTIC ECEV1HA2R2SR
C78 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C79 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
J1 6450002210 CONNECTOR 3017-8821 <AI>
J2 6510020880 CONNECTOR 53244-1217
J3 6510020880 CONNECTOR 53244-1217
J4 6510021970 S.CONNECTOR AXN330C130P
DS1 5040001760 S.LED SEC 2422C
DS2 5040001760 S.LED SEC 2422C
DS4 5040001760 S.LED SEC 2422C
DS5 5040001760 S.LED SEC 2422C
DS7 5040001760 S.LED SEC 2422C
DS8 5040001760 S.LED SEC 2422C
DS10 5040001760 S.LED SEC 2422C
DS11 5040001760 S.LED SEC 2422C
DS13 5040002420 S.LED SML-310MT T86
DS14 5040002420 S.LED SML-310MT T86
DS16 5040002420 S.LED SML-310MT T86
DS17 5040002420 S.LED SML-310MT T86
DS18 5040002420 S.LED SML-310MT T86
DS19 5030002250 LCD L1-0256TAM
REF ORDER DESCRIPTION
NO. NO.
[LOGIC BOARD]
S9 2250000370 ENCODER EVQ-VENF0124B
SP1 2510001150 SPEAKER 045P0804 <KS>
WS1 8600036880 FX2509 P01LO
EP1 6910012350 S.BEAD MMZ1608Y 102BT
EP2 6910012350 S.BEAD MMZ1608Y 102BT
EP3 6910012350 S.BEAD MMZ1608Y 102BT
EP4 6910012350 S.BEAD MMZ1608Y 102BT
EP5 6910012350 S.BEAD MMZ1608Y 102BT
EP6 6910012350 S.BEAD MMZ1608Y 102BT
EP7 6910012350 S.BEAD MMZ1608Y 102BT
EP8 6910012350 S.BEAD MMZ1608Y 102BT
EP9 8930057360 LCD CONTACT SRCN-2509-SP-N-W
EP10 0910055312 PCB B 5801B
IC1 1130008350 S.IC LV2105V-TLM
IC2 1130007700 S.IC BU4094BCF-T1
IC4 1110003200 S.IC TA31136FN (EL)
IC5 1190000350 S.IC M62363FP-650C
IC6 1110005330 S.IC NJM12904V-TE1
IC7 1180001250 S.IC TA7808F (TE16L)
IC8 1180000420 S.IC TA78L05F (TE12R)
IC9 1110003090 IC LA4425A
Q1 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q2 1590001650 S.TRANSISTOR XP4601 (TX)
Q3 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q4 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q5 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q6 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q7 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q8 1590001040 S.TRANSISTOR DTA113ZU T106
Q9 1530003220 S.TRANSISTOR 2SC4406-4-TL
Q10 1560000810 S.FET 2SK1069-4-TL
Q11 1530003220 S.TRANSISTOR 2SC4406-4-TL
Q12 1530003220 S.TRANSISTOR 2SC4406-4-TL
Q13 1590000720 S.TRANSISTOR DTA144EUA T106 [USA] only
Q14 1510000690 S.TRANSISTOR 2SA1734 (TE12R)
Q15 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q16 1530003220 S.TRANSISTOR 2SC4406-4-TL
Q17 1530000370 S.TRANSISTOR 2SC3356-T1B
Q18 1560001100 S.FET 2SK3074 (TE12L)
Q19 1580000660 S.FET 3SK272-(TX)
Q20 1560001060 S.FET 2SK3075 (TE12L)
Q21 1590001010 S.TRANSISTOR DTB113ZK T147
Q22 1590000430 S.TRANSISTOR DTC144EUA T106
Q23 1560001190 FET RD70HVF
Q25 1590001010 S.TRANSISTOR DTB113ZK T147
Q26 1590000720 S.TRANSISTOR DTA144EUA T106
Q27 1580000660 S.FET 3SK272-(TX)
Q28 1530002970 S.TRANSISTOR 2SC4684 (TE16R)
Q29 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q30 1510000890 S.TRANSISTOR DTA143TU T106
Q31 1590001320 S.TRANSISTOR DTC143ZUA T106
Q32 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q33 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q34 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
D1 1790001250 S.DIODE MA2S111-(TX)
D2 1750000720 S.VARICAP HVC375BTRF
D3 1750000770 S.VARICAP HVC376BTRF
D4 1750000720 S.VARICAP HVC375BTRF
D5 1750000720 S.VARICAP HVC375BTRF
D6 1790000620 S.DIODE MA77 (TX)
D7 1790000620 S.DIODE MA77 (TX)
D9 1750000710 S.VARICAP HVC350BTRF
REF ORDER DESCRIPTION
NO. NO.
[LOGIC BOARD]
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]

S.=Surface mount
D10 1750000710 S.VARICAP HVC350BTRF
D11 1750000710 S.VARICAP HVC350BTRF
D12 1710001060 DIODE XB15A407
D13 1750000710 S.VARICAP HVC350BTRF
D14 1790000980 S.DIODE MA742 (TX)
D15 1750000550 S.DIODE 1SS355 TE-17
D16 1710000870 S.DIODE HVU131TRF
D17 1790000980 S.DIODE MA742 (TX)
D18 1790001250 S.DIODE MA2S111-(TX)
D19 1710001080 DIODE XB15A308
D20 1730000520 ZENER RD20E B2
D21 1790000700 DIODE DSA3A1
D22 1790001520 S.ZENER MA8075-L (TX)
D23 1790001250 S.DIODE MA2S111-(TX) [USA] only
D24 1790001250 S.DIODE MA2S111-(TX) [USA] only
D25 1790001250 S.DIODE MA2S111-(TX) [USA] only
D26 1790001250 S.DIODE MA2S111-(TX) [USA] only
D27 1710001060 DIODE XB15A407
D28 1790000980 S.DIODE MA742 (TX)
D29 1750000370 S.DIODE DA221 TL
FI1 2020001520 CERAMIC CFWLA450KFFA-B0 (CFWS450F)
FI2 2020001460 CERAMIC CFWLA450KHFA-B0 (CFWS450HT)
[USA] only
FI3 2010002420 MONOLITH 21R15AB (FL-310)
FI4 2010002420 MONOLITH 21R15AB (FL-310)
X1 6050010800 S.XTAL CR-659 (21.25 MHz)
X2 6070000200
DISCRIMINATOR CDBLA450KCAY24-B0
L1 6200004480 S.COIL MLF1608D R82K-T
L2 6200002850 S.COIL NL 252018T-R82J
L3 6200001620 S.COIL ELJFC 1R0K-F
L6 6200009920 S.COIL C2012C-R10G
L7 6200009910 S.COIL C6342A-88NG-A
L8 6200004870 S.COIL ELJFC 2R7K-F
L9 6200004880 S.COIL ELJFC 3R3K-F
L10 6200001620 S.COIL ELJFC 1R0K-F
L11 6200006980 S.COIL ELJRE R10G-F
L12 6200006980 S.COIL ELJRE R10G-F
L13 6200006980 S.COIL ELJRE R10G-F
L14 6200006990 S.COIL ELJRE 56NG-F
L15 6200007000 S.COIL ELJRE 82NG-F
L18 6200005740 S.COIL ELJRE 47NG-F
L19 6200004920 S.COIL MLF1608A 2R2K-T
L20 6200005740 S.COIL ELJRE 47NG-F
L21 6200006980 S.COIL ELJRE R10G-F
L22 6200006670 S.COIL ELJRE 68NG-F
L23 6200005680 S.COIL ELJRE 15NG-F
L24 6200003590 S.COIL EXCCL3225U1
L25 6200003280 S.COIL NL 252018T-2R2J
L26 6200003280 S.COIL NL 252018T-2R2J
L27 6200003590 S.COIL EXCCL3225U1
L28 6200008260 S.COIL 0.30-1.7-8TL 60N
L30 6200008490 S.COIL 0.30-0.9-3TR 7.5N
L31 6200009930 S.COIL C2012C-68NG
L32 6200009930 S.COIL C2012C-68NG
L33 2040000490 COIL EXC-ELDR25C
L34 2040000490 COIL EXC-ELDR25C
L35 6110001680 COIL LA-254
L37 6200010040 S.COIL AS100340-10N
L38 6200009920 S.COIL C2012C-R10G
L39 6200010050 S.COIL AS080547-47N
L40 6170000180 COIL LW-19
L42 6200007370 S.COIL ELJFC R82K-F
L43 6200009750 S.COIL 0.30-2.0-7TL 68N
L44 6200010050 S.COIL AS080547-47N
L45 6200008150 S.COIL 0.35-1.6-7TL 44N
L46 6200010060 S.COIL AS080647-56N
L47 6200010070 S.COIL AS080747-68N
L48 6200010070 S.COIL AS080747-68N
L50 6200002910 S.COIL NL 252018T-R27J
L51 6200010050 S.COIL AS080547-47N
L52 6200002180 S.COIL NL 252018T-R12J
L53 6200005710 S.COIL ELJRE 27NG-F
R1 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R2 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
5 - 3
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
R3 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R4 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω)
R5 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R6 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R7 7510001280 S.THERMISTOR NTCCM20124AG473J-T
R8 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R10 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R11 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R12 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R13 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R14 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R15 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R16 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R17 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R18 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R19 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R20 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R21 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R22 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R23 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R24 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R25 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R26 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R27 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R28 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R29 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R30 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R31 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R32 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R33 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω)
R34 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R35 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R36 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R37 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R39 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R40 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R41 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R42 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R43 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R44 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R45 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R46 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R47 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R48 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R49 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R50 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R51 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R52 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R54 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω)
R55 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R56 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R57 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R58 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R59 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R60 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω)
R62 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R63 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R64 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R66 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R67 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R68 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R69 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R71 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R72 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R73 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
[SEA], [CSA]
7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) [USA]
R76 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R78 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R79 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R81 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R82 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R83 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R84 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R88 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R90 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R92 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R93 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R95 7030000230 S.RESISTOR MCR10EZHJ 56 Ω(560)
R96 7030000660 S.RESISTOR MCR10EZHJ 220 kΩ
R98 7030009980 S.RESISTOR ERJ12RSJR15U
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]

5 - 4
S.=Surface mount
R101 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R103 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R104 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R105 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R106 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R107 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R108 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R109 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R110 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R111 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R112 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R113 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R114 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R117 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R118 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R119 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R120 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R121 7030001010 S.RESISTOR MCR50JZHJ 10 Ω(100)
R122 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R123 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R124 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R125 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω(4R7)
R126 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R127 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R128 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R129 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R130 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R131 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R132 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R133 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R134 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R135 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
[USA] only
R136 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
[USA] only
R137 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
[USA] only
R138 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
[USA] only
R139 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
[USA] only
R140 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
[USA] only
R150 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω)
R151 7030009980 S.RESISTOR ERJ12RSJR15U
R152 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω)
R153 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R154 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R155 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
[USA] only
R156 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[USA] only
R157 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[USA] only
R161 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R162 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R163 7030000230 S.RESISTOR MCR10EZHJ 56 Ω(560)
R164 7030000230 S.RESISTOR MCR10EZHJ 56 Ω(560)
R165 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R166 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R167 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R168 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R169 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω)
R170 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R171 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) [USA] only
R172 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
[USA] only
R173 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R174 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R175 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R176 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
C1 4550006410 S.TANTALUM ECST1VY334R
C2 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C3 4510004440
S.ELECTROLYTIC ECEV1HA010SR
C4 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C5 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C8 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C10 4510004640 S.ELECTROLYTIC ECEV1CA470SP
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
C11 4550006250 S.TANTALUM TEMSVA 1A 106M-8L
C12 4550006760 S.TANTALUM TEMSVB2 1A 336M-8R
C13 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A
C14 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C16 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C17 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C20 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C21 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C22 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C23 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A
C24 4550006170 S.TANTALUM ECST1AY225R
C25 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C26 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C28 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C29 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C30 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C31 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C32 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C34 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C36 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C37 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C38 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C39 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C41 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C42 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C44 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C45 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C47 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C48 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C49 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C50 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C51 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C52 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C53 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C54 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C55 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C56 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C57 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C58 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C59 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C60 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C61 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C62 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C63 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C64 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C65 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C66 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C67 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C68 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A
C69 4510004630
S.ELECTROLYTIC ECEV1CA100SR
C70 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C71 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C72 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C73 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C74 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C75 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C77 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C78 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C79 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C80 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C81 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C82 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C83 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C84 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C85 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C86 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C87 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C88 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C89 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C90 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C91 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C93 4030006910 S.CERAMIC C1608 CH 1H 0R5C-T-A
C94 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C95 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C96 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C97 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C98 4030008900 S.CERAMIC C1608 JB 1H 333K-T-A
C100 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A
C101 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C102 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C104 4510006220
S.ELECTROLYTIC ECEV1CA101UP
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]

S.=Surface mount
C105 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C106 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C108 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C109 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C111 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A
C112 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A
C113 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C116 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C117 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C118 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C120 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C122 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C123 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C124 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C125 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C126 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C127 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C128 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C129 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C130 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A
C131 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C133 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C134 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C135 4030004990 S.CERAMIC C2012 CH 1H 101J-T-A
C136 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C137 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C138 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C139 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C140 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C141 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C145 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C147 4510006220
S.ELECTROLYTIC ECEV1CA101UP
C148 4030008560 S.CERAMIC C1608 CH 1H 300J-T-A
C149 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C150 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C151 4030017880 S.CERAMIC ERF22X 6C2H 560J D01L (GRM111)
C152 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C153 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C154 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C155 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C156 4030017890 S.CERAMIC ERF22X 6C2H 101J D01L (GRM111)
C157 4550006210 S.TANTALUM ECST1CX106R
C158 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C159 4030017880 S.CERAMIC ERF22X 6C2H 560J D01L (GRM111)
C160 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C161 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C163 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C164 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C166 4510006220 S.ELECTROLYTIC ECEV1CA101UP
C167 4030011730 S.CERAMIC GRM31M2C2H101JV01L (GRM42-6 CH)
C168 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C169 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C170 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C171 4030011160 S.CERAMIC GRM31M2C2H150JV01L (GRM42-6 CH)
C172 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C173 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C174 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C175 4510006250 S.ELECTROLYTIC ECEV1CA331UP
C176 4030011190 S.CERAMIC GRM31M2C2H270JV01L (GRM42-6 CH)
C177 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C178 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C179 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C180 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C181 4510004440 S.ELECTROLYTIC ECEV1HA010SR
C182 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C183 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C184 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C185 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C187 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C188 4510004440
S.ELECTROLYTIC ECEV1HA010SR
C189 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C190 4030011020 S.CERAMIC GRM31M4C2H1R0CY21L (GRM42-6 CK)
C191 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C192 4030008880 S.CERAMIC C1608 JB 1H 223K-T-A
C193 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C194 4510006250 S.ELECTROLYTIC ECEV1CA331UP
C195 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A
C196 4030011020 S.CERAMIC GRM31M4C2H1R0CY21L (GRM42-6 CK)
C197 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C198 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
5 - 5
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
C200 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C201 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C203 4030017980 S.CERAMIC ERF22X 6C2H 470J D01L
C204 4510006260 S.ELECTROLYTIC ECEV1AA471UP
C205 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C206 4030011050 S.CERAMIC GRM31M3C2H3R0CY21L (GRM42-6 CJ)
C207 4510006020 ELECTROLYTIC 16 MV 2200 HC
C208 4030011210 S.CERAMIC GRM31M2C2H330JV01L (GRM42-6 CH)
C209 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C210 4030011160 S.CERAMIC GRM31M2C2H150JV01L (GRM42-6 CH)
C211 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C212 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C213 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C214 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C215 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C216 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C217 4030011240 S.CERAMIC GRM31M2C2H470JV01L (GRM42-6 CH)
C218 4030011180 S.CERAMIC GRM31M2C2H220JV01L (GRM42-6 CH)
C219 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A
C222 4030006900 S.CERAMIC C1608 JB 1H 103K-T-A
C224 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C225 4030017200 S.CERAMIC GRM31BR32J102KY01L (GHM1030 R)
C227 4030011730 S.CERAMIC GRM31M2C2H101JV01L (GRM42-6 CH)
C228 4030011230 S.CERAMIC GRM31M2C2H390JV01L (GRM42-6 CH)
C229 4030011230 S.CERAMIC GRM31M2C2H390JV01L (GRM42-6 CH)
C230 4510004630 S.ELECTROLYTIC ECEV1CA100SR [USA] only
C232 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A [USA] only
C233 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N [USA] only
C234 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A
C235 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A
C237 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C238 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C239 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C240 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C241 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C242 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C243 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C244 4030011600 S.CERAMIC C1608 JB 1E 104K-T-N
C245 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
J1 6510018040 CONNECTOR 52330-1217
J2 6510018040 CONNECTOR 52330-1217
J4 6450002220 CONNECTOR PJ-0008P-5 <AI>
J5 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
J6 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
W1 7030003860 S.JUMPER ERJ3GE JPW V [SEA], [CSA] only
W2 7030003860 S.JUMPER ERJ3GE JPW V [SEA], [CSA] only
W3 7030003860 S.JUMPER ERJ3GE JPW V
W5 7120000470 JUMPER ERDS2T0
W6 8900010980 CABLE OPC-1131
EP1 6910012350 S.BEAD MMZ1608Y 102BT
EP2 6910012350 S.BEAD MMZ1608Y 102BT
EP3 0910055322 PCB B 5800B
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]

6 - 1
SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
REF. NO. ORDER NO. DESCRIPTION QTY.
[CHASSIS PARTS]
[MAIN UNIT]
W6 8900010980 Cable OPC-1131 1
MP1 8410002380 2399 Heatsink 1
MP2 8510014470 2509 VCO case 1
MP3 8510014460 2509 VCO cover 1
REF. NO. ORDER NO. DESCRIPTION QTY.
Screw abbreviations A0, B0, BT: Self-tapping
NI-ZU: Nickel-Zinc
ZK: Black
SUS: Stainless
[ACCESSORIES]
F1 5210000080 Fuse (20A) 1
MC1 0880001060 Microphone HM-133 ACC [CSA-1], [USA-2] 1
0800005740 Microphone HM-118TN ACC [CSA] 1
0800005820 Microphone HM-118N ACC [SEA] 1
0800005720 Microphone HM-118TAN ACC [USA-3] 1
W1 8900010990 Cable OPC-1132 ACC 1
MP1 8010016730 150 Mobil bracket 1
MP2 8930041170 452 Felt 2
MP3 8820000530 Flange bolt M4 x 8 4
MP4 8810000950 Screw A0 M5 x 16 4
MP5 8850000180 Flat washer M5 SUS 4
MP6 8850000500 Spring washer M5 SUS 4
MP7 8810000470 Screw M5 x 12 (+/–) 4
MP8 8830000250 Nut M5 SUS 4
MP9 8930007300 MIC hanger [USA] only 1
REF. NO. ORDER NO. DESCRIPTION QTY.
REF. NO. ORDER NO. DESCRIPTION QTY.
[LOGIC BOARD]
MC1*W1
MP3
MP1
MP4 MP5 MP6 MP8
MP9
F1
MP7
*The illustration is the HM-133V.
6-1 IC-V8000
DS19 5030002250 L1-0256TAM 1
S9 2250000370 Encoder EVQ-VENF01 24B 1
SP1 2510001150 Speaker 045P0804 1
WS1 8600036880 FX2509 P01L0 1
EP9 8930057360 LCD contact SRCN-2509-SP-N-W 1
MP1 8210018440 2509 Front panel 1
MP2 8930057300 2509 LCD filter 1
MP3 8210018450 2509 Reflectort 1
MP4 8930056850 2509 A-keyboard 1
MP5 8930056860 2509 B-keyboard 1
MP6 8930056870 2509 C-keyboard 1
MP7 8510014340 2509 Front plate 1
MP8 8610010602 Knob N-267-2 2
MP9 8610011140 Knob N-291 1
MP12 8810008760 Screw B0 M2 x 8 NI-ZU (BT) 4
J1 6510004880 Connector MR-DSE-01 1
MF1 2710000720 Fan DF125020BH 1
MP180100188012509 Chassis-1 1
MP2 8030056880 2509 Fan holder 1
MP3 8110007670 2509 Cover 1
MP4 8810008660 Screw BT M3 x 8 NI-ZU (BT) 2
MP5 8810008660 Screw BT M3 x 8 NI-ZU (BT) 1
MP6 8810008660 Screw BT M3 x 8 NI-ZU (BT) 13
MP7 8810008030 Screw H M2.6 x 8 2
MP9 8810005160 Hex socket bolt M3 x 20 ZK 3
MP10 8810009610 Screw M2.6 x 6 ZK 4
MP11 8930039610 Thermally sheet (C) 3
MP14 8810010140 Screw M3 x 30 ZK 4
MP15 8510014500 2509 Shield plate 1
MP16 8930057880 Rubber sheet (BA) 1
MP17 8930048390 Sheet (BZ) 1

MP1 (C)
DS19 (L)
EP9 (L)
MP2 (L)
MP3 (L)
MP1 (L)
MP8 (L)
MP9 (L)
MP9 (C)
MP9 (C)
SP1 (L)
WS1 (L)
MP4 (L)
MP5 (L)
MP6 (L)
IC9 (M)
W6 (M)
MP7 (L)
MP12 (L)
MP11 (C)
MP12 (L)
MP14 (C)
MP14 (C)
MP14 (C)
MP14 (C)
MP2 (C)
MF1 (C)
J1 (C)
MP4 (C)
MP6 (C)
MP16 (C)
MP17 (C)
MP6 (C)
MP10 (C)
MP3 (C)
MP10 (C)
MP6 (C)
MP15 (C)
MP7 (C)
MP5 (C)
MAIN unit
LOGIC unit
UNIT abbreviations (C): CHASSIS PARTS, (L): LOGIC BOARD, (M): MAIN UNIT
6 - 2

6-2 HM-133V
6 - 3
REF. NO. ORDER NO. DESCRIPTION QTY.
[CHASSIS PARTS] [MAIN UNIT]
MC1 7700002310 Microphone EM-140 1
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900010450 Cable OPC-153 1
MP1 8210018830 2539 Front panel 1
8210018890 2539 Front panel (A) 1
8210018910 2539 Front panel (B) 1
MP2 8210018840 2539 Rear panel 1
MP3 8930057380 2539 PTT button 1
MP4 8930057390 2539 LED lens 2
MP5 8930057570 SW rubber 1
MP6 8930057520 2539 Keyboard 1
8930057710 2539 Keyboard (A) 1
8930057700 2539 Keyboard (B) 1
MP8 8810009370 Screw B0 M3 x 12 ZK (BT) 2
MP9 8810009560 Screw B0 M2 x 6 ZK (BT) 3
Screw abbreviations B0, BT: Self-tapping
ZK: Black
MP5 (C)
MP1 (C)
MP3 (C)
MP4 (C)
MP6 (C)
MP9 (C)
MP9 (C)
MP2 (C)
MC1 (M)
W1 (C)
MP8 (C)
MAIN unit
HM-133V
UNIT abbreviations (C): CHASSIS PARTS
(M): MAIN UNIT

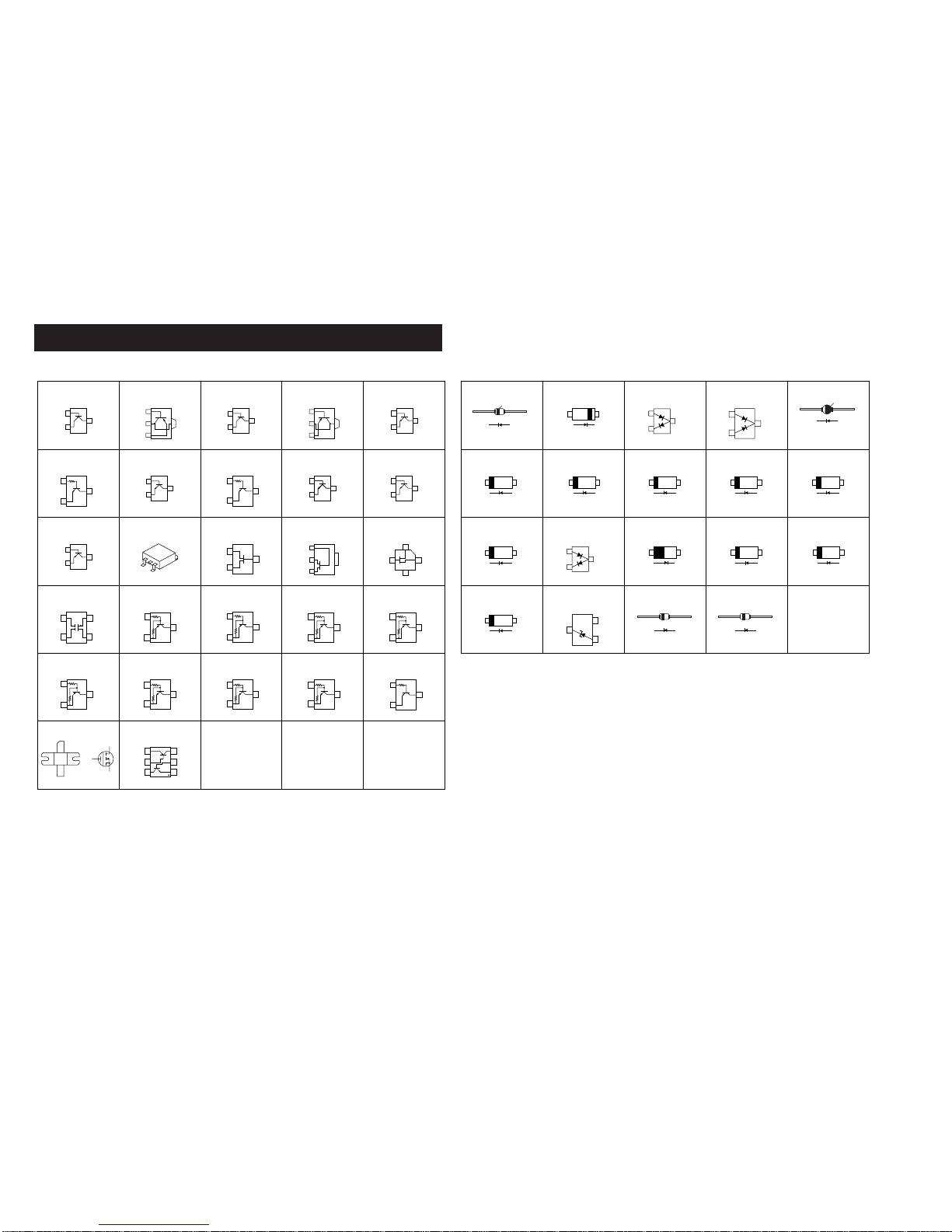

SECTION 7 SEMI-CONDUCTOR INFORMATION
7 - 1
•TRANSISTOR AND FET’S
B
EC
2SC4116 BL
(Symbol: LL)
B
EC
2SC2712 BL
(Symbol: L0)
2SB1132 R
(Symbol: BARB)
2SC3356
(Symbol: R22) 2SC4213 B
(Symbol: AB)
2SC4684 (LB)
(Symbol: 2-7B2A)
B
EC
2SA1576 R
(Symbol: FR)
B
EC
2SA1586 GR
(Symbol: S0)
2SA1734
(Symbol: LB)
B
EC
2SC4226 R25
(Symbol: R25)
B
EC
2SC4406 4
(Symbol: JT)
DTA143 TUA
(Symbol: 93) DTA144 EU (Symbol: 16)
DTC144 EU
(Symbol: 26)
DTB113 ZK
(Symbol: G11)
RD70HVF1
(Symbol: RD70HVF1)
DTC144TU
(Symbol: 06)
XP4601
(Symbol: 5C)
B
E
C
B
S
E
C
B
E
C
DTA113 ZU
(Symbol: 111) DTA114 EU (Symbol: 16 )
B
E
C
B
C
E
B
C
E
2SK3074
(Symbol: UW)
2SK1069 4
(Symbol: FJ)
G
S
D
2SK3075
(Symbol: UB F)
G
S
D
3SK272
(Symbol: K)
G1
G2
S
D
B
E
C
2SC4116 GR
(Symbol: LG)
B
E
C
E1
C2
B1
C1
E2
B2
B
E
C
B
E
C
B
E
C
DTC143 ZU
(Symbol: 123)
DTC114 EU
(Symbol: 24)
B
E
C
DG
S
B
E
C
BE
C
G
S
D
G
D
•DIODES
DA221
(Symbol: K)
HVC375B
(Symbol: B8 ) HVC376B (Symbol: B9 )
HVC350B
(Symbol: BO)
DSA3A1
(Symbol: )
1SS133
(Symbol: Yellow line) 1SS355 (Symbol: A) DAN222 (Symbol: N)
MA742
(Symbol: M1U)
MA2S728
(Symbol: B)
C
A1
A2
HVU131TRF
(Symbol: P1) MA2S111
(Symbol: A)
MA77
(Symbol: 4B)
A
A
K
C
MA8075 L
(Symbol: 7-5)
MA8056M
(Symbol: 5-6)
MA8091 M
(Symbol: 9-1)
green
XB15A407
(Symbol: None)
RD20E B2
(Symbol: 202) XB15A308 (Symbol: T8)
AC
yellow
