Icom IC-V82 User manual

VHF AND UHF TRANSCEIVERS
IC-U82 IC-V82
●Powerful 7W of output power*
* 5W for UHF
●Optional Digital unit, UT-114
—Digital selective calling, digital voice scrambler andDigital selective calling, digital voice scrambler and
short data message capabilities
●Tough construction and Simple
operation
●200 memory channels, 1 call channel
and 6 scan edges
●10 memory banks and bank link scan
●5 character alphanumeric display
●Priority, program, memory, skip and
tone scanning
● Built-in CTCSS and DTCS encoder/decoder
●16 DTMF autodial memories
● Variety of battery packs/case
available
— Ni-Cd, Ni-MH, Li-Ion and alkaline cells
●Optional DTMF decoder unit, UT-108
offers ANI and pager functions
●Optional voice scrambler unit,
UT-109 or UT-110
●Powerful 7W of output power*
* 5W for UHF
●Optional Digital unit, UT-114
—Digital selective calling, digital voice scrambler andDigital selective calling, digital voice scrambler and
short data message capabilities
●Tough construction and Simple
operation
●200 memory channels, 1 call channel
and 6 scan edges
●10 memory banks and bank link scan
●5 character alphanumeric display
●Priority, program, memory, skip and
tone scanning
● Built-in CTCSS and DTCS encoder/decoder
●16 DTMF autodial memories
● Variety of battery packs/case
available
— Ni-Cd, Ni-MH, Li-Ion and alkaline cells
●Optional DTMF decoder unit, UT-108
offers ANI and pager functions
●Optional voice scrambler unit,
UT-109 or UT-110
●Powerful 7W of output power*
* 5W for UHF
●Optional Digital unit, UT-114
— Digital selective calling, digital voice scrambler and
short data message capabilities
●Tough construction and Simple
operation
●200 memory channels, 1 call channel
and 6 scan edges
●10 memory banks and bank link scan
●5 character alphanumeric display
●Priority, program, memory, skip and
tone scanning
●
Built-in CTCSS and DTCS encoder/decoder
●16 DTMF autodial memories
●
Variety of battery packs/case
available
— Ni-Cd, Ni-MH, Li-Ion and alkaline cells
●Optional DTMF decoder unit, UT-108
offers ANI and pager functions
●Optional voice scrambler unit,
UT-109 or UT-110
High Power!
Digital Capability!
Power to Go Anywhere!
High Power!
Digital Capability!
Power to Go Anywhere!
High Power!
Digital Capability!
Power to Go Anywhere!
144MHz General (LM) version
430MHz General (LM) version
With optional UT-118
or UT-114

•Frequency coverage :
IC-V82 136–174MHz*1
IC-U82 400–479MHz*2
Guaranteed range *1144–148MHz, *2430–440MHz
•Mode : F3E, F2D, F7W*
* Optional UT-114/UT-118 required.
•No. of memory Ch. : 207
(incl. 6 scan edges and 1 call)
•
Operating Temp. range : –10˚C to +60˚C; +14˚F to +140˚F
•Frequency stability : ±2.5ppm (–10˚C to +60˚C)
•Power supply : 7.2V DC (6.0–10.3V DC accept-
requirement able; Icom’s battery pack only)
•Current drain (at 7.2V DC):
•Antenna impedance : 50Ω(BNC)
•Dimensions (W×H×D) : 54 ×139 ×36.7 mm;
(Projections not included) 21⁄8×515⁄32 ×17⁄16 in
•Weight (approx.) : 390g; 13.8oz (w/ant. and BP-222N)
•Output power (at 7.2V DC):
IC-V82 7.0/4.0/0.5W (High/mid/low)
IC-U82 5.0/2.0/0.5W (High/mid/low)
•Spurious emissions : Less than –60dBc
•Max. freq. deviation : ±5.0/±2.5kHz (Wide/narrow)
•Ext. microphone : 3-conductor 2.5(d)mm (1⁄10″)
connector /2.2kΩ
•Intermediate freq. : 46.35MHz/450kHz (1st/2nd)
•Sensitivity : 0.16µV (typ.; at 12dB SINAD)
•Squelch sensitivity : 0.11µV (typ.; threshold)
•Selectivity : More than 55/50dB (wide/narrow)
•Spurious and image : 80dB (typ.; VHF)
rejection 70dB (typ.; UHF)
•Intermodulation : 65dB (typ.)
•Audio output power : 300mW with an 8Ωload
• Ext. speaker connector : 3-conductor 3.5(d)mm (1⁄8″)/8Ω
•Ext. Data connector : 3-conductor 2.5(d)mm (1⁄10″)
GENERAL
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone] Count on us!
URL: http://www.icom.co.jp/world/index.html
Printed in Japan
2380 116th Avenue NE,
Bellevue,WA 98004, U.S.A.
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
URL : http://www.icomamerica.com
Communication Equipment
Himmelgeister Str.100,
D-40225 Düsseldorf, Germany
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.icomeurope.com
A.B.N.88 006 092 575
Unit 1 / 103 Garden Road,
ClaytonVIC 3168 Australia
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.icom.net.au
Unit 9, Sea St., Herne Bay,
Kent, CT6 8LD, U.K.
Phone : [phone]
Fax : [phone]
E-mail : [email protected].uk
URL : http://www.icomuk.co.uk
Zac de la Plaine, 1,
Rue Brindejonc des Moulinais BP 5804,
31505 Toulouse Cedex, France
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.icom-france.com
Ctra.Rubi, No.88 "Edificio Can Castanyer"
08190, Sant Cugat del Valles, Barcelona, Spain
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.icomspain.com
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
URL : http://www.icom.co.nz
Glenwood Centre #150-6165 Highway 17,
Delta, B.C.,V4K 5B8, Canada
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
URL : http://www.icomcanada.com
Your local distributor/dealer:
6F No.68, Sec.1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
URL : http://www.asia-icom.com
10C07, Long Silver Mansion, No.88,Yong Ding
Road, Haidian District, Beijing, 100039, China
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.bjicom.com
Sopot, 3 maja 54, Poland
Phone : [phone]
Fax:[phone]
E-mail : [email protected]
URL : http://www.icompolska.com.pl JP98/14190QA TW03/00288EM
Icom Inc. (Japan), is an ISO 9001 and ISO
14001 certification acquired company.
VHF AND UHF TRANSCEIVERS

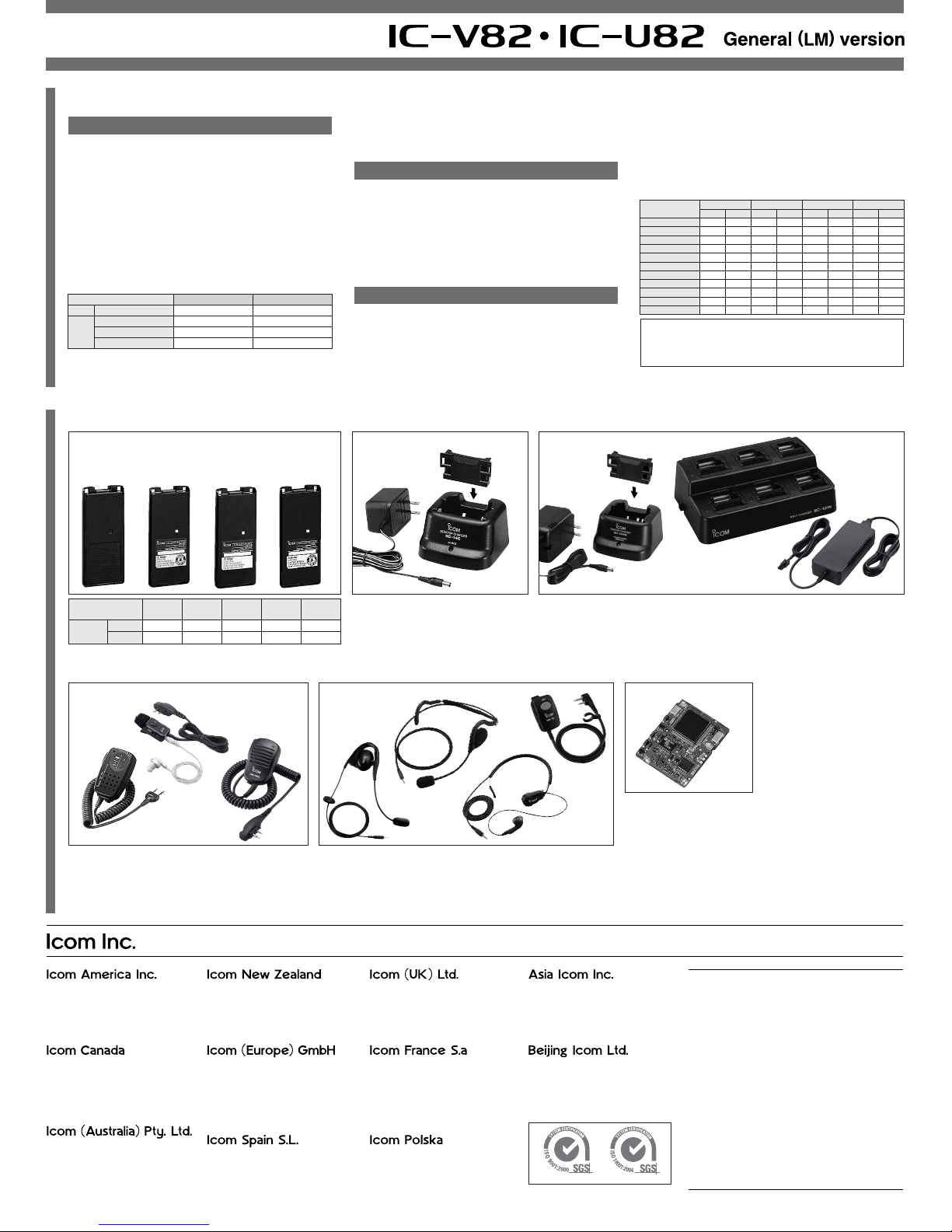

SPECIFICATIONS
04YS019A © 2004–2005 Icom Inc.
TRANSMITTER
RECEIVER
Supplied accessories
●Battery case or battery pack* ●Desktop charger*
●Antenna ●Belt clip *depending on version
All stated specifications are subject to change without notice or obligation.
HM-75A :Allows you to remotely select operating channel,
etc., according to program.
HM-158L: Compact and durable body with screw-type con-
nector. Equipped with an earphone jack and a re-
volving clip.
HM-153L: Durable earphone-microphone with revolving clip.
UT-108 DTMF DECODER
Provides DTMF decode and ANI
capabilities.
UT-109/UT-110 VOICE
SCRAMBLER UNITS
Provides operating security.
UT-109: Non rolling type.
UT-110: Rolling type.
UT-114/UT-118 DIGITAL UNITS
UT-114: With voice scrambler.
UT-118: Without voice scrambler.
▲HM-75A
IC-V82 IC-U82
Tx High (7W/5W) 2.6A 2.0A
Max. audio 250mA 250mA
Rx Standby 80mA 80mA
Power save 30mA 30mA
OPTIONS
CS-V82 CLONING SOFTWARE
+ OPC-478/U CLONING CABLE
Provides quick and easy program-
ming of memory channel, names, etc.
OPC-478U is USB cable type.
OPC-474 CLONING CABLE
Use for transceiver-to-transceiver data
cloning.
MB-86/MB-103 BELT CLIPS
MB-103: Alligator type clip.
Same as supplied.
MB-86: Swivel belt clip.
MB-96N/MB-96F
LEATHER BELT HANGERS
MB-96N: Swivel belt hanger.
MB-96F: Fixed type belt hanger.
Use with MB-103.
SP-13 EARPHONE
Provides clear audio even in noisy en-
vironments.
BC-146 DESKTOP CHARGER
+ BC-147A/E AC ADAPTER
Charges the Ni-Cd or Ni-MH battery pack, BP-209N,
BP-210N, BP-222N with/without transceiver in 12,
18.5, 6.5 hours (approx.), respectively. The BC-147
AC adapter is additionally required. Cannot charge
Li-Ion battery pack, BP-211N.
BC-144N DESKTOP CHARGER + BC-145A/E/V AC ADAPTER
For rapid charging of battery pack, BP-209N, BP-210N or BP-222N. An AC adapter, BC-145, is supplied with
the charger depending on version. Charging time: 1.5 to 2 hours. Cannot charge Li-Ion battery pack, BP-211N.
BC-119N+AD-101+BC-145A/E/V Rapidly charges BP-211N as well as other battery packs.
BC-121N MULTI-CHARGER + AD-101 CHARGER ADAPTER + BC-157 AC ADAPTER
For rapid charging of up to 6 battery packs (including BP-211N) in 1.5 to 2 hours. SixAD-101s are required.
OPC-656 DC POWER CABLE;
For use with the BC-121N. (12–20 V DC required)
BP-211N
Li-Ion
7.4V/1800mAh
BP-208N
AA (LR6)
batteries ×6
Battery life is approx. time; Tx (Hi): Rx: standby=1:1: 8 power save func-
tion when set at auto.
BP-210N
Ni-MH
7.2V/1650mAh
▲BC-146
▼BC-147A/E
BATTERY PACKS BP-208N BP-209N BP-210N BP-211N BP-222N
AND CASE
BATTERY VHF (7W) –3h 20 min 6 hours 6 h 10 min 2 h 15 min
LIFE UHF (5W) –3h 40 min 7 hours 8 h 15 min 2 h 50 min
BP-209N Ni-Cd
7.2V/1100mAh
BP-222N Ni-Cd
7.2V/600mAh
HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97
: Throat microphone fits around your neck and picks up speech vibration.
VS-1L :PTT/VOX unit. Required when using these headsets with the transceiver.
HS-85:Includes VOX, PTT and “one-touch” PTT with a time-out timer.
▼HS-94
▲HS-95
▲HS-97
HEADSETS and
PTT/VOX UNIT
▼BC-145
A/E/V
▲BC-144N
▲VS-1L ▲UT-114
INTERNAL UNITS
REGULAR CHARGER RAPID CHARGERS
Applicable U.S. Military Specifications
Standard MIL 810 C MIL 810 D MIL 810 E MIL 810 F
Method Proc. Method Proc. Method Proc. Method Proc.
Low Pressure 500.1 I500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I502.2 I, II 502.3 I, II 502.4-3 I, II
Temp. Shock 503.1 I503.2 I503.3 I503.4 I
Solar Radiation 505.1 I505.2 I505.3 I505.4 I
Rain Drip 506.1 II 506.2 II 506.3 II 506.4 III
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I509.2 I509.3 I509.4 –
Dust Blowing 510.1 I510.2 I510.3 I510.4 I
Vibration 514.2 VIII, X 514.3 I514.4 I514.5 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
▼BC-157
▲BC-121N+AD-101
(6 pcs.)
HM-158L
▼HM-153L
SPEAKER-MICROPHONES
▼
