INSTRUCTION MANUAL
This device complies with Part 15 of the FCC Rules. Opera-
tion is subject to the condition that this device does not cause
harmful interference.
COMMANDMIC
IV ™ (HM-195)
may not be supplied, depending
on the transceiver version.
iM400BBE
VHF MARINE TRANSCEIVERS
iM400BB

ii
Thank you for choosing this Icom product.
This product is designed and built with Icom’s state of the art
technology and craftsmanship. With proper care, this product
should provide you with years of trouble-free operation.
DFEATURES
❍Built-in DSC meets ITU Class D require-
ment
❍Rugged waterproof construction
❍COMMANDMIC
IV ™ (HM-195) supplied*.
❍Easy to make an individual DSC calls using
the optional Class B AIS Transponder
❍Built-in GPS receiver with a supplied GPS
antenna (For only the IC-M400BBE)
* May not be supplied, depending on the transceiver version.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL — This in-
struction manual contains important operating instructions
for the IC-M400BB/IC-M400BBE.
EXPLICIT DEFINITIONS
WORD DEFINITION
RWARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia, Australia, New Zealand, and/or other countries.
COMMANDMIC is a registered trademark of Icom Incorporated (Japan) in Ja-
pan and the United States.
Icom is not responsible for the destruction or damage to the
Icom transceiver, if the malfunction is because of:
• Force majeure, including, but not limited to, fires, earth-
quakes, storms, floods, lightnings, or other natural disas-
ters, disturbances, riots, war, or radioactive contamination.
• The use of Icom transceiver with any equipment that is not
manufactured or approved by Icom.

IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a Distress call on Channel 16.
Or, transmit your Distress call using digital selective calling
on Channel 70.
INSTALLATION NOTE
Installation:
The installation of this equipment should be made in such a
manner as to respect the EC recommended electromagnetic
field exposure limits. (1999/519/EC)
The maximum RF power available from this device is 25
watts. The antenna should be installed as high as possible
for maximum efficiency and the installation height should be
at least 1.4 meters above any accessible position. In the case
where an antenna cannot be installed at a reasonable height,
then the transmitter should neither be continuously operated
for long periods if any person is within a distance of 1.4 me-
ters of the antenna, nor operated at all if any person is touch-
ing the antenna.
It is recommended that antenna of a maximum gain of 3 dB
are used. If higher gain antenna are required then please
contact your Icom distributor for revised installation recom-
mendations.
Operation:
The exposure to RF electromagnetic field is only applicable
when this device is transmitting. This exposure is naturally re-
duced due to the nature of alternating periods of receiving and
transmitting. Keep your transmissions to the minimum neces-
sary.
USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...............” (name of vessel).
3. Say your call sign or other description of the vessel (AND
9 digit DSC ID if you have one).
4. “LOCATED AT ...............” (your position).
5. State the nature of the distress and assistance required.
6. Give any other information which might facilitate the res-
cue.
USING DIGITAL SELECTIVE CALLING (Ch 70)
DISTRESS CALL PROCEDURE
1. While lifting up the key cover, hold down [DISTRESS]
for 3 seconds until you hear 3 short beeps and then one
long beep.
2. Wait for an acknowledgment on Channel 70 from a coast
station.
• After the acknowledgement is received, Channel 16 is auto-
matically selected.
3. Hold down [PTT], then transmit the appropriate informa-
tion as listed above.
ii

iii
RADIO OPERATOR WARNING
WARNING
Icom requires the radio operator to meet the
FCC and IC Requirements for Radio Fre-
quency Exposure. An omnidirectional antenna
with gain not greater than 9 dBi must be
mounted a minimum of 5 meters (measured
from the lowest point of the antenna) vertically
above the main deck and all possible personnel. This is the
minimum safe separation distance estimated to meet all RF
exposure compliance requirements. This 5 meter distance is
based on the FCC and IC Safe Maximum Permissible Expo-
sure (MPE) distance of 3 meters added to the height of an
adult (2 meters) and is appropriate for all vessels.
For watercraft without suitable structures, the antenna must
be mounted so as to maintain a minimum of 1 meter verti-
cally between the antenna, (measured from the lowest point
of the antenna), to the heads of all persons AND all persons
must stay outside of the 3 meter MPE radius.
Do not transmit with radio and antenna when persons are
within the MPE radius of the antenna, unless such persons
(such as driver or radio operator) are shielded from antenna
field by a grounded metallic barrier. The MPE Radius is the
minimum distance from the antenna axis that person should
maintain in order to avoid RF exposure higher than the al-
lowable MPE level set by FCC and IC.
FAILURE TO OBSERVE THESE LIMITS MAY ALLOW
THOSE WITHIN THE MPE RADIUS TO EXPERIENCE RF
RADIATION ABSORPTION WHICH EXCEEDS THE MAXI-
MUM PERMISSIBLE EXPOSURE (MPE) LIMIT.
IT IS THE RESPONSIBILITY OF THE RADIO OPERATOR
TO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-
SURE LIMITS ARE OBSERVED AT ALL TIMES DURING
RADIO TRANSMISSION. THE RADIO OPERATOR IS TO
ENSURE THAT NO BYSTANDERS COME WITHIN THE
RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE
LIMITS.
Determining MPE Radius
THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-
DIUS HAS BEEN ESTIMATED TO BE A RADIUS OF
ABOUT 3 M PER OET BULLETIN 65 OF THE FCC.
THIS ESTIMATE IS MADE ASSUMING THE MAXIMUM
POWER OF THE RADIO AND ANTENNAS WITH A MAXI-
MUM GAIN OF 9 dBi ARE USED FOR A SHIP MOUNTED
SYSTEM.

iv
AVERTISSEMENT POUR LES OPÉRATEURS RADIO
Icom exige que l’opérateur radio se conforme
aux exigences de la FCC et d’IC en matière
d’exposition aux radiofréquences. Une antenne
omnidirectionnelle dont le gain ne dépasse pas 9
dBi doit être fixée à une distance minimale de 5
mètres (mesurée depuis le point le plus bas de
l’antenne) verticalement au-dessus du pont principal et de tout le
personnel qui peut s’y trouver. Il s’agit de la distance de sécurité mini-
male prévue pour satisfaire aux exigences de conformité en matière
d’exposition aux RF. Cette distance de 5 mètres est établie en fonc-
tion de l’exposition maximale admissible sécuritaire de 3 mètres
établie par la FCC et d’IC, à laquelle on ajoute la hauteur d’un adulte
(2 mètres); cette distance convient pour tous les navires.
Dans le cas des embarcations sans structure convenable, l’antenne
doit être fixée de façon à maintenir une distance minimale de 1 mètre
verticalement entre cette antenne (mesurée depuis son point le plus
bas) et la tête de toute personne présente; toutes les personnes
présentes doivent se tenir à l’extérieur d’un rayon d’exposition maxi-
male admissible de 3 mètres.
Ne pas émettre à l’aide de la radio et de l’antenne lorsque des
personnes se trouvent à l’intérieur du rayon d’exposition maximale
admissible de cette antenne, à moins que ces personnes (comme
le conducteur ou l’opérateur radio) ne soient protégées du champ
de l’antenne par un écran métallique relié à la masse. Le rayon
d’exposition maximale admissible équivaut à la distance minimale
que cette personne doit maintenir entre elle et l’axe de l’antenne pour
éviter une exposition aux RF supérieure au niveau d’exposition maxi-
male admissible fixé par la FCC et d’IC.
LE NON-RESPECT DE CES LIMITES PEUT CAUSER, POUR LES
PERSONNES SITUÉES DANS LE RAYON D’EXPOSITION MAXI-
MALE ADMISSIBLE, UNE ABSORPTION DE RAYONNEMENT
DE RF SUPÉRIEURE À L’EXPOSITION MAXIMALE ADMISSIBLE
FIXÉE.
L’OPÉRATEUR RADIO EST RESPONSABLE D’ASSURER QUE
LES LIMITES D’EXPOSITION MAXIMALE ADMISSIBLE SOIENT
RESPECTÉES EN TOUT TEMPS PENDANT LA TRANSMISSION
RADIO. L’OPÉRATEUR RADIO DOIT S’ASSURER QU’AUCUNE
PERSONNE PRÉSENTE NE SE SITUE À L’INTÉRIEUR DU RAY-
ON D’EXPOSITION MAXIMALE ADMISSIBLE.
Établir le rayon d’exposition maximale admissible
ON ESTIME QUE LE RAYON D’EXPOSITION MAXIMALE ADMIS-
SIBLE EST D’ENVIRON 3 M, TEL QUE STIPULÉ DANS LE BUL-
LETIN OET 65 DE LA FCC. CETTE DISTANCE ESTIMÉE TIENT
COMPTE D’UN SYSTÈME INSTALLÉ SUR UN NAVIRE UTIL-
ISANT LA PUISSANCE MAXIMALE DE LA RADIO ET DES AN-
TENNES DONT LE GAIN MAXIMAL EST DE 9 dBi.
AVERTISSEMENT

v
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio com-
munications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be re-
quired to correct the interference at his own expense.
CAUTION: Changes or modifications to this transponder,
not expressly approved by Icom Inc., could void your author-
ity to operate this transponder under FCC regulations.
NOTE: A WARNING STICKER is supplied with the USA
version transceiver.
To comply with FCC regulations, this
sticker must be affixed in such a location as to be readily seen
from the operating controls of the radio as in the diagram
below. Make sure the chosen location is clean and dry before
applying the sticker.
FCC INFORMATION
CLEAN THE TRANSCEIVER AND MICROPHONE THOR-
OUGHLY WITH FRESH WATER after exposure to saltwater,
and dry it before operating. Otherwise, the transceiver's keys,
switches and controllers may become unusable, due to salt
crystallization.
NOTE: If the transceiver’s waterproof protection appears defective,
carefully clean it with a soft, damp (fresh water) cloth, then, dry it
before operating.
The front panel may lose its waterproof protection if the case, jack
cap, or connector cover is cracked or broken, or the front panel has
been dropped. Contact your Icom distributor or your dealer for advice.
RECOMMENDATION

vi
New2001
PRECAUTIONS
RWARNING! NEVER connect the transceiver to an AC
outlet. This may pose a fire hazard or result in an electric shock.
RWARNING! NEVER connect the transceiver to a pow-
er source of more than 16 V DC such as a 24 V DC. This
could cause a fire or damage the transceiver
RWARNING! NEVER reverse the DC power cable po-
larity when connecting to a power source.This could damage
the transceiver.
RWARNING! NEVER cut the DC power cable between
the DC plug at the back of the transceiver and fuse holder. If
an incorrect connection is made after cutting, the transceiver
may be damaged.
RWARNING! NEVER operate the transceiver during a
lightning storm. It may result in an electric shock, cause a
fire or damage the transceiver. Always disconnect the power
souce and antenna before a storm.
CAUTION: NEVER place the transceiver where normal
operation of the vessel may be hindered or where it could
cause bodily injury.
KEEP the transceiver and microphone at least 1 m away
from the vessel’s magnetic navigation compass.
DO NOT use or place the transceiver in areas with tem-
peratures below –20°C (–4°F) or above +60°C (+140°F) or, in
areas subject to direct sunlight, such as the dashboard.
DO NOT use harsh solvents such as benzine or alcohol to
clean the transceiver, as they will damage the transceiver’s
surfaces. If the transceiver becomes dusty or dirty, wipe it
clean with a soft, dry cloth.
DO NOT disassemble or modify the transceiver for any reason.
BE CAREFUL! The transceiver rear panel will become
hot when operating continuously for long periods of time.
Place the transceiver in a secure place to avoid inadvertent
use by children.
BE CAREFUL! The transceiver and the supplied or op-
tional HM-195 commandmiciv™meet IPX7 requirements
for waterproof protection. However, once the transceiver has
been dropped, waterproof protection cannot be guaranteed
because of possible damage to the transceiver’s case or the
waterproof seal.
* Except for the DC power connector, NMEA In/Out leads and AF
Out leads.

vii
New2001
TABLE OF CONTENTS
IMPORTANT.......................................................................... i
EXPLICIT DEFINITIONS....................................................... i
IN CASE OF EMERGENCY................................................. ii
INSTALLATION NOTE.......................................................... ii
RADIO OPERATOR WARNING .......................................... iii
AVERTISSEMENT POUR LES OPÉRATEURS RADIO...... iv
FCC INFORMATION ............................................................v
RECOMMENDATION ........................................................... v
PRECAUTIONS................................................................... vi
1 OPERATING RULES.......................................................1
2 PREPARATION............................................................2–3
■MMSI code programming.............................................2
■ATIS code programming...............................................3
3 AIS TRANSPONDER...................................................4–5
■Making an Individual call using an AIS transponder ....4

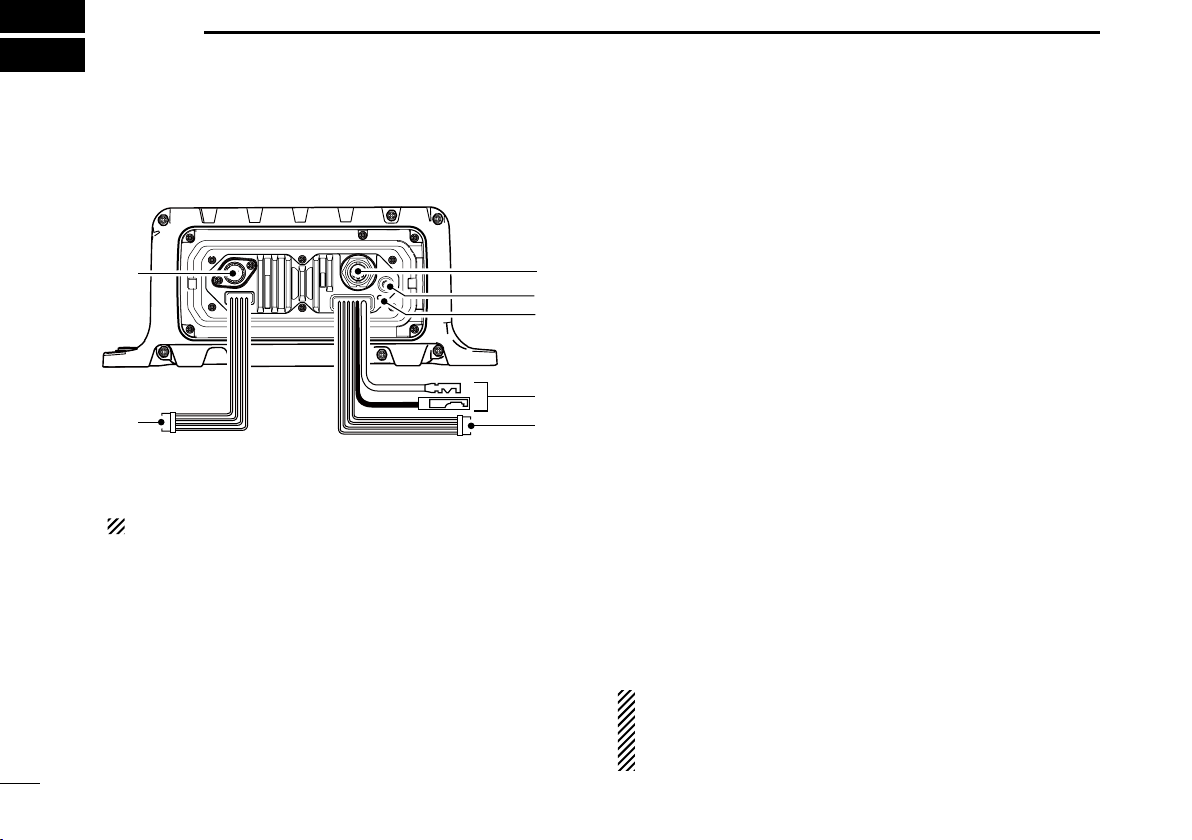

4 CONNECTIONS AND MAINTENANCE ....................6–10
■Connections.................................................................6
■Supplied accessories...................................................8
■Fuse replacement ........................................................8
■Cleaning.......................................................................8
■Mounting the transceiver..............................................8
■Antenna........................................................................9

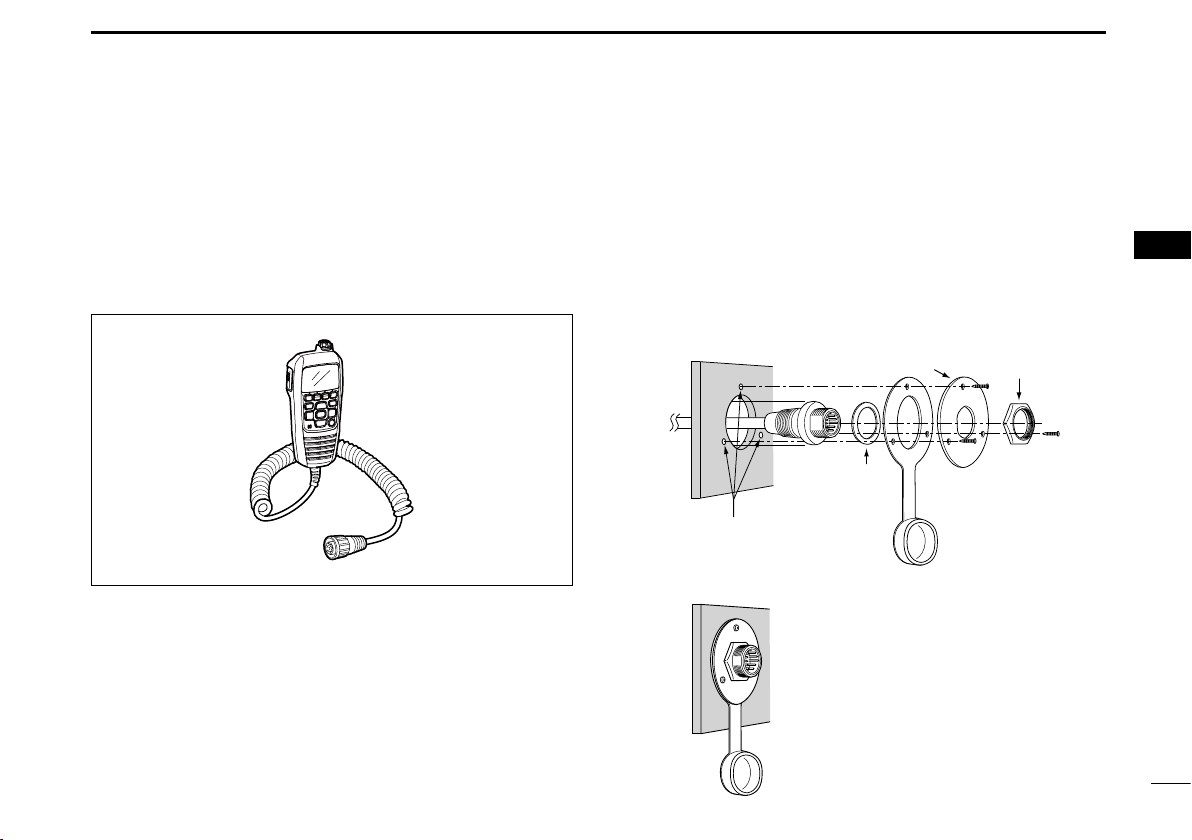

■Microphone installation ................................................9
5 SPECIFICATIONS AND OPTIONS .........................11–12
■Specifications.............................................................11
■Options.......................................................................12
6 CHANNEL LIST.............................................................13
7 INFORMATION..............................................................14
8 TROUBLESHOOTING...................................................15

1
New2001
1
OPERATING RULES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DPriorities
• Read all rules and regulations pertaining to call priorities,
and keep an up-to-date copy handy. Safety and distress
calls take priority over all others.
• You must monitor Channel 16 when you are not operating
on another channel.
• False or fraudulent distress calls are prohibited under law.
DPrivacy
• Information overheard, but not intended for you, cannot law-
fully be used in any way.
• Indecent or profane language is prohibited.
DRadio licenses
(1) SHIP STATION LICENSE
You may require a current radio station license before using
the transceiver. It is unlawful to operate a ship station which is
not licensed, but required to be.
If required, contact your dealer or the appropriate govern-
ment agency for a Ship-Radiotelephone license application.
This government-issued license states the call sign which is
your craft’s identification for radio purposes.
(2) OPERATOR’S LICENSE
A Restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
If required, the Restricted Radiotelephone Operator Permit
must be posted or kept with the operator. If required, only a
licensed radio operator may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
A current copy of the applicable government rules and regu-
lations is only required to be on hand for vessels in which
a radio telephone is compulsory. However, even if you are
not required to have these on hand it is your responsibility to
be thoroughly acquainted with all pertinent rules and regula-
tions.
NOTE: Even though the transceiver is capable of opera-
tion on VHF marine channels 1021, 1023, 1081, 1082 and
1083, according to FCC regulations these simplex chan-
nels cannot be lawfully used by the general population in
USA waters.

2
New2001New2001
PREPARATION
2
■MMSI code programming
The 9 digit MMSI (Maritime Mobile Service Identity: DSC self
ID) code can be programmed at power ON.
The code is programmed by using the HM-195.
This initial code setting can be performed only once.
After being set, it can be changed by only your dealer
or distributor. If your MMSI code has already been pro-
grammed, this programming is not necessary.
qHold down [PWR](Dial) to turn ON the power.
• Three short beeps sound, and “NO DSC MMSI” is displayed.
wPush [ENT] to start the MMSI code programming.
• Push [CLEAR] twice to cancel the programming, and go to the
normal operating screen. In this case, the transceiver cannot
make a DSC call. To program the MMSI code, turn OFF the
power, then turn it ON again.
eEnter your MMSI code in the following manner:
• Select a desired number using Dial, or [∫]/[√]/[Ω]/[≈].
• Push [ENT] or Dial to set it.
• To move the cursor, select either arrow, “←” or “→,” then push
[ENT] or Dial.
rRepeat step eto enter all 9 digits.
tAfter entering the 9 digit code, “FINISH” is automatically
selected, and then push [ENT] or Dial to set it.
yThe “MMSI CONFIRMATION” screen is displayed.
uEnter your MMSI code again for confirmation.
• Enter in the same manner as steps ethrough t.
iWhen your MMSI code programming is successfully com-
pleted, the screen as shown below is briefly displayed.
• After that, the normal operating screen is displayed.
The programmed MMSI code can be checked in the MENU
screen.
NOTE: Depending on the transceiver version, the ATIS
code programming may be required after programming the
MMSI code. See the next page for details.

3
2
PREPARATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001
The 10 digit ATIS (Automatic Transmitter Identification Sys-
tem) code can be programmed at power ON.
The code is programmed by using the HM-195.
This initial code setting can be performed only once.
After being set, it can be changed by only your dealer
or distributor. If your ATIS code has already been pro-
grammed, this programming is not necessary.
qAfter programming the MMSI code, “Push [ENT] to Regis-
ter Your ATIS” is displayed.
wPush [ENT] to start the ATIS code programming.
• Push [CLEAR] twice to cancel the programming, and go to the
normal operating mode. In this case, the ATIS function is dis-
abled. To program the ATIS code, turn OFF the power, then turn
it ON again.
eEnter your ATIS code in the following manner:
• Select a desired number using Dial, or [∫]/[√]/[Ω]/[≈].
• Push [ENT] or Dial to set it.
• To move the cursor, select either arrow, “←” or “→,” then push
[ENT] or Dial.
rRepeat step eto enter all 10 digits.
tAfter entering the 10 digit code, “FINISH” is automatically
selected, and then push [ENT] or Dial to set it.
yThe “ATIS CONFIRMATION” screen is displayed.
uEnter your ATIS code again for confirmation.
• Enter in the same manner as steps ethrough t.
iWhen your ATIS code programming is successfully com-
pleted, the screen shown below is briefly displayed.
• After that, the normal operating screen is displayed.
The programmed ATIS code can be checked in the MENU
screen.
■ATIS code programming (For Dutch version transceivers)

4
New2001New2001
AIS TRANSPONDER
3
When the optional MA-500TR/MA-510TR* CLASS B AIS TRANSPON-
DER is connected to your transceiver, an individual DSC call can
be transmitted to a selected AIS target, without needing to enter
the target’s MMSI code. In this case, the call type is automatically
set to Routine. See page 7 for connecting instructions.
* Unreleased as of April 2020.
To ensure correct operation of the DSC function, make
sure you correctly set the CH70 SQL LEVEL. See (¤5) of
the HM-195 instruction manual.
Step 1: Transponder’s operation
This instruction is for the MA-500TR. See the MA-510TR
Instruction manual for the MA-510TR’s step.
qSelect a desired AIS target on the plotter, target list or dan-
ger list display.
• You can also go to the next step whenever the detail screen of
the AIS target is displayed.
• Make sure the transceiver is in the normal operating mode. Other-
wise, you cannot make an individual DSC call using the transponder.
w Push [DSC] to display the voice channel selection screen,
and then push [Y] or [Z] to select a desired voice channel*.
• Voice channels are already preset into the transponder in recom-
mended order.
*When a coast station is selected in step q, a voice channel will
be specified by the coast station, therefore you cannot change
the channel. The transponder will display “Voice Channel is
specified by the Base station,” in this case.
ePush [DSC] to transmit an individual DSC call to the AIS
target.
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
• If the transceiver cannot make the call, the transponder will dis-
play “DSC Transmission FAILED.”
■Making an Individual call using an AIS transponder
Transponder’s display
Transponder’s display
Microphone’s display
Microphone’s display

New2001
5
3
AIS TRANSPONDER
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

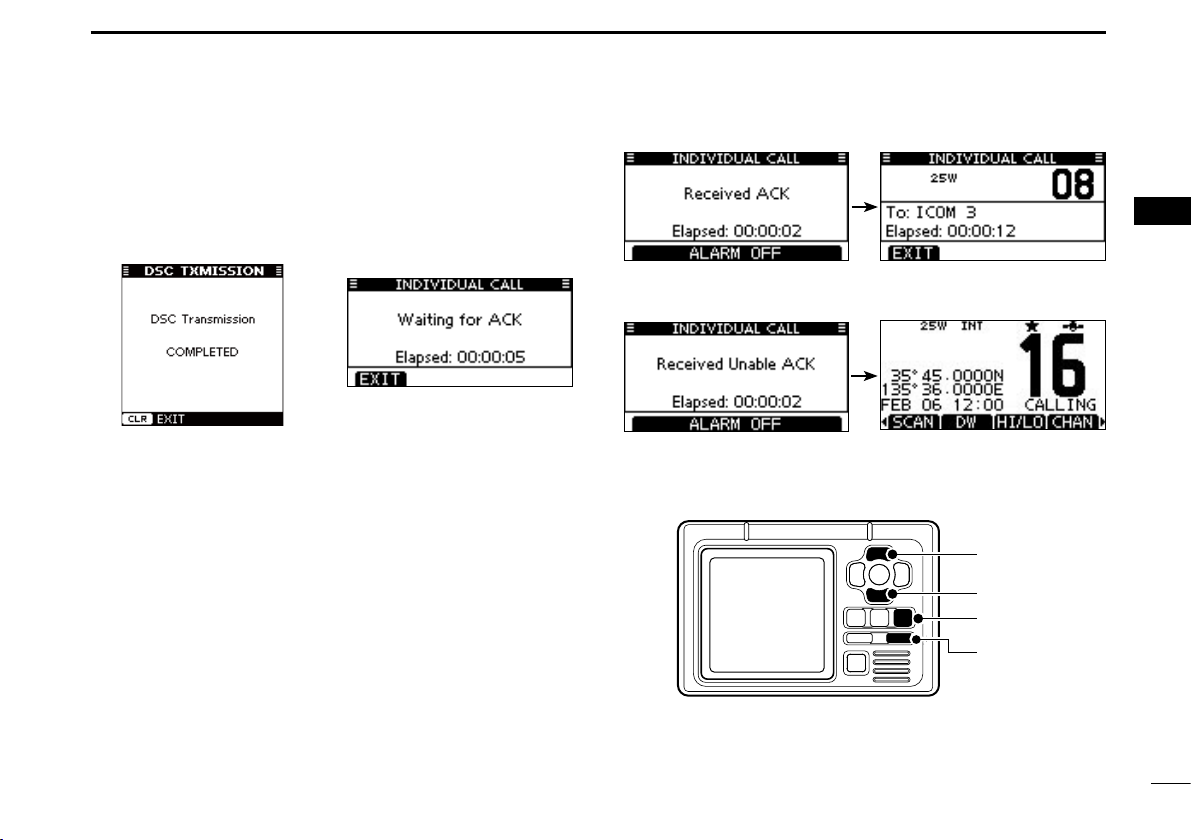

rAfter making the individual DSC call, the transponder will
display “DSC Transmission COMPLETED.”
• Push [CLEAR] to return to the screen displayed before you en-
tered the voice channel selection screen in step w.
• The transceiver stands by on Channel 70 until an acknowledge-
ment is received.
Step 2: Transceiver’s operation
tWhen the acknowledgement is received, beeps sound.
➥If the acknowledgement ‘Able to comply’ is received,
push [ALARM OFF] to stop the beeps, and then select
the intership channel specified in step w.
• A different intership channel will be selected if the station you
called cannot use the channel.
• To reply, push [PTT] and speak at a normal voice level.
• You can check the MMSI code or the name, if programmed,
of the AIS target on the display.
➥If the acknowledgement ‘Unable to comply’ is received,
push [ALARM OFF] to stop the beeps, and then return
to the operating channel before you entered the MENU
screen.
y
After the communication is finished, push [EXIT] to return
to the normal operating mode.
Transponder’s display
Microphone’s display
[DSC]
[CLEAR]
[Z]
[Y]
TRANSPONDER
‘Able to comply’ is received
‘Unable to comply’ is received

6
New2001New2001
CONNECTIONS AND MAINTENANCE
4
New2001
■Connections
• The figure shows the IC-M400BBE.
q
w
u
e
y
r
t
qANTENNA CONNECTOR
Connects to a marine VHF antenna cable’s PL-259 con-
nector.
CAUTION: DO NOT transmit without an antenna.
wNMEA IN/OUT LEADS
Brown: Talker B (Data-L)
Connects to an NMEA In Negative line of a PC or
NMEA0183 ver. 3.01 sentence format DSC, DSE compat-
ible navigation equipment, to receive position data from
other ships.
White:Talker A (Data-H)
Connects to an NMEA In Positive line of a PC or NMEA0183
ver. 3.01 sentence format DSC, DSE compatible naviga-
tion equipment, to receive position data from other ships.
Green: Listener B (Data-L)
Connects to an NMEA Out Negative line of a GPS receiver
for position data.
• A NMEA0183 ver. 2.0 or 3.01 RMC, GGA, GNS, GLL and VTG
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
Yellow: Listener A (Data-H)
Connects to an NMEA Out Positive line of a GPS receiver
for position data.
• A NMEA0183 ver. 2.0 or 3.01 RMC, GGA, GNS, GLL and VTG
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
eAF OUT LEADS
Orange: Public Address Speaker (+)
Gray: Public Address Speaker (–)
Connects to a PA speaker.
• PA output power: More than 10 W at 10% distortion with a 4 ˘load
Both black and blue leads are used only for maintenance
purpose.
NOTE for NMEA In/Out and AF Out leads:
The connectors are attached to keep the leads together.
Before connecting to a piece of equipment, you should cut
the leads to remove the connector.

New2001New2001
7
4
CONNECTIONS AND MAINTENANCE
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
rDC POWER CONNECTOR
Connects to a 13.8 V DC power source.
MAKE SURE the DC power cable polarity is correct.
Red: Positive + terminal, Black: Negative _ terminal
CAUTION: After connecting the DC power cable, NMEA
leads, external speaker leads and PA speaker leads, cover
the connector and leads with an adhesive tape, as shown
below, to prevent water seeping into the connection.
Rubber vulcanizing
tape
tGROUND TERMINAL
Connects to a vessel ground to prevent electrical shocks
and interference from other equipment occurring. Use a
PH M3 ×6 screw (not supplied).
NOTE for the IC-M400BB: The location of the ground terminal
is the same as the GPS antenna connector on the IC-M400BBE.
yGPS ANTENNA CONNECTOR
Connects to the supplied GPS antenna. (For only the
IC-M400BBE)
NOTE: Be sure the GPS antenna is positioned where the
GPS antenna has a clear view to receive signal from satel-
lites, and fixed using the supplied double-sided adhesive pad.
uCOMMAND MICROPHONE JACK
Connects to the HM-195.
NOTE: For those who purchased the IC-M400BB/IC-M400BBE
and HM-195 separately.
When connecting the HM-
195 for the first time, a
firmware update (if need-
ed) will automatically start,
and the monitor displays
the message shown to the
right. The update will take
a maximum of 2 minutes.
DO NOT turn OFF the transceiver, or disconnect the microphone
until the update is completed.
DConnecting to the MA-500TR/MA-510TR
An Individual DSC call can be made to the AIS target using
the transponder without entering the target’s MMSI code. See
the transponder’s instruction manual for connection details.
Connect each lead to the appropriate lead of the OPC-2014
as shown to the right.
• Listener A (Data-H) (Yellow): To lead 3.
• Listener B (Data-L) (Green): To lead 2.
• Talker A (Data-H) (White): To lead 5.
• Talker B (Data-L) (Brown): To lead 4.
This instruction is for the MA-500TR. See the MA-510TR
In
struction manual for the MA-510TR’s connecting instruc-
tions.

8
4CONNECTIONS AND MAINTENANCE
New2001
■Supplied accessories
DC power cable
(OPC-891A)
Screws (5×20 mm)
Flat washers (M5) GPS antenna
and double-sided
adhesive pad*
Spring washers (M5)
* Not supplied, or the type is different, depending on the transceiver’s
versions.
■Fuse replacement
One fuse is installed in the supplied DC power cable. If the
fuse blows or the transceiver stops functioning, track down
the source of the problem, repair it, and replace the damaged
fuse with a new one of the proper rating.
Fuse rating: 10 A
■Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage transceiver surfaces.
■Mounting the transceiver
Using the supplied template on the leaflet, mount the IC-
M400BB/IC-M400BBE securely to a surface which is more
than 10 mm thick and can support more than 5 kg using the 4
supplied screws (5 ×20 mm), as illustrated below.
KEEP the transceiver and microphone at least 1 meter
away from the vessel’s magnetic navigation compass.
NOTE for the IC-M400BBE: Be sure the GPS antenna is
positioned where the GPS antenna has a clear view to
receive signal from satellites, and fixed using the supplied
double-sided adhesive pad.
Spring washer
Flat washer
Secure the transceiver
to a flat surface using
the supplied screws, as
shown in the illustration.
Screws

9
4
CONNECTIONS AND MAINTENANCE
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Antenna
A key element in the performance of any communication sys-
tem is the antenna. Ask your dealer about antennas and the
best place to mount them.
■Microphone installation
The HM-195 should be connected to the transceiver using
the supplied OPC-1540 connection cable. The cable is used
to operate from a longer distance. The cable connector can
also be installed as a built-in plug on a cabinet or wall.
To operate from even longer distances, the optional 6 meter
long OPC-1541 extension cable can be used between the
transceiver and the OPC-1540. Up to two OPC-1541 can be
added.
DInstallation
qInsert the OPC-1540 cable connector into the command
microphone jack, and tighten the nut.
wTo use the cable connector as a wall socket, install it as
described to the right.
eUsing the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
rDrill holes at these marks.
tInstall the mounting base using the supplied screws, as
shown below.
Gasket
Cap
Mounting base Nut
Screw holes
(approximately 2 mm; 3⁄32˝ (d))
yThe completed installation should look like this.

10
4CONNECTIONS AND MAINTENANCE
New2001 New2001
10
Gasket
Mounting base
Cap
Nut

11
5
SPECIFICATIONS AND OPTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
■Specifications
All stated specifications are subject to change without notice
or obligation.
DGeneral
• Frequency coverage
European versions : Tx 156.000–161.450 MHz
Rx 156.000–163.425 MHz
USA versions : Tx 156.025–157.425 MHz
Rx 156.050–163.275 MHz
• Mode : FM (16K0G3E),
DSC (16K0G2B)
• Channel spacing : 25 kHz
• Operating temp. range : –20°C to +60°C ; –4°F to +140°F
• Current drain (at 13.8 V) : TX high 5.5 A maximum
Max. audio 3.5 A maximum
• Power supply requirement : 13.8 V DC nominal
(negative ground)
• Frequency stability : ±1.5 kHz (–20°C to +60°C)
• Antenna impedance : 50 ˘nominal
• Dimensions (approximate) : 216(W) ×79(H) ×125(D) mm
(Projections not included) ; 8.5(W) × 3.1(H)×4.9(D) inches
•Weight (approximate) : 830 g ; 29 oz
DTransmitter
• Output power : 25 W/1 W
• Modulation system : Variable reactance frequency
modulation
• Max. frequency deviation : ±5.0 kHz
• Spurious emissions
European versions : Less than 0.25 µW
USA versions : Less than –70 dBc (High)
Less than –56 dBc (Low)
DReceiver
• Receive system : Double conversion
superheterodyne
• Sensitivity
European versions
(20 dB SINAD) : –5 dBµ emf (typical)
USA versions
(12 dB SINAD) : –13 dBµ (typical)
• Squelch sensitivity
European versions : Less than –2 dBµ emf
USA versions : Less than –10 dBµ
• Intermodulation rejection ratio
European versions : More than 68 dB
USA versions : More than 70 dB
• Spurious response rejection ratio : More than 70 dB
• Adjacent channel selectivity : More than 70 dB
• Audio output power : More than 10 W at 10% distortion
with a 4 ˘load (RX SP)
: More than 2 W at 10% distortion
with a 4 ˘load (HM-195)
Measurements made without an antenna.

12
5SPECIFICATIONS AND OPTIONS
New2001 New2001
DGPS (IC-M400BBE)
• Frequency : 1575.42 MHz
• Channel : 66 ch
DDimensions
42 (1.65)
79 (3.11)
Unit: mm (inch)
190 (7.48)
216 (8.5)
165 mm (6.49)
124.5 (4.9)
108.3 (4.26)
■Options
• HM-195 commandmiciv™
External microphone-type controller. A 6 m (20 ft) micro-
phone cable is included. Black and white colors are avail-
able.
• OPC-1541 microphone extension cable
A 6 m (20 feet) microphone extension cable for the HM-195
commandmiciv™. Up to two OPC-1541s can be connected.
Maximum usable length is 18 m (60 ft).
• MA-500TR/MA-510TR* class bais transponder
To transmit individual DSC calls to selected AIS targets.
* Unreleased as of April 2020.
