INSTRUCTION MANUAL
iC- m59euro
VHF MARINE TRANSCEIVER
VHF MARINE
TAG TRI
DIM ALL
CLR
16
C
SQUELCH
OFF
PWR/VOL
SCAN
HI/LO DIAL
DUAL

IN CASE OF EMERGENCY
i
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a distress call on channel 16. Or, transmit your distress call using digital selective calling on channel 70 (the optional UX-120
DSC UNIT with RC-18
DIS -
TRESS SWITCH BOX must be installed).
❍ USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY”
2. “THIS IS - - - - - - - - - - - - - - ” (name of vessel)
3. Your call sign or other indication of the vessel
(AND 9-digit DSC ID if you have one).
4. “LOCATED AT - - - - - - - - - - ” (your position)
5. The nature of the distress and assistance re-
quired.
6. Any other information which might facilitate the
rescue.
❍ USING DIGITAL SELECTIVE CALLING (ch 70)
(UX-120 with RC-18 required)

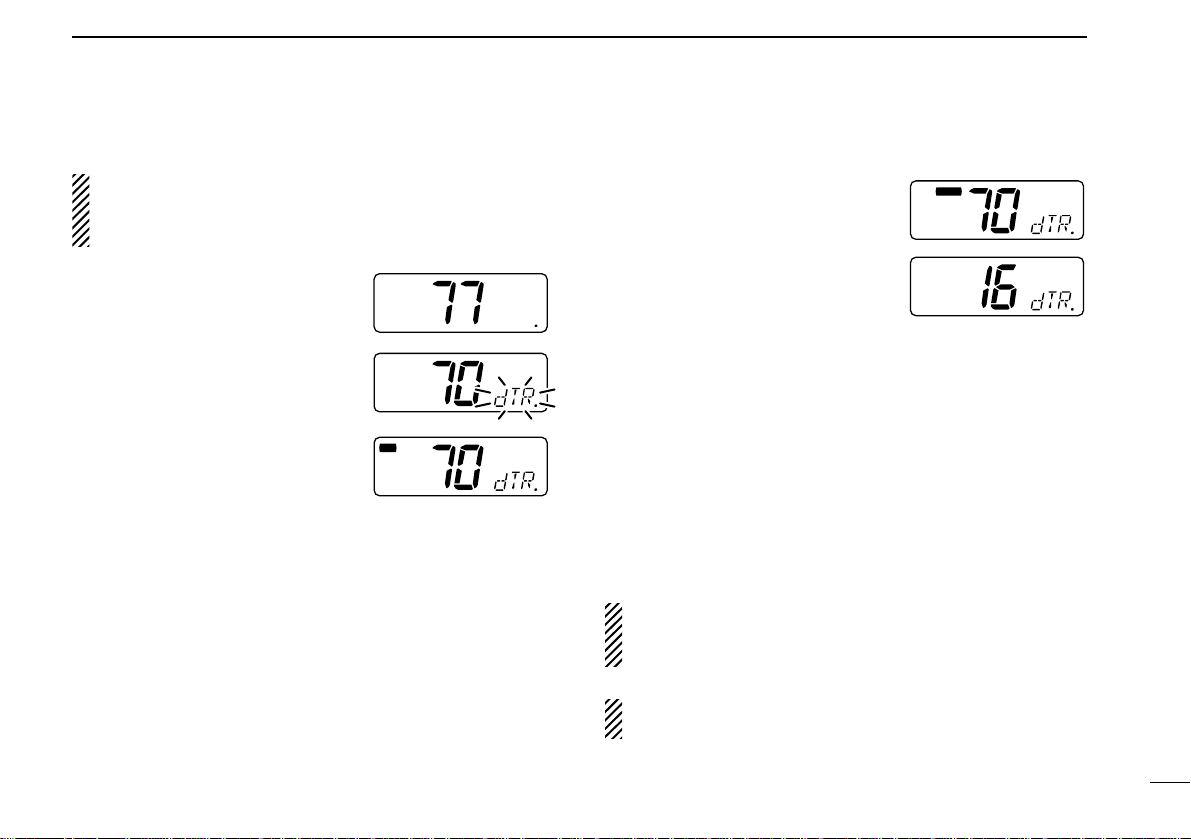

DISTRESS CALL PROCEDURE
1. Lift up the distress switch cover.
2. Push and hold [DISTRESS] for 5 sec. until you
hear 5 short beeps change to one long beep.
3. Wait for an acknowledgment from a coast sta-
tion.
•When received, channel 16 is automatically selected.
4. Push and hold [PTT], then transmit the appropri-
ate information as at left.

ii
TABLE OF CONTENTS
IN CASE OF EMERGENCY................................................. i
TABLE OF CONTENTS ...................................................... ii
IMPORTANT ...................................................................... iii
CAUTIONS.......................................................................... iii
1 OPERATING RULES ..................................................... 1
2 PANEL DESCRIPTION ............................................. 2–5
■Front panel .................................................................. 2
■Microphone ................................................................. 3
■Function display .......................................................... 4
■Distress switch box ..................................................... 5
3 BASIC OPERATION ............................................... 6–11
■Power ON ................................................................... 6
■Channel selection ....................................................... 6
■Receiving .................................................................... 8
■Transmitting ................................................................ 9
■Scan function ............................................................ 10
■Call channel programming ........................................ 11
■Display backlighting .................................................. 11
■Voice scrambler function ........................................... 11
4 DIGITAL SELECTIVE CALLING .......................... 12–17
■General ..................................................................... 12
■Distress call transmission ......................................... 13
■All ships call transmission ......................................... 14
■Receiving DSC calls ................................................. 15
5 SET MODE ........................................................... 18–19
■Entering SET mode .................................................. 18
■SET mode items ....................................................... 18
6 CONNECTIONS AND MAINTENANCE ............... 20–24
■Unpacking ................................................................. 20
■Additional requirements ............................................ 20
■Connections .............................................................. 21
■Mounting the transceiver .......................................... 22
■Antenna .................................................................... 23
■Fuse replacement ..................................................... 23
■Cleaning .................................................................... 23
■Optional unit installations .......................................... 23
7 VHF MARINE CHANNEL LIST ................................... 25
8 SPECIFICATIONS ....................................................... 26
9 OPTIONS ..................................................................... 27

RWARNING NEVER connect the transceiver to an
AC outlet. This may pose a fire hazard or result in an electric
shock.
RWARNING HIGH VOLTAGE! NEVER touch
the antenna or an internal antenna connector during trans-
mission. This may result in an electric shock or a burn.
NEVER connect the transceiver to a power source of more
than 16 V DC. This connection will ruin the transceiver.
WHEN INSTALLING THE DSC UNIT NEVER trans-
mit a distress call when your vessel does not need immedi-
ate help. Distress calls can be used only in times of
emergency.
iii
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL—This in-
struction manual contains important operating instructions for
the IC-M59EURO.
YOU MUST HAVE a DSC vessel ID in order to operate
the optional DSC functions of the transceiver. See your
Dealer for details.
The IC-M59 EURO complies with the essential requirements of
the 89/336/EEC directive for Electromagnetic Compatibility.
IMPORTANT
CAUTIONS
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –20°C or above +60°C.
DO NOT operate the transceiver without running the ves-
sel’s engine. When your vessel’s engine is OFF and the trans-
ceiver is transmitting, the vessel’s battery will soon become
exhausted.
KEEP the transceiver out of the reach of children.
KEEP the antenna cable and DC power cable as far away
as possible from electrical pumps, generators and other elec-
tronic instruments to prevent instrument malfunctions.
KEEP the transceiver and microphone at least 1 meter
away from your vessel’s magnetic navigation compass.

OPERATING RULES 1
1
DPriorities
•Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
•You must monitor channel 16 when you are not operating on
another channel.
•False or fraudulent distress calls are prohibited under law.
DPrivacy
•Information overheard but not intended for you cannot law-
fully be used in any way.
•Indecent or profane language is prohibited.
DRadio licenses
SHIP STATION LICENSE
When your craft is equipped with a VHF FM transceiver, you
must have a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license. This license in-
cludes the call sign which is your craft’s identification for radio
purposes.
OPERATOR’S LICENSE
A restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
The Restricted Radiotelephone Operator Permit must be
posted near the transceiver or be kept with the operator. Only
a licensed radio operator may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
A current copy of the applicable government rules and regu-
lations is only required to be on hand for vessels in which a
radio telephone is compulsory. However, even if you are not
required to have these on hand it is your responsibility to be
thoroughly acquainted with all pertinent rules and regulations.

PANEL DESCRIPTION
2
2
➊CHANNEL SELECTOR
Selects an operating channel in the selected channel
group.
➋SCAN SWITCH [SCAN•TAG]
•Starts and stops priority or normal scan when tag chan-
nels are programmed. (p. 10)
•Push and hold for 1 sec. to toggle the tag setting for the
displayed channel. (p. 10)
•Push and hold for 3 sec. together with the [H/L] key to
clear all tag channels. (p. 10)
➌HIGH/LOW POWER SWITCH [HI/LO•DIM]
•Toggles between high and low output powers. (p. 9)
•While pushing, rotate the channel selector to adjust the
display and control/switch backlighting intensity. (p. 11)
➍DIAL SWITCH [DIAL]
•Selects the International channel group. (p. 7)
•For U.K./Italy versions, the U.S.A. channel group is also
available. To toggle between international and U.S.A.
channels, push and hold this switch for 1 sec. (p. 7)
VHF MARINE
TAG TRI
DIM ALL
CLR
16
C
SQUELCH
OFF
PWR/VOL
SCAN
HI/LO DIAL
DUAL
➋➌
➍➎➏ ➐ ➑
➒
➊
Function display (p. 4)
Speaker
■Front panel

■Microphone
➊CHANNEL UP/DOWN SWITCHES [▼]/[▲]
•Select an operating channel.
➋HIGH/LOW POWER SWITCH [HI/LO]
The same function as the transceiver’s front panel.
•Toggles between high and low output powers. (p. 9)
•While pushing, rotate the channel selector to adjust the display
and control/switch backlighting intensity. (p. 11)
HI/LO
➊
➋
2
PANEL DESCRIPTION
3
➎DUAL/TRI-WATCH SWITCH [DUAL•TRI]
•Activates dualwatch for checking channel 16. (p. 8)
•Push and hold for 1 sec. to activate tri-watch for checking
channel 16 and the call channel. (p. 8)
➏CALL CHANNEL SWITCH [C•ALL]
•Selects the call channel—the call channel is programma-
ble. (p. 11)
•Push and hold for 1 sec. to enter the standby condition of
an all ships call. (When an optional UX-120 is installed).
(pgs. 14, 15)
➠Three categories (distress, safety and urgency) are selectable.
➐CHANNEL 16 SWITCH [16•CLR]
•Selects channel 16. (p. 6)
•Cancels the distress call. (when an optional UX-120 is in-
stalled). (p. 13)
➑SQUELCH CONTROL [SQUELCH]
Rotate clockwise to eliminate audio noise. (p. 8)
➒POWER/VOLUME CONTROL [PWR/VOL]
Turns power ON and OFF and adjusts the audio output
level. (p. 6)

2PANEL DESCRIPTION
4
1TRANSMIT INDICATOR
Appears while transmitting. (p. 9)
2BUSY INDICATOR
Appears when receiving a signal or when [SQUELCH] is
rotated too far counterclockwise. (p. 8)
3CHANNEL INDICATOR
Shows the operating channel. (pgs. 6, 7)
4TAG CHANNEL INDICATOR
Appears when the selected channel is set as a tag chan-
nel. (p. 10)
5SCAN INDICATOR
Appears and flashes during scan operation. (p. 10)
6DUALWATCH INDICATOR
Appears and flashes during dualwatch operation. (p. 8)
7TRI-WATCH INDICATOR
Appears and flashes during tri-watch operation. (p. 8)
8VOICE SCRAMBLER INDICATOR
Appears while the optional voice scrambler is activated.
This function is permitted in some countries only. (p. 11)
LOW CALL
USA
INT
TX
TAG
DUAL
SCAN
DUP ACK RCV
SCRM
TRI
BUSY

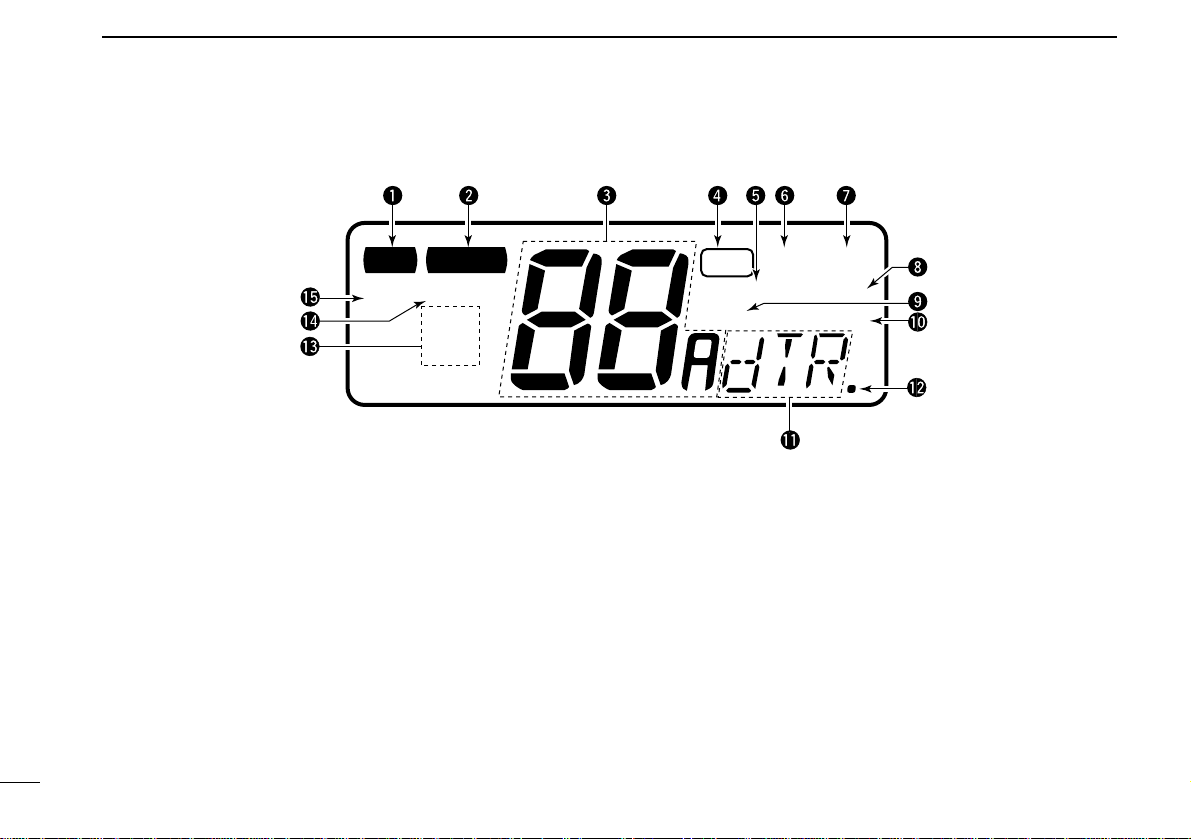

■Function display

5
2
PANEL DESCRIPTION
9DUPLEX INDICATOR
Appears when the selected channel is a duplex channel
(p. 7).
:ACKNOWLEDGEMENT/RECEIVE INDICATORS
Appear during optional DSC operation. (pgs. 13–17)
•“RCV”appears when a DSC call is received.
•“ACK RCV”appears when an acknowledgement is received.
•“ACK”and “$”appear when transmitting an acknowledge-
ment.
ADSC INDICATORS (pgs. 13–17)
Appear during optional DSC operation and show a format
specifier, category, etc.
BNMEA INDICATOR
Appears when NMEA devices (such as a GPS receiver)
are connected. (p. 12)
CMODE INDICATORS (p. 7)
•“INT”shows International channels are selected.
•For U.K./Italy versions; U.S.A. channels are available.
“USA”appears when selected.
DCALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 6)
ELOW POWER INDICATOR
Shows that low output power is selected. (p. 9)
■Distress switch box(UX-120required)
FDSC DISTRESS SWITCH [DISTRESS]
Lift the cover, then push and hold for 5 sec. to transmit a
DSC distress call. (p. 13)
VHF DSC
DISTRESS

■Channel selection
DChannel 16
Channel 16 is the distress channel. It is used for establishing
initial contact with another station and for emergency com-
munications. Channel 16 is monitored during dualwatch/tri-
watch. While standing by you are required to monitor channel
16.
DCall channel
The call channel is used to store your most often-used chan-
nel for quick recall. In addition, the call channel is monitored
during tri-watch. The default setting for the call channel is dif-
fer depending on version.
BASIC OPERATION
3
6

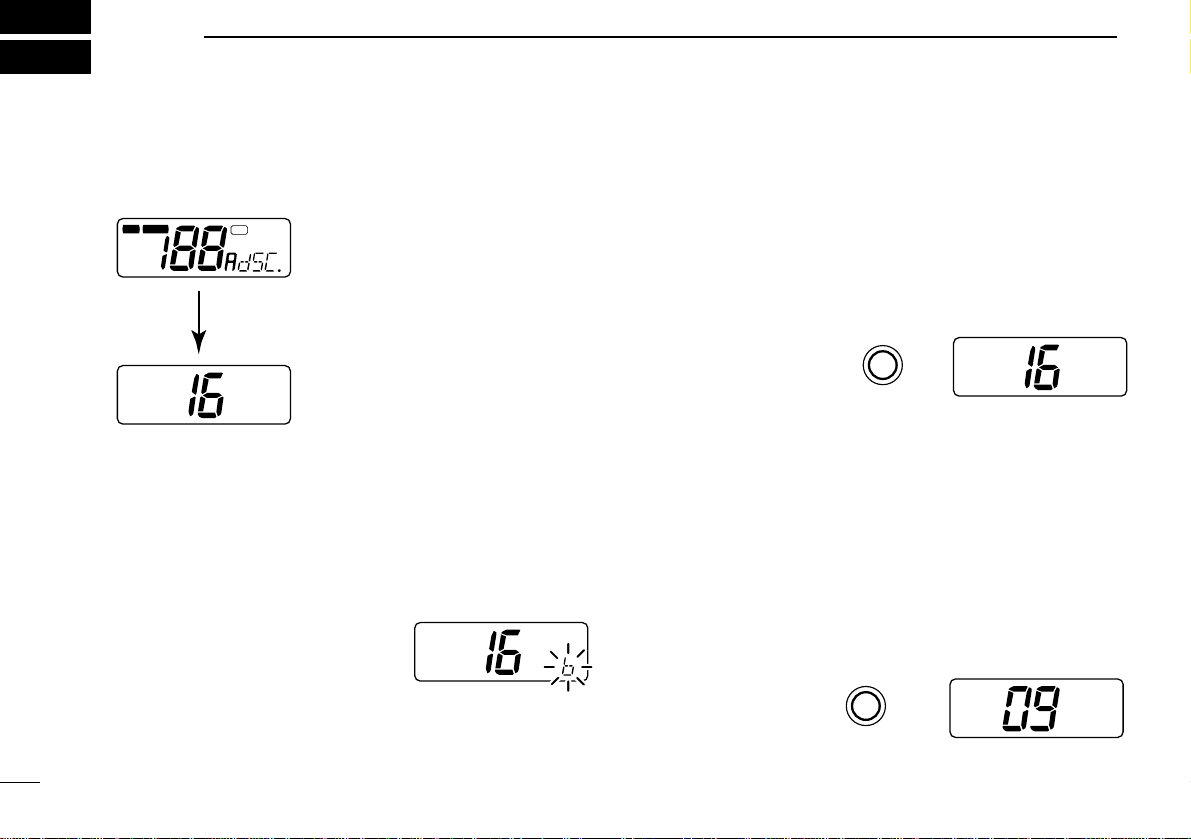

■Power ON
➀Rotate [PWR/VOL] clockwise to turn power ON.
➁Operate the transceiver as indicated in the following sec-
tions.
DLow voltage indicator
When “b”appears and flashes as
shown at right, there is a DC power
source problem. In this case, check
your vessel’s battery and DC power
cable.
LOW CALL
CANUSA
INT
INT
ALTWX
TX
TAG
DUAL
SCAN
DUP ACK RCV
TRI
BUSY All display indications
appear briefly*.
* “dSC”appears only when an optional
UX-120 is installed.
INT
Push
or hang the microphone
on the microphone hanger.
16
Push
CALL
INT
“CALL”indicates that the
call channel is selected.
C
INT

3
BASIC OPERATION
7
DInternational channels
There are 55 international channels for the IC-M59EURO.
➀Push [DIAL] to select an international channel.
➁ Rotate the channel selector to select a channel.
•“DUP”appears for duplex channels.
The previously selected channel is recalled by the [DIAL]
switch directly from channel 16 or the call channel.
However, once the channel selector is rotated from chan-
nel 16 or the call channel, the previously selected channel
cannot be recalled in this manner.
INT
TAG
INT
TAG
DUP
Simplex channel
Used for ship-to-ship
communication
Duplex channel
Used for ship-to-coast
communication
DU.S.A. channels (U.K.andItaly versions only)
For the U.K. and Italy versions, there are 61 U.S.A. channels
in addition to 55 international channels. These channel
groups may be specified for the operating area.
➀Push [DIAL] to select a regular channel.
➁ Push and hold [DIAL] for 1 sec. to toggle the international
and U.S.A. channels.
➂ Rotate the channel selector to select a channel.
•Channels are memorized separately for each channel group.
DIAL then
or rotate the channel selector directly
without using the [DIAL] switch.
Push
CHANNEL SELECTOR

3BASIC OPERATION
8
■Receiving
➀Rotate [PWR/VOL] to turn power ON.
➁Rotate [SQUELCH] fully counterclockwise.
➂Adjust [PWR/VOL] to a suitable listening level.
➃Rotate [SQUELCH] clockwise until the audio noise disap-
pears.
➄Select the desired channel. See pgs. 6–7 for details.
•When a signal is received:
➧The squelch opens;
➧Audio is emitted from the speaker;
➧“BUSY”appears in the function dis-
play.
DDual/tri-watch functions
These functions allow you to conveniently check the distress
channel (ch 16) or, both the distress and programmable call
channel while receiving another channel. When receiving a
signal on one of these channels, the transceiver stops on the
channel until the signal disappears.
BUSY
INT
•Dualwatch operation
➥Push [DUAL•TRI] momentarily for dualwatch.
•Tri-watch operation
➥Push and hold [DUAL•TRI] for tri-watch.
INT
DUAL
INT
DUAL
BUSY
Checking channel 16
every 2 sec.
When receiving a signal on
channel 16. Channel 16 is
monitored until the signal
disappears.
INT
TRI
CALL
INT
TRI
BUSY
INT
TRI
BUSY
Checking channel 16
and the call channel
every 2 sec.
When receiving a signal on
channel 16, channel 16 has
priority.
When receiving a signal on the
call channel, the call channel
is monitored while checking ch
16 in 2 sec. intervals.

3
BASIC OPERATION
9
■Transmitting
Before transmitting, read the call procedures at right.
➀Select an operating channel. See pgs. 6, 7 for details.
➁Push [HI/LO] to select transmit output power.
•“LOW”appears when low output power is selected.
•High power cannot be selected on some channels. Refer to the
channel list on p. 25.
➂Push and hold the PTT switch to transmit.
•“$”appears.
➃Speak into the microphone at your normal voice level.
•Do not hold the microphone too closely to your mouth or speak
too loudly. This may distort the transmit signal.
➄Release the PTT switch to receive.
IMPORTANT: In order to maximize the readability of your
transmitted signal, pause for a moment after pushing
[PTT], hold the microphone 15–20 cm from your mouth,
then speak into the microphone at an even, normal voice
level.
CALL PROCEDURES
You must identify yourself when you transmit and you must
respect time limits.
1)Give your call sign each time you call another vessel or a
coast station. If you have no call sign, identify the station
by giving the vessel name and the name of the license.
2)Give your call sign at the end of each transmission that
lasts more than 3 minutes.
3)You must pause and give your call sign at least once
every 15 minutes during long ship-to-shore calls.
4)Keep your calls short (less than 3 minutes). Wait 2 min-
utes before repeating a call.
5)Unnecessary transmissions are not allowed.
MOMENTARY HIGH POWER (U.K./Italy versions only)
On U.S.A. channels 13, 15 and 67, transmission using high
power is momentarily possible. To use high power, push
and hold [HI/LO] while transmitting.

DSetting tag channels
You can specify channels as tag channels for efficient scanning.
➥Select the desired channel, then push and hold
[SCAN•TAG] for 1 sec. to toggle the tag setting.
✔Clearing all tag channels:
While pushing [HI/LO], push and hold [SCAN•TAG] for 3 sec.
until the long beep becomes 2 short beeps.
DScan operation
➀Be sure the squelch is set to the threshold point.
➁Push [SCAN] to start scanning.
•“SCAN”appears and flashes in the function display.
•“16”appears during priority scan.
➂To stop the scan, push [SCAN] again.
•“SCAN”disappears.
3BASIC OPERATION
10

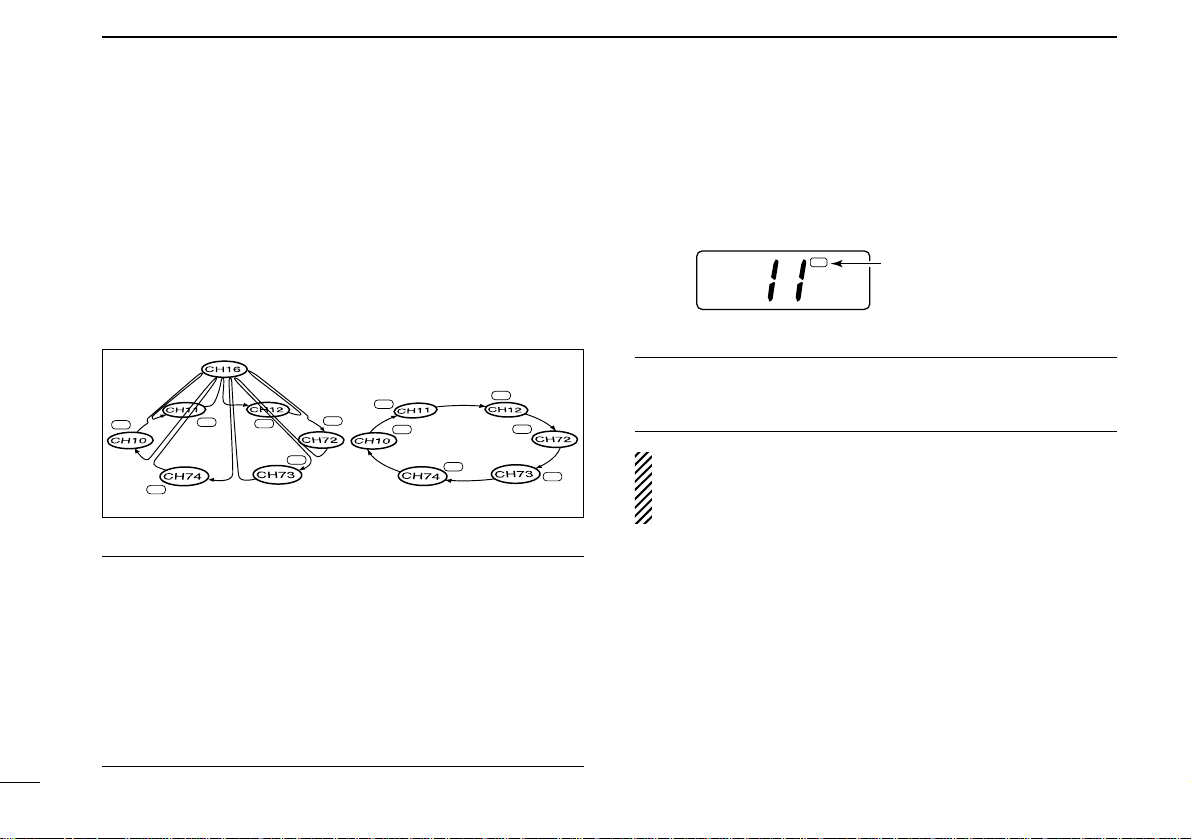

■Scan function
The transceiver has a high speed scan function (8 chan-
nels/sec.) for standing by on utility signals.
Two scan types are available: priority scan (checks channel
16 while scanning all tag channels) and normal scan (scans
all tag channels in sequence). These scans can be selected
in set mode (p. 19).
✔Scan resume timer:
When a signal is detected, scan pauses until the signal dis-
appears or resumes after pausing 5 sec., according to the set
mode setting. (p. 19)
✔Confirming tag channels:
While operating scan, rotate the channel selector.
•Only tag channels are selected.
•Stop rotating the channel selector to resume scan.
INT
TAG
Appears when the channel is
specified as a tag channel.
NOTE: For U.K. and Italy versions, tag channels can be
set separately for each channel group (INT, USA). Select
the desired group in advance.
TAG
TAG
TAG TAG
TAG
TAG
TAG
TAG
TAG
TAG
TAG
TAG
Priority scan Normal scan

3
BASIC OPERATION
11

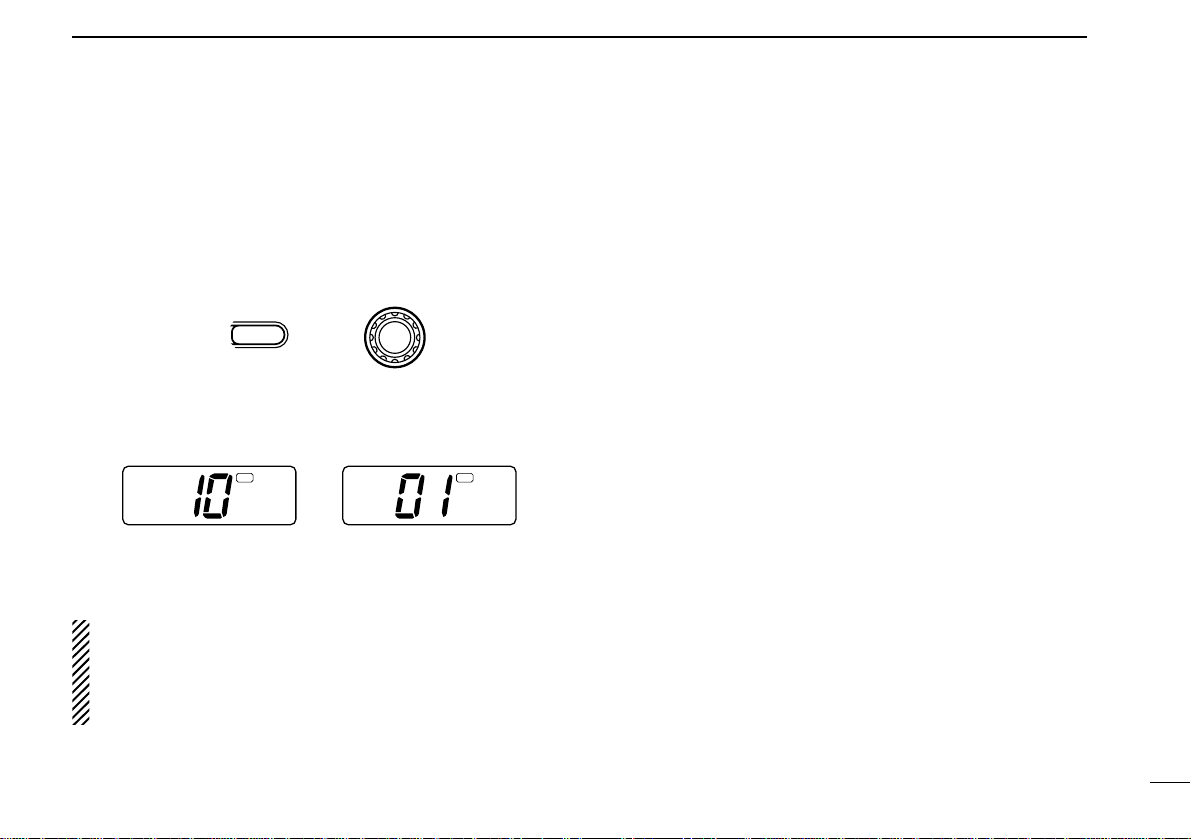

■Call channel programming
The call channel key, [C], is used to select the call channel
which you can program your most often-used channels.
➀Push [C] to select the call
channel.
•“CALL”and the call channel num-
ber appear.
➁While pushing [HI/LO] push
[C] to enter call channel write
mode.
•Call channel number flashes.
➂Rotate the channel selector to
select the desired channel.
➃Push [C] again to program the
displayed channel as the call
channel.
•The call channel number stop
flashing.
NOTE: For U.K./Italy versions, a call channel is available
separately for each channel group (INT, USA). Select the
desired channel group in advance.
■Display backlighting
The function display and switches can be backlit for better vis-
ibility under low light conditions.
While pushing [HI/LO•DIM], rotate the channel selector to ad-
just the backlighting.
➥Backlighting can be set to 1 of 3 intensities or turned OFF.
■Voice scrambler function
Some countries prohibit the use of voice scrambled communi-
cations. An optional UT-79 VOICE SCRAMBLER UNIT is neces-
saryto use thisfunction.
➥While pushing [HI/LO], push [DIAL] to toggle the function
ON and OFF.
•“SCRM”appears when the function is
ON.
•This function cannot be used on
channel 16.
•Set the scramble code in SET mode in advance (p. 19).
CALL
INT
TAG
CALL
INT
CALL
INT
CALL
INT
USA
SCRM

DIGITAL SELECTIVE CALLING
4
12
■General
When an optional UX-120 DSC UNIT with RC-18 DISTRESS
SWITCH BOX
is installed, digital selective calling (DSC class-F)
is available with via the IC-M59EURO.
DSC is a method of radio communications involving digital
signals rather than the more conventional method of voice
communications. The advantage of using digital communica-
tions over voice communications is that information (espe-
UX-120 required
cially useful for distress calls and other urgent matters) can
be pre-programmed into a radio and transmitted accurately.
In addition, when a GPS receiver (NMEA0183 ver. 1.5, 2.0 or
2.1) is connected, your vessel’s position and the current UTC
time are transmitted together with the vessel’s identity when
making a distress call.
See pgs. 23, 24 for unit installation.
DSC TYPE DESCRIPTION REF.
Distress call This sends distress information which includes your vessel’s ID (and position data/UTC time
when a GPS receiver is connected). Send under emergency conditions only. DSC acknowl-
edgement will be received from a coast station after making a distress call.
pgs.
13, 16
Distress relay call This is used to alert Coast stations (or other ships) when a vessel in distress is unable to do so.
The IC-M59EURO can only receive this type of signal; not transmit. p. 16
All ships call This signal includes a category and channel data which allows a receiving transceiver to au-
tomatically select channel 16 for voice communication. pgs.
14, 16
Individual call This is used for calling to a specific vessel. The IC-M59EURO has no individual call transmis-
sion capability, but has receive capability. Two kinds of acknowledgements (able to comply/un-
able to comply) are available after receiving an individual call.
pgs.
15, 17
Geographical area call This is used for announcement to all ships in the specified area—when a GPS receiver is con-
nected calls directed to areas other than yours are rejected. Receive only for the IC-M59EURO.p. 17

➂When a distress acknowledge-
ment is received, emergency
alarm sounds and channel 16
is automatically selected.
•Push [16•CLR] to stop the alarm.
➃Transmit your distress call particulars by voice using the fol-
lowing procedure:
1. “MAYDAY.”
2. “THIS IS (name of your vessel).”
3. The 9-digit identity AND the call sign (or other vessel
identification).
4. Your vessel’s position if DSC does not include it.
5. The nature of the distress and assistance required.
6. Any other information which might facilitate the rescue.
NOTE: When a GPS receiver (NMEA 0183) is connected,
your vessel’s position is automatically transmitted with the
distress call.
NOTE: Acknowledgement of a DSC distress alert is nor-
mally made by coast stations only.
4
DIGITAL SELECTIVE CALLING
13
■Distress call transmission
CAUTION: Distress calls may be transmitted under
conditions of emergency only i.e. your vessel is in danger
of sinking and/or a person’s life is in danger.
➀Lift the cover on the DSC box
and push [DISTRESS] for 5
sec.
•Channel 70 is automatically se-
lected and a distress call is trans-
mitted.
•To cancel the distress call before
the 5 sec. have elapsed, release
[DISTRESS] or push [16•CLR].
➁The transceiver remains on
channel 70 until an acknowl-
edgement is received.
•The [DISTRESS] switch and “dTR”flashes until an acknowledge-
ment is received.
•When no acknowledgement is received, the distress call is re-
peated at random intervals every 3.5 to 4.5 min. until an ac-
knowledgement is received.
•To cancel this, push [16•CLR]—channel 16 is selected.
•Calls to you other than distress acknowledgement cannot be re-
ceived.
INT
LOW
INT
TX
INT
INT
INT
ACK RCV
BUSY
ACK RCV
LOW

4DIGITAL SELECTIVE CALLING
14
■All ships call transmission
Large ships use channel 70 as their “listening channel.”When
you want to announce a message to these ships, use the “all
ships call”function.
➀Rotate [SQUELCH] clockwise until the audio noise disap-
pears.

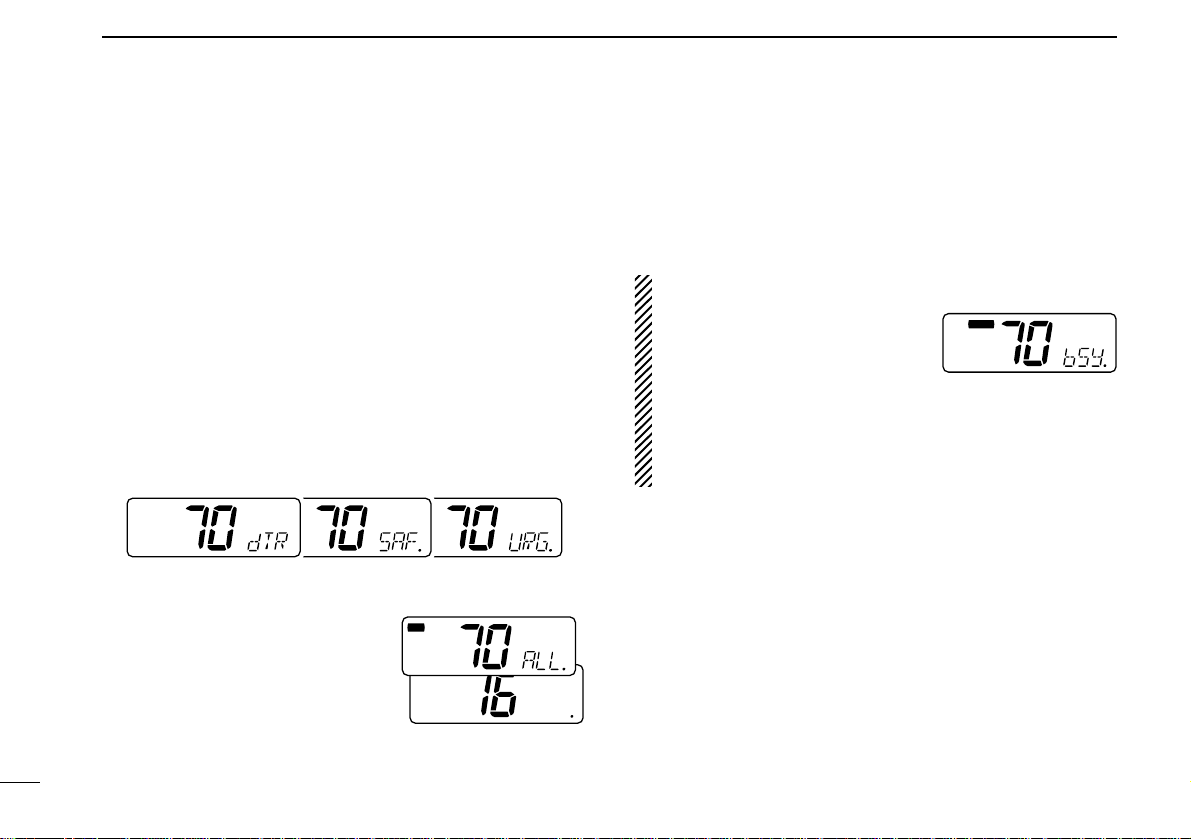

➁Push and hold [C•ALL] then rotate the channel selector to
select a category:
•URG (urgency) ... Used for urgent announcements (Use for gen-
eral ship-to-ship calls)
•SAF (safety) ....... Used for sending safety information.
•dTR (distress)..... Used for specifying a Narrow Band Direct
Printer (NBDP) after DSC connection.
➂Keep pushing [C•ALL] for 5
sec. until you hear 4 short
beeps change to one long
beep.
•The all ships call is automatically
transmitted.
•The display changes as at right.
INT
INT
TX
➃Push and hold [PTT] to send an announcement via the mi-
crophone to all ships.
NOTE: Channel busy
When channel 70 is busy, the
all ships call (with urgency
category) is not transmitted.
The transceiver waits until the
channel is clear, then trans-
mits the call automatically.
Push [16•CLR] to cancel the
all ships call while waiting.
LOW
INT
BUSY
This display appears
while the call is in
standby.
LOW
INT

4
DIGITAL SELECTIVE CALLING
15
■Receiving DSC calls
Several types of DSC transmissions can be received. The re-
quired action depends on the particular DSC type as outlined
in the following examples. However, in all examples, you must
be monitoring channel 70 in order to receive such signals.
NOTE: When channel 70 is set as a tag channel and scan
is functioning, DSC calls will not be received. DSC calls
can only be received when channel 70 is selected.
DReceiving a distress call
While monitoring channel 70 and a distress call is received:
➥Emergency alarm sounds.
➥“RCV”and “dTR”appear in the
display; then, channel 16 is au-
tomatically selected.
➥Push [16] to stop the alarm.
➥Continue monitoring channel
16 as a coast station may re-
quire assistance in any rescue
attempt.
DReceiving a distress relay call
A distress relay call may be transmitted from a large ship to a
coast station. While monitoring channel 70 and a distress
relay call is received:
➥Emergency alarm sounds.
➥“RCV”and “RLY”appear in the
display; then, channel 16 is au-
tomatically selected.
➥Push [16] to stop the alarm.
➥Monitor channel 16 until the
emergency communication
has been completed.
INT
INT
RCV
BUSY
RCV
LOW
INT
INT
RCV
BUSY
RCV
LOW
INT
RCV
When a distress call is received
When an all ships call is received
When an individual call is received
When a geographical area call
is received
When a distress relay call is
received
INT
RCV
INT
RCV RCV
INT
INT
RCV
INT
ACK
LOW
Able to comply is pre-selected,
and channel 12 is specified. Unable to comply is pre-selected.

4DIGITAL SELECTIVE CALLING
16
DReceiving an individual call
When receiving an individual call, an acknowledgement is
transmitted automatically. The contents of the acknowledge-
ment must be specified in advance. Refer to p. 19 for setting.
Two messages can be selected for acknowledgement:
•“Able to comply”:
You can communicate with the calling vessel via the mic
after a DSC connection.
•“Unable to comply”:
You cannot communicate with the calling vessel after a
DSC connection (e.g. operator leaves transceiver).
DReceiving an all ships call
While monitoring channel 70 and an all ships call is received:
➥Beeps or emergency alarm
sound.
•Beeps sound when received call
contains the urgency routine
(general all ships call).
•Emergency alarm sounds when
received call contains the safety
or distress category.
➥“RCV”and “ALL”appear in the display; then, the channel
specified by calling station is automatically selected for
voice communications.
➥Monitor the selected channel for an announcement from
the calling station.
INT
INT
RCV
BUSY
RCV
LOW
