ICON Health & Fitness NordicTrack VU29 User manual

USER’S MANUAL
Serial
Number
Decal
Model No. NTEX12921.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS

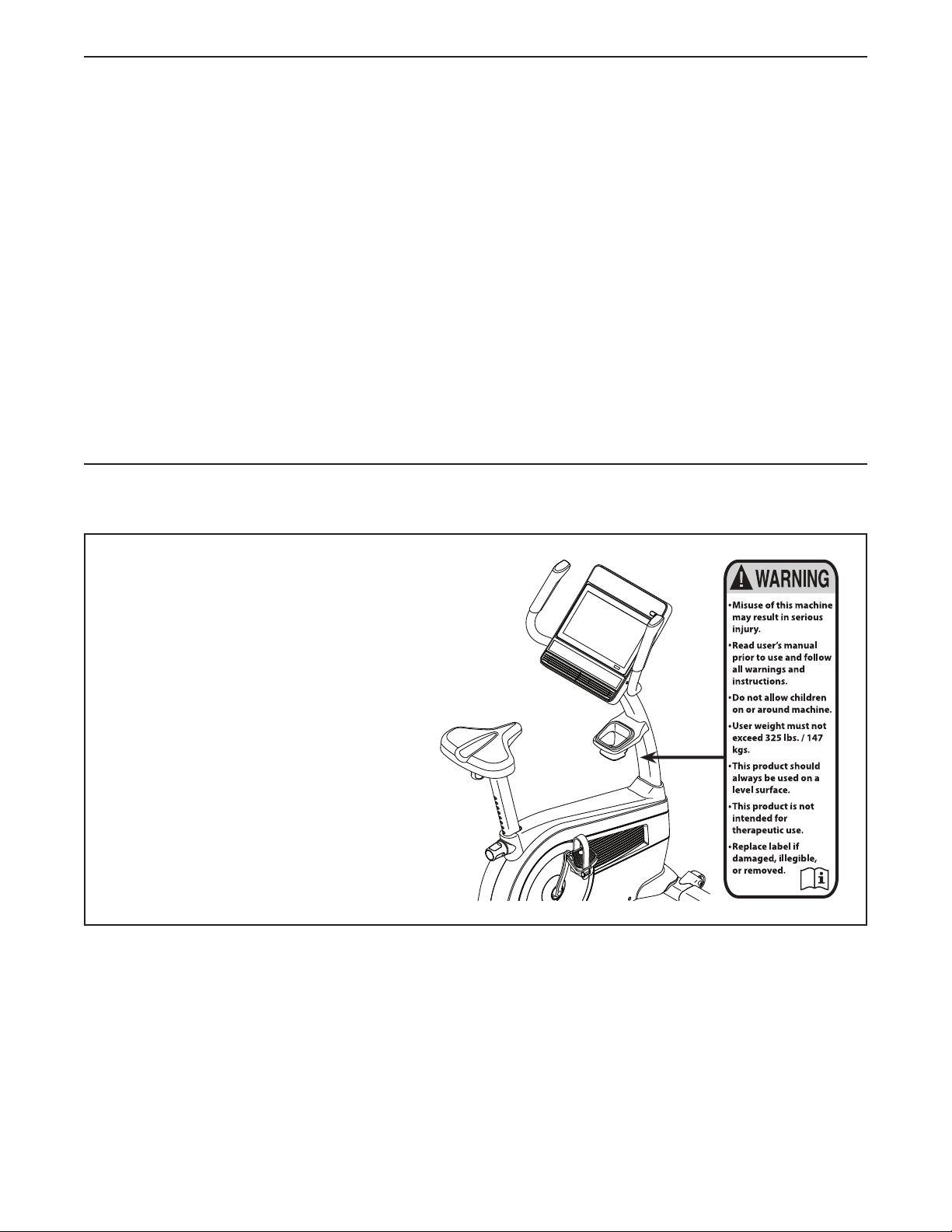

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the loca-
tion shown. Note: The decal(s) may not be shown
at actual size.
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 325 lbs.
(147 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
STANDARD SERVICE PLANS

5
Thank you for selecting the revolutionary
NORDICTRACK®VU 29 exercise bike. Cycling is one
of the most effective exercises for increasing cardio-
vascular fitness, building endurance, and toning the
entire body. The VU 29 exercise bike provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

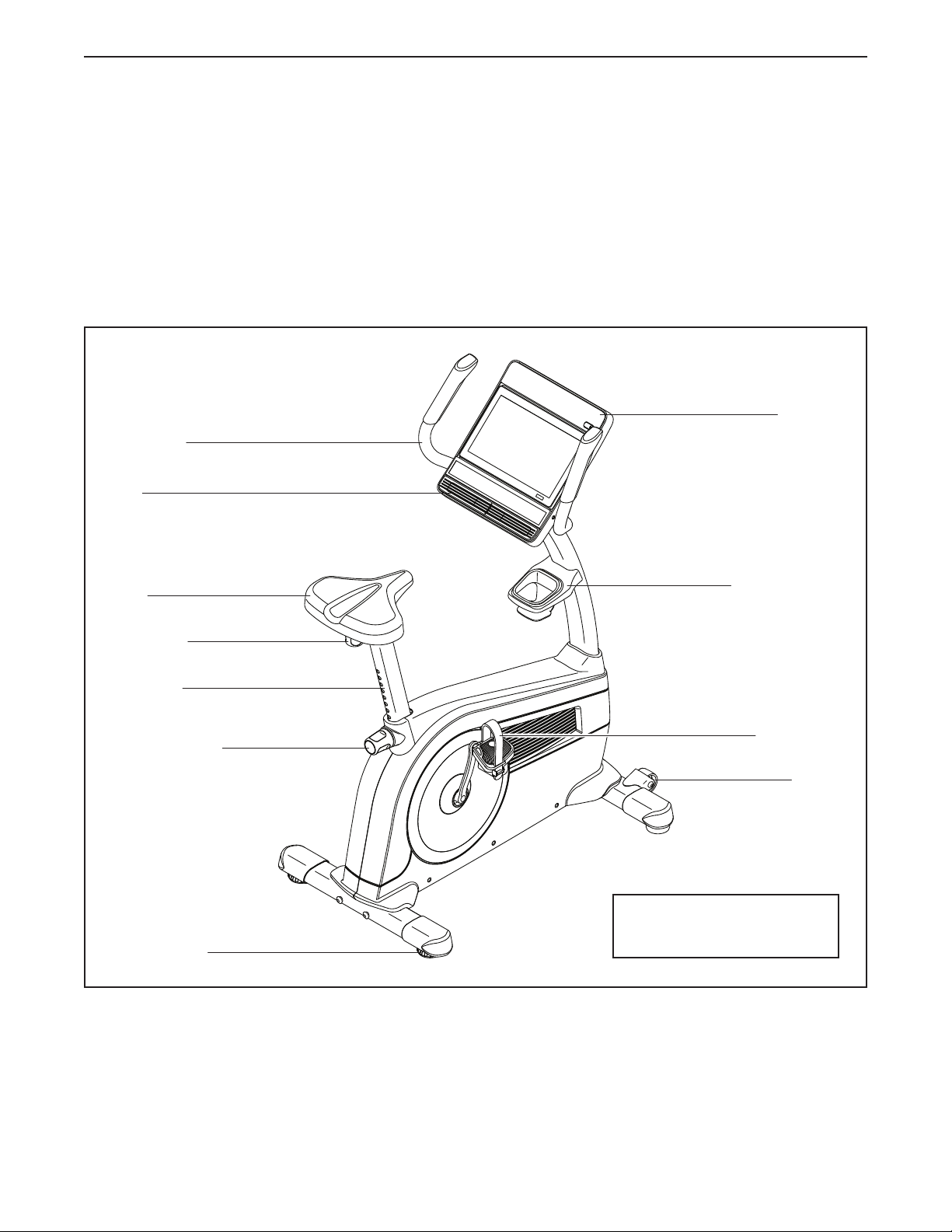

the parts that are labeled in the drawing below.
Seat
Seat Post
Seat Knob
Leveling Foot
Wheel
Pedal/Strap
Handlebar
Fan
Console
Seat Post Knob
Accessory Tray
BEFORE YOU BEGIN
Length: 3 ft. 10 in. (117 cm)
Width: 2 ft. 1 in. (63 cm)

6

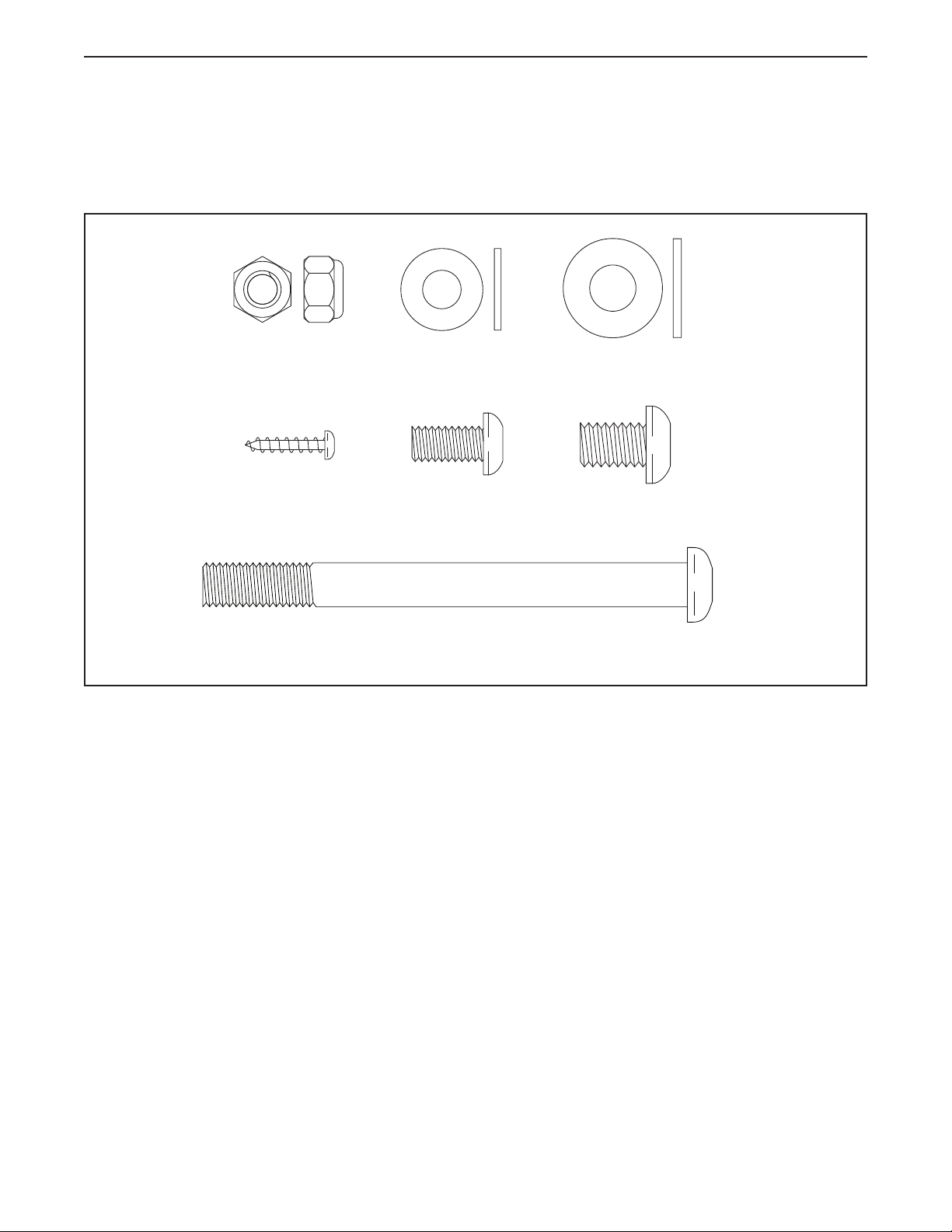

M8 Locknut
(43)–4
M8 Washer
(64)–4
M8 x 16mm
Screw (63)–4
M10 x 15mm
Screw (65)–4
M10 Washer
(31)–4
M4 x 18mm
Screw (34)–8
M10 x 110mm
Screw (53)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1

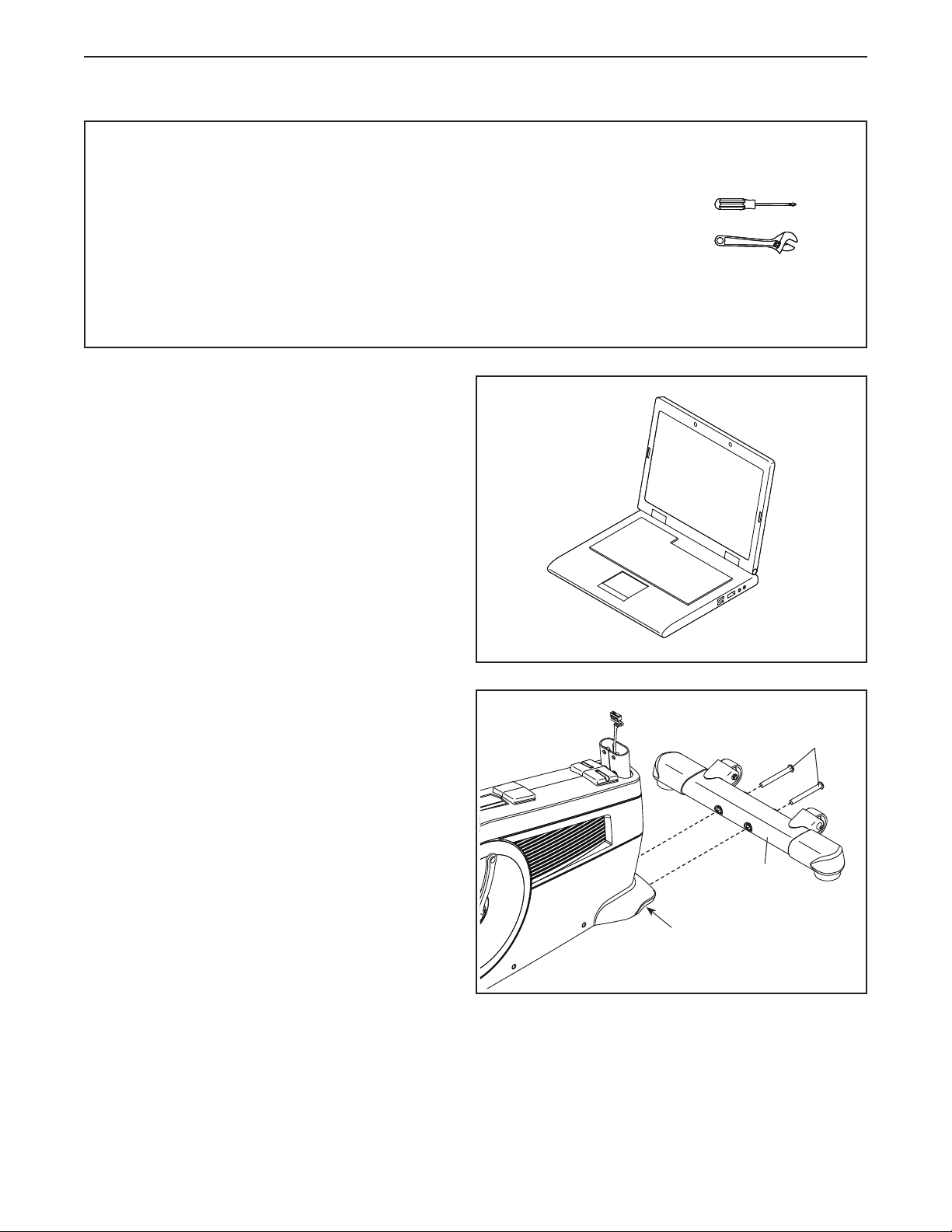

2. Orient the Front Stabilizer (2) as shown, and
attach it to the Frame (1) with two M10 x 110mm
Screws (53). 53
1
2
2
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8
3. Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 110mm Screws (53).
53
1
3
3

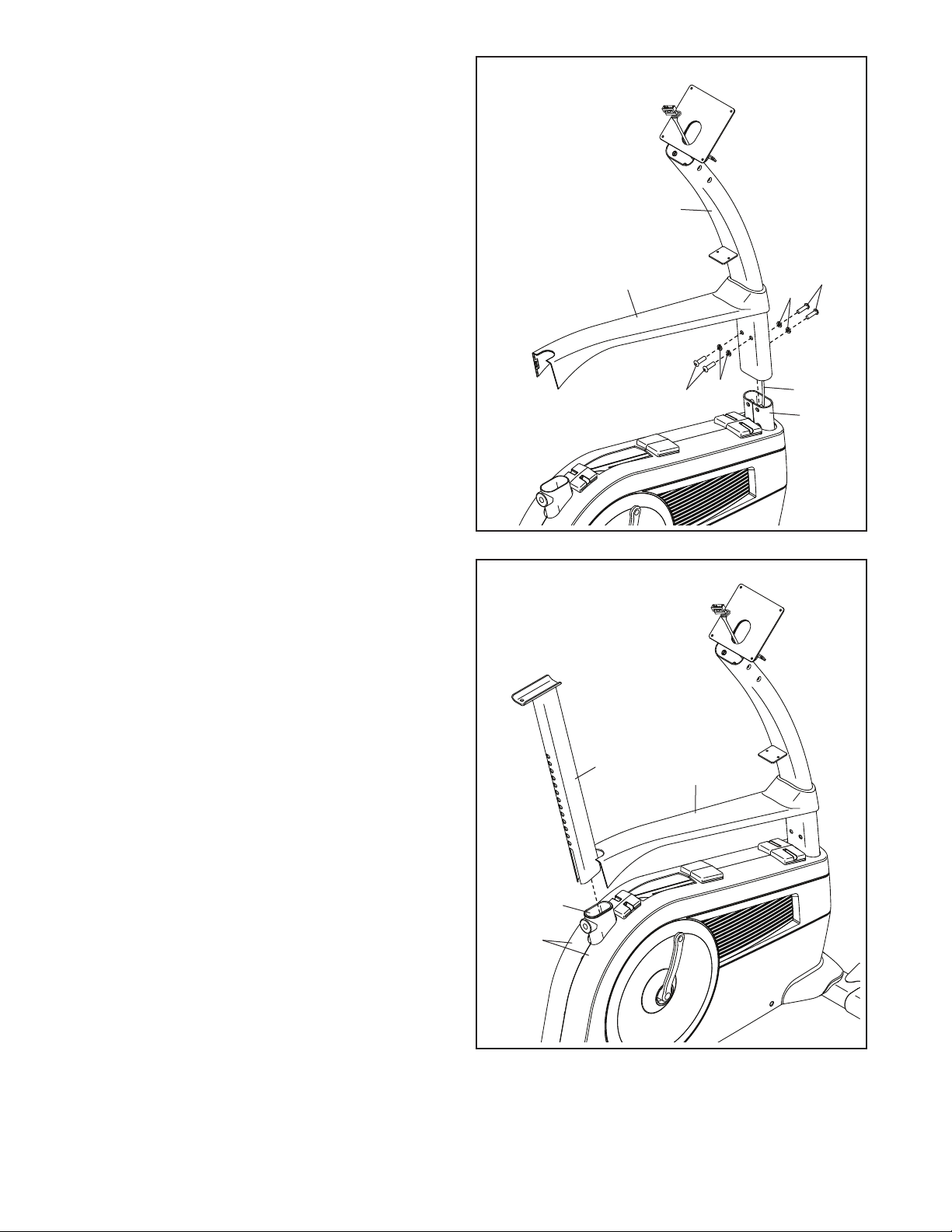

4. Orient the Upright (4) and the Shield Cover (7)
as shown. Slide the Shield Cover upward onto
the Upright.
Have a second person hold the Upright (4)
and the Shield Cover (7) near the front of the
Frame (1).
Next, locate the wire tie (A) inside the Upright
(4). Tie the lower end of the wire tie to the Main
Wire (58). Then, pull the upper end of the wire tie
upward until the Main Wire is routed through the
Upright.
4
4
7
58
1
A

9
5
4
1
58
765
65
31
31
Avoid pinching the
Main Wire (58)
5. Tip: Avoid pinching the Main Wire (58). Slide
the Upright (4) onto the Frame (1).
Attach the Upright (4) with four M10 x 15mm
Screws (65) and four M10 Washers (31); start
all the Screws, and then tighten them.
Do not press the Shield Cover (7) into
place yet.
6
6. Orient the Seat Post (6) as shown, and insert it
into the Frame (1).
Then, slide the Shield Cover (7) downward and
press it onto the Right and Left Shields (10, 11).
6
1
7
10, 11

10
7

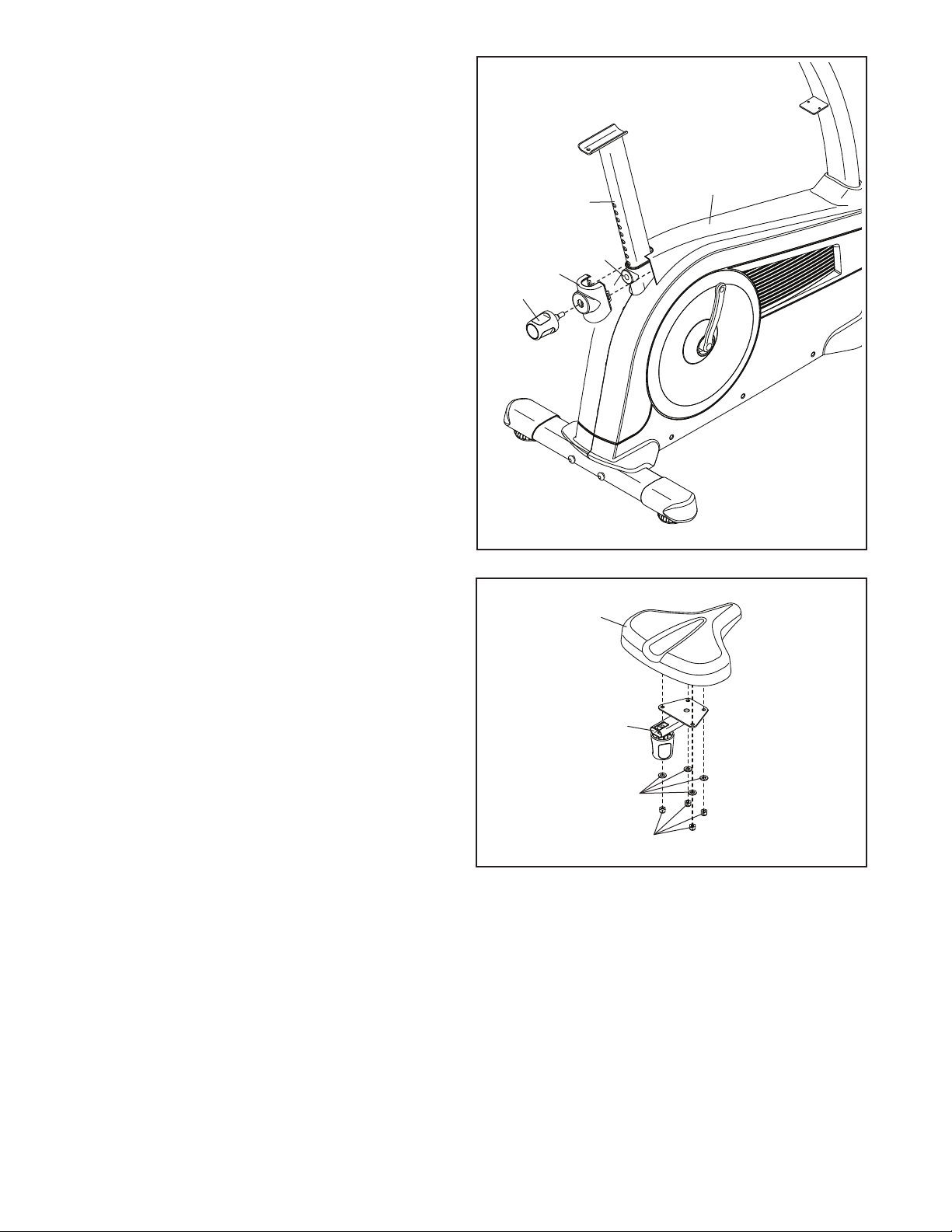

7. Orient the Knob Shield (9) as shown, and press
it onto the Shield Cover (7).
Then, tighten the Seat Post Knob (27) into the
Frame (1).
Next, loosen and pull the Seat Post Knob (27),
slide the Seat Post (6) upward or downward to
the desired position, and then release the Seat
Post Knob. Move the Seat Post upward or
downward slightly to make sure that the Seat
Post Knob is engaged in one of the adjust-
ment holes in the Seat Post. Then, tighten the
Seat Post Knob.
9
1
6
7
27
8

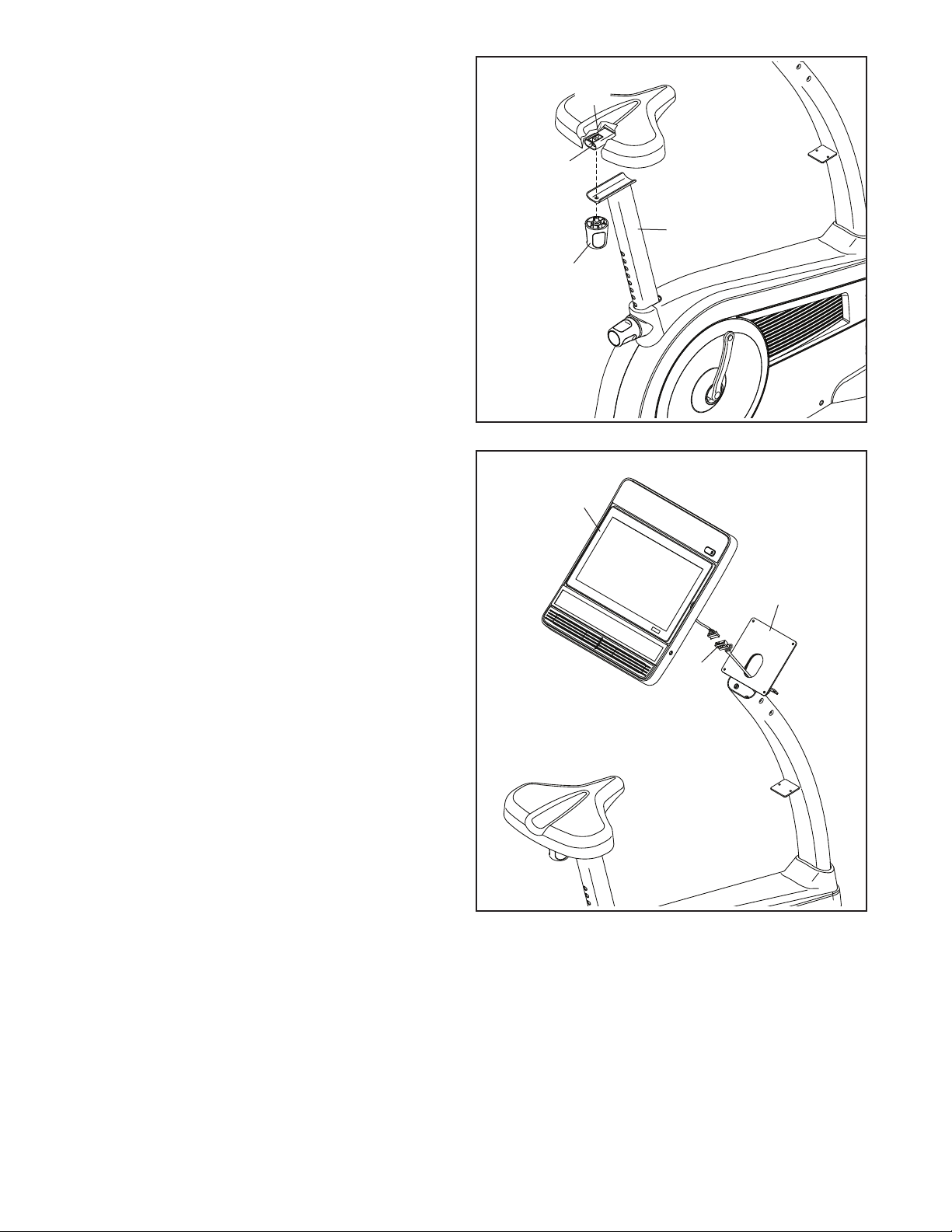

8. Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (43) and four M8 Washers
(64). Note: The Locknuts and Washers may
be preattached to the Seat.
23
24
64
43

11
10
9. Remove the Seat Knob (26) from the Seat
Bracket (30) inside the Seat Carriage (24).
Next, set the Seat Carriage (24) on the Seat
Post (6). Then, insert the Seat Knob (26) upward
into the Seat Post, and tighten the Seat Knob
into the Seat Bracket (30) inside the Seat
Carriage.
9
26
24
6
13
58
30
4
10. While a second person holds the Console (13)
near the Upright (4), connect the Main Wire (58)
to the matching wire on the Console. Insert the
excess wire into the Upright.

12
12. Attach the Right Handlebar (5) to the Upright (4)
with two M8 x 16mm Screws (63); start both
Screws, and then tighten them.
Repeat this step with the Left Handlebar (14).
12
63
14
5
4
34
13
4
Avoid pinching
the wires
11

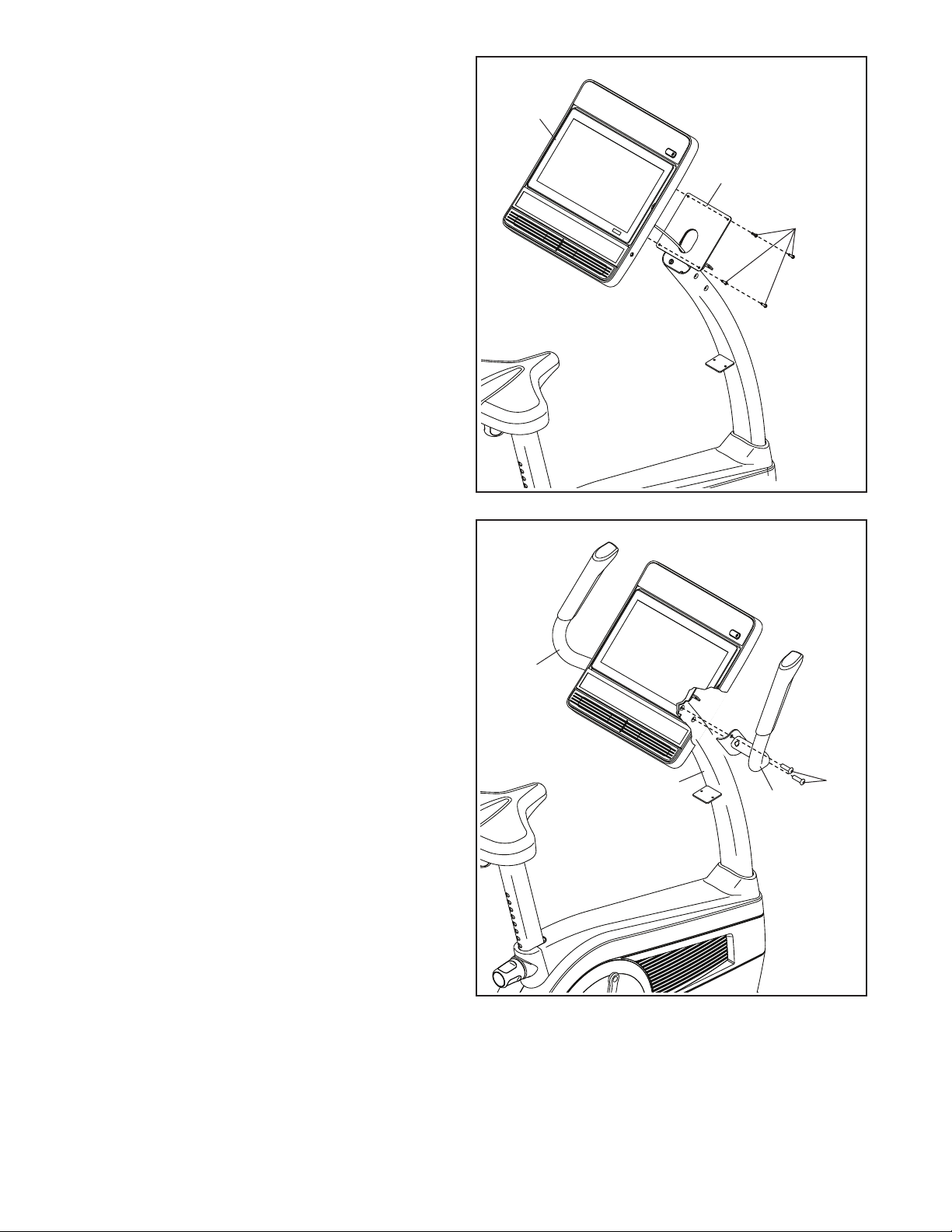

11. Tip: Avoid pinching the wires. Attach the
Console (13) to the Upright (4) with four
M4 x 18mm Screws (34); start all the Screws,
and then tighten them.

13
13
15

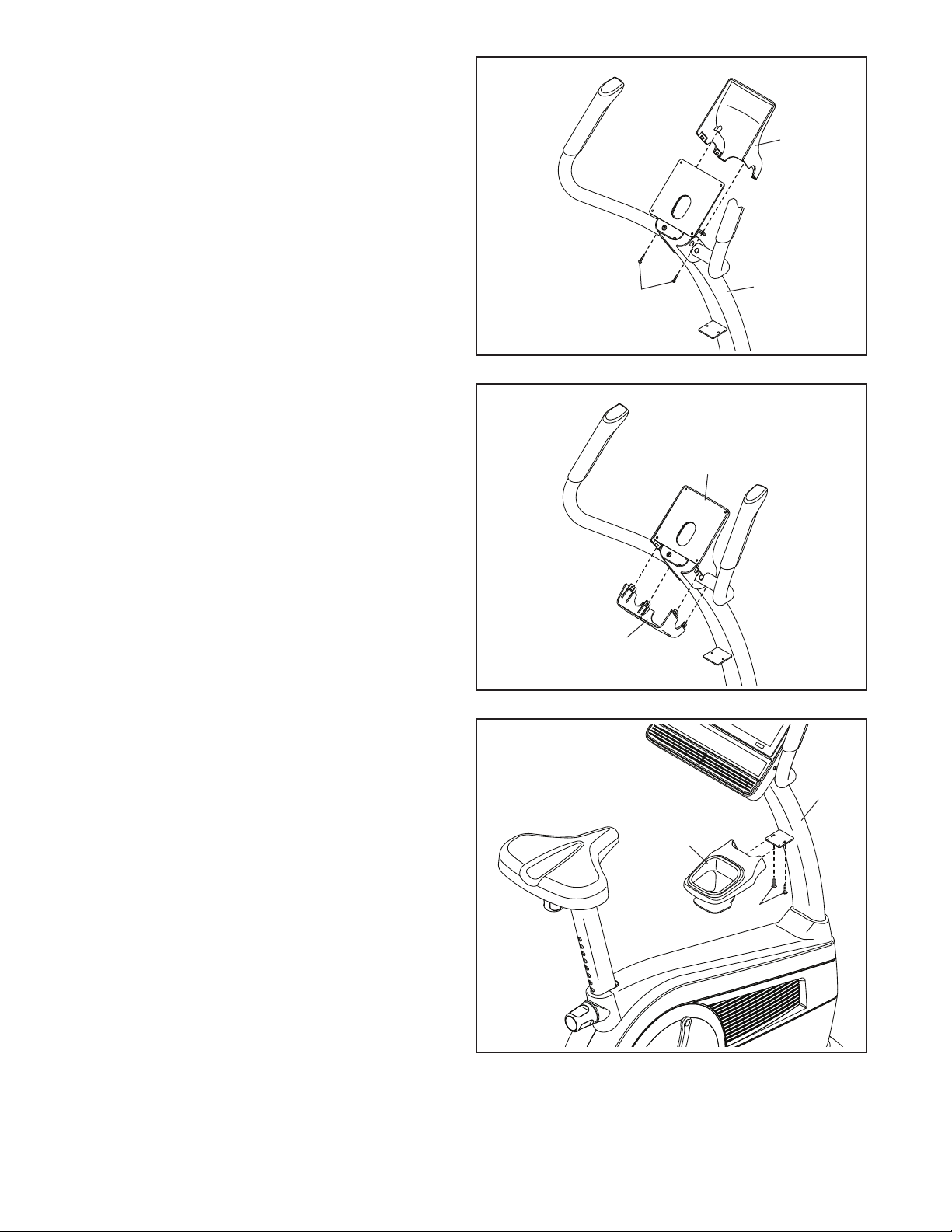

14. Note: For clarity, the console is not shown in
this step.
Press the Rear Console Cover (15) onto the
Front Console Cover (12).
14
12
4
15
12
4
8
34
34
13. Note: For clarity, the console is not shown in
this step.
Attach the Front Console Cover (12) to the
Upright (4) with two M4 x 18mm Screws (34).
15. Attach the Accessory Tray (8) to the Upright (4)
with two M4 x 18mm Screws (34).

14
19
21
B
16. Identify the Right Pedal (21). Using an adjust-
able wrench, firmly tighten the Right Pedal
clockwise into the Right Crank Arm (19).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
To adjust the pedal straps (B), see HOW TO
ADJUST THE PEDAL STRAPS on page 15.
16

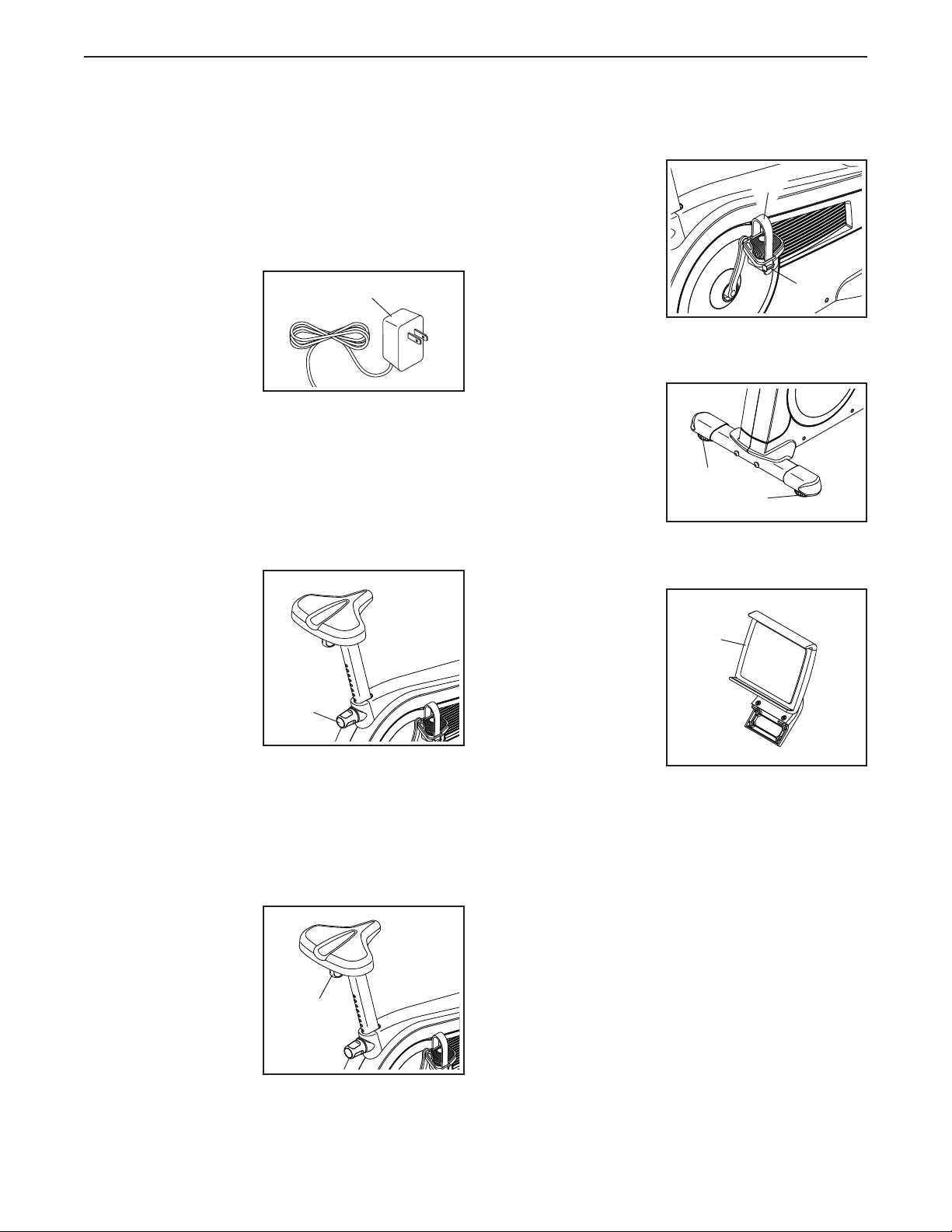

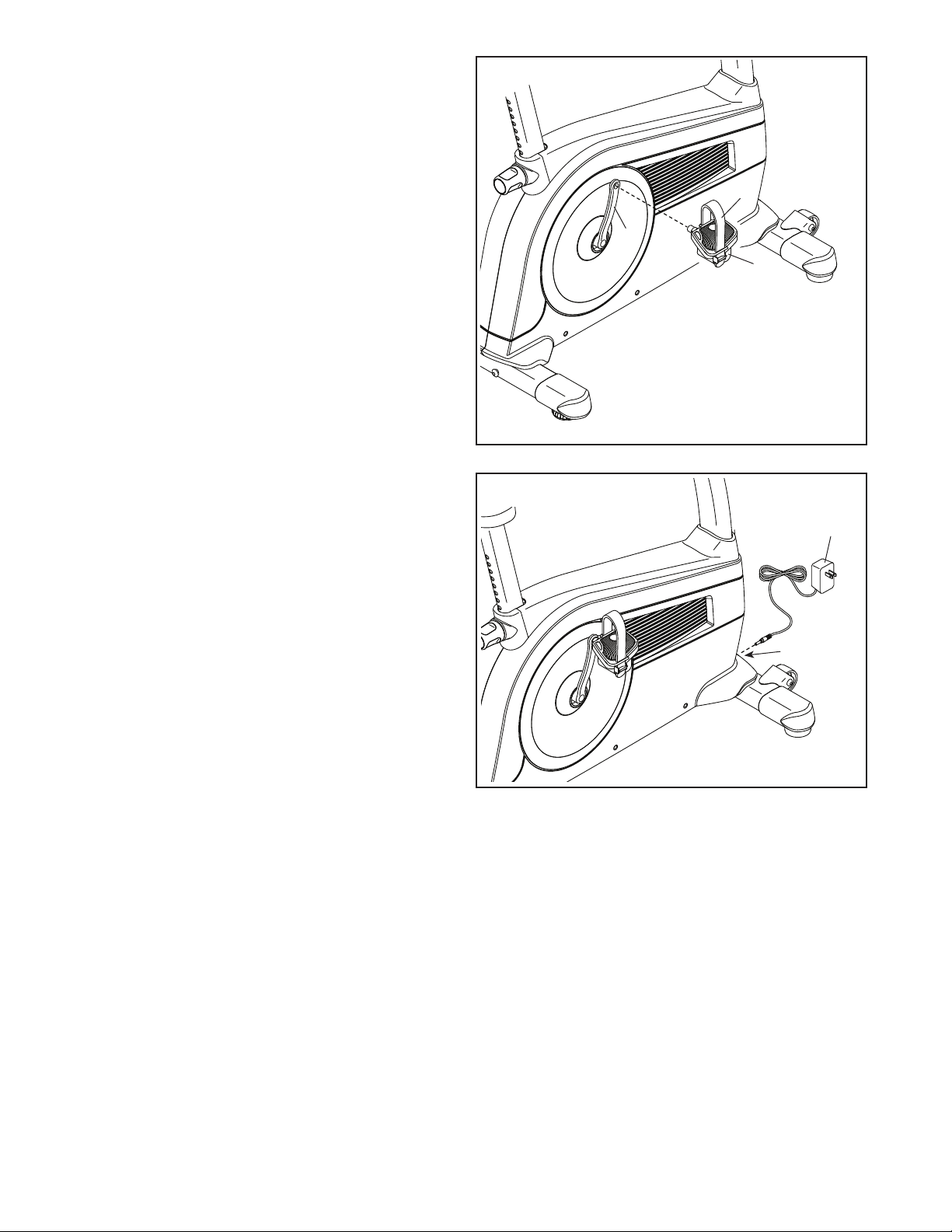

17. Plug the Power Adapter (46) into the Power
Receptacle (29) on the front of the exercise bike.
Note: To plug the Power Adapter (46) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
29
46
17
18. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor or carpet.

15
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter (A) into the
receptacle on the
frame of the exercise
bike. Then, plug the
power adapter into an
appropriate outlet that
is properly installed in
accordance with all local codes and ordinances.
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
loosen the seat post
knob (B) a few turns,
pull the knob, slide
the seat post upward
or downward to the
desired position,
and then release
the knob. Move the
seat post upward or
downward slightly
to make sure that the knob is engaged in one of the
adjustment holes in the seat post. Then, tighten the
knob.
HOW TO ADJUST THE LATERAL POSITION OF THE
SEAT
To adjust the lateral
position of the seat,
first loosen the seat
knob (C) a few turns.
Then, move the seat
forward or backward
to the desired posi-
tion, and firmly tighten
the seat knob.
HOW TO ADJUST THE PEDAL STRAPS
To tighten a pedal
strap (D), pull down-
ward on the end of
the strap. To loosen
a strap, press the tab
(E) and pull upward
on the strap.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the lev-
eling feet (F) beneath
the rear stabilizer
until the rocking
motion is eliminated.
THE OPTIONAL TABLET HOLDER
The optional tablet
holder (G) will hold
your tablet securely
in place and enable
you to use your tablet
while you exercise.
The optional tablet
holder is designed
for use with most
full-size tablets. To
purchase a tablet
holder, please see the front cover of this manual.
A
B
C
E
D
F
F
G
HOW TO USE THE EXERCISE BIKE

16
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of featured
workouts. Each workout automatically controls the
resistance of the pedals as it guides you through an
effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continuous
exercise feedback. You can even measure your heart
rate using a compatible heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on and turn off the console, see page 17.
To learn how to use the touch screen, see
page 17. To set up the console, see page 18.
HOW TO USE THE CONSOLE

17
HOW TO TURN ON THE CONSOLE
The included power adapter must be used to oper-
ate the exercise bike. See HOW TO PLUG IN THE
POWER ADAPTER on page 15. When the power
adapter is plugged in, touch the screen or press any
button on the console to turn on the console.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, the
console will pause.
If the pedals do not move for several minutes, the
screen is not touched, and the buttons are not pressed,
the console will turn off.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the exercise bike may
wear prematurely.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).

18
HOW TO SET UP THE CONSOLE
Before you use the exercise bike for the first time, set
up the console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 24.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour
presentation will guide you through the features of
the console.
5. Check for firmware updates.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for firm-
ware updates. For more information, see HOW TO
CHANGE CONSOLE SETTINGS on page 24.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see this page. To use a
featured workout, see page 20. To create a draw-
your-own-map workout, see page 22. To use an
iFit workout, see page 23.
To change console settings, see page 24. To
connect to a wireless network, see page 25. To
use the sound system, see page 26.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE CONSOLE on
page 17. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Change the resistance of the pedals as desired.
Touch Manual Start and begin pedaling.
You can change the resistance of the pedals by
pressing the Resistance increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.

19
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward on the screen to
view the workout information displays.
Touch the various workout information displays
to view more options. Touch the more button
(+ symbol) to view statistics or charts. Touch the
center of the screen to view even more display
mode options.
If desired, adjust
the volume level
by pressing the
Volume increase and
decrease buttons.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout session, touch the screen to
pause the workout, and then follow the prompts
on the screen to end the workout and return to the
main menu.
5. Wear a compatible heart rate monitor and
measure your heart rate if desired.
You can wear a compatible heart rate monitor to
measure your heart rate. Note: The console is
compatible with all Bluetooth®Smart heart rate
monitors.
A compatible chest heart rate monitor is included
with some models. If a chest heart rate monitor
is included, see THE CHEST HEART RATE
MONITOR in this manual to learn how to use it.
If this model does not include a compatible
heart rate monitor, see page 26 for informa-
tion about ordering one.
The console will connect to your compatible heart
rate monitor automatically. When your heartbeat is
detected, your heart rate will be shown.
6. Turn on the fan if desired.
The fan has sev-
eral speed settings,
including an auto
mode. While the auto
mode is selected, the
speed of the fan will
automatically increase or decrease as your pedal-
ing speed increases or decreases. Press the Fan
increase and decrease buttons repeatedly to select
a fan speed or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 17.

20
HOW TO USE A FEATURED WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE CONSOLE on
page 17. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu or the workout library.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Touch the buttons at the bottom of the screen to
select either the main menu (Home button) or the
workout library (Browse button).
3. Select a workout.
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
Note: To use a featured workout, the console must
be connected to a wireless network (see HOW
TO CONNECT TO A WIRELESS NETWORK on
page 25).
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged into your iFit account to save a featured
workout (see step 3 on page 23).
To draw your own map for a workout, see HOW TO
CREATE A DRAW-YOUR-OWN-MAP WORKOUT
on page 22.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
4. Start the workout.
Touch Start Workout to start the workout.
The workout will function in the same way as the
manual mode (see page 18).
During some workouts, an iFit coach will guide you
through a video workout. Touch the sound button
(music notes symbol) to select music, trainer voice,
and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
During some workouts, the screen may show a
target speed. As you exercise, keep your pedaling
speed near the target speed shown on the screen.
A message may appear prompting you to increase,
decrease, or maintain your pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
