ICON Health & Fitness CADENCE STARTER B User manual

USER’S MANUAL
Model No. AMIEX14918.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
UNITED KINGDOM
Call: 0330 123 1045
Mon. to Fri. 9 am to 6pm
Website: iconsupport.eu
E-mail: [email protected]
CUSTOMER SERVICE

2
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY ................................................................................7
HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO USE THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING ....................................................15
EXERCISE GUIDELINES ....................................................................17
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

3
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 250 lbs.
(110 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
14. Always keep your back straight while using
the exercise bike; do not arch your back.
15. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.

4
Seat Water Bottle Holder*
*Water bottle is not included
Transport Wheel
Pulse Sensor
Seat Knob
Leveling Cap
Pedal/Strap
Handlebar
Console
Length: 2 ft. 9 in. (85 cm)
Width: 1 ft. 8 in. (52 cm)
Thank you for selecting the new Cadence®STARTFIT
B exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The STARTFIT B exercise bike
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN

5
M8 Locknut
(45)–5
M8 Acorn Nut
(46)–4
M8 Curved
Washer (61)–11
M8 Washer
(60)–5
M8 Split
Washer (14)–7
M8 x 16mm
Screw (47)–3
M8 x 30mm
Screw (13)–2
M8 x 65mm
Carriage Bolt (48)–4
M8 x 65mm
Bolt (68)–2
M5 x 12mm
Screw (62)–2
M4 x 16mm
Flange Screw
(69)–2
PART IDENTIFICATION CHART

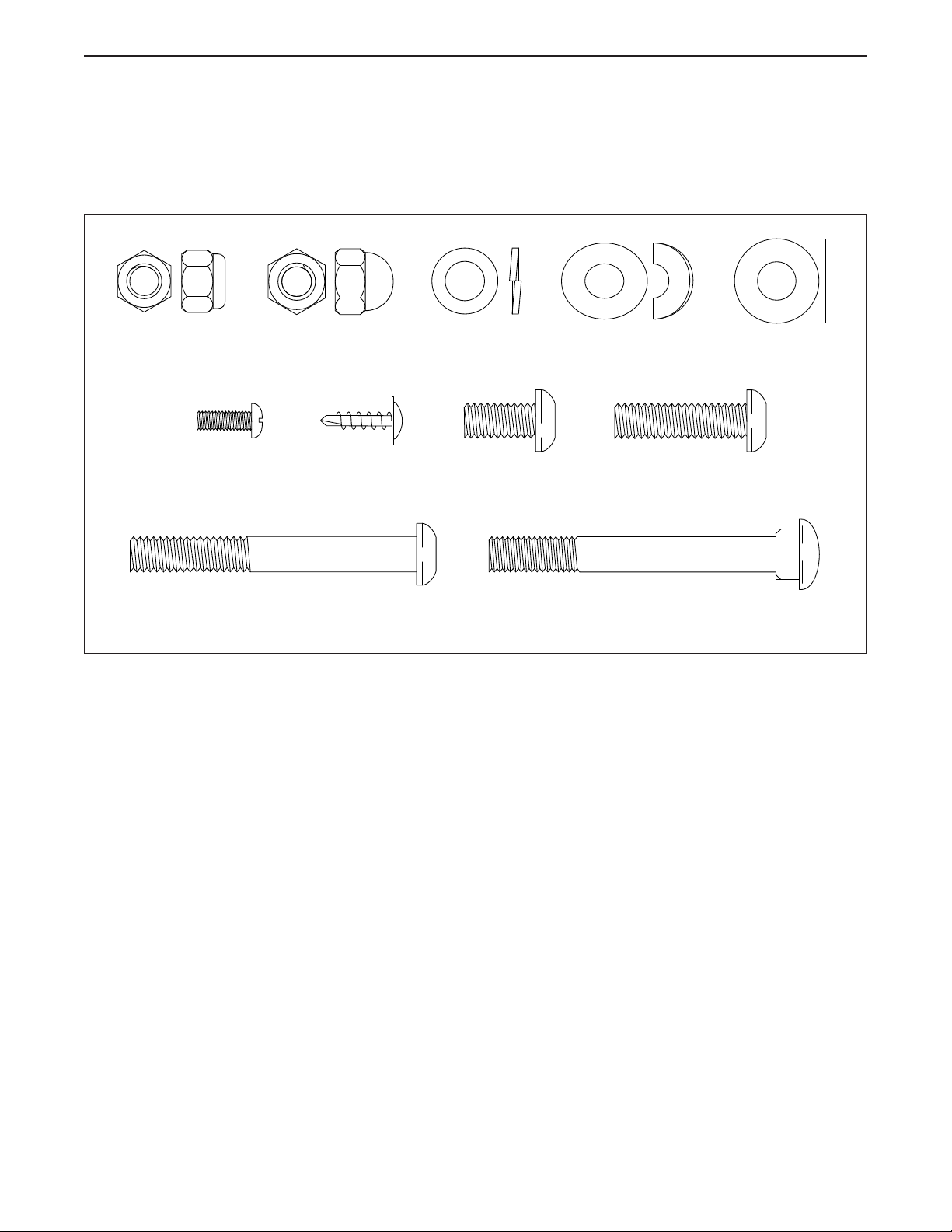

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has
been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• To identify small parts, see page 5.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see Page 5
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one pair of pliers
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
ASSEMBLY
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
2. Identify the Rear Stabilizer (4), which has
Leveling Caps (23).
Attach the Rear Stabilizer (4) to the Frame (1)
with two M8 x 65mm Carriage Bolts (48), two
M8 Curved Washers (61), and two M8 Acorn
Nuts (46); insert both Carriage Bolts, and then
tighten the Acorn Nuts.
4
23
23
61
61
46
46
48
1
2

7
348
61
46
1
3. Attach the Front Stabilizer (3) to the Frame (1)
with two M8 x 65mm Carriage Bolts (48), two
M8 Curved Washers (61), and two M8 Acorn
Nuts (46); insert both Carriage Bolts, and then
tighten the Acorn Nuts.
3
4. Connect the Upright Wire (40) to the Frame Wire
(49) as shown. 4
1
2
40
40
40
49
49
Avoid pinching
the wires and
the cables

8
5
2
2
1
61
61
61
61
68
68
61
61
47
47
47
61
14
14
14
14
14
45
45
5. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
See the upper drawing. Attach the Upright
(2) with three M8 x 16mm Screws (47), three
M8 Split Washers (14), and three M8 Curved
Washers (61); start all the Screws, but do not
fully tighten them yet.
See the lower drawing. Finish attaching the
Upright (2) with two M8 x 65mm Bolts (68), four
M8 Curved Washers (61), two M8 Split Washers
(14), and two M8 Locknuts (45); start both
Locknuts, and then tighten them.
See the upper drawing. Tighten the three
M8 x 16mm Screws (47).
6. Attach the Water Bottle Holder (36) to the
Upright (2) with two M4 x 16mm Flange Screws
(69); start both Flange Screws, and then
tighten them.
6
36
69
2
Avoid pinching
the wires

9
7
7. Tip: Avoid pinching the wire. Attach the
Handlebar (6) to the Upright (2) with two
M8 x 30mm Screws (13), two M8 Split Washers
(14), and two M8 Washers (60); start both
Screws, and then tighten them.
14
60
13
2
6
Avoid pinching
the wire
8
8. While a second person holds the Console (5)
near the Upright (2), connect the wire (C) on
the Console to the Upright Wire (40). Insert the
excess wire into the Upright.
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (2) with two
M5 x 12mm Screws (62); start both Screws,
and then tighten them.
Then, plug the Pulse Wire (39) into the
receptacle on the back of the Console (5).
2
5
40
62
39
C
Avoid pinching
the wires

10
10
10. Insert the Seat Post (11) into the Frame (1), and
then insert the Seat Knob (15) into the Frame
and into one of the adjustment holes (D) in the
Seat Post. Move the Seat Post upward or
downward slightly to make sure that the Seat
Knob is engaged in one of the adjustment
holes. Then, tighten the Seat Knob.
9
9. Tip: The M8 Locknuts (45) and the M8
Washers (60) may be preattached to the
Seat (10).
Attach the Seat (10) to the Seat Post (11) with
three M8 Locknuts (45) and three M8 Washers
(60); start all the Locknuts, and then tighten
them.
10
11
11
15
1
45
45
60
60
D

11
13. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat under the exercise bike to protect the floor.
11. Identify the Right Pedal (33). Using an adjustable
wrench, firmly tighten the Right Pedal clock-
wise into the right arm of the Crank (18).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the left arm of the
Crank (18). IMPORTANT:You must turn the
Left Pedal counterclockwise to attach it.
Then, attach the right pedal strap (E) to the
Right Pedal (33) as shown. Attach the left
pedal strap (not shown) to the Left Pedal (not
shown) in the same way.
12. First, connect one end of the Power Supply (70)
to the Power Wire (58) and then the other end to
the Electrical Socket.
11
12
33
E
18
70
58
Electrical
Socket

12
HOW TO ADJUST THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
first loosen and
remove the seat knob
(A). Next, slide the
seat post (B) upward
or downward to the
desired position, and
insert the seat knob
into the frame and
into one of the adjust-
ment holes in the
seat post. Make sure
that the seat knob is inserted into an adjustment
hole. Then, tighten the seat knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust a pedal
strap, first pull the
end of the pedal
strap off the tab (C)
on the pedal. Then,
adjust the pedal
strap to the desired
position, and press
the end of the pedal
strap onto the tab.
HOW TO MOVE THE EXERCISE BIKE
To move the exercise
bike, lift the rear
stabilizer (E) until
you can move the
exercise bike on the
transport wheels (F).
Then, carefully move
the exercise bike to
the desired location,
and lower the rear
stabilizer to the floor.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the
leveling caps (G) on
the rear stabilizer
until the rocking
motion is eliminated.
A
B
C
E
F
G
G
HOW TO USE THE EXERCISE BIKE

13
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The easy-to-use console enables you to change the
resistance of the pedals with the touch of a button
and provides instant exercise feedback during your
workouts.
Auto On/Off—The console will wake up automatically
if the exercise machine is in motion or if you press
ENTER or、START/STOP. If you stop exercising for over
256 seconds, console will turn off
KEY FUNCTIONS
There are 4 keys: ENTER, UP, DOWN, and START/
STOP
ENTER—Chooses the functions from PROGRAMS,
TIME, DISTANCE, TARGET HEART RATE, AGE, and
10 columns. The chosen function will flash. Not all
functions are available in every program.
UP—Selects or increases the values of PROGRAMS,
TIME, DISTANCE, TARGET HEART RATE, AGE, and
10 columns.
DOWN—Selects or decreases the values of
PROGRAMS, TIME, DISTANCE, TARGET HEART
RATE, AGE, and 10 columns.
START/STOP— Starts or stops the program chosen.
ABOUT THE DISPLAY
START—Indicates the program selected has started.
STOP—Indicates the program selected has stopped.
Users are free to change the programs and the value
of functions.
PROGRAM—Indicates the programs selected from
PROGRAM 1 to PROGRAM 13.
LEVEL—Indicates the level of loading selected from
LEVEL 1 to LEVEL 16.
SPEED—Indicates only one value of SPEED or RPM
displayed depending on the programs.
DISTANCE/ODO Display—Indicates only 1 value
of DISTANCE or ODO displayed depending on the
programs.
CAL/WATT Display—I Indicates only one value of CAL
or WATT displayed depending on the programs.
AGE Display—Age displayed depending on the
programs.
HEART RATE Display—Heart rate displayed depend-
ing on the program.
THINGS YOU SHOULD KNOW BEFORE
EXERCISING
The values calculated or measured by the computer
are for exercise purposes only and not for medical
purposes.
Please note that only one value of TIME or DISTANCE
can be adjusted at a time. Both adjustments cannot be
made simultaneously.
Huy
ELWL19917
WLEL19917
WLEL15018
WLEX14918
WLEX17918
DIST
CAL
ODO
PUL
SCAN
TIME
SPD
HOW TO USE THE CONSOLE

14
PROGRAM OPERATION
1. Select a program using the UP or DOWN keys and
then press the ENTER key to select.
Manual = P1
Preset Programs = P2-P13 (see profiles below)
2. TIME will flash. You can set up your program using
TIME, DISTANCE, or CALORIES. Press ENTER to
select which one.
Then, adjust the value the using UP or DOWN key.
Press ENTER KEY to save value.
3. Move to next parameter to be adjusted. Adjust
using the UP or DOWN key and press enter to
select.
4. Continue through all desired parameters and press
START/STOP to begin workout.
Preset Programs (P2-P13)
There are 12 program profiles ready for use. All pro-
gram profiles have 16 levels of resistance.
During a workout, you may adjust the level of resis-
tance by pressing the UP/DOWN keys.
MEASURING HEART RATE
Note: If there are
sheets of plastic on
the metal contacts
(A) of the handgrip
heart rate monitor,
remove the plastic.
To measure your
heart rate, hold the
handgrip heart rate
monitor, with your
palms resting against
the contacts. Avoid moving your hands or gripping
the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the display when the scan mode or the pulse
mode is selected. When your pulse is not detected, a
heart symbol will appear in the display. When you set
a target heart rate, the display will flash whenever your
heart rate is over the target.
For the most accurate heart rate reading, continue
to hold the contacts for about 15 seconds. If your
heart rate is not shown, make sure that your hands are
positioned as described. Be careful not to move your
hand excessively or to squeeze the contacts tightly.
For optimal performance, clean the contacts using a
soft cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
A
A
Program 10 Program 11 Program 12 Program 13
Program 6 Program 7 Program 8 Program 9
Program 2 Program 3 Program 4 Program 5
PRESET PROGRAM PROFILES

15
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the
Leveling Caps (23)
on the rear stabilizer
until the rocking
motion is eliminated.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Follow the instructions
at the right to adjust the reed switch.
See the EXPLODED DRAWING on page 21.
Identify the Left and Right Shields (28, 29). Remove
the M4 x 20mm Self-tapping Screws (51) and the
M4 x 20mm Screws (52) from the Left and Right
Shields; note which type of Screw you remove from
each hole.
Next, move the Left Shield (28) out of the way until you
can reach the Reed Switch (7). Turn the crank arms
(A) until the Pulley Magnet (64) on the Pulley (18) is
aligned with the Reed Switch.
Next, slide the Reed Switch (7) slightly closer to or
away from the Pulley Magnet (64). Then, turn the crank
arms (A) for a moment.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the left shield.
23
23
28
A
7
64
18
MAINTENANCE AND TROUBLESHOOTING

16
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even when
the resistance is at the highest level, the drive belt may
need to be adjusted. Follow the instructions below to
adjust the drive belt.
See the EXPLODED DRAWING on page 21.
Identify the Left and Right Shields (28, 29). Remove
the M4 x 20mm Self-tapping Screws (51) and the
M4 x 20mm Screws (52) from the Left and Right
Shields; note which type of Screw you remove from
each hole.
Then, move the Right Shield (29) out of the way and
locate the M6 x 100mm Bolt (53). Turn the Bolt until the
Drive Belt (63) is tight.
When the drive belt is correctly adjusted, reattach the
right shield.
29
53
63

17
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results.You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise
at a low intensity level for a sustained period of time.
During the first few minutes of exercise, your body uses
carbohydrate calories for energy. Only after the first few
minutes of exercise does your body begin to use stored
fat calories for energy. If your goal is to burn fat, adjust
the intensity of your exercise until your heart rate is
near the lowest number in your training zone. For maxi-
mum fat burning, exercise with your heart rate near the
middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

18
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg.
To cause further stretching of the achilles tendons, bend your back
leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5

19
NOTES

20
PART LIST Model No. AMIEX14918.0 R0918A
1 1 Frame
2 1 Upright
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Console
6 1 Handlebar
7 1 Reed Switch/Wire
8 1 Clamp
9 1 Spiral Nut
10 1 Seat
11 1 Seat Post
12 1 Sleeve
13 2 M8 x 30mm Screw
14 7 M8 Split Washer
15 1 Seat Knob
16 1 Flywheel
17 1 C-magnet
18 1 Pulley/Crank
19 1 Idler
20 1 Resistance Motor
21 1 Resistance Cable
22 2 Transport Wheel
23 2 Leveling Cap
24 1 Resistance Spring
25 1 Tension Spring
26 2 Bearing Cup
27 2 Ball Bearing
28 1 Left Shield
29 1 Right Shield
30 2 Large Accent Ring
31 2 Small Accent Ring
32 1 Left Pedal
33 1 Right Pedal
34 1 Right Bearing Race
35 1 Right Crank Spacer
36 1 Water Bottle Holder
37 2 Handgrip
38 2 Crank Nut
39 2 Pulse Sensor/Wire
40 1 Upright Wire
41 1 Flywheel Axle
42 2 Flywheel Bearing
43 2 Snap Ring
44 2 Star Washer
45 7 M8 Locknut
46 4 M8 Acorn Nut
47 3 M8 x 16mm Screw
48 4 M8 x 65mm Carriage Bolt
49 1 Frame Wire
50 6 M3 x 12mm Screw
51 7 M4 x 20mm Self-tapping Screw
52 7 M4 x 20mm Screw
53 1 M6 x 100mm Bolt
54 1 M8 x 60mm Bolt
55 1 M8 x 16mm Hex Bolt
56 4 M10 Jam Nut
57 1 M6 x 45mm Bolt
58 1 Power Wire
59 2 M6 Nut
60 6 M8 Washer
61 11 M8 Curved Washer
62 2 M5 x 12mm Screw
63 1 Drive Belt
64 1 Pulley Magnet
65 1 Left Bearing Race
66 1 Left Crank Spacer
67 1 M10 Wave Washer
68 2 M8 x 65mm Bolt
69 2 M4 x 16mm Flange Screw
70 1 Power Supply
71 1 M12 Hex Nut
72 4 M5 x 8mm Screw
* – User’s Manual
* – Assembly Tool
* – Grease Packet
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
