ICON Health & Fitness NordicTrack Grand Tour Pro User manual

USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEX70417.0
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
Serial Number
Decal
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2

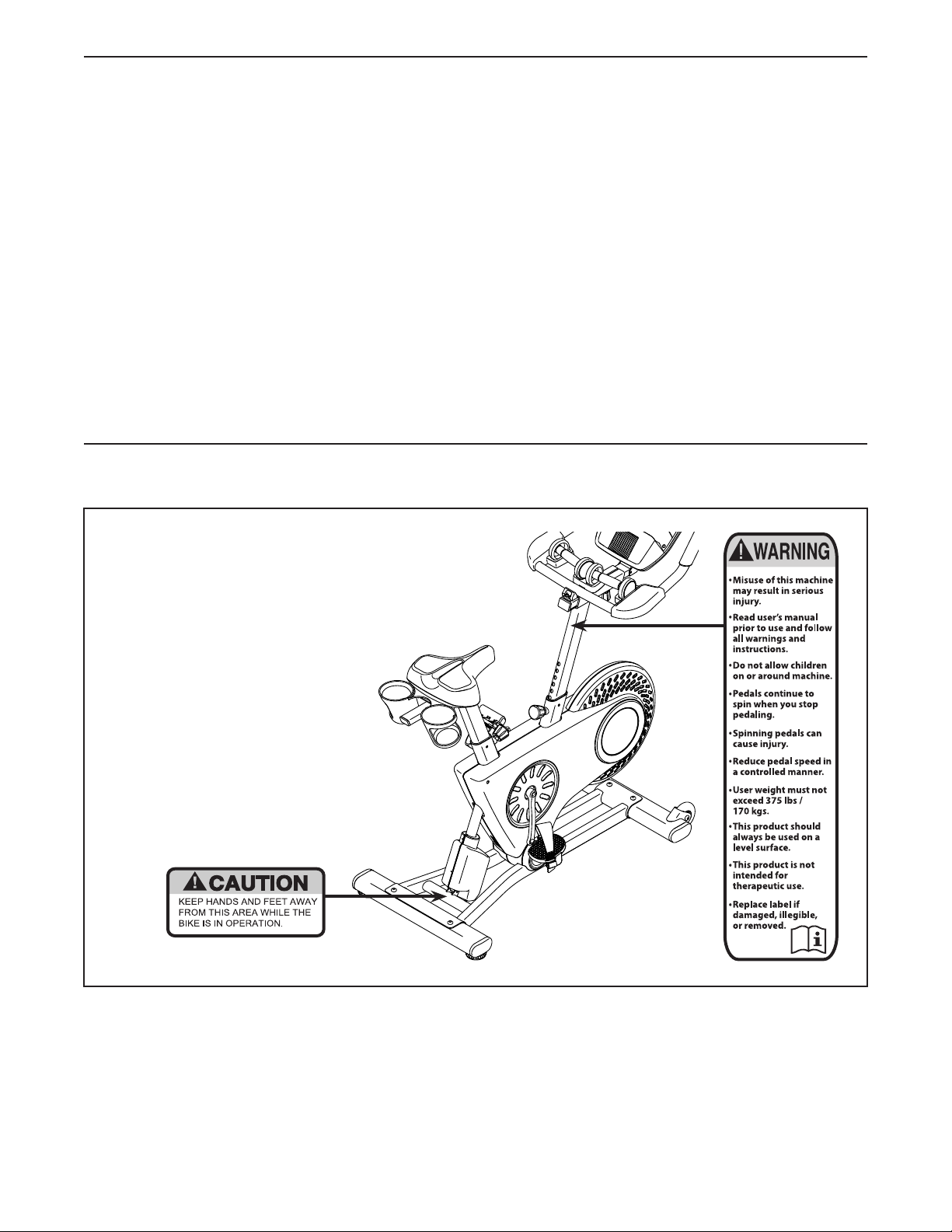

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
376541
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
MAINTENANCE AND TROUBLESHOOTING.....................................................29
EXERCISE GUIDELINES ....................................................................31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The BLUETOOTH®word
mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a
trademark of Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of
Wi-Fi Alliance.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all
important precautions and instructions in this manual and all warnings on your exercise bike before
using your exercise bike. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise bike at all times.
10. When connecting the power cord, plug the
power cord into a grounded circuit.
11. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
12. Do not operate the exercise bike if the power
cord or plug is damaged, or if the exercise
bike is not working properly.
13. DANGER: Always unplug the power
cord and press the power switch to the off
position when the exercise bike is not in
use and before cleaning the exercise bike.
Servicing other than the procedures in this
manual should be performed by an autho-
rized service representative only.
14. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
15. The exercise bike should not be used
by persons weighing more than 375 lbs.
(170 kg).
16. Be careful when mounting and dismounting
the exercise bike.
17. Always keep your back straight while using
the exercise bike; do not arch your back.
18. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
all
STANDARD SERVICE PLANS

5
Congratulations for selecting the revolutionary
NORDICTRACK®GRAND TOUR PRO exercise
bike. The GRAND TOUR PRO exercise bike is unlike
any ordinary exercise bike. With full adjustability, an
advanced console, an incline system allows you to
simulate actual terrain, and an array of other innova-
tive features, the GRAND TOUR PRO exercise bike is
designed to let you enjoy the outdoor cycling experi-
ence indoors.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Seat
Seat Knob
Hand Weight
Fan
Incline Control
Handlebar
Handlebar Knob
Wheel
Water Bottle Holder*
*Water bottle is not included
Pedal/Strap
Resistance Control
Speakers
Tablet Holder
Leveling Foot
Power Switch/Power Cord
Console
Length: 4 ft. 10 in. (147 cm)
Width: 2 ft. (61 cm)
Post Knobs

6
M10 x 58mm Screw (74)–4
M6 x 16mm
Screw (107)–3
M8 x 16mm
Screw (56)–4
Tablet Holder
Screw (82)–4
M4 x 10mm
Screw (92)–4
M4 x 16mm
Screw (34)–4
M4 x 12mm
Screw (93)–1
M6 x 20mm
Screw (103)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

7
2
23
1
74
2. If there is a shipping support attached to the
rear of the Base (1), remove the screws from the
shipping support, and discard the screws and
the shipping support.

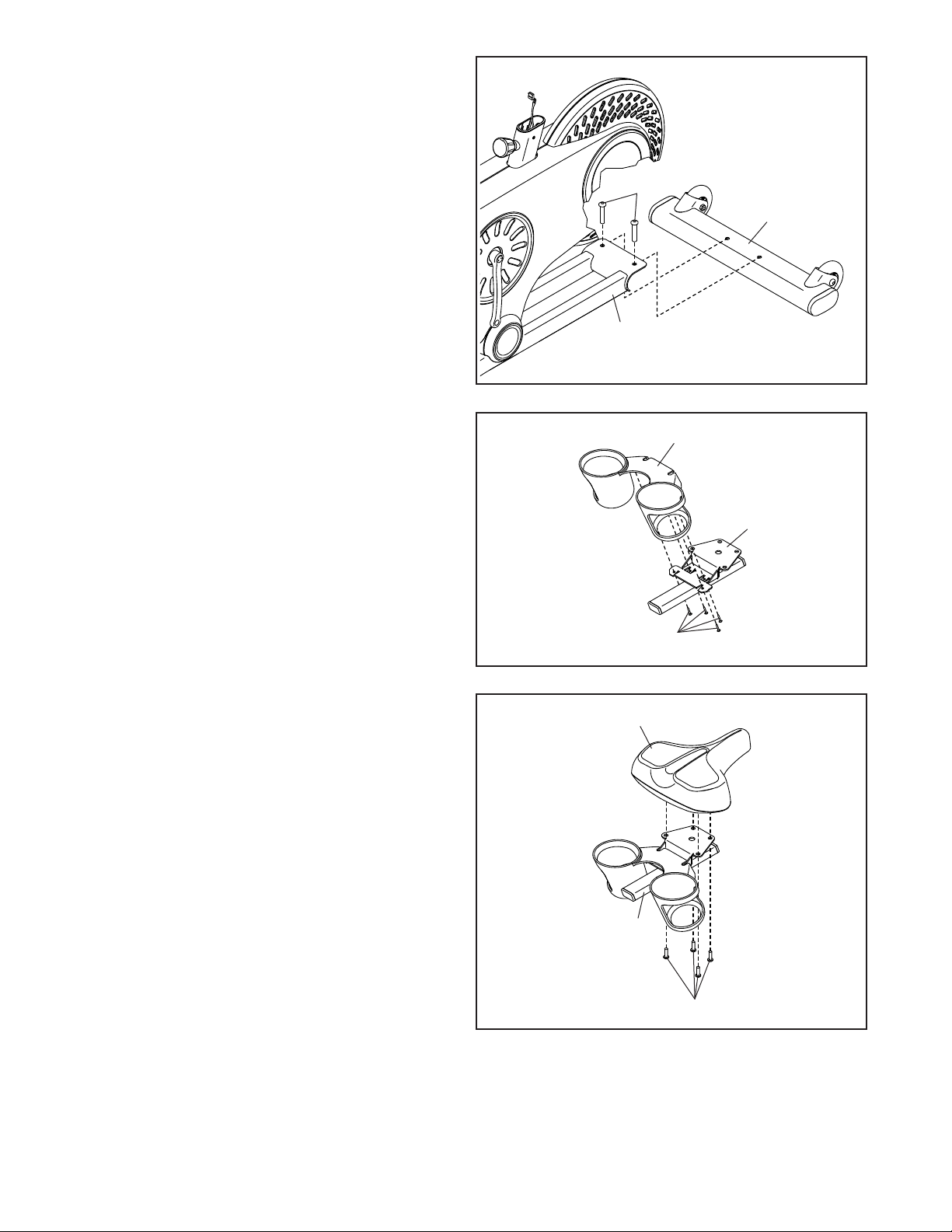

Attach the Rear Stabilizer (23) to the Base (1)
with two M10 x 58mm Screws (74).
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8
4
8
92
3
3. If there is a shipping support attached to the
front of the Base (1), remove the screws from
the shipping support, and discard the screws
and the shipping support.
Attach the Front Stabilizer (22) to the Base (1)
with two M10 x 58mm Screws (74). 74
22
1
4. Attach the Water Bottle Holder (8) to the Seat
Carriage (4) with four M4 x 10mm Screws (92);
start all the Screws, and then tighten them.
4
5
5. Attach the Seat (5) to the Seat Carriage (4)
with four M8 x 16mm Screws (56); start all the
Screws, and then tighten them.
4
5
56

9
6. Locate the Post Knob (47) on the rear of the
Frame (2). Loosen and pull the Post Knob.
Orient a Post Bushing (42) as shown. Insert the
Post Bushing into the Frame (2). Make sure that
the tabs (A) on the Post Bushing are in the
holes (B) in the Frame.
Orient the Seat Post (3) as shown, insert it into
the Frame (2), and then release the Post Knob
(47) into one of the adjustment holes (C) in the
Seat Post. Make sure that the Post Knob is
in an adjustment hole. Then, tighten the Post
Knob.
6
3
C
2
47
42
A
B
7. Loosen and pull the Seat Knob (29).
Next, insert the Seat Carriage (4) into the Seat
Post (3), and release the Seat Knob (29) into
one of the adjustment holes in the Seat Carriage.
Make sure that the Seat Knob is in an adjust-
ment hole. Then, tighten the Seat Knob.
See the inset drawing. Tighten an M4 x 12mm
Screw (93) into the underside of the Seat
Carriage (4).
7
29
3
4
93
4

10
9

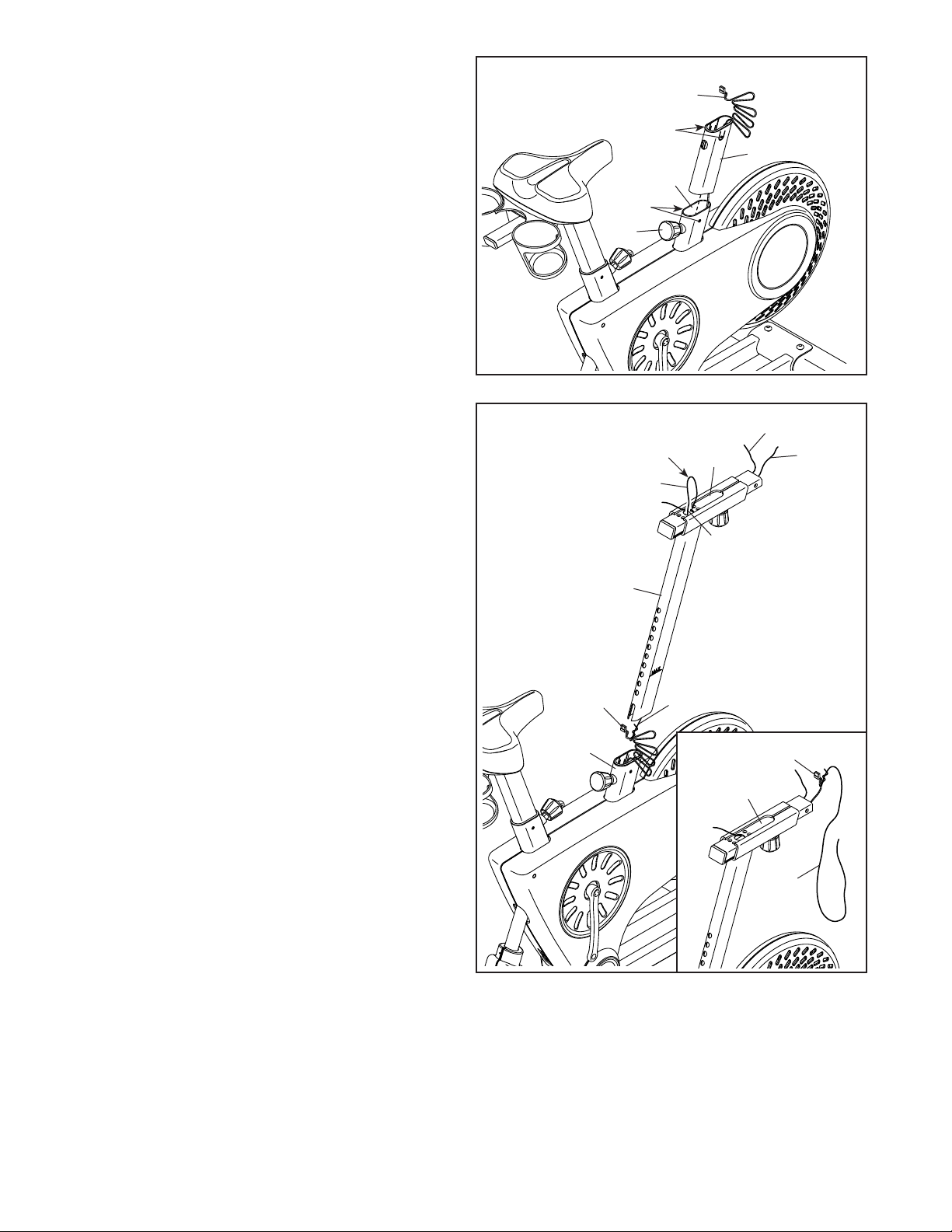

9. Have a second person hold the Handlebar Post
(6) near the Frame (2).
Locate the long wire tie (D) in the Handlebar
Post (6). Tie the lower end of the long wire tie to
the Main Wire (68).
Next, locate the middle of the long wire tie
(D) in the access hole (E) in the Handlebar
Carriage (99). Pull the long wire tie upward in the
indicated location (F) until the end of the Main
Wire (68) is in the access hole.
See the inset drawing. Next, pull the free end
of the long wire tie (D) until the Main Wire (68) is
routed through the Handlebar Carriage (99) as
shown. Then, untie and discard the long wire tie;
do not remove the short wire tie (G).
99
68
D
D
D
E
F
G
6
99
2
68 D
8
2
47
42
68
8. Orient a Post Bushing (42) as shown and hold
it near the Frame (2). Insert the Main Wire (68)
upward through the Post Bushing.
Locate the Post Knob (47) on the front of the
Frame (2). Loosen and pull the Post Knob, and
then insert the Post Bushing into the Frame.
Make sure that the tabs (A) on the Post
Bushing are in the holes (B) in the Frame.
Then, release the Post Knob (47) into the hole in
the Post Bushing (42).
A
B

11
11
99
7

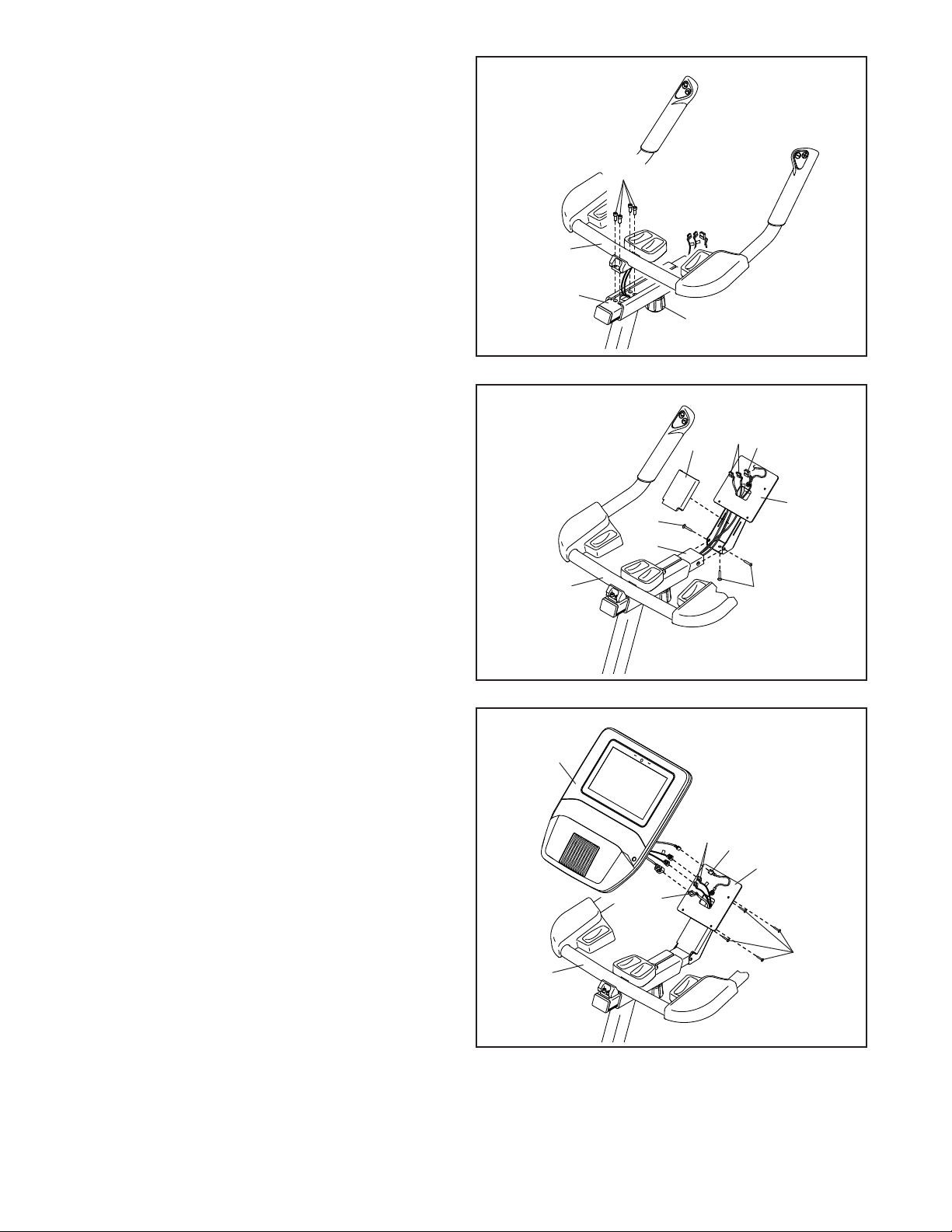

11. Have a second person hold the Handlebar (7)
near the Handlebar Carriage (99).
Locate the short wire tie (G) in the Handlebar
Carriage (99). Tie the indicated end of the short
wire tie to the two wires (I) on the Handlebar (7).
Next, pull the other end of the short wire tie
(G) until the two wires (I) are routed through
the Handlebar Carriage (99). Then, untie and
discard the wire tie.
G
I
10
47
68
6
2
10. Tip: Avoid pinching the Main Wire (68) during
this step.
Loosen and pull the Post Knob (47).
Next, insert the Handlebar Post (6) into the
Frame (2), and release the Post Knob (47) into
the lowest adjustment hole (H) in the Handlebar
Post. Then, tighten the Post Knob.
Note: After the exercise bike is assembled, you
can adjust the Handlebar Post (6) to the desired
height.
Avoid pinching the
Main Wire (68)
H

12
14
9
14. Have a second person hold the Console (9) near
the Console Bracket (33).
Connect the console wires to the Main Wire (68),
to the Ground Wire (111), and to the two wires (I)
from the Handlebar (7); make sure to connect
the console wire that has an “R” tag to the
wire that has an “R” tag. Insert the excess wire
into the Console Bracket (33).
Tip: Avoid pinching the wires. Attach the
Console (9) to the Console Bracket (33) with four
M4 x 16mm Screws (34); start all the Screws,
and then tighten them.
Avoid pinching
the wires
33
111
68
I
34
7
13. Hold the Console Bracket (33) near the
Handlebar Carriage (99). Insert the Main Wire
(68) and the two wires (I) from the Handlebar (7)
upward through the Console Bracket.
Tip: Avoid pinching the wires. Attach the
Console Bracket (33) to the Handlebar Carriage
(99) with three M6 x 16mm Screws (107); start
all the Screws, and then tighten them.
Then, press the Wire Cover (32) onto the
Console Bracket (33).
13
33
7
99
107
107
32
Avoid pinching
the wires
I68
12. Loosen the Handlebar Knob (95). Next, slide
the Handlebar Carriage (99) forward as far as
possible. Then, tighten the Handlebar Knob.
Tip: Avoid pinching the wires. Attach the
Handlebar (7) to the Handlebar Carriage (99)
with four M6 x 20mm Screws (103); start all the
Screws, and then tighten them.
12
99
95
7
103
Avoid pinching
the wires

13
18. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
62
63
61
17. Identify the Right Pedal (62).
Using the included flat wrench tool, firmly
tighten the Right Pedal (62) clockwise into the
Right Crank Arm (64).
Firmly tighten the Left Pedal (61)
counterclockwise into the Left Crank Arm
(63). IMPORTANT: You must turn the Left
Pedal counterclockwise to attach it.
To adjust the straps on the Pedals (61, 62),
see HOW TO USE THE PEDAL STRAPS on
page 15.
17
64
15
9
10
15. Attach the Tablet Holder (10) to the Console (9)
with four Tablet Holder Screws (82); start all the
Tablet Holder Screws, and then tighten them.
16
15
72
69
16. Set the two Hand Weights (15) on the Hand
Weight Rest (83) and on the Armrests (69, 72).
82
83
15

14
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-volt
circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
HOW TO USE THE EXERCISE BIKE
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug; if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Grounded Outlet
2-pole Receptacle
Grounding Pin
Adapter
Lug
Metal Screw

15
HOW TO ADJUST THE EXERCISE BIKE
The exercise bike can be adjusted to promote correct
form and to ensure proper training of the muscles.
Note: Make adjustments in small increments,
and then pedal the exercise bike to test the
adjustments.
How to Adjust the Seat Post
For effective train-
ing, the seat should
be at the proper
height. As you
pedal, there should
be a slight bend in
your knees when
the pedals are in
the lowest position.
To adjust the height
of the seat post,
loosen and pull the
post knob (A), move
the seat post upward or downward, release the post
knob into an adjustment hole in the seat post, and then
tighten the post knob. Move the seat post upward or
downward slightly to make sure that the post knob
is engaged in an adjustment hole.
How to Adjust the Seat Carriage
To adjust the
position of the seat
carriage, loosen
and pull the seat
knob (B), move
the seat carriage
forward or back-
ward, release the
seat knob into an
adjustment hole in
the seat carriage,
and then retighten the seat knob.
How to Adjust the Handlebar Post
To adjust the height
of the handlebar
post, loosen and
pull the post knob
(C), move the
handlebar post
upward or down-
ward, release the
post knob into an
adjustment hole in
the handlebar post,
and then tighten the
post knob. Move the seat post upward or downward
slightly to make sure that the post knob is engaged
in an adjustment hole.
How to Adjust the Handlebar Carriage
To adjust the
position of the
handlebar car-
riage, loosen the
handlebar knob (D),
move the handlebar
carriage forward
or backward, and
then retighten the
handlebar knob.
HOW TO USE THE PEDAL STRAPS
To tighten the straps
(E), pull the ends of
the straps down-
ward. To loosen
the straps, press
the tabs (F) on the
pedals and pull the
straps upward.
A
B
C
D
E
F

16
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on
your floor during
use, turn one or
both of the leveling
feet (G) on the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO USE THE HAND WEIGHTS
To add upper body
exercise to your
workouts, use the
hand weights (H)
while you pedal.
When you are not
using the hand
weights, store them
on the hand weight
rest.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (I) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the tablet
holder.
To insert a tablet
into the tablet holder
(I), set the bottom
edge of the tablet
in the tray. Then,
pull the clip over
the top edge of the
tablet. Make sure
that the tablet is
firmly secured in
the tablet holder.
Rotate and pivot the tablet holder to the desired angle.
Reverse these actions to remove the tablet from the
tablet holder.
G
G
H
I

17
Rafe
EBNT70417
NTEX70417
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the frame as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the frame with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using an optional heart rate monitor. See page
27 for information about purchasing an optional
chest heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 18. To learn how
to use the touch screen, see page 18. To set up
the console, see page 19.
CONSOLE DIAGRAM

18
HOW TO TURN ON THE POWER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console or other
electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE POWER
CORD on page 14). Next,
locate the power switch on the
frame near the power cord.
Press the power switch to the
reset position (A).
The console will then turn on and be ready for use.
Note: When you turn on the power for the rst time,
the incline system may calibrate automatically. The
frame will move upward and downward as it calibrates.
When the frame stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 6 on page 19
and manually calibrate the incline system.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the
text box to view the keyboard. To use numbers or
other characters on the keyboard, touch ?123. To
view more characters, touch Alt. Touch Alt again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
A

19
HOW TO SET UP THE CONSOLE
Before you use the exercise bike for the first time, set
up the console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour presen-
tation will guide you through the features of the
console. Note: To view the tour presentation again
at any time, touch the profile button (person sym-
bol) at the bottom of the screen, touch Settings,
and then touch How It Works.
5. Check for firmware updates.
First, touch the profile button, touch Settings,
touch Maintenance, and then touch Update. The
console will check for firmware updates. For more
information, see HOW TO CHANGE CONSOLE
SETTINGS on page 25.
6. Calibrate the incline system.
First, touch the profile button, touch Settings, touch
Maintenance, and then touch Calibrate Incline. The
frame will rise and lower as it calibrates. For more
information, see HOW TO CHANGE CONSOLE
SETTINGS on page 25.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see page 20. To use
a map workout or an onboard workout, see page
21. To create a draw-your-own-map workout, see
page 23. To use an iFit workout, see page 24.
To change console settings, see page 25. To
connect to a wireless network, see page 26. To
use the sound system, see page 27. To connect
an HDMI cable, see page 27.
Note: If there is a sheet of plastic on the screen,
remove the plastic.

20
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen, touch
Pause, touch End, and then touch Finish to return
to the main menu. If you are in the settings menus,
touch the back button (arrow symbol) and then
touch the close button (x symbol) to return to the
main menu.
3. Change the resistance of the pedals and the
incline of the frame as desired.
Touch Manual Start and begin pedaling.
You can change the resistance of the pedals by
pressing one of the numbered Quick Resistance
buttons on the console, pressing the Resistance
increase and decrease buttons on the console, or
pressing the Resist increase and decrease buttons
on the right handlebar.
To vary the motion of the pedals, you can change
the incline of the frame by pressing one of the num-
bered Quick Incline/Decline buttons on the console,
pressing the Incline/Decline increase and decrease
buttons on the console, or pressing the Incline/
Decline increase and decrease buttons on the left
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level or for the frame to reach the selected
incline level.
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
To select the desired display mode or to view
statistics and charts, drag downward on the screen.
You can also touch the more button (+ symbol) to
view statistics or charts.
If desired, adjust
the volume level by
pressing the volume
increase and decrease
buttons on the
console.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout session, first touch the screen
to pause the workout. Next, touch End; a workout
summary will appear on the screen. If desired, you
can publish your results using one of the options on
the screen. Then, touch Finish to return to the main
menu.
5. Wear a heart rate monitor and measure your
heart rate if desired.
You can wear an optional heart rate monitor
to measure your heart rate. For more informa-
tion about the optional heart rate monitor, see
page 27. Note: The console is compatible with
BLUETOOTH®Smart heart rate monitors.
When your heartbeat is detected, your heart rate
will be shown in the display on the screen.
6. Turn on the fan if desired.
The fan has several
speed settings, includ-
ing an auto mode.
While the auto mode is
selected, the speed of
the fan will automatically increase or decrease as
your pedaling speed increases or decreases. Press
the fan increase and decrease buttons repeatedly
to select a fan speed or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, unplug the
power cord.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components of the exercise bike may
wear prematurely.
