ICS 680GC User manual

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
680GC
OPERATOR’S MANUAL
Serial numbers starting with 977


© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
3
TABLE OF CONTENTS
SYMBOLS & LABELS 4
SAFETY 5
TECHNICAL SPECIFICATIONS 8
SET-UP 9
OPERATION 12
MAINTENANCE 17
TROUBLESHOOTING 24
REFERENCE 25
INTRODUCTION
This manual outlines the maintenance and operation of ICS® manufactured products.
This is a professional tool and is soley intended for use by trained and experienced operators.
To get the maximum benefit from your saw, and ensure maximum safety, be sure to read this manual
thoroughly, and periodically review safety instructions.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
4
SYMBOLS & LABELS
THE FOLLOWING SYMBOLS & DEFINITIONS ARE FOUND THROUGHOUT THIS MANUAL AND
ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not avoided,
could result in death or serious injury.
A potentially hazardous situation exists which, if not avoided,
may result in minor or moderate injury or property damage.
A potential situation exists which, if not avoided, may result in
product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE SAW
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always use:
• Protective helmet
• Ear protection
• Protective glasses or full face protection
Wear hand protection
IMPORTANT
WARNING
CAUTION

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
5
SAFETY
WARNING
THE FOLLOWING SYMBOL APPLIES TO ALL THE ITEMS LISTED ON THIS PAGE
A potentially hazardous situation exists which, if not avoided,
could result in death or serious injury.
Chain breakage can result in high-speed ejection of parts, which can result in death or
serious personal injury to operators or bystanders. The items listed below are critical to
minimizing the risk of diamond chain breakage and injury.
• DO NOT operate a concrete chain saw with a damaged, modified, broken, or missing side
cover, bottom guard, or guard flap. The side cover, bottom guard, and guard flap provide
protection against contact with moving parts, ejected debris, broken diamond chain,
thrown water and concrete slurry.
• DO NOT operate saw with loose, missing, damaged or improperly repaired parts.
• DO NOT insert saw into a slot narrower than the diamond chain segments. Rapid
pushback might occur. Reference: Most diamond segments are .225 inches (5.72 mm)
wide.
• DO NOT use damaged, modified or improperly repaired diamond chain.
• DO NOT run saw upside-down. Concrete debris can fly back into the operator’s face.
• DO NOT cut ductile iron pipe with a concrete chain saw. Segment loss or diamond chain
breakage may occur.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
6
SAFETY
CAUTION
THE FOLLOWING SYMBOL APPLIES TO ALL ITEMS LISTED ON THIS PAGE
A potentially hazardous situation exists which, if not avoided,
may result in minor or moderate injury or property damage.
• Always turn a concrete chain saw OFF when performing maintenance on the saw
including diamond chain tensioning.
• Never use equipment that is not functioning properly.
• Have the saw repaired only by qualified service personnel.
• Turn engine OFF before refueling. Keep away from open flame. Always provide adequate
ventilation when handling fuel. Move saw at least 10 feet (3 m) away from refueling area
before starting.
• SealPro®diamond chains require a minimum water pressure of 20 psi (1.5 bar).
Insufficient water supply may result in excessive wear to the diamond chain, which
can lead to loss of strength and diamond chain breakage, and/or damage to the guidebar
nose sprocket.
• Never start saw unless the guidebar, diamond chain
and side cover are properly installed.
GENERAL SAFETY PRECAUTIONS
• Always wear protective clothing, including hard hat, eye protection, hearing protection,
and gloves.
• Avoid loose fitting clothing.
• Perform safety checks before starting each day.
• Always operate tool with solid footing and with both hands on saw.
• Remove or control slurry to prevent slippery conditions while cutting.
• Be sure there are no obstructions (plumbing, electrical conduit, air ducts) and no
unnecessary people present.
• Set up a well-marked safety zone with a roped boundary and clear signs.
• Provide adequate ventilation when working in an enclosed area. Breathing exhaust gases
is dangerous.
• To avoid electrocution, check for live electrical wiring near cutting area.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
7
SAFETY
IMPORTANT
THE FOLLOWING SYMBOL APPLIES TO ALL ITEMS LISTED ON THIS PAGE
A potential situation exists which, if not avoided, may result
in product or property damage.
Note: The concrete chain saw is equipped with a two-stroke engine and must always be run
using a mixture of gasoline and ICS®two-stroke engine oil, or other high quality 2-stroke
oil that has been formulated for air cooled power equipment. It is important to accurately
measure the amount of oil to be mixed to ensure that correct mixture is obtained. When
mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the
mixture.
• This engine is designed to be operated on premium unleaded gasoline.
• Use high quality, unleaded gasoline with a minimum octane rating of 90. If lower octane
gasoline is used, engine temperature will increase which will result in a piston seizure
and damage to the engine.
• Fuel mixture: 25:1 (4%) gasoline/oil mixture. Incorrect fuel mixture is the number one
cause of piston seizure.
• Use ICS®brand two-stroke engine oil, or other high quality 2-stroke oil that has been
formulated for air cooled power equipment.
• Never use two-stroke oil formulated for water-cooled two-cycle engines, such as
outboard motor oil.
• Never use motor oil intended for four-stroke engines.
• Use of water is required to cool bar and chain during break-in period.
ENGINE BREAK-IN
• It is very important to break-in a new engine to “seat” all moving parts, especially the
piston rings.
• To break-in the engine, run one full tank of 25:1 (4%) fuel at idle, cycling the throttle every
5 to 10 minutes to prevent loading.
• Failure to break-in an engine may result in piston seizure.
• Failure to break-in an engine at altitude will result in up to 50% loss of power output for
the first hour of operation making the initial cutting experience unsatisfactory.
• Proper chain tension, especially for first cut, is extremely important. Over-tensioning of
bar and chain, especially at altitude, could result in severe loss of power output making
initial cutting experience unsatisfactory.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
8
TECHNICAL SPECIFICATIONS
Engine Type 2-stroke Single Cylinder Air Cooled
Displacement 4.7 cu-in (76.5 cc)
Horsepower 5 hp (3.7 kW) @ 9,500 rpm
Torque 36.3 in-lbs (4.1 Nm) @ 6,500 rpm
Engine Speed 11,500 +/- 500 rpm (max)
2,800-3,200 rpm (idle)
Weight 21 lbs (9.5 kg) without guidebar and
diamond chain
Dimensions
18 inches (46cm) length
11.5 inches (29cm) height
10 inches (25cm) width
Air Filter Water resistant polyester
Carburetor Walbro WJ122B
Starter Dust and water resistant
Ignition Special water resistant electronic ignition
Clutch Centrifugal, three shoe, single spring
Fuel ratio 25:1 (4%) gasoline-to-oil
Fuel Capacity 0.23 gal (.88 liter)
Water Supply Minimum 20 psi (1.5 bar)
Water Flow Minimum: 2 gpm (8 lpm)
Noise Level 101 dB at 3 ft (1m)
Vibration Level 7.2 m/s2 (front handle)
8.5 m/s2 (rear handle)
Engine Break-in Period One tank, without cutting, cycling throttle
Spark Plug NGK BPMR8Y
Electrode gap .020 in (0.5 mm)

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
9

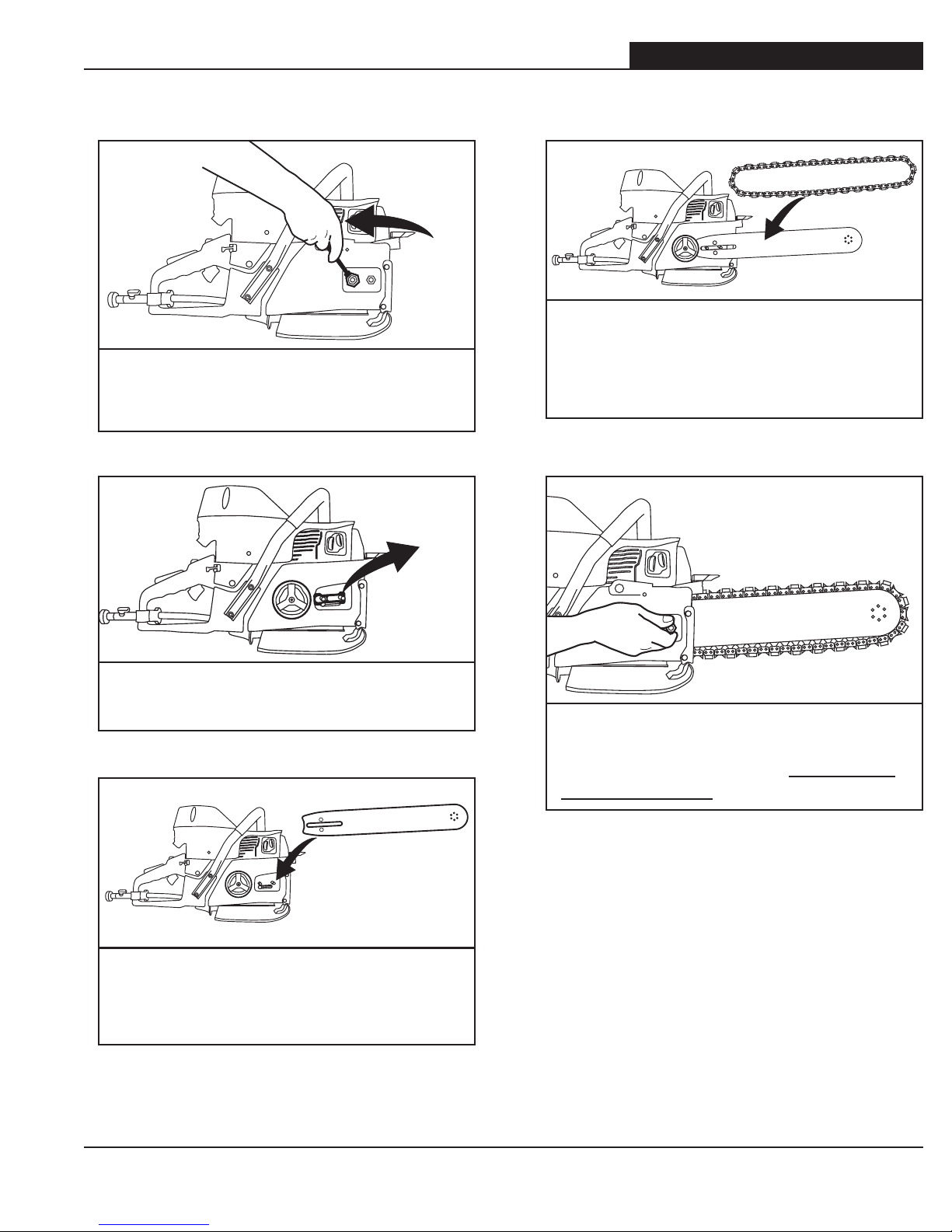

SET-UP
STEP 1
Loosen side cover nuts and remove side
cover.
GUIDEBAR AND DIAMOND CHAIN INSTALLATION
STEP 4
Mount the diamond chain on the guidebar
starting at the drive sprocket and continue
over the guidebar nose.
STEP 2
Remove shipping spacer. STEP 5
Install the side cover and nuts. Do not
fully tighten side cover nuts until chain is
properly tensioned.
STEP 3
Place guidebar onto studs and chain
adjustment pin.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
10
SET-UP
GUIDEBAR AND DIAMOND CHAIN INSTALLATION
CORRECT CHAIN TENSION
All chains have a tendency to stretch
when used. Diamond chains stretch more
than wood cutting chains because of the
abrasive materials they are cutting.
If the chain is too tight, a lot of the saw's
power goes into turning the chain rather
than into the cut. In extreme over-tightened
cases, the saw may not be able to turn the
chain at all. In addition, damage can occur
to the bar nose and premature stretch may
occur.
STEP 7
Before cutting, check for proper tension by
pulling the chain around the bar by hand. If
you cannot easily pull by hand, the chain is
too tight and needs to be loosened slightly.
CAUTION: Be aware that the guidebar
rails may develop sharp edges over time
so always pull the diamond chain by the
diamond segments.
CHAIN TOO LOOSE
If the chain is too loose, it could come off
the bar, or it will allow the drive sprocket to
spin without turning the chain, which can
chew up drive links.
When a chain stretches to a point where
the drive links are hanging approximately
1/2 in (12 mm) to 3/4 in (18 mm) below the
bar, it is time to tension the chain.
STEP 6
Make sure all the drive links are inside
the guidebar groove then lift the bar nose
and tension the chain by turning the screw
clockwise.
CHAIN TOO TIGHT CHAIN TOO LOOSE

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
11
SET-UP
GUIDEBAR AND DIAMOND CHAIN INSTALLATION

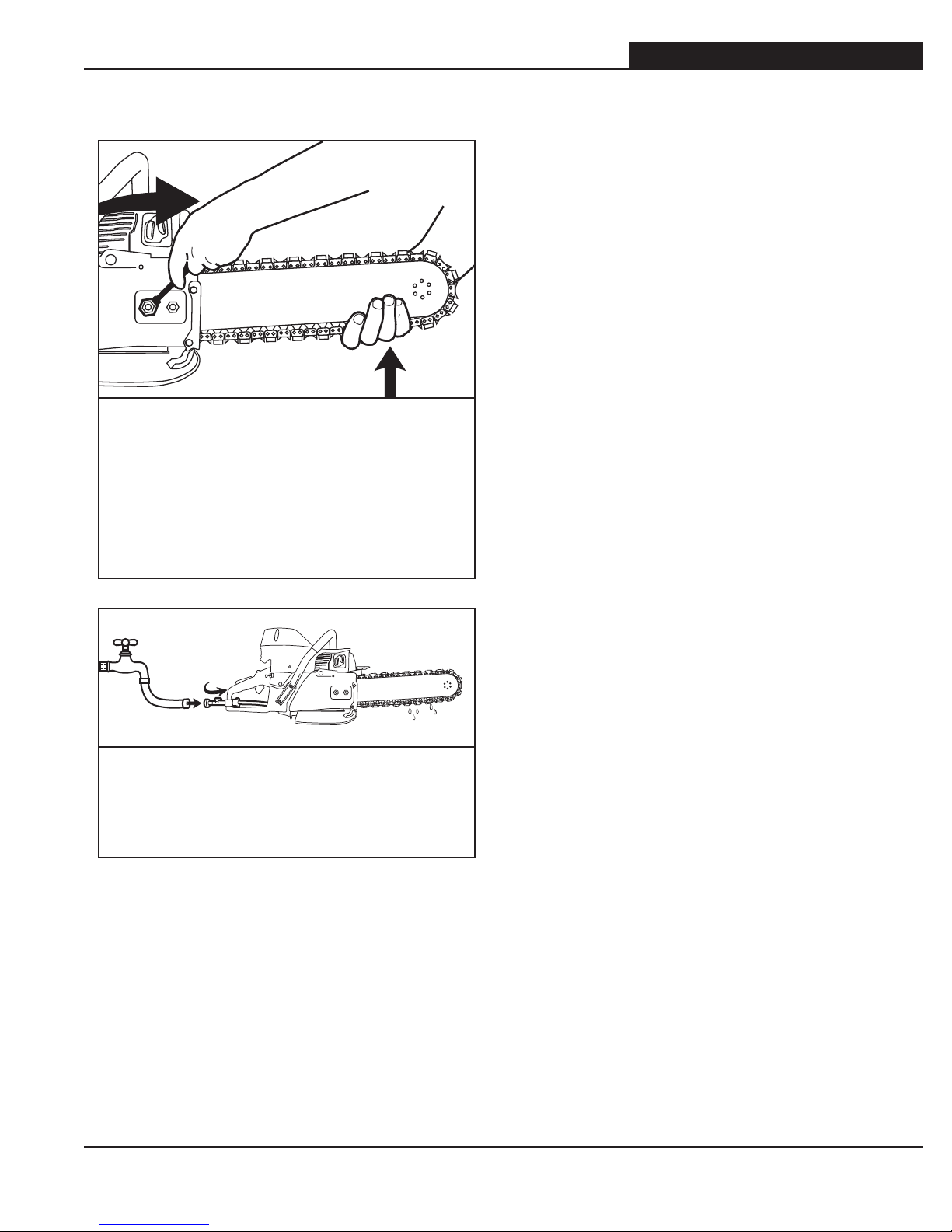

STEP 8
Continue to lift up on the nose of the
guidebar and firmly tighten the side cover
nuts.
NOTE: To prevent chain tensioner
breakage, be sure the side cover nuts
are tightened to approximately 20 ft-lbs
(27 Nm).
STEP 9
Attach to water source with pressure of not
less than 20 psi (1.5 bar).

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
12
OPER ATION
CAUTION
FUEL HANDLING
FUEL MIXTURE: 25:1 (4%) gasoline/oil mixture.
GASOLINE OIL
US
Gallon
US
Fl oz
1 5.2
2 1/2 12.8
5 25.6
GASOLINE OIL
Liters ml
1 40
5 200
10 400
20 800
• Use premium unleaded gasoline with a minimum octane rating of 90. If lower octane gasoline
is used, engine temperature will increase which can result in a piston seizure and damage to
the engine.
• Always provide adequate ventilation when handling fuel.
• Use caution when handling gasoline. Avoid direct contact with skin or inhaling fuel vapor.
FUEL MIXING
• Always mix gasoline and oil in a clean container intended for use with fuel.
• Keep fuel container closed tightly to prevent moisture from getting into the fuel.
• Always begin mixing fuel by adding half the amount of gasoline to be used. Then add the
correct amount of two-stroke oil for 25:1 (4%) mixture and finish filling the container with gasoline.
• Do not mix more than one month’s supply of fuel. This helps prevent the separation of the
two-stroke oil from the gasoline (varnishing).
• If the saw is not used for an extended period of time (3 months) the fuel tank should be emptied
and cleaned.
FUELING
• Always shut off the saw before fueling.
• Before fueling, clean the area around fuel cap to prevent dirt from contaminating the fuel.
Contamination of the fuel tank can lead to saw malfunction.
• Thoroughly mix the fuel in it’s container before fueling.
• Slowly open the fuel cap to release any pressure that may have built-up in the tank.
• After adding fuel, tighten the fuel cap carefully and secure with a wrench.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
13

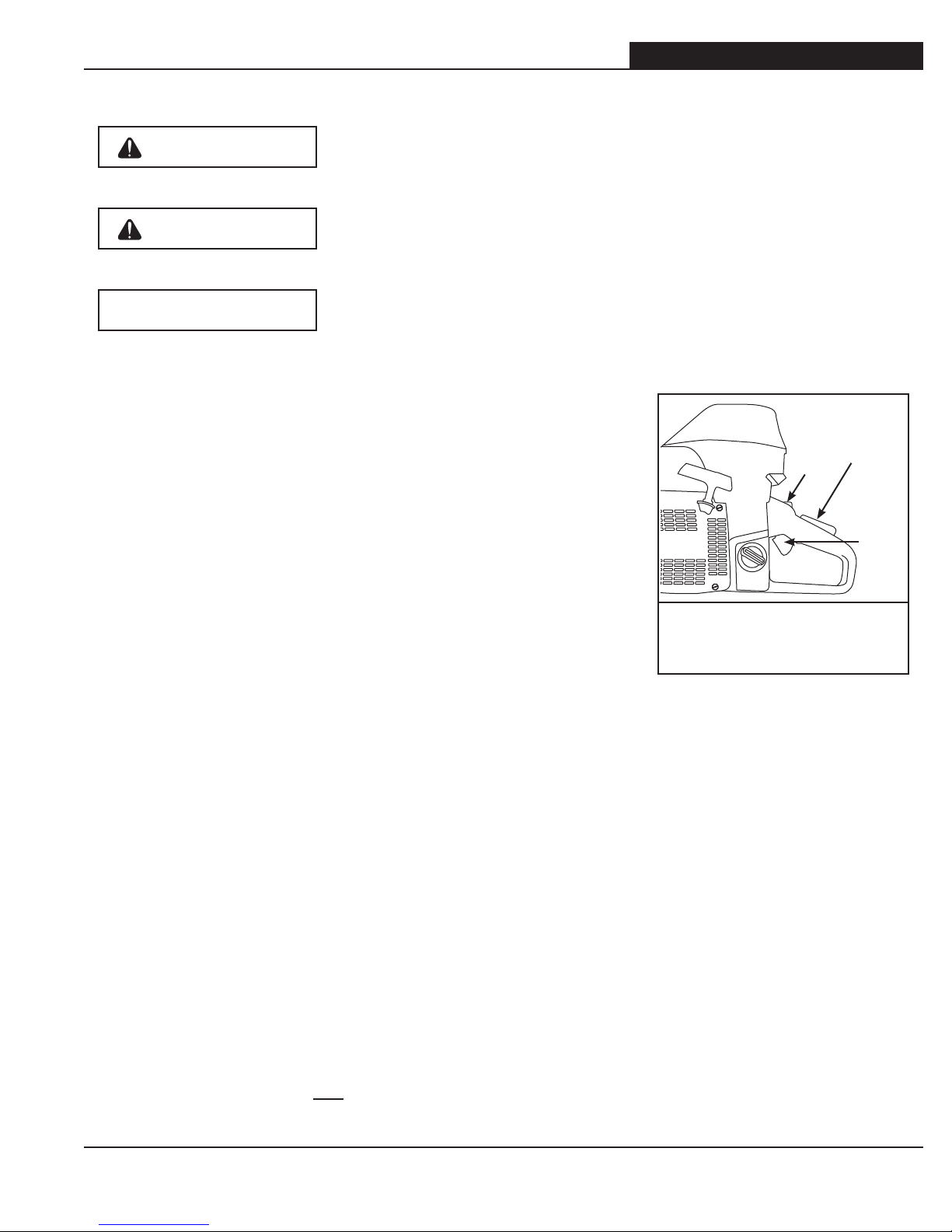

COLD ENGINE STARTING PROCEDURE
1. Toggle the ignition switch to the "ON" position and pull the
choke lever out.
2. Lock the throttle in the start position by depressing the trigger
(A) and trigger interlock (B) at the same time.
3. Depress and hold throttle lock button (C) while releasing the
trigger and trigger interlock in succession.
4. Open the water valve 1/4 turn.
5. Place the saw on stable ground making sure the chain
is free of any obstructions.
6. Place foot on the base of the rear handle, and place one hand
on front handle.
7. With opposite hand, slowly pull starter handle until the
starter pawls engage.
8. Pull the starter cord (hard, fast, short pulls)
until engine initially fires or "pops".
Could be as many as 10-15 pulls.
9. Push the choke lever in.
10. Pull the starter cord until engine starts. Could be as many as
5 to 7 pulls.
11. When the engine starts, allow the engine to idle. Pull on the
throttle trigger several times to help warm up the engine.
12. Open the water valve completely.
CAUTION
OPER ATION
STARTING AND STOPPING A CONCRETE CHAIN SAW
Never start a concrete chain saw without the guidebar, diamond
chain and side cover properly assembled. Failure to do so may
result in serious injury.
Always move saw at least 10 feet (3 m)
away from the fueling area before starting.
Place the saw on clear ground. Ensure that secure footing is
established and diamond chain is not contacting any objects.
IMPORTANT
WARNING
WARM ENGINE STARTING PROCEDURE
1. Use the same procedure as starting a cold engine, but DO NOT pull choke lever out. If choke is used,
the carburetor will flood with gas.
2. If the engine does not start in 3 hard, fast pulls with the throttle locked, unlock the throttle to open fully,
and pull the starter cord 3 more times.
Note: To hold the trigger fully open it may be necessary to insert right foot into rear handle opening
and twist.
A: Trigger
B: Trigger interlock
C: Throttle lock button
CB
A

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
14
OPER ATION
PRE-CUT CHECKLIST
• Proper Diamond Chain Tension: The diamond chain should be tight but easily pulled around
the guidebar by hand.
• Ensure all safety devices are properly mounted and functional and that all controls are in
proper working order.
• Be sure there are no obstructions (plumbing, electrical conduit, air ducts) and no unnecessary
people present.
• Always wear protective clothing, including hard hat, eye protection, hearing protection, non-slip
safety boots, and gloves. Avoid wearing loose fitting clothing.
• Diamond chains with SealPro® require a minimum water pressure of 20 psi (1.5 bar).
PLANNING THE CUT
• Outline the cut with a permanent marker for a visual cutting guide.
• Avoid pinching the guidebar and diamond chain. Always cut the bottom of an opening first,
then top, and then the sides. Save the easiest cut for last.
• For the straightest cuts use the “Step Cut” method. First score the entire cut line approximately
a half-inch deep using the nose of the guidebar. Next, deepen the cut by about two inches. Then
plunge all the way through and complete the cut using the WallWalker®.
• Be sure cut concrete cannot fall and injure operator or bystanders. Concrete is very heavy,
one cubic foot = 12 in x 12 in x 12 in = 150 lbs. (30 cm x 30 cm x 30 cm = 68 kg).
• Check for and remove any obstructions (plumbing, electrical conduit, air ducts, etc,) that may
interfere with the cut.
The single most important factor an operator can control to
increase chain life is to use adequate water pressure. Insufficient
water supply will result in excessive wear to the chain, which can
lead to loss of strength and chain breakage, and/or damage to the
guidebar nose sprocket.
IMPORTANT

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
15
OPER ATION
CUTTING WITH THE 680GC CONCRETE CHAIN SAW
To start a cut, hold trigger on full throttle and slowly plunge the nose of the guidebar straight into the
wall. Lengthen the cut and engage the point of the WallWalker®. Use the WallWalker® as a pivot point
and pull up on the rear handle to rotate the guidebar into the cut.
CUTTING TIPS
• Always operate the concrete chain saw at full throttle. Apply enough feed force so that the free
running RPM drops 20 to 30%. If too much force is applied, the saw will lug or stall. The diamond
chain will not have enough speed to cut effectively. If too little feed force is applied, the diamonds
will skid and glaze over.
• For straighter cuts use the “Step Cut” method. First score the entire cut line with the nose of the
guidebar approximately 1/2 in (12 mm) to 1 in (25 mm) deep. Next, deepen the cut by about 2
in (50 mm). This groove will help guide the guidebar for a straight cut. Then plunge all the way
through and complete the cut using the WallWalker®.
• Plunge cut instead of starting at the top surface of the wall. This will reduce chatter, extend
diamond life, create a straighter cut and more quickly enable the use of the WallWalker®.
• Use the WallWalker® to help cut more efficiently
and reduce operator fatigue. The WallWalker® is
a fulcrum that can be used to apply additional force
when cutting. To use correctly, plunge into the wall
and simply engage the point of the WallWalker®
into the cut and pry upward with the rear handle.
• As the saw begins to rotate up, feed force is
developed down the line of the intended cut.
Once the saw is fully rotated upwards, pull the saw
out of the cut a few inches and re-engage the pick
into the cut and repeat.
• When cutting heavy rebar, slowly "rock” the saw so that you’re always cutting concrete as well
as steel. This will help keep the diamonds exposed. Also, expect less diamond chain life when
cutting heavy rebar.
• Expect more diamond chain stretch when making nose buried cuts for extended periods of time,
as the diamond chain does not have a chance to “throw” the slurry away from the nose of the
guidebar.
• If the saw begins to cut consistently crooked, turn the guidebar over and use the other side.
Dress worn rails with belt sander. Note: The normal life of a guidebar is 2 to 3 diamond chains.
Heavy rebar can shorten guidebar life.
• When using a new diamond chain, you can increase the initial cutting speed by “opening up the
diamonds”. Make a few cuts in an abrasive material such as a cinder block.
WallWalker®point

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
16
OPER ATION
SYSTEM CLEAN-UP
• After cutting, run the saw for at least 15 seconds with the water on to flush slurry and debris from
diamond chain, guidebar and drive sprocket.
• Wash concrete slurry from concrete chain saw body.
• Avoid getting any water in the carburetor or exhaust system. If water enters exhaust port, point
the guidebar tip down and pull the starter handle several times to expel water from muffler.
• Remove guidebar and diamond chain. Flush out the chain tensioner with high water pressure and
lubricate with grease.
• After cleaning the saw, spray the entire saw body, diamond chain, guidebar, and drive sprocket
with lightweight oil. Using lightweight oil on the saw will minimize rust and help reduce slurry build
up.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
17
MAINTENANCE
Follow these simple maintenance guidelines
and your saw will continue running at its very best.
AFTER EACH USE
1. Rinse the saw, guidebar and diamond chain with water.
2. Follow instructions on the Daily Maintenance Label, located on the air filter cover.
3. Inspect and tighten all fasteners as necessary.
4. Inspect drive sprocket for tooth wear and replace if tooth tips are pointed.
5. Inspect the starter cord. Replace if frayed.
6. Clean air filter. Inspect the air filter for holes. Replace as necessary.
7. Spray saw, guidebar, and chain with lightweight oil.
8. Grease the chain tensioner.
AFTER 10 HOURS OF USE
1. Remove the starter cover and lubricate the starter recoil spring. Clean the flywheel fins
and the starter pawls with a wire brush, then grease the starter pawls.
2. Remove the spark plug and clean with a wire brush. Check the electrode gap.
The correct gap is 0.020 in (0.5mm).
AFTER 40 HOURS OF USE
1. Change the spark plug. Adjust the electrode to 0.020 in (0.5 mm).
2. Check the fuel filter located inside the fuel tank. Clean or replace if clogged.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
18
MAINTENANCE

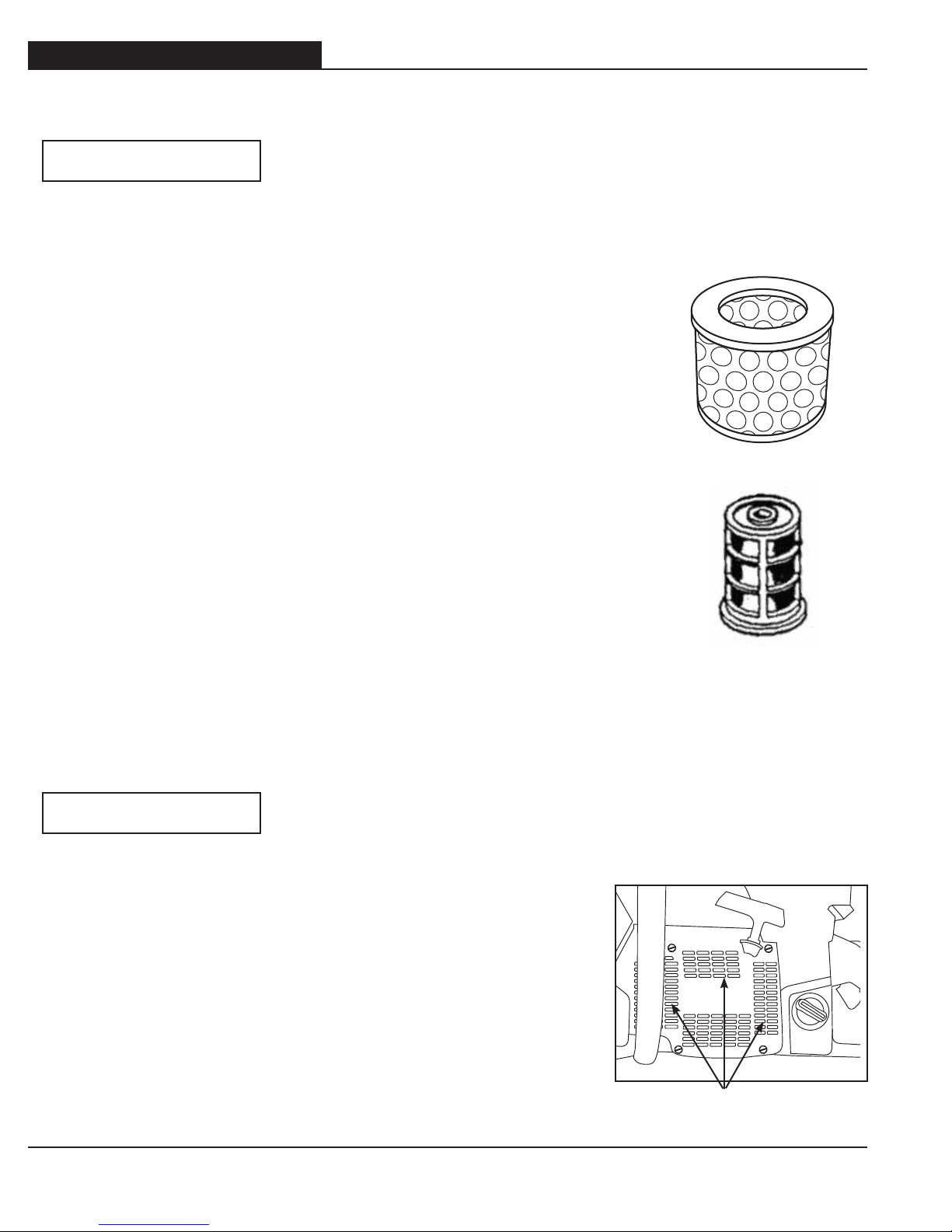

AIR FILTER
IMPORTANT
STARTER HOUSING ASSEMBLY
It is common for concrete slurry to get inside the starter housing
assembly during cutting. This can cause the starter pawls to stick
and not engage when the rope is pulled.
IMPORTANT
• After each usage, thoroughly flush the starter housing
assembly with water.
• Lubricate the starter pawls by spraying light weight oil into the
starter housing through the vents.
• Check the starter cord for fraying, replace if necessary.
The air filter is made from water resistant polyester and includes
internal spit-back screen. Both must be kept clean for the engine
to operate properly. If the saw is not reaching full RPM, most
likely one or both of the air filters are dirty.
• The air filter should be free of holes and white in color.
• Replace air filter when dirty.
• The spit-back screen should be free of holes and be
white in color. Clean with mild solvent or gasoline and dry
with high pressure air. If spit-back screen is dirty the saw
will not reach full RPM.
• During re-assembly, tighten air filter wing-nut "finger tight"
plus an 1/8 in of a turn with wrench.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE680GC OPERATOR’S MANUAL
19
MAINTENANCE
TENSIONING THE RECOIL SPRING
• Lift the starter cord up into the notch on the starter
pulley and wind the pulley clockwise 5 full turns.
Remove the cord from the pulley notch while pinching
the pulley. Release the pulley slowly allowing it to wind
the rope counterclockwise onto the pulley.
• When completed, the starter handle should be pulled
back in the starter housing under it’s own tension.
• To check that the starter pulley was assembled correctly,
pull the cord completely out of the housing, grip the
pulley and turn clockwise another 1/2 turn. If the pulley
turns another 1/2 turn it is correctly assembled.
STARTER HOUSING ASSEMBLY
• To reattach the starter housing, first pull the starter cord out,
then hold the starter housing against the crankcase. Slowly
release the starter cord to enable the pulley to fit between the
pawls.
• Insert and tighten the screws. Use blue Loctite® #242.
STARTER CORD REPLACEMENT
• Remove the 4 screws that attach the starter assembly to the
crankcase.
• Pull the cord out approximately 8 in and lift the cord
up into the notch in the pulley. Relax the recoil spring
by placing thumb on pulley and gently allow the pulley
to unwind entirely. Undo the screw in the center of the
pulley and remove the pulley.
• Thread the new cord through the starter cover and
fasten it to the pulley. Wind 4 turns of the starter cord
on to the pulley. Assemble the starter pulley against
the recoil spring so the end of the spring engages into
the backside of the pulley. Install the retaining screw
in the center of the pulley.

© 2012 ICS, Blount International Inc. Specications are subject to change without notice. REV020212 F/N 545353
TITLE 680GC OPERATOR’S MANUAL
20
MAINTENANCE
DRIVE SPROCKET
The drive sprocket (rim sprocket) is a wear item and should be
replaced every 2-3 diamond chains.
IMPORTANT
The needle bearing inside the splined adapter should be greased
regularly and should be replaced with each new clutch cup.
IMPORTANT
A rim sprocket system consists of a clutch cup
w/ splined adapter and a rim sprocket. When the rim sprocket
wears out, it is the only part that needs to be replaced. The clutch
cup with splined adapter is a wear item that needs replacement
after 3 to 5 rim sprockets have been used.
• Inspect the rim sprocket for wear. Replace the rim sprocket if
the drive teeth become pointed.
• Check the drive sprocket bearing by spinning clutch cup.
Replace the bearing if it is worn out.
• The needle bearing on the drive shaft must be greased
regularly, use high quality water-resistant bearing grease.
Clutch
Cup
Splined
Adapter
Rim
Sprocket
CHAIN TENSIONER
The chain tensioner can become clogged with concrete
slurry during cutting. After each use thoroughly flush the chain
tensioner with water and apply a liberal amount of grease.
IMPORTANT
Most Common Causes of Tensioner Damage:
• Side cover nuts are not tight enough. Side cover nuts
should be torqued to 20 ft-lbs (27Nm).
• Chain tensioning is attempted without loosening
the side cover nuts.
• Concrete debris in tensioner pocket.
Chain
Tensioner
Other manuals for 680GC
3
Table of contents
Other ICS Chainsaw manuals
