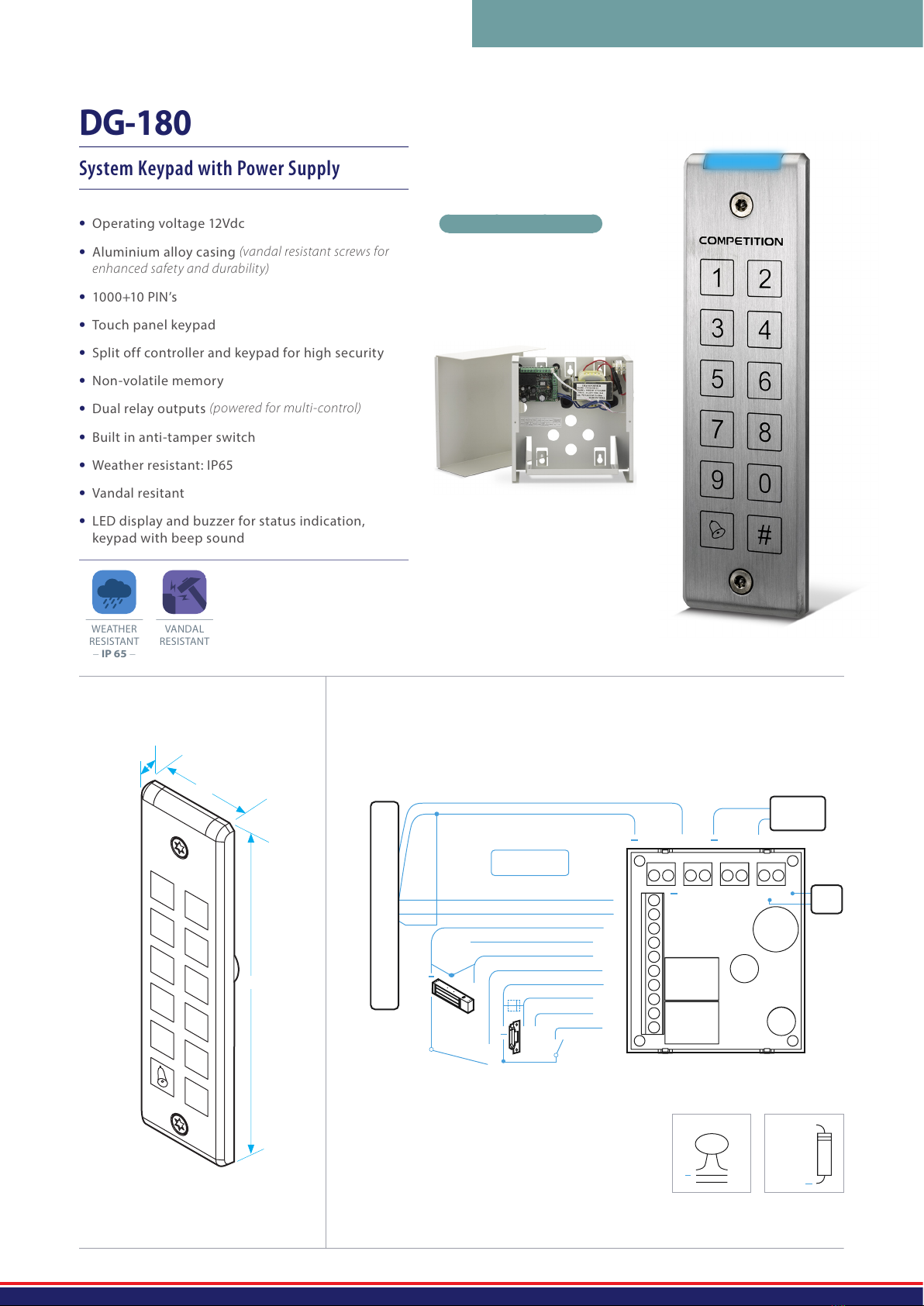

ICS DG-180 User manual

ACCESS CONTROL
2
34
56
78
90
1
#
150
6.7
44
C1
C2
GND
LOCK1
12VDC1
REX1
GND
LOCK2
12VDC2
REX2
White
Green
Ground 1
N.O.1
N.C.1
P.B.1
Ground 2
N.O.2
N.C.2
P.B.2
Red
Black
Brown
BatteryDC OUT
Electric Lock 2
Fail-Secure
(MUST install a Diode)
Electric Lock 1
Fail-Safe
(MUST install
a Varistor)
Black + Brown = Reed
Door Closed = N.O.
Door Open = N.C.
Varistor
Diode
Exit Button 2
Exit Button 1
+
+ +
12VDC IN 16VAC IN
+
+
▲
Rechargeable
Battery
Power
Supply
Stand Alone Reader
For AC/DC
+
~
~
For DC
use only
+
Power Supply DG180
• Power input 220Vac
• Power output 12Vdc 2Amp
• Battery charging circuit
• Built-in timer circuit
DG-180
System Keypad with Power Supply
• Operating voltage 12Vdc
• Aluminium alloy casing (vandal resistant screws for
enhanced safety and durability)
• 1000+10 PIN’s
• Touch panel keypad
• Split off controller and keypad for high security
• Non-volatile memory
• Dual relay outputs (powered for multi-control)
• Built in anti-tamper switch
• Weather resistant: IP65
• Vandal resitant
• LED display and buzzer for status indication,
keypad with beep sound
VANDAL
RESISTANT
WEATHER
RESISTANT
− IP 65 −
Setting the Standard in Access Control 55

DG-180
Digital Keypad Operation Manual
Features:
1. Adjustable length of Master Code from 4 to 6 digits.
2. Allow up to 1000+10 PINs
3. Split-off controller and keypad for high security.
4. Lockout function enables the controller to lockout for 60 seconds upon entering
invalid PINs for 5 times. (The keypad without beep sound during the period).
5. Controller with keypad sound to avoid incorrect key-in.
6. Additional input for anti-tailgating function to ensure high security access control.
7. Built-in tamper switch.
8. Non-volatile memory allows to retain all setting codes in the event of total power
failure.
9. Dual relays to control door lock and other security devices.
10. Aluminum alloy casing with vandal resistant screws for enhanced safety and
durability.
11. Epoxy sealed for waterproof
12. Extremely slim body and narrow faceplate suitable for all types of door frames
44
150
6.7
63
72.50
6
Operating Voltage 12~24 VAC/VDC
Current Draw Pull in: 50mA/12VDC
； Holding: 20mA/12VDC
Keypad
6X2 matrix keypad (0~9, ,＃)
Input
2 contacts for Request-To-Exit
1 contact for Door Reed Switch
Output 2 relays (N.O. / N.C. / Com.)
LED status Indication 2 LED indicators display（Blue/Green/Yellow/Red
）
Memory Volume 1000+10 PINs
Relay Rating
Relay Strike Time
N.O 10A/120V~10A/120VAC, N.C 7A/250V~10A/28VDC
01~99 seconds
Ambient Humidity 5%~95% (Non-condensing)
Operating Temperature -20°C~70°C
Mode Signal Status
Blue Stay On Power on, Standby
Green Stay On First relay active
Standby
Red Stay On Second relay active
Yellow Stay On Enter programming mode
Green Stay On
Red Stay On
The slot position of first relay is available.
The slot position of first relay is unavailable.
LED
Programming
Green Stay On
Red Stay On
The slot position of second relay is available.
The slot position of second relay is unavailable.
1 Beep Press any key , enter programming mode
Standby
2 Beeps Incorrect PIN
1 Beep Correct Input data, Exit programming mode
Beep
Programming
3 Beeps Incorrect Input data, other incorrect operation, duplicated PIN

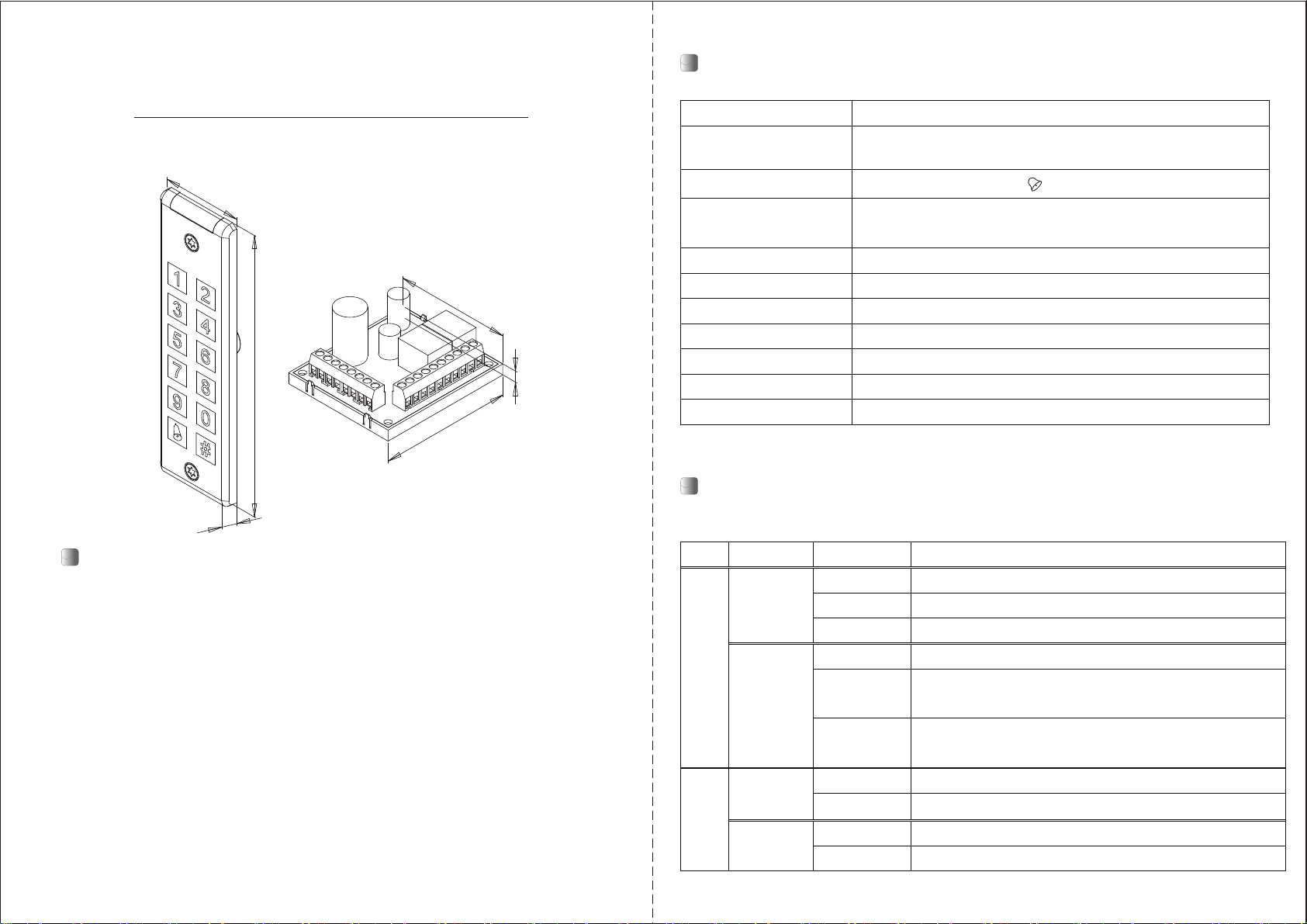

Specification
Status Indication & Default Setting Parameters
Beep & LED Indication:
Pull in: 80mA/24VDC ； Holding: 20mA/24VDC
Unit:mm

Note:
1. It is suggested to use a linear power supply unit to prevent power rating reduction
from the keypad.
2. It is suggested to use #22~26 AWG insulation wire.
3. Exit button is at N.O. contact.
4. With CE qualification EMC specification.
5. The door strike or relay must have a varistor or a diode across the door strike
terminals to suppress the back EMF of the strike – failure to do so will damage the
relay contacts and electronic components, or even burn the controller.
1. Master Code
The mas ter code comprises a four-digit number and is used to access programming
functions of the digital keypad and cannot be used for access request i.e. it cannot
be the same as other PINs. The default master code is 1234. Under normal operation
entering PIN will gain access. In the programming mode the keypad can be used to
add/delete PINs, set relay strike time and other operation functions.
2. Entering programming mode
Enter the master code twice 1234 1234 to enter programming mode (1 beep Yellow
LED stay on).
3. Setting the Relay Strike Time
The relay strike time determines the amount of time that the door remains unlocked
after a valid PIN is entered.
(Enter 05=5 seconds )
1.Enter programming mode
2.Press 1 for Relay 1 (Yellow LED flash)
Press 5 for Relay 2 (Yellow LED flash )
3.Press 00~99 (1 beep, Yellow LED stay on)
4.Press # (1 beep) back to standby mode (Blue LED stay on)
4. Clearing Memory of All PINs
1.Enter programming mode
2.Press 8 (Yellow LED flash)
3.Press 88 (Yellow LED stay on, 7 beeps)
4.Press # (1 beep) back to standby mode (Blue LED stay on)
5. Resetting Controller Parameter to Factory Default Value
1.Enter programming mode
2.Enter 8 (Yellow LED flash)
C1 C2
GND
LOCK1
12VDC1
REX1
GND
LOCK2
12VDC2
REX2
16VAC IN
Varistor
DC OUT
12VDC IN
Battery
Rechargeable
Battery
Power
Supply
Black
Red
Green
Brown
White
(MUST install a Varistor) Electric Lock 1 Fail-Safe Mode
(MUST install a Diode) Electric Lock 2 Fail-Secure Mode
Exit Button 1
Exit Button 2
Diode
N.C.1
N.O.1 N.O.2
Ground 1 Ground 2
P.B.1 P.B.2
N.C.2
Door Closed=N.O.
Door Open=N.C.
Black+Brown=Reed

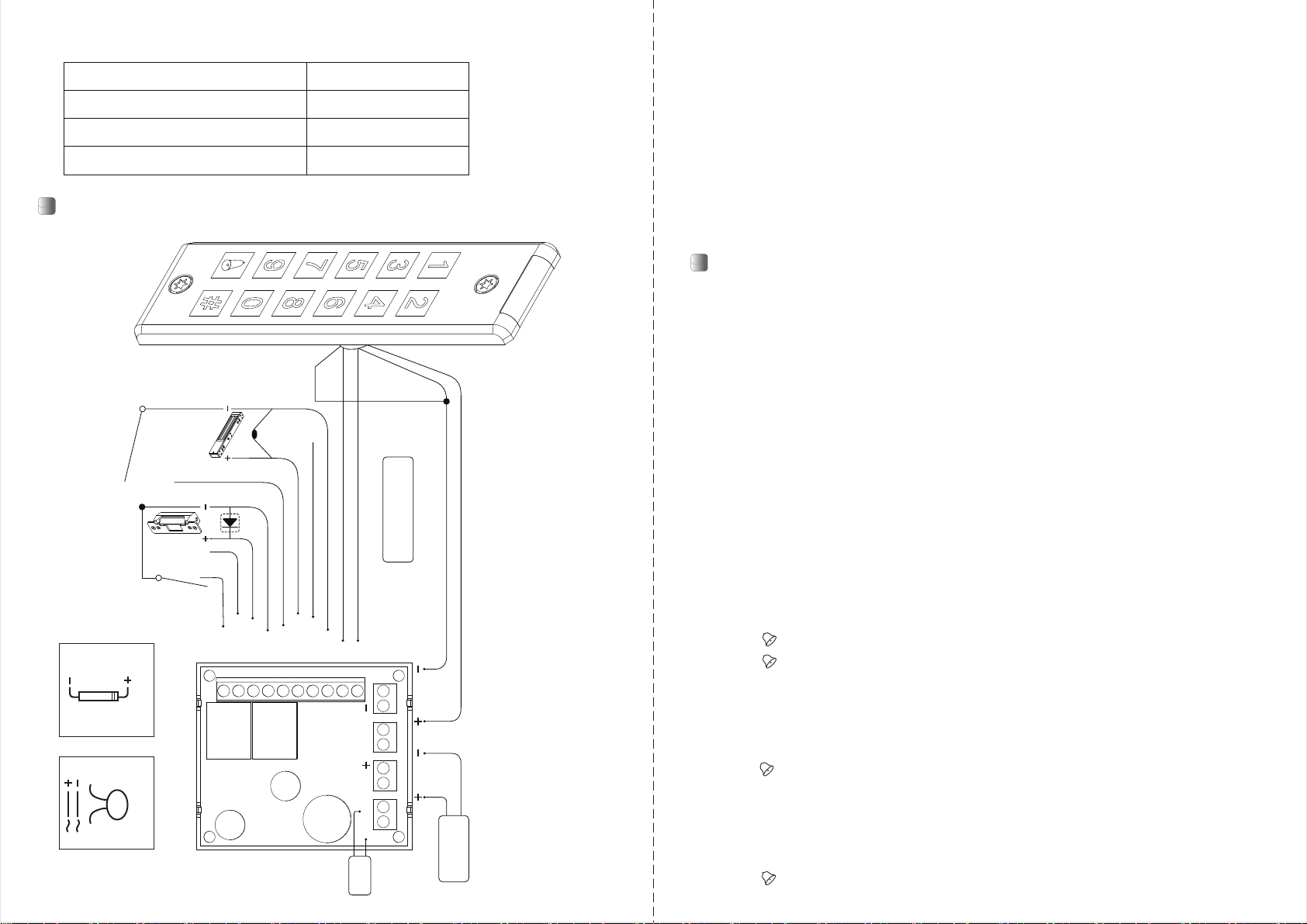

Wiring Diagram
Operation Instruction
Factory Default Setting:
Master Code 1234（4-digit）
Relay Strike Time 1 second
Pressed Key Time Delay 5 seconds (Fixed)
Programming Mode Time Delay 30 seconds (Fixed)
For DC use only For AC/DC
Diode Varistor

Warranty:
The product is warranted against defects in material and workmanship while used in
normal service for a period of 1 year from the date of sale to the original customer.
The GEM policy is one of continual development and improvement; therefore GEM
reserves the right to change specifications without notice.
3.Enter 99 (Yellow LED stay on, 1 beep, Green LED flash) back to standby mode
(Blue LED stay on)
6. Adding PIN to Relay 1
a. 1.Enter programming mode to select slot position 000~999 (Green LED stay on
indicate the slot position is available)
2.Press 4-digit PIN (1 beep, Yellow LED stay on).
3.Press # (1 beep) back to standby mode (Blue LED stay on)
NOTE: Master code must NOT be the same as PINs.
b. 1.Enter programming mode to select slot position 000~999 (Red LED stay on
indicate the slot position is unavailable)
2.Press (1 beep) to delete the data from the slot position (Green LED stay on)
3.Press # (Yellow LED stay on) back to programming mode. Repeat the steps of
6-a to add PIN.
7. Adding PIN to Relay 2
a. 1.Enter programming mode
2.Press 4 (Yellow LED flash) to select slot position 00~09 (Green LED stay on
indicate the slot position is available)
3.Press 4-digit PIN (1 beep, Right Yellow LED flash)
4.Press # (1 Beep) back to programming mode (Yellow LED stay on)
5.Press # (1 Beep) back to standby mode (Blue LED stay on)
b. 1.Enter programming mode
2.Press 4 (Yellow LED flash) to select slot position 00~09 (Red LED stay on
indicate the slot position is unavailable)
3.Press to delete the data from the slot position (1 beep, Green LED stay on)
4.Press # back to programming mode (Yellow LED on). Repeat the steps of 7-a to
add PIN.
8. Changing Master Code
1.Enter programming mode
2.Press 3 (Yellow LED flash)
3.Enter 4-digit master code twice e.g. 4567 4567 (1 beep, Yellow LED stay on)
4.Press # (1 beep) back to standby mode (Blue LED stay on)
9. Turning Anti-Tamper Alarm Function ON/OFF
1.Enter programming mode
2.Press 6 (Yellow LED flash)
3.Press 01 (1 beep, Yellow LED stay on) – function OFF
Press 02 (1 beep, Yellow LED stay on) – function ON
4.Press # (1 beep) back to standby mode (Blue LED stay on)
11. Resetting the Master Code to Default Value
Turn off the power. Press # continuously, and energize (1 beep), the master code
Copyright © All Rights Reserved. P-MU-DG-180 Ver. D Publish: 2011.03.18
Annex: User List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
User User Name Slot Number PIN#
press 5 for the length of 5-digit master code; press 6 for the length of 6-digit
master code. (7 beeps, Yellow LED stay on).
※After the length is changed, all PINs are cleared as well.
3. Press 4,5 or 6, e.g. press 4 for the length of 4-digit master code;
10. Changeing the length of the master code
1. Enter programming mode
2. Press (Yellow LED flash), press 04
4 Press # (1 beep) back to standby mode (Blue LED stay on)
is reset to default value.
(If the default value is 4 digits, master code is 1234; if 5 digits, 12345; if 6 digits,
123456.)
