ICS Single User manual
SINGLE
WALL MOUNT SYSTEM
CONTROL KEYPAD
Q U I C K I N S T A L L G U I D E
The IntelliControl ICS Single Keypad is a single-
gang, wall-mounted keypad user interface. Eight
backlit Master Keys provide Niles’ exclusive
“One Touch to Music”, which turns the system on,
selects a source and starts the music. Additional
backlit Hard Keys provide simple system and
source control.
Table of Contents
Product Overview
--------------------------------- 2
Getting Started
------------------------------------- 5
Installation
----------------------------------------- 8
Operating the Single
----------------------------15
Troubleshooting
-----------------------------------17
Specifications
--------------------------------------20
Contact Information
------------------------------ 21
Warranty
-------------------------------------------22
2
PRODUCT OVERVIEW
Master Keys
8 backlit buttons provide
“One Touch to Music”
PREV/NEXT
2 backlit buttons
move to Next or
Previous / Track
or Channel
OFF
Backlit button turns zone
or system off
–VOL/VOL+
2 backlit buttons
adjust volume
UP/DOWN
MUTE
Backlit button mutes/
un-mutes audio output
to zone
Figure 1: IntelliControl ICS Single Keypad – front view.
www.nilesaudio.com
3
FEATURES AND BENEFITS
Eight Customizable, Backlit Master
Keys Provide “One Touch To Music”
Each of the 8 backlit Master Keys can be custom-
ized to identify the specific source or music genre
that will be selected when that button is pressed.
The Master Keys turn the zone on, select a source
and play your favorite channel or music selection.
Six Backlit Hard Keys
Provide convenient access to frequently used system
controls. Volume up/down, previous/next (track/
station) mute and off keys provide simple system
and source control.
Convenient Backlighting for All Keys
Automatically illuminate when any button is pressed.
Party Mode
Party Mode turns on all your enabled “Party
Zones,” with the push of a button, from any-
where in your home. Press and hold a Master
Key for two seconds to turn on zones enabled
for “Party Mode.”
Source/Zone On Indicator
Selected Source Master Key illuminates to indi-
cate source selected and Zone On status.
Mute On Indicator
Mute button illuminates red to indicate mute on.
Red illumination turns off when un-muted.
4
FEATURES AND BENEFITS
(CONT’D)
Global Off
Press and hold the OFF key to turn off all zones
from anywhere in the house.
Connects to IntelliControl ICS Modular
MultiZone Receiver via CAT-5
The IntelliControl ICS Single Keypad connects
to the IntelliControl ICS Modular MultiZone
Receiver via a CAT-5 data cable terminated with
RJ-45 connectors.
External IR Sensor Input (RJ-45)
RJ-45 jack allows connection of an external IR
sensor to the keypad for use of an IR remote in a
zone or sub-zone
Fits Standard 1-Gang Box
Installs in standard 1-Gang low voltage box.
Color Inserts
White, almond, bone and black Decora snap-in
color inserts are included.
www.nilesaudio.com
5
System
Connects to IntelliControl
ICS Modular MultiZone
Receiver Communication
and Control Switch
(RJ45 jack)
IR Sensor
Connects to plug-in
connector on an IR
sensor (RJ45 jack)
Figure 2: IntelliControl ICS Single Keypad – rear view.
GETTING STARTED
Unpacking the Box (Contents)
■ 1, Single Keypad
■ 10, Master Key Caps
■ 1, Master Key Label Sheet
■ 1, User Guide
■ 1, Quick Install Guide
6
MAC ID Sticker
GETTING STARTED (CONT’D)
Locating the MAC ID
The Media Access Control Address (MAC ID), tells
the IntelliControl ICS Modular MultiZone Receiver
which device, in this case an ICS Single Keypad,
is sending commands. The IntelliControl ICS Mod-
ular MultiZone Receiver then knows which zone to
turn on and which source to select for that zone
based on the MAC ID it is assigned to.
Figure 3: MAC ID sticker location – Single Keypad – side view..
www.nilesaudio.com
7
GETTING STARTED (CONT’D)
Filling Out the GXR2 Installation
Worksheet
The GXR2 Installation Worksheet, included with
the IntelliControl ICS Modular MultiZone Receiver
(and available for download at www.nilesaudio.
com), provides spaces for placing the MAC ID
stickers next to the name of the zone they are
located in. Take special care in associating the
correct MAC ID sticker with the right zone on the
worksheet. Two MAC ID stickers are found on the
keypad. Remove one of the stickers and place it
next to the zone it is located in on the worksheet.
DO NOT REMOVE BOTH STICKERS FROM THE
KEYPAD. It may become necessary to reference
the keypad sticker for troubleshooting if the sys-
tem is not performing properly and be able to
make changes in the IntelliFile 3 software.

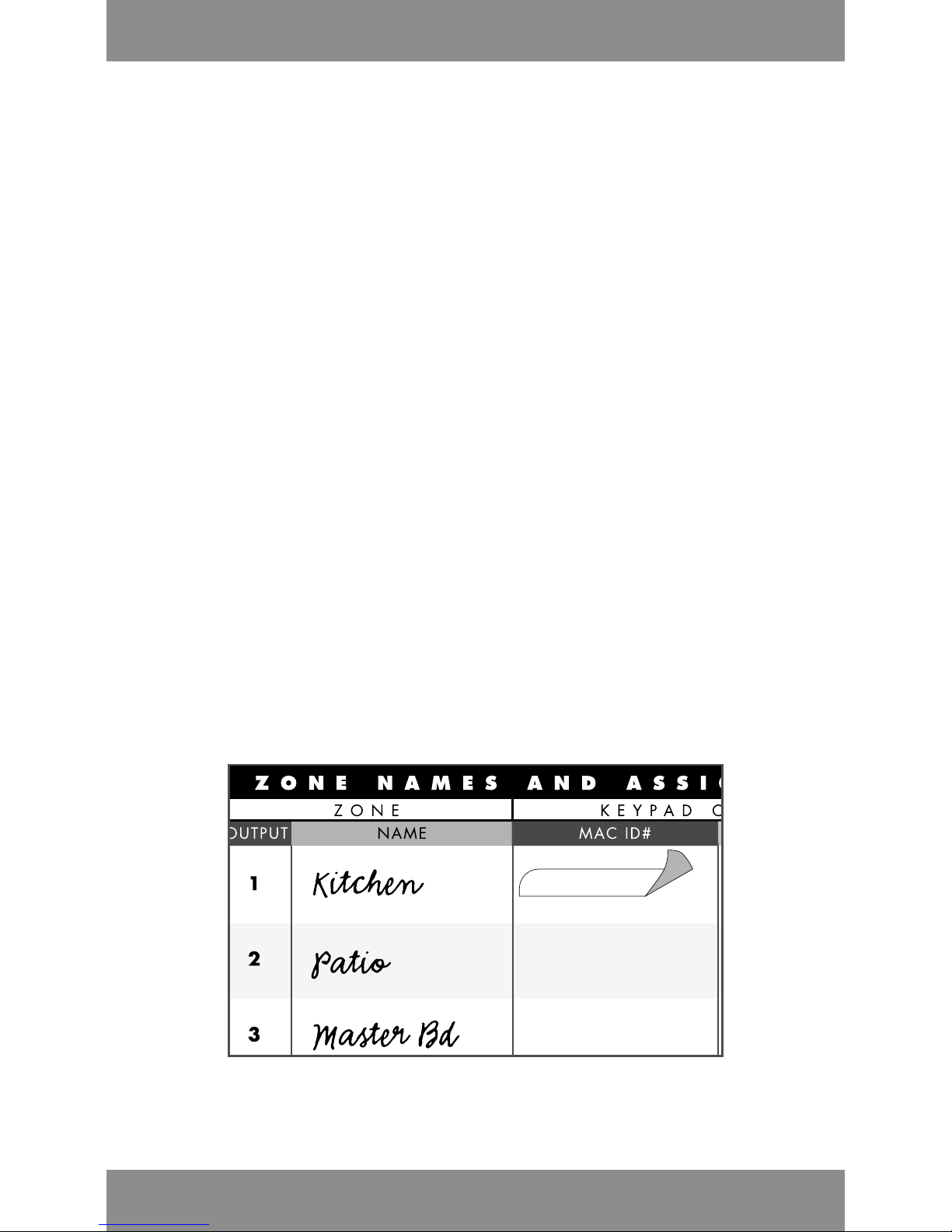

Figure 4: Affixing Mac ID sticker to GXR2 Installation Worksheet.
8
INSTALLATION

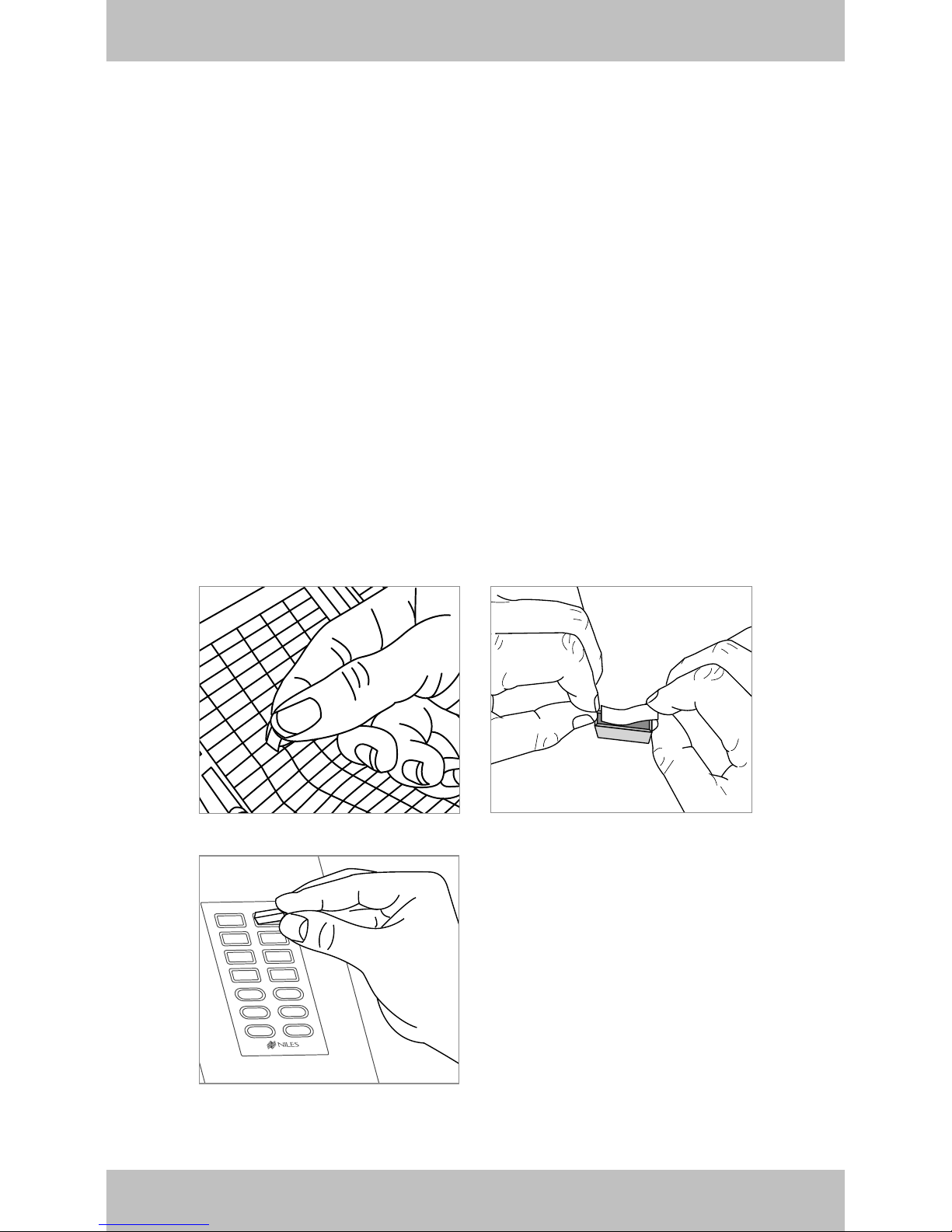

Installing the Master Key Labels
To install the Master Key labels (Figure 5):
1. Carefully remove the Master Key keycaps
(keycaps DO NOT come installed for the
Single Keypad).
2. Place labels from the included label sheet in-
side the keycap.
3. Place the caps in the appropriate key loca-
tions (refer to the GXR2 Installation Work-
sheet to assure proper position).
Step 1: Label Sheet Removal. Step 2: Insert label in keycap.
Step 3: Keycap replacement.
Figure 5.
www.nilesaudio.com
9
INSTALLATION (CONT’D)
Basic Installation Diagram
Figure 6
10
INSTALLATION (CONT’D)
Wiring Termination Diagram
The IntelliControl ICS Keypads connect to an In-
telliControl ICS Modular MultiZone Receiver via
CAT-5 cable. For the system to function properly,
all runs of CAT-5 must be pulled, in home-runs,
from each keypad location to the system head end
where the MultiZone Receiver and other system
components will be located.
The runs of CAT-5 must be terminated with RJ-45
connectors using the T-568A pinout configuration
as follows:
Pin# Descrip. Color Code
1 TX+ White/Green
2 TX– Green
3 RX+ White/Orange
4 IR Signal Blue
5 IR Ground White/Blue
6 RX– Orange
7 UI Power White/Brown
8 UI Ground Brown
Note: TX+ = transmit, RX+ = receive, UI = user interface.
Figure 7: IntelliControl ICS RJ-45 pinout checklist.
www.nilesaudio.com
11
INSTALLATION (CONT’D)
Adding an IR Sensor
To add an IR sensor to a keypad, use the wiring
diagrams and connector detail that follow to
adapt an RJ-45 connector from a keypad to the
plug-in wire terminals on the IR sensor.
Figure 8: IR Sensor to Single Keypad pinout. See table below.
Pin # Color Code Connector
1 White/Green 12V
2 Green Data
3 White/Orange Ground
4 Blue Empty
5 White/Blue Status
6 Orange Empty
7 White/Brown Empty
8 Brown Empty
RJ-45
12
Figure 9: IR Sensor to IntelliControl ICS Single Keypad
connections.
INSTALLATION (CONT’D)
Adding an IR Sensor (cont’d)
Using a properly configured CAT-5 cable, con-
nect the IR Sensor terminal on the keypad to the
plug-in terminal on the IR Sensor as shown.
CAUTION: These connections are different than
those used from the keypads to the IntelliControl
ICS Modular MultiZone Receiver. Be sure to check
wire configuration and connections before power-
ing up the system.
Four Pair
Twisted Cable
IR Sensor
Terminal
SINGLE IR Sensor
www.nilesaudio.com
13
Figure 10: Connecting the Single Keypad to IntelliControl ICS
Modular Multizone Receiver.
INSTALLATION (CONT’D)
Keypad Connections
After all system components have been properly
installed, use a properly configured CAT-5 cable
and connect the System terminal on the keypad to
any of the RJ-45 Communication And Control Hub
ports on the IntelliControl ICS Modular MultiZone
Receiver as shown.
GXR2
CAT-5 Cable
System
Terminal
SINGLESINGLE
14
iPODXM
SIRIUSAM/FM
ROCKJAZZ
CLASSICL
BLUES
PREVNEXT
OFFMUTE
VOL +
VOL –
INSTALLATION (CONT’D)
Using a New Construction Bracket
(See Figure 11.)
1. Connect a properly configured CAT-5 cable to
the system terminal on the back of the keypad.
2. Install keypad to low voltage electrical box as
shown using included hardware.
3. Finish with appropriate color faceplate.
WARNING: Do not mount the keypad, or IR sen-
sor if used, in the same electrical box as 110V
AC devices. This is a violation of electrical code
in some areas.
Figure 11: Keypad installation.
1 Gang
Low
Voltage
Box
Faceplate
SINGLE
Decora style
insert
www.nilesaudio.com
OPERATING THE SINGLE
TURNING ON THE SYSTEM/SELECT A SOURCE
Press any Master Key to
turn on the local zone.(i.e.,
).
CHANGING TRACKS
Press the PREV Key
for previous track/station.
Press the NEXT Key
for next track/station.
Press and hold any of
the eight Master Keys
for 2 seconds. All zones
enabled for Party Mode
turn on to the same source
(i.e., ).
PARTY MODE
15
16
OPERATING THE SINGLE (CONT’D)
MUTING
Press the MUTE Key
to mute/un-mute zone
speakers.
TURNING THE ZONE OFF
Press the OFF Key
to turn the local zone off
TURN THE SYSTEMS OFF
Press and hold OFF
Key for 2 seconds to turn
all zones off
ADJUSTING VOLUME
Press the VOL– Key
to lower volume.
Press the VOL+ Key
to raise volume.
www.nilesaudio.com
17
TROUBLESHOOTING
PROBLEM SOLUTION
CONTROL
Keypad does not control
IntelliControl ICS Modular
MultiZone Receiver or
sources
a) Confirm Keypad con-
nections to IntelliControl
ICS Modular MultiZone
Receiver.
b) Confirm configuration
of CAT-5 (pinout) cables
and RJ-45 connectors.
c) Verify MAC ID number
for this Keypad is
properly configured in
IntelliFile 3.
d) Confirm Modules are in
proper card slots in Intel-
liControl ICS Modular
MultiZone Receiver card
cage (Check GXR2
Installation Worksheet).
e) Check Module connec-
tion to header in card
cage.
f) Verify IR commands in
IntelliFile 3 for Legacy
Sources, if used.
g) Confirm IR Flasher is
plugged into the IR OUT
jack on IM-AUDIO.
18
No Audio
No Audio in Expansion
Zones
a) Check connection of L&R
Audio OUT from Legacy
source to L&R IN on IM-
AUDIO, if used.
b) Check speaker connec-
tions.
a) Check connection of
L&R Cascade Audio
OUT on Master Chassis
to L&R Audio IN on the
IM-AUDIO Module on
the Slave Chassis.
PROBLEM SOLUTION
AUDIO
Keypad does not control
IntelliControl ICS Modular
MultiZone Receiver or
sources
h) Confirm that placement
of IR Flasher is over the
IR eye of the component
being controlled.
TROUBLESHOOTING (CONT’D)
PROBLEM SOLUTION
CONTROL
