SBE®& SBO®Connectors

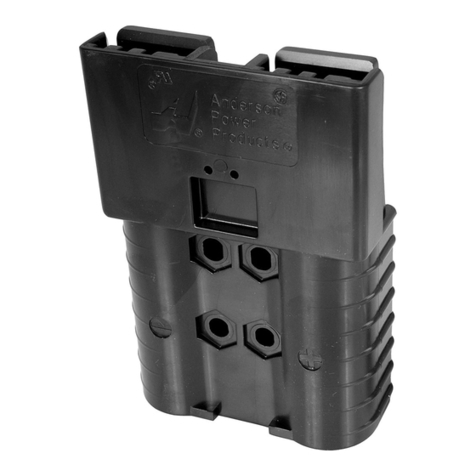

Assembly instruction for SBE®80 & SBO®60 Series
two pole battery connectors with option for auxiliary contacts.
FOR INSTALLATION BY A QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH NA-
TIONAL AND LOCAL ELECTRICAL CODES AND
THE FOLLOWING INSTRUCTIONS. THE SUIT-
ABILITY OF THIS TYPE OF TERMINATION MUST
BE EVALUATED BY UNDERWRITERS’ LABORA-
TORIES, INC. AND CANADIAN STANDARDS. AS-
SOCIATION FOR THE END USE APPLICATION:
Assemble contacts to the cables according to the
equipment manufacturer’s assembly instructions.
The following instructions are supplied as a refer-
ence. Please note: instructions are included with each
crimp tool for proper use.
Contains one (1) housing and two (2) contacts.
1. CONNECTOR RATINGS
2. TOOLING CHART
3. REDUCING BUSHING
4. CABLE STRIPPING DIMENSIONS FOR PRIMARY POWER CONTACTS
Max Cable Size
Series Amperes Volts AWG mm²
SBE80 80 150 #6 16
SBO60 60 600 #6 16
Bushing Wire Size For Use With
Part Number AWG (mm²) Contact Part Number
5910 #10-12 (5.3 - 3.3) 1339G1
5912 #8 (8.4) 1399G1
Connector Strip “X” To
Series Inches mm
SBE80 / SBO60 0.56 14
X
Contact Wire Pneumatic Hand
Part Number”Size Bench Tool + Die + Locator or Tool
1399G1 16 mm 1387G1 1388G6 1389G9 1309G4
5. RECOMMENDED SOLDERING TECHNIQUES
(Use rosin ux solder only). Wrap cable strands, melt solder into well; heat and insert stripped
cable. Continue heating well until solder ows into wire being careful not to over ow onto
contact surfaces. DO NOT SOLDER DIP CONTACTS when contacts are soldered to
unsupported lead. Underwriters’ Laboratories, Inc. requires use of cable clamps, listed in table below.
6. CABLE / CONTACT & HOUSING ASSEMBLY
Observing polarity of markings, push each contact into rear of housing until notched side snaps
over spring, tug on cable to make sure contact is locked into place.
DISASSEMBLING CONNECTORS
Switch off power rst. Remove contact by depressing spring with a small at blade screwdriver
and pulling lightly on the cable.
CAUTION: Replace contacts individually on battery leads to reduce potential danger of shorting.
Connector For Two Single
Series Conductor Cables
SBE80 / SBO60 SBE80REDCLP-BK
HEADQUARTERS: Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-
422-3600 F:978-422-0128 | EUROPE: Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard,
Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: [phone] F: [phone] | ASIA
/ PACIFIC: IDEAL Anderson Asia Pacic Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong
T:+(852) 2636 0836 F:+(852) 2635 9036 | CHINA: IDEAL Anderson Technologies (Shenzhen) Ltd., Block A8 Tantou
Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755
2768 2218 | TAIWAN: IDEAL Anderson Asia Pacic Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District,
Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460 ”
www.andersonpower.com
All Data Subject To Change Without Notice 15515 1S6331 ASM-SBE/SBO REV 02

Contains two each of: housings, contacts, retaining pins, & cable ties.
1. Single conductors use #12 to #18 AWG wire only. Strip to 0.31 inch (7.9mm) off end of insulation.
2. Twin conductor cable #12 to #18. Strip back outer jacket 5.50 inches (139 mm). (See illustration).
Then strip conductor insulation as in 1.
3a. To crimp: use the recommended tool. Crimping by other means may disturb contact position in
housing and or produce high resistance joints.
3b. To Solder: Not recommended.
4. Thread or push one or two auxiliary contacts and wires through the rear of the connector before
inserting into auxiliary housings. Push into auxiliary housings through rear until notched side of
contact tip snaps over spring. Tug wires to make sure wires are secure.
5. Slide two auxiliary Powerpole housings together by dovetails to stack vertically. They cannot be
inserted separately into SBE/SBO housing. The rear of each of the Powerpole housings must
be ush.
6. Slide stacked auxiliaries back into connector housing until seated. The male dovetail should be
on top as shown in Figure 1. Make sure side grooves of auxiliaries are aligned for retaining pins
and insert tubular pins. Tap pins in holes from top, as shown in Figure 1.
[7.9]
0.31
[139]
5.5
SBE® & SBO®Auxiliary Contact
Assembly Instructions
Catalog Wire Retaining
Number Application Contact Size Pin Length
6344 SBE80, SBE160, SBO60, SBX175 1331 #12/16 0.85
Crimp Tool Catalog Number
Manual - cycle controlled 1309G2
Pneumatic - cycle controlled 1367G1
NOTE: These assembly instructions apply only to the catalog numbers listed below. For instructions
to assemble the 1x4 Auxiliary Connector, use instruction 1S6229. Instruction 1S6229 is provided
with all 1x4 Auxiliary Kits.
7. Cable ties are supplied to secure the auxiliary leads or cable to one of the main power cables.
Leave slack or loop in leads to Powerpole contacts when applying cable ties. Wraps to be
placed approximately 1 inch (25.4mm) apart as shown in Figure 2.
8. To remove auxiliary housings, punch out retaining pins from bottom of the connector housing
with an 0.06 inch (1.5mm) diameter steel rod or pin driver. Pull auxiliary housings out of the
SBE/SBO connector housing. Use contact insertion-extraction tool kit (part number 111038G2),
to remove contacts from auxiliary housings see Figure 3.
WARNING: UTMOST CAUTION SHOULD BE USED WHEN WORKING ON
LIVE CONNECTOR CONTACTS. UL and CSA Reference - These connectors are recog-
nized under the component program of Underwriters’ Laboratories, File E26226, as well as Canadian
Standards Association, Report LR25154.
PATENTS AND TRADEMARKS. This product is covered by the following patents: U.S.
3,794,957; U.K. 1,443,819; France 73,44153; Italy 1,000442; Japan 885,802; South Africa 74/0939;
Canada 990,821. Other U.S. and foreign patents pending. “SBE, SBO, Powerpole, A, APP & Anderson
Power Products are registered U.S. and foreign trademarks of Anderson Power Products”, 13 Pratts
Junction Road, Sterling, MA 01564-2305 USA
Figure 3
Figure 2
Figure 1
Retaining Pin
Top
Male
Dovetail
[25]
1.0
Loop Wire
