IDS LCD Digital Keypad User manual

2IDS LCD Keypad User Manual 700-292-01C Issued March 2009

3IDS LCD Keypad User Manual 700-292-01C Issued March 2009

4IDS LCD Keypad User Manual 700-292-01C Issued March 2009

5IDS LCD Keypad User Manual 700-292-01C Issued March 2009
Contents
1. Introduction to the IDS LCD Digital Keypad.................................................8
2. Arming the Control Panel...............................................................................8
2.1 Away Arming...........................................................................................................8
2.1.1 How to Away Arm...................................................................................................8
2.1.2 Quick Away Arm –Shortcut Key.............................................................................8
2.2 Stay Arming.............................................................................................................9
2.2.1 How to Stay Arm.....................................................................................................9
2.2.2 Quick Stay Arm –Shortcut Key..............................................................................9
2.3 How to Stay Arm and Go........................................................................................10
2.4 Key-switch or Remote Arming................................................................................10
2.5 Auto Arming............................................................................................................10
3. Disarming the Control Panel..........................................................................10
3.1 How to Disarm with a User Code...........................................................................10
3.2 How to Disarm using a key-switch or Remote.......................................................11
4. Bypassing Zones............................................................................................11
4.1 How to Bypass a Zone...........................................................................................11
4.2 How to Un-bypass a Zone.....................................................................................12
5. Emergency Alarms.........................................................................................12
5.1 Fire Alarms.............................................................................................................12
5.2 Panic Alarms..........................................................................................................12
5.3 Medical Alarms......................................................................................................13
5.4 Duress Alarms.......................................................................................................13
6. Alarm Memory................................................................................................13
7. Zone Options..................................................................................................13
7.1 Changing a Zone Name.........................................................................................13
8. User Codes......................................................................................................14
8.1 Adding, Deleting and Editing User Codes.............................................................15
8.2 How to Enter the User Program Mode...................................................................15
8.3 Explanation of Programmable Options..................................................................16
8.3.1 Option 0 –Add a New User Code.........................................................................16
8.3.2 Option 1 –Edit a User Name.................................................................................16
8.3.3 Option 2 –Edit a Selected User Code...................................................................17
8.3.4 Option 3 –View a User Code Slot Number............................................................18
8.3.5 Option 4 –User Code Properties...........................................................................18
8.3.5.1 Explanation of User Code Properties –Master Code............................................19
8.3.5.2 Duress Code..........................................................................................................19
8.3.5.3 Maid‟s Code...........................................................................................................19
8.3.5.4 Global Arm/Disarm.................................................................................................19
8.3.5.5 Group Arm..............................................................................................................20
8.3.5.6 Group Disarm.........................................................................................................20
8.3.5.7 Report User Open/Close........................................................................................20
8.3.5.8 User Phone in Access............................................................................................20
8.3.5.9 Report User Access...............................................................................................20
8.3.5.10 Enable Anti-Pass Back for User.............................................................................20

6IDS LCD Keypad User Manual 700-292-01C Issued March 2009
8.3.5.11 Fire Code................................................................................................................21
8.3.6 Option 5 –Assign User Code to Partitions.............................................................21
8.3.7 Option 6 –Assign User Code to Doors..................................................................21
8.3.8 Option 7 –Assign User Code to Schedule.............................................................22
8.3.9 Option 8 –Adding User Remotes...........................................................................22
8.3.10 Option 9 –Delete User Code (Code Known).........................................................23
8.3.11 Option 10 –Delete a User Code (Slot Known).......................................................23
8.3.12 Option 11 –Viewing a User Code...........................................................................23
8.3.13 Option 12 –Add User Slot......................................................................................24
9. Stay Zones.......................................................................................................24
9.1 How to Select a Stay Profile...................................................................................24
9.2 How to Program Stay Zones..................................................................................24
9.3 How to Cancel Stay Zones.....................................................................................25
10. Buzz Zones......................................................................................................25
10.1 How to Program Buzz Zones..................................................................................25
10.2 How to Cancel Buzz Zones....................................................................................26
11. Chime Zones...................................................................................................26
11.1 How to Program Chime Zones...............................................................................26
11.2 How to Cancel Chime Zones..................................................................................27
12. Viewing Trouble Conditions...........................................................................27
13. Changing a Partition.......................................................................................28
14. Remote Telephone Access............................................................................28
15. Output Control via a Keypad..........................................................................30

7IDS LCD Keypad User Manual 700-292-01C Issued March 2009
Tables
Table 1 Alarm Panel Zones.........................................................................................13
Table 2 Alarm Panel Features.....................................................................................14
Table 3 User Programming Options...........................................................................15
Table 4 User Code Properties.....................................................................................19
Table 5 Trouble Conditions.........................................................................................27
Table 6 Remote Telephone Operation.......................................................................29

8IDS LCD Keypad User Manual 700-292-01C Issued March 2009

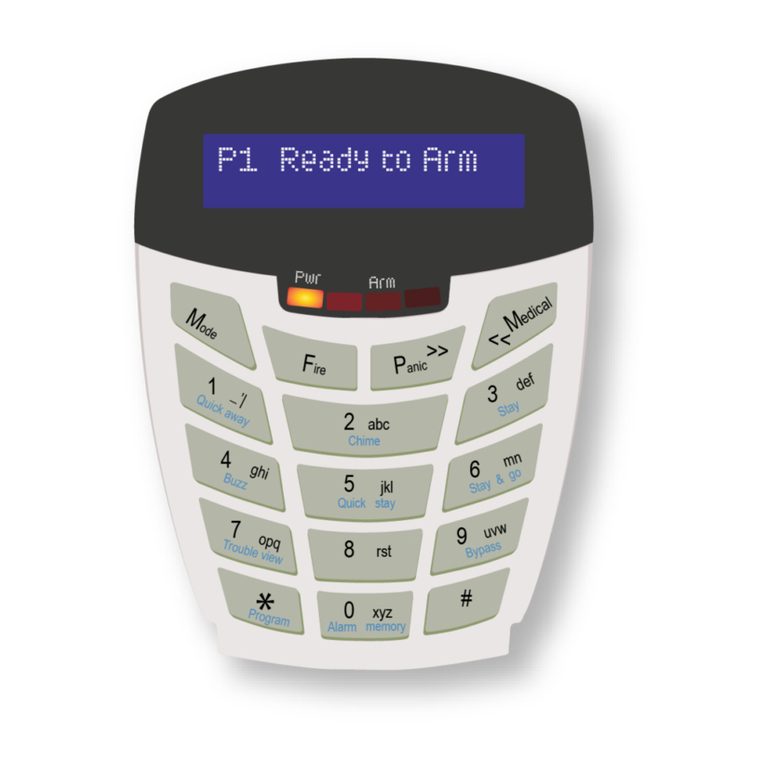

1. Introduction to the IDS LCD Digital Keypad
Your installer has selected one of the finest alarm systems available for your installation and has custom
programmed the system features to meet your specific requirements.
The elegant and user friendly LCD Keypad will allow you easy access to your security system's functions
and information at the touch of a button. The 32 character screen will display menus and messages to
guide you through the system's operation.
Since you will communicate your instructions to your system through the keypad, please read this
manual carefully, and have your installer explain basic system operation.
2. Arming the Control Panel
2.1 Away Arming
2.1.1 How to Away Arm
[#] + [USER CODE] (Leave via Entry/Exit Zone)
1. Ensure that the LCD display reads 'Ready to Arm' alongside the partition number being armed. If
not, check that all protected doors and windows are closed and that all movement has ceased in
areas covered by motion detectors. If necessary, bypass any required zones and close the front
door.
2. Press the [#] key.
3. Enter a valid [USER CODE]. If an incorrect code is entered, the keypad buzzer will beep three
times. In the event of an error press, the [#] key and re-enter the code.
4. The ARM indicator will come on and the keypad buzzer will sound for the duration of the exit
delay. The LCD screen will read 'Exit Delay' alongside the partition number which is being armed.
Any bypassed zones will be displayed on the LCD display as solid text. Any violated zones will be
displayed on the LCD display as flashing text. To scroll through zones which have been
bypassed or violated use the [PANIC] and [MED] keys.
5. Leave only via a designated exit route. The panel will away arm at the end of the exit delay.
6. Once the panel has armed the LCD display will read 'Armed' alongside the partition that has
been armed.
2.1.2 Quick Away Arm - Shortcut Key
(Hold down the [1] key until the keypad buzzer sounds)
If this function is enabled, it is possible to AWAY arm by simply holding down the [1] key. The LCD
display will read 'Exit delay' alongside the partition number being armed. The keypad buzzer sounds and
the arming process begins.
NOTE:

9IDS LCD Keypad User Manual 700-292-01C Issued March 2009
If the partition is already STAY armed, this key will initialize AWAY arming. It is therefore possible to
change directly from STAY armed to AWAY armed.
2.2 Stay Arming
Stay arming allows the user to monitor selected perimeter zones and bypass interior zones. The user can
remain on the premises with access to designated areas during the STAY ARM cycle. Any zone which
may be violated accidentally should be programmed as a buzz zone. When violated, a buzz zone will
cause the keypad buzzer to sound for thirty seconds before sounding the siren. Entering a valid user
code before the siren sounds, prevents an alarm condition from being registered and will silence the
keypad buzzer and prevent the siren from sounding.
To provide greater flexibility the panel caters for the programming of two different STAY PROFILES. Each
STAY PROFILE contains a unique combination of STAY, BUZZ and ALARM zones which cater for a
particular STAY ARM requirement.
The profile number is now indicated at the end of the top line after the armed partition on the LCD
Keypad when the panel is stay armed.
Example:
PROFILE 1 might be used when the family goes to bed in the evening. In this profile, some interior zones
may be programmed as alarm zones or buzz zones, whereas PROFILE 2 is utilised while watching
television when all interior zones would be bypassed. (See 9.1 How to Select a Stay Profile.)
2.2.1 How to Stay Arm
[#] + [USER CODE] (Do not leave premises)
1. Select the required STAY PROFILE. (See Section 8.1)
2. Ensure that the LCD display reads 'Ready to arm' alongside the partition number being armed. If
not, check that all protected doors and windows are closed and that all movement has ceased in
the areas covered by motion detectors.
3. Press the [#] key.
4. Enter a valid [USER CODE]. If an incorrect code is entered, the keypad will give an error beep. In
the event of an error press the [#] key and re-enter the [USER CODE].
5. DO NOT violate the Entry/Exit zone (normally the front door). If the Entry/Exit zone is violated the
system will arm in the AWAY mode.
6. The LCD Keypad will read 'Exit Delay', the ARM indicator will come on and the keypad buzzer will
sound for the duration of the exit delay.
7. When the panel arms, any STAY zones will be automatically bypassed. These are displayed on
the LCD Display as solid text. Any violated zones will be displayed on the LCD Display as
flashing text. To scroll through zones which have been bypassed or violated use the [PANIC] and
[MED] keys.
8. Ensure that you enter only those areas that are bypassed.
2.2.2 Quick Stay Arm - Shortcut Key
(Hold down the [5] key for 2 seconds until the keypad buzzer sounds)
It is possible to STAY arm by holding down the [5] key until the keypad buzzer sounds. The panel will
immediately arm into the stay mode without any exit delay. Holding the [5] key again will toggle between
the 2 stay profiles.

10 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
The LCD display will read 'Partial Arm' and will indicate any zones which have been bypassed. One is
able to scroll through the list of bypassed, as well as violated, zones by using the [PANIC] and [MED]
keys.
2.3 How to Stay Arm and Go
(Hold down the [6] key for two seconds until the keypad buzzer sounds)
This is a single key arm function, which allows the user to STAY arm and leave the premises.
If a partition is already stay armed, holding down the [6] key initiates an exit delay, thus allowing the user
to leave the premises without disarming. At the end of the exit delay, the partition will re-arm in the same
stay profile it was armed in before the [6] key was held down.
1. Make sure all zones are clear. Hold down the [6] key until the keypad buzzer sounds. The LCD
screen display will read 'Exit Delay' alongside the partition number being armed. Any zones that
have been bypassed will be displayed on the LCD Display as solid text. Any zones that are
violated will be displayed on the LCD Display as flashing text. Use the [PANIC] and [MED] keys
to scroll through zones which have been bypassed or violated. The keypad buzzer will sound for
the duration of the exit delay. Only leave via a designated exit route.
2. At the end of the exit delay, the ARM indicator will come on and the display will read 'Stay Arm'.
All stay zones will be bypassed.
2.4 Key-Switch or Remote Arming (If fitted)
1. Ensure that the LCD display reads 'Ready to arm' before leaving.
2. Leave and close the door (remembering to lock!)
3. Activate the remote or the key-switch. A remote can be used to Stay Arm or Away Arm.
4. The alarm will arm in the away mode.
NOTE:
If a remote control is used it is advisable to have the siren toot on arm function enabled. This provides
verification that the system has armed.
2.5 Auto Arming
The panel may be programmed to arm automatically at a preprogrammed time. Should the premises be
occupied at the time of auto arming, a valid [USER CODE] entered during the pre-arm delay will
terminate the arming sequence. The pre-arm delay is signalled by an exit beep.
3. Disarming the Control Panel
3.1 How to Disarm with a User Code
[#] + [USER CODE]
To disarm the system, enter [#] followed by a valid [USER CODE].
1. Enter the premises through a designated entry route. Entering via any other route will cause an
alarm.

11 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
2. As soon as the Entry/Exit zone is violated, the entry delay will begin. The keypad buzzer will
sound for the duration of the entry period. The above 2 points only apply if the premises are away
armed.
3. Press the [#] key and enter a valid [USER CODE]. If an error beep occurs, press the [#] key and
re-enter the user code.
4. Once the system disarms, the ARM indicator will turn off and the keypad buzzer will stop
sounding.
5. If no valid user code has been entered prior to the expiry of the entry delay period an alarm
condition will be registered.
6. If the entry period is too short, have your installer change the entry delay period.
NOTE:
If a strobe (or flashing light) has been installed and an alarm condition is registered, the strobe will
continue flashing after the siren has stopped sounding. Entering a valid [USER CODE] will cancel the
strobe.
3.2 How to Disarm using a Key-Switch or Remote
1. Activate the remote or key-switch.
2. The system will disarm and the remote indicator (if installed) will turn off. If the siren toot on
disarm option is enabled, the siren will provide a double toot when the panel is disarmed.
4. Bypassing Zones
The term BYPASS is used to describe a zone which has been deactivated; i.e. violation of a
bypassed zone is ignored and will not cause an alarm condition.
Once the system is armed, it is not possible to bypass zones.
All bypassed zones will be automatically cancelled each time the panel is disarmed and must be
re-bypassed before the next arming.
4.1 How to Bypass a Zone
Hold down [9] + [ZONE NUMBER] + [*] + [#]
1. Ensure the panel is not armed.
2. To enter bypass mode, hold down the [9] key for two seconds until the keypad buzzer sounds
and all LED's are off.
3. The LCD display reads 'Bypassed'. Using the [PANIC] and [MED] keys, one is able to scroll
through the zones. Alternatively press the number of the zone you wish to bypass e.g. the [2] key
if you wish to bypass zone 2, then press the [*] key.
4. [Y] indicates that the zone has been bypassed, whilst [N] indicates that the zone has not been
bypassed.
5. Repeat step 3 to bypass other zones.
6. Press the [#] key to exit the bypass mode.
NOTE:
Panic zones cannot be bypassed.

12 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
4.2 How to Un-Bypass a Zone
Hold down [9] + [ZONE NUMBER] + [*] + [#]
1. Enter bypass mode by holding down the [9] key until the keypad buzzer sounds. The power and
arm LED's will be off. All zones will be displayed on the screen with either a [Y] or a [N] alongside
the zone.
2. [Y] indicates that the zone has been bypassed, whilst [N] indicates that the zone has not been
bypassed.
3. Press the number corresponding to the currently bypassed zone, then press the [*] key.
Alternatively use the [PANIC] or [MED] keys to scroll through the zones.
4. Press the [#] key to exit User Program Mode.
5. Emergency Alarms
5.1 Fire Alarms
[F]
(Hold down the [F] key for two seconds until the keypad buzzer sounds)
If the [F] key is pressed until the keypad beeps (approximately 2 seconds) a FIRE ALARM
condition will be activated. The Display reads 'Alarm!' alongside the relevant partition.
The FIRE ALARM CONDITION may also be triggered by a smoke detector connected to an
appropriately programmed zone.
The siren will sound on and off repeatedly if programmed and the FIRE REPORTING CODE will
be transmitted to the monitoring company.
To silence the siren enter a valid [USER CODE].
5.2 Panic Alarms
[P]
(Hold down the [P] key for two seconds until the keypad buzzer sounds)
If the [P] key is pressed until the keypad beeps (approximately 2 seconds) a PANIC ALARM
condition will be activated. The Display reads 'Alarm!' alongside the relevant partition number.
A PANIC ALARM may also be activated using any FIXED PANIC button or a REMOTE PANIC
button (if installed).
If the audible panic option has been selected, the siren will sound. A PANIC ALARM will be
transmitted to the monitoring company.
To silence the siren, enter a valid [USER CODE].
Press the [P] key only in an emergency situation which requires response by emergency
personnel.

13 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
5.3 Medical Alarms
[M]
(Hold down the [M] key for two seconds until the keypad buzzer sounds)
If the [M] key is pressed until the keypad beeps (approximately 2 seconds) a MEDICAL ALARM
condition will be activated.
The keypad buzzer will beep 5 times.
A medical reporting code will be reported to the monitoring company.
5.4 Duress Alarms
[#] + [DURESS CODE]
This is a special user code that should only be used in the unique situation where an intruder
forces one to disarm the system “under duress”.
When a [DURESS CODE] is entered, the control panel disarms. A Duress Alarm Code (if
programmed) will be reported to the monitoring company.
It is advisable to choose a Duress code which can be easily remembered by all family (or staff)
members.
6. Alarm Memory
The Alarm Memory displays any zones which were tampered, violated, or bypassed during the last arm
cycle. A flashing ARM indicator notifies the user of an Alarm Memory condition. To view the Alarm
Memory, disarm the panel and continue as follows:
[0]
(Hold down the [0] key for two seconds until the keypad buzzer sounds)
1. Hold down [0] until the keypad buzzer sounds.
2. The ARM and POWER indicators will turn off and the keypad buzzer will sound briefly.
3. Use the [MED] or [PANIC] keys to scroll through the zones violated during the last armed
period.
4. Press 2 to display zones which were bypassed.
5. Press 3 to display which zones were tampered.
6. Press 1 to return to violated zones.
7. The Alarm Memory is erased at the beginning of each arm cycle.
7. Zone Options
7.1 Changing a Zone Name
Table 1 : Alarm Panel Zones
Alarm Panel
Zones
Sub-location
IDS 816
1 - 16
12

14 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
IDS 1224
1 - 24
12
IDS 1632
1 - 32
12
For detailed programming instructions, please see the installation manual provided with your Alarm
Panel.
1. Press [#] + [INSTALLER CODE] + [*].
If the default installer code is four digits it will be [9999], if it is six digits, it will be [999999].
2. Enter the [LOCATION] as per table 1 above followed by the [*] key.
3. Enter the [SUB-LOCATION 12] followed by the [*] key.
4. Edit the Zone Name.
Notes on Editing a Zone Name
Use the [MODE] key to toggle between upper and lower case.
Use the [1] key to display a 1, to create a space or to display the following punctuation marks :
' ! -
Use the [PANIC] key to scroll to the right.
Use the [MED] key to scroll to the left.
Pressing a key once will display the first letter displayed on the key. Pressing a key twice displays
the second letter on the key etc. Numerics are displayed after all available letters have been
displayed i.e. to display a 2, press the relevant key four times.
If you wish to use a different letter on the same key press the key the required number of times to
display the relevant letter, pause for one second. Once the cursor has advanced, you may begin
entering the next letter.
8. User Codes
Each of the IDS Alarm Panels has a certain number of programmable user codes as displayed in Table 2
below. By default User Code 1 is the Master User Code which contains a pre-programmed 4 digit code
of 1234.
The number of partitions which can be programmed by your programmer also varies for the different IDS
Alarm Panels.
A partition is a group of zones which may be armed and disarmed independently without affecting zones
or users assigned to other partitions.
I.e. a guest cottage appended to a main house may be partition 2. The main house being partition 1.
NOTE:
User codes may be 4 (default) or 6 digits long. This is a programmable feature. Check with your installer
to verify which option has been programmed.
Table 2 : Alarm Panel Features
Alarm Panel
No. of User Codes
No. of Partitions
IDS 816
32
1 - 2
IDS 1224
64
1 –4
IDS 1632
250
1 –8

15 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
8.1 Adding, Deleting and Editing User Codes
Hold [*] + [MASTER USER CODE] + [*] + [PROGRAMMABLE OPTION] + [*]
All IDS Alarm Panels utilise a user-friendly programmable interface which allows the user to add, modify,
or delete user codes. See Table 3 for a summary of programmable options. The programmable interface
is accessed by entering the USER PROGRAMMING MODE.
Table 3 : User Programming Options
Options
Summary of Programmable Options
816
1224
1632
Option 0
Allows for the addition of new user codes.
x
x
x
Option 1
Allows editing of the user name displayed by LCD keypads.
This menu is only applicable if LCD keypads are installed.
x
x
x
Option 2
Allows editing of a selected user code. Note that the user
code properties are not edited, only the user code itself.
x
x
x
Option 3
Allows viewing of the user code slot number for a selected
code.
x
x
x
Option 4
Allows editing of the user code properties for a selected
user code. This is a bitmapped menu.
x
x
x
Option 5
Allows the allocation of a selected user code to a
designated partition(s). This is a bitmapped menu.
x
x
x
Option 6
Assign User Code to Doors (bitmapped)
x
Option 7
Assign a User Code to a Schedule
x
Option 8
Allows a remote to be assigned to a specific user
x
x
x
Option 9
Allows a user to be deleted
x
x
x
Option 10
Allows the deletion of a user code using the user code slot
number.
x
x
x
Option 11
Allows viewing of a user name if the slot number is known.
x
x
x
Option 12
Add User by Slot Number
x
x
NB:
Text prompts displayed on LCD Keypads connected to the IDS 1224 and IDS 1632 are considerably
more detailed than text prompts displayed on the IDS 816 Alarm Panel.
8.2 How to Enter the User Program Mode
1. Ensure that the panel is not armed.
2. Hold down the [*]key until the keypad buzzer sounds. The ARM indicator will flash.
3. The LCD prompt reads 'Enter Master Code'. The factory default is [1234]. Should the [MASTER
USER CODE] be set to six digits it will be [123456] by default.
4. After entering the [MASTER USER CODE], press the [*]key. A valid entry will be confirmed by
a long beep. If an invalid [MASTER USER CODE] was entered, the keypad buzzer will give an
error beep (3 short beeps).
If steps 1 - 4 are performed correctly:
5. IDS 816 Panel
The LCD display will prompt for a 'Menu Option'.

16 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
IDS 1632 & IDS 1224 Panels
The first menu option - Menu Option 0 - 'Add User' is displayed by default.
6. Select a programmable option from Table 1. In the case of the IDS 1632 and IDS 1224, one may
use the [PANIC] or [MED] keys to scroll through the menu options.
7. Confirm the entry by pressing the [*]key. A valid entry is confirmed by a long beep. An invalid
entry will be signalled by means of an error beep (3 short beeps). If an error beep occurs, press
the [#] key to clear all previous entries, and repeat steps 2 –6
Example:
To add a new user code, enter User Program Mode by completing steps 2 - 5 as listed above. In the
case of the IDS 816 when prompted to enter a 'Menu Option', enter a value of [0] (See table 1) followed
by [*].In the case of the IDS 1632 and the IDS 1224, Menu Option 0 will be displayed on the LCD screen
by default. Press the [*]to confirm your entry. For all panels, once prompted to 'Enter a User Code', input
a [NEW USER CODE] followed by the [*]key. Once the user code is programmed, enter the next code
followed by [*]. To exit the program mode press the [#] key.
For a full list of options, refer to Table 2. Programming of these options is explained below.
8.3 Explanation of Programmable Options
8.3.1 Option 0 - Add a New User Code
Hold [*] + [Master Code] + [*] + [0] + [*] + [New Code] + [*]
1. Enter the User Program Mode as per steps 1 - 4 of (8.2).
2. IDS 816 Panel
When prompted for the 'Menu Option' press the [0] key followed by the [*]key to select
programmable option 0.
IDS 1632 & IDS 1224 Panels
Menu option 0 - 'Add User' is displayed on the LCD Screen by default. As this is the
programmable option you require, press the [*]key to confirm your entry.
3. The ARM key flashes and the LCD prompt reads 'Enter User Code'.
4. Enter the [NEW USER CODE] followed by the [*]key to confirm the entry. A valid entry is
confirmed by a long beep. An invalid entry will be signalled by means of an error beep (3 short
beeps). If an error beep occurs, press the [#] key to clear all previous entries and repeat steps
1 - 4.
5. Further codes can be added by repeating step 4 above. When a user code is added, it is stored
in the first available user slot.
6. Press the [#] key to exit the User Program Mode.
8.3.2 Option 1 - Edit a User Name
Hold [*] + [Master Code] + [*] + [1] + [*] + [User Code] + [*]
1. Enter the User Program Mode as per steps 1 - 4 of (8.2).
2. IDS 816 Panel
When prompted for the 'Menu Option' press the [1] key followed by the [*] key to select
programmable option 1.
IDS 1632 & IDS 1224 Panels
Menu option 0 - 'Add User' is displayed on the LCD Screen by default. To select menu option 1 -
'Edit Name', press the [1] key followed by the [*]key or alternatively use the [PANIC] or [MED]
keys to scroll through the list of programmable options until you reach Menu Option 1 and press
the [*]key to confirm your selection.

17 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
3. The ARM indicator flashes and the LCD prompt reads ' Enter User Code'.
4. Enter the [USER CODE] that you wish to edit. User Names are displayed as the User Slot
Number by default. Edit the User Slot Number so that it reads the correct User Name. (See Notes
on Editing a User Name).
5. To confirm the entry press [*].
6. Further names may be edited by repeating steps 4 - 6 above.
7. Press the [#] key to exit the User Program Mode.
Notes on Editing a User Name
Use the [MODE] key to toggle between upper and lower case.
Use the [1] key to display a 1, to create a space or to display the following punctuation marks :
' ! -
Use the [PANIC] key to scroll to the right.
Use the [MED] key to scroll to the left.
Pressing a key once will display the first letter displayed on the key. Pressing a key twice displays
the second letter on the key etc. Numerics are displayed after all available letters have been
displayed i.e. to display a 2, press the relevant key four times.
If you wish to use a different letter on the same key press the key the required number of times to
display the relevant letter, pause for one second. Once the cursor has advanced, you may begin
entering the next letter.
The cursor will advance instantly if one presses another key.
Example:
You wish to change [USER 1] to read Brad.
1. To type in a (B), press the [2] key twice („B‟is the second letter displayed on the key).
2. Text is defaulted to Upper case. Press the [MODE] key for lower case. Upper case text is
indicated by a thin flashing cursor, whilst lowercase text is indicated by a thicker flashing cursor.
3. To type in an (r) press the [8] key once („r‟is the first letter displayed on the key).
4. To type in an (a) press the [2] key once ('a' is the first letter displayed on the key).
5. To type in the letter (d) press the [3] key once (d is the first letter displayed on the key).
6. To confirm your entry press the [*]key once.
8.3.3 Option 2 - Edit a Selected User Code
Hold [*] + [Master Code] + [*] + [2] + [*] + [Old Code] + [*] + [New Code] + [*]
1. Enter the User Program Mode as per steps 1 - 4 of (8.2).
2. IDS 816 Panel
When prompted for the 'Menu Option' press the [2] key followed by the [*]key to select
programmable option 2.
IDS 1632 & IDS 1224 Panels
Menu option 0 - 'Add User' is displayed on the LCD Screen by default. To select menu option 2 -
'Edit Name', press the [2] key or alternatively use the [PANIC] or [MED] keys to scroll through
the list of programmable options until you reach Menu Option 2. Press the [*]key to confirm your
selection.
3. The ARM indicator will flash and the LCD prompt reads 'Enter User Code'. Enter the [USER
CODE] you wish to edit.
4. Alongside the Data prompt, enter the [NEW CODE]. To move the cursor within the [NEW
CODE] use the [PANIC] or [MED] keys.
5. To confirm your entry press the [*] key.
6. The ARM indicator will flash.

18 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
7. To edit other codes repeat steps 3 - 6.
8. Press the [#] key to exit the User Program Mode.
8.3.4 Option 3 - View a User Code Slot Number
Hold [*] + [Master Code] + [*] + [3] + [*] + [User Code] + [*]
1. Enter the User Program Mode as per steps 1 - 4 of (8.2).
2. IDS 816 Panel
When prompted for the 'Menu Option' press the [3] key followed by the [*] key to select
programmable option 3.
IDS 1632 & IDS 1224 Panels
Menu option 0 - 'Add User' is displayed on the LCD Screen by default. To select menu option 3 -
'View Slot num', press the [3] key or alternatively use the [PANIC] or [MED] keys to scroll through
the list of programmable options until you reach Menu Option 3. Press the [*] key to confirm your
selection.
3. The ARM indictor will flash and the LCD prompt reads 'Enter User Code'.
4. Once you have entered the [USER CODE] followed by the [*] key the Slot num is displayed
alongside the Data prompt.
5. To view other Slot numbers press the [*] key and repeat steps 3 - 5.
6. Press the [#] key to exit the User Program Mode.
8.3.5 Option 4 - User Code Properties
Hold [*] + [Master Code] + [*] + [4] + [*] + [User Code] + [*] + [Property Number] + [*]
1. Enter the User Program Mode as per steps 1 - 4 of (8.2).
2. IDS 816 Panel
When prompted for the 'Menu Option' press the [4] key followed by the [*]key to select
programmable option 4.
IDS 1632 & IDS 1224 Panels
Menu option 0 - 'Add User' is displayed on the LCD Screen by default. To select menu option 4 -
'User Options', press the [4] key or alternatively use the [PANIC] or [MED] keys to scroll
through the list of programmable options until you reach Menu Option 4. Press the [*] key to
confirm your selection.
3. The ARM indictor will flash and the LCD prompt reads 'Enter User Code'.
4. Once you have entered the [USER CODE], followed by the [*]key select a User Code property
by pressing the key which corresponds to that property.
In the case of the IDS 1632 and the IDS 1224, one may use the [PANIC] or [MED] keys to scroll
through the User Options which can be assigned to a user.
5. Pressing the [*]key toggles between [Y] and [N] for the selected user option.
6. Repeat steps 4 & 5 until the desired properties have been programmed.
7. To edit another User Code's properties, press the [#] key and repeat steps 2 - 5.
8. Press the [#] key twice to exit user program mode.
Example:
To enable a User Code to function as a duress code, when prompted for the Option press the [2] key
followed by the [*]key.

19 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
Table 4 : User Code Properties
Zone LED
Property
816
1224
1632
1
Master User
X
X
X
2
Duress Code
X
X
X
3
Arm to Disarm Code [Maid‟s Code]
X
X
X
4
Group Arm (Global Arm /Disarm for 816)
X
X
X
5
Group Disarm
X
X
6
Arm Code
X
X
7
Disarm Code
X
X
8
Report User Open Close
X
X
9
User Phone in Access
X
X
10
Report User Access
X
11
Enable Anti-pass back for User
X
12
Fire Code
X
Explanation of User Code Properties
8.3.5.1 Master User
When assigned to a user, this property allows the user to act as a Master User.
8.3.5.2 Duress Code
This is a special 4 (default) or 6 digit user code (check the code length with your installer) and
should only be used in the unique situation where an intruder forces one to disarm the system
"under duress".
When the [DURESS CODE] is entered, the control panel disarms normally - however a DURESS
REPORTING CODE is transmitted to the monitoring company to inform them that you have been
forced to disarm the control panel by an intruder.
It is advisable to choose a code that can be easily remembered by all family (or staff) members.
8.3.5.3 Maid's Code
This code may be used to limit access to the premises. A maid's code will only disarm the system if the
same code was used for arming. If armed with a code other than this code, the system will view an
attempt to disarm using a maid's code as an invalid entry. Any valid user code will disarm the system if it
has been armed with a maid‟s code.
8.3.5.4 Global Arm / Disarm Code
(Not applicable to the IDS 1224 & IDS 1632)
This code when entered will either arm or disarm the partitions assigned to that user depending on their
status. If both partitions are disarmed, entering a global code will arm both partitions. If both partitions are
armed, entering a global code will disarm them. In the case where one partition is armed and the other

20 IDS LCD Keypad User Manual 700-292-01C Issued March 2009
disarmed, entering a global code at the keypad of the armed partition will disarm that partition and
entering a global code at the keypad of the disarmed partition will arm that partition.
8.3.5.5 Group Arm
(Not applicable to the IDS 816)
This code when entered will arm the partitions assigned to the user depending on their status. If all
partitions are disarmed, entering a group code will arm all of the assigned partitions. In a case where
some partitions are armed and others disarmed, entering this group code at the keypad of the disarmed
partition will arm the disarmed partitions only.
8.3.5.6 Group Disarm
(Not applicable to the IDS 816)
This code when entered will disarm the partitions assigned to the user depending on their status. If all
partitions are armed, entering a group code will disarm all of the assigned partitions. In a case where
some partitions are disarmed and others armed, entering this group code at the keypad of the armed
partition will disarm the armed partitions only.
8.3.5.7 Report User Open Close
(Not applicable to the IDS 816)
This option enables reporting of a pre-programmed reporting code when a partition assigned to this user
is armed / disarmed.
8.3.5.8 User Phone in Access
(Not applicable to the IDS 816)
If enabled this option allows the user to arm or disarm a panel using a DTMF telephone.
If the installer selects the full menu, the user will be able to bypass zones, open doors and toggle
outputs.
8.3.5.9 Report User Access
(Not applicable to the IDS 1224 & IDS 816)
This option enables reporting of a pre-programmed reporting code when a user opens a door assigned
to them.
8.3.5.10 Enable Anti-pass back for User
(Not applicable to the IDS 1224 & IDS 816)
If enabled this option does not allow a user to enter an assigned area for a second time, if the user has
not exited the assigned area after the previous entry.
