ID GATE 7700 Product Instruction
ID GATE 7700 Page 3 of 15
Contents
1Product Indroduction ..................................................................................................................................3
1.1 Note ................................................................................................................................................................... 3
1.1.1 Functional features............................................................................................................................................ 3
1.1.2 Structures and dimensions ................................................................................................................................ 4
1.1.3 Technical parameter .......................................................................................................................................... 4
2Product Structure and Working Principle ....................................................................................................5
2.1 Tripod ................................................................................................................................................................ 5
2.1 Tripod turstile electric control system ……………………………………………………………………………………………………….5,6
2.1 Operating priciple of the system ……………………………………………………………………………………………………………..……7
3Install Instruction ........................................................................................................................................8
3.1 Installtion note & suggestion ……………………………...…………………………………………………………………………………..…8,9
3.2 Turnstile cable drawing …………………………………………………………………………………………………………….…………..……10
3.3 Operating priciple of the system ……………………………………………………………………………………………………………..…11
4Menu Parameter Setting ...........................................................................................................................12
4.1 Button introduction …………………..…………………………………………………………………………………………………………….…12
4.2 Menu setting ..…………………………………………………………………………………………………….…………………………………..…12
4.3 Parameter setting instruction ………………………………………………………………………………………………………..………..…13
5Product Maintenance................................................................................................................................14
5.1 Daily Maintenance........................................................................................................................................... 14
5.2SET_UR_BAUDRATE (0x01) .............................................................................................................................. 14
6Costumer Service.......................................................................................................................................15

Product Instruction Communication Protocol
Page 4 of 15 ID GATE 7700
1Product Instruction
1.1 Note
1) Before installation, operation or maintenance, turn off power.
2) Do not change the inside wiring, take a photo before any disconnection.
3) Do not use the turnstile inside power supply to connect other third-party device.
4) Do not operate when thundering and lightning, in case damage the turnstile electrical parts.
1.2 Functional features
oDS112 Tripod turnstiles are compact and cost-effective entrance/exit security solutions.
oThe body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
oTurnstile gate with standard open/close relay signal, it can be integrated with any type of the third-party access
control parts. (e.g.: RFID, Fingerprint and Biometric reader device).
oUnified external electrical interface, which can be linked to a variety of card readers, and can be remotely
controlled and managed by the management computer;
oIn case of emergency, turnstile gate will open automatically to allow free passage when power off.
oAnti-tailing function: only one person passes at one time. υIt has zero self-check function, which is convenient for
users to maintain and use.
oAnti-impact function: when the opening signal is not received, the rotating rod will lock automatically.
oAutomatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passengers delay to
entry. Working way: Single directional or Bi-directional.
oLED indicator (red × means no entry; green →means entry). υThe whole system works smoothly, little noise.
oEasy to install and maintain.

ID GATE 7700 Product Instruction
ID GATE 7700 Page 5 of 15
1.3 Structures and dimensions
DS112 Tripod turnstile have 304 brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable,
it is ideal for both indoor and outdoor settings.

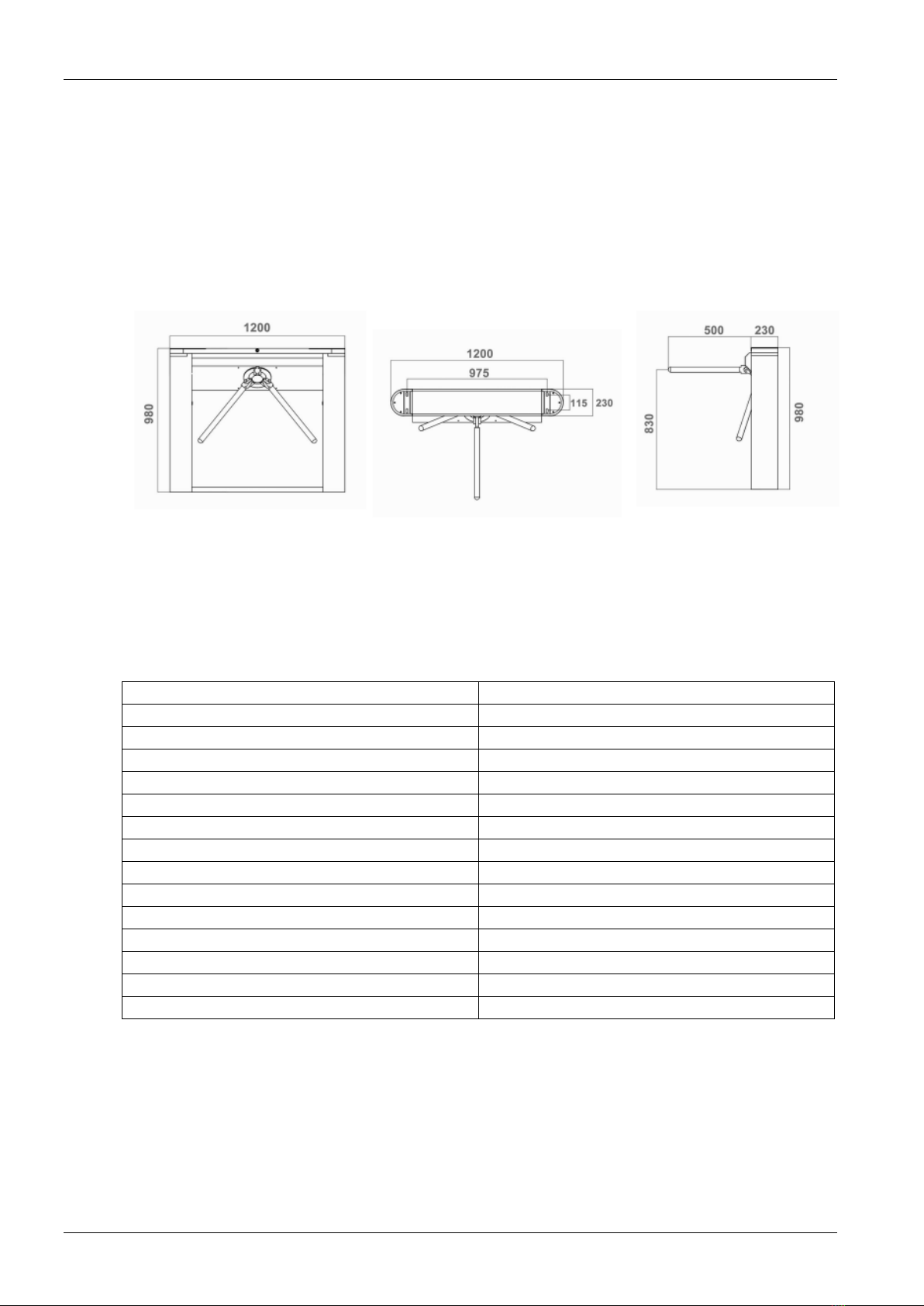

Appearance and dimensions are as shown in figure 1：
Figure 1
1.3 Technical parameter
Item
Description
Cabinet
304 stainless steel
Dimension
L1200*W230*H980(mm)
Weight
50Kg
Pass Width
1 lane, 550mm (Arm length: 500mm)
Power supply
AC220V/110V, 50/60Hz
Working voltage
24V DC
Emergency Automatic
arm open when power off
Power consumption
20W
Working environment
Indoors or outdoors
Working temperature
-15 °C- 60 °C
Humidity
0 ~ 95% (no freeze)
Control interface
Dry contact/Relay signal
Opening time
0.2 seconds
Passing speed
35~40 persons/min

Product Instruction Communication Protocol
Page 6 of 15 ID GATE 7700
2 Product Structure and Working Principle
2.1. Tripod turnstile mechanical system

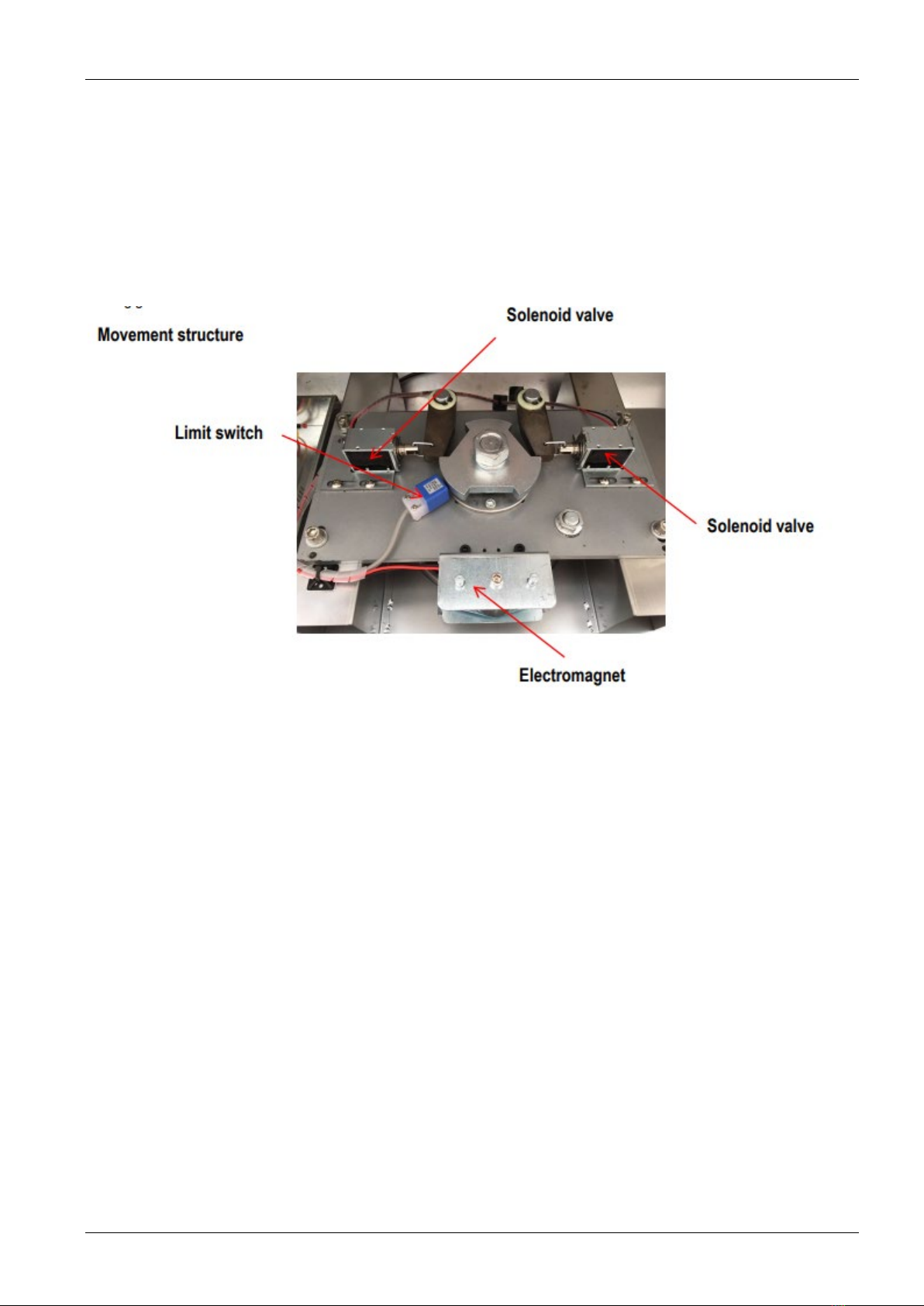

Turnstile mechanical system is divided into frame and movement two parts. As a carrier, the frame is equipped with
direction indicator, read-write device, infrared sensor, etc. The main components of movements are motor, motor frame,
drive shaft, swing gate. Movement structure
2.2. Tripod turnstile electric control system
The electronic control system is composed of card reader, main control board, infrared sensor, direction indicator board,
alarm, and transformer and so on...
oCard reader (self-provided): after reading the information on the card and judging and processing, it will send an
application pass signal (switch signal) to the main control board.
oMain control board: the control center of the system, which receives the signals from the card reader, and makes
logical judgment and processing of these signals, and then issues execution commands to the direction indicator
light, motor, counter and alarm.
oDirection indicator light: display the current status of the passage signs and guide pedestrians to pass through the
passage in a safe and orderly manner.

ID GATE 7700 Product Instruction
ID GATE 7700 Page 7 of 15
Item NO. NAME FUNCTION
1 Entrance access system IC/ID card access control, fingerprint
machine, face recognition, two-
dimensional code device, gate
opening signal on the control board of
gate machine, remote control, button
to open the gate(optional)
2 Control board
The control center of the system,
which receives signals from the card
reader and infrared sensor, and makes
logical judgment and processing of
these signals, and then sends out
execution commands to the direction
indicator, motor, counter and alarm.
3 Direction indicator The directional indicator light shows
the current status of the passage sign
and guides pedestrians through the
passage
4 Limit switch Check opening and closing position
5 Switch Supply power to control board

Product Instruction Communication Protocol
Page 8 of 15 ID GATE 7700
2.3. Operating principle of the system
a) Turn on the power and the system will enter into working state after 3 seconds.
b) When the card reader reads the valid card, the peak-mincer will make a pleasant sound, indicating to pedestrians that
the card has been read successfully. At the same time, it will judge and process the information read from the card, and
send an application for approval signal to the main control board.
c) The main control board receives the signals from the card reader and infrared sensor, and after comprehensive
processing, sends effective control signals to the direction indicator and motor, so that the direction indicator sign turns
into the green arrow pass sign. At the same time, the turnstile sends the setting voice, the main control board controls the
motor operation, and the gate is opened to allow pedestrians to pass.
d) After the pedestrian passes through the channel according to the direction indicator, the infrared sensor senses the
whole process of the pedestrian passing through the channel and continuously sends signals to the main control panel until
the pedestrian has passed through the channel completely;
e) If a pedestrian forgets to read his card or reads an invalid card and enters the channel, the system will forbid the
pedestrian to pass through and issue a voice alarm. The alarm will not be lifted until the pedestrian exits the channel.
Rereading a valid chi square allows passage.

ID GATE 7700 Product Instruction
ID GATE 7700 Page 9 of 15
3. Install Instruction
3.1 Installation note & suggestion
Note: During installation and construction, relevant circuits should be disconnected to ensure that all circuits are correct
before energizing.
►►Installation Suggestion:

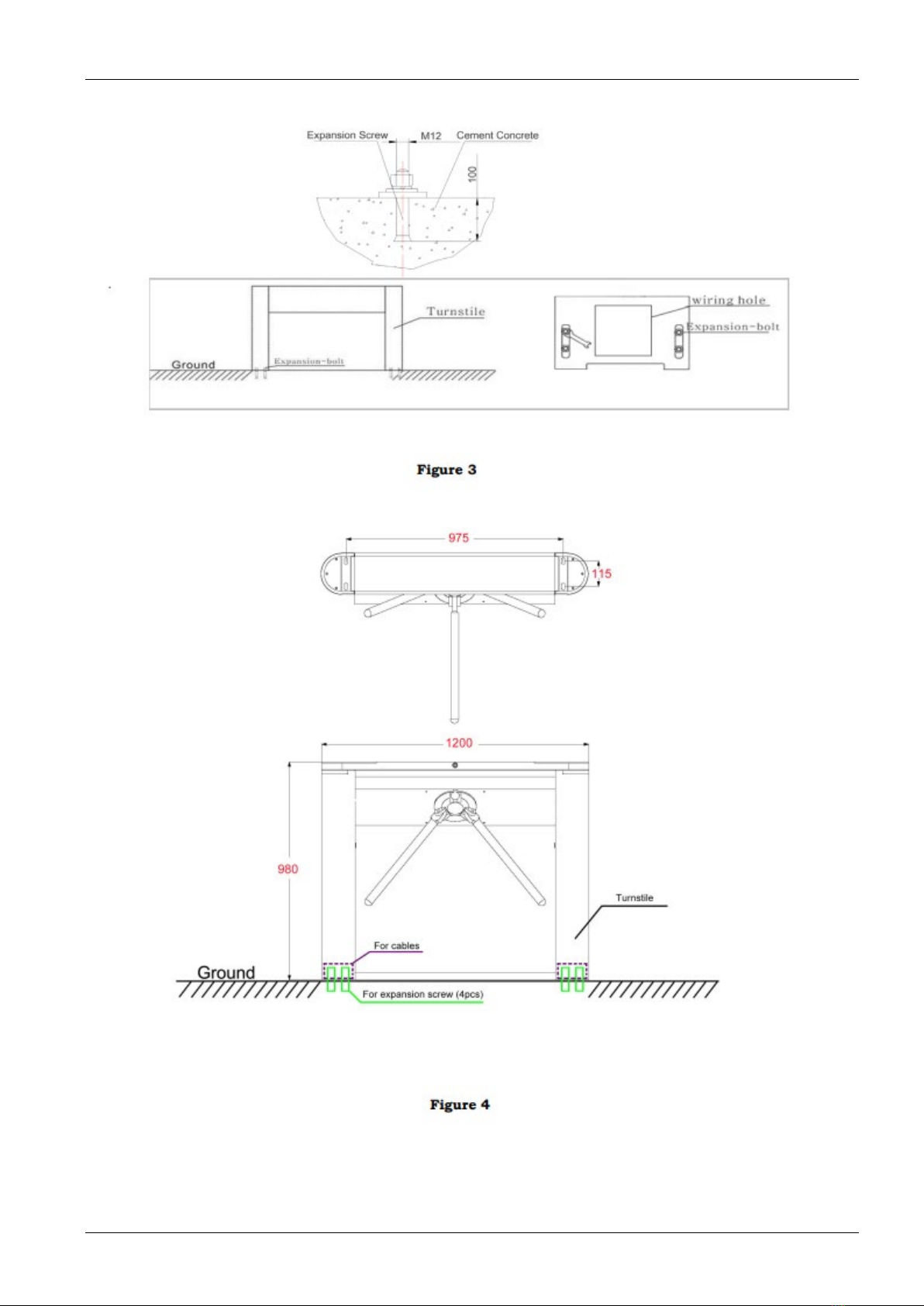

1) For cables, suggest laid 60mm deep, over 50mm, and connector area be bending to avoid water.
2) If the turnstiles install in the outside, suggest installed in concrete deep 100-200mm to avoid natural damaged.
3) All the operation should be done when power off.
4) Wear the strong electric cable and the weak electric cable are respectively with 3/4 "PVC pipe and buried to the
corresponding position with cement.
5) After adjusting the foundation surface, arrange the equipment in good order.
6) After the hole location is determined, drill the hole and embed the anchor bolt or expansion bolt of M12.
7) Open the case, select one of the equipment as the reference (preferably choose the middle one as the reference), align
the base bolt hole with the corresponding anchor bolt, and pre-tighten the nut.
8) Connect the power line and control line according to the wiring diagram, and connect the system protection ground wire.
9) Check the mains wiring according to the wiring diagram, check the power wiring and other wiring of the whole equipment
are correct, and the power can be adjusted after confirmation.
10) After completion of the installation, check the connection condition of earth wire, connector assembly for connecting
line and all moving parts with the device. Make sure the connection is firm in order to prevent failure caused by long time
operation. If any screw or part is not tightened, please tighten.
11) After the equipment status check is normal, the following functions can be debugged.

Product Instruction Communication Protocol
Page 10 of 15 ID GATE 7700

ID GATE 7700 Product Instruction
ID GATE 7700 Page 11 of 15

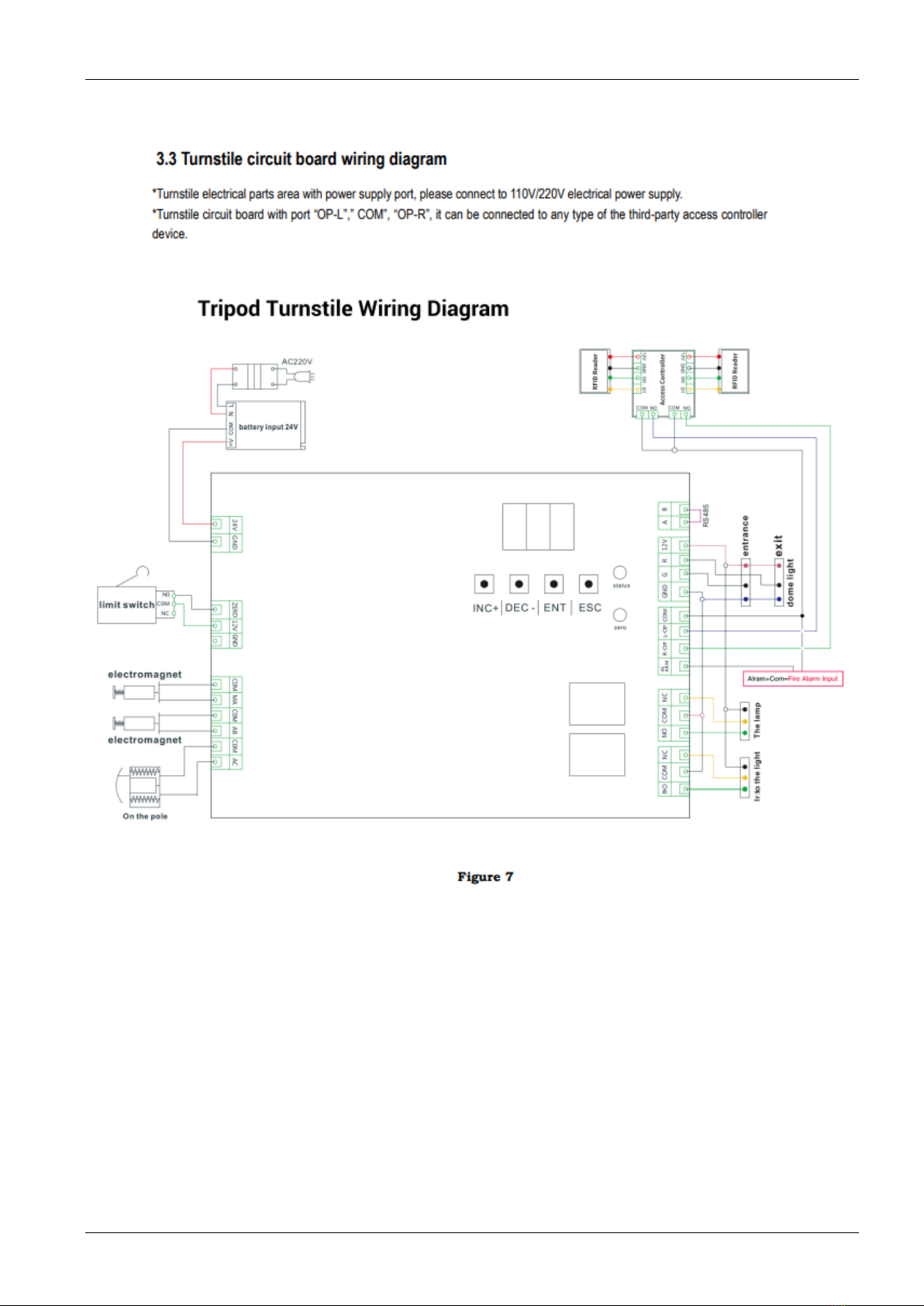

Product Instruction Communication Protocol
Page 12 of 15 ID GATE 7700

ID GATE 7700 Product Instruction
ID GATE 7700 Page 13 of 15
4. Menu Parameter Setting
4.1 Button introduction
Control board: “ENT”, “INC”, “ESC”, and “DEC”
ENT: Enter ENT setting or to determine the current modified value
ESC: Back to previous menu
4.2. Menu setting
Step1: Press “ENT “for 3s to enter, press “INC”, “DEC” to choose F01 menu list
Step 2: Press “ENT” to enter the time setting
Step 3: Press “INC”, “DEC “to set the numbers
Step 4: After finish setting, press “ENT “to save
Step 5: Press “ENT”, it will asthmatically quit from main menu
4.3. Parameter setting instruction
Control board connected to power, LED display shows <Run>
[F 0 1] Set the passage time: Within this time, pedestrian can pass the gate. If no pedestrian pass, the gate will close
asthmatically after times up( default time is 5 seconds）
[F 0 2] Access is permitted and prohibited: 0: R&L all prohibited 1: All permitted 2:Left prohibited, right permitted 3: Right
prohibited, left permitted. (default is 0）
[F 0 3] Turnstile working mode: 0: Free passage 1: Arm down when power off (default 1)
[F 0 4] Memory function: When open or close the entrance gate, if there is memory function, normally sued when one
pedestrian swipe the card but without permitted pass, the gate can save other pedestrians’ cards information.
Prohibited: 00 - when the first pedestrian swipe care and pass the second pedestrian need to swipe card too.
Permitted: 01- means the number of people allowed to swipe is the number of people allowed to pass in succession.
Permitted “means whoever swipes a valid card then they are allowed to pass (default is prohibited: 00)
[F 0 5] Repeatedly open and close the switch testing: It is mainly used for testing the stability and aging of brake control
panel. Note: in test mode, press the ESC key to exit the test.
[F 0 6] Zero signal setting: 0: close the gate/ channel immediately if the zero signal is detected (tripod turnstile standard
mode, the main board is set to 0 by default) 1: zero signals are detected, and then the gate is closed after waiting for the
zero signals to disappear (commonly used at full height turnstile).
[F 0 7] Normally open setting of turnstile: This parameter is used to detect the continuous opening signal. When the
continuous opening signal exceeds the set parameter, the system enters the normally open state. If it is a continuous
signal, the gate will always be open. After the continuous signal is disconnected, the gate will resume the standard mode.
(The default parameter is 6 seconds, that is, press the "left open" or "tight open for more than 6 seconds, the gate is
normally open, release the "open" button, and the gate is restored.)
[F 0 8] Opening time delay: This parameter can only be effective when the memory function is turned on. After the
memory function is turned on, the time delay of opening the gate for more than one person can be prevented from
opening the gate again when the previous person has not passed the channel.
[F 0 9] Back to factory settings: All main board parameters are restored to factory settings.

Product Instruction Communication Protocol
Page 14 of 15 ID GATE 7700
5. Product Maintenance
5.1 Daily maintenance
oTo avoid the risk of electric shock, always ensure the power off before inspecting.
oSuggest inspected at regular time, to ensure all parts in good working.
oThe material made by stainless steel, do not use hard material to clean it.
oFingerprints or stubborn stains cleaning way: scrub by soap water or alcohol, sponge rinse with clean water,
wipe dry as necessary.
5.2 Tips and troubleshooting
A. Tripod turnstile stay closed after swipe card
a) check if the main board receive the open signal
b) check if the opening signal wire loose or not, also Solenoid valve
c) Use a multi meter to measure whether there is 24V voltage output at the solenoid valve terminal of the main board,
and judge whether the solenoid valve is damaged
B. Tripod turnstile arms won’t fall down when power off
a) check if the electromagnet pole drop support is loose, readjust and fix it
C. When connected to power supply, lift the arm manually, the arm cannot lift
a) Check if the pole drops support of the electromagnet is loose, test whether the electromagnet is magnetic with a metal
object;
b) Use a multimeter to measure whether there is 24V voltage output at the electromagnet terminal of the main board,
and judge whether the main board has normal voltage output;
D. The main board is not energized after power on
a) Use a multimeter to check whether there is 24V voltage input at the input port;
b) Check whether the fuse is burnt out;
c) Check whether there is 24V voltage output at the output end and judge whether the power supply is damaged

ID GATE 7700 Product Instruction
ID GATE 7700 Page 15 of 15
6. Customer Service
We are very happy to help you in the future when you encounter problems or product defects, if the use or operation is
not clear, please timely contact the after-sales service staff.
