Full-height turnstile Oxgard Praktika T-10 (T-10H)
VOZROZHDENIE
METALWORKS

PROTECTING THE FUTURE

Installation instructions 3
PROTECTING THE FUTURE
Contents
List of abbreviations used ............................................................................ 4
1. Main technical parameters ....................................................................... 5
2. Design of the article ................................................................................. 5
3. Safety requirements................................................................................ 11
4. Installation of the turnstile ..................................................................... 13
4.1. Necessary equipment........................................................................ 13
4.2. Installation of the turnstile................................................................ 14
5. Connection of the turnstile:.................................................................... 25
5.1. Connection of the control board....................................................... 28
5.2. Connection of the access control system (optionally) ..................... 29
5.3. Connection of the control board to the ACS controller................... 32
Appendix 1. Short summary of the data transmission bus CAN2.0.......... 35
Appendix 2. Arrangement of the installation openings relative to the
external dimensions of the turnstile ........................................................... 36

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 4
List of abbreviations used
PSU - power supply unit
S&FA - security and fire alarm
CB - control board
ACS - access control system
NC - normally closed
NO - normally opened
Turnstile firmware version _ v1.1

Installation instructions 5
PROTECTING THE FUTURE
1. Main technical parameters
Table 1. General
Parameter
Turnstile
Console
Overall dimensions (H xWxD),
mm:
2290х1500х1375
107х107х25
Weight (net), kg
320
0.5
Temperature range, °С:
- during operation
- during transportation and storage
-40...+50
-40...+50
+1...+40
+1...+40
Relative air humidity, %, at most
95
80
Width of a created passage, mm
600
Through-flow rate, persons per
minute
20
Service life, year
8
8
Table 2. Electrical data
Parameter
Turnstile
Console
Power supply voltage, V:
220
12.0
Rated consumption power*, W
75
*- values are given for the rated power supply voltage
The original manufacturer reserves its right to change the scope of supply, technical characteristics
and external appearance of the article.
2. Design of the article
The turnstile is a normally opened (NO) barrier device.
When the power is off, turnstile authorizes passages in both directions.
The turnstile body and obstructing bars can be made of:
- power-coated steel (T-10)
- stainless steel (T-10H)

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 6
PROTECTING THE FUTURE
Both turnstile variations ensure prolonged service life of the turnstile
in adverse environmental conditions.
General view and overall dimensions of the turnstile are shown on
Fig. 2 and 3.
The turnstile consists of:
- fixed enclosure panel (1);
- mobile enclosure elements (rotatory wicket door) (2);
- fixed enclosure elements (3);
- upper module (4);
- actuator (5) within the upper module.
The general view of the turnstile is represented by Fig. 2. The middle
part of the turnstile’s upper module is provided with two removable lock
doors for fast access to the cross-board when connecting CB and ACS
cables and the power supply cable. The cable inputs shall be led to two
racks of the fixed enclosure panel (at choice) (Fig. 2).
In its initial state the turnstile is closed (the turnstile is closed for
passage in both directions).
Two options are provided for occlusion of the passage zone by the leaves
in the initial state of the turnstile to determine its possible operating
modes:
- in the initial state of the turnstile the passage zone is occluded by
one leaf; from this state the standard operating modes of the turnstile
can be assigned.

Installation instructions 7
PROTECTING THE FUTURE
Fig. 1. Initial position of the leaves

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 8
PROTECTING THE FUTURE

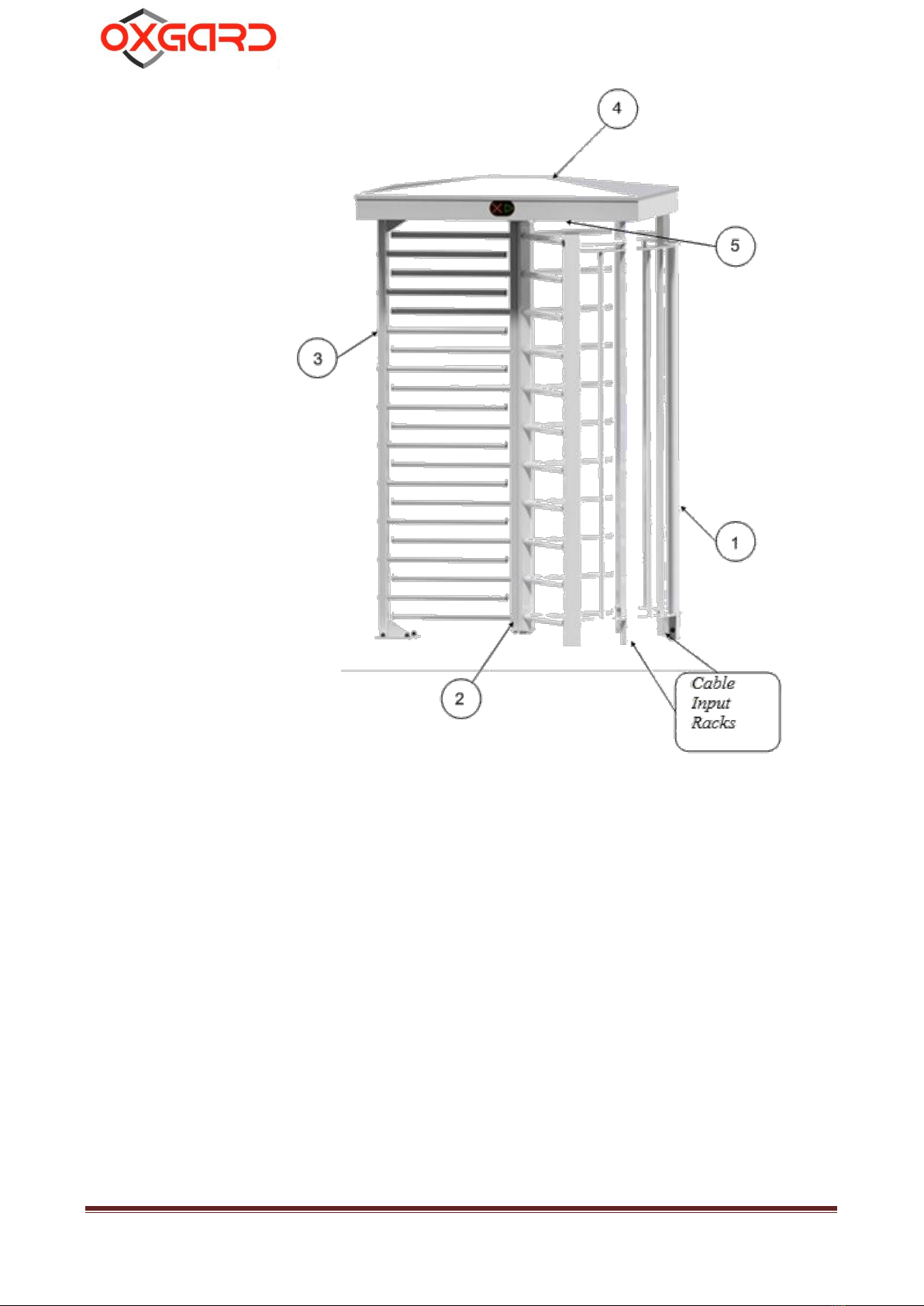

Fig. 2. General view of the turnstile.

Installation instructions 9
PROTECTING THE FUTURE

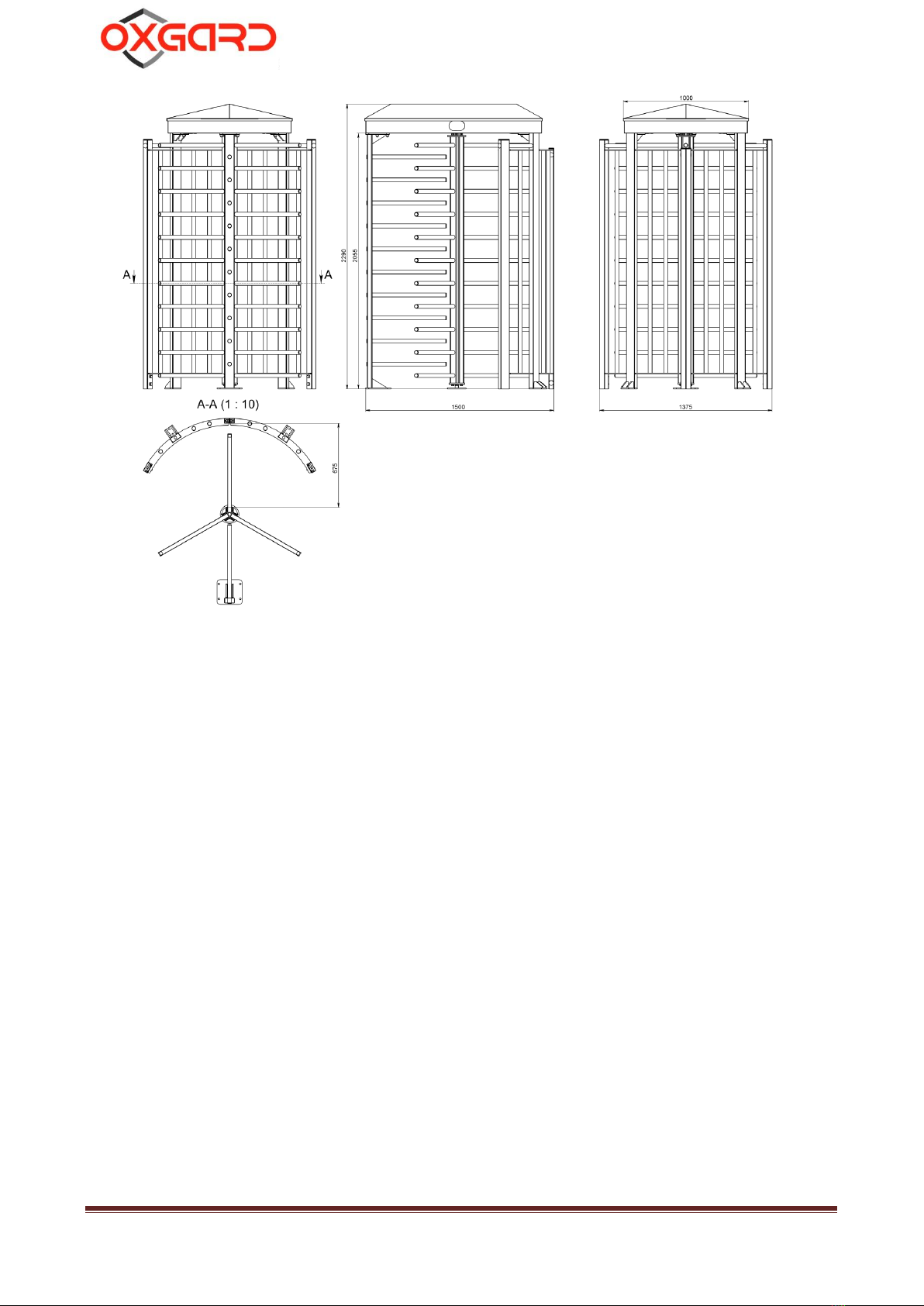

Fig. 3. General view and overall dimensions of the turnstile
Display panel
The display panel of the turnstile is located at the upper module of
the turnstile below an acrylic glass insert. The operating modes of the
turnstile are displayed on the panels (from two sides), as mnemonic
symbols for enabling/disabling the passage (Fig. 4).

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 10
PROTECTING THE FUTURE

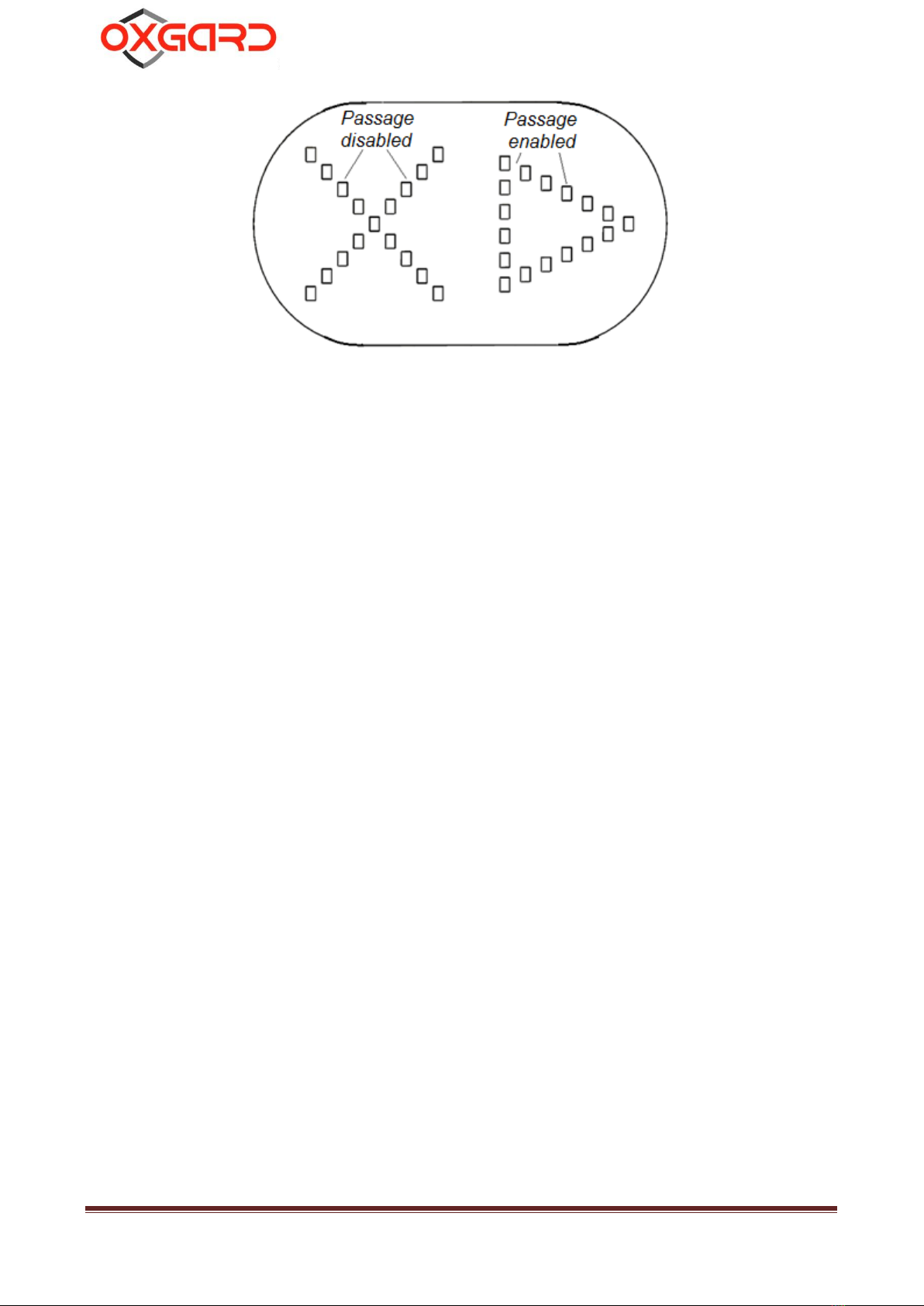

Fig. 4. External appearance of the display panel
Control board
The CB body is made of grinded stainless steel. The front side is
fitted with control buttons and LED indicators for desk operation modes
(Fig. 5). The standard length of the cable included in the scope of supply is
10 meters. The control board cable is laid in the body of the upper module
4 (Fig. 2) through the cable input rack in the fixed enclosure panel 1 (Fig.
2).
The control board cable shall be extended if necessary.
The control board shall be connected to the turnstile via the cross-
board of Fig. 16 as per Table 4.

Installation instructions 11
PROTECTING THE FUTURE
Fig. 5. External appearance of the control board
3. Safety requirements
When operating the turnstile it is required to follow general safety rules for
operating electrical installations.
It is forbidden to:
- operate the turnstile in conditions not complying with the requirements to
operating conditions
- operate the turnstile under power supply voltage different from that
specified in Table 2.
When maintaining the turnstile:
All the works shall be done only with the turnstile de-energized.
When removing and installing large-sized and heavy parts of the turnstile
be doubly careful and prevent the parts from dropping.
Operating conditions:
The turnstile is resistant to environmental impact under U2 version as per

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 12
PROTECTING THE FUTURE
GOST 15150-69 (to be operated outdoors).
IP protection code is 54.
The turnstile can be operated at ambient temperature between -40°С to
+50°С and relative air humidity up to 95% at the temperature +25°С.
The turnstile control board is resistant to environmental impact under UHL
4 option as per GOST 15150-69 (to be operated indoors under artificially
adjustable climatic conditions).
The control board can be operated at ambient temperature between +1°С
to +55°С and relative air humidity up to 80% at the temperature +25°С.
CAUTION! Non-observance of the requirements from this section can
cause damage to human life & health and full or partial loss of functions of
the article and/or auxiliary equipment.
CAUTION! The original manufacturer shall not take responsibility for
damage to human life & health, full or partial loss of functions of the
article and/or auxiliary equipment due to non-observance of safety
requirements of this section and void the warranty for this article.

Installation instructions 13
PROTECTING THE FUTURE
IT IS STRICTLY FORBIDDEN:
to use compounds and liquids for cleaning the article, which are
chemically aggressive for materials of the body.
4. Installation of the turnstile
CAUTION! The turnstile shall be reliably installed so as to avoid its
oscillation and/or capsizing in operation. If the turnstile is to be installed
on floors with low strength, take measures to reinforce the floors in the
place of installation.
Carefully study the present section of the Instructions before starting to
check the operability.
4.1. Necessary equipment
Equipment to be used for installation of the turnstile:
electric drilling machine;
18 mm-diameter carbide drill for boring anchor openings in a
floor (it is recommended to use a sleeve anchor with the bolt
FH 11-S 18/10);
19-mm wrench;
19-mm key wrench with a lever;
flat blade screwdriver;
plumbing line or mechanic’s level;
steel shims for adjustment of the turnstile;
round file;
side-cutting pliers;
500 g hammer;

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 14
PROTECTING THE FUTURE
plumbing line or mechanic’s level.
4.2. Installation of the turnstile
4.2.1. Places for installation of the enclosure panels and mobile and fixed
elements of the turnstile and cable routes shall be pre-arranged according
to the working drawing (Fig. 22).
Pay attention that cable ends come out of the ground for 4 meters as
electrical connections shall be made in the upper module of the
turnstile.
4.2.2. Surface to be used for installation of the full-height turnstile shall be
smooth and pre-arranged. For this purpose it is recommended to use
concrete or other noncombustible material.
4.2.3. By guidelines from the installation drawing (Fig. 20) mark the
location for boring by means of a pattern.
4.2.4. According to the installation dimensions (Fig. 21) prepare 9
openings with 18 mm diameter in a floor to put anchors for fixing the
turnstile stand for the depth of 80 mm. The installation openings shall be
arranged relative to external dimensions of the turnstile as per Appendix 2
(Fig. 20, Fig. 21).The depth of the insert opening shall exceed the anchor
length for 5 mm. Insert the anchors into the openings.
Caution! The anchor bolts from the original manufacturer are suitable for
solving the most of problems, however in each specific case of installation
it shall take into account environmental conditions and a type of soil on
which the turnstile is installed. All the construction works shall be
coordinated and agreed by a qualified engineer who possesses all

Installation instructions 15
PROTECTING THE FUTURE
necessary information.
The equipment shall be attached to the foundation before the
operation starts!
The original manufacturer shall not take responsibility for emergencies or
failures resulted from improper fixture of the equipment.
4.2.5. Install the C clamps of Fig. 20 by means of the bolts with anchors
(not included in the scope of supply) in the locations for fixturing of the
turnstile. Tighten the bolts to fix the expanding anchors in the soil.
4.2.6. Select a rack of the fixed enclosure panel, along which cables for
control and power supply of the turnstile will be laid to the upper module.
Prepare the cable channel from the site to the installation location of the
CB and, if required, to the place of connection of ACS and S&FA.
The cables shall be led to the upper module through the openings made
in the racks of the fixed enclosure panel (Fig. 2). It is necessary to
prepare a trench for that rack of the fixed module which will be used by
you to lay cables to the upper module.
4.2.7. Open the box and unpack the turnstile, check the scope of supply for
the following:
part of the fixed enclosure panel (1);
parts of the mobile enclosure elements (rotatory wicket door)
(2);
parts of the fixed enclosure elements (3);
parts of the upper module (4);
actuator(5);
CB with a cable;
keys for the door lock (4 pieces);

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 16
PROTECTING THE FUTURE
accompanying documentation.
Fig. 6. Installation dimensions

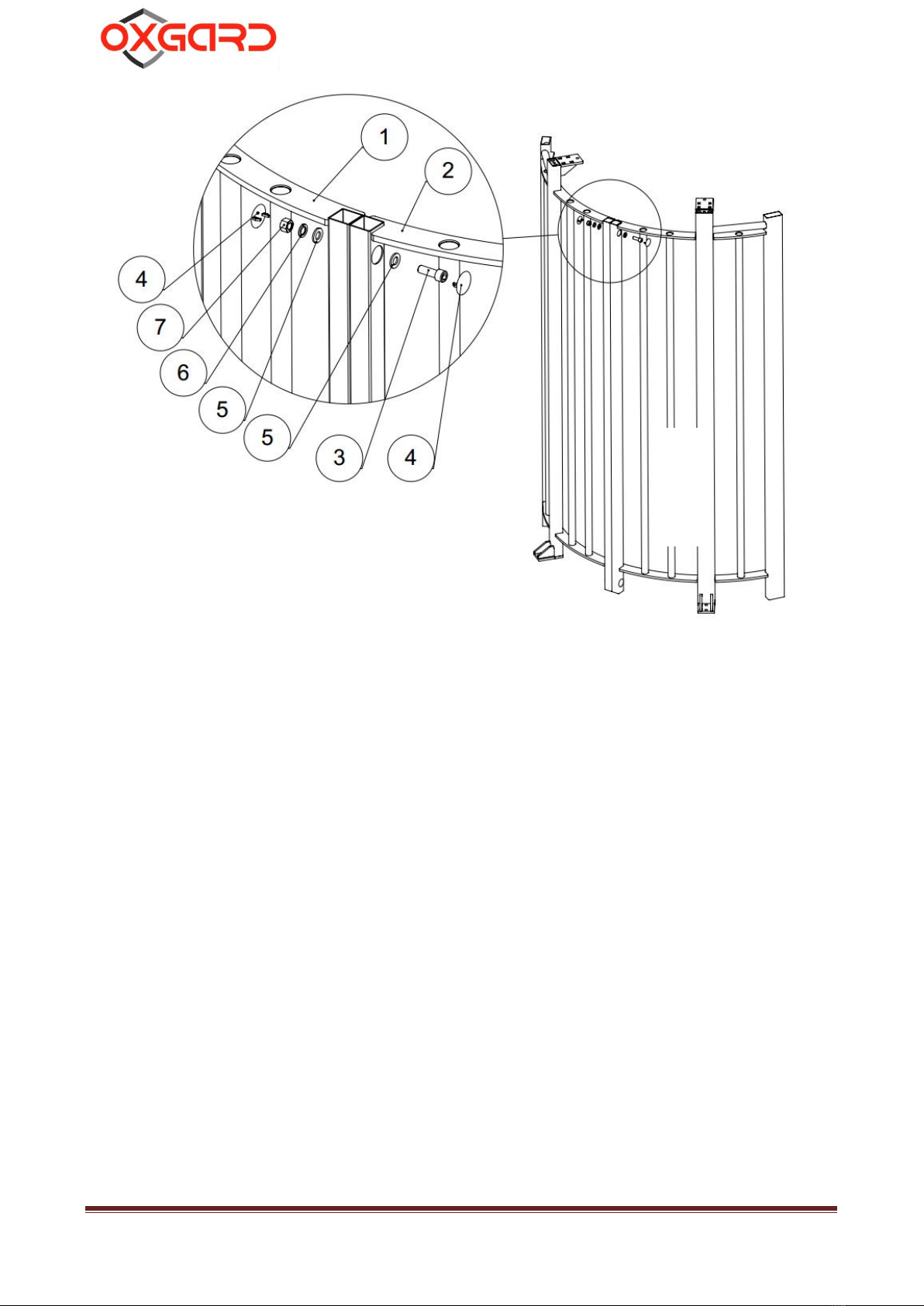

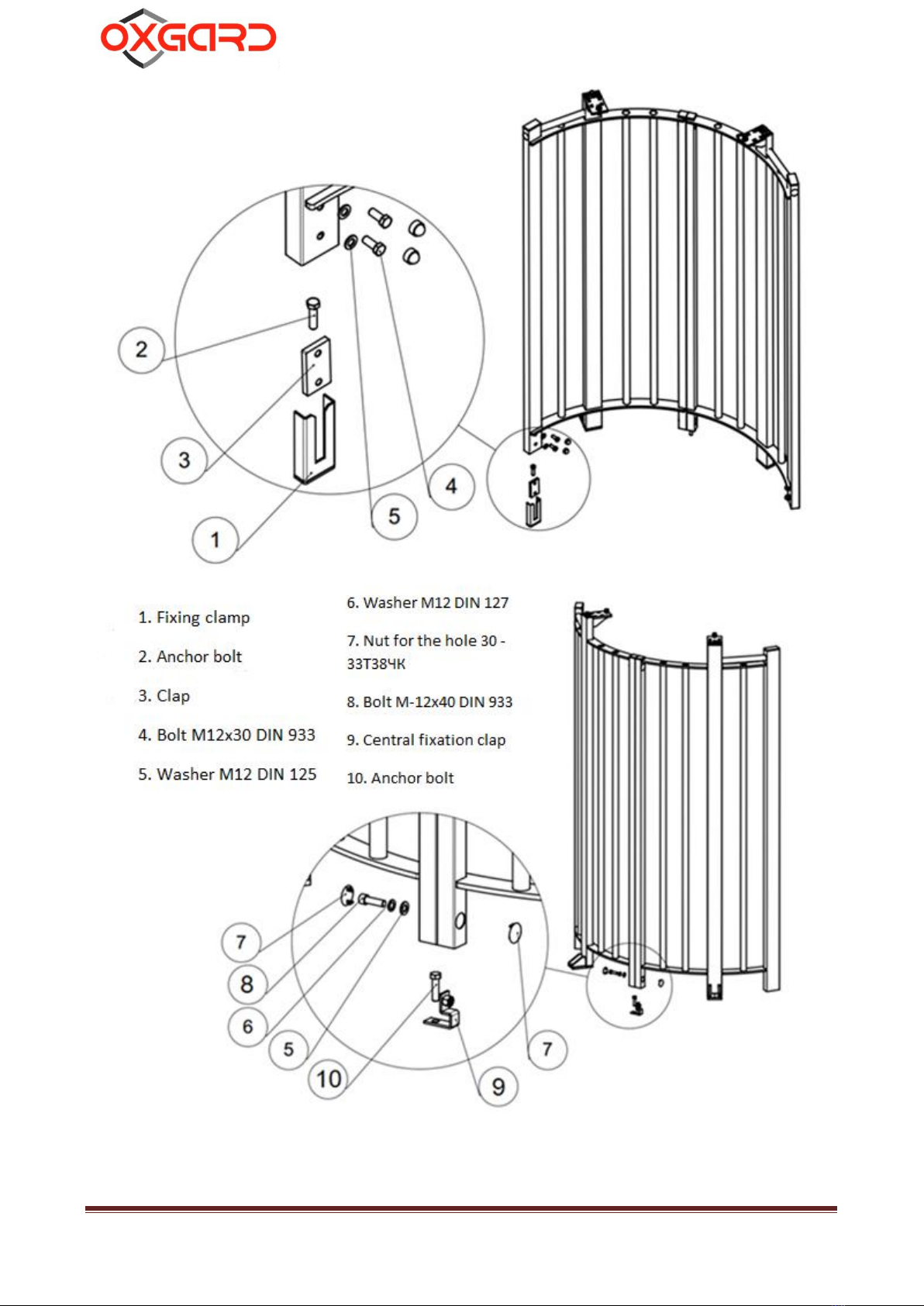

4.2.8. Assemble the fixe enclosure panel of the turnstile of Fig. 7. Install
it on the prepared site by pre-passing into its rack CB cables, power
supply cables, ACS and S&FA cables to the upper module.

Installation instructions 17
PROTECTING THE FUTURE
1 Bend section
2 Opposite bend section
3 Bolt М-12х40 DIN 933
4 Plug 30-33T38ЧK
5 Washer М12 DIN 125
6 Washer М12 DIN 127
7 Nut М-12
Fig. 7. Assembly of the fixed enclosure panel.
4.2.9. Fix the fixed enclosure panel of the turnstile with the clamps 1 (2
pcs) and central clap 10, anchor bolts 2 and 10 M12 (Fig. 8) by
screwing them into respective anchors by means of the 19-mm key.

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 18
PROTECTING THE FUTURE
Fig. 8. Fixture of the fixed enclosure panel

Installation instructions 19
PROTECTING THE FUTURE

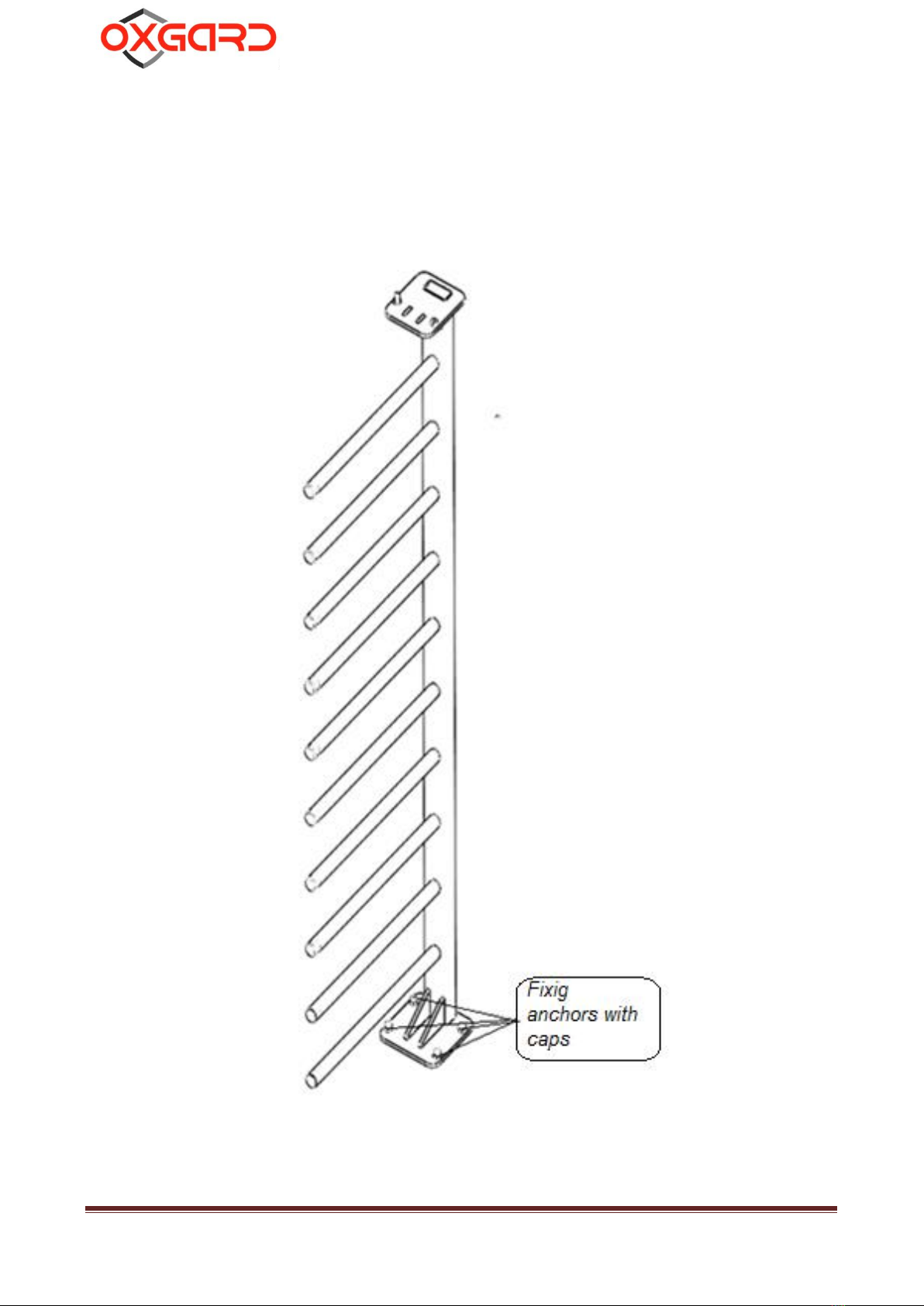

4.2.10. Install and fix the fixed enclosure element of the turnstile with
the anchors (Fig. 9) by screwing them into respective openings by
means of the 19-mm key. Install plastic caps onto heads of the fixture
bolts.
Fig. 9. Installation of the fixed enclosure element

Full-height turnstile Oxgard Praktika Т-10 (T-10H) 20
PROTECTING THE FUTURE
4.2.11. Assemble the mobile elements of the turnstile (rotatory wicket
door) of Fig.10.
•Turn the sections of the wicket door so as:
•(h upper > h lower).
Place the rotor sections onto the upper flange so as to close the passage
(Fig.1).
