IEI Technology ICPMB-8660 User manual

July 21, 2004
©Copyright 2004 by ICP Electronics Inc. All Rights Reserved.
ICPMB-8660
SOCKET 478 PENTIUM 4
Motherboard with
SATA & Ethernet & USB 2.0
User Manual
Version 1.0

Copyright Notice
The information in this document is subject to change
without prior notice in order to improve reliability, design
and function and does not represent a commitment on the
part of the manufacturer.
In no event will the manufacturer be liable for direct,
indirect, special, incidental, or consequential damages
arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected
by copyright. All rights are reserved. No part of this
manual may be reproduced by any mechanical, electronic,
or other means in any form without prior written
permission of the manufacturer.
Trademarks
ICPMB-8660 is registered trademarks of ICP Electronics
Inc.; IBM PC is a registered trademark of International
Business Machines Corporation. INTEL is a registered
trademark of INTEL Corporation. Award is registered
trademarks of American Megatrends Inc., Other product
names mentioned herein are used for identification
purposes only and may be trademarks and/or registered
trademarks of their respective companies.
SUPPORT
Any questions regarding the content of this manual or related issues can
be e-mailed to us directly at: [email protected]

Contents
Introduction...................................................................1
1.1 Specifications............................................................................... 2
1.2 What You Have............................................................................ 4
Installation.....................................................................5
2.1 ICPMB-8660’s Layout................................................................. 6
2.2 ICPMB-8660’s Dimensions (Unit : mm) ................................... 7
2.3 Unpacking Precautions............................................................... 8
2.4 COM2 RS232/RS422/485 Selection ........................................ 9
2.5 Clear CMOS Setup...................................................................... 9
2.6 Compact Flash Master/Slave Function Setting....................... 9
Connection....................................................................10
3.1 PCI E-IDE Disk Drive Connectors........................................... 11
3.2 Floppy Connector...................................................................... 11
3.3 Parallel Port Connector............................................................. 12
3.4 Serial Port................................................................................... 13
3.5 Compact Flash Storage Card Socket..................................... 14
3.6 IrDA Infrared Interface Port...................................................... 15
3.7 USB Port Connector.................................................................. 15
3.8 Keyboard/Mouse Connector.................................................... 16

3.9 Fan Connector ........................................................................... 16
3.10 Serial ATA Connector............................................................... 17
3.11 VGA Connectors........................................................................ 17
3.12 LAN Connector ......................................................................... 18
3.13 Audio Connectors...................................................................... 18
3.14 LAN LED Connector.................................................................. 19
3.15 External Switches and Indicators............................................ 19
3.16 ATX +12V Power connector..................................................... 20
3.17 RS422/485 connector............................................................... 20
3.18 Digital I/O connector.................................................................. 20
3.19 iButton connector....................................................................... 21
3.20 ATX Power connector............................................................... 21
Award BIOS Setup......................................................22
4.1 Introduction..................................................................................... 22
4.2 Starting Setup................................................................................. 22
4.3 Using Setup.................................................................................... 23
4.4 Main Menu...................................................................................... 23
4.5 Standard CMOS Setup................................................................. 26
4.6 Advanced BIOS Features............................................................. 28
4.7 Advanced Chipset Features......................................................... 31
4.8 Integrated Peripherals................................................................... 34
4.9 Power Management Setup........................................................... 38

4.10 PnP/PCI Configuration Setup.................................................... 40
4.11 PC Health Status......................................................................... 42
4.12 Frequency/Voltage Control........................................................ 42
4.13 Load Fail-Safe Defaults.............................................................. 43
4.14 Load Optimized Defaults............................................................ 43
4.15 Set Password............................................................................... 43
4.16 Exit Selecting................................................................................ 44
Appendix A. Watchdog Timer................................45
Appendix B. Address Mapping..............................47
IO Address Map.................................................................................... 47
1st MB Memory Address Map............................................................ 48
IRQ Mapping Table.............................................................................. 48
DMA Channel Assignments................................................................ 48
Appendix C. How to Upgrade a New BIOS........49
Appendix D. Install memory modules .................52

1
1
Introduction
Welcome to the ICPMB-8660 SOCKET 478 PENTIUM4 Single
Board Computer. The ICPMB-8660 board is an AGP/PCI form
factor board, which comes equipped with high performance
Processor and advanced high performance multi-mode I/O,
designed for the system manufacturers, integrators, or VARs
that want to provide all the performance, reliability, and quality
at a reasonable price.
The integrated graphics controller provides 3D, 2D, and display
capabilities.
ICPMB-8660 is supports one or two 64-bit wide DDR data
channels. Available bandwidth up to 2.7GB/s for single-channel
mode and 5.4GB/s in dual-channel mode.
For the application that needs high speed serial transmission,
the ICPMB-8660 provides USB2.0 for your choice. The high
speed USB2.0 host controller implements an ECHI interface
that provides 480Mb/s bandwidth.
ICPMB-8660 is equipped with a high speed SATA disk
interface.
Besides its better performance than traditional IDE interface, it
can also reduce the cabling of hard disk and supports longer
cable.

2
1.1 Specifications
CPU(PGA 478) Intel Pentium 4 Processor, supports 400/533/800
MHz PSB (set by BIOS)
Bus interface AGP/PCI bus
Bus speed PCI: 33MHz
DMA channels 7
Interrupt levels 15
Chipset INTEL 865G / ICH5
RAM memory Two 184-pin DIMM sockets support DDR333/400
SDRAM .Support one or two 64-bit wide DDR
data channels. The max. Memory is up to 2GB.
Ultra DMA 100
IDE interface
Up to four PCI Enhanced IDE hard drives. The
Ultra DMA 100 IDE can handle data transfer up to
100MB/s. Compatible with existing ATA IDE
specifications its best advantage, so there is no
need to do any changes for users’ current
accessories.
Floppy disk drive
interface Supports up to two floppy disk drives,
5.25”(360KB and 1.2MB) and/or 3.5” (720KB,
1.44MB, and 2.88MB)
Serial ports Four RS-232 ports with 16C550 UART (or
compatible) with 16-byte FIFO buffer. Support up
to 115.2Kbps. Ports can be individually configured
to COM1,2,3,4 or disabled.
Bi-directional
parallel port Configurable to LPT1, LPT2, LPT3 or disabled.
Supports EPP/ECP/SPP
Hardware monitor Built-in to monitor power supply voltage and fan
speed status
IrDA port Supports Serial Infrared(SIR) and Amplitude Shift
Keyed IR(ASKIR) interface
USB 2.0/1.1 port Supports 8 USB 2.0/1.1 ports for future expansion
Watchdog timer Software Programmable. Reset generated when
CPU does not periodically trigger the timer.

3
Serial ATA Supports two independent serial ATA channels. Data transfer rate is up to
150MB/s
Ethernet
PCI interface. INTEL 82540EM or Realtek
RTL8110S Gigabit Ethernet controller.
Supports full 10,100 and1000-bast-T
Ethernet
Keyboard and PS/2
mouse connector A connector is located on the mounting bracket
for easy connection to a keyboard or PS/2 mouse.
Audio AC’97 Audio CODEC
Compact flash It can be used with a passive adapter (True IDE
Mode ) in a Type I/II CF Socket.
Power consumption
PENTIUM4: 3.0GHz, 2GB DDR400 DDR-SDRAM
+5V @ 4.7A , +12V @ 6.1A , +3.3V @ 0.7A
-12V @ 0.2A , +5VSB @ 0.7A
Recommended : 350-watt power supply or higher
Operating
temperature 0°~ 60°C
( *CPU needs Cooler & silicone heatsink paste* )
WARNING : 1. Use ATX-12V power connector (CN6)
to provide power for the CPU.

4
1.2 What You Have
In addition to this User's Manual,the ICPMB-8660 package
includes the following items:
•ICPMB-8660 Single Board Computer X1.
•RS-232 Cable with bracket X1.
•FDD cable X1.
•IDE cable X2.
•SATA cable X2.
•SATA Power cable X1
•Driver CD X1.
If any of these items are missing or damaged, contact the
dealer from whom you purchased this product. Save the
shipping materials and carton in case you want to ship or store
the product in the future.

5
2
Installation
This chapter describes how to install the ICPMB-8660. First a
layout diagram of the ICPMB-8660 is shown, followed by
unpacking information that should be carefully followed. The
jumpers and switch settings for the ICPMB-8660 configuration,
such as CPU type selection, system clock setting, and
watchdog timer, are also listed.

6

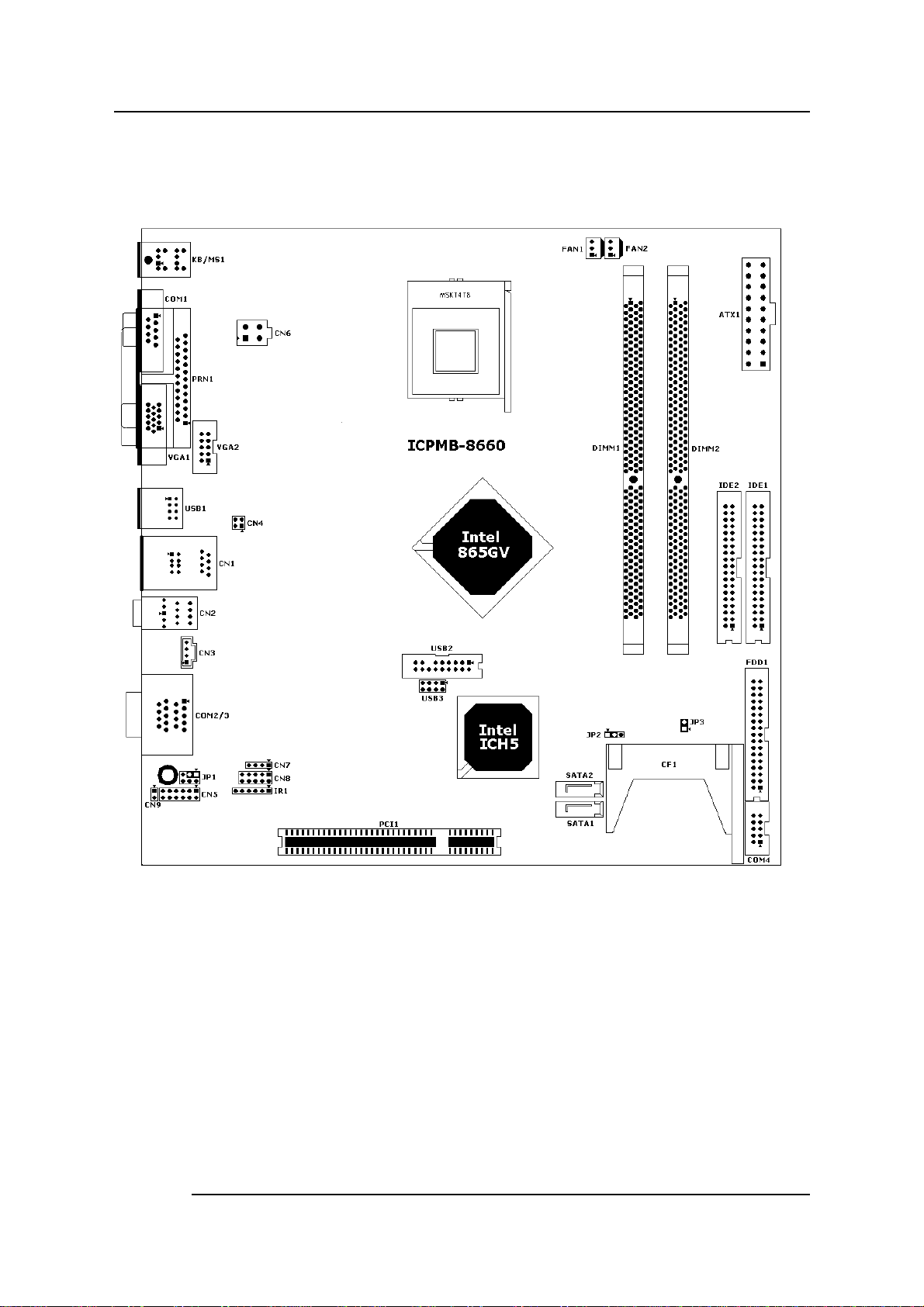

2.1 ICPMB-8660’s Layout

7

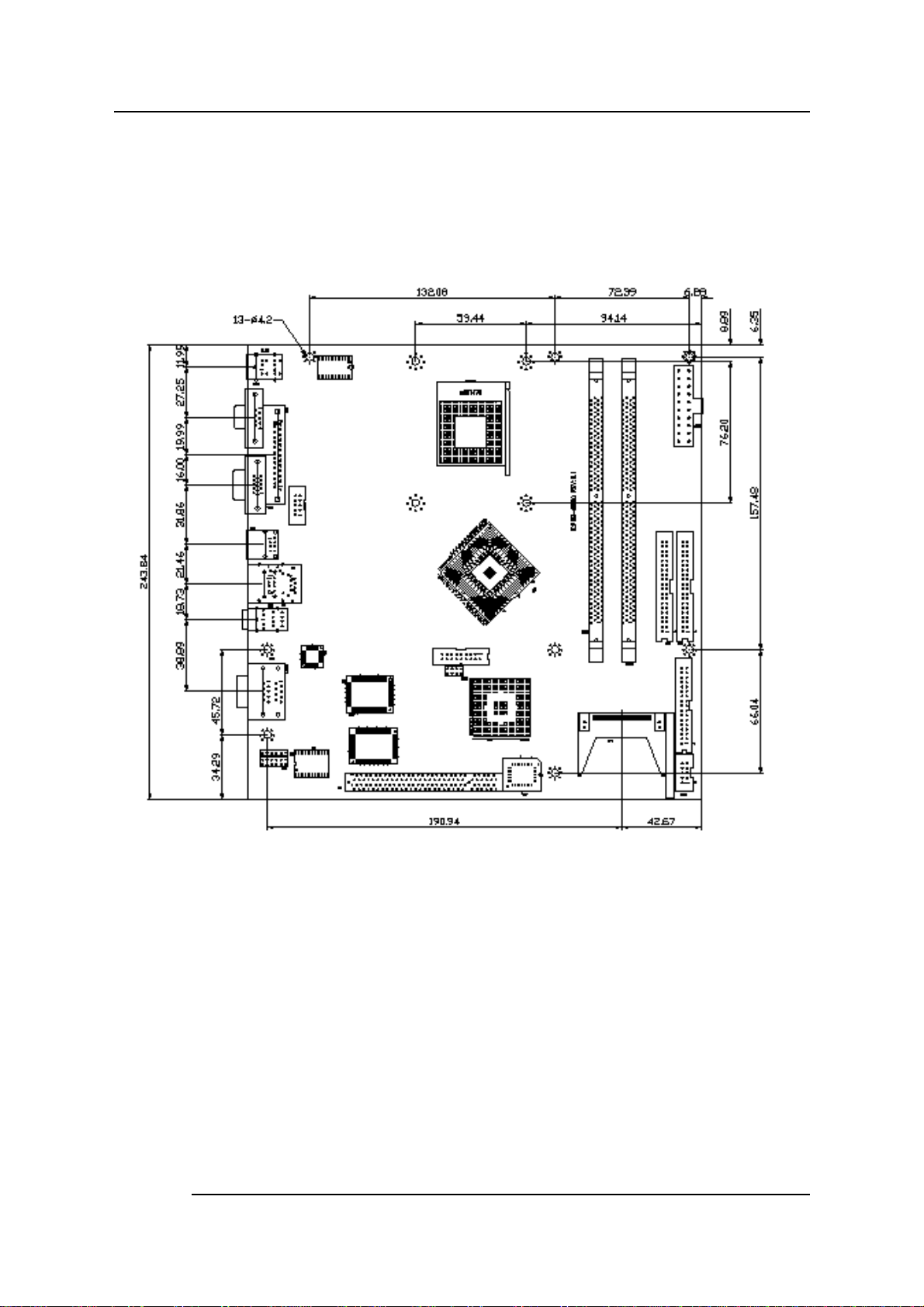

2.2 ICPMB-8660’s Dimensions (Unit : mm)

8
2.3 Unpacking Precautions
Some components on ICPMB-8660 are very sensitive to
static electric charges and can be damaged by a sudden
rush of power. To protect it from unintended damage, be
sure to follow these precautions:
 Ground yourself to remove any static charge before touching
your ICPMB-8660. You can do it by using a grounded wrist
strap at all times or by frequently touching any conducting
materials that is connected to the ground.
 Handle your ICPMB-8660 by its edges. Don’t touch IC chips,
leads or circuitry if not necessary.
 Do not plug any connector or jumper while the power is on.
Note: All shaded rows in tables of this manual are the default
settings for the ICPMB-8660.

9
2.4 COM2 RS232/RS422/485 Selection
•JP1: COM2 RS232/RS422/485 Selection
JP1 Description
1-3 Short
(default)* RS232
3-5Short
2-4 Short RS422
3-5 Short
4-6 Short RS485
Note: When RS422/485 is in use, the COM2’s RS232 port will
be disabled.
2.5 Clear CMOS Setup
To clear the CMOS Setup (e.g. you have forgotten the
password, you must clear the CMOS to reset the password),
you have to close the JP2 (2-3) for about 3 seconds, then open
it. After that, pin 1-2 has to be short for normal operation.
•JP2 : Clear CMOS Setup
JP2 DESCRIPTION
1-2
(default)* Keep CMOS Setup (Normal Operation)
Short 2-3 Clear CMOS Setup
2.6 Compact Flash Master/Slave Function Setting
•JP3 : Compact Flash Master/Slave Function Setting
JP3 DESCRIPTION
Short* Master
Open Slave

10
3
Connection
This chapter describes how to connect peripherals, switches
and indicators to the ICPMB-8660 board.
Label Function
IDE1 & IDE2 Ultra ATA100 Primary & Secondary IDE connectors
FDD1 Floppy connector
PRN1 Parallel port connector
COM1,2,3,4 Serial port connectors
CF1 Compact Flash Storage Card Type II connector
IR1 IRDA infrared interface port
USB1 USB port connector
USB2 USB dual port connector
USB3 USB dual port connector
PCI1 PCI slot
KB/MS1 Keyboard & Mouse connector
FAN1 & FAN2 FAN connectors
SATA1 & SATA2 Serial ATA connectors
VGA1 &VGA2 VGA connectors
CN1 USB dual port & LAN RJ45 connector
CN2 Audio connector
CN3 Audio CD in connector
CN4 LAN LED connector
CN5 External switches and indicators
CN6 ATX +12V Power connector
CN7 RS422/485 connector
CN8 Digital I/O connector
CN9 iButton connector
ATX1 ATX Power connector

11
3.1 PCI E-IDE Disk Drive Connectors
You can attach up to four IDE( Integrated Device Electronics)
devices.
•IDE1 : Primary IDE Connector
•IDE2 : Secondary IDE Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 CHRDY 28 REV. PULL LOW
29 DACK 30 GROUND-DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
3.2 Floppy Connector
The ICPMB-8660 board is equipped with a 34-pin daisy-chain
drive connector cable.
•FDD1 : Floppy Connector
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 2 RWC0-
3 GROUND 4 NC
5 GROUND 6 RWC1-

12
7 GROUND 8 INDEX-
9 GROUND 10 MO-A
11 GROUND 12 DS-B
13 GROUND 14 DS-A
15 GROUND 16 MO-B
17 GROUND 18 DIR-
19 GROUND 20 STEP-
21 GROUND 22 WD-
23 GROUND 24 WGATE-
25 GROUND 26 TRK0-
27 GROUND 28 WP-
29 GROUND 30 RDATA-
31 GROUND 32 HEAD-
33 GROUND 34 DSKCHG-
3.3 Parallel Port Connector
Usually, a printer is connected to the parallel port. The ICPMB-
8660 includes an on-board parallel port
•PRN1 : Parallel Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT
LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND

13

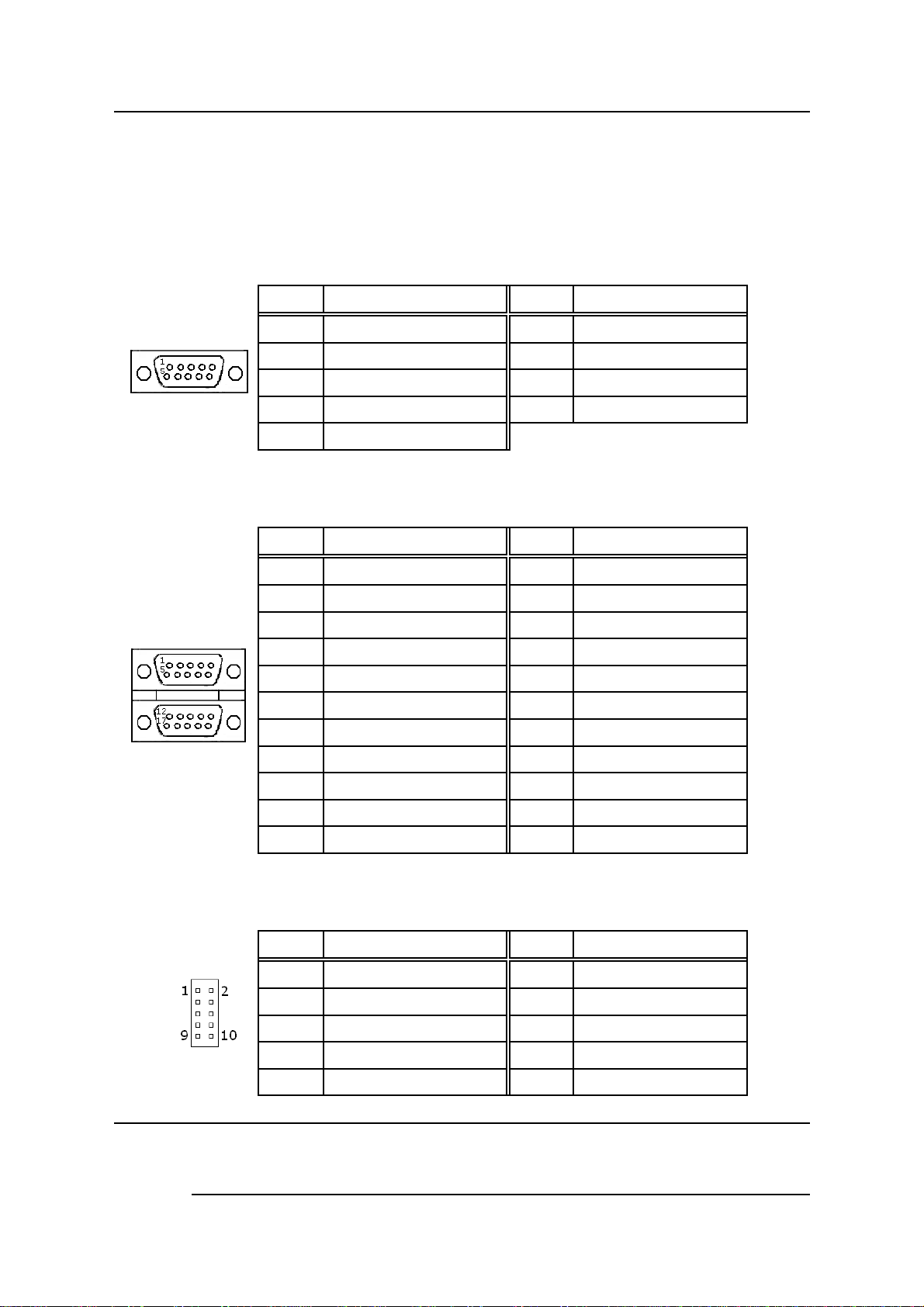

3.4 Serial Port
The ICPMB-8660 offers Four high speed NS16C550 compatible
UART’s with 16-byte Read/Receive FIFO serial ports.
•COM1: D-SUB Serial Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 (DCD3) 6 (DSR1)
2 (RXD3) 7 (RTS1)
3 (TXD3) 8 (CTS1)
4 (DTR3) 9 (RI1)
5 GROUND
•COM2/3 : D-SUB Serial Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 (DCD3) 12 (DCD2)
2 (RXD3) 13 (RXD2)
3 (TXD3) 14 (TXD2)
4 (DTR3) 15 (DTR2)
5 GROUND 16 GROUND
6 (DSR3) 17 (DSR2)
7 (RTS3) 18 (RTS2)
8 (CTS3) 19 (CTS2)
9 (RI3) 20 (RI2)
10 GROUND 21 GROUND
11 GROUND 22 GROUND
•COM4: Serial Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 (DCD4) 2 (DSR4)
3 (RXD4) 4 (RTS4)
5 (TXD4) 6 (CTS4)
7 (DTR4) 8 (RI4)
9 GROUND 10 GROUND

14
3.5 Compact Flash Storage Card Socket
The ICPMB-8660 configures Compact Flash Storage Card in
IDE Mode. This type II Socket is compatible with IBM Micro
Drive.
•CF1 : Compact Flash Storage Card Socket pin
assignment
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 26 PULL DOWN
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC
12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 VCC
20 A0 45 ACTIVE#
21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 PULL DOWN 50 GROUND

15
3.6 IrDA Infrared Interface Port
The ICPMB-8660 comes with an integrated IrDA port which
supports either a Serial Infrared(SIR) or an Amplitude Shift
Keyed IR(ASKIR) interface.
•IR1: IrDA connector
PIN DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 Ground
5 IR-TX
6 CIRRX
3.7 USB Port Connector
The ICPMB-8660 is equipped with Eight USB(Version. 2.0)
ports for the future new I/O bus expansion.
•USB1 : 2 ports USB Connector
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 5 VCC
2 DATA0- 6 DATA1-
3 DATA0+ 7 DATA2+
4 GROUND 8 GROUND
•USB2 : 2 ports USB Connector
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 2 GROUND
3 USB GROUND 4 USB GROUND
5 USB VCC 6 USB VCC
7 DATA2- 8 DATA3-
9 DATA2+ 10 DATA3+
11 USB GROUND 12 USB GROUND
14 NC
15 VCC 16 NC
17 GROUND 18 GROUND
