IFM SV0527 User manual

Operating instructions
Vortex flow meter
SV0527
SV0528
SV0529
11496698 / 0012 / 2022
GB

SV0527 SV0528 SV0529 Vortex flow meter
2
Contents
1 Preliminary note ............................................................. 3
1.1 Symbols used.......................................................... 3
1.2 Warnings used ......................................................... 3
2 Safety instructions............................................................ 4
3 Intended use................................................................ 5
3.1 Application area ........................................................ 5
4 Function ................................................................... 6
5 Installation.................................................................. 7
5.1 Non recommended installation position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Electrical connection.......................................................... 9
7 Operating and display elements................................................. 10
8 Menu...................................................................... 11
8.1 Main menu and submenus ................................................ 11
9 Parameter setting............................................................ 15
9.1 Parameter setting via the unit keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.2 Parameter setting via IO-Link.............................................. 15
10 Factory setting .............................................................. 17

Vortex flow meter SV0527 SV0528 SV0529
3
1 Preliminary note
You will find instructions, technical data, approvals and further information using the QR code on the
unit / packaging or at www.ifm.com.
1.1 Symbols used
Requirement
Instructions
Reaction, result
[...] Designation of keys, buttons or indications
Cross-reference
Important note
Non-compliance may result in malfunction or interference.
Information
Supplementary note
1.2 Warnings used
CAUTION
Warning of personal injury
wSlight reversible injuries may result.

SV0527 SV0528 SV0529 Vortex flow meter
4
2 Safety instructions
• The unit described is a subcomponent for integration into a system.
– The system architect is responsible for the safety of the system.
– The system architect undertakes to perform a risk assessment and to create documentation in
accordance with legal and normative requirements to be provided to the operator and user of
the system. This documentation must contain all necessary information and safety instructions
for the operator, the user and, if applicable, for any service personnel authorised by the
architect of the system.
• Read this document before setting up the product and keep it during the entire service life.
• The product must be suitable for the corresponding applications and environmental conditions
without any restrictions.
• Only use the product for its intended purpose (Ò Intended use).
• Only use the product for permissible media.
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage
to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with
the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be
carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

Vortex flow meter SV0527 SV0528 SV0529
5
3 Intended use
The unit monitors liquid media.
The unit detects the process categories volume flow (volumetric flow quantity/time) and medium
temperature.
3.1 Application area
• Water
• Hydrous media (deionised water, cooling water)
Pressure Equipment Directive (PED):
The units comply with the Pressure Equipment Directive and are designed and manufactured
for group 2 fluids in accordance with the sound engineering practice. Use of media from group 1
fluids on request.

SV0527 SV0528 SV0529 Vortex flow meter
6
4 Function
• The device detects flow based on the Vortex measuring principle.
• As additional process value the unit detects the medium temperature.
• The unit displays the current process values.
• The device can be operated in SIO mode (standard input-output ) or in IO-Link mode. The basic
operation mode is SIO. When connected to an IO-Link master, the device automatically switches to
IO-Link mode. Additional manual switching is not required.
Output OUT1 selection options
• Switching signal flow
• Frequency signal flow
• IO-Link
Output OUT2 selection options
• Switching signal flow
• Switching signal temperature
• Frequency signal flow
• Frequency signal temperature

Vortex flow meter SV0527 SV0528 SV0529
7
5 Installation
CAUTION
If the medium temperature is above 50 °C (122 °F), parts of the housing can increase in
temperature to over 65 °C (149 °F).
wRisk of burns.
uProtect the housing against contact with flammable substances and unintentional
contact.
uEnsure that the system is free of pressure during installation.
uEnsure that no media can leak at the mounting location during installation.
uFit the device in the pipe in accordance with the flow direction (arrow on the device).
Recommended tightening torque: 30 Nm.
1
2
Fig.1: Inlet pipe length (1) and outlet pipe length (2), direction of flow (arrow)
Structures in the pipe, bends, valves, reducing pieces and the like affect the function of the unit.
uAdhere to the distances between sensor and interference.
Disturbance Inlet pipe length (1) Outlet pipe length (2)
Non-ideal bend ≥ 5 x DN ≥ 1 x DN
Ideal bend
≥R1.8
x
DN
≥ 0.5 x DN
Multiple bends (2 x 90°) ≥ 15 x DN
Reduction of the internal pipe diameter ≥ 15 x DN ≥ 15 x DN
Valve or pump ≥ 25 x DN
Tab.1: Distances for inlet and outlet pipe lengths; DN = nominal width of the pipe
uMake sure that pipe and sensor have the same internal diameter.
uAvoid deposits, accumulated gas and air in the pipe system.
uInstall the unit so that the measuring pipe is always completely filled.
uInstall in front of or in a rising pipe.
uFor direct installation, fix the device on the housing bottom using 4 M4DIN7985 lens screws.
Maximum housing insertion depth: 5.5mm.
uMount the device in a way that no mechanical forces are exerted on the pipe. To do so, use angle
brackets if required.

SV0527 SV0528 SV0529 Vortex flow meter
8
Information about available accessories at www.ifm.com
5.1 Non recommended installation position
• Directly in front of a falling pipe.
• In a falling pipe.
• Directly in front of the spout of a pipe.
• Directly in front of a valve.
• On the suction side of a pump.
• At the highest point of the pipe system.

Vortex flow meter SV0527 SV0528 SV0529
9
6 Electrical connection
The unit must be connected by a qualified electrician.
Observe the national and international regulations for the installation of electrical equipment.
Voltage supply according to SELV, PELV.
uDisconnect power.
uConnect the unit as follows:
L
1 BN
2 WH
4 BK
3 BU
OUT1/IO-Link
OUT2
L+
43
2 1
Fig.2: Wiring diagram (colours to DINEN60947-5-2)
BK: black BN: brown
BU: blue WH: white
Pin Connection
1 L+
3 L-
4 (OUT1) • Switching signal flow
• Frequency signal flow
• IO-Link
2 (OUT2) • Switching signal flow
• Switching signal temperature
• Frequency signal flow
• Frequency signal temperature

SV0527 SV0528 SV0529 Vortex flow meter
10
7 Operating and display elements
2
3
4
1
Fig.3: Operating and display
elements
1: Switching status LED for OUT1
2: Switching status LED for OUT2
3: TFT display
4: Keys for changing views and parameter setting

Vortex flow meter SV0527 SV0528 SV0529
11
8 Menu
The figures in which the menus are displayed show the parameters that can be set on the unit by key
input. These parameters and other functions are also available via the IO-Link interface.
Configuration [CFG]
Memory [MEM]
Display [DIS]
Process value display
Main menu
Extended functions [EF]
Fig.4: Menu overview
8.1 Main menu and submenus
The displayed parameters change when the factory setting is changed. The following menu
displays show the maximum available parameters.
EF
rP1
SP1 FH1
FL1
FEP1
FrP1
SP2
rP2
CFG, MEM, DIS
FrP2
FH2
FL2
FSP2
FEP2
Process value display
Fig.5: Main menu

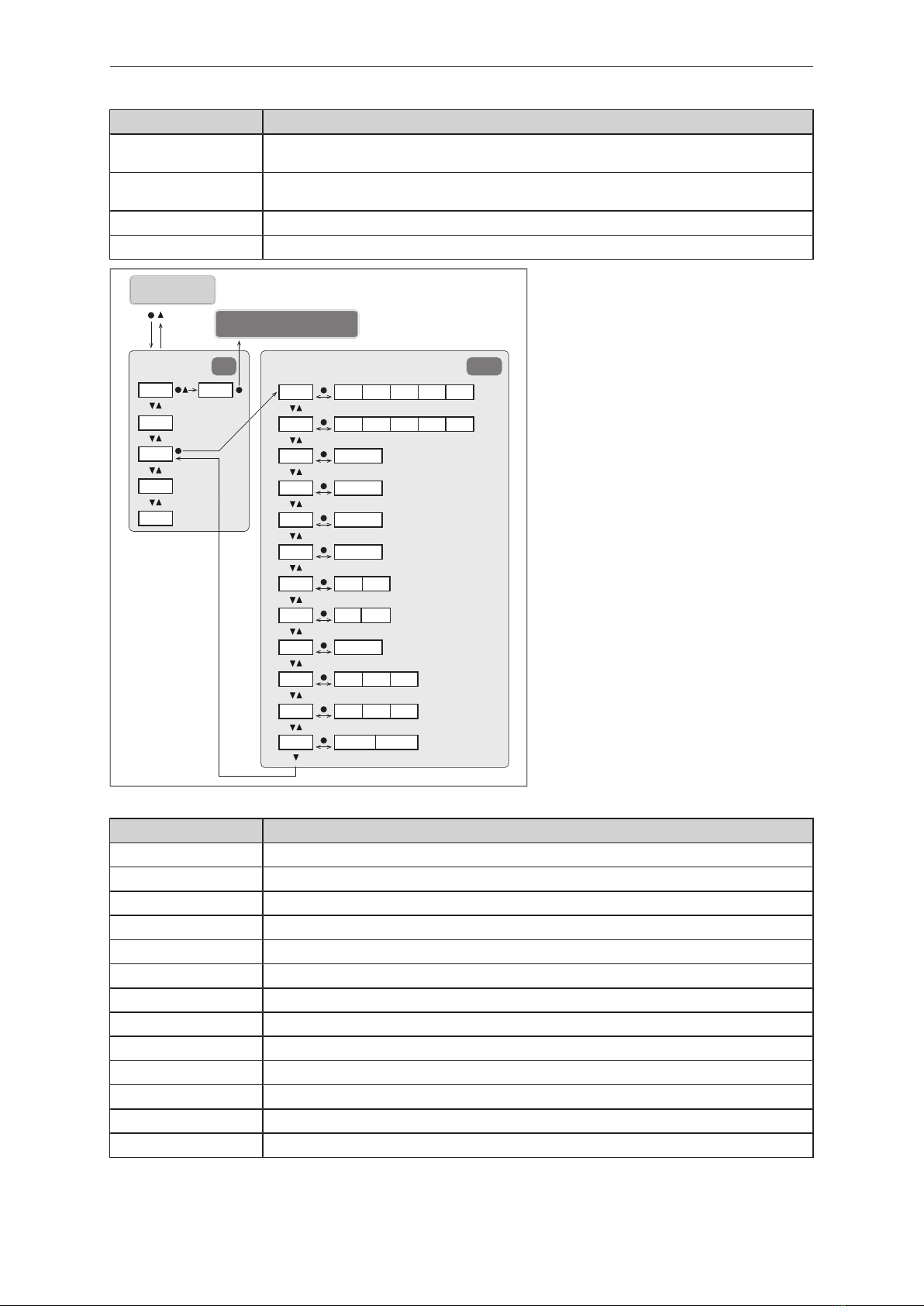

Parameter Explanation
SPx Switch point for switching output OUTx with hysteresis function
rPx Reset point for switching output OUTx with hysteresis function
FHx Upper limit for switching signal OUTx with window function
FLx Lower limit for switching signal OUTx with window function

SV0527 SV0528 SV0529 Vortex flow meter
12
Parameter Explanation
FSPx Frequency start point for OUTx = Lower measured value from which a frequency signal is output
(only for temperature measurement).
FEPx Frequency end point for OUTx = Upper measured value at which the frequency signal set under
FrPx is output.
FrPx Frequency signal that is output when the upper measured value (MEW or FEPx) is reached.
EF Change to the EF (extended functions) submenu
ou2
ou1 Hno Hnc Fno Fnc FRQ
dS1
dr1
dS2
uni
P-n
dAP
rES
CFG
- - - -
Info
FOU1
FOU2
OFFOn OU
OFFOn OU
PnP nPn
m
3
/hl/min
Hno Hnc Fno Fnc FRQ
dr2
SEL2 FLOW TEMP
DIS
MEM
----
----
----
----
----
EF CFG
Main menu
Process value display
Fig.6: Configuration [CFG] menu
Parameter Explanation
rES Reset to factory settings
Info Display of the device information
CFG Change to the CFG (configuration) submenu
MEM Change to the MEM (memory) submenu
DIS Change to the DIS (display) submenu.
oux Output configuration for output OUTx (e.g. switching output with hysteresis function)
dSx Switch-on delay for switching output OUTx in seconds
drx Switch-off delay for switching output OUTx in seconds
uni Standard unit of measurement for flow
P-n Output polarity for the switching outputs
dAP [dAP] = damping constant in seconds (63 % rise time τ).
FOUx Behaviour of output OUTx in case of an error
SELx Process value for output OUTx

Vortex flow meter SV0527 SV0528 SV0529
13
Info
CFG
rES
MEM
DIS
Lo.T
Hi.T
Lo.F ----
----
----
----
Hi.F
EF
MEM
Main menu
Fig.7: Memory [MEM] menu
Parameter Explanation
Lo.F Lowest flow value measured
Hi.F Highest flow value measured
Lo.T Minimum measured temperature value
Hi.T Maximum temperature value measured
Info
CFG
rES
MEM
DIS coL.F OFF rEd r-cF G-cFGrEn r1ou G1ou
cFH.F
cFL.F
cFH.T
cFL.T
diS.L L1 L2
diS.B
diS.U
diS.R
d1 d2 d3
0 90 180 270
25 50 75 100 OFF
coL.T OFF rEd r-cF G-cFGrEn r2ou G2ou
----
----
----
----
EF DIS
Main menu
Fig.8: Display [DIS] menu
Parameter Explanation
diS.L Standard process value of the display
diS.U Update rate of the display
diS.R Orientation of the display
diS.B Brightness of the display
coL.F Font colour for flow
cFH.F Upper limit value for colour change (flow)
cFL.F Lower limit value for colour change (flow)

SV0527 SV0528 SV0529 Vortex flow meter
14
Parameter Explanation
col.T Font colour for temperature
cFH.T Upper limit value for colour change (temperature)
cFL.T Lower limit value for colour change (temperature)

Vortex flow meter SV0527 SV0528 SV0529
15
9 Parameter setting
Parameter setting can be carried out via the IO-Link interface or via the operating elements on the
unit.
Parameters can be set before installation or during operation.
If you change parameters during operation, this will influence the function of the plant.
uEnsure that there will be no malfunctions in your plant.
During parameter setting the unit remains in the operating mode. It continues to monitor with the
existing parameter until the parameter setting has been completed.
Depending on the parameter setting, the parameters available in the menu may change.
9.1 Parameter setting via the unit keys
CAUTION
If the medium temperature is above 50 °C (122 °F), parts of the housing can increase in
temperature to over 65 °C (149 °F).
wRisk of burns
uDo not touch the device with your hands.
uUse another object (e.g. a ballpoint pen) to carry out settings on the unit.
Parameter setting process in general:
Intent Action
Change from the process value display to the main menu [●]
Change to the submenu Use [▼] to navigate to the sub-
menu (e.g. EF), then [●]
Selection of the desired parameter ▲ or [▼]
Change to setting mode [●]
Changing the parameter value ▲ or [▼] > 1 s
Acceptance of the set parameter [●]
Exit parameter setting without saving [▲] + [▼]
Return to next higher menu
(Repeat several times to reach process value display)
[▲] + [▼]
Return to the process value display > 30 seconds (timeout)
9.2 Parameter setting via IO-Link
Requirements for parameter setting via the IO-Link interface:
üA suitable parameter setting software, e.g. ifm moneo|configure
üThe Input Output Device Description (IODD) for the device, see documentation.ifm.com
üOne IO-Link master
uConnect the IO-Link master to a parameter setting software.
uSet the port of the master to the IO-Link operating mode.
uConnect the device to a free port of the IO-Link master.
wThe unit switches to IO-Link mode.

SV0527 SV0528 SV0529 Vortex flow meter
16
uChange parameter settings in the software.
uWrite parameter settings to the unit.
Notes on parameter setting Ò Manual of the parameter setting software

Vortex flow meter SV0527 SV0528 SV0529
17
10 Factory setting
Parameter Factory setting User setting
SP1 (FLOW) 20 % MEW
rP1 (FLOW) 18.5 % MEW
FH1 (FLOW) 20 % MEW
FL1 (FLOW) 18.5 % MEW
FEP1 (FLOW) 100 % MEW
FrP1 (FLOW) 100 Hz
SP2 (FLOW, TEMP) 40 % MEW
rP2 (FLOW, TEMP) 38.5 % MEW
FH2 (FLOW, TEMP) 40 % MEW
FL2 (FLOW, TEMP) 38.5 % MEW
FSP2 (TEMP) 0 % MEW
FEP2 (FLOW, TEMP) 100%
FrP2 (FLOW, TEMP) 100 Hz
ou1 (FLOW) Hno
ou2 (FLOW, TEMP) Hno
FOU1 (FLOW) OFF
FOU1 (FLOW, TEMP) OFF
SEL2 (FLOW, TEMP) FLOW
coL.F (FLOW) OFF
coL.T (TEMP) OFF
dS1 0 s
dr1 0 s
dS2 0 s
dr1 0 s
uni l/min
P-n PnP
dAP 0.6 s
diS.L L2
diS.U d2
diS.R 0
diS.B 75 %
cFH.F VMR
cFL.F MAW
cFH.T VMR
cFL.T MAW
MAW = initial value of the measuring range
VMR = final value of the measuring range
