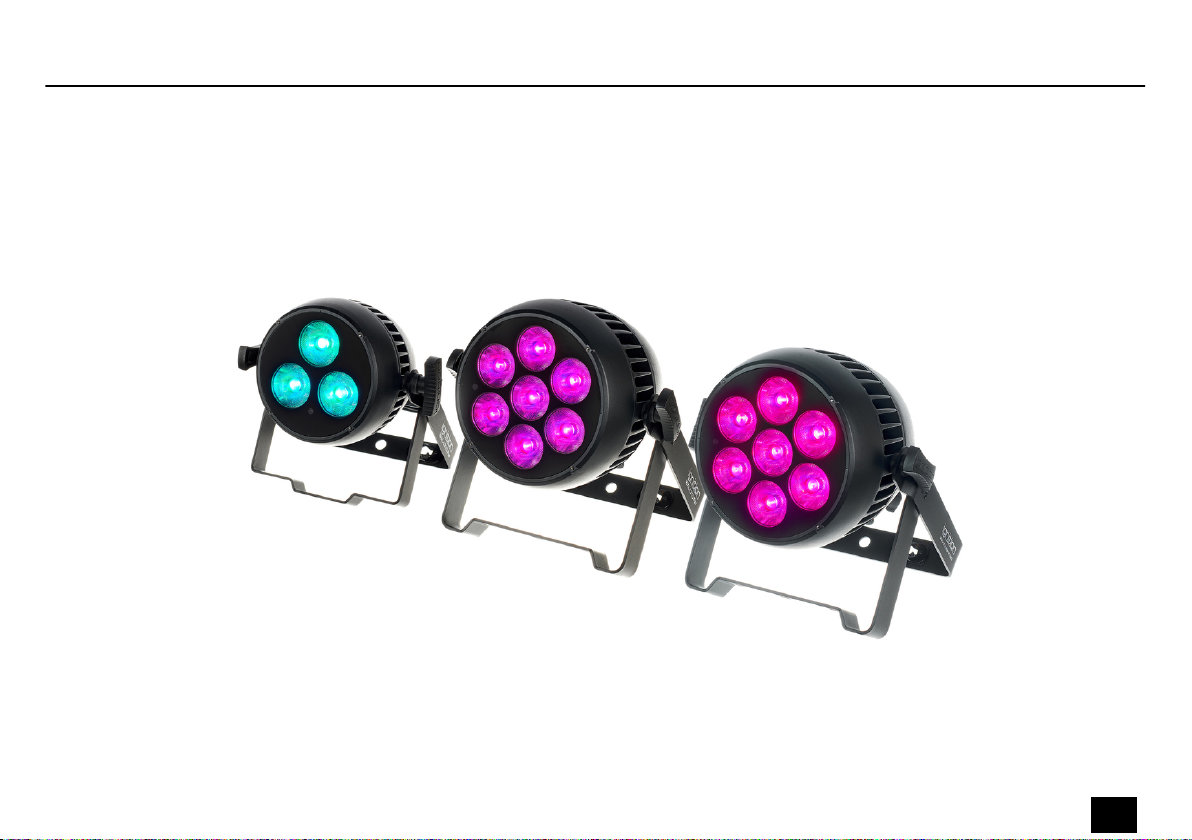

Ignition WAL-L310 Par User manual

WAL-L310 Par,
WAL-L710 Par,
WAL-L710 Par W-DMX
LED PAR
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
27.09.2023, ID: 474388 (SW V2.0), 474390 (SW V2.0), 477173 (SW V2.6) - document V6

Table of contents
1 General information................................................................................................................................. 6
1.1 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 14
5 Starting up.................................................................................................................................................. 18
6 Connections and controls................................................................................................................... 20
7 Operating.................................................................................................................................................... 24
7.1 Starting the device........................................................................................................................... 24
7.2 Operating on the unit..................................................................................................................... 24
7.3 Menu overview................................................................................................................................. 45
7.4 Functions in 4-channel DMX mode........................................................................................... 46
7.5 Functions in 6-channel DMX mode........................................................................................... 47
7.6 Functions in 9-channel DMX mode........................................................................................... 48
8 Technical specications....................................................................................................................... 53
9 Plug and connection assignment.................................................................................................... 57
10 Troubleshooting...................................................................................................................................... 58
11 Cleaning....................................................................................................................................................... 60
Table of contents
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 3
LED PAR

12 Protecting the environment.............................................................................................................. 61
Table of contents
4WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 5
LED PAR

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
6WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
General information
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 7
LED PAR

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
8WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 9
LED PAR

DANGER!
Risk of death from electrical current!
A short circuit can cause res and loss of life. Always use properly insulated, tripe-core mains cable. Do not modify the mains cable. If
the insulation is damaged, immediately switch o the power supply and have it repaired. If in doubt, contact a qualied electrician.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Do not modify the mains cable or the plug! In case of isolation damage,
disconnect immediately the power supply and arrange repair. If in doubt, seek advice from a qualied electrician.
DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
WARNING!
Danger of burns on the device surface!
The surface of the device becomes very hot during operation. Skin contact can result in burns. Never touch the device with your bare
hands during operation. After switching o the device, wait for at least 15 minutes before touching it.
Safety instructions
10 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Risk of overheating and risk of re when operated with closed barn doors!
If the spotlight is operated with the barn doors closed, there is a risk of overheating and re. In addition, even short-term operation
with the barn doors closed can reduce the service life of the LEDs. Operate the device only with open barn doors.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
NOTICE!
Risk of re by exceeding the maximum current
The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the
power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst
into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,
make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specications
in the technical specications for the device. Only use power cords with a cable cross-section designed for the required current
intensity when connecting the devices in series.
Safety instructions
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 11
LED PAR

3 Features
Splash-proof LED PAR, ideal for atmosphere illumination for outdoor use, for illumination of
buildings and stages.
Special features of the device:
nItem no. 474388: 3 × 4in1 LEDs (RGBW, 10 W each)
nItem no. 474390 and 477173: 7 × 4in1 LEDs (RGBW, 10 W each)
nControl via DMX, via RDM as well as via buttons and display on the unit
nPre-programmed automatic shows
nCustom shows
nMaster/slave operation
nInternational Protection Rating IP65
nSturdy double bracket for secure attachment to trusses or rm footing on the ground
nOmega bracket with quick lock fastener
Ignition WAL-L710 Par W-DMX (item no. 477173) in addition:
nBuilt-in receiver module for wireless control, compatible with Wireless Solution (G5)
nBarn door, diusion lter 25° and diusion lter 40° optionally available
The device supports RDM protocol communication (Remote Device Management) according
to ANSI / ESTA E1.20. It can exchange information with an RDM-compatible controller. Also
observe the instruction manual of the controller.
Remote Device Management
(RDM)
Features
12 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

Equipment with protection class IP65 are dust-tight and completely protected against contact
(rst code number). They are also protected against splash water from any angle (second code
digit). That is why this equipment can also be used outdoors. Event technology equipment is
generally only designed for temporary use however (event lighting) and not for permanent
use outdoors.
The specied protection class does not make a statement about the weather resistance of the
equipment (resistance to changing ambient conditions as well as against the eects of sun‐
light and UV rays).
The seals and screw connections of the equipment must be checked regularly to ensure a
fault-free operation. In cases of doubt, consult a specialist workshop in due time.
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Information about protection
class IP65
Features
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 13
LED PAR

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation
14 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

NOTICE!
Risk of overheating due to bad ventilation!
If the device is badly ventilated, the device can overheat.
Do not operate the unit at ambient temperatures outside the specied tempera‐
ture range (see chapter "Technical data" of the user manual).
Always ensure sucient ventilation at the operating location.
NOTICE!
Potential property damage due to unsuitable stands!
If the device is mounted on an unsuitable stand, there is a risk that the stand will
fall over and cause damage.
Only use stands whose maximum bearing capacity is at least as high as the
weight of the device. Always ensure that the stand is stable.
Installation
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 15
LED PAR

NOTICE!

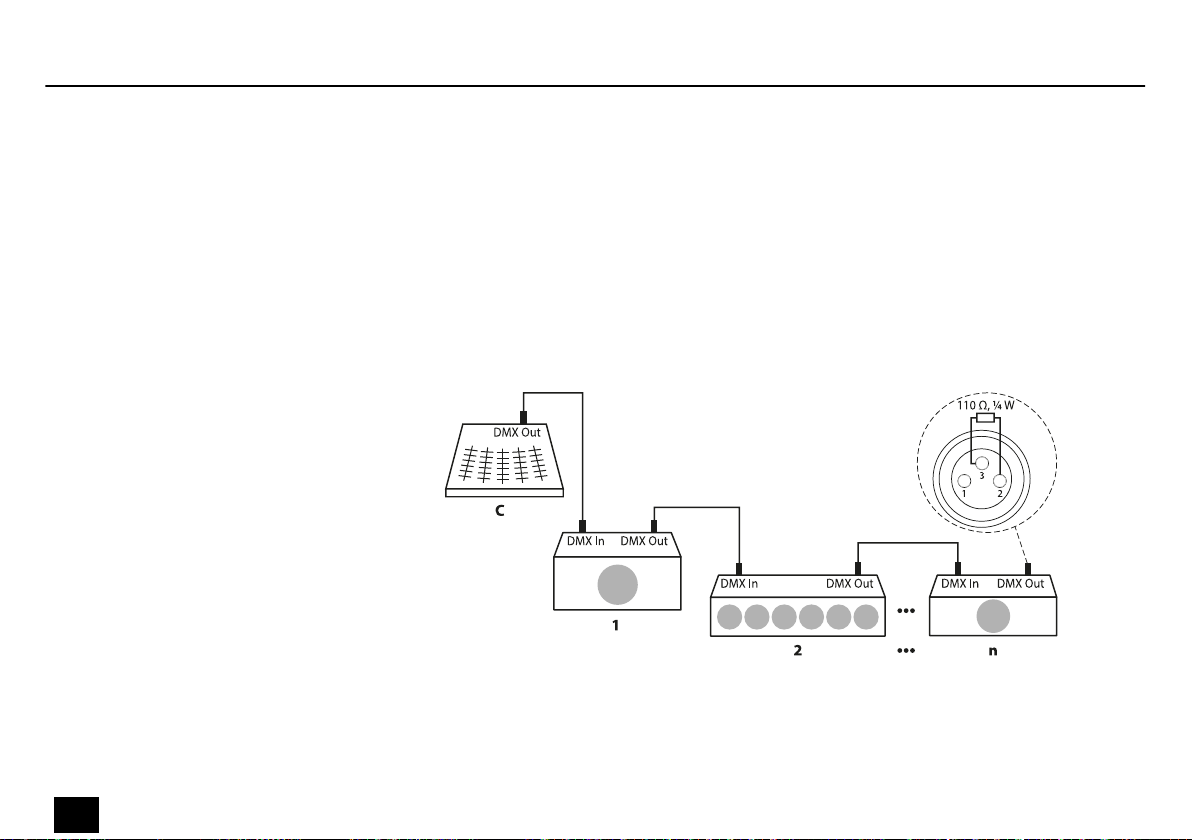

Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
NOTICE!
Possible damage due to moisture penetrating into open connectors!
Moisture entering open connectors (plugs and couplings) of DMX and power
supply cables can cause short circuits and damage to connected xtures.
Always seal unused connectors with end caps intended for this purpose
(www.thomann.de).
You can install the unit in hanging or standing positions. When in use, the device must always
be attached to a solid surface or an approved mount. Use the openings provided on the two-
piece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the unit. While
you do this, the area underneath the device must be cordoned o.
Mounting options
Installation
16 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

Please note that this device must not be connected to a dimmer.
Installation
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 17
LED PAR

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
18 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connections in master/slave
mode
Starting up
WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX 19
LED PAR

6 Connections and controls
Power In
DMX In DMX Out
Power Out
MODE SET UP DOWN
'
(
)*+,-
$ $
$
&
%
# #
WAL-L310 Par (item no. 474388)
Connections and controls
20 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX
LED PAR
