Ignition LED STUDIO PAR PLATINUM User manual

USER’S MANUAL
STUDIO PAR PLATINUM
18X4WATT RGB+WW

STUDIO PAR PLATINUM 18x4 RGB+WW
Table of contents
1.Safety instructions ........................................................................................................................... 3
1.1.Overhead Rigging.................................................................................................................... 4
1.2.Power Connection ................................................................................................................... 5
1.3.Cleaning and Maintenance...................................................................................................... 5
2.User´s Manual ................................................................................................................................. 6
3.Set Up.............................................................................................................................................. 6
4.DMX Mode....................................................................................................................................... 9
4.1.DMX SLAVE .......................................................................................................................... 12
4.2.PROGRAM MODE ................................................................................................................ 12
4.3.SPEED MODE....................................................................................................................... 12
4.4.SOUND MODE...................................................................................................................... 12
5.Technical Data............................................................................................................................... 13
2 / 2

STUDIO PAR PLATINUM 18x4 RGB+WW
1. Safety instructions
FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperatureAvoid exposing it
to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a
danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure
to hold the plug. When not using the player for an extended period of time
be sure to disconnect the plug from the receptacle.
3 / 3

STUDIO PAR PLATINUM 18x4 RGB+WW
1.1. Overhead Rigging
This Item must be built in a way that it can hold 10 times more of its weight for 1 hour without
causing any damages.
The installation must be secured with a secondary safety attachment. The safety attachment
has to be constructed in a way that no part of the installation can fall down
When rigging, de-rigging or servicing the fixture staying in the area below the installation
place, on bridges, under high working places and other endangered areas is forbidden.
Before taking the device in operation, the installation must be approved by an expert.
The operator has to make sure that safety-relating and machine-technical installations are
approved by a skilled person once a year.
Procedure:
The Device must be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including
(but not limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you lack these
qualifications, do not attempt the installation yourself, but instead use a professional
structural rigger. Improper installation can result in bodily injury and/or damage to property.
Use only professional trussing systems if the Item shall be lowered from the ceiling or high
joists. Never let the Device swing freely in a room.
Caution: Overhead Items may cause serious injuries when crashing down!! If there is
concern about the safety then DO NOT INSTALL the Device!!!!
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammable Material (decoration
articles, etc.) within a distance of min. 0.5 m.
Mount the projector with the mounting-bracket to your trussing system using an appropriate
clamp.
For overhead use, always install a safety-rope that can hold at least 12 times the weight of
the fixture. You must only use safety-ropes with quick links with screw cap. Pull the safety-
rope through the hole in the mounting-bracket and over the trussing system or a safe fixation
spot. Insert the end in the quick link and tighten the safety screw.
The maximum drop distance must never exceed 20 cm.
A safety rope which already held the strain of a crash or which is defective must not be used
again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved by an
expert!
4 / 4

STUDIO PAR PLATINUM 18x4 RGB+WW
1.2. Power Connection
!! CAUTION !!
Never leave this device running unattended!! Every person that is involved with this Item has
to be qualified!!
Connect item with the main plug. The voltage and frequency must exactly be the same as
stated on the device. The power plug must always be inserted without force.
1.3. Cleaning and Maintenance
Please make sure that safety-relating and machine-technical installations are inspected by a
skilled person once a year.
1. Make sure before installing that all screws are tightly connected and not corroded.
2. There must be no deformations on the housings, fixations and installations spots.
3. No damages must be showed on the power supply cables, material fatigue and
sediments.
If the device is going to be cleaned, please use moist, lint free cloths. Never use alcohol or
solvents!!
The cooling fan must be cleaned monthly!
To clean the interior of the device please use a vacuum cleaner or an air jet.
We recommend cleaning the lenses weekly to keep the light output as long as possible.
5 / 5

6 / 6
STUDIO PAR PLATINUM 18x4 RGB+WW
2. User´s Manual
You are able to use this device in divers operating methods.
DMX Mode – this operating method allows running the device with a customary DMX 512
controller.
Program Mode – with this operating method, you are able to choose the internal programs
Speed Mode – with this operating method, you are able to adjust the speed of the program
Sound Mode – with this operating mode, the device flashed with the tact of the music
3. Set Up

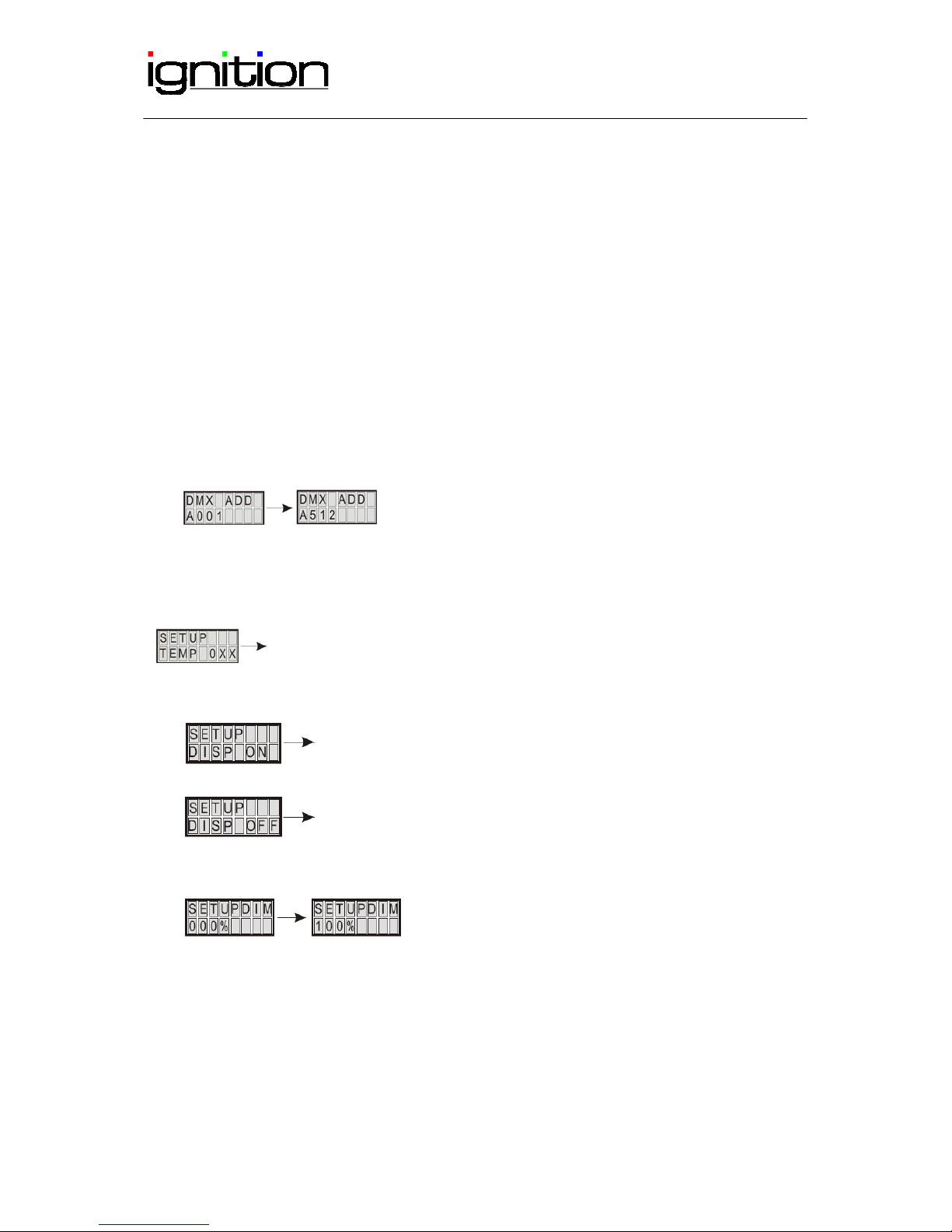

1. DMX ADD
Defines the DMX start address from 001 up to 512
2. Setup Temp
The Display shows the actual Temperature
Of the PCB from 00 to 80
3. Set UP DISP ON or OFF
Background light of the display will always be
Background light of the display will turn off after 10 seconds.
4. SET UP DIM 000% - 100%
Manual dimming 0 – 100%
This setting will overwrite all internal programs and the maximum output of the dimming
channel in DMX mode.

7 / 7
STUDIO PAR PLATINUM 18x4 RGB+WW
5. COLORSET 000% - 100% RED
Defines the maximum intensity of the color RED from 0% up to 100%.
This setting will overwrite the internal programs and the DMX control channel (white
balance).
6. COLORSET 000% - 100% GRE
Defines the maximum intensity of the color GREEN from 0% up to 100%.
This setting will overwrite the internal programs and the DMX control channel (white
balance).
7. COLORSET 000% - 100% BLU
Defines the maximum intensity of the color BLUE from 0% up to 100%.
This setting will overwrite the internal programs and the DMX control channel (white
balance).
8. COLORSET 000% - 100% WHI
Defines the maximum intensity of the color WHITE from 0% up to 100%.
This setting will overwrite the internal programs and the DMX control channel (white
balance).
9. DMX BLACKOUT/FREEZE
Adjust function if DMX Signal gets lost
Last DMX Setting will be kept
Unit will blackout if DMX Signal lost

STUDIO PAR PLATINUM 18x4 RGB+WW
10. MASTER ON/OFF
Set up master single send out ON/OFF
11. COOL MODE
1. STUDIO :
SETUPDIM 000%-080%，When the temperature is low 50℃,the fan will stop;but if
the temperature is over 50℃,the fan will circumvolve in slow speed; when the
temperature is over 70℃,DIM will drop to 60%.
2. REGULATED:
SETUPDIM 000%-100%,when the temperature is low 45℃,the fan will stop; when the
temperature is over 45℃and low 55℃, the fan will circumvolve in slow speed; when
the temperature is over 55℃, the fan will circumvolve in fast speed; when the
temperature is over 60℃,DIM will drop 2% with temperature raising 2℃.
3. POWER :
SETUPDIM 000%-100%,the fan will circumove in fast speed;when the temperature is over
70℃,DIM will drop to 60%.
8 / 8

STUDIO PAR PLATINUM 18x4 RGB+WW
11. KEY LOCK
Auto key lock,if “OFF” keys will not lock,if”10 Sec” keys will lock affter 10 Seconds,if”30 Sec”
Key will lock affter 30 seconeds. Affter key locked hit “UP”&”DOWN” 3 Seconeds to off.
4. DMX Mode
(Display flashes, if no DMX signal is connected)
Connect the signal output of your DMX controller to the xlr-socket of your device. You are
able to connect further DMX devices at the xlr-out.
DMX MODE 1
Channel Value Function
1 0 – 255 0 = OFF, 1 – 255 = divers color macros (36)
DMX MODE 2
Channel Value Function
1 0 – 255 0 = OFF, 1 – 255 = divers color macros (36)
2 0 - 255 0 = OFF, 1 – 255 Dimmer 1 – 100%
9 / 9

STUDIO PAR PLATINUM 18x4 RGB+WW
DMX MODE 3
Channel Value Function
1 0 – 255 RED: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
2 0 - 255 GREEN: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
3 0 - 255 BLUE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
DMX MODE 4
Channel Value Function
1 0 – 255 RED: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
2 0 - 255 GREEN: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
3 0 - 255 BLUE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
4 0 - 255 WHITE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
DMX MODE 5
Channel Value Function
1 0 – 255 RED: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
2 0 - 255 GREEN: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
3 0 - 255 BLUE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
4 0 - 255 WHITE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
5 0 - 255 STROBE: 0 - 15 = OFF, 16 - 255 = 1 Hz – 12 Hz
6 0 - 255 MASTER: 0 = OFF, 1 - 255 = DIMMER 1 - 100% OUTPUT
10 / 10

STUDIO PAR PLATINUM 18x4 RGB+WW
DMX MODE 6
Channel Value Function
1 0 – 255 RED: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
2 0 - 255 GREEN: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
3 0 - 255 BLUE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
4 0 - 255 white: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
5 0 - 255 STROBE: 0 - 15 = OFF, 16 - 255 = 1 Hz – 12 Hz
6 0 - 255 MASTER: 0 = OFF, 1 - 255 = DIMMER 1 - 100% OUTPUT
7 0 – 255
Special Functions
0 – 31 = inactive
32 – 63 = automatic dimming (upwards)
64 – 95 = automatic dimming (downwards)
96 – 127 = automatic dimming (upwards/downwards)
128 – 159 = automatic color cross fading
160 – 191 = random color change (3 colors)
192 – 223 = random color change (7 colors)
224 – 255 = activation of music control
8 0 – 255 Speed (CH6=0-255) slow to fast
DMX MODE 7
Channel Value Function
1 0 – 255 RED: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
2 0 - 255 GREEN: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
3 0 - 255 BLUE: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
4 0 - 255 White: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
5 0 - 255 STROBE: 0 - 15 = OFF, 16 - 255 = 1 Hz – 12 Hz
6 0 - 255 MASTER: 0 = OFF, 1 - 255 = DIMMER 1 - 100% OUTPUT
7 0 – 255
Special Functions
0 – 31 = inactive
32 – 63 = automatic dimming (upwards)
64 – 95 = automatic dimming (downwards)
96 – 127 = automatic dimming (upwards/downwards)
128 – 159 = automatic color cross fading
160 – 191 = random color change (3 colors)
11 / 11

STUDIO PAR PLATINUM 18x4 RGB+WW
192 – 223 = random color change (7 colors)
224 – 255 = activation of music control
8 0 – 255 MASTER: 0 = OFF, 1 – 255 = DIMMER 1 – 100% OUTPUT
4.1. DMX SLAVE
The device follows the functions of the master device
4.2. PROGRAM MODE
Value Function
001 color change sequence 1(4colors)
002 color change sequence 1(7colors)
003 color fade (4colors)
004 color fade (7colors)
005 color flash (4colors)
006 color change sequence 2(4colors)
007 color change sequence 2(7colors)
008 color fade(7colors)
4.3. SPEED MODE
Value Function
000 →031 Speed of Program Run
000 = STOP, 001 – 031 fast →slow
4.4. SOUND MODE
Value Function
000 →031 Sensitivity of Music
000 = OFF, 001 – 031 low →high
12 / 12

STUDIO PAR PLATINUM 18x4 RGB+WW
5. Technical Data
Power Supply 100 – 240 V/AC, 50 Hz (POWERCON)
Power Consumption Max. 115 W
Weight 6 kg
Dimensions (L x W x H) 260 x 285 x 265 mm
DMX Input 3 pin / 5 pin XLR male socket
DMX Output 3 pin / 5 pin XLR female socket
DMX Pin Assignment Pin 1: Ground / Pin2: - / Pin3: +
DMX Channels 1 / 8
LED 18 x 4in1 RGB+WW
PWM 1500Hz Refresh Rate
Angle 25°
13 / 13

14 / 14
STUDIO PAR PLATINUM 18x4 RGB+WW
Importeur:
B&K Braun GmbH
Industriestraße 1
D-76307 Karlsbad-Ittersbach
www.bkbraun.com
[email protected]
