USER’S MANUAL

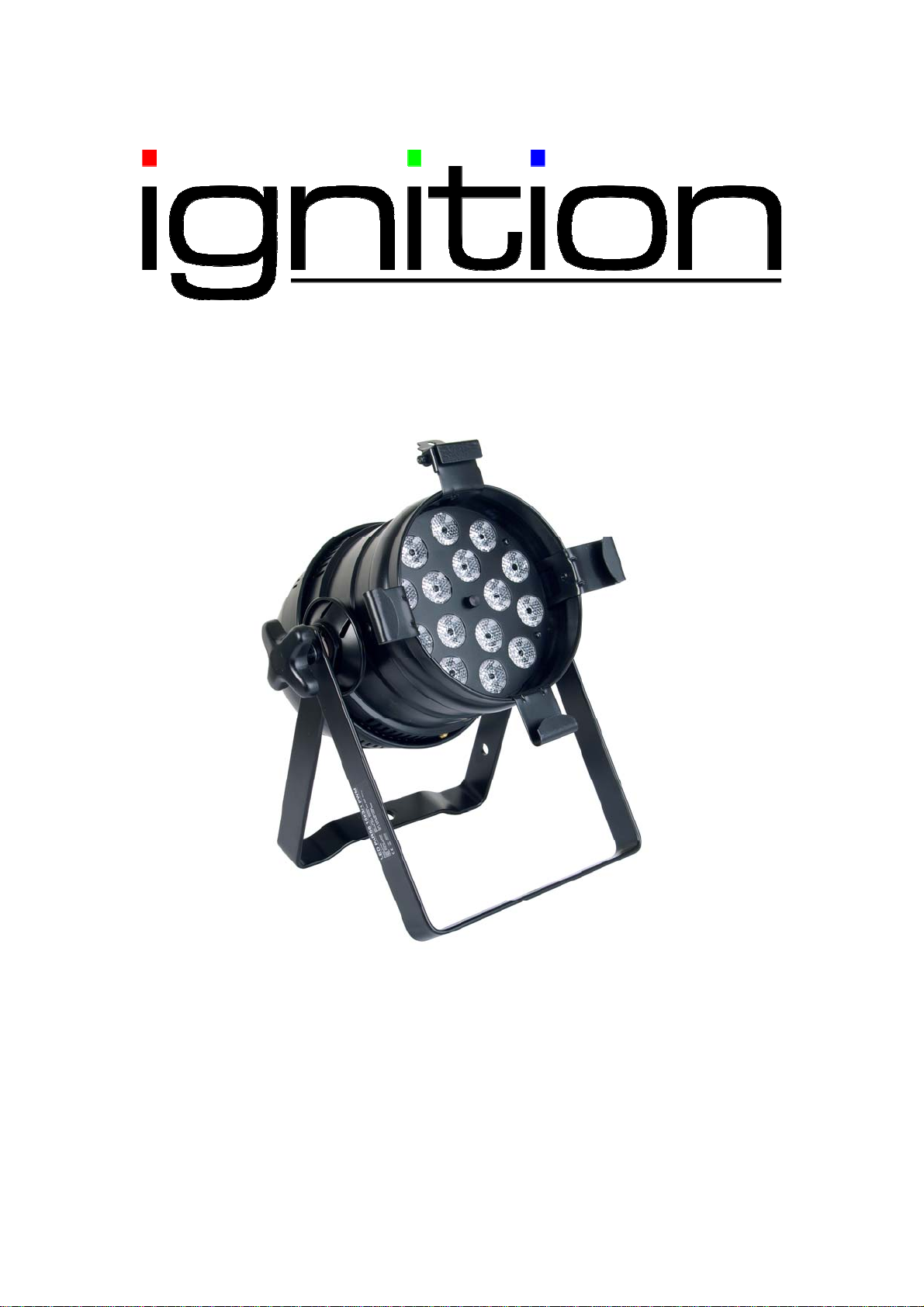

PAR 56 SHORT FLOOR 15X3W
PWM RGB

2 / 12
LED PAR56L 15x3W PWM RGB
Table of contents
1. Safety instructions........................................................................................................................... 3
2. DMX Mode...................................................................................................................................... 5
3. Set Up............................................................................................................................................. 6
3.1. DMX ADD............................................................................................................................... 6
3.2. Display settings...................................................................................................................... 6
3.3. Manual Dimmer...................................................................................................................... 6
3.4. Manual colourselection .......................................................................................................... 6
4. Reset / Hold ................................................................................................................................... 7
5. DMX Mode...................................................................................................................................... 7
6. Program Mode.............................................................................................................................. 10
7. Technical Data.............................................................................................................................. 11

3 / 12
LED PAR56L 15x3W PWM RGB
1. Safety instructions
FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperatureAvoid exposing it
to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,
do not open the cabinet by yourself, it might result a
danger of electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure
to hold the plug. When not using the player for an extended period of time
be sure to disconnect the plug from the receptacle.

4 / 12
LED PAR56L 15x3W PWM RGB
1.1 Overhead Rigging
This Item must be built in a way that it can hold 10 times more of its weight for 1 hour without
causing any damages.
The installation must be secured with a secondary safety attachment. The safety attachment
has to be constructed in a way that no part of the installation can fall down
When rigging, de-rigging or servicing the fixture staying in the area below the installation
place, on bridges, under high working places and other endangered areas is forbidden.
Before taking the device in operation, the installation must be approved by an expert.
The operator has to make sure that safety-relating and machine-technical installations are
approved by a skilled person once a year.
Procedure:
The Device must be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including
(but not limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you lack these
qualifications, do not attempt the installation yourself, but instead use a professional
structural rigger. Improper installation can result in bodily injury and/or damage to property.
Use only professional trussing systems if the Item shall be lowered from the ceiling or high
joists. Never let the Device swing freely in a room.
Caution: Overhead Items may cause serious injuries when crashing down!! If there is
concern about the safety then DO NOT INSTALL the Device!!!!
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammable Material (decoration
articles, etc.) within a distance of min. 0.5 m.
Mount the projector with the mounting-bracket to your trussing system using an appropriate
clamp.
For overhead use, always install a safety-rope that can hold at least 12 times the weight of
the fixture. You must only use safety-ropes with quick links with screw cap. Pull the safety-
rope through the hole in the mounting-bracket and over the trussing system or a safe fixation
spot. Insert the end in the quick link and tighten the safety screw.
The maximum drop distance must never exceed 20 cm.
A safety rope which already held the strain of a crash or which is defective must not be used
again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved by an
expert!

5 / 12
LED PAR56L 15x3W PWM RGB
1.2. Power Connection
!! CAUTION !!
Never leave this device running unattended!! Every person that is involved with this Item has
to be qualified!!
Connect item with the main plug. The voltage and frequency must exactly be the same as
stated on the device. The power plug must always be inserted without force.
1.3 Cleaning and Maintenance
Please make sure that safety-relating and machine-technical installations are inspected by a
skilled person once a year.
1. Make sure before installing that all screws are tightly connected and not corroded.
2. There must be no deformations on the housings, fixations and installations spots.
3. No damages must be showed on the power supply cables, material fatigue and
sediments.
If the device is going to be cleaned, please use moist, lint free cloths. Never use alcohol or
solvents!!
The cooling fan must be cleaned monthly!
To clean the interior of the device please use a vacuum cleaner or an air jet.
We recommend cleaning the lenses weekly to keep the light output as long as possible.
2. DMX Mode
You are able to work with the fixtures in 3 different modes
DMX Mode – in this Mode its possible to control via DMX Controller .
Program Mode – in thsi mode you can use the built in programs
Speed Mode – in this mode you can adjust the program speed.
Sound Mode – in this mode the fixture reacts to sound impulse.

LED PAR56L 15x3W PWM RGB
6 / 12
3. Set Up
3.1. DMX ADD.
Defines the DMX start address
3.2. Display settings
Dis
p
la
y
Back
g
round li
g
hts on.
Display background light turn off after 10s.
Display shows the temperature of the board in °C. When the
temperature is above 70°C , the output rating will reduce down to
30%, until the temperature falls back to 70°C. That’s to protect the
LED and give it a long lifetime
3.3. Manual Dimmer
Manuel dimming 0-100%
This setting overwrites every other setting like the max output in manuel or DMX mode and the
built in programs.
3.4. Manual colourselection
Determines the maximum intensity of the colour red 0 % - 100%. This setting overwrites every
other setting like the max output in manual or DMX mode and the built in programs.

LED PAR56L 15x3W PWM RGB
7 / 12
Determines the maximum intensity of the colour green 0 % - 100%. This setting overwrites every
other setting like the max output in manual or DMX mode and the built in programs.
Determines the maximum intensity of the colour blue 0 % - 100%. This setting overwrites every
other setting like the max output in manual or DMX mode and the built in programs.
4. Reset / Hold
If you push and hold +/- for more than 3 sek., the SETUPDIM will do a reset.
5. DMX Mode
DMX Mode: (Display blink, if there is no DMX signal)
Connect the signal out of you controller with the XLR in plug on the fixture.
On the XLR out you can connect other DMX controllable fixtures.

LED PAR56L 15x3W PWM RGB
8 / 12
DMX MODE 1
Chanel Value Function
1 0-255 0 = Off , 1-255 = different colourmacros (36)
DMX MODE 2
Chanel Value Function
1 0-255 0 = Off , 1-255 = different colourmacros (36)
2 0-255 0 = off, 1-255 = Dimmer 1-100%
DMX MODE 3
Chanel Value Function
1 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
2 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
3 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
DMX MODE 4
Chanel Value Function
1 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
2 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
3 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
4 0-255 STROBE: 0-15 = OFF,16-255 = 1Hz – 12Hz
5 0-255 MASTER: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT

LED PAR56L 15x3W PWM RGB
9 / 12
DMX MODE 5
Chanel Value Function
1 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
2 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
3 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
4 0-255 STROBE: 0-15 = OFF, 16-255 = 1Hz – 12Hz
5 0-255 MASTER: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
6 0-255
Special functions
0-31 = Inactiv
32-63 = Automatic Dimming (upwards)
64-95 = Automatic Dimming (downwards)
96-127 = Automatic Dimming (upwards / downwards)
128-159 = Automatic colourchase
160-191 = coincidence colour chase, 3 colours
192-223= coincidence colour chase, 7 colours
224-255= start music control
DMX MODE 6 (Compatibility mode)
Chanel Value Fuction
1 0-255 RED: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
2 0-255 GREEN: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
3 0-255 BLUE: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT
4 0-255 0 = Off , 1-255 = different colourmacros (36)
5 0-255 STROBE: 0-15 = OFF, 16-255 PULSE, SLOW – FAST
6 0-255
Special functions
0-31 = Inactiv
32-63 = Automatic Dimming (upwards)
64-95 = Automatic Dimming (downwards)
96-127 = Automatic Dimming (upwards / downwards)
128-159 = Automatic colourchase
160-191 = coincidence colour chase, 3 colours
7 0-255 MASTER: 0 = OFF, 1-255 = DIMMER 1-100% OUTPUT

LED PAR56L 15x3W PWM RGB
10 / 12
DMX SLAVE
The unit is controlled by the master unit
6. Program Mode
Program Function
001 Colourchase Sequenz 1 (3 colours)
002 Colourchase l Sequenz 1 (7 colours)
003 Colourjunction (3 colour)
004 Colourjunction (7 colour)
005 Strobe Program (3 colours)
006 Colourchange Sequenz 2 (3 coulors)
007 Colourchange Sequenz 2 (7 coulors)
008 Colourchange (6 colours)
Speed mode
Value Fuction
000 031 Programspeed
000 = STOP, 001-031 fast slow
Sound mode
Value Function
000 031 Sound sensitivity
000 = OFF, 001-031 low high

11 / 12
LED PAR56L 15x3W PWM RGB
7. Technical Data
Power Voltage 100-240V/AC, 50HZ
Powerconsumption Max 65W
Weight 2,75Kg
DMX In 3Pol XLR male socket
DMX out 3Pol XLR female socket
Measurements (L x W x H) 275 x 280 x 380mm
DMX connection Pin 1: Ground Pin2: data – Pin3: data+
DMX Channels 1/6
PWM Rate 1450Hz
