IGS Pirate Falls User manual

Please keep this manual properly for convenient reference as needed.
For safety reasons, please read the manual first before plugging in machine.
Ver.2.00

1. Safety Precautions................................................1
2. Product Description...............................................6
3. Game Description................................................14
4.Test and Setting..................................................17
2.1 Product Specification
3.1 Appearance Design
3.3 How to play
3.2 Game introduction
2.2 Overview
2.3 Parts Name
2.4 Shipment List
2.5 Packing List
2.6 Install Direction
1.2 Placing Site
1.3 Safety Precautions
1.4 Precaution during Play
1.5 Transporting and Moving
1.6 Installing and Placing
1.7 Caution & Warning Stickers
1
2
3
3
4
6
7
8
9
11
12
14
14
14
5
Table of Contents
About This Manual
1.1 Warning Stickers 1
4.1 Main-menu configuration 17
4.3.1 I/O test 20
4.2 Operating mode of main menu 18
4.3 Hardware test 19
4.3.2 Light test 20
4.3.3 Sound test 21
4.3.4 Payout test 21
4.3.5 Screen test 22
4.4 System setting 23
4.4.1 Password Check 24
4.4.2 Game setting 25
4.4.3 Time setting 27
4.4.4 Password setting 27
4.4.5 System Reset 29
4.5 Bookkeeping 29
4.5.1 Daily Income 31
4.5.2 Monthly Income 32
4.6 Troubleshooting 33
2.7 Warranty 13
5. Maintenance and Service.........................................34

6. Assembly .......................................................39
7.Printing Pattern ..................................................66
8.Wiring Diagram ..................................................67
After-sales Service
5.2.1 Replacement of light-bar on the side board 35
5.2.2 Replacement of light-bar on the light-box 35
5.2.3 Replacement of light-bar on control panel 36
5.2.4 Replacement of light-bar on the barrel 36
5.2.5 Replacement of the decorating light-bar 36
5.2.6 Replacement of button on the control panel 37
5.2.7 Replacement of the loudspeaker 37
5.2.8 Replacement of LCD 38
5.1 Maintenance and service 34
5.2 Part Replacement 35
6.1 Assembly tree diagram 39
6.2 General assembly drawing(PT-0000000) 40
6.2.1 Frame assembly(PT-0100000) 42
6.2.1.1 Wooden frame assembly(PT-0101000) 45
6.2.1.2 Left wooden-frame assembly(PT-0102000) 46
6.2.1.3 Right wooden-frame assembly(PT-0103000) 47
6.2.1.4 LCD assembly(PT-0104000) 48
6.2.2 Barrel assembly(PT-0200000) 57
6.2.2.1 No.1 bearing assembly(PT-0201000) 58
6.2.2.2 No.2 bearing assembly(PT-0202000) 59
6.2.2.3 Sensor assembly(PT-0203000) 60
6.2.3 Light box assembly(PT-0300000) 61
6.2.4 Ticket-door assembly(PT-0400000) 62
6.2.5 Control panel assembly(PT-0500000) 63
6.2.6 Lower access door assembly(PT-0600000) 64
6.2.7 Upper access door assembly(PT-0700000) 65
6.2.1.5 AC power-box assembly(PT-0105000) 49
6.2.1.6 Host assembly(PT-0107000) 50
6.2.1.6.1 Pirate treasure house(PT-0107000A) 51
6.2.1.7 Glass-frame assembly(PT-0108000) 52
6.2.1.8 Right loudspeaker mesh assembly(PT-0109000) 53
6.2.1.9 Left loudspeaker mesh assembly(PT-0110000) 54
6.2.1.10 Decorative light-bar assembly(PT-0111000) 55
6.2.1.11 Control-panel button assembly(PT-0112000) 56

1.1 Warning Stickers
1.2 Placing Site
In order to avoid injury to related people and damage to property, please
observe the followings:
PLEASE READ FIRST
PLEASE READ FIRST
The following marks can be used to indicate the magnitudes of risk and
damage caused by ignorance or improper operation:
Warning
Warning
Warning
Warning
Caution
Caution
means “may result in serious injury or death”
means “may result in minor injury or property
damage”
Serious Injury
Serious Injury
: refers to the situations in which hospital treatment or long-term treatment
will be accepted because of losing sight, getting hurt, getting burnt, electric
shock, fracture or intoxication.
Minor Injury
Minor Injury
: refers to the cases that there is no need to go to hospital or accept long-term
treatment.
Property Damage
Property Damage
: refers to the damage of house, facility, or hurt of livestock and pet
This machine is designed for indoor use only. Never install the machine
outdoors. Meanwhile, please avoid the following locations indoor：
please make sure the place line has been grounded before product
installation, setup, testing, operation or repair
The rear part has the vent for heat emission from PC or screen.
Don’t place anything nearby to avoid game failure.
Provide a space of minimum 30cm between the rear of the machine
and the wall for good ventilation and heat emission
1
1. Safety Precautions
Direct sunlight, water leakage, damp and high temperature places.
Near Flammable, volatile, or/and dangerous substance.
Slope, unstable places or locations subject to frequent vibration.
Near emergency exit, fire extinguisher or similar equipment.

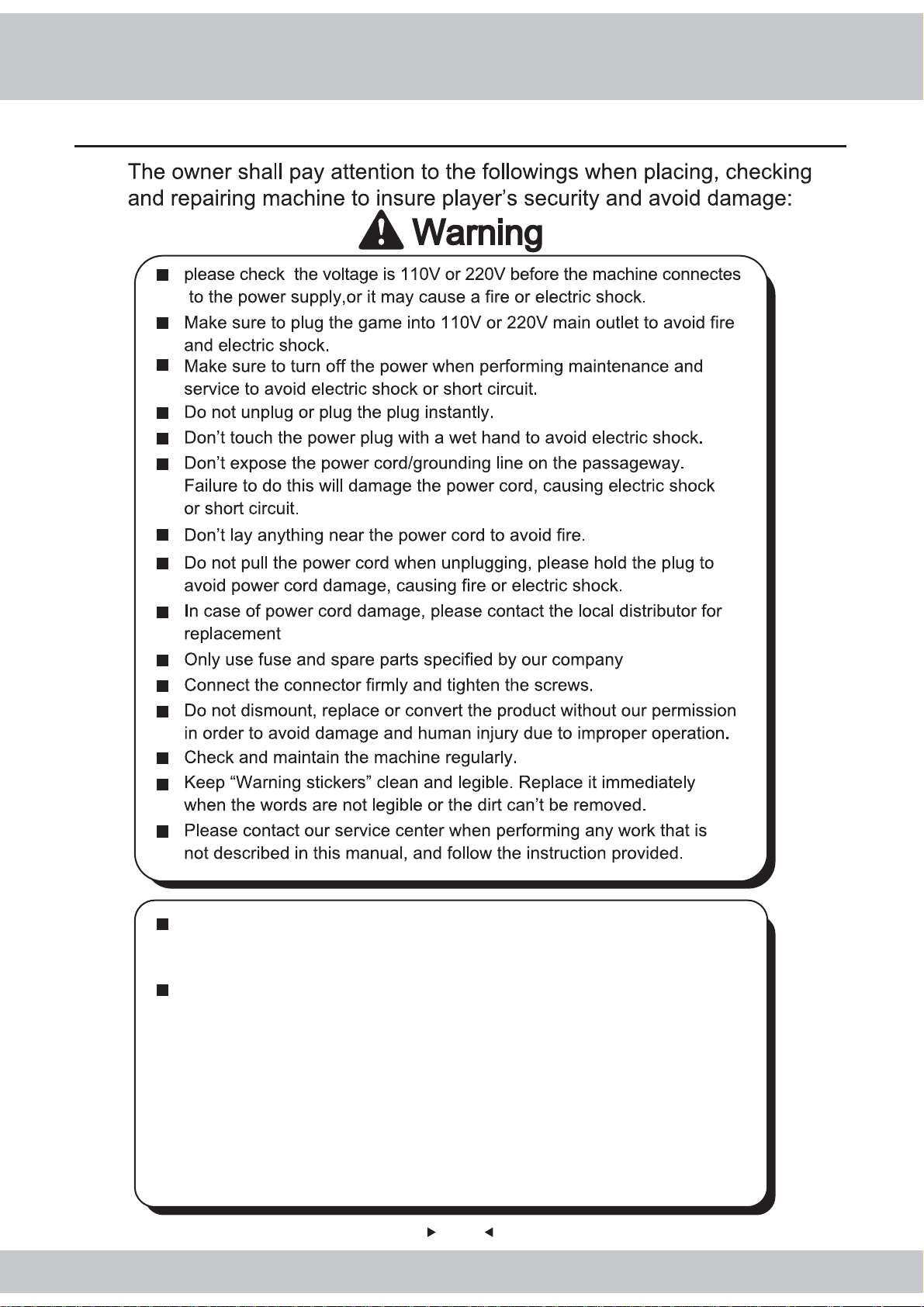

1.3 Safety Precautions
2
This equipment has been tested and found to comply with the limits
for a Class A of EN 55032. Operation of this equipment in a
residential environment could cause radio interference.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

3

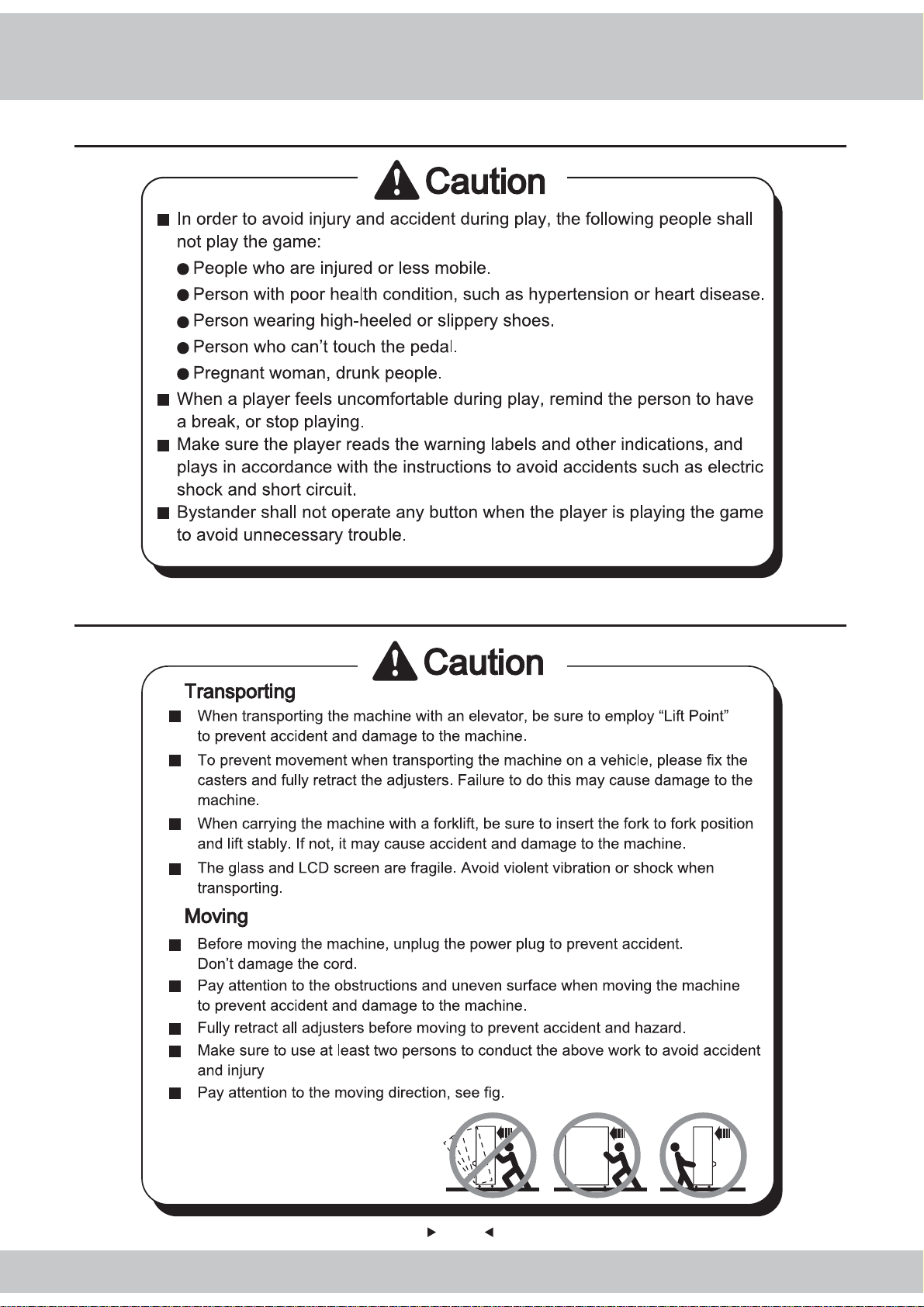

1.4 Precautions during Play
1.5 Transporting and moving

Warning
Warning
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
The appliance is not suitable for installation in an area where a water jet
could be used.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
4
1.6 Installing and Placing

5

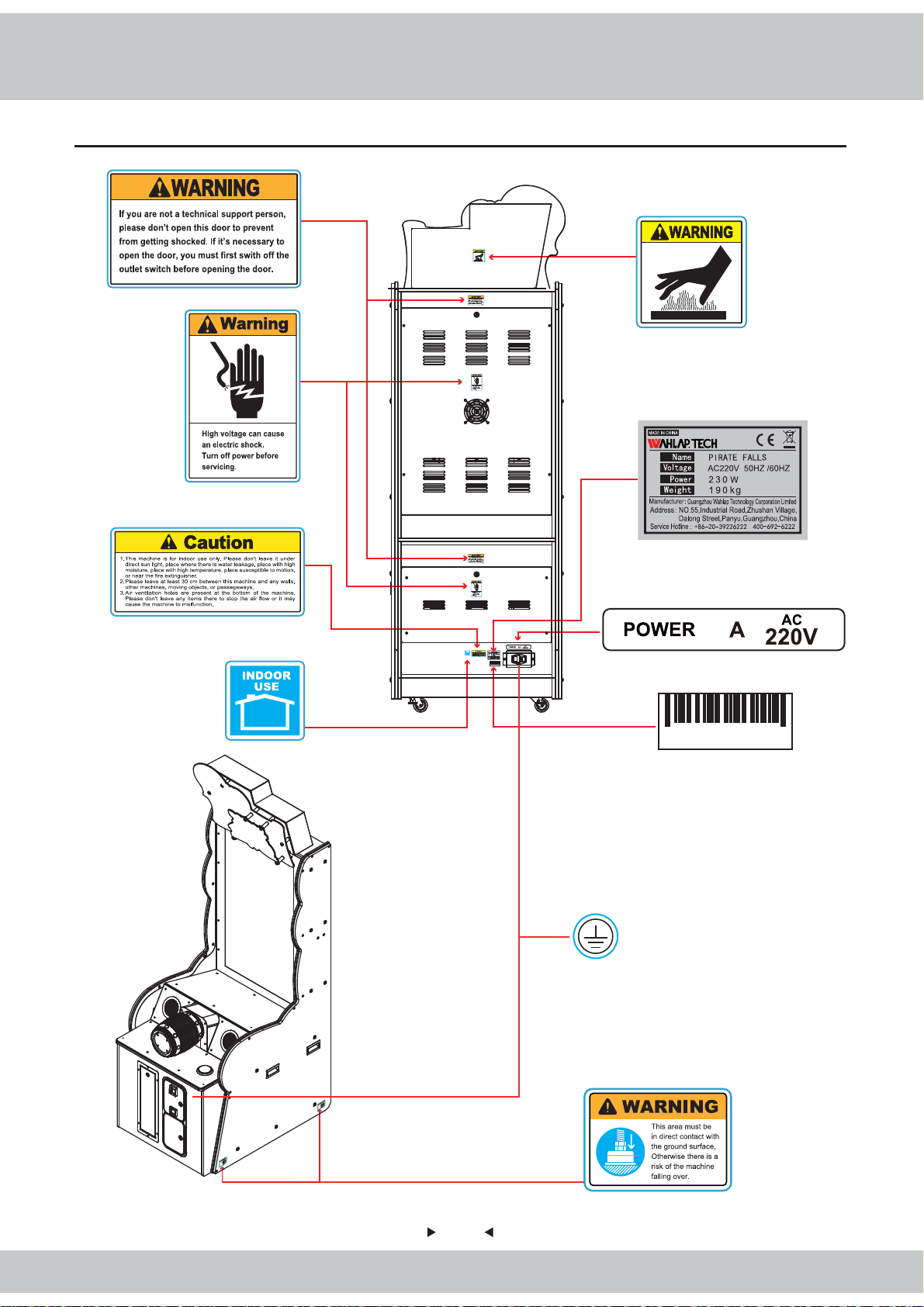

1.7 Caution & Warning Stickers
*4
*2
*2
*2
4

6
Indoor Only
230W
190kg
Location
Dimension
Rated Voltage、Frequency
Power Consumption
Weight
AC220V 50HZ /60HZ
AC110V 50HZ /60HZ
NOTE:The contents herein described are subject to change without notice.
2. Product Description

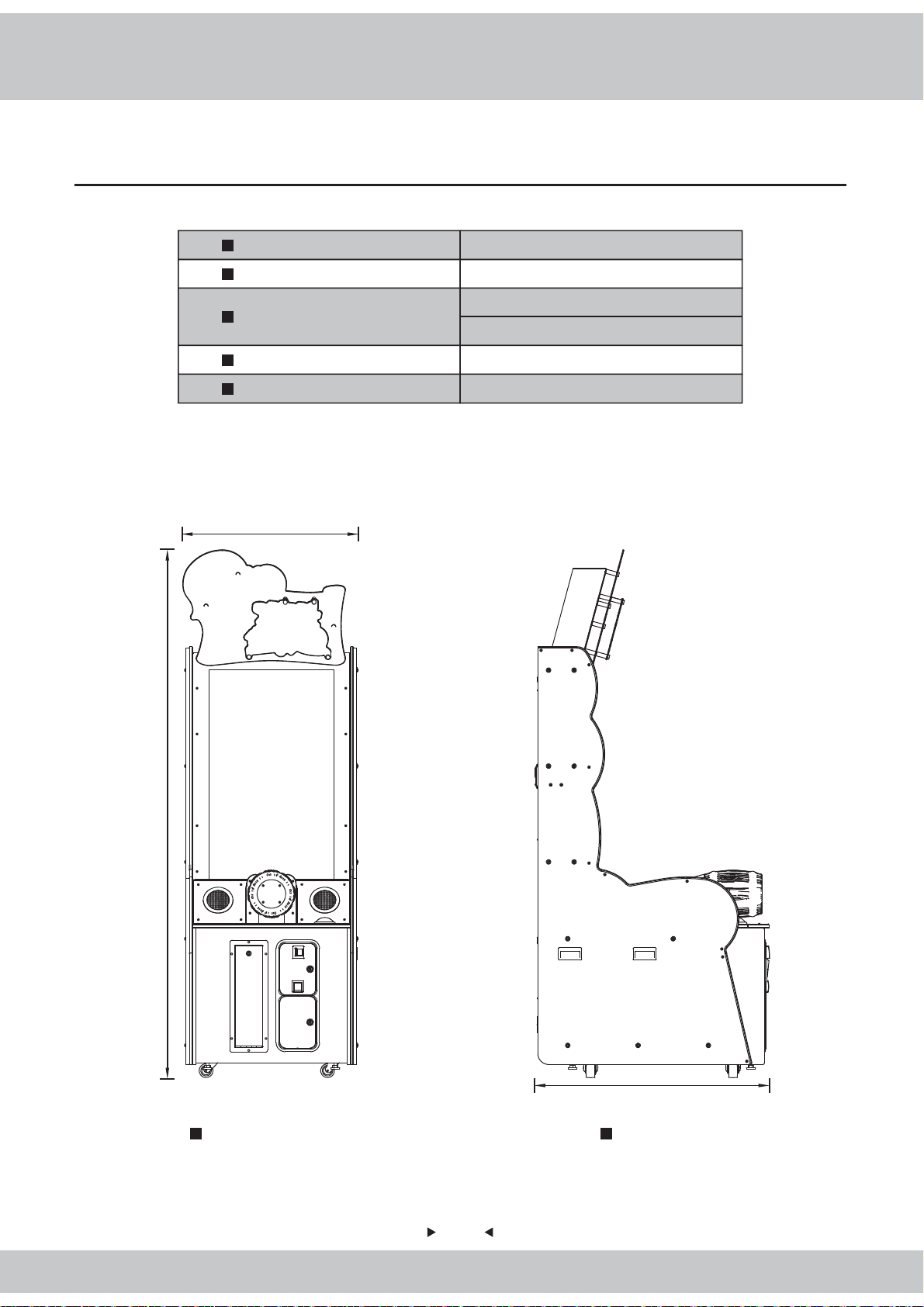

2.1 Product Specification
Front View Side View
* 110V voltage can be set through the transformer and fuse. Please contact the distributor for details.
800(W)×1100(D)×2475(H) mm
2475mm
800mm
1100mm

7
Rear View
Bottom View
2.2 Overview
Side View
Top View

8
2.3 Parts Name
Light box pirate decorations
Signboard arcylic
LCD
Game-machine frame
Loudspeaker
Barrel assembly
Ticket door
Coin door
Control panel
Light box
Upper access door
Lower access door
Filter

9

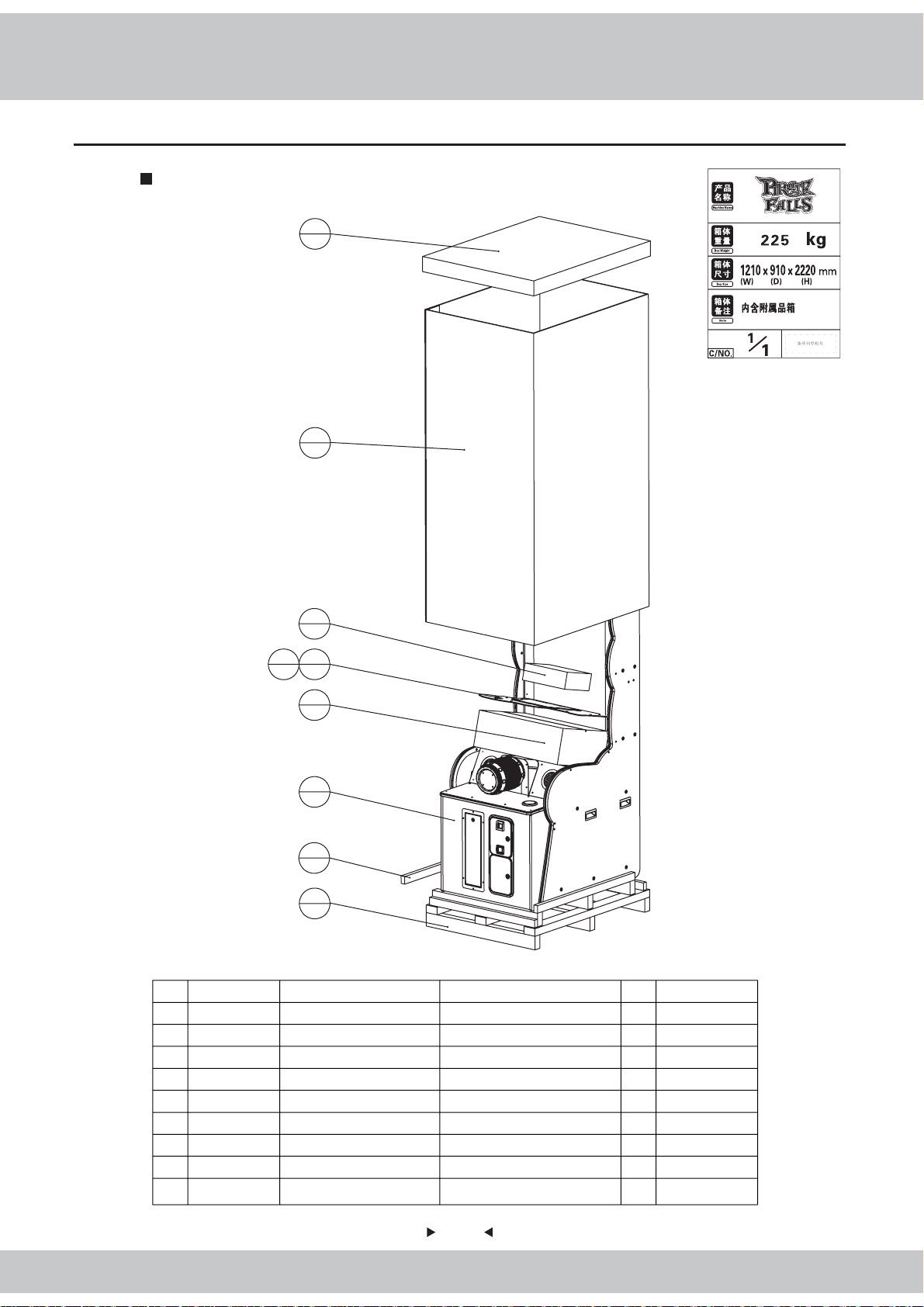

2.4 Shipment List
Packing Carton 1
7
1
6
1
5
1
9
1
4
1
1
1
3
1
2
1
8
1
No.
1
2
3
4
PT-9901E01
PT-9901E02
PT-9902000
5
6
7
8
9
Game-machine assembly
Platform frame
Limit wood
Solid wood
Solid wood
Light-box assembly
Accessories box
Coaming
Cover
Light box pirate decorations
Signboard arcylic
1
1
1
1
1
1
1
1
1
1.7.IG31B00130
1.9.ZX030016
1.9.ZX020019
1.9.MB020014
1.9.MB010027
1.7.IG31B00120
Water resistance 2C 850g T - 7
Water resistance 2C 850g T - 7
PMMA-5.0T
PMMA-5.0T
PT-9901E03
PT-9901E04
PT-P0002E
PT-P0001E
Qty. Product CodeMaterial/Spec.Draw No. Name

10
Light-box assembly
1
1
2
1
No.
1
2 PT-9902E01
light-box assembly
POP packing carton K=K 1.9.ZX010090
1
1
Qty. Product CodeMaterial/Spec.Draw No. Name

11
Cross the big flat head
screw 4
ad(advertisement) nail 19×50 (stainlesssteel ) 4
Connector Q235
M4*8（black）
4
AC cable 3m（1.0m㎡)1
key 5555 key
Plactic screw M6*35（galvanized）4
Fuse tube F4A/5*20 250V 1
Manual Coated paper 1
2
2.5 Packing List
Please check the following items after purchasing our product. If any part
missing or damaged, please contact our sales person!
Description Specification Quantity Remarks

12

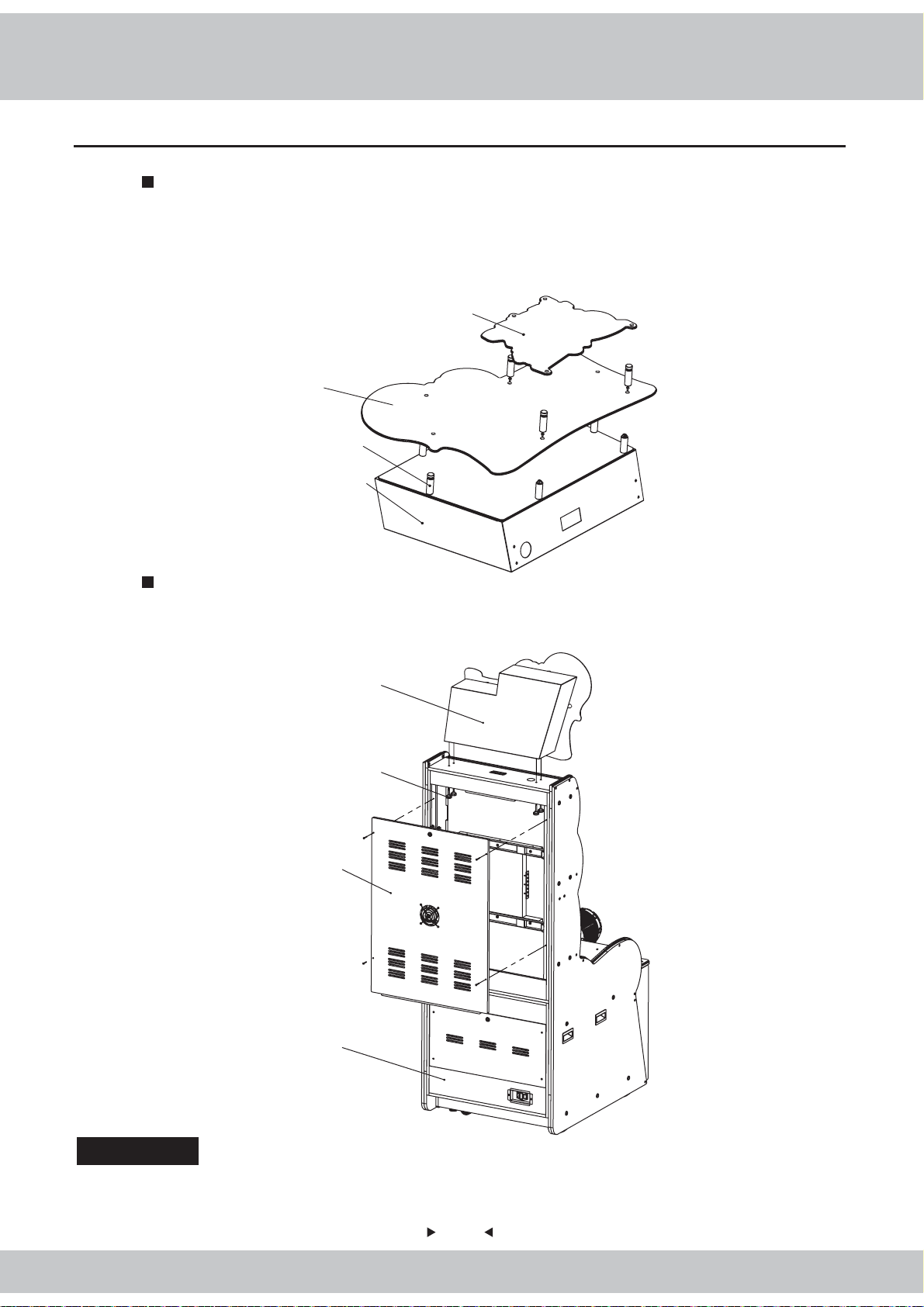

Step 1
2.6 Install Direction
Signboard arcylic
Light box pirate
decorations
Ad(advertisement) nail
Light-box assembly
Light box
plactic screw
upper maintenance
door
Game-machine
assembly
Take out the light box assembly, decorate the light box pirate with 3 advertisement
snails fixed in the light box assembly, then take out the advertisement nail
assembly from the attached product box, install in the light box to assemble the
remaining 4 advertisement nails, and finally use the advertisement snail wire to
hold the machine type of pressure fixed.
Step 2
Take out the game-machine assembly, open the upper access door, use the
rubber-head screws to fix the light box, connect the connector properly, and then
reinstall it
Special attention:When special case occurs in shipment, please check “Installation guide” in attachment box
of shipment, and make assembly according to installation guide; special supplement will
not be made in this instruction.

13
Damage caused by force majeure such as god will.
Failure caused by carelessness, such as water contact, falling down,
toppling, knocking.
Failure caused by disobeying the instructions in this manual.
Failure caused by operating the machine on inappropriate site.
Change the original design and configuration for the game without notice.
Failure to perform regular service and clean.
Failure to fix the product in line with the manual’s requirement.
Malfunction or part damage caused by electromagnetic interference other
electronic equipments generated.
Non-warranty Consumables
Light tube and bulb
Button lamp and switch
Fragile items
Solenoid
Other spare parts
2.7 Warranty
Scope
Inquiry regarding product can be assisted for free.
The warranty scope for consumables and durables may differ from product
to product. Please contact our after-sales service center for detailed
information. The right of final interpretation is reserved.
Exclusive

14
3. Game Description
3.2 Game introduction

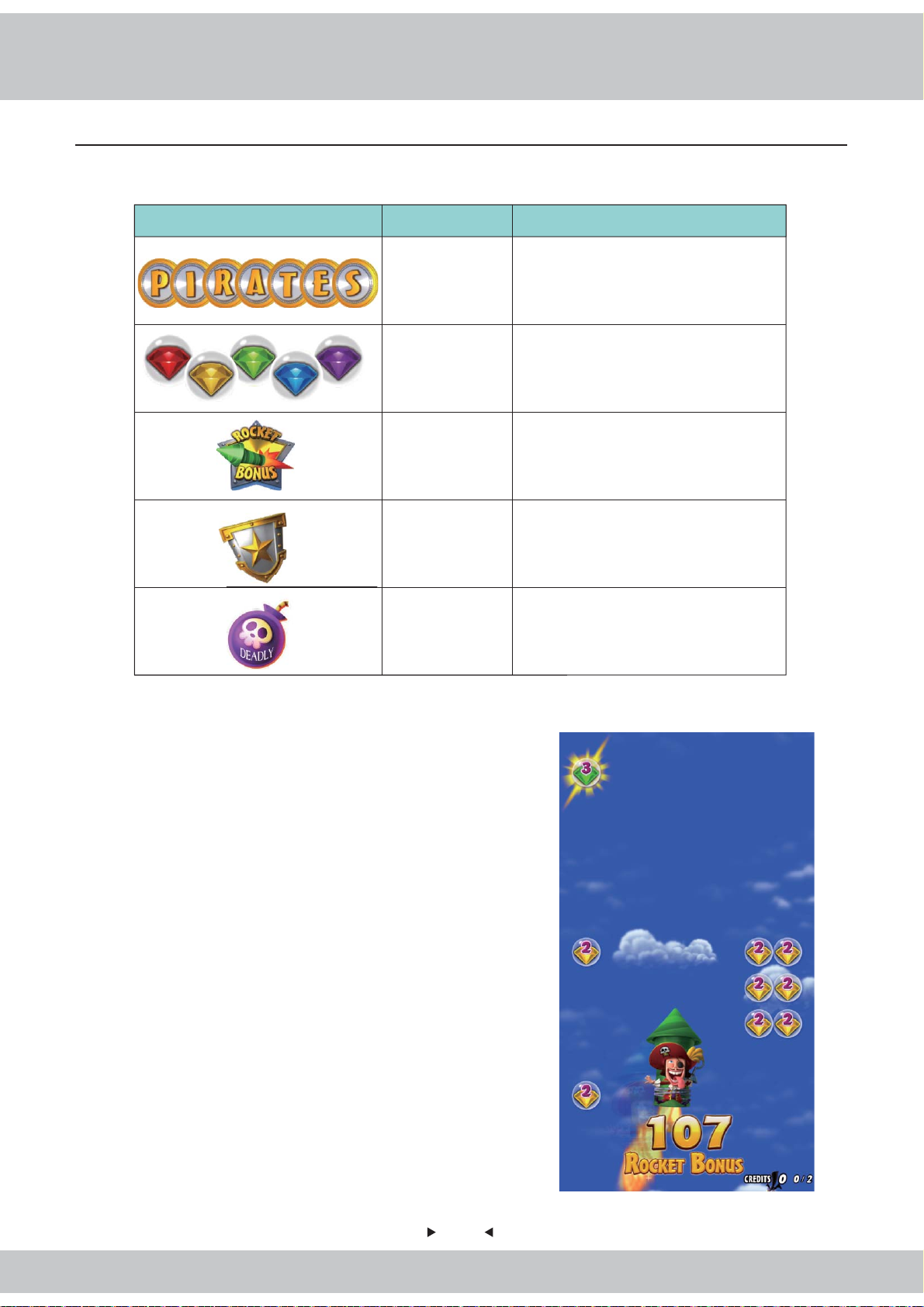

3.3 How to play
3.1 Appearance Design
Pirate Falls game-machine is a pirate-themed game machine. The game machine
is designed very simply and elegantly. The game-machine is coated with blue paint,
with 3D game characters to create the sea world. The light box is a layered-design
part, which can make the pattern more distinctive. 47-inch display can bring a more
high-end visual experience to the player. The display outside is decorated with
decorative paper and light-bar, which can make its appearance more vivid and colorful.
Pirate Falls game-machine is an entertainment game-machine themed on the sea.
The player can control the direction of the pirate by rotating the barrel on the control
panel. The pirate standing on the stake will move the gold coin on the top of joint to the
right or left. The bad pirate at the right top will drop a bomb at random. If the pirate
accidentally gets the bomb, the game is over. The bird at the top of the screen also
drops the English alphabets at variable interval. When the pirates fill "PIRATES" with
enough English alphabets, the corresponding ticket reward will be got. The number
displayed on the pirate's treasure container is the ticket number.
1.Main Game：Insert the required coins and press OK to start the game.

15
Rotate the cask and move the pirate to catch treasure in the box.
2.Introduction to the Main Game
1) Collect：Collect letters "PIRATES" and win
the biggest prize.
2) Tickets：Accumulated prize.
3) Credits：Plays of Game.
1
2
3

16
3.ICON
4.Rocket Bonus
1) Rotate the cask and move the pirate to catch
treasures.
2) Crash into wired bird and game over.
Name
PIRATES Letters
Diamond
Rocket Bonus
Shield
Bomb
Catch and win the prize.
Picture Instruction
Catch and collect them all.
Catch and enter the BONUS game.
Catch the shield and get the ability to
defend against the bomb once.
Catch the bomb and game over.
