UNIS RODEO RACE User manual

O
Op
p
er
a
w
a
ti
o
w
ww.uni
v
o
n
v
ersal-s
p
M
a
p
ace.co
m
a
n
u
m
u
a
l
l

Rodeo Race Manual
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ........................................................................46
1. SPECIFICATIONS .....................................................................................................48
2. PACKAGE CONTENTS..............................................................................................49
3. PART NAME .............................................................................................................50
4. SET UP & INSTALLATION ........................................................................................51
5. HOW TO PLAY..........................................................................................................55
6. GAME OPTIONS.......................................................................................................56
7. MAINTENANCE, INSPECTION .................................................................................61
WIRING DIAGRAM.......................................................................................................65
2
2
4
5
6
7
11
12
17
21

Rodeo Race Manual
2
Thank you for purchasing Rodeo Race from Universal Space.We hope you enjoy
the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of product
operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel should
under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and understand
these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury. Unplug the game from the outlet when not in use, when
moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on
the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and surrounding environment from potential damage.

Rodeo Race Manual
1
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
Note: The contents of this manual may be updated without notice.
3

Rodeo Race Manual
2
1. SPECIFICATIONS
Rated power supply: AC220V50Hz/60Hz; AC110V 50Hz/60Hz
Min. Power consumption: 150W
Max. Power consumption：720W
Dimensions：W2555×D1082×H2546 (mm)
Weight：Approximately200kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: The contents of this manual may be updated without notice.
4

No.
1
2
3
4
5
6
7
8
9
10
11
2. PAC
K
Open the
p
1 x
Foll
Part N
o
R121-463
-
R121-444
-
R121-660
-
R121-661
-
R121-363
-
R121-364
-
R121-482
-
R121-483
-
R121-486
-
R121-487
-
R121-755
-
If any ite
m
help im
m
K
AGE
C
p
ackage an
Body Asse
m
owing acc
e
o
.
-
000 2
3
-
000 2
1
-
000 2
5
-
000 2
5
-
000 2
0
-
000 2
0
-
000 2
2
-
000 2
1
-
000 2
2
-
000 2
2
-
000 4
1
m
s are f
o
m
ediately.
N
C
ONTE
N
d make su
m
bly
e
ssories
Code
3
301018
0
1
901000
0
5
3001710
5
300172
0
0
104023
0
0
101010
0
2
601000
0
1
503000
0
2
003210
0
2
003210
0
1
440000
1
o
und to b
e
OTE: Part
m
N
TS
re all the it
e
0
02
P
0
30
02
0
02
0
02
Cr
o
hex
a
0
49 Cros
h
0
07
M
0
21
0
01 R
e
0
02 Bl
u
1
26
e
missin
g
m
odels are
1
e
ms are in
c
Name
P
ower cor
d
Fuse
Key
Key
o
ss recess
e
a
gon head
suite
s recessed
h
ead scre
w
M
agnetic S
W
Sensor
e
d target li
g
u
e target li
g
Manual
g
, please
c
subject to
5
c
luded:
d
3x
1
Φ
5
e
d
bolt M
6
pan
w
M
W
Y
g
ht ZJ7
12
V
g
ht ZJ7
12
V
c
ontact y
o
change wi
t
Spec.
1
8AWG 0.
5
5
×20mm
T
125VAC
171A
171B
6
×30 colo
r
M
4×20 bl
a
GPS-30
L
Y
ENOX (NO
-
9mm-080
5
V
-XC80cm
-
9mm-080
5
V
-XC80cm
-
o
ur sales
t
hout notic
e
Rod
e
Q
t
5
M UL
1
T
10A
C
1
2
2
r
zinc
2
a
ck
4
L
2
-
5V)
2
5
R-DC
-
SMDJ
2
5
B-DC
-
SMDJ
2
1
represe
n
e
.
e
o Race Manua
l
t
y instr
u
1
1
2
2
2
4
2
2
2
2
1
n
tative fo
r
l
u
ction
r

Rodeo Race Manual
2

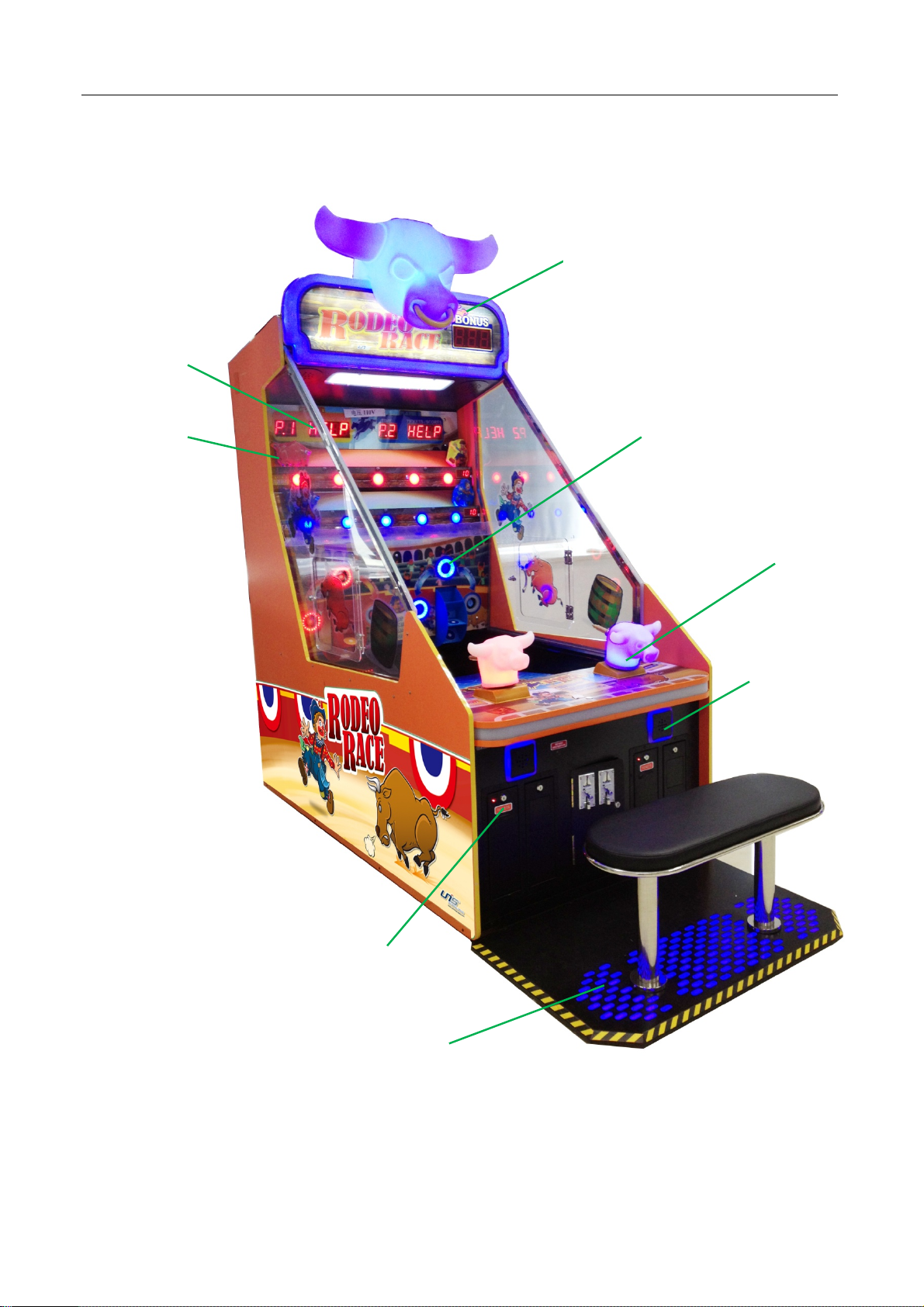

3. PART NAME
Digital display
Tar
g
et
Bull head stick
S
p
eaker
Bull Ass
y
.
Marquee
Stool ass
y
.
T
icket dis
p
enser
6

Rodeo Race Manual
1
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service Area: 500mm
Play Area: 500mm
Play zone
Passage way
Service Area Service Area
Passage way
7

Rodeo Race Manual
2

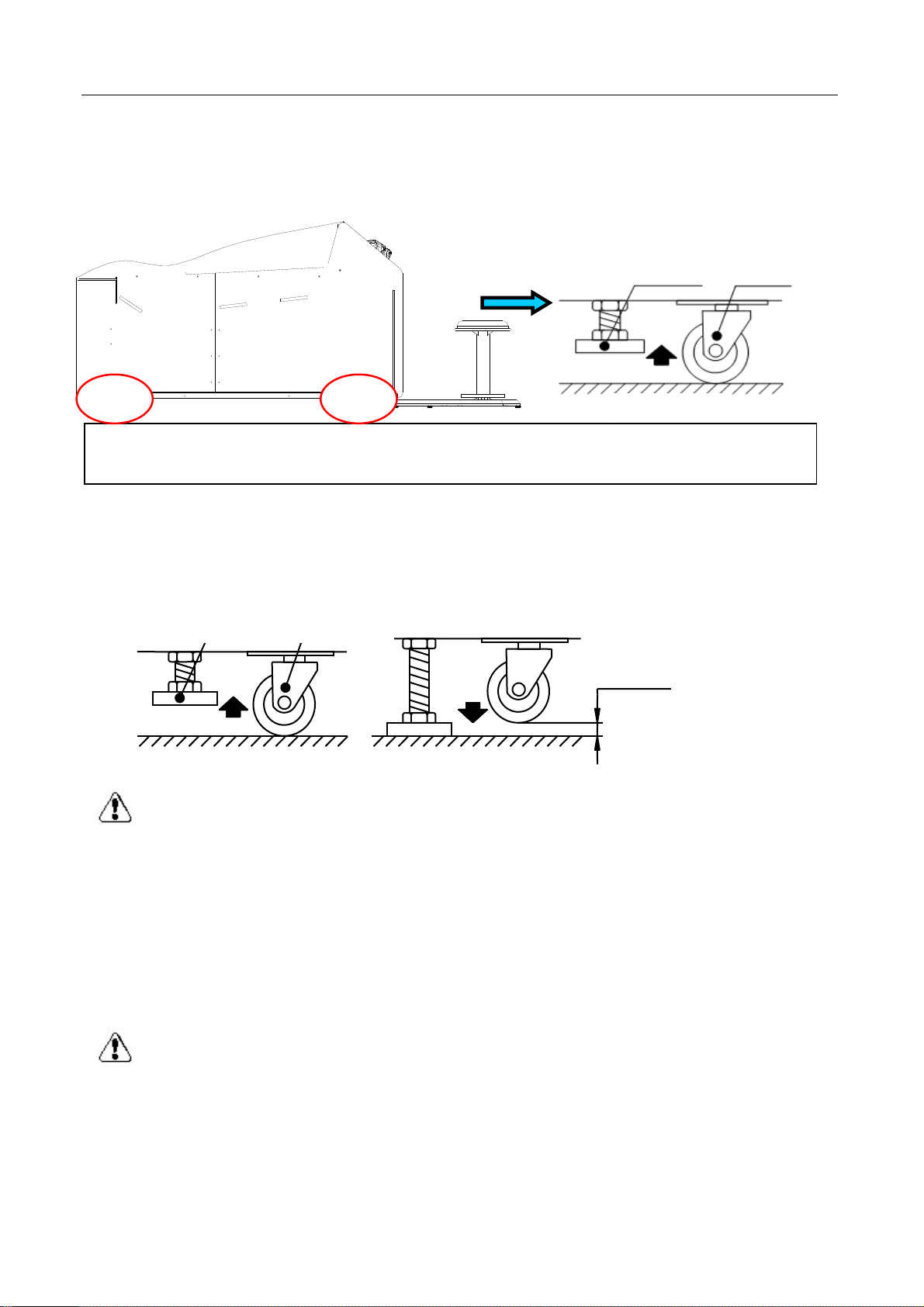

4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction. To
secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the
ground by 5mm. Repeat the same for all levelers.
4.3 Transporting the Machine
If you need to move the game, adjust the levelers back to an “up” position so the casters touch
the ground.
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
Leveler Caster
Move
About 5 mm
Fix
Leveler Caster
Fix
Make sure the machine is level with the ground and all the adjustable legs should stick to
the floor closely.
8

Rodeo Race Manual
1
Connect the grounding conductor to the earth terminal (GND):










WARNING

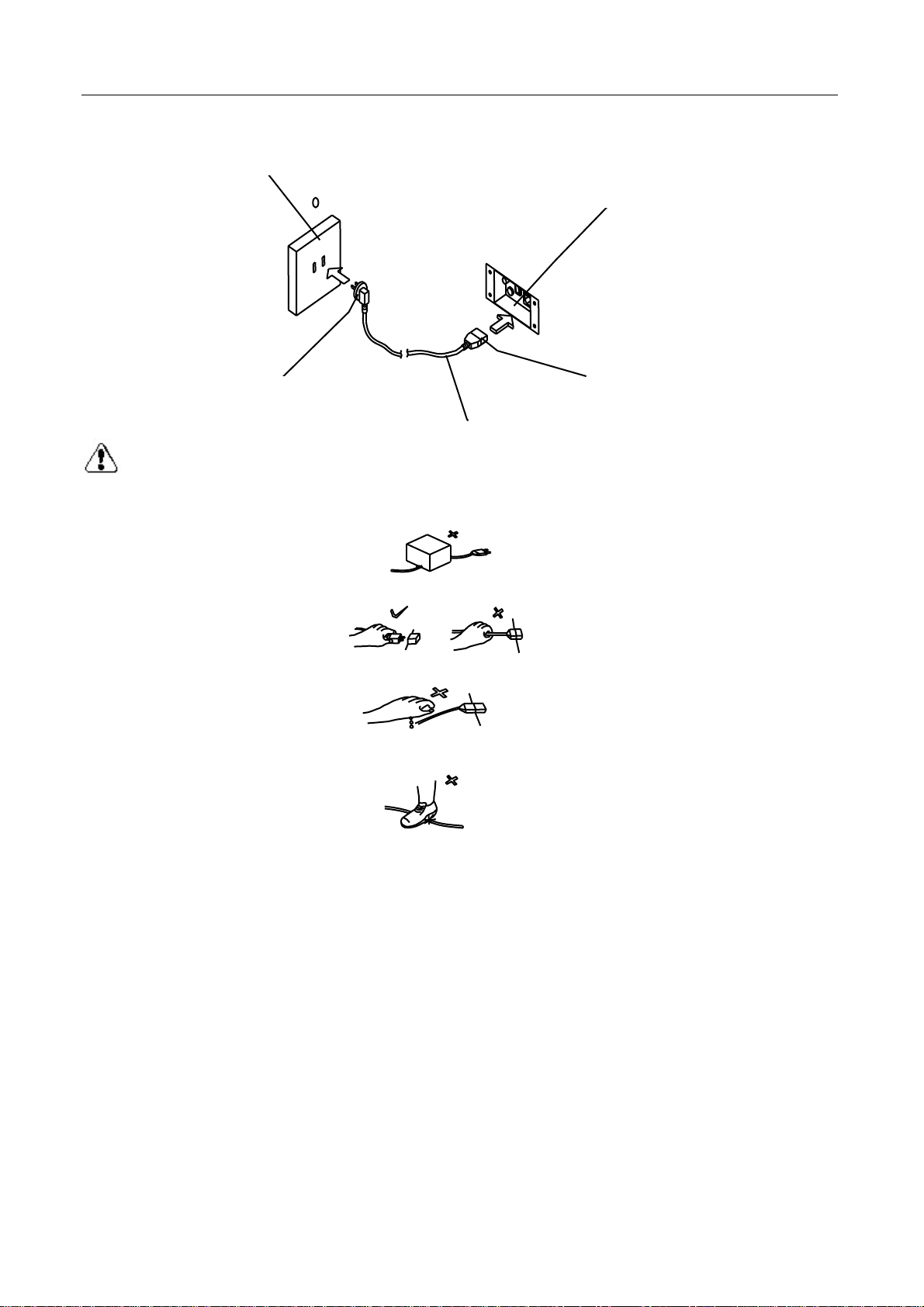

Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not
sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped
on or tripped over.
Power socket
Power outlet
Power plug
Power cord
Power plug
9

Rodeo Race Manual
2

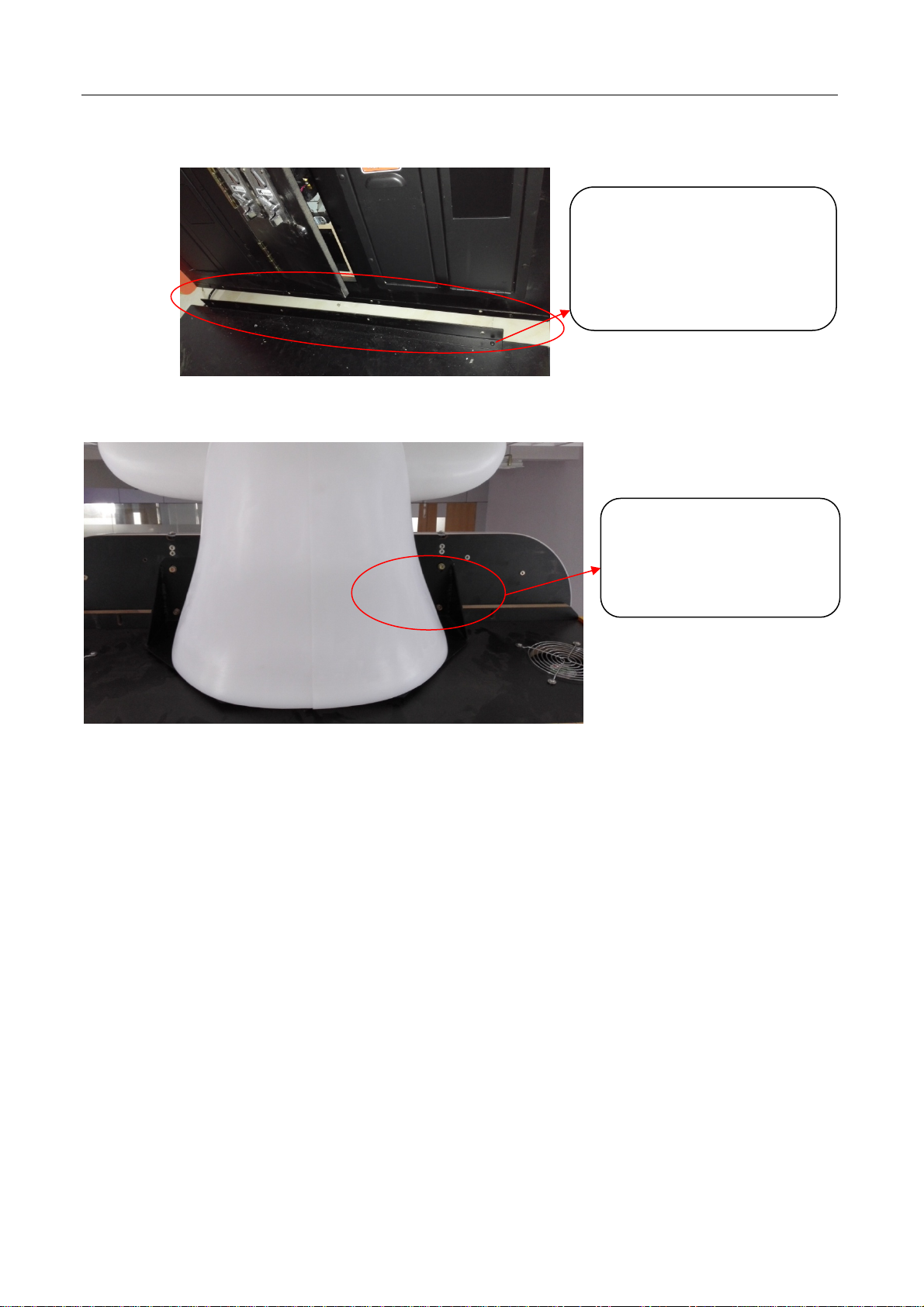

4.5 Cabinet installation
4.5.1 Stool installation
4.5.2 Marquee installation
Connect these plugs, move
pedal near to cabinet, then
fixed with 4pcs of M5*12
cross recessed countersunk
head screw.
Connect these plugs,
fixed marquee with 4pca
of M6x20 cross recessed
hexagon head bolt.
10

Rodeo Race Manual
1
5. HOW TO PLAY
11

Rodeo Race
M
6. GA
M
Check the
output cor
r
machine c
DIP regula
themselve

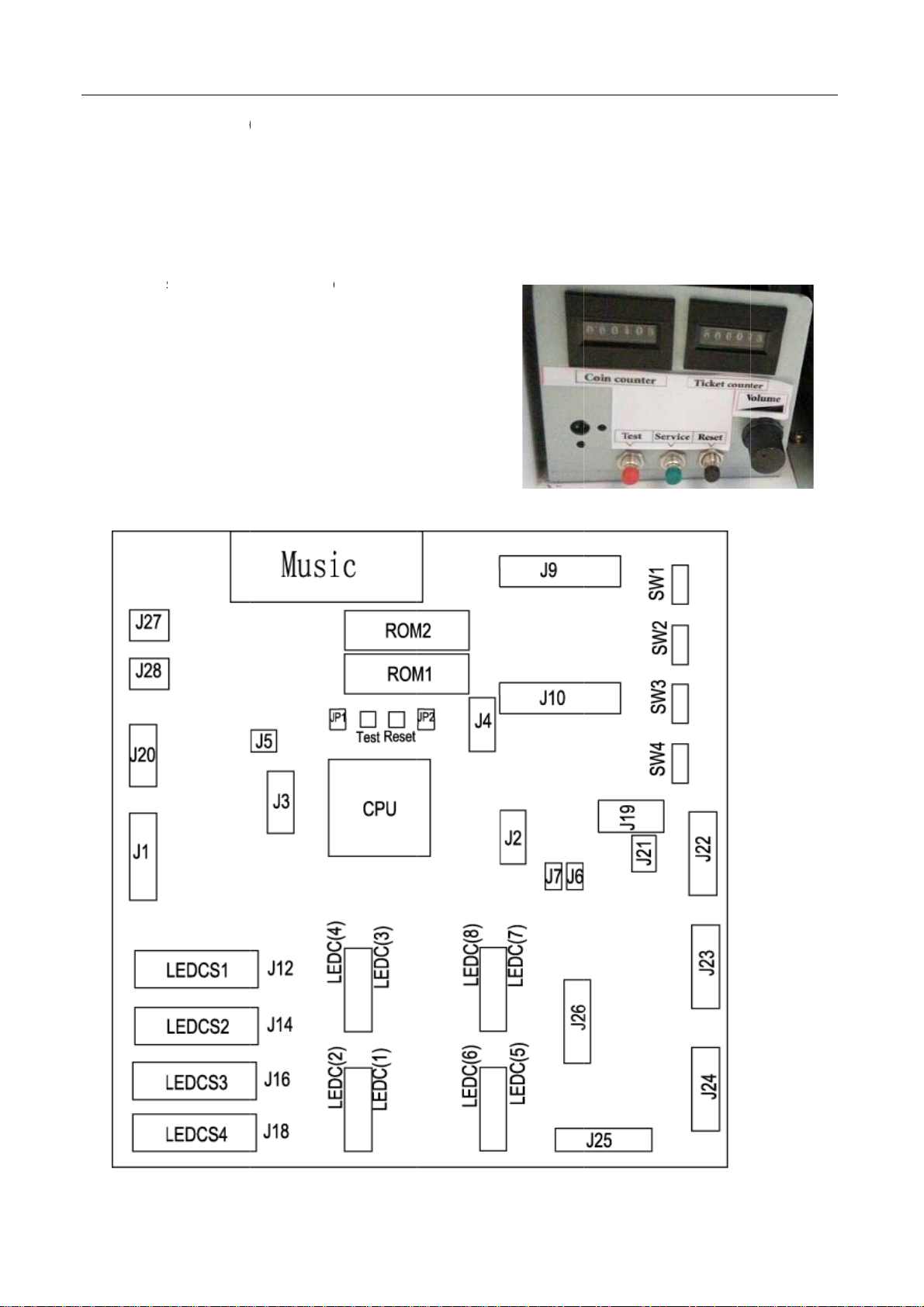

s
Button fun
Test Butto
n
Service Bu
Reset But
t
Main Bo
a
M
anual
M
E OPTI
O
attached I
/
r
espond to
ontrol sign
ting refere
s
accordin
g
ction on c
o
n
：Auto c
o
tton: One
c
t
on：Clear
a
rd
O
NS
/
O chart a
n
each con
n
al.
nce I/O lis
t
g
to the op
e
o
unter:
o
mpletes g
a
c
redit
tilt alarm
e
n
d schema
n
ection po
s
t
, capital l
e
e
ration co
n
a
me play
d
e
rror code
2
tic diagra
m
s
ition. Bas
e
e
tters for f
a
n
dition.
d
etection.
12
m
, PC plan
e
d on the D
a
ctory Setti
n
available
m
IP adjust
m
n
gs, and u
s
m
achine in
p
m
ent can b
e
s
er can ad
j
p
ut and
e
set the
ust by

Rodeo Race Manual
1
IO Settings
SW1
Item Content 1 2 3 4 5 6 7 8
Coin(s) per
game
1 ON ON ON
2 off on on
3 on off on
4 off off on
1/2 on on off
1/3 off on off
1/4 on off off
Game time
40S
on on
50S OFF
ON
70S
on off
90S
off off
Demo
music
120s
on on
180s off on
240s
on off
OFF
OFF OFF
Memory YES
ON
NO off
SW2
Item Content 1 2 3 4 5 6 7 8
Wheel
score
15 on on
25 OFF ON
30 on off
50 off off
Double
score when
hole light
on
30 on on
50 OFF ON
60 on off
100 off off
Continue if
no tik.
Continue
ON
Stop off
OFF OFF OFF
13

Rodeo Race Manual
2
SW3
Item Content 1 2 3 4 5 6 7 8
Buffalo 5
lights end
point value
2000 on on on
2600 OFF
ON ON
3000 on off on
3600 off off on
4000 on on off
4600 off on off
5000 on off off
6000 off off off
Tik. Group
①
on on on
②
off on on
③
on off on
④
off off on
⑤
ON ON OFF
⑥
off on off
⑦
on off off
⑧
off off off
OFF OFF
SW4
Item Content 1 2 3 4 5 6 7 8
Buffalo 5
lights
bonus
initial value
0
on on on
5 off on on
10 on off on
25 off off on
50 on on off
75 off on off
100 ON OFF OFF
200 off off off
bonus
value+
0
on on
1
OFF
ON
2
on off
3 off off
. OFF OFF OFF
14

Rodeo Race Manual
1
Score
group
Buffalo
light 1st light 2nd light 3rd light 4th light 5th light
①0 0 0 0 bonus
②1 1 2 2 bonus
③2 2 3 3 bonus
④2 3 4 5 bonus
⑤5 6 8 10 bonus
⑥6 8 10 12 bonus
⑦8 10 15 15 bonus
⑧10 15 15 20 bonus
Input
INPUT CONTENT INPUT CONTENT INPUT CONTENT
J9-1 L service J9-11
1P buffalo 1 target
SW J9-21 2P buffalo 1 target
SW
J9-2 R service J9-12
1P buffalo 2 target
SW J9-22 2P buffalo 2 target
SW
J9-3 Tik. Dispenser
reset J9-13 1P buffalo 3 target
SW J9-23 2P buffalo 3 target
SW
J9-4 Up water level SW J9-14 1P buffalo 4 target
SW J9-24 2P buffalo 4 target
SW
J9-5 Down water level
SW J9-15 1P buffalo 5 target
SW J9-25 2P buffalo 5 target
SW
J9-6 J9-16 1P hole SW(L) J9-26 2P hole SW(L)
J9-7 J9-17 1P hole SW(Up) J9-27 2P hole SW(Up)
J9-8 Water sensor J9-18 1P hole SW(R) J9-28 2P hole SW®
J9-9 J9-19 1P wheel SW J9-29 2P wheel SW
J9-10 J9-20 1P DBV J9-30 2P DBV
Output
OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT
J22-1 1P solenoid valve J23-9 1P buffalo 1 target light J24-17 2P buffalo 1 target light J25-25 L light
J22-2 1P solenoid valve J23-10 1P buffalo 2 target light J24-18 2P buffalo 2 target light J25-26 R light
J22-3 2P solenoid valve J23-11 1P buffalo 3 target light J24-19 2P buffalo 3 target light J25-27 Front light
J22-4 2P solenoid valve J23-12 1P buffalo 4 target light J24-20 2P buffalo 4 target light J25-28 1P top light
J22-5 Pump J23-13 1P buffalo 5 target light J24-21 2P buffalo 5 target light J25-29 2P top light
J22-6 J23-14 1P hole light(L) J24-22 2P hole light(L) J25-30
Water level
light
J22-7 J23-15 1P hole light(UP) J24-23 2P hole light(UP) J25-31 1P tik. light
J22-8 J23-16 1P hole light(R) J24-24 2P hole light(R) J25-32 2P tik. Light
15

Rodeo Race Manual
2
OUTPUT CONTENT OUTPUT CONTENT
J26-33 1P forward(low) J4-1 Marquee LAT
J26-34 1P backward(low) J4-2 Marquee CLK
J26-35 2P forward(low) J4-3 Marquee DAT
J26-36 2P backward(low) J4-4 Buffalo light LAT
J26-37 J4-5 Buffalo light CLK
J26-38 J4-6 1P buffalo light DAT
J26-39 J4-7 2P buffalo light DAT
J26-40 J4-8
J4-9 GND
J4-10 +5V
Volume POT Coin mech. Port
J20-1 L POT①J19-1
J20-2 L POT②J19-2 1P COINS
J20-3 R POT①J19-3 GND
J20-4 R POT②J19-4
J20-5 L POT③J19-5 2P COINS
J20-6 R POT③J19-6 12V
Tik. Port Speaker port
J21-1 Tik. 1 driver J27-1 L speaker +
J21-2 Tik. 1 feedback J27-2 L speaker -
J21-3 12V J28-1 R speaker+
J21-4 GND J28-2 R speaker-
J21-5 Tik. 2 driver Counter
J21-6 Tik. 2 feedback J8－1 +12V
J21-7 12V J8－2
J21-8 GND J8－3
Coin
counter
J8－4 Tik.
Counter
Error Code:
E01：L service error E16：1P L score error E20:DBV signal error
E02：R service error E17：1P Up score error E30:DBV signal error
E03：Tik. Reset error E18：1P R score error
E04：Water box unwatered E26：2P L score error E83:coin signal error
E08：Water sensor error E27：2P up score error E84::coin signal error
E28：2P R score error
16

Rodeo Race Manual
1
7. MAINTENANCE, INSPECTION
7.1 Safety Ch eck
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly.
7.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine.
7.3 Running inspection and periodic maintenance.
1. Check speaker
2. Check light and marquee.
3. Check sliding mechanism for target wheel is normal, add lubricating oil into cycle br. And
sliding bar every 40 days.
Step 1: Remove the outer plexi. Step 2: Pull up connectors, and
remove the inner plexi.
Step 3: add lubricating oil into
cycle br.
17

Rodeo Race Manual
2
4. Clean the gun jet when water jetting is not normal.
5. Water pressure adjustment
6. Check the water scarcity is light or not, should add water into sink if it light.
Loosen the gun jet with pincher
when water jetting isn’t
normal.
Add lubricating oil into
And sliding bar every 40
days.
Pressure gauge value
recommended to 0.1.
Water scarcity light
Sink Water tank
18

Rodeo Race Manual
1
7. Clean filter net every 40 days.
8. Change water.
Loosen these 4 screws to remove
the metal, then take out the filter
and clean it,
Take out filter tank and clean it.
19
