IKA HB ECO User manual

HB eco

ENGLISH

Fig. 1
!
!

5
Safety instructions����������������������������������������������������������������������������� 7
!
Unpacking �������������������������������������������������������������������������������������� 10
EU Declaration of conformity �������������������������������������������������������������6
Explication of warning symbols ��������������������������������������������������������� 6
Interfaces and outputs �������������������������������������������������������������������� 18
Operator panel and display ������������������������������������������������������������� 11
Warranty ���������������������������������������������������������������������������������������� 23
Intended use������������������������������������������������������������������������������������� 9
Error codes ������������������������������������������������������������������������������������� 20
Maintenance and cleaning �������������������������������������������������������������� 19
Operation ��������������������������������������������������������������������������������������� 12
Technical Data �������������������������������������������������������������������������������� 22

6
Explication of warning symbols
EU Declaration of conformity
/// Symbols used in this instruction manual
We declare under our sole responsibility that this product corresponds to the directives 2014/35/EU,
2014/30/EU and 2011/65/EU and conforms with the following standards or normative docu-
ments: EN 61010-1, EN 61010-2-010; EN 61326-1, EN 60529 and EN ISO 12100�
A copy of the complete EU Declaration of Conformity can be requested at sales@ika�com�
Source language: German
“Safety instructions” chapter
“Unpacking” chapter
+“Accessories” chapter
“Assembly” chapter
“Operation” chapter
“Error codes” chapter
“Maintenance and cleaning” chapter
“Technical data” chapter
AItem numbers
Indicates relevant device components for actions�
Correct / result
Indicates correct implementation or the result of an action step�

7
Incorrect
Indicates incorrect implementation of an action step�
Please note
Indicates action steps for which particular attention must be paid to a particular
detail�
Beep
Indicates action steps, for which beep sounds are to be heard�
Power outage
Indicates device restart after a power outage�
www.
Internet
Indicates action steps for which further information is included in the online
instruction manual�
›Indicates lists�
�Indicates action steps�
Safety instructions !
/// Warnings used in this instruction manual
Risk of burning at hot surfaces
�Do not touch hot surfaces without protective gloves�
�Only fill or empty the device when it is cold�
�Let the components cool off before continuing work with the device�
Burns hazard due to hot tempering media
�Do not touch hot tempering media�
�Note the danger of burns in case of tempering media that have a flashpoint of less than
260 °C�
�Note the danger resulting from flammable materials�

8
�Before commissioning, read and observe the safety instructions�
�Keep the operating instruction manual accessible for all users�

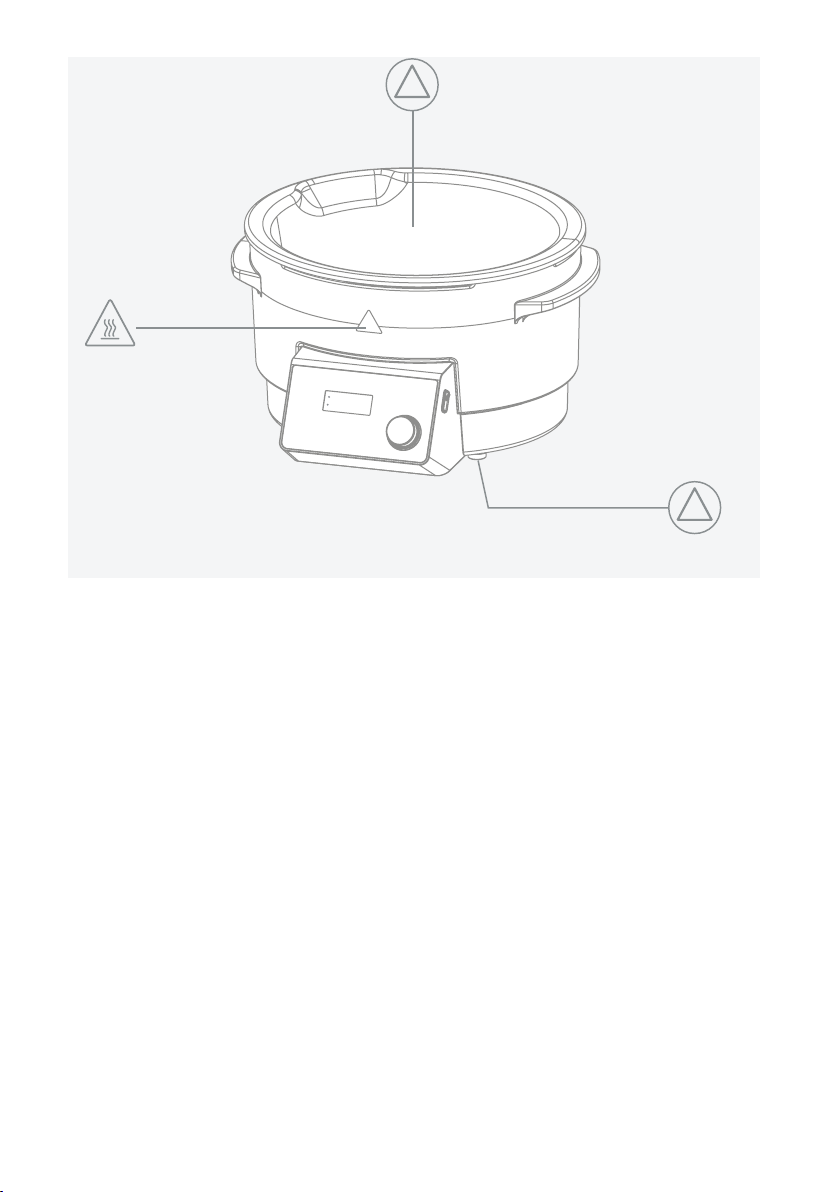

/// Other risks
Risk of burning at hot surfaces
The top edge of the heating bath can heat up to temperatures above 65 °C during operation�
�Do not touch hot device components without protective gloves�
�Only fill or empty the device when it is cold�
Risk of injury caused by explosion
�Do not use the device in explosive atmospheres, as it is not EX-protected�
�When using tempering media that could create explosive mixtures, take appropriate safety
measures (e�g� work under an extractor hood)�
Risk of injury caused by self-igniting tempering media
�Only heat up tempering media with a flashpoint above the set safety temperature of the
heating bath�
�Do not touch hot tempering media�
Risk of burns due to self-igniting tempering media (also in connection with rotary
evaporator or other devices)
�For tempering media with a flashpoint ≤260 °C: Note the danger resulting from ignition of
the medium�
�Note the danger resulting from flammable materials�
Risk of injury caused by electric shock
�Only put together accessories with the power supply cable disconnected�
Damage to the device due to improper use
�Empty the heating bath before transportation�
�Never operate the heating bath without tempering medium�
�Ensure that the specified settings on the rating plate coincide with the actual power supply�
�Ensure that the power socket used is earthed (grounded contact)�
�Avoid knocks or impacts to the device and accessories�
Hazards resulting from uncontrolled restart
�After an interruption to the power supply, the device starts up again with previously set
operating mode C�
�To cut the power supply, press the device main switch or unplug the mains or device plug�
�After interrupting the power supply, ensure that the device is not unintentionally restarted�

9
/// Requirements for operators / users
�Ensure that only qualified persons use the device�
�Ensure that the device is only opened by a qualified technician�
�Ensure that the applicable safety and accident prevention measures are observed when
processing hazardous materials�
�Wear personal safety equipment in accordance with the hazard class of the medium that is
used�
�Inform the user about possible danger due to contact with or inhalation of media (e�g�
poisonous liquids, gases, mist, vapours, dusts or biological or microbiological materials)�
�Only work with media for which the energy input during processing is harmless� This also
needs to take into account other sources of energy such as, for example, light irradiation�
�Place device on an even, stable, clean, non-slip, dry, fire-resistant surface�
�Refer to the operating instructions for the accessories�
�Always check the device and accessories for damage prior to each use� Never use damaged
parts�
�During operation with rotary evaporator: Observe the maximum filling quantity also for the
displaced piston volume�
/// Use
�The heating bath is used for tempering media� It is the user’s responsibility to to determine
which medium is tempered� The heating bath is not used for tempering foods� The heating
bath is suitable for use with rotary evaporators from IKA�
Recommended tempering media
› Water (up to 80 °C)
› Low viscosity silicone oils (50 mPas) with a flashpoint ≥ 260 °C
/// Area of use
� Indoor environments similar to that a laboratory of research, teaching, trade or industry area�
� The safety of the user cannot be guaranteed:
› if the device is operated with accessories that are not supplied or recommended by the
manufacturer,
› if the device is operated improperly or contrary to the manufacture’s specifications,
› if the device or the printed circuit board are modified by third parties�
Intended use

10
Unpacking
/// Unpacking
Unpack the device carefully� Any damage should immediately be reported to the carrier (mail,
rail or freight forwarding company)�
/// Scope of delivery
Aheating bath
Bpower cord
Cuser guide
C
B
A

11
Operator panel and display
APower socket
BMains switch
CRotating / pressing knob
DUSB interface
EHandle
/// Operator panel
FBath insert
GLED heating
HLED (set = setpoint)
JDisplay
E
F
C
D
G
H
J
B
A

12
/// Display
Operation

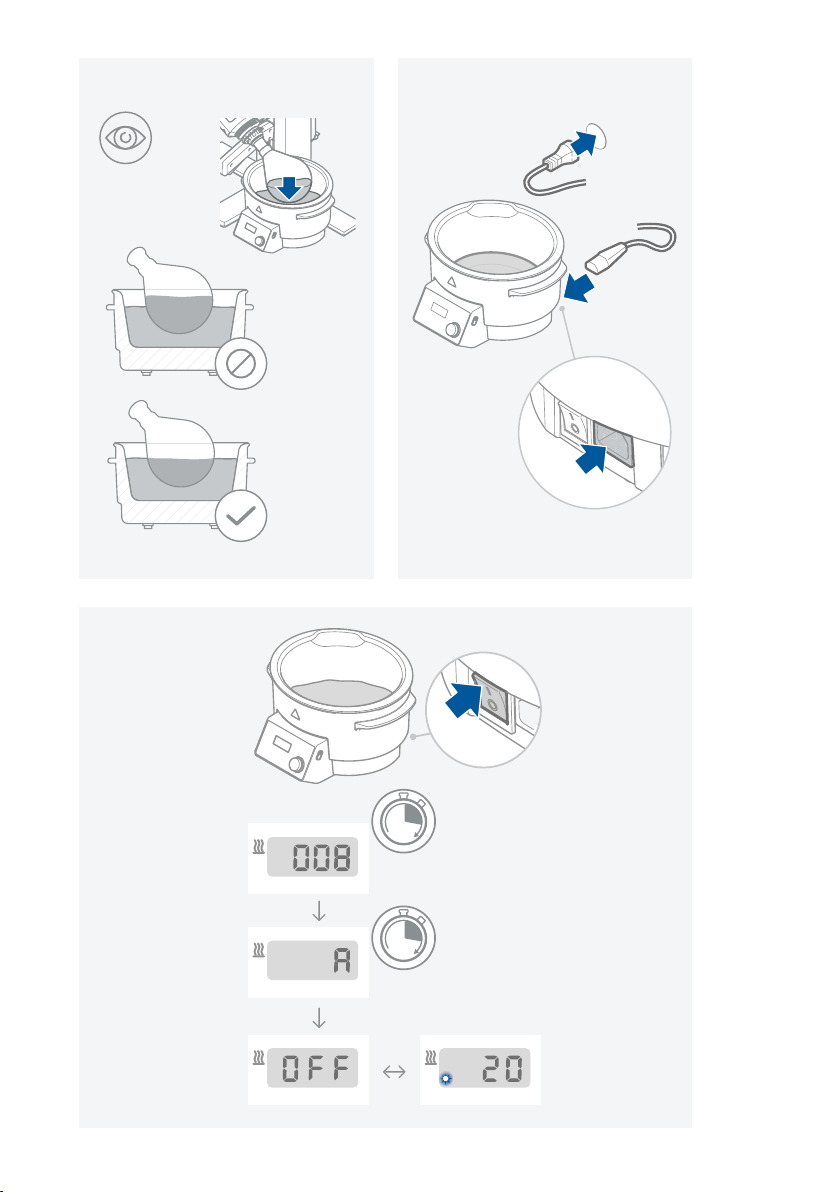

/// Start-up
Fig. 2 Fig. 3 Fig. 4
Fig. 7Fig. 6Fig. 5
Fig. 8 Fig. 9 Fig. 10
Fig. 11
� Observe the ambient conditions (temperature, humidity, etc�) listed under “Technical data”�
�The unit is ready for service when the mains plug has been plugged in�
� Prior to commissioning the device, determine the filling quantity of the tempering medium due
to the used evaporator piston size (approx� 2�5 l tempering medium by using a standard 1 l
evaporator piston)�
� Switch on the device using the mains switch�
� At every start, the display will show all display segments (Fig� 2), the software version (Fig� 3),
and the operating mode (Fig� 4)�
� The heating bath temperature is held constant by the control circuit and is additionally monito-
red by the safety circuit�
In the event of an error occurred in the control circuit, the heating bath is switched off perma-
nently by the safety circuit�
An error in the control or safety circuits is shown on the display�
The heating function can no longer be started�
� When switching off the heating function and the medium temperature is higher than 50 °C,
the display will alternately show the set temperature (Fig� 5) and “HOT” (Fig� 9)� Otherwise, the
display will alternately show the set temperature (Fig� 5) and OFF (Fig� 8)�
When switching on the heating function, the display will alternately show set temperature (Fig�
5) and the actual temperature (Fig� 6 or Fig� 7)�

13
1.
2.
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
2s
2s

14

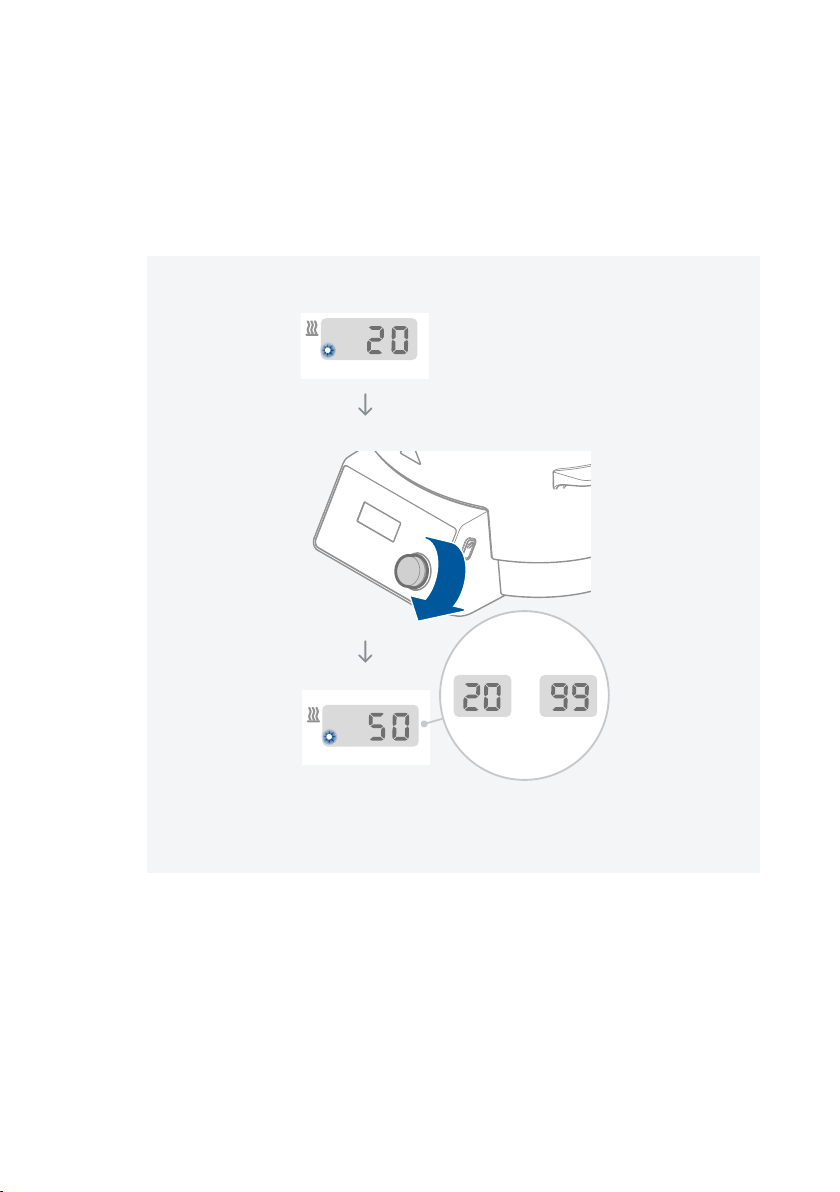

/// Setting the target temperature
Set
20...99 °C
Set
20...99 °C
...
Activate the SET function by turning and pressing the rotating / pressing knob�
�Set the desired heating bath temperature by turning the rotating / pressing knob�
� The LED setpoint temperature will be always on whenever the set temperature is shown�
(Fig� 5)
� Confirm the value by pressing the rotating / pressing knob�
� Start the heating process by pressing the rotating / pressing knob�

15
/// Setting the operating modes
Operating mode A
�Switch on the device at the mains switch�
� The heating function is switched off�
� The target value is set to 20 °C�
� The target value can be adjusted�
� The heating function must be restarted following a power failure�
� Mode A appears on the display when switching on the device�
Factory setting: Mode A
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
2s

16
Operating mode b
�Switch on the device at the mains switch�
� The heating function is switched off�
� The target value is set to 20 °C or the most recent set temperature�
� The target value can be adjusted�
� The heating function must be restarted following a power failure�
� Mode b appears on the display when switching on the device�
Operating mode C
�Switch on the device at the mains switch�
� The heating function is switched on or off depending on the last selected setting�
� The last target value set in mode b applies�
� The target value cannot be adjusted�
� The heating function will be automatically restarted following a power failure�
� Mode C appears on the display when switching on the device�

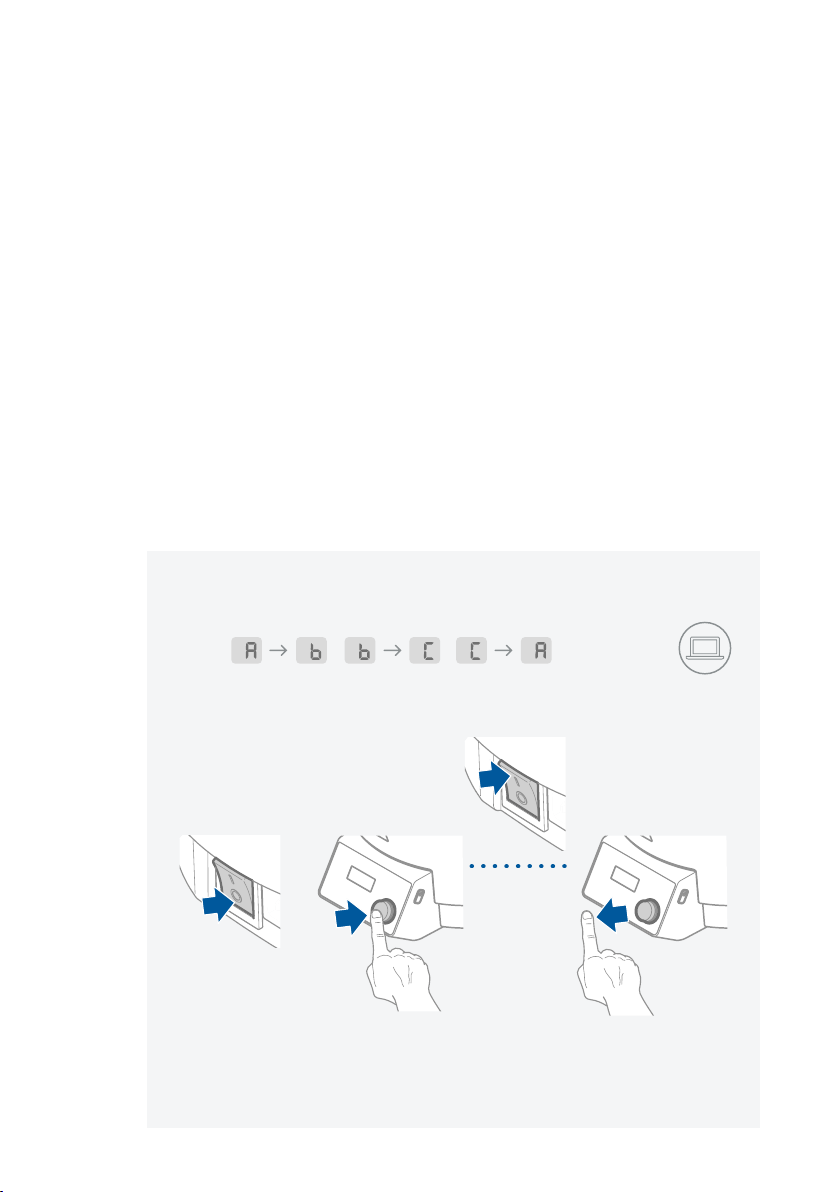

Switching the operating modes
�Switch the device off at the mains switch�
� Press and hold rotating / pressing knob and switch the device on at the mains switch� Release
the rotating / pressing knob after 2 seconds�
� Sequence A, b, C, A etc�
� The operating mode appears on the display when switching on the device�
1.
3.
2.
4.
www.

17
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
Set
20...99 °C
... ...
i
/// Safety temperature
/// Controlling the medium temperature
The safety circuit prevents the temperature of the heating bath from getting too high as a result
of controller error� Once the safety temperature has been reached, the device switches off per-
manently�
Furthermore, dry running of the heating bath is detected� The device switches off permanently�
The dry running function detects both accidental heating of the heating bath without liquid and
dry running caused by water evaporation starting at a set temperature of 60 °C� The error message
E26 (Fig� 11) appears and the heating bath is switched off permanently� To remedy this error, see
“Error codes”�
The medium temperature is limited by the set safety temperature controlled by means of a PID
controller and measured by the PT 1000 temperature sensor, and the medium is heated up as
quickly as possible without overshooting to the set temperature�
The PID controller adapts to the different tempering media and ensures optimum temperature
control with minimum temperature drift and fluctuation�
Optimum control is only achieved when the medium is mixed using a rotating evaporator piston�
� Set the desired medium temperature between room temperature and 99 °C by turning the
rotating / pressing knob�
� Start the heating function by pressing the rotating / pressing knob�
� The LED heating appears�
� The heating bath is heated up to the set temperature�
� The set and actual temperature referred to the medium are shown on the display�

18
�Please comply with the system requirements together with the operating instructions and
help section included with the software�
/// USB interface:
The connected devices and their properties are detected automatically� The USB interface is
used in conjunction with software control for “remote” operation and can also be used for
software update of the device�
/// USB device drivers:
First, download the latest driver for IKA devices with USB interface from:
http://www.ika.com/ika/lws/download/usb-driver.zip
Install the driver by running the setup file� Then connect the IKA device to the PC via the USB
data cable and follow the instructions�
The data communication is via a virtual COM port�
/// USB cable A - B:
This cable is required to connect USB port to a PC�
Interfaces and outputs
USB Micro B USB A

19
�The device is maintenance-free� It is only subject to the natural wear and tear of components
and their statistical failure rate�
/// Cleaning:
�For cleaning disconnect the mains plug!
�Use only cleaning agents which have been approved by IKA to clean IKA devices�
These are water (with tenside) and isopropanol�
�Wear protective gloves during cleaning the devices�
�Electrical devices may not be placed in the cleansing agent for the purpose of cleaning�
�Do not allow moisture to get into the device when cleaning�
�Before using another than the recommended method for cleaning or decontamination, the
user must ascertain with IKA that this method does not destroy the device�
/// Spare parts order:
�When ordering spare parts, please give:
› device type�
› serial number, see type plate�
› position number and description of spare part, see www.ika.com�
› software version�
/// Repair:
�Please only send devices in for repair that have been cleaned and are free of materials which
might present health hazards�
�For repair, please request the “Safety Declaration (Decontamination Certificate)” from
IKA or use the download printout of it from IKA website at www.ika.com�
�If your appliance requires repair, return it in its original packaging� Storage packaging is not
sucient when sending the device - also use appropriate transport packaging�
Maintenance and cleaning

20
E21
Causes › Safety relay does not open
Effect › Heating switched off
Solutions
› Switch off the device and switch on again
E24
Causes › Set safety temperature exceeded
Effect › Heating switched off
Solutions
› Switch off the device
› Let the device cool down
› Switch on the device
E25
Causes › The heater control circuit switch (TRIAC) is faulty�
› The heater or the supply line is disconnected�
Effect › Heating switched off
Solutions
› Switch off the device and switch on again
E26
Causes › Dry running
Effect › Heating switched off
Solutions
› Switch off the device
› Let the device cool down
› Fill up the tempering medium
› Switch on the device
Error code | Causes | Effect | Solutions
E 3
Causes › Temperature inside the device is too high
Effect › Heating switched off
Solutions
› Switch off the device
› Let the device cool down
› Switch on the device
E 9
Causes › Fault in storing the safety circuit set temperatures
› Memory chip (EPROM) defective
Effect
› Heating switched off
Solutions
› Switch off the device
› Let the device cool down
› Switch on the device
Error codes
�The fault is shown by an error code on the display as following if the error occurs�
Proceed as follows in such cases:
› Turn off the device by using the main switch�
› Carry out corrective measures�
› Restart the device�
