IKEA UNDERVERK User manual

GB
UNDERVERK

ENGLISH 4
2
1345
Please refer to the last
page of this manual for
the full list of IKEA ap-
pointed Authorized Ser-
vice Centre and relative
national phone number

4 ENGLISH
Contents
Safety information 4
Product description 8
Care and cleaning 9
What to do if... 11
Technical data 12
Energy efficiency 13
Environment concerns 14
IKEA GUARANTEE 14
Safety information
For your safety and correct operation of the appliance,
read this manual carefully before installation and use.
Always keep these instructions with the appliance even if
you move or sell it. Users must fully know the operation
and safety features of the appliance.
The wire connection has to be done by specialized
technician.
• The manufacturer will not be held liable for any
damages resulting from incorrect or improper
installation.
• The minimum safety distance between the cooker top
and the extractor hood is: for electrical hob 500mm and
for gas hob 650mm.
• If the instructions for installation for the gas hob specify
a greater distance, this must be respected.
• Check that the mains voltage corresponds to that
indicated on the rating plate fixed to the inside of the
hood.
• Means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power
supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe
of minimum diameter 120 mm. The route of the flue
must be as short as possible.

5 ENGLISH
• Do not connect the extractor hood to exhaust ducts
carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient
degree of aeration must be guaranteed in the room in
order to prevent the backflow of exhaust gas. When
the cooker hood is used in conjunction with appliances
supplied with energy other than electric, the negative
pressure in the room must not exceed 0,04 mbar to
prevent fumes being drawn back into the room by the
cooker hood.
• The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
• If the supply cord is damaged, it must be replaced from
the manufacturer or its service agent.
• Connect the plug to a socket complying with current
regulations, located in an accessible place.
• With regards to the technical and safety measures to
be adopted for fume discharging it is importat to closely
follow the regulations provided by the local authorities.
WARNING: Before installing the Hood, remove the
protective films.
• Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing
device in accordance with these instructions may
result in electrical hazards.
• Connect the hood to the power net by using a bipolar
switch having a contact gap of at least 3 mm.
• Do not look directly at the light through optical devices
(binoculars, magnifying glasses…).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8

6 ENGLISH
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Children should be supervised to ensure that they do
not play with the appliance.
• The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
Accessible parts may become hot when used with
cooking appliances.
• Clean and/or replace the Filters after the specified time
period (Fire hazard).
• There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels (not applicable to appliances
that only discharge the air back into the room).

7 ENGLISH
Use
• Switch off or unplug the appliance
from the mains supply before
carrying out any maintenance
work.
• The top of the hood must not to be
used as a shelf.
• The extractor hood has been
designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked flames
under the hood when it is in
operation.
• Adjust the flame intensity to direct
it onto the bottom of the pan
only, making sure that it does not
engulf the sides.
Deep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
Installation modes
The hood has been designed to be
installed and used either as a “Exhaust
mode”, or as a “Recirculation mode”.
Exhaust mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in installation booklet)
Cooking steam is sucked and
channelled outside the house
through a discharge duct (not
supplied), fitted to the hood steam
outlet.
Ensure that the discharge duct is
correctly fitted to the air outlet, unit
using an appropriate connection
system.
Recirculation mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in installation booklet)
The air is filtered through one or
more the charcoal filters, and then
resent into room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied
without charcoal filters and installed
on recirculation mode, these must be
fitted before the hood can be used.
Filters are available in shops.
The hood should be installed away
from particularly dirty areas,
windows, doors and heat sources.
The accessories for wall fixing are
not included because wall made of
different materials require different
types of fixing accessories. Use
fixing systems suitable for the walls
of your home and the weight of the
appliance. For more details, contact
a specialized dealer.
Keep this booklet for future
consultation.

8 ENGLISH

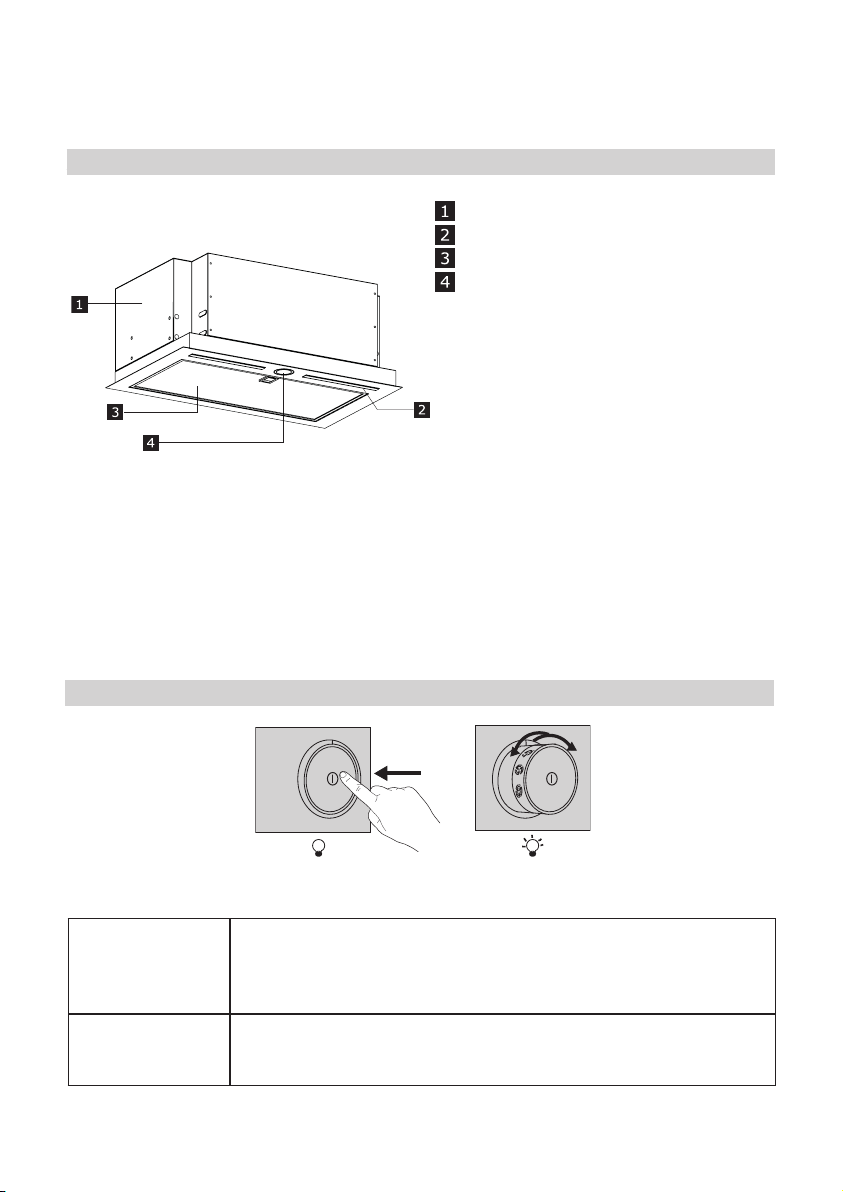

Product description
Hood body
LED Lighting
Grease filter
Control panel
Control Panel
Lights
To turn the lights on, press the dial and release it so that
it pops out of its housing.
To turn the lights off, push the dial back inwards, returning
it to the off position.
Motor
Speed
Adjustment
Press the dial and release it so that it pops out of its hou-
sing, then turn the dial to select one of the available suction
speeds.

9 ENGLISH
Care and cleaning
Switch off or unplug the appliance
from the mains supply before carrying
out any maintenance work.
IMPORTANT Clean the hood using a
damp cloth and a neutral liquid deter-
gent.
Long Life Charcoal Filter (Green)
The anti-odour filter can be washed
and regenerated every 3-4 months (or
more frequently if the hood is subject
to intensive use), up to a Max. of 8
regeneration cycles (in case of particu-
larly intensive use it is recommended
that you do not exceed 5 cycles).
Regeneration procedure:
• Wash in the dishwasher at a MAX
temperature of 70° or hand wash
in hot water without using abrasive
sponges (do not use detergents!).
• Dry in the oven at a MAX
temperature of 70° for 2 hours (it
is recommended to read carefully
the user manual and the assembly
instruction of the oven of your own).
• Switch ON the hood at minimum speed when you start cooking and keep it run-
ning for few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use
boost speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction
efficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter ef-
ficiency.
• Use the maximum diameter of the ducting system indicated in this manual to
optimize efficiency and minimize noise.
General hints

10 ENGLISH
Grease Filters
Clean or replace the filters continuously
according to below time intervals, to
maintain good performance of the hood
and to prevent a potential fire hazard,
caused by excessive grease build-up.
The grease filters must be cleaned
every 2 months of operation, or more
frequently for particularly heavy usage,
and can be washed in a dishwasher.
Replacing the lamps
For Replacement please contact an
Authorized Service Center.

11 ENGLISH
What to do if...
If there is a fault, first try to find a
solution to the problem yourself. If you
cannot find a solution to the problem
yourself, contact an authorized service
center.
If you operated the appliance
wrongly, or the installation was not
carried out according to the Assembly
instructions, the visit from the Author-
ized Service Centre technician may not
take place free of charge, even during
the warranty period.
Before contacting the Authorized Service Centre:
Switch the appliance on again to see if the problem has disappeared. If not, switch
it off again and repeat the operation after an hour.
If your appliance still does not work properly after carrying out the checks listed in
the troubleshooting guide and switching the appliance on again, contact the Author-
ized Service Centre, clearly explaining the problem and specifying:
• the type of fault;
• the model;
• the type and serial number of the appliance (given on the rating plate).
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance not stable The appliance is not correctly
installed Follow the Installation instruction enclosed to the appliance.
Appliance is not in horizontal
position The appliance is not correctly installed Follow the Installation instruction enclosed to the appliance.
Performance in terms of oil
capture are not satisfying Oil and grease on metal filters or charcoal filters.
Follow the cleaning frequency of
filters as described in the user
manual
Appliance does not work The appliance is not correctly
connected
Verify that the main cable is con-
nected to the motor group or the
plug is connected to the socket
The light does not work The LED is broken You can replace the lamp without contact the Authorized Service
Centre.
Noise of hood is higher than
customer expectation.
Air outlet diameter in the wall is
too small, causing a pressure drop
and an increase in motor speed.
Follow the Installation instruction
enclosed to the appliance.
Product is installed in recirculation
mode.
Product in recirculation mode(and
using a charcoal filter) will generate
an higher noise than a product in
extration mode.
More than one bend in the venti-
lation duct.
If the exhaust system in the build-
ing has multiple bend in or a long
distance, this can increase the noise
of the product.

12 ENGLISH
This appliance has been designed,
manufactured and marketed in
compliance with the E.E.C. Directives.
The technical information is situated in
the rating plate on the internal side of
the appliance.
Technical Data
Unit Value
Product Type Built-in hood
Dimensions
Width mm 599 / 799
Depth mm 358
Height min/max mm 245
Airow max* - Exhaust m3/h 630
Noise max* - Exhaust dBA 64
Airow max* - Recirculating m3/h 365
Noise max* - Recirculating dBA 79
Total Power W256
Lamps info
Type LED BAR
Number & Power 2 x 3W
Socket N/A
Installation minimum height - gas hob mm 650
Installation minimum height - elec hob mm 500
Net Weight Kg 11 - 12
* Maximum speed (boost excluded).

13 ENGLISH
Energy efficiency
Product Information according to EU
n°66/2014
Unit Value
Model identifier
UNDERVERK
403.921.43
203.921.44
Annual Energy Consumption kWh/a 38,5
Time increase factor 0,7
Fluid Dynamic Efficiency 34,8
Energy Efficiency Index 41,8
Measured air ow rate at best efficiency point m3/h 373,0
Measured air pressure at best efficiency point Pa 448
Maximum air ow m3/h 630,0
Measured electric power input at best efficiency point W133,5
Nominal power of the lighting system W 6
Average illumination of the lighting system on the cooking
surface lux 220
Measured power consumption in standby mode WN/A
Measured power consumption off mode W0,00
Sound power level at maximum speed (boost excluded) dBA 64
Normative references:
EN/IEC 61591
EN/IEC 60704-1
EN/IEC 60704-2-13
EN/IEC 60704-3
EN 50564
Energy saving
The appliance contains features which
help you save energy during everyday
cooking.

14 ENGLISH
Environment concerns
IKEA GUARANTEE
Maintenance
• The symbol on the product or on
its packaging indicates that this prod-
uct may not be treated as household
waste. Instead it shall be handed
over to the applicable collection point
for the recycling of electrical and
electronic equipment. By ensuring
this product is disposed of correctly,
you will help prevent potential nega-
tive consequences for the environ-
ment and human health, which could
otherwise be caused by inappropriate
waste handling of this product.
How long is the IKEA guarantee
valid?
This guarantee is valid for five (5) years
from the original date of purchase of
Your appliance at IKEA. The original
sales receipt is required as proof of
purchase. If service work is carried out
under guarantee, this will not extend
the guarantee period for the appliance.
Who will execute the service?
IKEA service provider will provide the
service through its own service op-
erations or authorized service partner
network.
What does this guarantee cover?
The guarantee covers faults of the ap-
pliance, which have been caused by
faulty construction or material faults
from the date of purchase from IKEA.
This guarantee applies to domestic use
only. The exceptions are specified under
the headline “What is not covered under
this guarantee?” Within the guarantee
period, the costs to remedy the fault
For more detailed information about
recycling of this product, please
contact your local city office, your
household waste disposal service or
the shop where you purchased the
product.
Packaging materials
The materials with the symbol are
recyclable. Dispose the packaging in
suitable collection containers to recycle
it.
e.g. repairs, parts, labour and travel will
be covered, provided that the appliance
is accessible for repair without special
expenditure. On these conditions the EU
guidelines (Nr. 99/44/EG) and the re-
spective local regulations are applicable.
Replaced parts become the property of
IKEA.
What will lKEA do to correct the
problem?
IKEA appointed service provider will
examine the product and decide, at its
sole discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service opera-
tions, will then, at its sole discretion,
either repair the defective product or
replace it with the same or a compara-
ble product.
What is not covered under this
guarantee?
• Normal wear and tear.

15 ENGLISH
• Deliberate or negligent damage,
damage caused by failure to observe
operating instructions, incorrect
installation or by connection to the
wrong voltage, damage caused by
chemical or electro-chemical reac-
tion, rust, corrosion or water damage
including but not limited to damage
caused by excessive lime in the water
supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches
and possible color differences.
• Accidental damage caused by foreign
objects or substances and clean-
ing or unblocking of filters, drainage
systems or soap drawers.
• Damage to the following parts:
ceramic glass, accessories, crockery
and cutlery baskets, feed and drain-
age pipes, seals, lamps and lamp
covers, screens, knobs, casings and
parts of casings. Unless such dam-
ages can be proved to have been
caused by production faults.
• Cases where no fault could be found
during a technician’s visit.
• Repairs not carried out by our ap-
pointed service providers and/or an
authorized service contractual part-
ner or where non-original parts have
been used.
• Repairs caused by installation which
is faulty or not according to specifica-
tion.
• The use of the appliance in a non-
domestic environment i.e. profes-
sional use.
• Transportation damages. If a cus-
tomer transports the product to their
home or other address, IKEA is not
liable for any damage that may occur
during transport. However, if IKEA
delivers the product to the custom-
er’s delivery address, then damage
to the product that occurs during
this delivery will be covered by this
guarantee.
• Cost for carrying out the initial instal-
lation of the IKEA appliance. How-
ever, if an IKEA service provider or
its authorized service partner repairs
or replaces the appliance under the
terms of this guarantee, the service
provider or its authorized service
partner will re-install the repaired
appliance or install the replacement,
if necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety
specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific
legal rights, which covers or exceed local
demands. However these conditions do
not limit in any way consumer rights
described in the local legislation
Area of validity
For appliances which are purchased in
one EU country and taken to another
EU country, the services will be pro-
vided in the framework of the guarantee
conditions normal in the new country.
An obligation to carry out services in the
framework of the guarantee exists only
if the appliance complies and is installed
in accordance with:
• the technical specifications of the
country in which the guarantee claim
is made;
• the Assembly Instructions and User
Manual Safety Information;

16 ENGLISH
The dedicated After Sales Service
for IKEA appliances:
Please do not hesitate to contact IKEA
After Sales Service to:
1. make a service request under this
guarantee;
2. ask for clarification on installation of
the IKEA appliance in the dedicated
IKEA kitchen furniture. The service
won’t provide clarifications related to:
- the overall IKEA kitchen installation;
- connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized service
engineer.
3. ask for clarification on user manual
contents and specifications of the IKEA
appliance.
To ensure that we provide you with the
best assistance, please read carefully
the Assembly Instructions and/or the
User Manual section of this booklet
before contacting us.
How to reach us if You need our
service
Please refer to the last page of this
manual for the full list of IKEA appointed
contacts and relative national phone
numbers.
Important! In order to provide You
with a quicker service, we recommend
that You use the specific phone num-
bers listed at the end of this manual.
Always refer to the numbers listed in
the booklet of the specific appliance You
need an assistance for. Before calling
us, assure that You have to hand the
IKEA article number (8 digit code) for
the appliance of which you need our
assistance.
Important! SAVE THE SALES RE-
CEIPT! It is Your proof of purchase and
required for the guarantee to apply.
Note that the receipt reports also the
IKEA article name and number (8 digit
code) for each of the appliances you
have purchased.
Do You need extra help?
For any additional questions not related
to After Sales of your appliances. Please
contact our nearest IKEA store call cen-
tre. We recommend you read the ap-
pliance documentation carefully before
contacting us.

Country Phone number Opening time
België [phone]Ma-Vr: 8.30-17.30
Belgique Lun-Ven: 8h30-17h30
[phone] – : 8–16:30 .
Canarias [phone] Lunes – Jueves: 9-13//15-17 Viernes: 9-13
eská republika 00420566630160 Po-Pá: 9-17
Danmark [phone]
Man.-Fre. 09.00-20.00 Lør. 09.00-18.00
1 søndag pr. maned, normalt første søndag i
måneden
Deutschland [phone]Mo-Fr: 8-16
Eesti [phone] E-R: 8-16
[phone] .- .: 8-16
España [phone] Lunes – Jueves: 9-13//15-17 Viernes: 9-13
France [phone] Lun-Ven: 8h30-19h Sam: 8h30-13h
Great Britain [phone] Mon-Fri: 8:30-17
Hrvatska [phone] Pon-Pet: 8-16 H
Ireland [phone] Mon-Fri: 8:30-17
Ísland [phone] Mánudagur - Föstudagur Kl.: 9-18
Italia +39 0732/691238 Lun-Ven: 8-20 Sab: 8-14
0035722740418 .- .: 8-17
Latvija [phone] P. - Pk.: 8-16
Lietuva [phone] Pirm.-Penkt.: 8-16
Magyarország 0036 13285308 Hétf -Péntek: 9-17
Malta [phone] Mon-Fri: 8-18 // Sat: 9-13:30
Mayorca [phone] Lunes – Jueves: 9-13//15-17 Viernes: 9-13
Nederland 0900 235 45 32 en/of 0900 BELIKEA Ma – Vr: 08.00-20.00,
Za: 09.00-20.00 (zondag gesloten)
Norge [phone] Man-Fre: 8-16
Österreich
Polska [phone] Poniedzia ek-Pi tek: 9-17
Portugal [phone] Seg.-Sex.: 9-12.30//14-18
România [phone] Luni-Vineri: 09:00-17:00
[phone] - : 8-16
Schweiz [phone] bis 20 Werktage
Suisse Lun-Ven: 8h-11h15
Svizzera (Ticino) [phone] Lun-Ven: 9-17
Slovenija http://www.ikea.com
Slovensko [phone] Pon–Pia: 9-16
Suomi 03-755 8888 Lu-Ve: 9-17
Sverige [phone] Mån-Fre: 8.30-20.00 Lör-Sön: 9.30-18.00
Türkiye +90/262/644 65 95 Pzt-Cuma: 9-17
[phone] .- .: 8-16.30
Maroc 080 200 0505 or ([phone]
Le SAV FRANKE est à votre disposition du Lundi au Vendredi
Selon les horaires suivants :
08h30mn à 12h30mn et de 14h30mn à 18h30mn
[email protected]
الماضيتان
تحت تصرفكم من الاثنين إلى الجمعة
08h30-12hmn 14h30-18h30 الأوقات التالية
080 200 0505 or ([phone]
[email protected]
[phone]Mo-Fr: 8-16

991.0542.737_01 - 180409
D00004717_00
AA-2040014-2
© Inter IKEA Systems B.V. 2018 23199
