Ikon IK23 User manual

Installation and User Manual
Model:
IK23
WASTE DISPOSALS COOKING + VENTLIATION DISHWASHERS + REFRIGERATION LAUNDRY SINKS + BASINS TAPWARE
SINKS APPLIANCES

12/12/2018
2
1. INPUT 3
2. TECHNICAL DRAWING 3
3. WARNING AND SAFETY PRECAUTIONS 4
3.1 Lethal risk, danger & poisoning 6
4. CLEANING & PREVENTATIVE MAINTENANCE 10

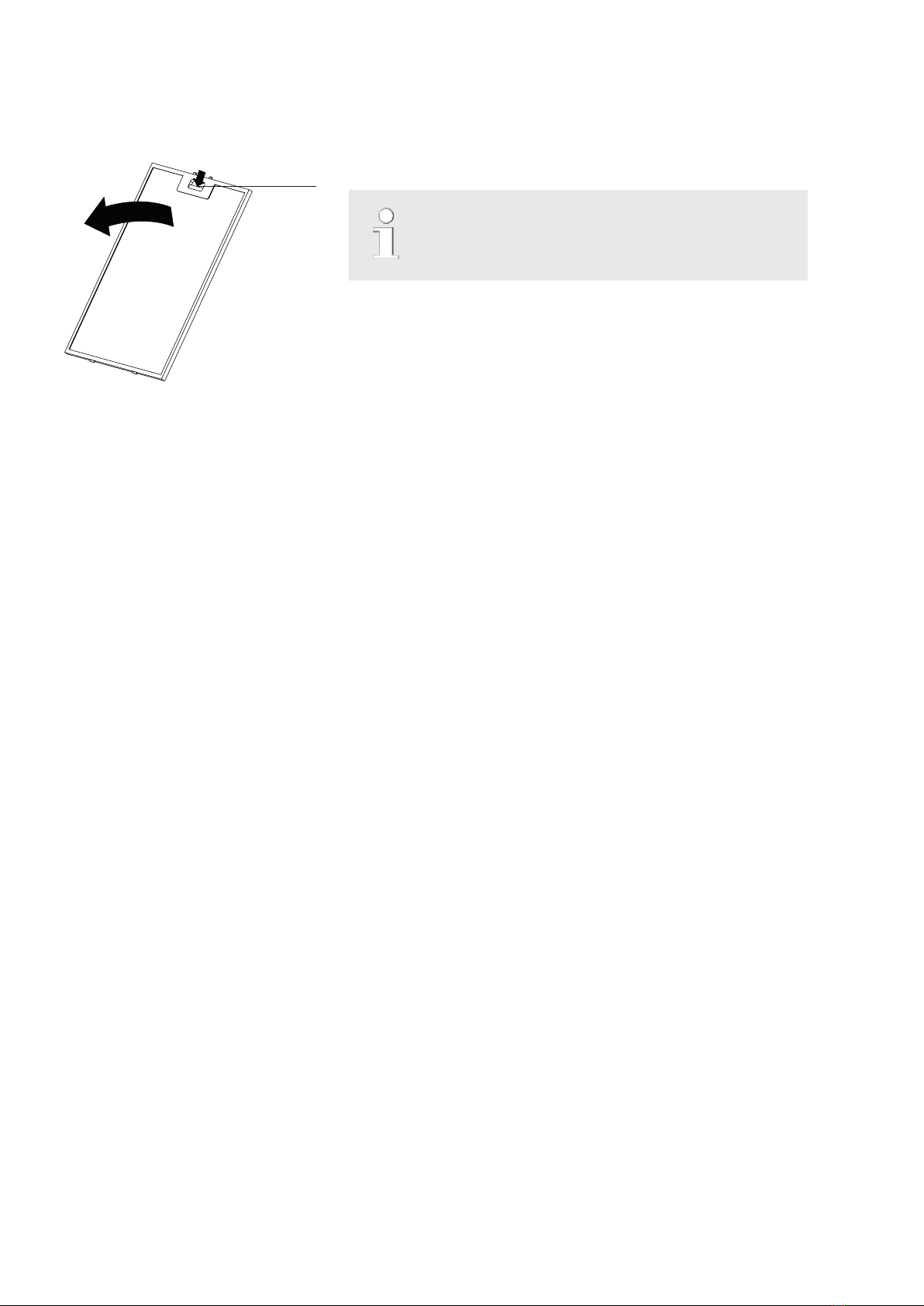

4.1 Aluminium lter cleaning 11
5. INSTALLATION & UNPACKING 11
5.1 Recommendations for energy saving

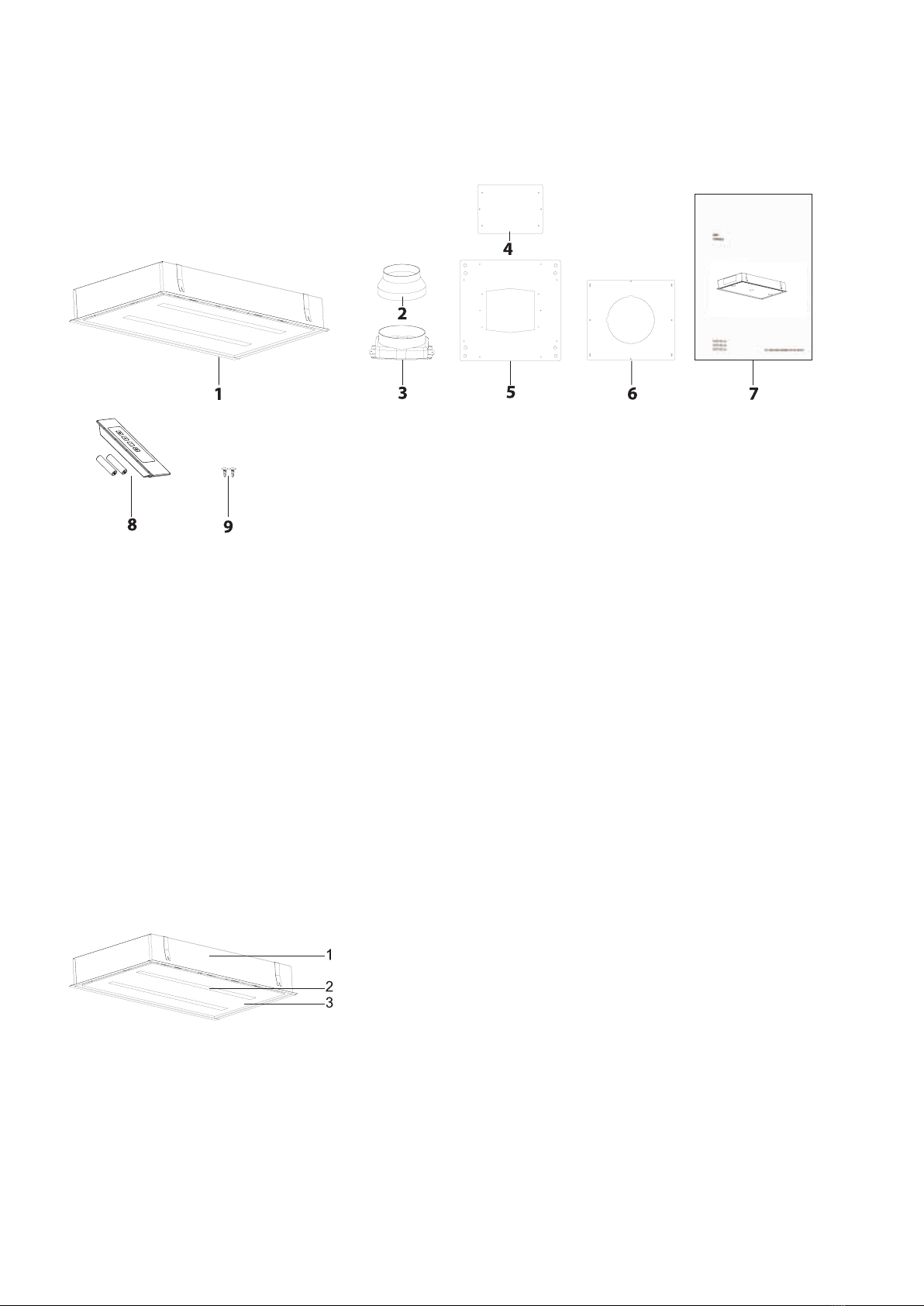

6. CONTENT OF PACKAGE 12
7. OVERVIEW OF HOOD 12
8. ASSEMBLY OF PRODUCT 13
9. USE OF PRODUCT 18
9.1.1 Safety when operating 18

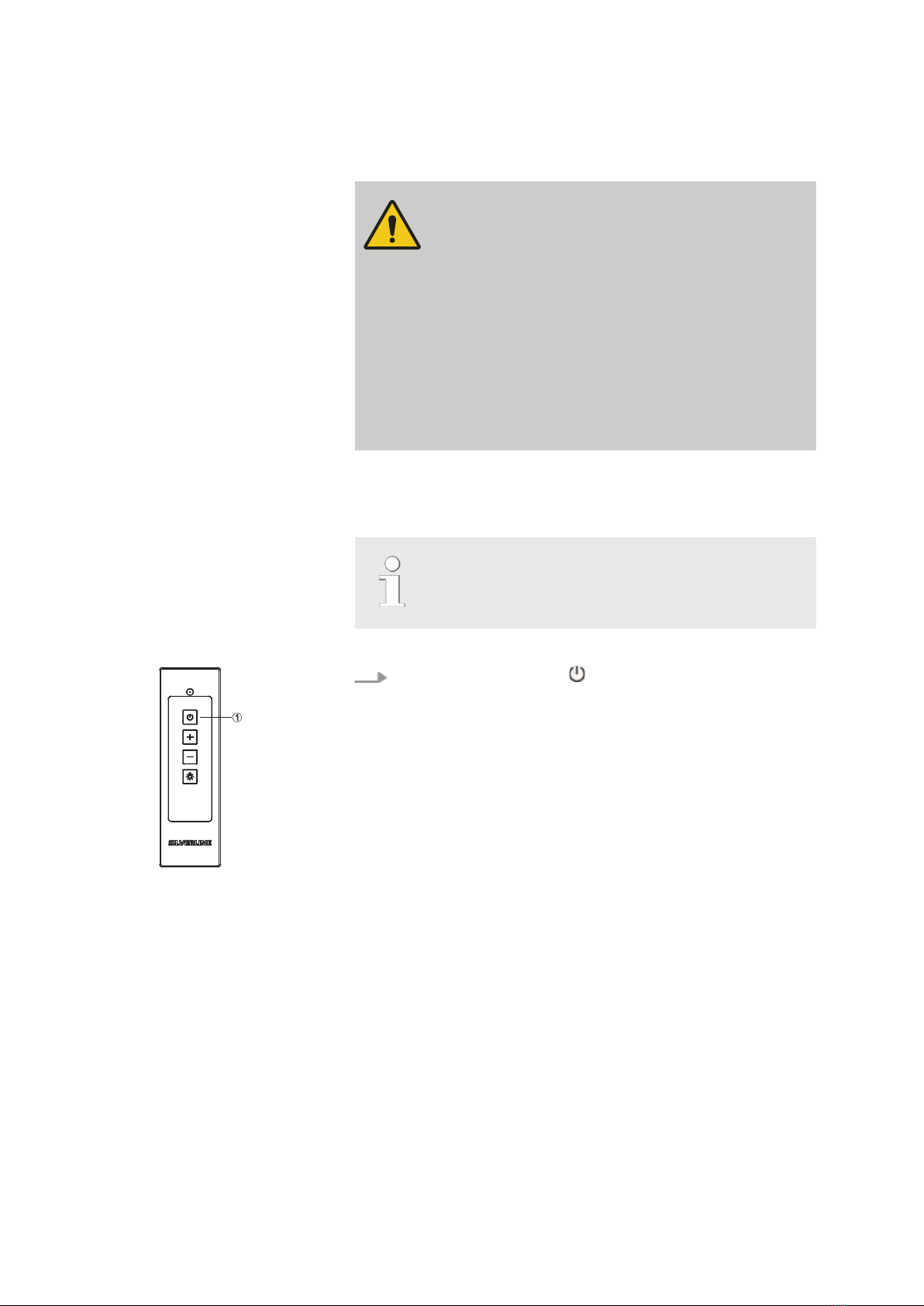

9.1.2 Operating the appliance 18
9.1.3 Choosing the fan power level 19
9.1.4 Switch lighting on/o󰀨 19
9.1.5 Automatic timer
10. REPLACING THE LAMPS 20
11. AUTHORIZED SERVICE 20
12. TECHNICAL TABLE 21
Table of contents

12/12/2018
3
1 INPUT
This guideline and the safety data includes all necessary informa-
tion for a safe mounting as well as a safe use without defects.
nPlease read all of this guideline and safety data before using
the device.
nKeep the guideline in an appropriate place.
nIf you pass the device onto others, make sure you also give
this guideline and safety data.
nDisregarding this guideline may result in severe injuries and
defects in the device.
nPlease keep in mind that we won't be responsible for the
defects arising from not taking this guideline into account.
The figures in this guideline aim to visually describe the actions. In
these figures only one model of the device is illustrated. However,
all instructions or figures also represent other models.
INPUT
07.02.20194260 HOOD USER GUIDE4

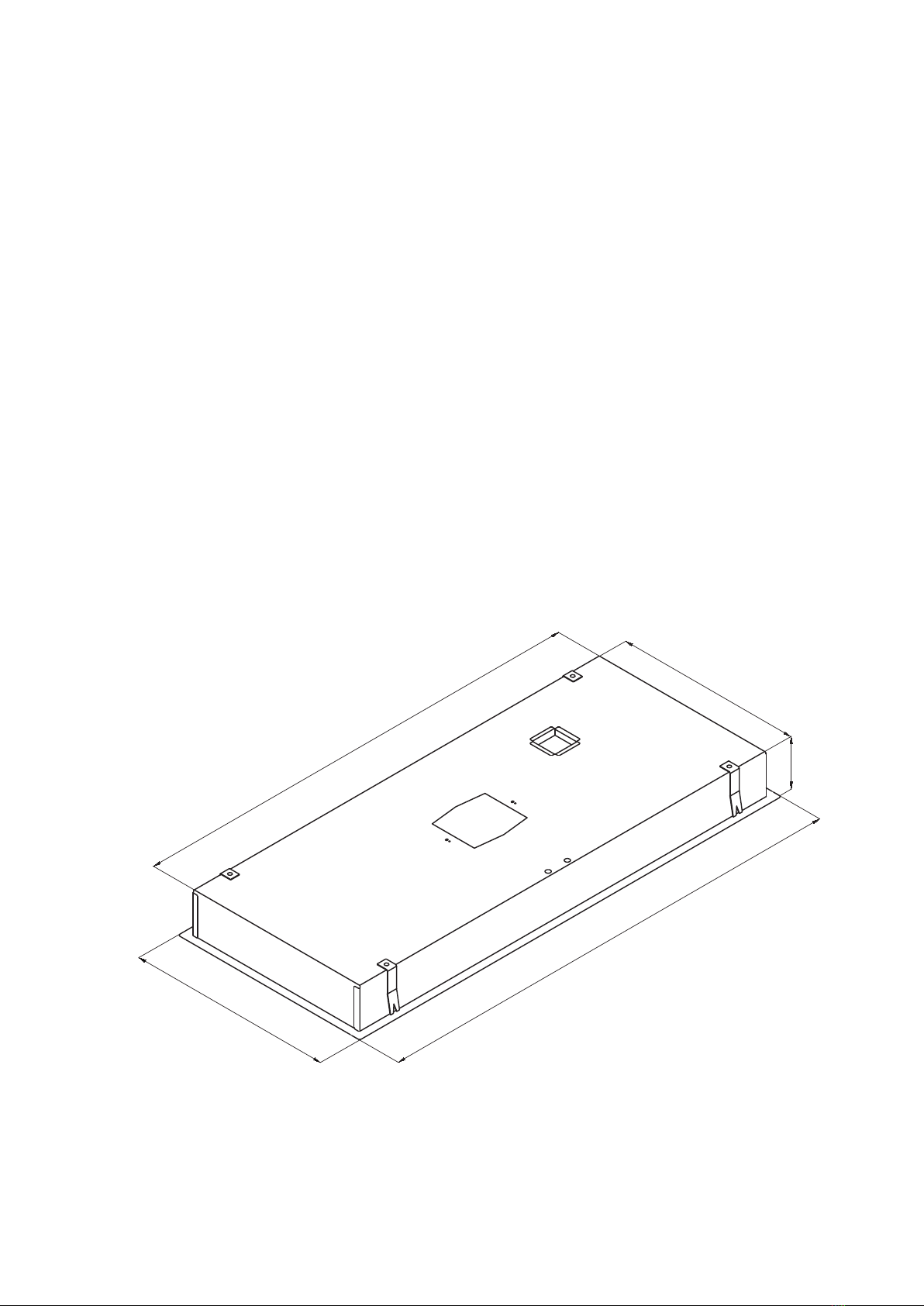

2 Technical Drawing
530
930-1230
890-1190
486
115
Fig. 1
Technical Drawing
07.02.2019 4260 HOOD USER GUIDE 5

12/12/2018
4
3 WARNING AND SAFETY PRECAUTIONS
nThis appliance can be used by children of 8 years and older,
people with physical, sensory or mental capability deficiency or
people with lack of experience or knowledge; as long as they
are provided supervision or instructions for the safe use of the
appliance and they comprehend the dangers.
nChildren should not tamper with the appliance. Cleaning and
user maintenance operations must not be performed by chil-
dren unless supervised.
nThis product is designed for home use.
nUsage voltage of your product is 220-240 Volt~50-60 Hz.
nPower cord of your product is fitted with a grounded plug. This
cord must be plugged into a grounded outlet.
nThe whole electrical wiring must be installed by a qualified
electrician.
nInstallation by unauthorized persons could lead to poor opera-
tion performance, damage to the product, and accidents.
nFeeder cable of the appliance mustn't be exposed to jamming
or crashing during assembly. Feeder cable mustn't be placed
near the cooker. In such cases, it might melt down and lead to
fire.
nDo not plug in the appliance before the installation.
nMake sure that the installation place allows the user to easily
unplug the power cable in case of any danger.
nDo not touch your product's lamps when they work for a long
time. The lamps may burn your hand as they will be hot.
nKitchen hoods are manufactured for household use in normal
home cooking. There is a risk of malfunction in other types of
use, and the product guarantee will be void.
nComply with the rules and instructions regarding discharge of
outgoing air, stipulated by the relevant authorities. (This
warning does not apply to uses without flue.)
nFlammable foods must not be cooked under the appliance.
nStart your product after you place pot, pan etc. on the stoves.
Otherwise, high temperature may cause same parts of your
products to deform.
nTurn off the cooker's burner before taking the saucepan, pan,
etc. off the cooker.
nDo not leave boiling oil on the stove. Pots that contain boiling
oil may catch fire by itself.
nSince oils could catch fire when you cook fried foods in partic-
ular, be careful about your curtains and tablecloths.
nEnsure timely replacement of the filters. Filters not replaced in
a timely manner pose risk of fire due to accumulated grease
deposits on them.
nDo not use non-fire-resistant filtering materials instead of the
filter.
nDo not operate your product without filter, and do not remove
the filters when the product is in operation.
nIn case of any fire, de-energize the hood and any other cooking
devices. (Plug off the appliance or turn off the main switch.)
WARNING AND SAFETY PRECAU-
TIONS
WARNING AND SAFETY PRECAUTIONS
07.02.20194260 HOOD USER GUIDE6

12/12/2018
5
nIf your product's periodic cleaning is not made in a timely
manner, it could pose risk of fire.
nDe-energize the appliance before any maintenance operations.
(Plug off the appliance or turn off the main switch.)
nWhen electric cooker hood and devices fed with energies other
than electricity operate simultaneously, the negative pressure
in the room must not exceed 4 Pa ( 4 X 10 bar ).
nGas or fuel oil burning appliances, such as room heaters,
which share the same environment with your product, must be
fully insulated from the exhaust of this product or they must be
hermetical.
nWhen you make a flue connection for your product, use pipes
with a diameter of 150mm or 120 mm. The length of the duct
connection as well as the number of elbows must be as min-
imum as possible.
nChildren must not play with the appliance.
nFor your safety, use ”MAX 6 A” fuse in the hood system.
nSince the packing materials could be dangerous, keep them
away from children.
nIf the feeder cable is damaged, it must be replaced by its man-
ufacturer or its authorized technical service or any other per-
sonnel qualified at the same level, in order to avoid any dan-
gerous situation.
nIn case of any deflagration, de-energize the cooker hood and
cooking appliances, and cover the flame. Never use water to
extinguish the fire.
nWhen cooking appliances are in operation, their accessible
parts could be hot.
nThis appliance is not intended to be used by people with phys-
ical, sensory and mental disabilities (including children) or
those who have not adequate experience and knowledge
regarding its use, unless they are under the supervision of a
person responsible for the safety of the appliance.
nAfter the installation of the hood, the minimum distance must
be 65 cm between the product and any electric cooker; and 75
cm between it and any gas ranges or cookers burning other
fuels.
nOutput of the hood must not be connected to air ducts, where
there exist another smokes.
nYou must be careful when using the appliance spontaneously
with other appliances (e.g. gas, diesel fuels, coal, wood, etc.
burning heaters, shower heaters), which use the same air in
the same environment. Attention must be paid when using
them simultaneously. It is because the hood could adversely
affect the combustion, by discharging the ambient air.
nThis warning does not apply to uses without flue.
nWhen electric cooker hood is used simultaneously with devices
that use gas or other fuels, there must be sufficient ventilation
in the room (might not apply to devices that discharges the air
back into the room).
WARNING AND SAFETY PRECAUTIONS
07.02.2019 4260 HOOD USER GUIDE 7

12/12/2018
6

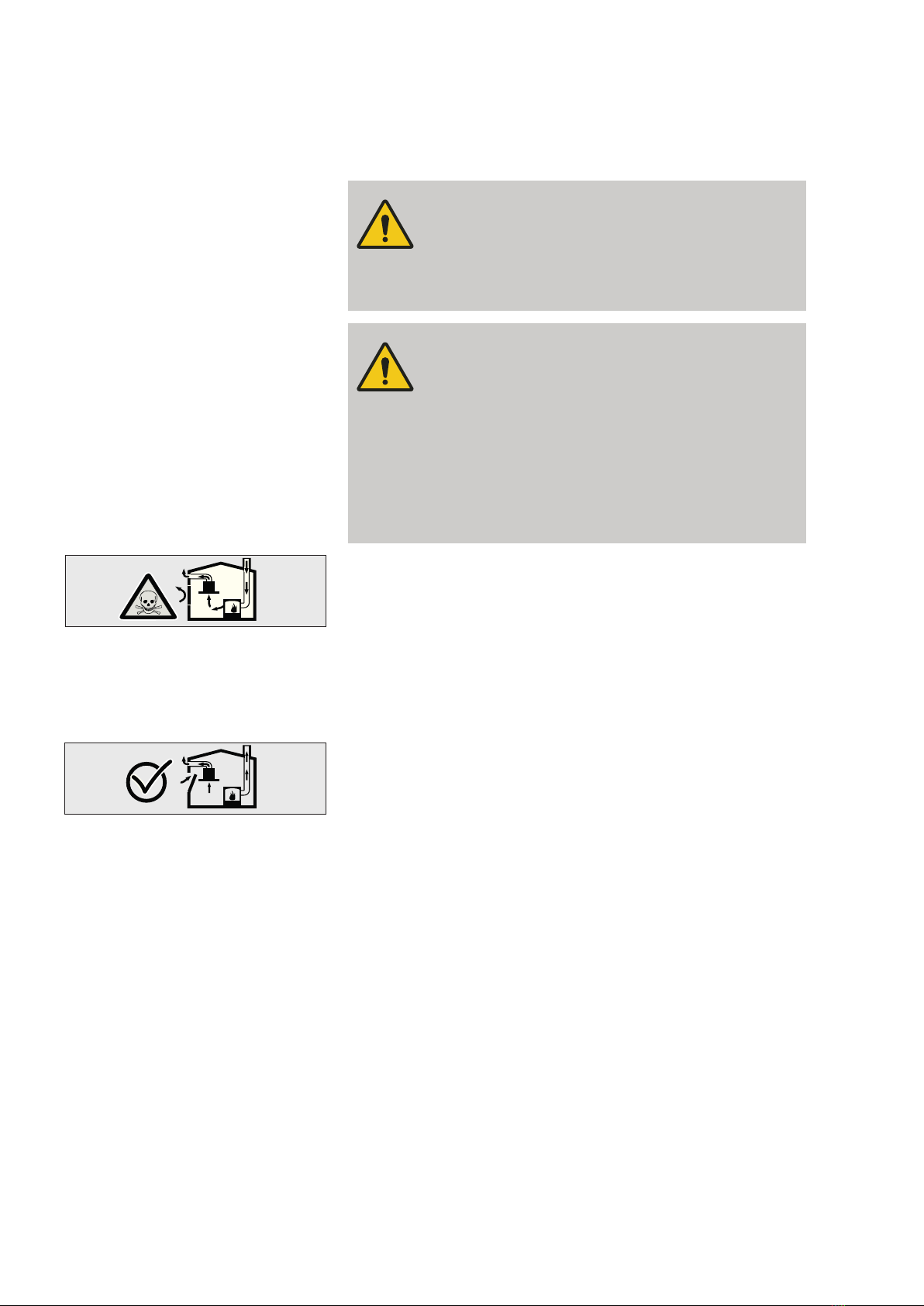

3.1 LETHAL RISK, DANGER OF POISONING
DANGER!
Warning - Choking Hazard
The packaging materials are dangerous for chil-
dren. Never allow children to play with packaging
materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and poisoning
danger due to reabsorbed combustion gases.
During the air discharge outlet use, unless suffi-
cient air supply is provided, do not use the appli-
ance simultaneously with devices that discharge
toxic gases through flue such as ventilated, gas,
oil, wood or coal burning heaters, shower heaters,
water heaters, etc.Fig. 2
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the instal-
lation location, and discharge the waste gas through a waste gas
system (e.g. flue). When the cooker hood is active, it absorbs air
from the kitchen and neighbouring rooms. If adequate air entry is
not provided, vacuum emerges. In such a case, the toxic gases are
absorbed from the flue and waste gas channel, and are taken into
to door again. Fig. 2
nTherefore, adequate fresh air ingress must always be
ensured.Fig. 3
Fig. 2: Poisoning Danger
Fig. 3
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
07.02.20194260 HOOD USER GUIDE8

12/12/2018
7
WARNING!
Fire danger!
– The oil residue in the oil filter may catch
fire.Clean the oil filter at least once every 3
months.Never operate the device without the
oil filter.
– The oil residue in the oil filter may catch fire.
Never work with open flame (ex. flambe) near
the device. The apparatus is allowed to be
installed near a solid fuel (e.g. wood or coal)
heater only if it has a non-removable cover. No
sparks should be scattered.
– Hot oils and fats catch fire easily. Hot oils and
fats should never be left unattended. Never try
to put out the fire with water. Turn off the
cooker. Kill the flames carefully using a cover,
fire blanket or a similar material.
– Gas operated cookers that do not have a
cooking pot on create high heat during opera-
tion. A ventilation device placed over the
cookers can be damaged or burned for this
reason. Operate gas cookers only when there
is a cooking pot on them.
– Operating multiple gas cookers simultaneously
creates high heat. A ventilation device placed
over the cookers can be damaged or burned
for this reason. Never operate two gas cookers
longer than 15 minutes on high flame setting. A
large burner over 5kW (Wok) has the power of
two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device may cause electric
shock. Never turn on a malfunctioning device.
Pull the power plug and switch off the circuit
breaker. Call customer service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services techni-
cian trained by us. If the device is malfunc-
tioning pull the power plug and switch off the
circuit breaker. Call customer service.
– Water leaking into the device may cause elec-
tric shock. High pressure or steam cleaners
must not be used.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
07.02.2019 4260 HOOD USER GUIDE 9

12/12/2018
8
DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use
protective gloves throughout the installation
process of the appliance.
– Due to risk of dropping the appliance,
assembly of all safety bolts and covers must be
performed as specified in the user manual.
– Objects placed on the appliance may fall over.
Do not place any objects on the device.
– LED lights are very bright and may damage
eyes (Risk group 1). You must not look directly
at running LED lights for longer than 100 sec-
onds.
WARNING!
Risk of burn, risk of electric shock!
– Allow the appliance to cool before cleaning or
maintenance process. Switch off the fuse or
pull out the mains plug from the socket.
– There is risk of damage due to ingress of mois-
ture in the electronics. Do not clean the control
components with a wet cloth.
– The surface could be damaged due to a wrong
cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not
use a stainless steel cleaner for the control ele-
ments.
– The surface could be damaged due to aggres-
sive and abrasive cleaning agents. Never use
aggressive and abrasive cleaning agents.
WARNING!
Dangers of fire and physical injury!
In case of repairing that is not performed according
to the rules or as required, turn off the fuse or
unplug the feeder cable of your appliance.
Repairing must be performed only by the author-
ized technical service or authorized experts.
NOTICE!
If the appliance is faulty or damages, turn off the
fuse or unplug the feeder cable of your appliance
and call the authorized service.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
07.02.20194260 HOOD USER GUIDE10

12/12/2018
9
NOTICE!
If the feeder cable is damaged, it must be replaced
by its manufacturer or its authorized technical
service or any other personnel qualified at the
same level, in order to avoid any dangerous situa-
tion.
NOTICE!
When the bulbs of the device malfunction, switch
off the circuit breaker and unplug the device's
power plug from the socket. Replace the defective
bulbs immediately (leave bulbs to cool down first),
in order to protect the remaining bulbs against
overloading.
CAUTION!
Accessible components might be heated when
used with cooking devices.
DANGER!
Air outlet pipe of this appliance mustn't be con-
nected in the flue used to discharge the fume gen-
erated by devices that use gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while
cooking. Condensates may cause corrosion
damage. Replace the malfunctioning lamp right
away to prevent overloading of other lamps. Mois-
ture intrusion in electronic parts poses a risk of
damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not use a
stainless steel cleaner for the control elements.
The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggres-
sive and abrasive cleaning agents. There is a risk
of damage due to condensate liquid backflow.
Install the air exit canal with a small downward
inclination (1° inclination) from the appliance.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
07.02.2019 4260 HOOD USER GUIDE 11

12/12/2018
10
4 CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
Cleaning and user maintenance of the appliance
shall not be performed by unattended children.
nThe surface could be damaged due to aggressive and abrasive
cleaning agents. Never use aggressive and abrasive cleaning
agents. Supply your cleaning and protective substances that
are appropriate for your appliance from the authorized tech-
nical service. Surface of appliance and control units are sensi-
tive to scratching.
nClean the surfaces with a soft and damp cloth, dish-washing
liquid or mild glass cleaning agent. Soften the dry, sticky dirt
with a damp cloth. Do not scrape!
nIt is not appropriate to use dry cloths, sponges that may
scratch, materials that require rubbing, and other aggressive
cleaning agents containing sand, soda, acid or chlorine.
nClean the stainless steel surfaces in their brushing direction
only.
nDo not use stainless steel cleaning agents and wet clothes for
control units. Cleaning of metal grease filters Used metal
grease filters retain the greasy particles in the moisture and
vapour generated in the kitchen. Clean the metal grease filters
about every three months, under normal use conditions (1 to 2
hours a day).
nDo not use excessively effective, acidic or alkaline cleaning
agents.
nFor cleaning the metal grease filters, clean the holder parts of
the metal grease filters in the appliance, with a damp cloth as
well.
nYou can clean the metal grease filters in the dishwasher or by
hand.
nDo not apply spray cleaning supplies directly to the product.
nDo not keep flammable and/or heavy decorative items on the
product.
CLEANING AND PREVENTIVE MAINTENANCE
07.02.20194260 HOOD USER GUIDE12

12/12/2018
11
4.1 ALUMINIUM FILTER CLEANING
1 Aluminium Filter Tab
Clean the aluminium oil filters periodically every 3
months.
nPress the aluminium filter tab (1) and pull the aluminium filter to
the direction of the arrow (Fig. 4).
nAs you remove the aluminium filter, hold it with your other hand
to prevent it from dropping.
nAs you remove the aluminium filter, in order to prevent the
accumulated oil to drip, keep the filter surface parallel to the
floor.
1
Fig. 4
CLEANING AND PREVENTIVE MAINTENANCE
ALUMINIUM FILTER CLEANING
07.02.2019 4260 HOOD USER GUIDE 13
5 Installation and Unpacking of the Appliance
nCheck that your appliance is not deformed.
nReport the transport issues immediately to transport operator.
nAny faults encountered shall be reported to the dealer, too.
nDo not allow children to play the with packaging materials!
5.1 Recommendations for Energy Saving
nReplace the carbon filters on a regular basis.
nRegularly clean your aluminium filters. Since dirty filters would
block the air passage, you might have to use the appliance at a
higher speed.
nUse your product according to its normal speeds.
nUse at higher speed would cause an increase in the energy
consumption.
Installation and Unpacking of the Appliance
Recommendations for Energy Saving
07.02.20194260 HOOD USER GUIDE14

12/12/2018
12
6 CONTENT OF PACKAGE
Fig. 5
1- Product
2- Ø150/120mm Plastic Flue Adapter
3- Ø150mm Plastic Flue
4- Flue Discharge Cap Plate
5- Space cover plate
6- Motor Cabin Air Inlet Flue Connection Plate
7- User Manual
8- Remote Control and Battery
9- 2x 3,5 x 9.5 Screws
CONTENT OF PACKAGE
07.02.2019 4260 HOOD USER GUIDE 15
7 OVERVIEW OF hood
1- Lower Body
2- Cooker Lighting
3- Lateral Absorption Plate/Glass
Fig. 6
OVERVIEW OF hood
07.02.20194260 HOOD USER GUIDE16

12/12/2018
13
8 ASSEMBLY OF PRODUCT
Fig. 7: Tools and auxiliary equipment
Prior to mounting, prepare the tools and auxiliary equipment speci-
fied below:
1. A sturdy ladder
2. Drill and bits, Ø10 and 6 mm
3. Phillips screwdriver
4. Water gauge
5. Pencil (not in image)
6. Tape measure, folding rule (not in image)
7. 2 persons (not in image)
8. Wood cutter (not in image)
nRemove all appliance parts from the package.
nBefore mounting the appliance, select the most suitable
mounting methods specified in this guide and prepare the
mounting plan.
ENVIRONMENT!
Danger to the environment due to wrong waste
throwing!
It may cause a danger to the environment due to
wrong waste throwing.
– Ensure that electric scrap and electronic com-
ponents are disassembled by authorized spe-
cialist agencies.
– If you are in doubt, obtain information from the
local municipal authority or the competent
authorities for the removal of environment-
friendly waste.
The required tools and auxiliary
equipment for mounting
ASSEMBLY OF PRODUCT
07.02.2019 4260 HOOD USER GUIDE 17

12/12/2018
14
Fig. 8
nParts inside the appliance may have sharp edges. Use protec-
tive gloves (Fig. 8).
CAUTION!
– The furniture that the appliance will be
mounted on should be resistant to 90°C tem-
perature.
– The durability of the furniture that will be
mounted on should also be ensured after the
cutting operations have been completed.
– Particularly in thin plates the carrying capacity
and durability should be provided with suitable
support parts. Consider the weight of the appli-
ance by including additional loads. The rein-
forcing material used should be heat and mois-
ture resistant. The weight of the appliance is
specified in the label on the package.
– Clean the sawdust after cutting. Cover the cut
surfaces so that they are heat resistant and
waterproof.
– The cross-sectional surface angle to the
working plate should be 90°.
ASSEMBLY OF PRODUCT
07.02.20194260 HOOD USER GUIDE18
500 mm 878 mm
Fig. 9
1. Cut the surface where the appliance will be mounted in align
with the specified measurements in the technical illustration
(Fig. 9).
ASSEMBLY OF PRODUCT
07.02.2019 4260 HOOD USER GUIDE 19

12/12/2018
15
Fig. 10
1- Insulation Part
2- Ceiling flush mounted Wooden Body
3- 5.5x60 Mount Screw
4- Motor Box
2. Attach the motor cabin with 5.5x60 screws to the wooden
body flush mounted in the ceiling.
The motor box shall be maximum 7.5 meters
away from the appliance.
Place an insulation part that is 10 - 15 mm
thick between the body and motor box.
Therefore the noise due to vibration from the
engine will be dampened.
CAUTION!
Ensure that the body on which the appliance
will be mounted is sturdy and able to sustain
the appliance.
ASSEMBLY OF PRODUCT
07.02.20194260 HOOD USER GUIDE20

12/12/2018
16

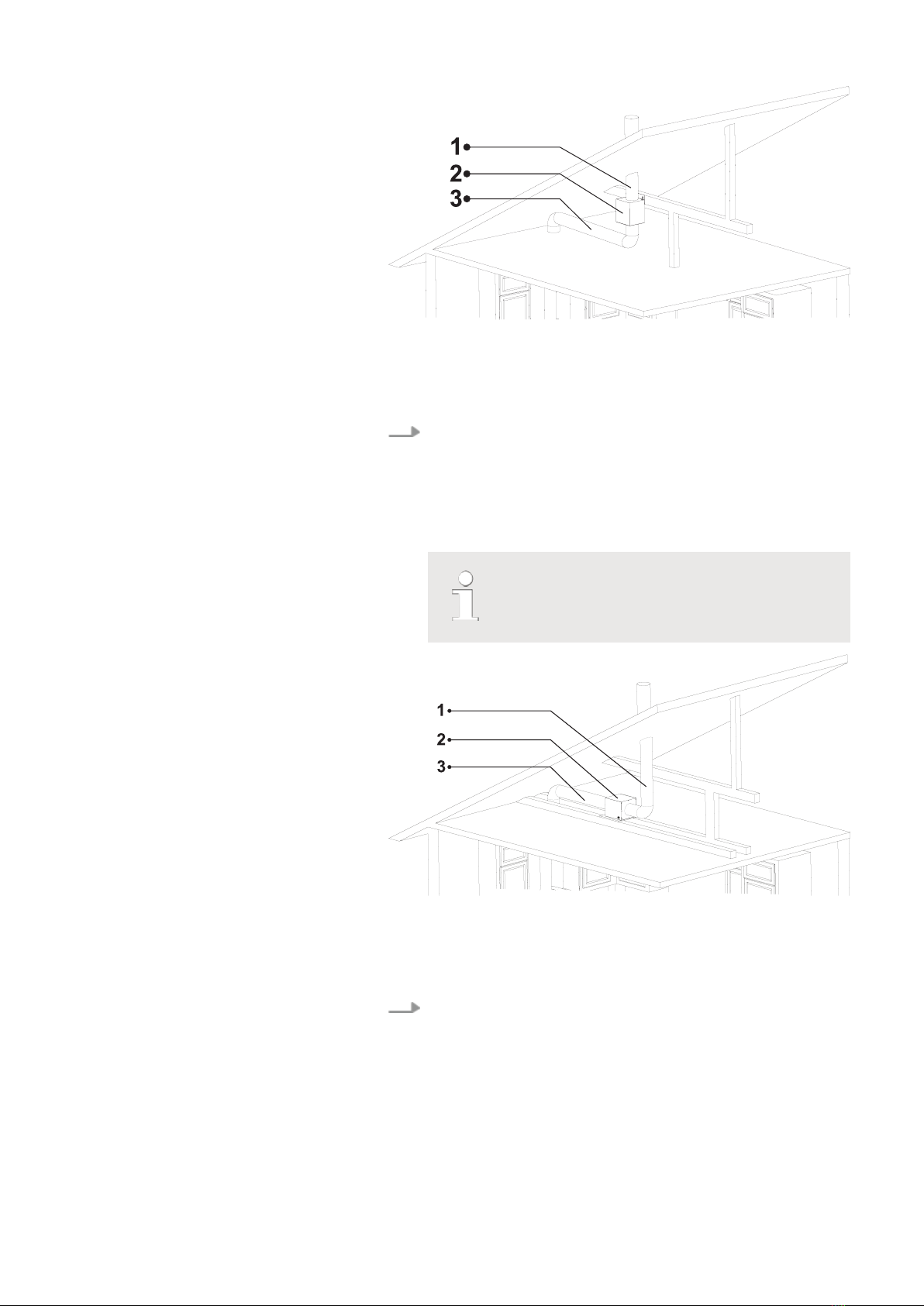

Fig. 11
1- Motor Box - Ceiling Air Discharge Pipe
2- Motor Box
3- Room - Motor Box Air Discharge Box
3. Connect external motor unit pipe connections (Fig. 11).
Attach the 8 metre intermediate cable supplied with the
product to the socket on the external motor box. Attach the
other end of this cable to the cable socket on the circuit box.
Attach the other cables coming from the circuit box to
sockets on the body..
Ensure the pipe connections do not have
much elbow connections or bent pipes.
Fig. 12
1- Motor Box - Ceiling Air Discharge Pipe
2- Motor Box
3- Room - Motor Box Air Discharge Box
4. Connect external motor unit pipe connections (Fig. 12).
ASSEMBLY OF PRODUCT
07.02.2019 4260 HOOD USER GUIDE 21

12/12/2018
17
Fig. 13
1- 3.5x9.5 Screw
2- Space cover plate
5.
Attach the supplied body cap plate to the lower body with 3.5
x 9.5 screws (Fig. 13).
Fig. 14
1- 3.5x9.5 Screw
2- Flue Discharge Cap Plate
6.
Attach the supplied body cap plate to the body cap plate with
3.5 x 9.5 screws (Fig. 14).
ASSEMBLY OF PRODUCT
07.02.20194260 HOOD USER GUIDE22

12/12/2018
18
9 USE OF PRODUCT
9.1 USE OF PRODUCT
9.1.1 Safety when operating
WARNING!
Danger of injury by improper operation!
Improper operation may cause injury and the
danger of material damage.
– Test this device for every possible use. A
defective device cannot be used.
– Do not place any objects on the device as
these could fall off.
– Never use the device without metal fat filter. A
danger of burning exists.
– Keep the device turned on to prevent corrosion
caused by condensation.
9.1.2 Operating the appliance
Choose the power level of the fan when you run
the extraction hood. Adjust the power level
according to the cooking and frying steams.
For this;
Press the () button on the remote controller (Fig. 15).
ðThe fan motor starts running at the 2.power level.
Fig. 15
USE OF PRODUCT
USE OF PRODUCT > Operating the appliance
07.02.2019 4260 HOOD USER GUIDE 23

12/12/2018
19
9.1.3 Choosing the fan power level
1. Press the () button on the remote controller to increase the
revolution of the device (Fig. 16).
ðThe revolution of the fan motor has increased.
2. Press the () button on the remote controller to decrease
the revolution of the device (Fig. 17).
ðThe revolution of the fan motor has decreased.
Maximum Operation Time:
When no change is performed on the position of
the extraction hood for 4 hours, the extraction hood
motor and lighting is switched off in case they are
on.
9.1.4 Switch lighting on/ off
1. Press (Fig. 18/1) the button.
ðThe light is on.
2. Press (Fig. 18/1) the button once more.
ðThe light is off.
2
Fig. 16
3
Fig. 17
via the remote control
Fig. 18: Switching the light on/off
Switching the light off
USE OF PRODUCT
USE OF PRODUCT > Switch lighting on/ off
07.02.20194260 HOOD USER GUIDE24
9.1.5 Automatic timer
The timer of 15 minutes will be activated when the () button
on the remote controller is pressed '' - '' for 5 seconds while
the device is operating on any power level. A flashing power
level LED light adjusted when the timer has started shows
that the additional operating automate has been activated.
After 15 minutes, all functions automatically stop before the
timer has been activated.
3
Fig. 19
USE OF PRODUCT
USE OF PRODUCT > Automatic timer
07.02.2019 4260 HOOD USER GUIDE 25

12/12/2018
20
10 REPLACING THE LAMPS
Contact the dealer or customer service when the lamp of the appli-
ance fails ()
REPLACING THE LAMPS
07.02.20194260 HOOD USER GUIDE26
11 AUTHORIZED SERVICE
nMake sure that the plug is plugged in, and that the fuses are
intact.
nCheck the bulbs. Make sure you unplugged the device before
performing this check. Tighten the bulbs if they are loose; you
can replace the bulbs if they still don't work.
nCheck to see if the hood is plugged in or if the plug is fit prop-
erly into the socket.
nCheck the fuse, to which the appliance is connected, as well as
the main fuse of your house.
nIs the outlet diameter of the appliance's flue adequate? (min.
120 mm).
nAre the metal filters clean? Please check.
nIf you use the hood without flue, make sure that the carbon fil-
ters are not older than 6 months.
nBe attentive to ventilate your kitchen adequately, in order to
provide an airflow. If you are still not satisfied with the perform-
ance of the appliance, consult the authorized technical service.
Fault description Cause Remedy
Product Does Not Work Check the power
connection.
Mains voltage must be 220-240 V, and product
must be plugged into a grounded socket.
Illumination lamp does not
operate
Check the power
connection.
Mains voltage must be 220-240 V, and product
must be plugged into a grounded socket.
Illumination lamp does not
operate
Check the lamp
switch.
Lamp switch must be at "on" position.
Illumination lamp does not
operate
Check the bulbs. Bulbs must be operative.
Product's Air Intake is Weak Check The Alumi-
nium Filter.
The aluminium cartridge filter should be washed
once a month under normal conditions.
Product's Air Intake is Weak Check The Air Outlet
Flue.
Air Outlet Flue Must Be Open.
Product's Air Intake is Weak Check The Carbon
Filter.
In products that work with carbon filters, carbon
filter must be replaced once in every 3 months
under normal conditions.
If Lighting is Not Functioning:
Possible Faults and Things that
You can do Before Calling Tech-
nical Service:
A) If the device does not run in any
way:
If the device performance is not
enough and it creates high noise
while running:
Troubleshooting
AUTHORIZED SERVICE
07.02.2019 4260 HOOD USER GUIDE 27
