Ikon Illumahood Neat & Pure User manual

PAGE 1
Installation and User Manual
For models: Illumahood - Neat & Pure
12-14 Charlies Way, Frankton, Hamilton, New Zealand, 3204
Phone [phone] Fax [phone] [email protected] www.ikon.nz

TABLE OF CONTENTS
SECTION PAGE
1. INPUT 3
2. TECHNICAL DRAWINGS 3
3. WARNING AND SAFETY PRECAUTIONS 4-5
3.1 LETHAL RISK, DANGER AND POISONING 6-9
4. USAGE WITH AND WITHOUT CARBON FILTER 10
5. CLEANING OF ACTIVATED FILTER PAD 11
6. CLEANING AND MAINTENANCE 11-12
7. APPLIANCE POSITION 13
7.1 INSTALLATION AND UNPACKAGING 13
7.2 RECOMMENDATIONS FOR ENERGY SAVING 13
8. CONTENTS OF PACKAGE 14
9. OVERVIEW OF HOOD 14
10. ASSEMBLY OF PRODUCT 15-16
11. USE OF PRODUCT 17
12. REMOTE CONTROL 18
13. CHANGING THE LAMP 18
14. TECHNICAL TABLE 18

PAGE 3
1 INPUT
This guideline and the safety data includes all necessary informa-
tion for a safe mounting as well as a safe use without defects.
nPlease read all of this guideline and safety data before using
the device.
nKeep the guideline in an appropriate place.
nIf you pass the device onto others, make sure you also give
this guideline and safety data.
nDisregarding this guideline may result in severe injuries and
defects in the device.
nPlease keep in mind that we won't be responsible for the
defects arising from not taking this guideline into account.
The figures in this guideline aim to visually describe the actions. In
these figures only one model of the device is illustrated. However,
all instructions or figures also represent other models.
INPUT
28.03.2019HOOD USER GUIDE ENGLISH4
1. Input
2 Technical Drawing
ÜST
ÖN YAN
ALT
470
501.7
39.7
MİN. 650
MAX. 2400
400
400
211.8
212
353.7
355.4
235
269
269
Fig. 1
Technical Drawing
28.03.2019 HOOD USER GUIDE ENGLISH 5
2 Technical Drawing
ÜST
ÖN YAN
ALT
470
501.7
39.7
MİN. 650
MAX. 2400
400
400
211.8
212
353.7
355.4
235
269
269
Fig. 1
Technical Drawing
28.03.2019 HOOD USER GUIDE ENGLISH 5
2 Technical Drawing
ÜST
ÖN YAN
ALT
470
501.7
39.7
MİN. 650
MAX. 2400
400
400
211.8
212
353.7
355.4
235
269
269
Fig. 1
Technical Drawing
28.03.2019 HOOD USER GUIDE ENGLISH 5
2. Technical drawings

PAGE 4
3 WARNING AND SAFETY PRECAUTIONS
nThis appliance can be used by children of 8 years and older,
people with physical, sensory or mental capability deficiency or
people with lack of experience or knowledge; as long as they
are provided supervision or instructions for the safe use of the
appliance and they comprehend the dangers.
nChildren should not tamper with the appliance. Cleaning and
user maintenance operations must not be performed by chil-
dren unless supervised.
nThis product is designed for home use.
nUsage voltage of your product is 220-240 Volt~50-60 Hz.
nPower cord of your product is fitted with a grounded plug. This
cord must be plugged into a grounded outlet.
nThe whole electrical wiring must be installed by a qualified
electrician.
nInstallation by unauthorized persons could lead to poor opera-
tion performance, damage to the product, and accidents.
nFeeder cable of the appliance mustn't be exposed to jamming
or crashing during assembly. Feeder cable mustn't be placed
near the cooker. In such cases, it might melt down and lead to
fire.
nDo not plug in the appliance before the installation.
nMake sure that the installation place allows the user to easily
unplug the power cable in case of any danger.
nDo not touch your product's lamps when they work for a long
time. The lamps may burn your hand as they will be hot.
nKitchen hoods are manufactured for household use in normal
home cooking. There is a risk of malfunction in other types of
use, and the product guarantee will be void.
nComply with the rules and instructions regarding discharge of
outgoing air, stipulated by the relevant authorities. (This
warning does not apply to uses without flue.)
nFlammable foods must not be cooked under the appliance.
nStart your product after you place pot, pan etc. on the stoves.
Otherwise, high temperature may cause same parts of your
products to deform.
nTurn off the cooker's burner before taking the saucepan, pan,
etc. off the cooker.
nDo not leave boiling oil on the stove. Pots that contain boiling
oil may catch fire by itself.
nSince oils could catch fire when you cook fried foods in partic-
ular, be careful about your curtains and tablecloths.
nEnsure timely replacement of the filters. Filters not replaced in
a timely manner pose risk of fire due to accumulated grease
deposits on them.
nDo not use non-fire-resistant filtering materials instead of the
filter.
nDo not operate your product without filter, and do not remove
the filters when the product is in operation.
nIn case of any fire, de-energize the hood and any other cooking
devices. (Plug off the appliance or turn off the main switch.)
WARNING AND SAFETY PRECAU-
TIONS
WARNING AND SAFETY PRECAUTIONS
28.03.2019HOOD USER GUIDE ENGLISH6
3. Warning and safety precauons

PAGE 5
nIf your product's periodic cleaning is not made in a timely
manner, it could pose risk of fire.
nDe-energize the appliance before any maintenance operations.
(Plug off the appliance or turn off the main switch.)
nWhen electric cooker hood and devices fed with energies other
than electricity operate simultaneously, the negative pressure
in the room must not exceed 4 Pa ( 4 X 10 bar ).
nGas or fuel oil burning appliances, such as room heaters,
which share the same environment with your product, must be
fully insulated from the exhaust of this product or they must be
hermetical.
nWhen you make a flue connection for your product, use pipes
with a diameter of 150mm or 120 mm. The length of the duct
connection as well as the number of elbows must be as min-
imum as possible.
nChildren must not play with the appliance.
nFor your safety, use ”MAX 6 A” fuse in the hood system.
nSince the packing materials could be dangerous, keep them
away from children.
nIf the feeder cable is damaged, it must be replaced by its man-
ufacturer or its authorized technical service or any other per-
sonnel qualified at the same level, in order to avoid any dan-
gerous situation.
nIn case of any deflagration, de-energize the cooker hood and
cooking appliances, and cover the flame. Never use water to
extinguish the fire.
nWhen cooking appliances are in operation, their accessible
parts could be hot.
nThis appliance is not intended to be used by people with phys-
ical, sensory and mental disabilities (including children) or
those who have not adequate experience and knowledge
regarding its use, unless they are under the supervision of a
person responsible for the safety of the appliance.

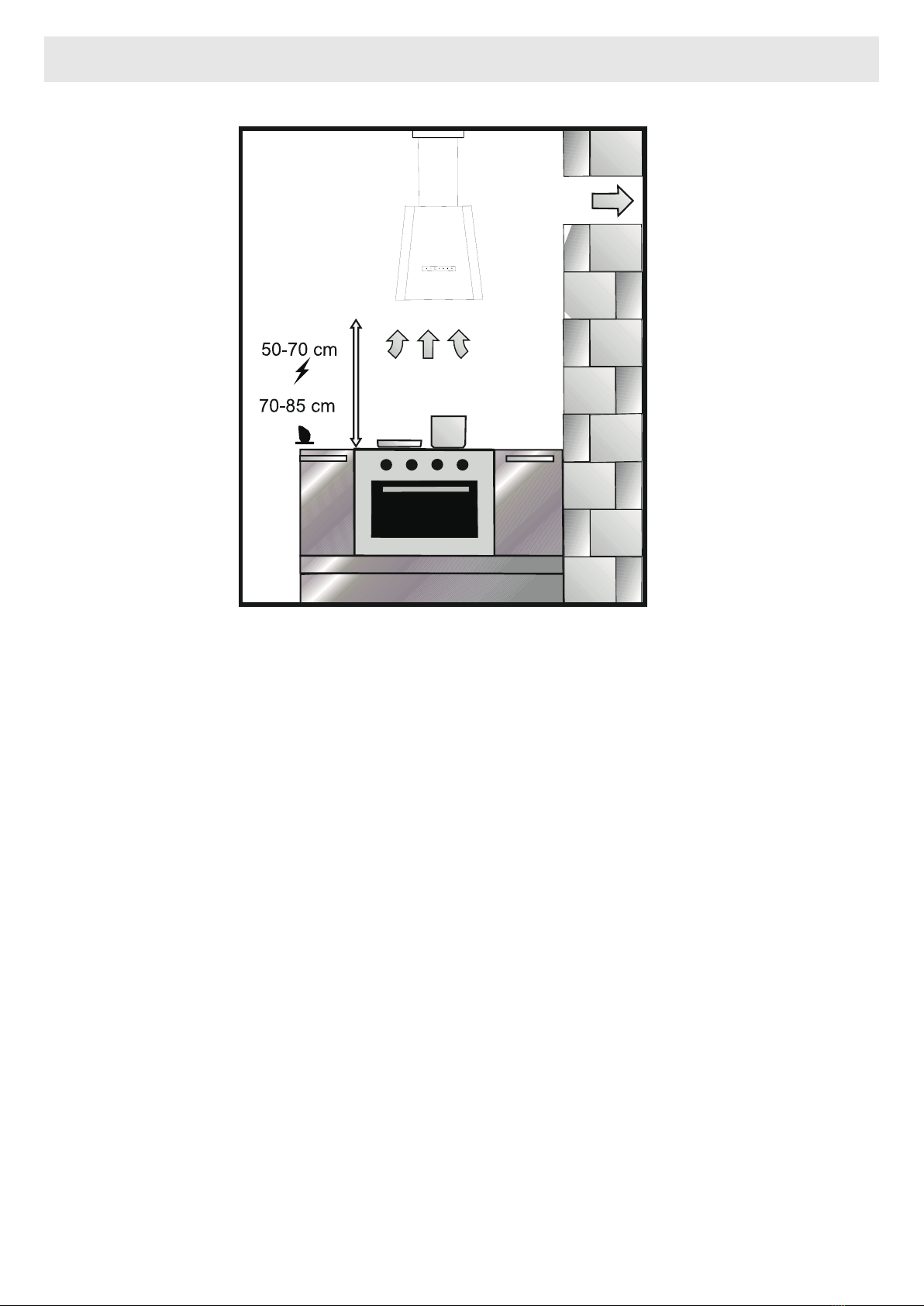

nAfter the installation of the hood, the minimum distance must
be 65 cm between the product and any electric cooker; and 75
cm between it and any gas ranges or cookers burning other
fuels.
nOutput of the hood must not be connected to air ducts, where
there exist another smokes.
nYou must be careful when using the appliance spontaneously
with other appliances (e.g. gas, diesel fuels, coal, wood, etc.
burning heaters, shower heaters), which use the same air in
the same environment. Attention must be paid when using
them simultaneously. It is because the hood could adversely
affect the combustion, by discharging the ambient air.
nThis warning does not apply to uses without flue.
nWhen electric cooker hood is used simultaneously with devices
that use gas or other fuels, there must be sufficient ventilation
in the room (might not apply to devices that discharges the air
back into the room).
WARNING AND SAFETY PRECAUTIONS
28.03.2019 HOOD USER GUIDE ENGLISH 7
3. Warning and safety precauons (cont)

PAGE 6
3.1 LETHAL RISK, DANGER OF POISONING
DANGER!
Warning - Choking Hazard
The packaging materials are dangerous for chil-
dren. Never allow children to play with packaging
materials.
DANGER!
Warning - Death Hazard
There are life-threatening danger and poisoning
danger due to reabsorbed combustion gases.
During the air discharge outlet use, unless suffi-
cient air supply is provided, do not use the appli-
ance simultaneously with devices that discharge
toxic gases through flue such as ventilated, gas,
oil, wood or coal burning heaters, shower heaters,
water heaters, etc.Fig. 2
Ventilated goods (e.g. gas, oil, wood or coal burning heaters,
shower heaters, water heaters) take combustion air from the instal-
lation location, and discharge the waste gas through a waste gas
system (e.g. flue). When the cooker hood is active, it absorbs air
from the kitchen and neighbouring rooms. If adequate air entry is
not provided, vacuum emerges. In such a case, the toxic gases are
absorbed from the flue and waste gas channel, and are taken into
to door again. Fig. 2
nTherefore, adequate fresh air ingress must always be
ensured.Fig. 3
Fig. 2: Poisoning Danger
Fig. 3
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
28.03.2019HOOD USER GUIDE ENGLISH8
3. Warning and safety precauons (cont)

PAGE 7
WARNING!
Fire danger!
– The oil residue in the oil filter may catch
fire.Clean the oil filter at least once every 3
months.Never operate the device without the
oil filter.
– The oil residue in the oil filter may catch fire.
Never work with open flame (ex. flambe) near
the device. The apparatus is allowed to be
installed near a solid fuel (e.g. wood or coal)
heater only if it has a non-removable cover. No
sparks should be scattered.
– Hot oils and fats catch fire easily. Hot oils and
fats should never be left unattended. Never try
to put out the fire with water. Turn off the
cooker. Kill the flames carefully using a cover,
fire blanket or a similar material.
– Gas operated cookers that do not have a
cooking pot on create high heat during opera-
tion. A ventilation device placed over the
cookers can be damaged or burned for this
reason. Operate gas cookers only when there
is a cooking pot on them.
– Operating multiple gas cookers simultaneously
creates high heat. A ventilation device placed
over the cookers can be damaged or burned
for this reason. Never operate two gas cookers
longer than 15 minutes on high flame setting. A
large burner over 5kW (Wok) has the power of
two gas burners.
WARNING!
Electrocution hazard!
– A malfunctioning device may cause electric
shock. Never turn on a malfunctioning device.
Pull the power plug and switch off the circuit
breaker. Call customer service.
– Unsuitable repairs pose hazards. Repairs and
replacement of damaged power cords must be
performed only by a customer services techni-
cian trained by us. If the device is malfunc-
tioning pull the power plug and switch off the
circuit breaker. Call customer service.
– Water leaking into the device may cause elec-
tric shock. High pressure or steam cleaners
must not be used.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
28.03.2019 HOOD USER GUIDE ENGLISH 9
3. Warning and safety precauons (cont)
LETHAL RISK, DANGER OF POISONING

PAGE 8
DANGER!
Danger of physical injury!
– During the installation, there is a danger of
physical injury due to the sharp edges. Use
protective gloves throughout the installation
process of the appliance.
– Due to risk of dropping the appliance,
assembly of all safety bolts and covers must be
performed as specified in the user manual.
– Objects placed on the appliance may fall over.
Do not place any objects on the device.
– LED lights are very bright and may damage
eyes (Risk group 1). You must not look directly
at running LED lights for longer than 100 sec-
onds.
WARNING!
Risk of burn, risk of electric shock!
– Allow the appliance to cool before cleaning or
maintenance process. Switch off the fuse or
pull out the mains plug from the socket.
– There is risk of damage due to ingress of mois-
ture in the electronics. Do not clean the control
components with a wet cloth.
– The surface could be damaged due to a wrong
cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not
use a stainless steel cleaner for the control ele-
ments.
– The surface could be damaged due to aggres-
sive and abrasive cleaning agents. Never use
aggressive and abrasive cleaning agents.
WARNING!
Dangers of fire and physical injury!
In case of repairing that is not performed according
to the rules or as required, turn off the fuse or
unplug the feeder cable of your appliance.
Repairing must be performed only by the author-
ized technical service or authorized experts.
NOTICE!
If the appliance is faulty or damages, turn off the
fuse or unplug the feeder cable of your appliance
and call the authorized service.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
28.03.2019HOOD USER GUIDE ENGLISH10
3. Warning and safety precauons (cont)
LETHAL RISK, DANGER OF POISONING

PAGE 9
NOTICE!
If the feeder cable is damaged, it must be replaced
by its manufacturer or its authorized technical
service or any other personnel qualified at the
same level, in order to avoid any dangerous situa-
tion.
NOTICE!
When the bulbs of the device malfunction, switch
off the circuit breaker and unplug the device's
power plug from the socket. Replace the defective
bulbs immediately (leave bulbs to cool down first),
in order to protect the remaining bulbs against
overloading.
CAUTION!
Accessible components might be heated when
used with cooking devices.
DANGER!
Air outlet pipe of this appliance mustn't be con-
nected in the flue used to discharge the fume gen-
erated by devices that use gas or other fuels.
Damage reasons
CAUTION!
Damage hazard due to corrosion. Always run the
appliance to prevent condensate formation while
cooking. Condensates may cause corrosion
damage. Replace the malfunctioning lamp right
away to prevent overloading of other lamps. Mois-
ture intrusion in electronic parts poses a risk of
damage. Never clean the control elements with a
wet cloth. The surface could be damaged due to a
wrong cleaning process. Clean stainless steel sur-
faces only in their brushing direction. Do not use a
stainless steel cleaner for the control elements.
The surface could be damaged due to aggressive
and abrasive cleaning agents. Never use aggres-
sive and abrasive cleaning agents. There is a risk
of damage due to condensate liquid backflow.
Install the air exit canal with a small downward
inclination (1° inclination) from the appliance.
WARNING AND SAFETY PRECAUTIONS
LETHAL RISK, DANGER OF POISONING
28.03.2019 HOOD USER GUIDE ENGLISH 11
3. Warning and safety precauons (cont)
LETHAL RISK, DANGER OF POISONING

PAGE 10
4 USAGE WITH AND WITHOUT CARBON FILTER
You can use this appliance in exhaust air mode
and ventilated air mode.
Exhaust air mode
The absorbed air is cleaned by the grease filters, and is discharged
through a piping system.Fig. 4
NOTICE!
Exhaust air must not be transferred to an active
smoke or waste gas flue; or a flue used for ventila-
tion of the places, where heat sources are
installed.
nIf you want to transfer exhaust air to an inactive smoke or
waste gas flue, you need to obtain permission from an author-
ized chimney sweep.
nIf exhaust air is discharged through the external wall, a tele-
scopic wall safe must be used.
Ventilated air mode
Absorbed air is cleaned by the grease filters and
an active carbon filter, and then it is transferred
back to the kitchen.Fig. 5
You need to install an active carbon filter, in order
to catch the substances, which cause stink in the
circulating air. Consult your authorized dealer to
know the different opportunities available for ena-
bling the appliance to function in circulating air
mode. You can buy the accessories required for
this process from the relevant outlets, authorized
technical service or online sales center.
Fig. 4: Air Outlet without Carbon Filter
Fig. 5: Air Circulation with Carbon
Filter
USAGE WITH AND WITHOUT CARBON FILTER
28.03.2019HOOD USER GUIDE ENGLISH12
4. Usage with and without carbon lter

PAGE 11
5 Cleaning of Activated Carbon Filter Pad
1. Removing the metal oil filters (
Ä “Placing the active carbon
filter” on page 13).
2. Active carbon filter is placed on the rear side of the metal oil
filter Push it to the side to remove it.(Fig. 6).
3. Wash the active carbon filter in the dishwasher.
Active carbon filter may be washed 3 times.
Then the active carbon filter must be
replaced by a new one.
4. Place the active carbon filter in the dishwasher loosely and
steeply and without any other dishes.
5. Start a program with a maximum temperature of 55° C.
6. Let the active carbon filter to dry in open air for 24 hours or
40 minutes at 80° C.
7. Place the washed or new active carbon filter on the metal oil
filter.
Placing the active carbon filter
Fig. 6: Placing the active carbon filter
1 Active carbon filter
2 Fixing pin
3 Metal oil filter
4 Fixing holes for active carbon filter
Washing n a dishwasher
After cleaning
Placing the active carbon filter
Cleaning of Activated Carbon Filter Pad
28.03.2019 HOOD USER GUIDE ENGLISH 13
5. Cleaning of acvated carbon lter pad
6 CLEANING AND PREVENTIVE MAINTENANCE
CAUTION!
Cleaning and user maintenance of the appliance
shall not be performed by unattended children.
nThe surface could be damaged due to aggressive and abrasive
cleaning agents. Never use aggressive and abrasive cleaning
agents. Supply your cleaning and protective substances that
are appropriate for your appliance from the authorized tech-
nical service. Surface of appliance and control units are sensi-
tive to scratching.
nClean the surfaces with a soft and damp cloth, dish-washing
liquid or mild glass cleaning agent. Soften the dry, sticky dirt
with a damp cloth. Do not scrape!
nIt is not appropriate to use dry cloths, sponges that may
scratch, materials that require rubbing, and other aggressive
cleaning agents containing sand, soda, acid or chlorine.
nClean the stainless steel surfaces in their brushing direction
only.
nDo not use stainless steel cleaning agents and wet clothes for
control units. Cleaning of metal grease filters Used metal
grease filters retain the greasy particles in the moisture and
vapour generated in the kitchen. Clean the metal grease filters
about every three months, under normal use conditions (1 to 2
hours a day).
nDo not use excessively effective, acidic or alkaline cleaning
agents.
nFor cleaning the metal grease filters, clean the holder parts of
the metal grease filters in the appliance, with a damp cloth as
well.
nYou can clean the metal grease filters in the dishwasher or by
hand.
nDo not apply spray cleaning supplies directly to the product.
nDo not keep flammable and/or heavy decorative items on the
product.
CLEANING AND PREVENTIVE MAINTENANCE
28.03.2019HOOD USER GUIDE ENGLISH14
6. Cleaning and maintenance

PAGE 12
6.1 Cleaning the scale filter 1. Open the metal cover of the hood (Fig. 7/1).
2. Open the lock of the metal oil filter (Fig. 7/2) and ensure that
it will not fall.
3. Tilt the metal oil filter forward and lift it out (Fig. 7/2).
WARNING!
Risk of fire due to oil sediments in metal
oil filter!
There is a risk of fire due to oil sediments in
metal oil filter.
– Clean the metal oil filter at least every 2
weeks when the oil filter cleaning warning
is displayed.
– Never use the hood without a metal oil
filter.
4. Clean the metal oil filter with hand or in the dishwasher.
5. NOTICE!
Material damage due to wrong detergent!
Soften the metal oil filter in hot water and clean it with a soft
brush.
6. Rinse the metal oil filter in hot water.
7. Place the metal oil filter in the dishwasher loosely and steeply
and without any other dishes.
8. Start a program with a maximum temperature of 55° C.
Colour changes may occur due to cleaning in
the dishwasher. They do not adversely affect
the function of the metal oil filter.
9. Allow the metal oil filter to dry on an absorbent coaster.
If the activated carbon filter is removed, rub it
again on the metal oil filter.
2
1
Fig. 7: Removing the metal oil filters
1- Metal Cap
2- Metal oil filter
Hand-cleaning
Washing n a dishwasher
After cleaning
CLEANING AND PREVENTIVE MAINTENANCE
Cleaning the scale filter
28.03.2019 HOOD USER GUIDE ENGLISH 15
6. Cleaning and maintenance (cont)

PAGE 13
7 APPLIANCE POSITION
Fig. 8
After completing the installation of hood, the minimum distance
must be 70 cm between the product and any electric cooker; and
85 cm between it and any gas ranges or cookers burning other
fuels (Fig. 8).
7.1 Installation and Unpacking of the Appliance
nCheck that your appliance is not deformed.
nReport the transport issues immediately to transport operator.
nAny faults encountered shall be reported to the dealer, too.
nDo not allow children to play the with packaging materials!
7.2 Recommendations for Energy Saving
nReplace the carbon filters on a regular basis.
nRegularly clean your aluminium filters. Since dirty filters would
block the air passage, you might have to use the appliance at a
higher speed.
APPLIANCE POSITION
Recommendations for Energy Saving
28.03.2019HOOD USER GUIDE ENGLISH16
7. Appliance posion
Recommendations for energy saving
nUse your product according to its normal speeds.
nUse at higher speed would cause an increase in the energy
consumption.
APPLIANCE POSITION
Recommendations for Energy Saving
28.03.2019 HOOD USER GUIDE ENGLISH 17

PAGE 14
8 CONTENT OF PACKAGE
Fig. 9
1 Appliance
2 Remote controller
3 Installation Template
4 User manual
5 4x Steel Suspender Rope
6 4x Hanging Plate
7 8 x Ø.10mm Plastic Dowels
8 8x 5.5x60 Wall Mount Screw
9 4X M5 x 15 Screws
10 8X 3.5x9.5 Flue Connection Screw
CONTENT OF PACKAGE
28.03.2019HOOD USER GUIDE ENGLISH18
9 OVERVIEW OF hood
Fig. 10
1- Ceiling carrier plate cover
2- Hanger wires
3- Feeding Cable
4- Body
5- Control Panel
OVERVIEW OF hood
28.03.2019 HOOD USER GUIDE ENGLISH 19
9. Overview of hood
8. Contents of package

PAGE 15
10 ASSEMBLY OF PRODUCT
10.1 Installation Diagram and Components
1 Ceiling
2 8 x plastic dowel, Ø 10 mm
3 Ceiling Hanging Plate
4 8x 5.5x60 Wall Mount Screw
1. Drill the surface where product will be installed from the
points A, B, C, D with Ø10 mm drill (Fig. 11).
2. Insert Ø10 mm plastic dowels into the drilled points
A,B,C,D,E,F,G,H(Fig. 11).
3. Install the Ceiling Connection plate to the ceiling at points
A,B,C,D,E,F,G,H with 5.5x60 screws (4) (Fig. 11).
Fig. 12
1 Ceiling carrier locking mechanism
2 Product Hanging Plate 3 Ceiling carrier plate cover 4 Hanging Plate
5 Ceiling Hanger Plate Feeder Cable Layout Plan
Fig. 11
ASSEMBLY OF PRODUCT
Installation Diagram and Components
28.03.2019HOOD USER GUIDE ENGLISH20
10. Assembly of product

PAGE 16
1. Let the product hanger wires (2) through hanger plate (3). As
this is done, the feeder cable passage area (5) should be on
the right side when the appliance is viewed from the front
(Fig. 12).
2. Let the product hanger wires (2) through hanger lock mecha-
nism (1) lock mechanism. Ensure all hanger wires are
required length and equal (Fig. 12).
CAUTION!
The locking mechanism of the carrier wires will
prevent the wires to move away from its position or
backwards as long as the stop pims are not
pressed forward.
Fig. 13
1 Fixing plate
2 Securing bolt
3 Fixing bolts
4 Feeding Cable
1. Mount 4 ceiling hanger locking mechanism (1) on the body
with 3.5 x 9.5 screws (2) and M5 x 15 (3) screws (Fig. 13
2. Let the feeder cable (4) through the ceiling hanger plate
feeder cable through area (Fig. 13/5) and make the electrical
connections. Close the ceiling hanger plate cover.
ASSEMBLY OF PRODUCT
Installation Diagram and Components
28.03.2019 HOOD USER GUIDE ENGLISH 21
10. Assembly of product (cont)

PAGE 17
11 USE OF PRODUCT
11.1 How to use 5 Spd Dig Touch Control Product
1. Press this button to turn on the product.Fig. 14
2. Press this button to decrease the motor speed.Fig. 14
3. Dig display You can follow which speed the product is cur-
rently working on this display.Fig. 14
4. Press this button to increase the motor speed.Fig. 14
5. When timer button is pressed, a 15-minute timer function will
be activated; display will give a signal once the timer starts
and the motor will stop automatically after 15 minutes.Fig. 14
6. Press this button to turn on and off the lamp.Fig. 14
Filters should be cleaned when "C" signal appears on the Display
or (due to usage) every 2 or 3 weeks. To delete "C" signal after the
filters are cleaned and replaced, press and hold ( ) button more
than 3 secs (when device is off). Letter "E" will appear on the Dis-
play and it will switch to normal operation. If operation before
deleting the "C" signal is required, active motor speed will appear
for 1 sec when you press ( ) button and then the motor will
resume running.
Fig. 14: 5 Spd Dig Button
Cleaning Periods for Metal Filters
USE OF PRODUCT
How to use 5 Spd Dig Touch Control Product
28.03.2019HOOD USER GUIDE ENGLISH22
11. Use of product

PAGE 18
12 REMOTE CONTROL
1- Motor On/Off
2- Motor Speed Increase
3- Motor Speed Decrease
4- Lighting On/Off
Remote control is sold together with the product
optionally. The product you bought may not have
remote control option.
Fig. 15: REMOTE CONTROL
REMOTE CONTROL
28.03.2019 HOOD USER GUIDE ENGLISH 23
13 Changing the appliance lamp
Contact the dealer or customer service when the lamp of the appli-
ance fails ()
Changing the appliance lamp
28.03.2019HOOD USER GUIDE ENGLISH24
14 TECHNICAL TABLE
Supply Voltage 220 - 240 V 50Hz
Insulation Class of Motor F
Insulation Class CLASS I
This product complies with the 2014/30/EC (Regulation on Electro-
magnetic Compliance) and 2014/35/EC (Regulation on Low
Voltage Devices (LVD)) Directives.
This device complies with the Directive on the Control of Waste
Electrical and Electronic Equipment.
Specifications of the device and this manual may be modified
without prior notification.
TECHNICAL TABLE
28.03.2019 HOOD USER GUIDE ENGLISH 25
13. Changing the appliance lamp
12. Remote Control
