Iluminar ILUM-DE-N1K User manual

1000W
USER
MANUAL
DE HPS MH FIXTURE MODEL 1000W
120V/240V, 277V, 347V
877-540-5588
iluminarlighting.com
[email protected]
ILUM-DE-N1K
ILUM-DE-1K277
ILUM-DE-N1K34
ILUM-DE-N1K-NL
ILUM-DE-1K277-NL
ILUM-DE-N1K34-NL

3
© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.
2
Make sure the power cord is correctly connected and the lamp is securely in place.
Disconnect the fixture from the power supply prior moving the unit or performing any maintenance or
lamp changes.
DO NOT open the ballast case, it will void the warranty.
DO NOT support the ballast by power cord(s). These cords/connections are not designed to bear weight.
DO NOT make contact with the interior of the socket while power is on.
DO NOT attempt to rewire, alter, modify or reconfigure your system - this will void the ILUMINAR
warranty and could create serious safety hazards, or cause bodily injury or death, as this is a high
amperage and voltage device.
DO NOT submerge in water.
DO NOT plug the system into untested or unidentified voltage other than what is designated on ballast.
DO NOT CONNECT A HPS/MH BALLAST to a Flip Box. It will void the warranty and can cause electrical
failure within the HPS/MH Ballast. Flip or Switch Boxes are not recommended for any HPS/MH Units or for
any high wattage ballasts.
DO NOT plug or unplug the lamp cord while the ballast is connected to power.
Make sure to wear proper gloves to protect from the transfer of oil from the skin to the lamps glass
surface.
When changing out the lamp, make sure that the lamp has time to cool before touching.
Make sure the lamp is correctly locked into the socket, properly securing the lamp.
If the lamp is damaged in any way (cracked, loose internal connections) replace the lamp immediately.
Keep away from Children. This product contains delicate electronic components. If it is placed near
an object that transmits radio signals, it could cause interference (i.e.: mobile devices, walkie talkies,
CB radios, remote controls and microwaves). If interference occurs, move such objects away from the
appliance.

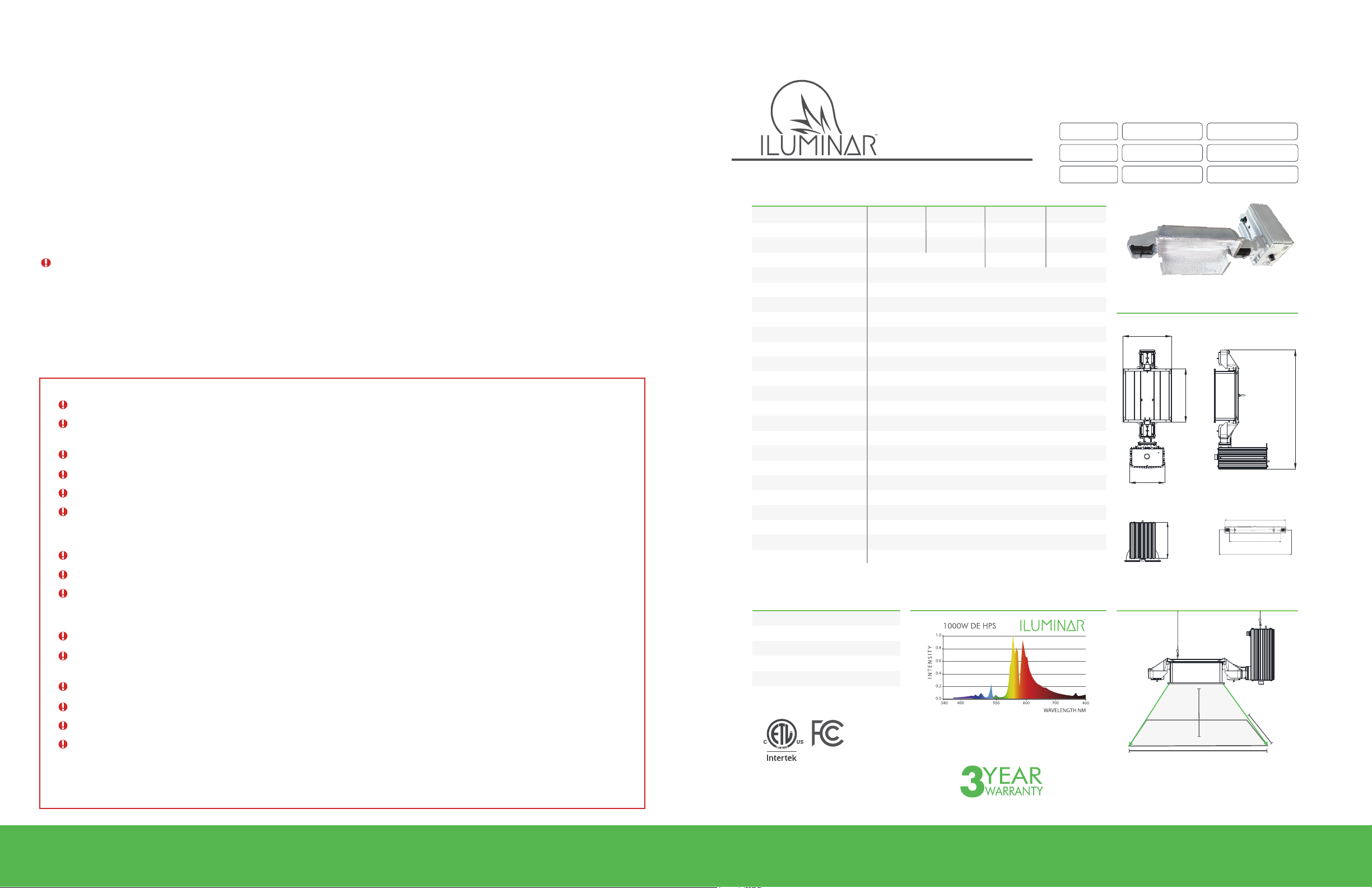

WARNINGS
THANK YOU for purchasing an ILUMINAR Lighting DE FIXTURE. We strive to deliver the best
customer service alongside world-class products and we go above and beyond to make sure you are
satisfied with your purchase. The following is a general set of warnings and basic guidelines for the
ILUMINAR DE Fixture. Always have an expert install your product(s).
KEEP ORIGINAL PACKAGING
In the event of a return, products will need to be in the original ILUMINAR packaging to avoid product
damage during shipping. Any damage to products not in their original packaging will not be covered
under the Warranty. Visit iluminarlighting.com/warranty for more detailed information.
SAFETY 1ST
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN ELECTRICAL SHOCK AND
SERIOUS INJURY. Additionally, failure to follow these safety warnings can/will result in a void of all
warranties as well as any manufacturer liability.
© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.
Please read carefully prior to beginning installation.
Toll Free: 1-877-540-5588
iluminarlighting.com © Copyright 2020 ILUMINAR Lighting
Subject to change without notice.
Recommended to use with ILUMINAR Touch or ILUMINAR HASH Controller.
View MH Compatible Lamp Spectra at iluminarlighting.com
1000W
DE FIXTURE
1.5m / 5'
1.2m / 4'
1.2m / 4'
MOUNTING & COVERAGE
390mm / 15.3”
270mm / 10.6”
320mm / 12.5”
609mm / 23.98”
179mm / 7.04”
275mm / 10.82”
249mm / 9.80”
249mm / 9.80”
DIMENSIONS
Microprocessor Driven
End of Lamp Life (EOL)
Open Circuit Protection
Ignition Failure Protection
Thermal Sensing Protection
PROTECTIONS
DE HPS SPECTRUM
Input Current
Input Power
Rated Main Voltage
Voltage Range
THD
Controller
Min Power Factor
Crest Factor
Input Connection
Input Frequency
BTU Output
Relative Humidity
Operation Temp.
Recommended Lamp
Lamp Included
Lamp Base
PPF
Weight
Standalone Coverage
Mounting Height
Fixture Width
Fixture Height
Ballast Width
Ballast Height
<10%
0 -10V
>.99
<1.7
IP67 Wieland Plug
48 - 63Hz
4,400 btu
25-70% (Non-condensing)
0 - 35°C / 32-95°F
1000W DE 400V
ILUMINAR
K12 x 30s
2100 µmol/s
6.2kg / 13.66lbs
5'x4'
1.2m / 4'
9.80" / 249mm
23.98” / 609mm
7.04” / 179mm
5.1” / 130.5mm
SPECIFICATIONS 120V 240V 277V 347V
3.85A
1045W
277V
249-305V
9.30A
1085W
120V
4.60A
1055W
240V
3.07A
1040W
347V
312-382V
108-264V
MH / HPS
VOLTAGE:
120V/240V
277V
347V
SKU WITH LAMP:
ILUM-DE-1K277
ILUM-DE-N1K
ILUM-DE-N1K34
ILUM-DE-1K277-NL
ILUM-DE-N1K-NL
ILUM-DE-N1K34-NL
SKU NO LAMP INCLUDED:

© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.
5
4
1-877-540-5588
iluminarlighting.com
[email protected]
PLEASE READ CAREFULLY PRIOR TO INSTALLATION
INSTALLATION
PROCEDURE
When possible, have a licensed electrician or electrical expert install all
fixtures or aid in the electrical layout plans and/or diagrams prior to
installation.
Check the electrical panel to ensure proper voltage is available for the
number of fixtures installed. Panels should only support a total amperage
of 80% of its capacity. (100 amp panel should never exceed 80 amps).
1. Find a suitable location for the fixture with sufficient cooling and away
from heat sources.
2. Use the included hanging cables to hang the fixture.
3. Ensure the fixture is hung completely level to the ground. A fixture that
is not level can burn the lamp emitter incorrectly leading to shorter
lamp life, poor lamp performance and/or lamp failures.
4. Install the lamp into the roll-lock socket (instructions pages 6-7) using
soft cotton or surgical gloves.
5. Plug the power cord into the power source (electrical outlet).
6. For proper lamp break-in, we recommend that you run the fixture at
100% power for at least 100 straight hours after initial startup. This
will improve lamp life and performance.
7. Set your desired dimming ratio. NOTE: the ballast dims or raises
output gradually to protect the lamp, so you may not see an instant
increase upon changing your output percentage.
• Turn the dimming dial to cycle through the dimming levels.
• If your lamp fails to start immediately, DO NOT cycle the power on
and off. This can damage the lamp and ballast.
• If after 30 minutes your lamp is still not lit, shut off power to the
ballast, and reconnect.
• This will begin the startup sequence again.
• Until the lamp has achieved at least 100 hours of operation, the lamp
should never be turned off prior to running at least 15 minutes. In
case this happens, WAIT 1 hour before igniting the lamp again.
IT IS VERY IMPORTANT that the lamp is given adequate time to cool
down before it is reignited. Allow a hot lamp to cool for 1 hour before
you try to restrike it. Hot re-strikes cause permanent lamp failure and
lumen output degradations. The lamp should never be turned off before
the lamp reaches full intensity, this may shorten its lifespan.
DO NOT install fixtures in areas of high heat, such as an attic, tent or
closed closet. Mount units at least 24-60 inches apart.
1. End of Lamp Life (EOL) Protection
2. Short Circuit Protection
3. Open Circuit Protection
4. Ignition Failure Protection
5. Thermal Protection
6. Suitable for ILUMINAR Touch Controller & HASH Controller
7. Suitable for HASH Controller / 0-10V Control
8. Total Control Range 50-115%
RATED MAINS VOLTAGE 120V 240V 277V 347V
VOLTAGE RANGE +/- 10% 108-264V 249-305V 312-382V
INPUT FREQUENCY 48 - 63Hz
PERFORMANCE
REQUIREMENTS

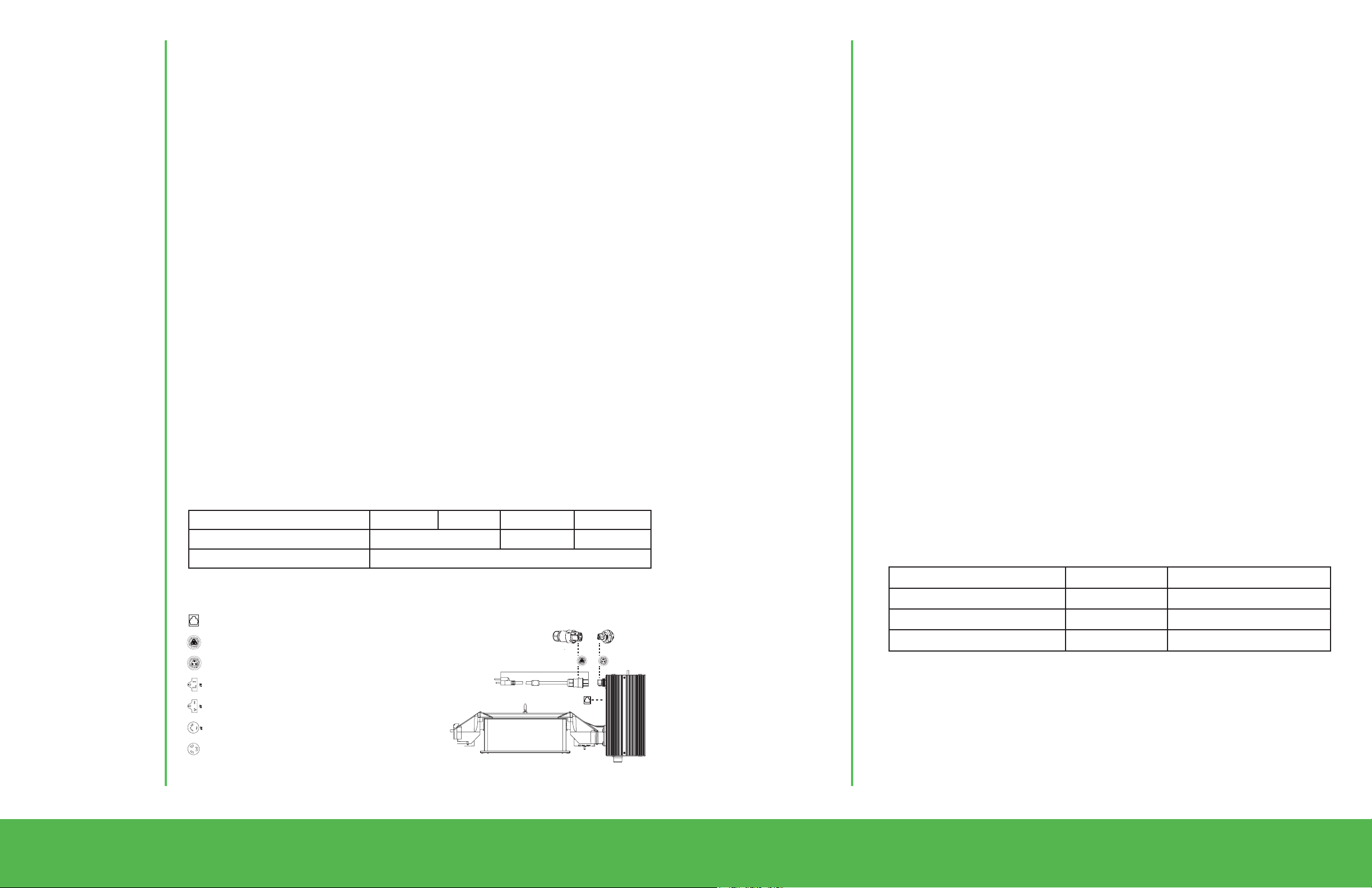

WIRING
DIAGRAM
DIMMING
CASE LENGTH 249mm 9.80”
CASE WIDTH 249mm 9.80”
HEIGHT 609mm 23.98”
WEIGHT 6.2kg 13.66 lbs
PHYSICAL
SPECIFICATIONS
1. Max. allowable case temperature: 75º C / 167º F
2. Ambient Temperature: -20º to +40º C / -4 to +104º F
3. Max. Humidity: 95%
4. Ignition Voltage: 5kV
CARE
HOT RESTRIKE
MOUNTING
LOCATION
BALLAST
PROTECTIONS
COMPATIBILITY Compatible with all ILUMINAR MH DE lamps & HPS DE lamps as well as
the ILUMINAR Touch & ILUMINAR HASH Environment controllers.
RJ14 Controller Connection
Wieland Female
Wieland Male
120V SKU CORD: IL-WLDCRD-120V
240V SKU CORD: IL-WLDCRD-240V
277V SKU CORD: IL-WLDCRD-277V
347V SKU CORD:IL-WLDCRD-347V
5m

© Copyright 2020, ILUMINAR Lighting
Subject to change without notice.
7
6
Photo A Photo B Photo C

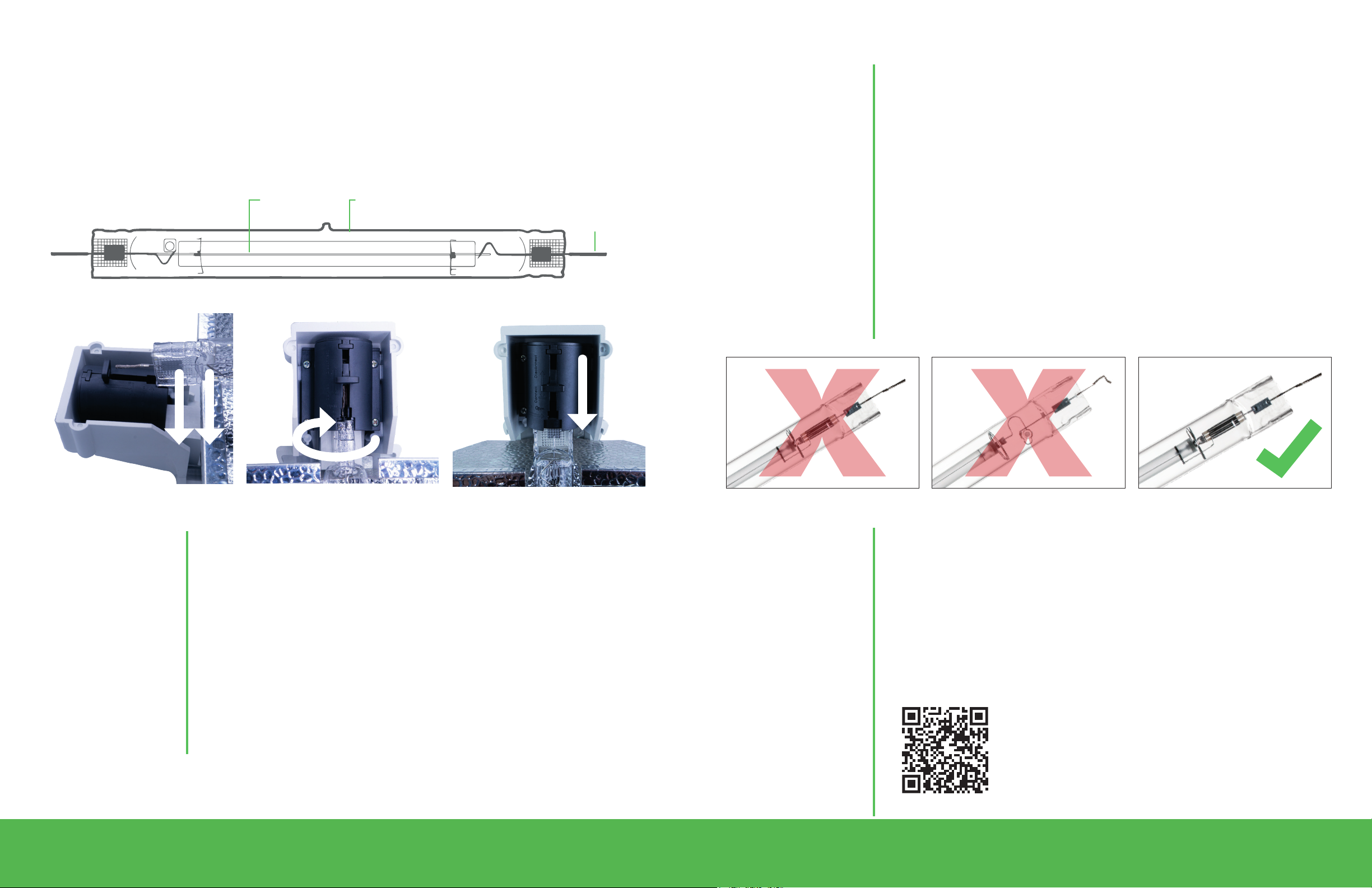

ROLL LOCK
SOCKET
INSTALLATION
1. Slide both levers away from the lamp to the “Open” position.
(Photo A) Each socket applies up to 5mm of lateral pressure to
ensure a secure fit.
2. Ensure both wire ends/leads are straight - DO NOT BEND
THE WIRE LEADS! Ensure the wire leads are NOT FRAYED OR
LOOSE (if there are frays, twist them back into the wire leads).
Small frays of metal can cause the fixture to arc or melt.
The oils from your hands can be dangerous when burning off in
the high heat of the lamp.
CAUTION: DO NOT HANDLE THE LAMP WITH BARE HANDS
Quartz Outer JacketArc Tube
Wire Lead
PROPRIETARY ROLL LOCK SOCKET (ILUMINAR FIXTURES)
ILUMINAR Lighting created the first of its kind, single-handed “Roll-Lock” socket for simple, one-
handed lamp installation. We know it can get tricky to load new lamps - it’s too easy to drop the
lamp and lose that investment. Keep your lamps safe when you install using the Roll Lock socket. The
Roll Lock Socket works with all DE Lamps - HPS, MH, and CMH, for all wattage options.
1-877-540-5588
iluminarlighting.com
[email protected]
3. Using soft gloves to handle the lamp, slide the lamp into the
fixture (with metal leads straight) until the lamp is fully seated.
4. Rotate the bulb, itself, to lock it into place (so that it will not move).
5. Slide both socket levers toward the lamp to the “closed” position to
add a second lock to fix the lamp into position. If the lamp is seated
correctly, both levers should easily slide inward to lock the DE lamp
into the socket. It is now ready to use.
DO NOT force the levers closed, this can cause damage to both the
lamp and the levers. DO NOT handle the lamp with bare hands. Always
wear surgical or cloth gloves when handling the lamp to minimize
fingerprints and oils left on the lamp. If the lamp needs cleaning after
installation, use a soft, dry cotton cloth to wipe off fingerprints/skin
oils.
1. To remove or change the lamp, simply follow the steps above.
2. Slide both socket levers away from the lamp to the “Open” position.
(Photo A)
3. USING SURGICAL OR COTTON GLOVES, gently rotate the lamp
itself to open the Roll Lock Socket.
4. Gently lift the lamp out of the sockets.
5. Rotate the new bulb into place.
6. Slide both socket levers toward the lamp to the “closed” position.
ROLL LOCK
SOCKET
UNINSTALL
WATCH ROLL LOCK
VIDEO GUIDE
ROLL LOCK
SOCKET
INSTALLATION
(CONT.)
DO NOT FRAY DO NOT BEND

8
Lamp Loose in Socket Ensure the lamp is fully inserted into the socket and that
it has been properly locked.
Incorrect Voltage Make sure you’re using the correct input voltage with
ballast. If using incorrect voltage, disconnect the ballast
from the power source immediately.
Defective or Improper Wiring
Examine wiring to ensure it agrees with wiring diagrams
on ballast label. Check connections to see that they are
secure. If wiring a 240v ballast, DO NOT use a neutral.
The correct wiring is two hot wires and a ground.
Poor electrical connections Check wiring and lamp contact with socket.
Incorrect Lamp Verify that you’re using a correct wattage lamp.
Lamp Damage Investigate possibility of outer lamp damage. Look for
broken tubes or loose metal replace lamp.
Possible Cause Corrective Maintenance
For more warranty information, visit
iluminarlighting.com/warranty
This guide does not supersede national, state, or local regulations for
electrical installations.
WARRANTY
CERTIFICATIONS
When properly used, this unit will provide you with years of
service. The ballast is covered under a 3 year warranty and the
lamp has a 1 year warranty. This warranty will be voided if the
unit is misused, abused, opened or altered. Warranty repair or
replacement will be at the sole discretion of the manufacturer.
Defective units need to be returned to the place of purchase with
proof of purchase/receipt.
RETURNS Please contact your point of purchase store for returns.
TROUBLESHOOTING
Follow these troubleshooting solutions:
1-877-540-5588
iluminarlighting.com
[email protected]
