LED Stroboscope
STROBE-324LED
Order No. 38.7990
INSTRUCTION MANUAL

1
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. Installation
4. How to set the unit
5. How to control the unit
6. DMX512 Configuration
7. DMX512 Connections
8. Troubleshooting
9. Fixture Cleaning

2
1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is
higher than this.
Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool
down before replacing or serving.
In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.
There are no user serviceable parts inside the fixture. Do not open the housing or
attempt any repairs by yourself. In the unlikely event your fixture may require service,
please contact your nearest dealer.
Due to the magnifying type lens, please keep the lens out of contact with direct sunlight.
Direct sunlight can cause heat to build up inside of the unit, which will seriously damage
unit.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3
2. Technical Specifications
DMX 1/2/4/8/10/12 channels switchable.
Smooth 0~100% dimming and variable strobe speeds.
Three operation modes: DMX, Mater/Slave mode, Sound Active.
Ideal for discotheques, clubs, bars, parties, Mobile DJs, ect.
Power Supply: 120~230V 50/60Hz
Power consumption: 150W
LED: 324 PCS SMD 5730,0.5 W (6400K CW)
Dimension: 285 * 305 * 85 mm
Weight: 3.5 kgs
3.Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is
out of the touch of people and has no one pass by or under it，the range of mounting height
is 0~30 M.
4. How to set the unit

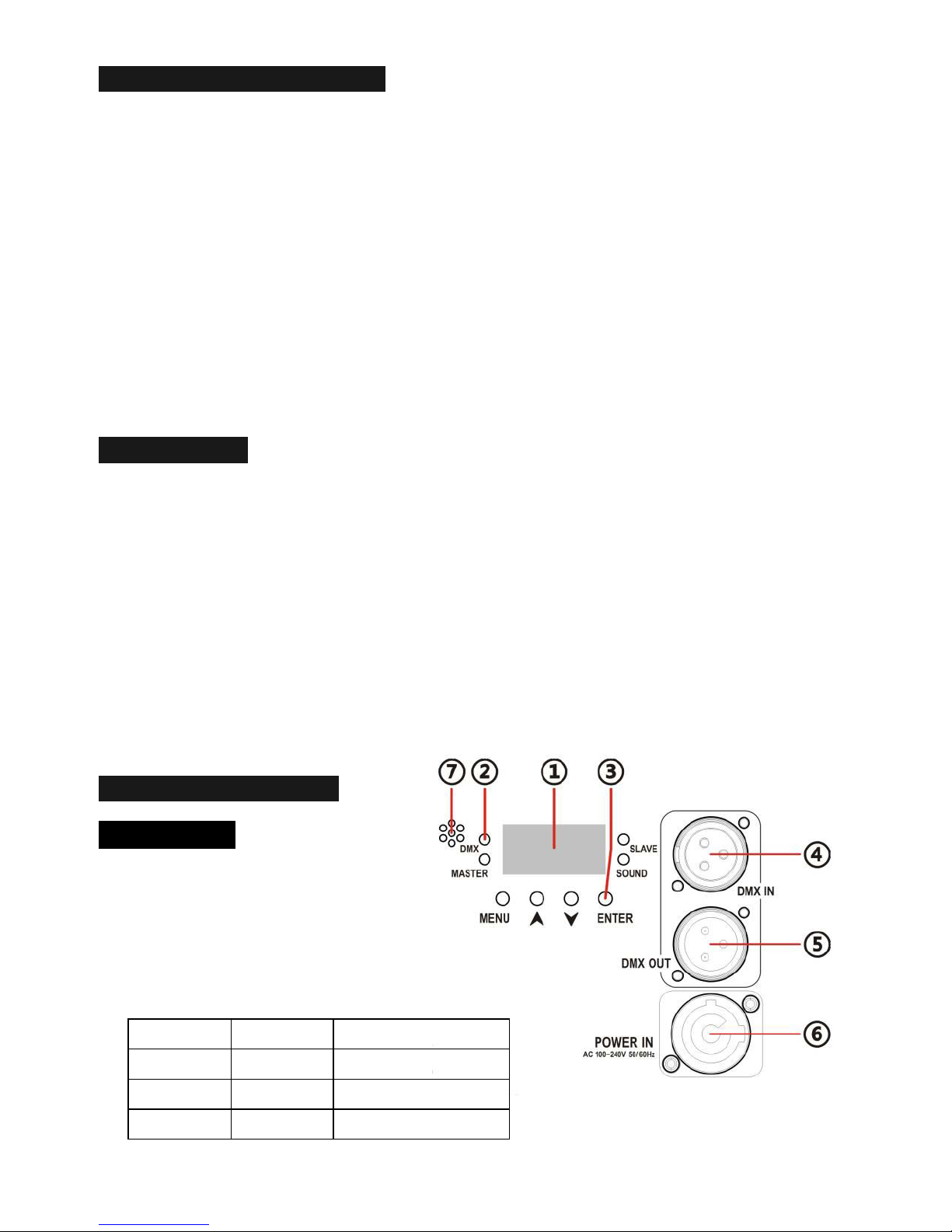

4.1 Rear Panel
○
1Display: To show the various menus
and the selected functions
○
2 LED:
DMX
On
DMX input present
MASTER
On
Master Mode
SLAVE
On
Slave Mode
SOUND
Flashing
Sound activation

4
○
3Button:
MENU To select the programming functions with short press.
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
○
4DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal.
○
5DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
○
6POWER input: Connect to supply mains power.
○
7Microphone: Receive music for the sound active.
4.2 Main Function
To select any functions, press MENU button until the required one is shown on the display.
Select the function by ENTER button and the display will blink. Use DOWN and UP button to
change the mode. Once the required mode has been selected, press ENTER button to
setup or it will automatically return to the main functions without any change after idling 30
seconds. Back to the functions without any change press MENU button. The main functions
are shown below:
DMX Address
1-512
Channel Mode
1CH
2 CH
4 CH
8 CH
10 CH
12 CH
Slave Mode
Master
Slave 1- Slave 15
Show Mode
Show0~Show12 Manual
Manual Mode
Dimmer 0 - 255
Strobe 0 - 255
Sound State
Sound mode
On - Off
Sound Sense
Sound sense 0-100%

5
Blackout Mode
Yes
No
Display LED mode
On – Off
Display Inverse
disp-dsip
Auto Test
Temperature
Fixture Time
Fixture hours
0 ~ 9999
Version
V 10

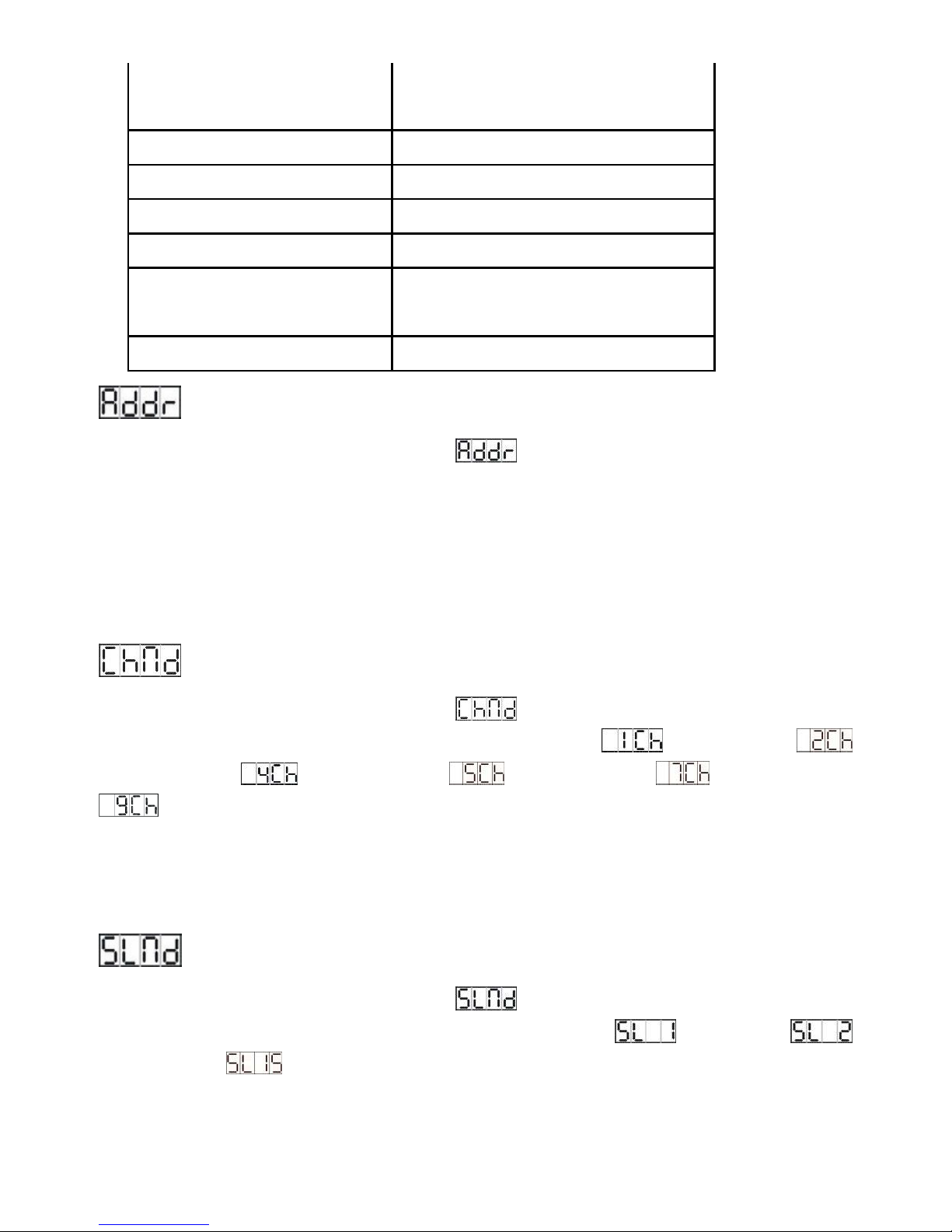

DMX 512 Address Setting
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button and the display will blink. Use the DOWN and UP button to change the DMX
512 address. Once the address has been selected, press the ENTER button to setup or
automatically exit menu mode without any change after 7 seconds. Back to the previous
functions without any change press the MENU button.
Channel Mode
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (1 channel) or
(2 channels) or (4 channels) or (5 channels) or (7 channels) or
(9 Channels) mode. Once selected, press the ENTER button to setup or
automatically exit menu mode without any change after 7 seconds. To go back to the
functions without any change press the MENU button
Slave Mode
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (slave 1) or
(Slave 2) … or (Slave 15)mode. Once selected, press the ENTER button to setup or
automatically exit menu mode without any change after 7 seconds. To go back to the
functions without any change press the MENU button.

6

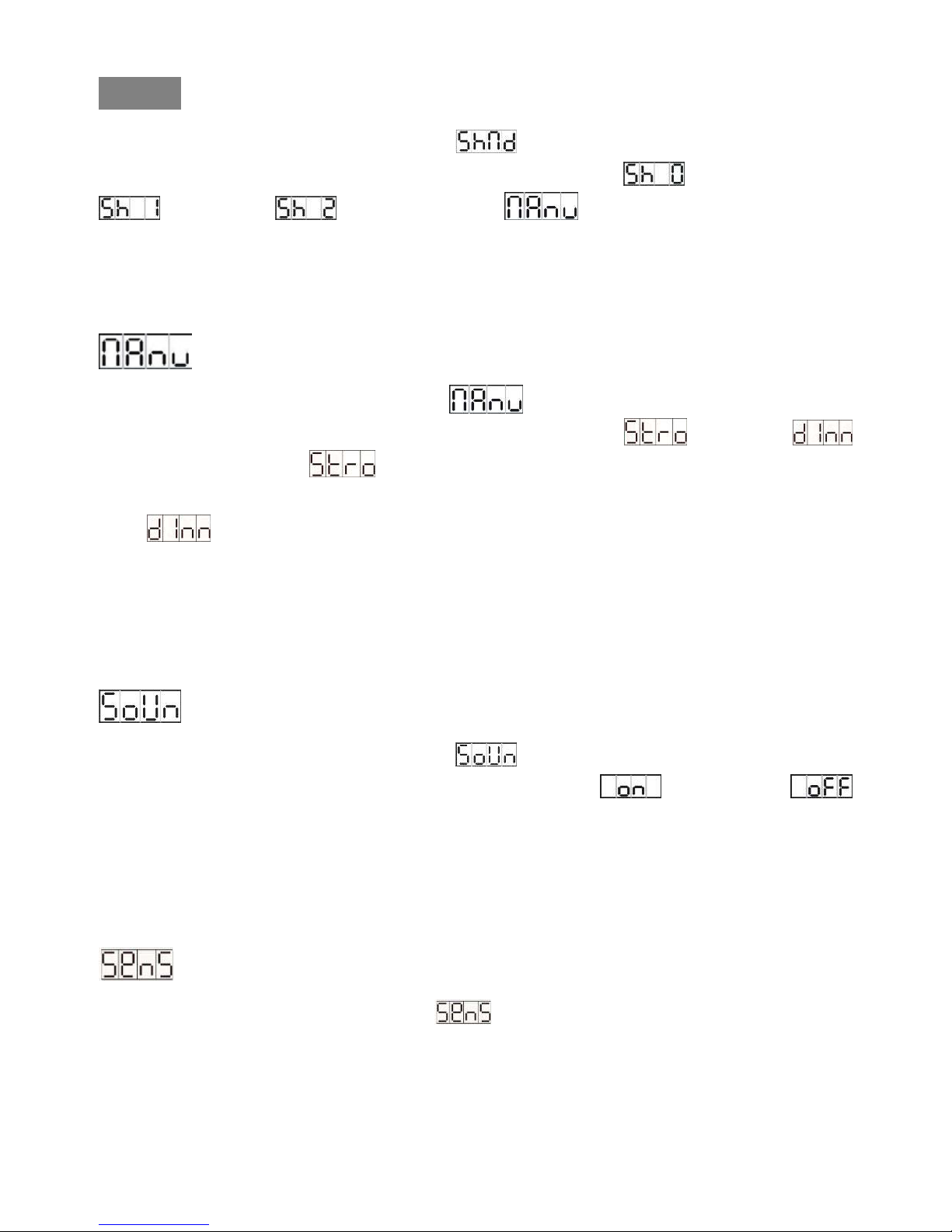

Show Mode
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (Random show) or
(show 1) or (Show 2) or … or (Manual). Once selected, press
the ENTER button to store or automatically exit menu mode without any change after 7
seconds. To go back to the functions without any change press the MENU button
Manual Mode
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (strobe) or
(dimmer). Once selected , Pressing the ENTER button, Use the DOWN and UP
button to change the strobe 0 – 255.Once selected, press the ENTER button to store. If you
select , Pressing the ENTER button, Use the DOWN and UP button to change the
dimmer 0 – 255, Once selected, press the ENTER button to setup or automatically exit
menu mode without any change after 60 seconds. To go back to the functions without any
change press the MENU button
Sound
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (sound on) or
(sound off). Once selected, press the ENTER button to setup or automatically exit menu
mode without any change after 7 seconds. To go back to the functions without any change
press the MENU button.
Sound Sense
Press the MENU button up to when the is shown on the display. Press the ENTER
button and the display will blink. Use the DOWN and UP buttons to adjust the sound
sensitively (0-100) of the unit. Once selected, press the ENTER button to setup or
automatically exit menu mode without any change after 7 seconds. To go back to the
functions without any change press the MENU button.

7

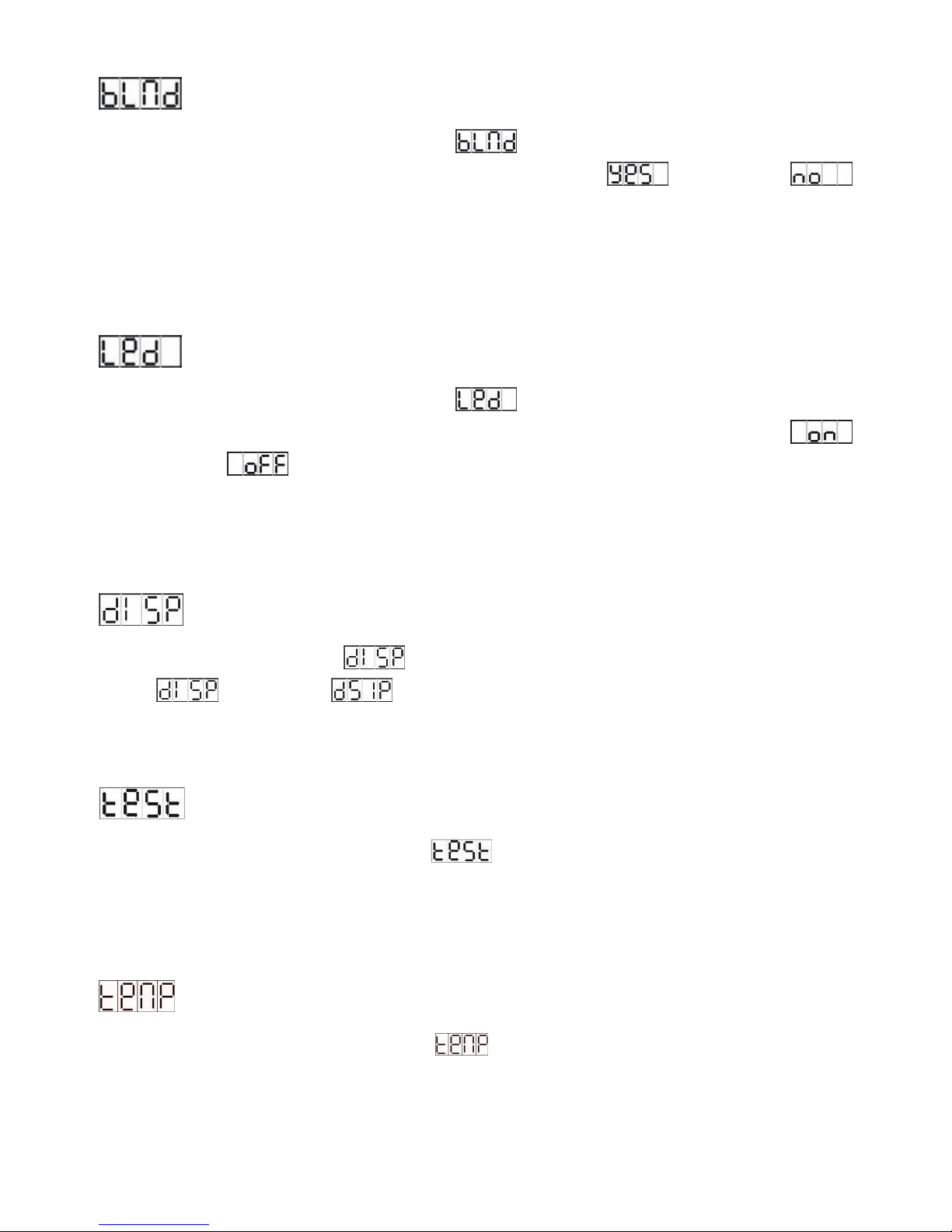

Blackout mode
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button, Use the DOWN and UP button to select the (blackout) or
(normal). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after 7 seconds. To go back to the functions without any change press
the MENU button.
LED display
Press the MENU button up to when the is shown on the display. Pressing the
ENTER button and the display will blink. Use the DOWN and UP button to select
(display on) or (display off) mode. Once selected, press the ENTER button to setup
or exit menu mode without any change after 7 seconds. Back to the functions without any
change press the MENU button again.
Display Inverse
Press the MENU button until is blinking on the display. Press the ENTER button to
select (normal) or (inverse). Back to the functions without any change
press the MENU button.
Self-Test
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the unit will run the built-in programmer for self-test. To go back to the functions
press the MENU button.
Temperature
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the number of LED temperature of the unit. To go back to
the functions press the MENU button.

8
Fixture Hours
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the version of software of the unit. To go back to the
functions press the MENU button.
5. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By easy controller
3. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address
setting will be affected at once. Each time you turn the unit on, it will show “ ” on the
display. After that the unit will be ready to receive DMX signal or run the built in programs.
5.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you
want an instant show. You have to set the first unit in master mode and select
(random show), (show 1) or …or (show 8). Its DMX input jack will
have nothing plugged into it, and Its master LED will be constantly on and sound LED will
flash to the music.
5.2 DMX Controller
Using universal DMX controller to control the units, you have to set DMX address from 1 to
512 channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep ENTER button pressed up to when
the display stops blinking or storing automatically 8 seconds later. To go back to the

9
functions without any change press the MENU button again. If you use please refer to the
following diagram to address your DMX512 channel for the first 4 /2 units.
6. DMX512 Configuration
1- CH mode:
Channel Mode Unit 1 Unit 2 Unit 3 Unit 4
1 Channel 1 2 3 4
2 Channel 1 3 5 7
4 Channel 1 5 9 13
8 Channel 1 9 17 25
10 Channel 1 11 21 31
12 Channel 1 13 25 37
1 CH Mode
000-007 Led Black out
008-027 Led chase1
028-047 Led chase2
048-067 Led chase3
068-087 Led chase4
088-107 Led chase5
108-127 Led chase6
128-147 Led chase7
148-167 Led chase8
168-187 Led chase9
188-207 Led chase10
208-227 Led chase11
228-247 Led chase12
248-255 Sound random mode

10
2- CH mode:
4-CH mode:
4 CH Mode
1CH 2CH 3CH 4CH
000 - 255
Master
dimmer
0-7
open
000-007 Led Blackout
000 - 255
Led chase
speed
008-027 Led chase1
028-047 Led chase2
048-067 Led chase3
068-087 Led chase4
088-107 Led chase5
108-127 Led chase6
9-255 strobe slow to fast
128-147 Led chase7
148-167 Led chase8
168-187 Led chase9
188-207 Led chase10
208-227 Led chase11
228-247 Led chase12
248-255 Sound random
mode
2 CH Mode
1CH 2CH
000 - 255
Master dimmer
0-8 open
9-255 strobe slow to fast

11
8-CH mode:
10-CH mode:
8 CH Mode
1CH 2CH 3CH 4CH 5CH 6CH 7CH 8CH
0 - 255
LED1
dimmer
0 - 255
LED2
dimmer
0 - 255
LED3
dimmer
0 - 255
LED4
dimmer
0 - 255
LED5
dimmer
0 - 255
LED6
dimmer
0 - 255
LED7
dimmer
0 - 255
LED8
dimmer
10 CH Mode
1CH 2CH --- 7CH 8CH 9CH 10CH
0 - 255
LED1
dimmer
0 - 255
LED2
dimmer
----
0 - 255
LED7
dimmer
0 - 255
LED8
dimmer
0 - 255
Master
dimmer
0-8 open
9-131 strobe slow to
fast
132-139 open
140-181 fast close slow
open
182-189 open
190-231 fast open slow
close
232-239 open
240-247 random strobe
247-255 open

12
12-CH mode:
12CH Mode
1CH 2CH --- 7CH 8CH 9CH
0 - 255
LED1
dimmer
0 - 255
LED2
dimmer
---
0 - 255
LED7
dimmer
0 - 255
LED8
dimmer
0 - 255
Master
dimmer
12 CH Mode
10CH 11CH 12CH
0-7 open 000-007 Led Blackout
000 - 255
Led chase
speed
8-131 strobe slow to fast
132-139 open 008-027 Led chase1
140-181 fast close slow open 028-047 Led chase2
182-189 open 048-067 Led chase3
190-231 fast open slow close 068-087 Led chase4
232-239 open 088-107 Led chase5
240-247 random strobe 108-127 Led chase6
247-255 open 128-147 Led chase7
148-167 Led chase8
168-187 Led chase9
188-207 Led chase10
208-227 Led chase11
228-247 Led chase12
248-255 Sound random
mode

13
7. DMX512 Connections
mode connection：
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the
fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”
cable. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
2. The DMX output and input connectors are pass-through to maintain the DMX circuit
when one of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal
errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a
3-pin XLR-plug and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),Pin4/5:
not used
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.

14
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling.
2. Check the LED for the response of the master/ slave mode signal.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
 Clean with soft cloth using normal glass cleaning fluid.
 Always dry the parts carefully.
 Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
www.monacor.com 01.25.11.2016
