IMG STAGE LINE LSX-142SRGY StageLine User manual

VERSION:V 2.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.

USER MANUAL
1
WARNING DATA
Lasers can be hazardous and have unique safety considerations.
Permanent eye injury and blindness is possible if lasers are used
incorrectly. Pay close attention to each safety REMARK and
WARNING statement in the user manual. Read all instructions
carefully BEFORE operating this device.
Attention!
Important!
Caution!
Laser!
Recycle
Indoor
Wastebin
LLocation
Indicates a skill or other useful information for special
situations.
Indicates important information, to protect people from laser
incident or damage
Prevent damage or injury from incorrect operation.
Laser safety warming labels.
To protect the environment, recycle packing material
wherever possible.
The projector is for indoor use only, IP20. Use only in dry
locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with
water or any other fluids, or metallic objects.
Don’t throw this product away just as general trash, please
dispose of this product following the abandon electronic
product regulation in your country.
The projector must be installed in a location with adequate
ventilation, at least 50cm (20inches) from adjacent surfaces.
Be sure that no ventilation slots are blocked.

USER MANUAL
2
LASER SAFETY WARNINGS
Caution Avoid direct eye contact with laser 了light. Never
intentionally expose your eyes or others to direct laser
radiation.
Caution This laser product can potentially cause instant eye
injury or blindness if laser light directly strikes the eyes.
Caution It is illegal and dangerous to shine this laser into
audience areas, where the audience or other personnel
could get direct laser beams or bright reflections into
their eyes.
Caution It is a US Federal offense to shine any laser at aircraft.
Caution There are no user serviceable parts inside the unit. Do
not open the housing or attempt any repairs yourself. In
the unlikely event your unit may require service, please
contact the dealer nearest to you..
Caution Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
NON-INTERLOCKED HOUSING WARNING
This unit contains high power laser devices internally. Do not open the laser
housing, due to potential exposure to unsafe levels of laser radiation. The
laser power levels accessible if the unit is opened can cause instant
blindness, skin burns and fires.
Potential laser injury hazard exists with this product! Read these
Instructions carefully, which include important information about
installation
,
safe use and service!

USER MANUAL
3
LASER SAFETY AND OPERATING INSTRUCTIONS
STOP AND READ ALL LASER SAFETY DATA
Laser light is different from any other light source witch you may be familiar. The
light from this product can potentially cause eyes injury if not set up and used
properly.
Laser light is thousands of times more concentrated than light from any other kind
of light source. This concentration of light power can cause instant eye injuries,
primarily by burning the retina (the light sensitive portion at the back of the eye).
Even if you can not feel “heat” from a laser beam, it can still potentially injure or
blind you or your audience. Even very small amounts of laser light are potentially
hazardous even at long distances. Laser eye injuries can happen quicker than
you can blink.
It is incorrect to think that because these laser entertainment products split the
laser into hundreds of beams or laser beam is scanned out in high speed, that an
individual laser beam is safe for eye exposure. This laser product uses dozens of
milliwatts of laser power (Class 4 levels internally). Many of the individual beams
are potentially hazardous to the eyes.
It is also incorrect to assume that because the laser light is moving, it is safe. This
is not true. Nor, do the laser beams always move. Since eye injuries can occur
instantly, it is critical to prevent the possibility of any direct eye exposure. In the
laser safety regulation, it is not legal to aim Class 4 lasers in areas which people
can get exposed. This is true even if it is aimed below people’s faces, such as on
a dance floor.
Do not operate laser without first reading and understanding all safety and
technical data in this manual.
Always set up and install all laser effects so that all laser light is at least 3
meters (9.8 feet) above the floor on which people can stand. See “Proper
Laser Set-up & Usage” section later in this manual.

USER MANUAL
4
After set up, and prior to public use test laser to ensure proper function. Do not
use if any defect is detected. Do not use if laser emits only one or two laser
beams rather than dozens/hundreds, as this could indicate damage to the
diffraction grating optic, and could allow emission of higher laser levels.
Do not point lasers at people or animals.
Never look into the laser aperture or laser beams.
Do not point lasers in areas in which people can potentially get exposed. such
as uncontrolled balconies, etc.
Do not point lasers at highly reflective surfaces such as windows, mirrors and
shiny metal. Even laser reflections can be hazardous
Never point a laser at aircraft, this is a federal offense.
Never point un-terminated laser beams into the sky.
Do not expose the output optic (aperture) to cleaning chemicals.
Do not use laser if the laser appears to be emitting only one or two beams.
Do not use laser if housing is damaged or open, or if optics appear damaged
in any way.
Never open the laser housing. The high laser power levels inside of the
protective housing can start fires, burn skin and will cause instant eye injury.
Never leave this device running unattended.
The operation of a Class 4 laser show laser is only allowed if the show is
controlled by a skilled and well-trained operator familiar with the data included
in this manual..
The legal requirements for using laser entertainment products vary from
country to country.The user is responsible for the legal requirements at the
location/country of use.
Always use appropriate lighting safety cables when hanging lights and effects
overhead.
LASER EXPOSURE WARNING
LASER LIGHT
AROVID DIRECT EYE EXPOSURE
Further guidelines and safety programs for safe use of lasers can be found in the
ANSI Z136.1 Standard “For Safe Use of Lasers”, available from
“www.laserinstitute.org”. Many local governments, corporations, agencies,
military and others, require all lasers to be used under the guidelines of ANSI
Z136.1. Laser Display guidance can be obtained via the International Laser
Display Association, www.laserist.org.

USER MANUAL
5
LASER SAFETY LABEL REPRODUCTIONS
Caution – Class 3B LASER RADIATION,
WHEN OPEN, AVOID EXPOSURE TO
BEAM
LASER RADIOATION AVOID EXPOSURE
TO BEAM CLASS 3B LASER PRODUCT.
The label indicates the laser beam output
aperture.
LASER EMISSION DATA
* As measured under IEC measurement conditions for classification.
Laser Classification Class 3B
Green Laser Medium DPSS Nd:YVO4,532nm
Red Laser Medium LD GaAIAs 650nm,typical
Beam Diameter <5mm at aperture
Divergence(each beam) <12 mrad
Divergence(total light) <90 degrees
Laser power R>100mW, G>40mW
Transverse Beam Mode TEM00
Cooling TEC & Fan Cooling
Scanning ILDA 15Kpps

USER MANUAL
6
Note: The laser diode is exposed to extreme conditions due to the
high output power and therefore only has a limited life. Like all
wear parts, the laser diode is not subject to any guarantee claims.
LASER COMPLIANCE STATEMENT
This laser product complies with EN/IEC 60825-1 Ed 2,2007-03.
GENERAL SAFETY INSTRUCTIONS
Every person involved with installation and maintenance of this device have to
Be qualified.
Follow the instructions of this manual.
This device has left out premises in absolutely perfect condition. In order to
maintain this condition and to ensure a safe operation, it is necessary for the user
to follow the safety instructions and warning notes written in this manual.
Important! The manufacturer will not accept liability for any resulting
damages caused by the non-observance of this manual or any
unauthorized modification to the device.
Please consider that damages caused by manual modifications to the devise
are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the
power-cord and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear
panel.
Always plug in the power plug least. Make sure that the power-switch is set to
off-position before you connect the device to the mains. The power-plug has
to be accessed after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges.
Check the device and the power-cord from time to time.
CAUTION! Be careful with your operations. With a high voltage
you can suffer a dangerous electric shock when
touching the wires!

USER MANUAL
7
Always disconnect from the mains, when the devise is not in use or before
cleaning it. Only handle the power-cord by the plug. Never pull out the plug by
tugging the power-cord.
It is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a
qualified employee.
Do not switch the fixture on and off in short intervals as this would reduce the
laser diode life.
For replacement, please use fuses of same type and rating only.
If the device has been exposed to drastic temperature fluctuation, do not
switch it on immediately. The arising condensation water might damage your
device. Leave the device switched off until it has reached room temperature..
Do not shake the device. Avoid brute force when installing or operating the
device.
When choosing the installation-spot, please make sure that the device is not
exposed to extreme heat, moisture or dust. There should not be any cables
lying around. You endanger your own and the safety of others!
The minimum distance between the fixture and surrounding walls must be
more than 50cm.
Always fix the fixture with an appropriate safety-rope. Fix the safety-rope at
the safety-rope only.
The ambient temperature must be between 10℃to 40℃.
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden
due to safety reasons!
CAUTION! Operate the device only after having familiarized with
its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are
the result of unprofessional operation
CAUTION! If this device will be operated in any way different to the
one described in this manual, the product may suffer
dama
g
es and the warrant
y
word.

USER MANUAL
8
BEFORE OPERATION
Unpacking Instructions
CAUTION! Immediately upon receiving a fixture, carefully unpack the
carton, check the contents to ensure that all parts are present,
and have been received in good condition. Notify the shipper
immediately and retain packing material for inspection if any
parts appear damage from shipping or the package itself
shows signs of mishandling. Save the package and all packing
materials. In the event that a fixture must be returned to the
factory, it is important that the fixture be returned in the original
factory box and packing.
What is included
The carton or flight case contain following items:
Power Supply
To determine the power requirements for a particular fixture, see the label affixed
to the back plate of the fixture of refer to the fixture’s specifications chart. A
fixture’s listed current rating is its average current draw under normal conditions.
All fixtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch. Before applying power to a fixture,
check that the source voltage matches the fixture’s requirement.
NAME QTY
Laser Light 1 PCS
KEYs (for key switch) 2PCS
Interlock Connector 1 PCS
Remote 1 PCS
Power Cord 1 PCS
USER MANUAL 1 PCS

USER MANUAL
9
The unit is supplied with a power plug appropriate to its voltage and
destination. Should any other connections be required they must be
carried out with the following configuration.
DMX-512 connection between fixtures
The fixture is equipped with 2-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable designed for
3-pin XLR-plugs and connectors in order to connect the controller with the fixture
or one fixture with another.
Occupation of the XLR-connection
Caution: At the laser fixture, the DMX-cable has to terminated with a
terminator. Solder a 120 Ohm resistor between Signal (-) and
Signal (+) into a 3-pin XLR-plug and plug and plug it in the
DMX-output of the last fixture.
Cable(EU) Cable(US) Pin International
Brown Black Live L
Liht blue White Neutral N
Yellow/Green Green Earth

USER MANUAL
10

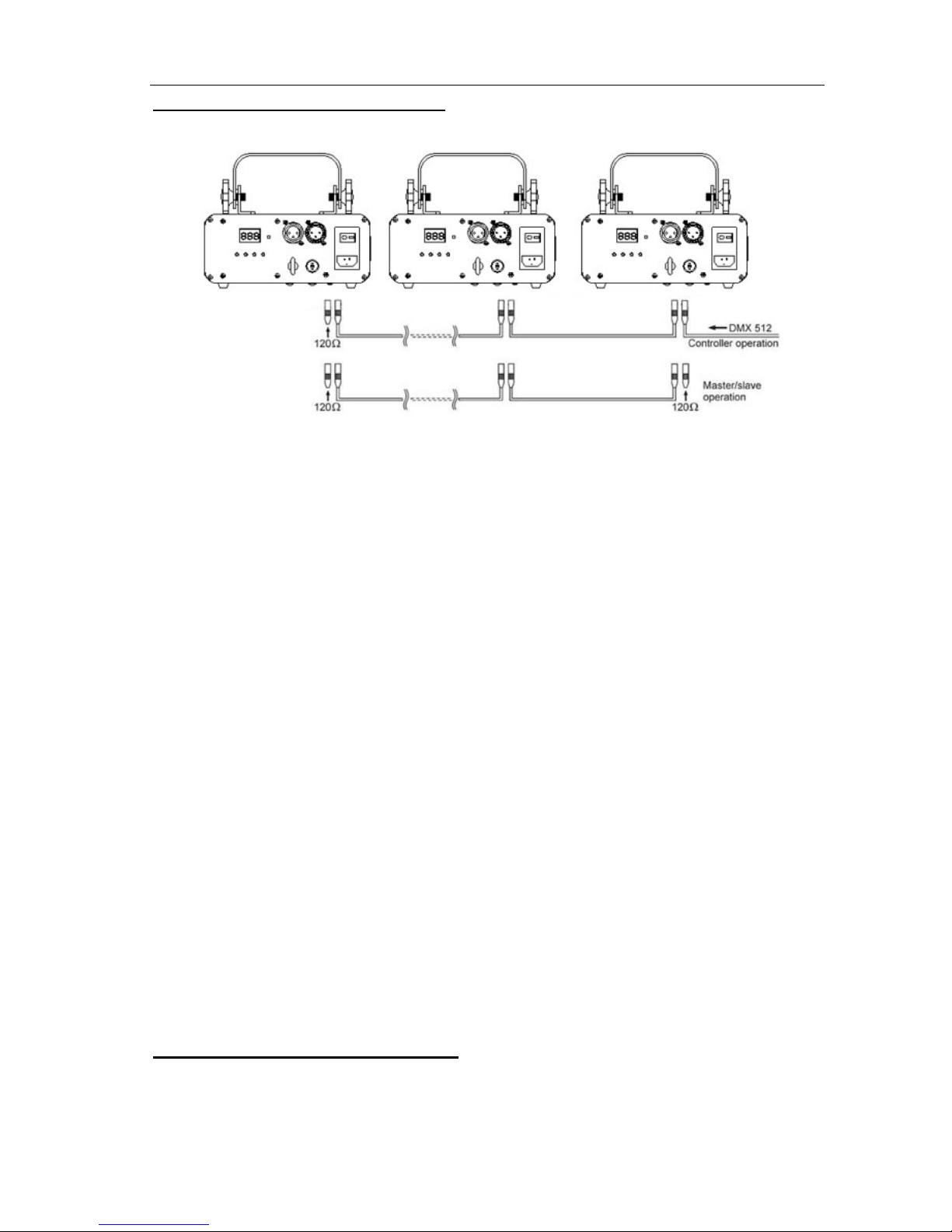

Building a serial DMX-chain
If you are using the standard DMX-controllers, you can connect the
DMX-output of the controller directly with the DMX-input of the first fixture in
the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter cables.
Connect the DMX-output of the first fixture in the DMX-chain with the
DMX-input of the next fixture. Always connect output with the input of the next
fixture until all fixtures are connected.
If you use a controller with 5 pins DMX connector, you need to use a 5 to 3
pins adpter
At last fixture, the DMX cable has to be terminated with a terminator. Solder a
120 Ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3 pins
XLR-plug and plug it in the DMX-output of the last fixture.
Connect the fixture together in a daisy chain by XLR plug cable from the
output of the fixture to the input of the next fixture. The cable cannot be
branched or split to a Y cable. DMX 512 is a very high speed signal.
Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
The DXM output and input connectors are pass-through to maintain the DMX
circuit, when power is disconnected to the unit.
Each fixture needs to have a DMX address to receive the data from the
controller. The DMX address number which could be read from rear panel of
each fixture is between 000~511.
The end of the DMX 512 chain should be terminated to reduce signal errors.
Proper Laser Set Up & Usage

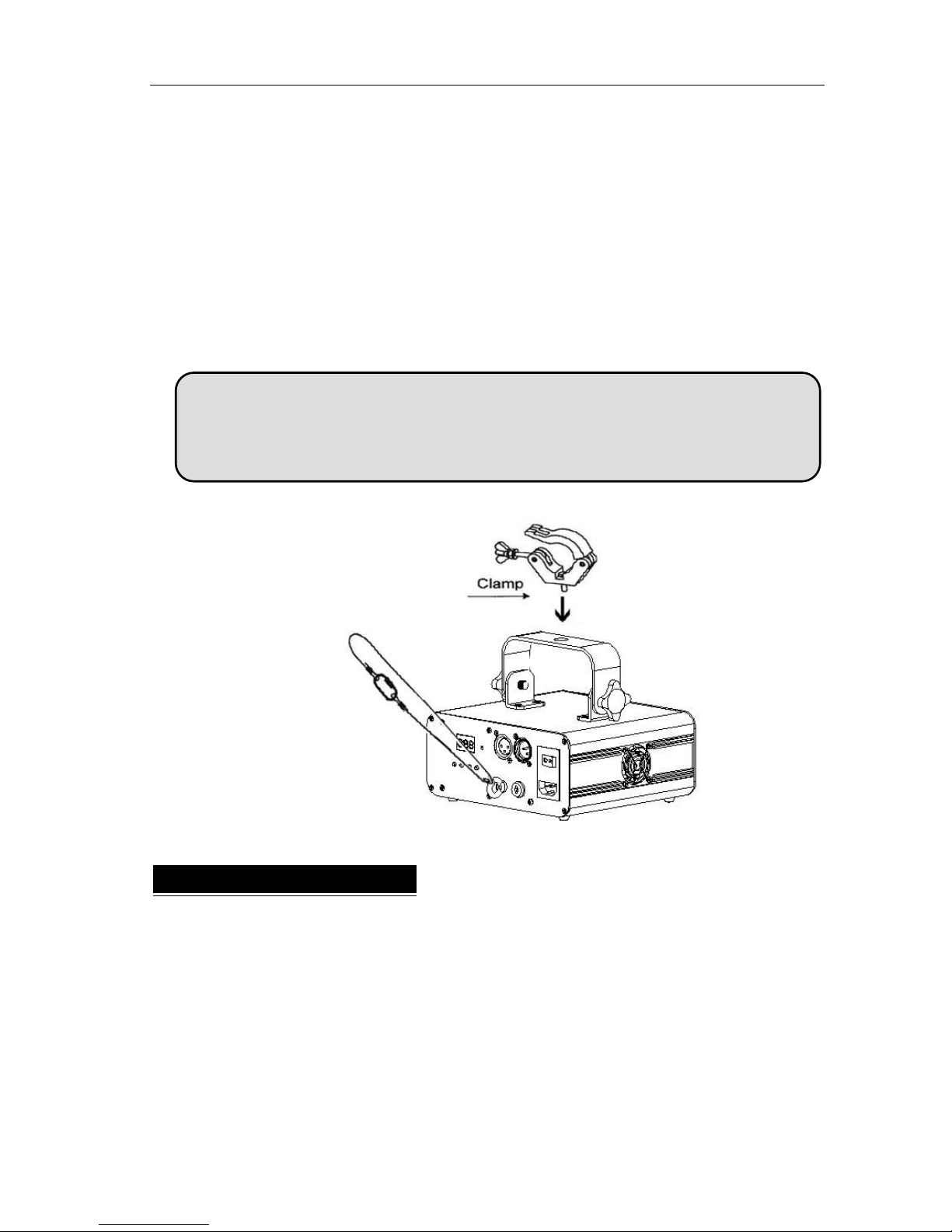

This fixture has been designed to be hung. It is recommended for safety purposes,
your lighting effect are properly mounted using a suitable hanging clamp and

USER MANUAL
11
safety cable. Items appropriate for safe and effective mounting are easily
sourced from your lighting vendor.
International laser safety regulations require that lasers must be operated in the
fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation
between the floor and the lowest laser light vertically. Additionally, 2.5 meters of
horizontal separation is required between laser light and audience or other public
spaces.
Rigging the Fixture
The installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming deformation..
The installation must always be secured with a secondary safety attachment,
e.g. an appropriate catch net. This secondary safety attachment must be
constructed in a way that no part of the installation can fall down if the main
attachment fails.
CAUTION! Please consider the respective national norms during
the installation! The installation must only be carried out
b
y
an authorized em
p
lo
y
ee or dealers!

USER MANUAL
12
Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
The operator has to make sure that safety-relating and machine-technical
installations are approved by an expert before taking into operation for the first
time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical
installations are approved by a skilled person once a year.
The fixture should be installed in the position where persons cannot reach and
where persons may walk by or be seated.
PRODUCT OVERVIEW
This device has left out premise in absolutely perfect condition. In order to
maintain this condition and to ensure safe operation, it is necessary for the
user to follow the safety instructions and warning notes written in this manual.
The manufacturer will not accept liability for any resulting damages caused by
the non-observance of this manual or any unauthorized modification to the
device.
CAUTION! When installing the device, make sure there is no highly
in inflammable material (decoration articles, etc.) in
between a distance of min 0.5 meter.

USER MANUAL
13
Front Panel
NO NAME FUNCTION
1 Laser output Laser output aperture.
2 POWER Main power indicated LED. Red is ON.
3 MUSIC/IR Synchronize to detected music signal / IR
indicator (flashing for each signal received)
4 IR Infrared Remote Receiver
5 Cooling fan Cooling and never cover this fan outlet
6 HANGING
BRACKET with 2 knobs on both sides to fasten the unit and
a mounting hole to fix a mounting hook.

USER MANUAL
14
Rear Panel
CONTROL & FUNCTION
Regular breaks during operation are essential to maximize the life of this
device as it is not designed for continual use.
Do not switch the unit on and off in short time intervals
Always unplug the unit when it is not used for a longer time. Or before
replacing the bulb or start servicing.
In the event of serious operation problems, stop using the fixture and contact
your dealer immediately.
NO NAME FUNCTION
7 Switch Switch on and off the power
8 Mains input With socket and integrated fuse holder
9 Key switch Make sure the professional person use
10 Interlock For emergency laser stop
11 LED control Panel Intelligent LED control panel of the system
12 Safety eye Attach the safety cable
13 DMX input 3PIN Male XLR port, using for DMX
14 DMX output 3PIN Female XLR port，using for DMX

USER MANUAL
15
Attention Laser Safety Scanner Board is included in the system.
The Laser light will be turned off when the scanned angle
is less than 1 degree.
Operating Mode
Attention Once after every power on laser, the VERSION and
MANUFACTURE INFORMATION will be shown in LCD
monitor of rear panel.
When laser is powered on, LCD monitor on rear panel shows the current
operating standalone mode or DMX address of DMX mode. With help of LCD
control panel, is very easy to set and change the operating mode of laser. After
every resetting and saved, the new mode information will be shown on LCD
monitor at next power on.
Mode Option, to choose the operating mode of laser.
Confirmation, to confirm the laser to show the present mode at the
next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
OPERATION

USER MANUAL
16
DISPALY STAND ALONE MODE PREPROGRAM EFFECT
Aut AUTOMATIC SHOW with RGY colors
Au1 AUTOMATIC SHOW with single RED color
Au2 AUTOMATIC SHOW with single GREEN color
Au3 AUTOMATIC SHOW with single YELLOW color
Sou SOUND ACTIVATED SHOW with RGY colors
So1 SOUND ACTIVATED SHOW with single RED color
So2 SOUND ACTIVATED SHOW with single GREEN color
So3 SOUND ACTIVATED SHOW with single YELLOW
AUP Auto running pattern effect show
SOP Sound activated pattern effect show
Attention In preprogrammed standalone MUSIC SHOW mode, the
laser beam will be blank-out in 3 seconds without
AUDIO/MIC activated signal.
DMX MODE
Press FUNC to enter MODE selection
Till to LED panel shows 001
Press ENTER to confirm setting
The laser is working in DMX MODE.
With help of UP and DOWN button, the
DMX address could be set.
Attention In DMX MODE, once the DMX cable is connected with laser
and DMX controller, the DMX LED in front panel of
laser will be ON.

USER MANUAL
17
SLAVE MODE
Press FUNC to enter MODE selection
Till to LED panel shows SLA
Press ENTER to confirm setting
The laser is working in SLAVE MODE. Connect MASTER laser with several
SLAVE laser with DMX cable, SLAVE lasers are doing exactly the same laser
show as MASTER laser. Please check chapter for DMX cable connection for
referece.
REM MODE (Remote Optional)
Press FUNC to enter MODE selection
Till to LED panel shows REM
Press ENTER to confirm setting
Please check Remote Instruction for remote control details.
Attention In any standalone mode (excepted REM and SLA), press
ON/OFF for 2 second to activate remote function.
PATTERN MIRROR REVERSE SETTING
Press FUNC to enter MODE selection
Till to below LED display is
shown in LED panel and the
laser will show pattern right
side.
Press ENTER to confirm the
setting.
With help of UP button, the laser scanned world in x direction could be
reversed, as the graphic as below.

USER MANUAL
18
With help of DOWN button, the laser
scanned world in y direction could be
reversed, as the graphic as below.
Attention Beside of LED programmed mirror reverse setting, the
laser scanned world could be set by ILDA control panel.
Remote Instruction
Button Function Description
ON/OFF In REM mode, to turn ON / OFF laser. In any
standalone mode, excepted SLA mode, pressing 2
seconds for activate REM mode.
AUTO AUTO running show
MUSIC SOUND activated show. The blue music LED
indicator is flashing when sound signal is detected.
Sound Sensitivity
In Sound Activated Show, press MUSIC + B +
“1~9” to do sensitivity setting, “9” is the most
sensitive.

USER MANUAL
19
COLOR
CHANGING
Cycle through Programmed Color, Color 3 & Color
2, Color 1
PATTERN
CHANGING To show and change patterns
FIXED
PATTERN Choose favorite PATTERN from 1 to 48.
PATTERN
REPEAT
Last PATTERN and current PATTERN cycle
repeating
Attention Any control or setting in remote will be saved in ram, until
the system is rebooted. The system is in AUTO show in
any first remote mode after reboot.
DMX Channels Chart
CHANNEL VALUE FUNCTION
CH 1
MODE
000-020 Laser OFF
021-040 AUT
041-060 AU1
061-080 AU2
081-100 AU3
101-120 SOU
121-140 SO1
141-160 SO2
161-180 SO3
181-200 AUP
201-220 SOP
221-255 DMX MODE
CH2
GROUP
000-051 1 Group Patterns.
052-103 2 Group Patterns
104-055 3 Group Patterns
