Impex Circuit Fitness AMZ-986RW Installation and operating instructions

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
AMZ-986RW
Retain This
Manual for
Reference
190613
ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Deluxe Rowing Machine
AMZ-986RW
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone] Fax: [phone]
www.marcypro.com
[e-mail]

© IMPEX INC. www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
Thank you for selecting the CIRCUIT FITNESS Magnetic-Resistance Deluxe Rowing
Machine AMZ-986RW by IMPEX®INC. For your safety and benefit, read this manual
carefully before using the bike. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct assistance
from our factory. To avoid unnecessary delays, please call our TOLL-FREE customer
service number. Our Customer Service Agents will provide immediate assistance to
you.
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
WARNING LABEL PLACEMENT
3
HARDWARE PACK
4
COMPONENT FOR ASSEMBLY
5
IMPORTANT ASSEMBLY INSTRUCTION
6
EXPLODED DIAGRAM
12
PARTS LIST
14
CARE AND MAINTENANCE, WEIGHT CAPACITY & DIMS.
16

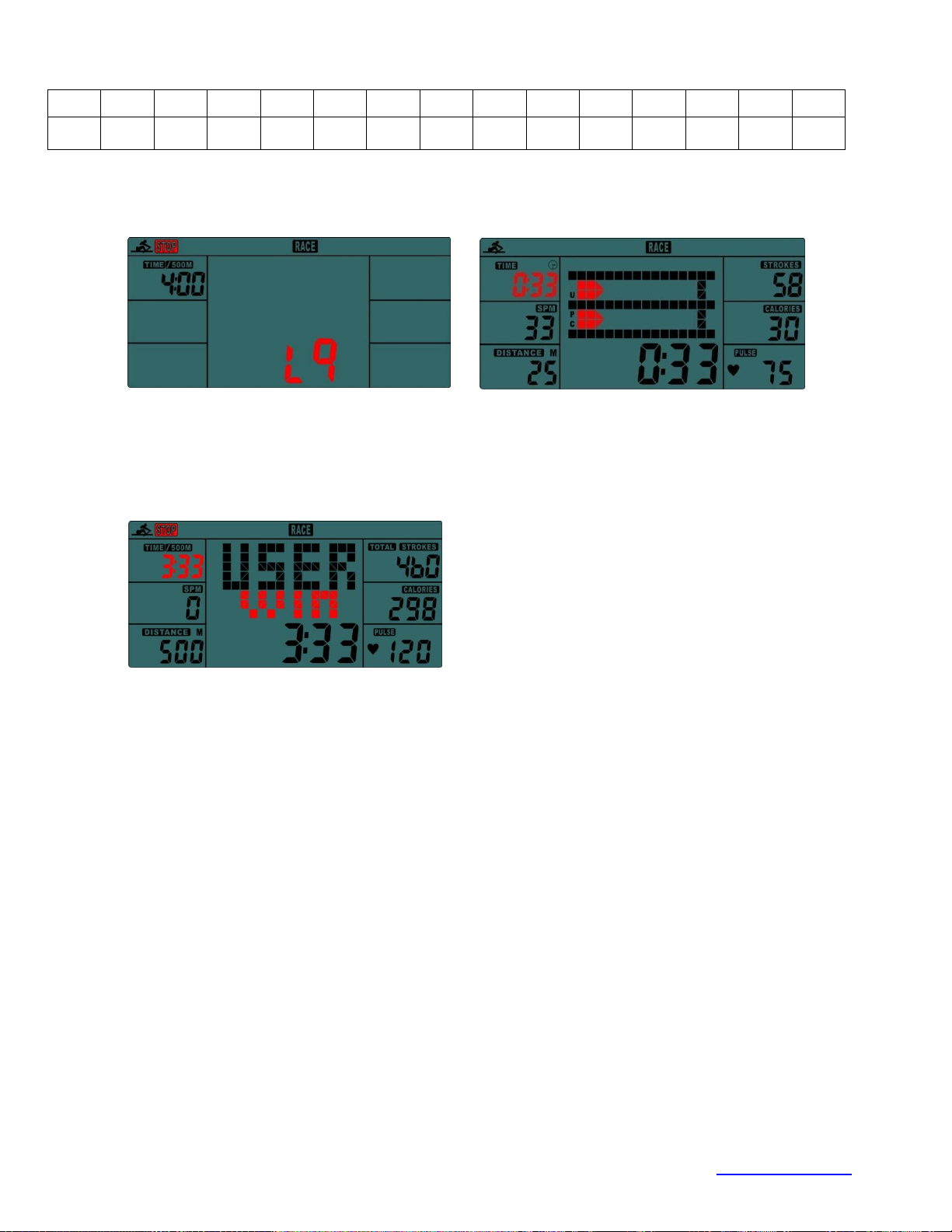

COMPUTER
17
EXERCISE GUIDELINES
20
WARRANTY
22
ORDERING PARTS
22
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.marcypro.com
[email protected]

© IMPEX INC. www.marcypro.com
2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm
up.
11. Never operate the machine if the machine is not functioning properly.
12. Read all warnings posted on the exercise bike.
13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any
loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

© IMPEX INC. www.marcypro.com
3
WARNING LABEL PLACEMENT
The Warning Labels shown here has been placed on the Front Stabilizer.
If the labels are missing or illegible, please call customer service at 1-800-999-8899 for
replacement. Apply the labels in location shown.

© IMPEX INC. www.marcypro.com
4
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
NO.
Description
QTY
Drawings
3
Flat washer
11
11
Allen Bolt
12
14
End cap for slide rail L/R
1/1
16
Collar
2
17
Allen Bolt M8x ¾”
4
24
Allen Bolt M8x1⅝”
2
27
Stopper
2
32
Allen Bolt M6x½”
4
33
Flat washer
4
34
Axle for pedal
2
35
Acorn nut M8
2
36
Carriage bolt M8*1¾
2
10
Curve washer
5
67
Lock Washer
2
68
Flat washer
2
69
Axle for slide rail
1

© IMPEX INC. www.marcypro.com
5
8
Knob
1
Allen Wrench
1
Allen Key 4MM
2
Allen Key 6MM
2
COMPONENTS FOR ASSEMBLY
NO:5 NO:26 NO:23 NO:31L/R
NO:15 NO:2 NO:9 NO:37NO:28

© IMPEX INC. www.marcypro.com
6
11
3
10
11
3
5
7
74
51
ASSEMBLY INSTRUCTION
•Tools Required for Assembling the Machine: One Crossing Wrench and Allen Wrench,
provided by manufacturer.
•NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

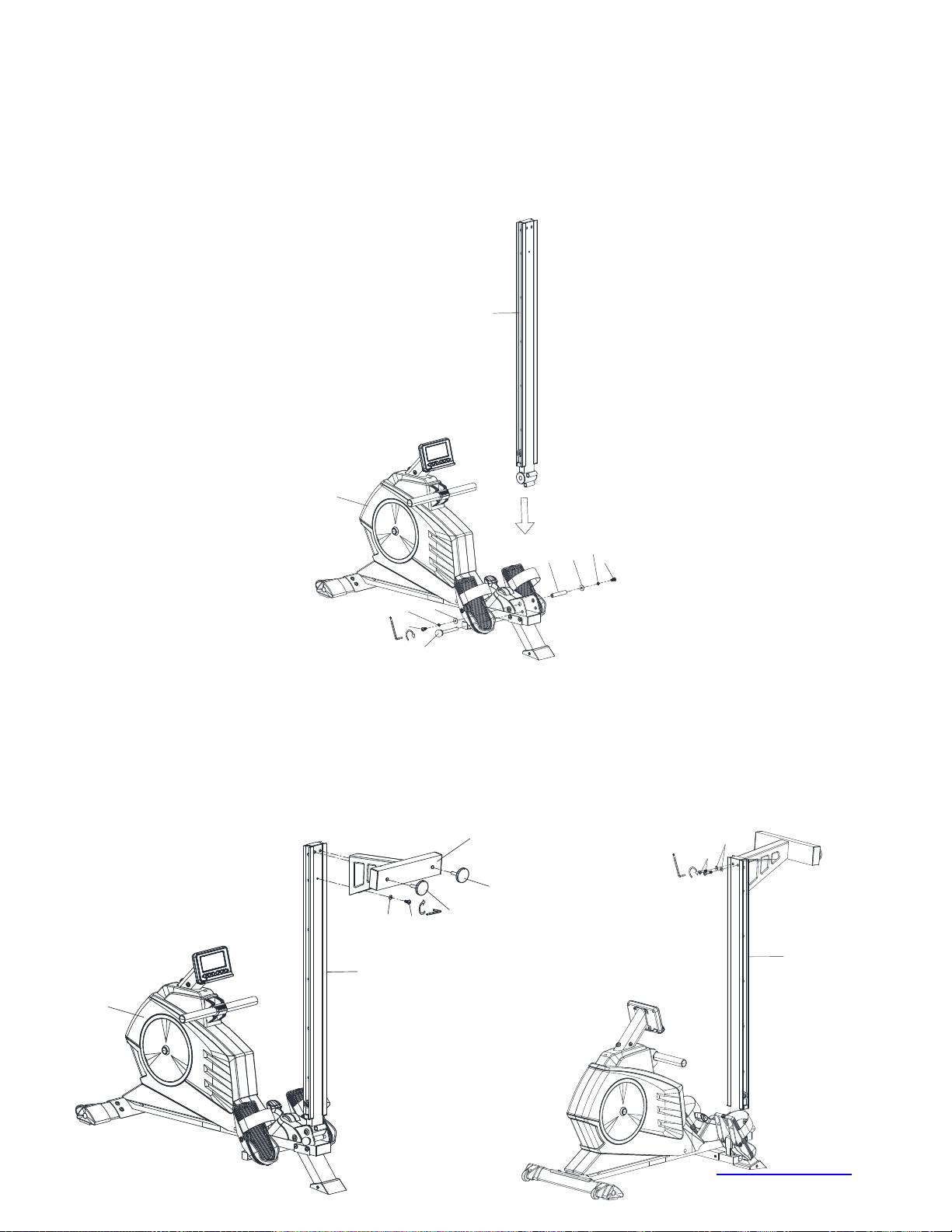

STEP 1
Attach the front stabilizer (2) to the main frame (5). Secure using four allen bolts (11), Four curve
washers (10).
STEP 2
Insert sensor wire (7) and computer wire (74) into and pull out through the top of the front post (51).
Attach front post (51) to Main frame (5) and secure with one set of allen bolts (11) & curved
washers (10) and from the sides with two sets of allen bolts (11) and flat washers (3).
11
10
11
10
2
5

© IMPEX INC. www.marcypro.com
7
6
6
9
7
5
74
3434 32
33
33
32
31L
31R
32
33
37

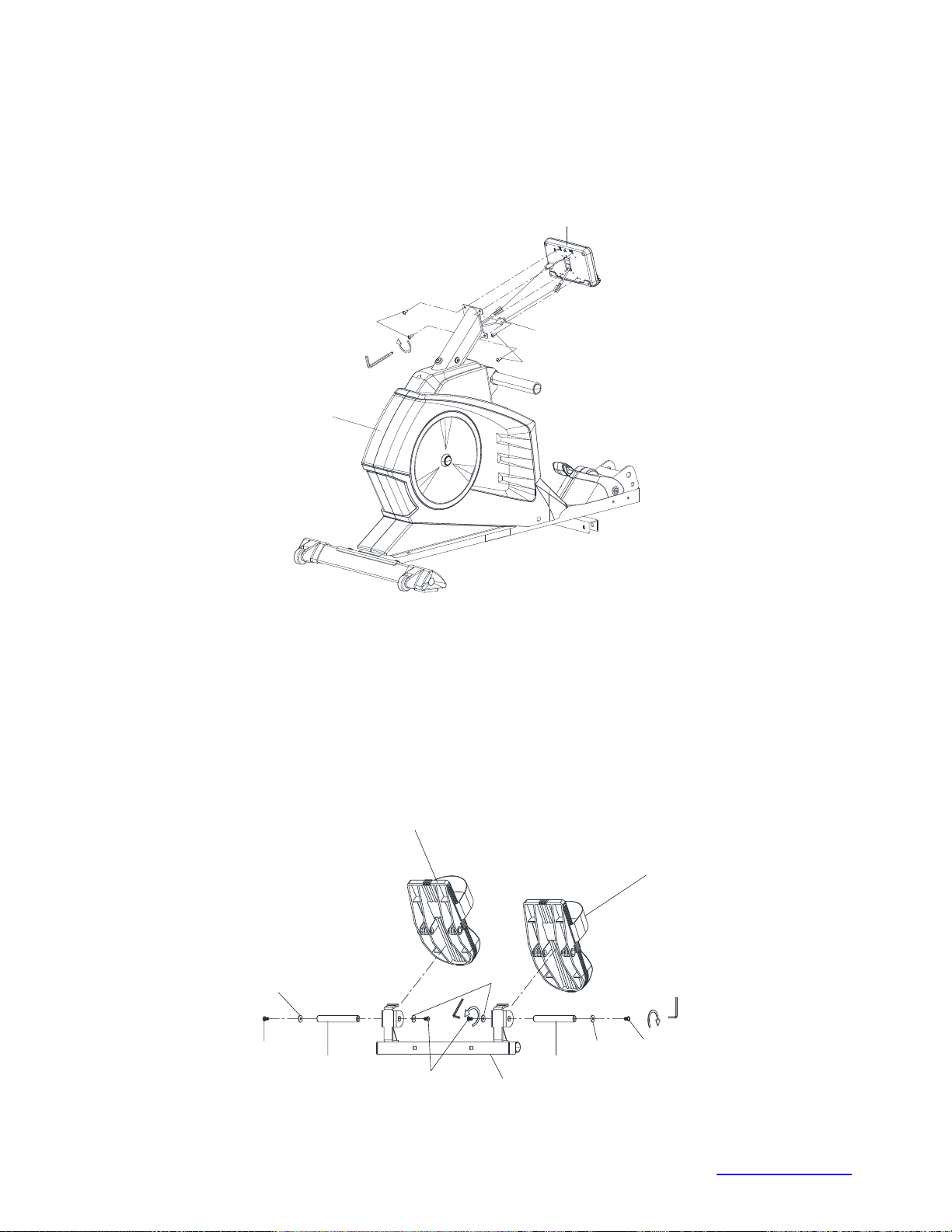

STEP 3
Connect sensor wire (7) and computer wire (74) to the computer (9). Secure with four screws (6) on
the front post.
STEP 4
Attach the left pedal (31L) to the left bracket of the pedal support tube (37), secure using one axle
for pedal (34), two allen bolts (32) and two flat washers (33). Repeat the same procedure for right
pedal (31R).

© IMPEX INC. www.marcypro.com
8
3
11
28
5
3
11
36
3
35
35
5
37
STEP 5
Attach the pedal support tube (37) to bottom of the main frame (5). Secure using two carriage bolts
(36), two flat washers (3) and two acorn nuts (35).
STEP 6
Attach middle stabilizer (28) to main frame (5), secure with 4 sets of allen bolts (11) and flat
washers (3).

© IMPEX INC. www.marcypro.com
9
26
27
27
11
3
5
15
STEP 7
Attach the slide rail (15) to the main frame (5). Secure using one axle for slide rail (69), two Allen
bolts (17), two spring washers (67), and two flat washers (68)
Fold the slide rail (15) Then insert the knob (8).
STEP 8
Attach the rear stabilizer (26) to the back of the slide rail (15). Secure one allen bolt (11) and one
flat washer (3) on the front of the rear stabilizer, then secure two allen bolts (24) and two flat
washers (3) on the rear of the stabilizer.
Thread two stoppers (27) into rear stabilizer (26).
15
17
67
68
69
8
17
67 68
5
15
24 3

© IMPEX INC. www.marcypro.com
10
15
5
14R 14L
16
16
17
17
23
STEP 9
Slide the seat (23) into the slide rail (15). Attach two collars (16) to the back of the slide rail (15) and
securing with two allen bolts (17).
Attach the end caps (14L & 14R) to the end of the slide rail (15).
STEP 10
Pull out the locking pin (8) from the main frame and unfold the slide rail (15) slowly.
5
8

© IMPEX INC. www.marcypro.com
11
STEP 11
Set rear stabilizer to the floor and insert locking pin (8) to lock the frame into place.
Note: if there is resistance when inserting the locking pin, slightly lift the middle stabilizer, and it will
make inserting the pin easier.
5
8

© IMPEX INC. www.marcypro.com
12
EXPLODED DIAGRAM
1L 210
11
1R
5
66
3
35
36
37
9
3
11
12
13
13
14L
14L
14R
14R
15 16
16
16
16
17
17
17
18
18
3
3
19
19
20 20
21 21
22
23
17
424
3
3
11
26
27
12
12
3
11 28
29
29 30
31L 31R
32
32
32
32
33
33
33
33
34
34
25
11
11
11
3
3
10
7
51
17
67
68
67
68
17
69
8
74

© IMPEX INC. www.marcypro.com
13
EXPLODED DIAGRAM
41 43
4042
59
44
2929
48
2929
38L
38R
39
39
40
41
42
45 45
18 18
46 46
47 48
52
29
53 2954 55 56
56 57
58
18
18
33
3
3
60
6060
6160
61
61
61
62
62
63
63
6465
18
66R
66L
29
48
70
32
71
73
50
7
49 72
29
75

© IMPEX INC. www.marcypro.com
14
AMZ-986RW PARTS LIST
NO.
Description
Qty
1L/R
End cap for front stabilizer L/R
1/1
2
Front stabilizer
1
3
Flat washer Ф8*Ф11/16
21
4
Allen bolt M6x¾”
4
5
Main frame
1
6
Screw M5x ½”
4
7
Sensor wire
1
8
Locking Pin
1
9
Computer
1
10
Curve washer Ф8*Ф¾
5
11
Allen Bolt M8x⅝”
12
12
End cap
2
13
Sleeve
2
14L/R
End cap for slide rail L/R
2/2
15
Slide rail
1
16
Collar
4
17
Allen Bolt M8x¾”
6
18
Nylon nut M8
13
19
Axle for Wheel
6
20
Wheel
6
21
Screw M5*9/16
6
22
Seat support plate
1
23
Seat
1
24
Allen bolt M8x1 9/16
2
25
End cap for slide rail
1
26
Rear stabilizer
1
27
Stopper
2
28
Middle stabilizer
1
29
Self-tapping screw ST5*15
12
30
End cap for middle stabilizer
1
31
Pedal L/R
1/1
32
Allen bolt M6x½”
6
33
Flat Washer Ф6*Ф17
4
34
Axle for Pedal
2

© IMPEX INC. www.marcypro.com
15
35
Scorn nut M8
2
36
Carriage bolt M8x1¾”
2
37
Pedal support tube
1
38L/R
Chain cover L/R
1/1
39
Flange nut
2
40
Screw for clip
2
41
Clip
2
42
Aircraft nut
2
43
Flywheel
1
44
Rope pulley w/rope
1
45
End cap for rope pulley
2
46
Bracket for spring clutch
2
47
Sensor bracket
1
48
Self-tapping screw ST15*9/16
10
49
Spring
1
50
Belt
1
51
Front post
1
52
Decorative cover
1
53
Fix rubber pad
1
54
Upper cover for handlebar
1
55
Handlebar
1
56
End cap for handlebar
2
57
Foam grip for handlebar
2
58
Lower cover for handlebar
1
59
Self-tapping screw 5*9/16
2
60
Powder bushing
4
61
Bearing
4
62
Wheel
2
63
Axle for wheel
2
64
Allen bolt M8x2 3/16”
1
65
Magnetic assembly
1
66L/R
Decorative cover L/R
1/1
67
Lock washer Ф8
2
68
Flat Washer Ф8*Ф1
2
69
Axle for slide rail
1
70
8-level tension gear
1
71
Hex nut M6
2
72
Tension wire
1

© IMPEX INC. www.marcypro.com
16
73
Hex bolt M6x1”
1
74
Computer wire
1
CARE, MAINTENANCE AND STORAGE
1. Inspect and tighten all parts each time you use the machine. Replace any worn parts
immediately.
2. This machine can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use
solvents.
3. Store the rower IN-DOOR. Excess moisture and water would cause rust on the frame.
4. The rower shall be placed at least 24 inches away from the wall or/and any other object such as
furniture to provide safe access to and passage around the machine.
5. To avoid possible injury, the help of two or more people are needed when moving the machine
around.
6. Disposal Instructions –The equipment can be safely disassembled and disposed without
unreasonable hazards. Call your local recycle agency regarding details of recycling.
7. The maximum user weight is 300 lbs.
8. Assembled Dimension (L x W x H): 91”x20.5”x31.5”
9. Folded Dimension (L x W x H): 49”x20.5”x51”
OPERATING NOTES
TRANSPORT
The Rower has a pair of roller wheels on Front Stabilizer End Cap.
To move, fold up the Rower; carefully hold and tilt the Rower, and then roll.

© IMPEX INC. www.marcypro.com
17
COMPUTER
Our computerized display console on the Water Rower allows the user to tailor a personalized
workout by monitoring their progress. During a workout, the display console will alternately and
repeatedly display the Time, Time/500M, SPM, Distance, Strokes, Total Strokes, Calories Burned
and Pulse.
BUTTONS
UP▲/ DOWN▼：Press either buttons to cycle through available selections, and to adjust the
function value upward or downward.
ENTER: To confirm your selection.
During training, press the button to scan through each display function.
START / STOP: To start and stop your selected workout program.
RESET: Press to go back to the main menu.
Long press (3-5 seconds) will reset all values back to zero.
RECOVERY: To activate the RECOVERY PROGRAM that will automatically evaluate your fitness
immediately after your work out.
DISPLAY FUNCTIONS
TIME: Set target time by pressing UP or DOWN buttons (1min ~ 99 min), in 1-min. increments.
TIME/500M: Your average 500-meter time will automatically be displayed and continuously updated.
SPM: Strokes per minute.
DISTANCE: Set target value by pressing UP or DOWN buttons (0 ~ 99900 meters) in 100-meter
increments.
STROKES: Preset target value by pressing UP or DOWN buttons (0~9990 strokes) in
10-stroke increments.
TOTAL STROKES: Accumulates total strokes from 0 up to 9999.
CALORIES: Set target CALORIES by pressing UP or DOWN buttons
(10Cal ~9990Cal) in 10-Cal. increments.
PULSE: In Manual Mode, set target value by pressing up or down button to set from 30 to 240, in 1
BPM increments. The computer will display user’s heart rate during training. When target
value is reached, computer will beep until you change to another mode or take off Chest
belt. Also, the Pulse ICON will blink. The pulse function will only work if it is connected to a
chest strap system (not included).
CALENDAR: The computer will display year, month, and day when computer is in sleep mode.
TEMPERATURE: The computer will display the current room temperature when the computer is in
sleep mode.

© IMPEX INC. www.marcypro.com
18
CLOCK: The computer will display current time when the computer is in sleep mode.
OPERATION
1. Install 2 AA batteries (included) and computer will beep for 2 seconds (Fig.1).
The computer will enter into the CLOCK & CALENDAR MODE (Fig.2).
2. The CLOCK will flash. Press UP/DOWN to set the hour. Press ENTER to confirm.
Press UP/DOWN to set the minutes. Press ENTER to confirm. Continue to set up YEAR
(displays in the STROKES window); MONTH (displays in the CALORIES window); DAY
(displays in the PULSE window) by pressing UP or DOWN. Each time, press ENTER to confirm.
After setting the CLOCK, the ALARM icon will blink for you to set up an alarm. To skip setting
up an alarm, press ENTER.
To set up an alarm, press UP KEY to turn on ALARM. An arrow will appear next to ALARM.
Press ENTER. CLOCK window will flash. Press UP or DOWN to set the alarm time. Press
ENTER to confirm. Computer will go into the SPORT screen (Fig.3).
Fig.1 Fig.2
Fig.3 Fig.4
3. When you enter into the SPORT screen, MANUAL and RACE will blink. Press UP or DOWN to
select MANUAL or RACE. Press ENTER to confirm your selection.
(1) MANUAL (Fig.4): There are 2 options in MANUAL mode.
A. The computer can be set to countdown.
i. When you select MANUAL, the value of TIME will start to flash. Press UP/DOWN
to set the value of TIME to countdown. Press ENTER to confirm it. If you do not
want to set the value of time to COUNTDOWN, press ENTER to go to the next
function.
ii. You can set the values for DISTANCE, STROKES, CALORIES, or PULSE. (You
can only set the value for one function to countdown. For example, if you have set
the target value for TIME, then DISTANCE can’t be set.)
iii. Press START button to start. The STOP icon will disappear.
iv. When the function you have selected counts down to zero or you press STOP
button, the computer will stop and display the average value.
B. The computer counts the value of your workout. Press START to start.
(2) RACE (Fig.5) ：
A. Select RACE mode and L9 will flash. The TIME/500M will display 4:00. Then, press UP
or DOWN to select L1 ~ L15. Press ENTER to confirm. Then, you can set the distance

© IMPEX INC. www.marcypro.com
19
of the race (500M~10000M) while the value of DISTANCE is blinking.
B. Press ENTER and the picture of the race will display on the screen.
The TIME/500M of the programs are as follows：
Fig.5 Fig.6
C. Press START button to start and STOP will disappear. USER and PC will be displayed
in the center window (Fig.6). The computer will stop when either the user or the
computer has reached the race distance that was set. Then the matrix displays “PC
WIN” or “USER WIN” (Fig.7).
Fig.7
D. When the race is over, you can press START to start a race once again. Press RESET
to leave the RACE screen.
(3) RECOVERY：
1. This computer works with a 5.3 KHz chest strap heart rate monitor (not included). After
exercising for a period of time, continue wearing chest strap monitor and press
“RECOVERY” button. All function displays will stop except “TIME”, it will start to counting
down from 00:60 to 00:00.
2. Screen will display your heart rate recovery status with the F1, F2….to F6.
3. F1 is outstanding. F6 is poor. User may keep exercising to improve the heart rate recovery
status. (Press the RECOVERY button again to return the main display.)
ALARM
Alarm only works while the computer is in sleep mode. Alarm will not sound during exercise.
Press and hold RESET to go to clock screen to set up ALARM.
SLEEP MODE
The computer will go into sleep mode after about 4 minutes of inactivity.
BATTERY
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
8:00
7:30
7:00
6:30
6:00
5:30
5:00
4:30
4:00
3:30
3:00
2:30
2:00
1:30
1:00
