Indesit I5NSH1AE U User manual

English
GB
Operating Instructions
COOKER AND OVEN
Contents
Operating Instructions,1
Description of the appliance-Overall view,5
Description of the appliance-Control Panel,6
Installation,7
Start-up and use,11
Cooking modes,12
Precautions and tips,14
Care and maintenance,15
Assistance,15
Polski
PL
Instrukcja obsługi
KUCHENKA I PIEKARNIK
Spis treści
Instrukcja obsługi,1
Opis urządzenia-Widok ogólny,5
Opis urządzenia-Panel sterowania,6
Instalacja,17
Uruchomienie i użytkowanie,21
Użytkowanie piekarnika,22
Zalecenia i środki ostrożności,24
Konserwacja i utrzymanie,25
Serwis Techniczny,25
LT
Lietuviu
Naudojimo instrukcijos
viryklë ir orkaitë
Turinys
Naudojimo instrukcijos,1
Prietaiso aprašymas -Bendras vaizdas,5
Prietaiso aprašymas -Valdymo pultas,6
Montavimas,27
Ájungimas ir naudojimas,31
Orkaitës naudojimas,32
Atsargumo priemonës ir patarimai,34
Techninë prieţiűra,35
Pagalba,35
LV
Latviešu
Lietođanas instrukcija
PLÎTS UN KRASNS
Saturs
Lietođanas instrukcija,1
Ierîces apraksts -Vispârîga informâcija,5
Ierîces apraksts - Vadîbas panelis,6
Uzstâdîđana,37
Leslçgđana un lietođana,41
Cepeđkrâsns lietođana,42
Piesardzîbas pasâkumi un ieteikum,44
Tehniskâ apkope un kopđana,45
Palîdzîba,45
EE Eesti keeles
Kasutusjuhend
PLIIT JA AHI
Sisukord
Kasutusjuhend,1
Seadme kirjeldus - Ülevaade,5
Seadme kirjeldus - Juhtpaneel,6
Paigaldamine,47
Esmakäitamine ja kasutamine, 51
Ahju kasutamine,52
Ettevaatusabinőud ja soovitused, 54
Hooldus,55
Klienditugi,55
Lietođanas instrukcija
PLÎTS UN KRASNS
Latviešu
Saturs
Kasutusjuhend
PLIIT JA AHI
Sisukord
Instrukcja obsługi
KUCHENKA I PIEKARNIK
Spis treści
Turinys
English
Lietuviu
Naudojimo instrukcijos
viryklë ir orkaitë
UWAGA
WARNING
HOIATUS
BRĪDINĀJUMS
ĮSPĖJIMAS ,3
,3
,4
,2
,2
I5NSH1AE U
I5GSHA U

GB
PL
WARNING: The appliance and its
accessible parts become hot during
use.
Care should be taken to avoid
touching heating elements.
Children less than 8 years of age shall
be kept away unless continuously
supervised.
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
WARNING: Unattended cooking on a
hob with fat or oil can be dangerous
and may result in fire.
NEVER try to extinguish a fire with
water, but switch off the appliance
and then cover flame e.g. with a lid or
a fire blanket.
Do not use harsh abrasive cleaners
or sharp metal scrapers to clean
the oven door glass since they can
scratch the surface, which may result
in shattering of the glass.
The internal surfaces of the
compartment (where present) may
become hot.
Never use steam cleaners or pressure
cleaners on the appliance.
Remove any liquid from
the lid before opening it.
Do not close the glass cover (if present)
when the gas burners or electric
hotplates are still hot.
WARNING: Ensure that the appliance is
switched off before replacing the lamp
to avoid the possibility of electric shock.
CAUTION: the use of inappropriate hob
guards can cause accidents.
WARNING
UWAGA: To urządzenie oraz jego dostępne
części silnie się rozgrzewają podczas użyt-
kowania.
Należy uważać, aby nie dotknąć elementów
grzejnych.
Nie pozwalać, aby dzieci poniżej 8 roku
życia zbliżały się do urządzenia, jeśli nie są
pod stałym nadzorem dorosłych.
Z niniejszego urządzenia mogą korzystać
dzieci powyżej 8 roku życia i osoby o ogra-
niczonych zdolnościach zycznych, zmy-
słowych bądź umysłowych, jak również
osoby nieposiadające doświadczenia lub
znajomości urządzenia, jeśli znajdują się
one pod nadzorem innych osób lub jeśli
zostały pouczone na temat bezpiecznego
sposobu użycia urządzenia oraz zdają sobie
sprawę ze związanych z nim zagrożeń.
Dzieci nie powinny bawić się urządzeniem.
Prace związane z czyszczeniem i konserwa-
cją nie mogą być wykonywane przez dzieci,
jeśli nie są one nadzorowane.
UWAGAUWAGA
WARNING
2
! When you place the rack inside,
make sure that the stop is directed
upwards and in the back of the cavity.
UWAGA: Pozostawienie bez nadzoru na
kuchence tłuszczów i olejów może być nie-
bezpieczne i może spowodować pożar.
Nie należy NIGDY próbować ugasić pło-
mieni/pożaru wodą; należy wyłączyć urzą-
dzenie i przykryć płomień np. pokrywką
lub ognioodpornym kocem.
Nie stosować środków ściernych ani
ostrych łopatek metalowych do czyszczenia
szklanych drzwiczek piekarnika, ponieważ
mogłyby porysować powierzchnię i spowo-
dować pęknięcie szyby.

Usunąć ewentualne płyny na pokrywie
przed jej otwarciem. Nie zamykać szklanej
pokrywy (jeśli jest częścią wyposażenia),
jeśli palniki gazowe lub płyta elektryczna są
jeszcze rozgrzane.
UWAGA: Przed wymianą żarówki, należy
się upewnić, że urządzenie jest wyłączone,
aby uniknąć ryzyka porażenia prądem.
UWAGA: użycie niewłaściwych zabezpie-
czeń płyty może być przyczyną wypadków.
Wewnętrzne powierzchnie szuady (jeśli
jest w danym modelu) mogą się nagrzewać.
Nie stosować nigdy oczyszczaczy parowych
lub ciśnieniowych do czyszczenia urządze-
nia.
LT
ĮSPĖJIMAS! Naudojamo prietaiso pavi-
ršiai ir pasiekiamos dalys įkaista.
Būkite atsargūs ir neprisilieskite prie
įkaitusiųprietaiso dalių.
Jaunesni nei 8 metųvaikai gali būti
prileidžiami prie prietaiso tik prižiūrimi
suaugusiųjų.
Vyresni nei 8 metųvaikai ir asmenys, tu-
rintys fizinių, jutimo ar psichiniųsutrikimų
arba nepakankamai žiniųar patirties,
šiuo prietaisu gali naudotis tik tuo atveju,
jei jie yra prižiūrimi arba instruktuojami,
kaip saugiai naudoti prietaisą, taip pat
supranta kylančias grėsmes. Vaikams
turi būti draudžiama žaisti su prietaisu.
Neprižiūrimi vaikai taip pat negali valyti
prietaiso ar atlikti jo priežiūros darbų.
ĮSPĖJIMAS! Ant įjungtos viryklės palikti
indai su riebalais ar aliejumi gali sukelti
gaisrą.
NIEKADA nebandykite liepsnos gesinti
vandeniu – išjunkite prietaisąir kuo nors
uždenkite liepsną, pavyzdžiui, dangčiu
arba priešgaisriniu apklotu.
Orkaitės dureliųstiklo nevalykite šiur-
kščiomis valymo priemonėmis arba
aštriais metaliniais šveistukais, priešin-
gu atveju kyla grėsmėsubraižyti sti-
klo paviršių, o dėl to stiklas paprastai
sutrūkinėja.
Vidiniai stalčiaus (kur yra) paviršiai gali
įkaisti.
ĮSPĖJIMASĮSPĖJIMAS
3
! Wsuwając ruszt, naleĪy siĊupew-
niü, Īe ogranicznik jest skierowany ku
górze i znajduje siĊon w tylnej czĊĞci
komory.
ĮSPĖJIMAS! prieš keisdami lemputę
elektros prietaisąatjunkite nuo elektros
maitinimo tinklo – nepatirsite elektros
smūgio.
ATSARGIAI! Netinkamųviryklės
apsaugųnaudojimas gali sukelti nela-
imingąatsitikimą
Niekuomet nevalykite prietaiso gariniais
ar slėginiais valikliais.
Prieš atidarydami gaubtąnuo jo nuvaly-
kite skysčius.
Neuždarykite stiklinio dangčio (jei su-
montuotas), kol dujiniai degikliai arba
elektrinės kaitlentės neatvėso.
LV
BRĪDINĀJUMS! Ierīce lietošanas laikā
stipri sakarst.
Nepieskarieties sakarsušajām ierīces
daļām.
Bērni, kuri ir jaunāki par astoņiem ga-
diem, drīkst atrasties ierīces tuvumātikai
stingrāpieaugušo uzraudzībā.
BRĪDINĀJUMSBRĪDINĀJUMS
! PadơkląƳstumdami ƳorkaitĊ
Ƴsitikinkite, kad stabdiklis nukreiptas Ƴ
viršǐ, ir Ƴsistumtǐiki angos galo.
Ierīci drīkst lietot bērni, kuri ir sasnie-
guši astoņu gadu vecumu, bet perso-
nas ar ierobežotām fiziskajām, maņu
vai garīgajām spējām un personas,
kurām nav ierīces lietošanas pieredzes
vai nepieciešamo zināšanu, tikai tad,
ja tās tiek uzraudzītas vai ir atbilstoši
informētas par ierīces drošu lietošanu
un iespējamajiem riskiem. Bērni nedrīkst

rotaļāties ar ierīci. Bērni nedrīkst bez
uzraudzības tīrīt ierīci un veikt tās apko-
pi.
BRĪDINĀJUMS! Atstājot uz ieslēgtas
plīts virsmas pannu ar taukiem vai eļļu,
radīsit ugunsgrēka risku.
NEKĀDĀGADĪJUMĀnemēģiniet dzēst
uguni ar ūdeni, bet izslēdziet plīti un
nosedziet liesmu ar vāku vai nedegošu
pārsegu.
Cepeškrāsns durvju stiklu nedrīkst tīrīt ar
abrazīviem tīrīšanas līdzekļiem vai asiem
metāla skrāpjiem, jo tie bojādurvju vir-
smu un cepeškrāsns stikls var saplīst.
Papildu nodalījuma (ja cepeškrāsns ar to
ir aprīkota) iekšpuse lietošanas laikāvar
sakarst.
Ierīci nedrīkst tīrīt ar tvaika vai augstspie-
diena tīrītājiem.
Pirms pārsega atvēršanas notīriet no tā
visu šķidrumu.
Ja gāzes degļi vai elektriskās sildīšanas
virsmas joprojām ir karstas, stikla
pārsegu (ja tāds ir) nedrīkst aizvērt.
BRĪDINĀJUMS! Pirms cepeškrāsns
lampiņas nomaiņas pārbaudiet, vai
ierīce ir izslēgta, lai nomaiņas laikā
novērstu elektriskās strāvas trieciena
risku.
UZMANĪBU! Neatbilstošu plīts virsmas
aizsargu lietošana var izraisīt nelaimes
gadījumus.
4
! Ievietojot režƧi, pƗrliecinieties, ka
apturƝtƗjs ir vƝrsts augšup un atrodas
dobuma aizmugurƝ.
EE
HOIATUS: sisselülitatud seade ja selle
juurdepääsetavad osad muutuvad kasu-
tamise ajal kuumaks.
Olge ettevaatlik ja vältige kontakti kütte-
elementidega.
Alla 8-aastased lapsed tuleb hoida se-
admest eemal, v.a. juhul, kui nendele on
tagatud pidev järelevalve.
Vanemad kui 8-aastased lapsed ja isi-
kud, kellel on vähenenud füüsilised,
meelelised või vaimsed võimed või vähe-
sed kogemused ja oskused, võivad seda
seadet kasutada juhul, kui on tagatud
nende järeelvalve ning neile on antud
juhised seadme ohutuks kasutamiseks
ja nad mõistavad seadme kasutamisest
tulenevaid ohte.
HOIATUSHOIATUS
Lapsed ei tohi seadmega mängida.
Lapsed võivad seadet puhastada ja ho-
oldada ainult siis, kui on tagatud nende
järelevalve.
HOIATUS: rasvas või õlis küpseva toidu
jätmine keeduplaadile järelevalveta on
ohtlik ja võib põhjustada tulekahju.
Tulekahju kustutamiseks ÄRGE kasu-
tage vett, vaid lülitage seade välja ja
seejärel katke leek näiteks kaane või
tuletekiga.
Ärge kasutage ahju klaasukse puha-
stamiseks tugevatoimelisi abrasiivseid
puhastusvahendeid, sest need võivad
kriimustada pinda ja klaas võib pragune-
da.
Panipaiga (kui on) sisepinnad võivad
muutuda kuumaks.
Ärge kasutage seadme puhastamiseks
auru- ega survepuhastusseadmeid.
Enne kaane avamist eemaldage sellele
kogunenud vedelik.
Ärge sulgege klaaskaant (kui on ole-
mas), kui gaasipõletid või elektrilised
keeduplaadid on veel kuumad.
HOIATUS: enne lambi väljavahetamist
veenduge, et seade on välja lülitatud –
elektrilöögioht!
TÄHELEPANU: valede keeduplaadipiire-
te kasutamine võib põhjustada õnnetusi.
! Kui lükkate resti ahju, siis jälgige, et
piiraja jääb ülespoole, õõnsuse taha.

5

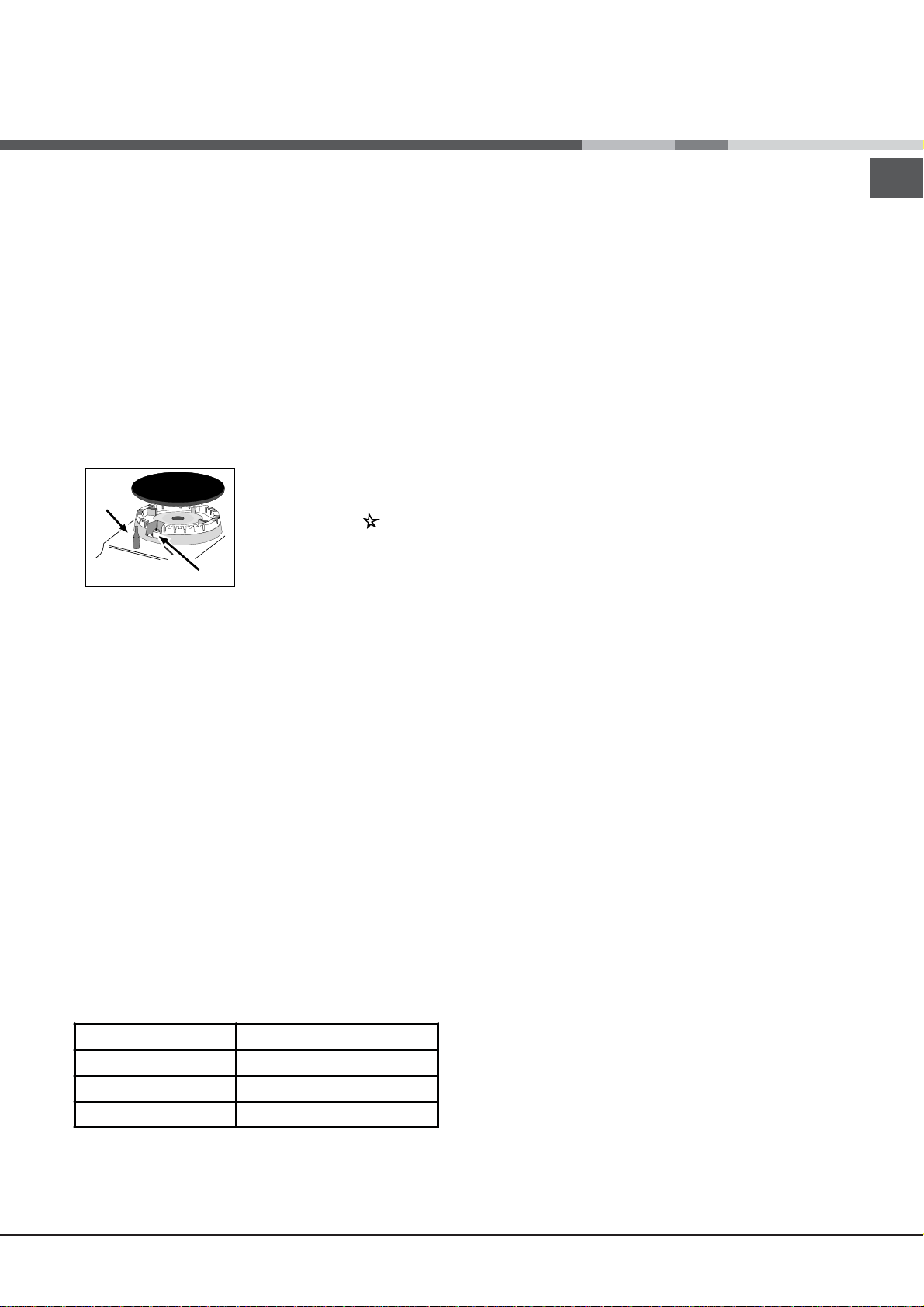

1.Hob burner
2 Hob Grid
3.Control panel
4.Sliding grill rack
5.DRIPPING pan
6.Adjustable foot
7.Containment surface for spills
8.GUIDE RAILS for the sliding racks
9.position 5
10.position 4
11.position 3
12.position 2
13.position 1
Description of the appliance
Overall view
GB
PL
1. Palnik gazowy
2.Ruszta płyty podpalnikowej
3.Panel kontrolny
4.Półka ruszt
5.Półka brytfanna
6.Nóżki regulowane
7. Płyta podpalnikowa
8.Prowadnice półek
9.pozycja 5
10.pozycja 4
11.pozycja 3
12.pozycja 2
13.pozycja 1
Opis urządzenia
Widok ogólny
1.Dujųdegiklis
2. Kaitlentès tinklelis
3.Valdymo pultas
4.KEPSNINÈ
5.SURINKIMO INDAS
6. Reguliuojamoji kojelè (Yra tik tam tikruose modeliuose)
7. TIškalųsulaikymo paviršius
8.SlankiųjųgroteliųTAKELIAI
9. padètis 5
10.padètis 5
11.padètis 5
12. padètis 5
13. padètis 5
Prietaiso aprađymas
Bendras vaizdas
LT
1.Gćzes deglis
2.Plīts virsmas režģisģ
3.STIKLA KERAMIKAS VIRSMA
4.Vadības panelis
5.CEPE TAUKU PANNA
6.Regulējama kāja
7 Norobe˛ota virsma traipiem
8.VADOTNES slīdošo pamatņu ievietošanai un izņemšanai
9. pozīcija 5
10.pozīcija 4
11.pozīcija 3
12.pozīcija 2
13.pozīcija 1
Ierîces apraksts
Vispariga informacija
LV
1.Gaasipõleti
2.Rest
3.Juhtpaneel
4.GRILL
5.TILGAPANN
6.Reguleerimisjalg
7.Tilgaalus
8.SIINID restide sisestamiseks
9. tasand 5
10. tasand 4
11.tasand 3
12.tasand 2
13.tasand 1
Seadme kirjeldus
Ülevaade
EE
2
3
4
5
8
1
7
6
6
9
10
11
12
13
14
14.ELECTRIC HOTPLATE*
14.Piastra elektryczna*
14. Elektroninis kaitlentþs degikilĜapšvietimas*
14.ELEKTRISKSILD ŠANAS VIRSMA*
14 Elektriline keeduplaat*
*
14
*

GB
6
Description of the appliance
Control panel
GB
1.GAS BURNER IGNITION button
2.TIMER knob*
3.THERMOSTAT knob
4.THERMOSTAT indicator light
5.SELECTOR knob
6.Hob BURNER control knob
P L
Opis urządzenia
Panel kontrolny
1.ZAPALARKApalników płyty
2.Pokrętło MINUTNIKA*
3.Pokrętło TERMOSTATU
4.Lampka kontrolna TERMOSTATU
5.Pokrętło PROGRAMÓW PIEKARNIKA
6.Pokrętło PALNIKÓW PŁYTY GRZEJNEJ
Ierîces apraksts
Vispariga informacija
LV
1.GĀZES DEGĻA iedegšanas poga
2.TAIMERA slēdzis*
3.TERMOSTATA slēdzis
4.TERMOSTATA indikatora gaisma
5.SELEKTORA slēdzis
6.DEGĻA vadības slēdzi
Seadme kirjeldus
Juhtpaneel
EE
Prietaiso aprađymas
Valdymo pultas
LT
1.Elektroninis kaitlentčs degikilřapšvietimas
2.LAIKMAČIO rankenčlč
3.TERMOSTATO rankenčlč
4.IndikacinčTERMOSTATO lemputč
5.PARINKIMO rankenčlč
6.Kaitlentčs dujřdegikilřvaldymo rankenčlčs
1.GAASIPÕLETI süütenupp
2.TAIMERI nupp*
3.TERMOSTAADI nupp
4.TERMOSTAADI näidikutuli
5.VALIKUlüliti
6.PÕLETITE reguleernupp
4
6
2
135
*
*Only available in certain models.
*Tylko w niektórych modelach
*Yra tik tam tikruose modeliuose
*Pieejams tikai noteiktiem modeļiem
*Ainult mőnedel mudelitel
7
7.ELECTRIC HOTPLATE indicator light *
8.Electric HOTPLATE control knob*
8
8. lampka kontrolna piastry elektrycznej *
7.poretlo piastry elektrycznej*
8.IndikacinþKAITINIMO ELEMENTělemputþ
7.KAITINIMO ELEMENTěrankenþlþs
8. ȱɧɞɢɤɚɬɨɪ ɊɋȻɐɘɘɑOȲɄɈHɎOPɄɂ
7.PeʉyɥɹɬɨpɢȿɅȿKTPɂɑHɂX ɄɈHɎOPOɄ
8.AKTIIVSE KEEDUPLAADI näidikutuli
7.ELEKTRILISE KEEDUPLAADI reguleernupp
*
*

7
GB
!Before operating your new appliance please read
this instruction booklet carefully. It contains important
information concerning the safe installation and
operation of the appliance.
!Please keep these operating instructions for future
reference. Make sure that the instructions are kept with
the appliance if it is sold, given away or moved.
!The appliance must be installed by a qualified
professional according to the instructions provided.
!Any necessary adjustment or maintenance must be
performed after the cooker has been disconnected
from the electricity supply.
Room ventilation
The appliance may only be installed in permanently-
ventilated rooms, according to current national
legislation. The room in which the appliance is installed
must be ventilated adequately so as to provide as
much air as is needed by the normal gas combustion
process (the flow of air must not be lower than 2 m3/h
per kW of installed power).
The air inlets, protected by grilles, should have a duct
with an inner cross section of at least 100 cm2and
should be positioned so that they are not liable to even
partial obstruction (see gure A).
These inlets should be enlarged by 100% - with a
minimum of 200 cm2- whenever the surface of the
hob is not equipped with a flame failure safety device.
When the flow of air is provided in an indirect manner
from adjacent rooms (see gure B), provided that these
are not communal parts of a building, areas with
increased fire hazards or bedrooms, the inlets should
be fitted with a ventilation duct leading outside as
described above.
!After prolonged use of the appliance, it is advisable to
open a window or increase the speed of any fans used.
Disposing of combustion fumes
The disposal of combustion fumes should be
guaranteed using a hood connected to a safe and
efficient natural suction chimney, or using an electric
fan that begins to operate automatically every time the
appliance is switched on (see gure).
!The liquefied petroleum gases are heavier than air
and collect by the floor, therefore all rooms containing
LPG cylinders must have openings leading outside so
that any leaked gas can escape easily.
LPG cylinders, therefore, whether partially or
completely full, must not be installed or stored in rooms
or storage areas that are below ground level (cellars,
etc.). Only the cylinder being used should be stored
in the room; this should also be kept well away from
sources of heat (ovens, chimneys, stoves) that may
cause the temperature of the cylinder to rise above
50°C.
Positioning and levelling
!It is possible to install the appliance alongside
cupboards whose height does not exceed that of the
hob surface.
!Make sure that the wall in contact with the back of
the appliance is made from a non-flammable, heat-
resistant material (T 90°C).
To install the appliance correctly:
• Place it in the kitchen, the dining room or the bed-sit
(not in the bathroom).
• If the top of the hob is higher than the cupboards,
the appliance must be installed at least 200 mm away
from them.
• If the cooker is installed underneath a wall cabinet,
there must be a minimum distance of 420 mm
between this cabinet and the top of the hob.
This distance should be increased to 700 mm if the
wall cabinets are flammable (see gure).
• Do not position blinds behind the cooker or less than
200 mm away from its sides.
A
Installation
Ventilation opening for
comburent air
Increase in the gap
between the door and
the flooring
Adjacent room Room requiring
ventilation
AB
Fumes channelled
straight outside
Fumes channelled through a
chimney or a branched flue
system (reserved for cooking
appliances)

8
GB • Any hoods must be
installed according to
the instructions listed in
the relevant operating
manual.
Levelling
If it is necessary to level
the appliance, screw the
adjustable feet into the
places provided on each corner
of the base of the cooker (see
gure).
The legs* fit into the slots on the
underside of the base of the
cooker.
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
* Only available in certain models.
Electrical connections
Install a standardised plug corresponding to the load
indicated on the appliance data plate (see Technical
data table).
The appliance must be directly connected to the
mains using an omnipolar circuit-breaker with a
minimum contact opening of 3 mm installed between
the appliance and the mains. The circuit-breaker must
be suitable for the charge indicated and must comply
with NFC 15-100 regulations (the earthing wire must
not be interrupted by the circuit-breaker). The supply
cable must be positioned so that it does not come into
contact with temperatures higher than 50°C at any
point.
Before connecting the appliance to the power supply,
make sure that:
• The appliance is earthed and the plug is compliant with
the law.
• The socket can withstand the maximum power of the
appliance, which is indicated by the data plate.
• The voltage is in the range between the values
indicated on the data plate.
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
!Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
!The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only.
!The manufacturer declines any liability should
these safety measures not be observed.
Gas connection
Connection to the gas network or to the gas cylinder
may be carried out using a flexible rubber or steel
hose, in accordance with current national legislation
and after making sure that the appliance is suited to
the type of gas with which it will be supplied (see the
rating sticker on the cover: if this is not the case see
below). When using liquid gas from a cylinder, install a
pressure regulator which complies with current national
regulations. To make connection easier, the gas supply
may be turned sideways*: reverse the position of the
hose holder with that of the cap and replace the gasket
that is supplied with the appliance.
!Check that the pressure of the gas supply is
consistent with the values indicated in the Table
of burner and nozzle specifications (see below).
This will ensure the safe operation and durability of
your appliance while maintaining efficient energy
consumption.
Gas connection using a flexible rubber hose
Make sure that the hose complies with current national
legislation. The internal diameter of the hose must
measure: 8 mm for liquid gas supply; 13 mm for
methane gas supply.
Once the connection has been performed, make sure
that the hose:
• Does not come into contact with any parts that reach
temperatures of over 50°C.
• Is not subject to any pulling or twisting forces and
that it is not kinked or bent.
• Does not come into contact with blades, sharp
corners or moving parts and that it is not
compressed.
• Is easy to inspect along its whole length so that its
condition may be checked.
• Is shorter than 1500 mm.
• Fits firmly into place at both ends, where it will
be fixed using clamps that comply with current
regulations.

9
GB
Connecting a flexible jointless stainless steel pipe
to a threaded attachment
Make sure that the hose and gaskets comply with
current national legislation.
To begin using the hose, remove the hose holder on
the appliance (the gas supply inlet on the appliance is
a cylindrical threaded 1/2 gas male attachment).
!Perform the connection in such a way that the hose
length does not exceed a maximum of 2 metres,
making sure that the hose is not compressed and does
not come into contact with moving parts.
Checking the connection for leaks
When the installation process is complete, check the
hose fittings for leaks using a soapy solution. Never
use a flame.
Adapting to different types of gas
It is possible to adapt the appliance to a type of gas
other than the default type (this is indicated on the
rating label on the cover).
Adapting the hob
Replacing the nozzles for the hob burners:
1. Remove the hob grids and slide the burners off their
seats.
2. Unscrew the nozzles using
a 7 mm socket spanner (see
gure), and replace them with
nozzles suited to the new type
of gas (see Burner and nozzle
specications table).
3. Replace all the components
by following the above instructions in reverse.
Adjusting the hob burners’ minimum setting:
1. Turn the tap to the minimum position.
2. Remove the knob and adjust the regulatory screw,
which is positioned inside or next to the tap pin, until
the flame is small but steady.
!In the case of natural gas, the adjustment screw must
be unscrewed by turning it anti-clockwise.
3. While the burner is alight, quickly change the
position of the knob from minimum to maximum and
vice versa several times, checking that the flame is not
extinguished.
!The hob burners do not require primary air
adjustment.
!After adjusting the appliance so it may be used with
a different type of gas, replace the old rating label with
a new one that corresponds to the new type of gas
(these labels are available from Authorised Technical
Assistance Centres).
!Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet hose in
accordance with current national regulations relating to
“regulators for channelled gas”.
!If one or more of these conditions is not fulfilled
or if the cooker must be installed according to the
conditions listed for class 2 - subclass 1 appliances
(installed between two cupboards), the flexible steel
hose must be used instead (see below).
Safety Chain ! In order
to prevent
accidental
tipping of the
appliance, for
example by
a child clim-
bing onto the
oven door, the
supplied safety
chain MUST be
installed!
The cooker is fitted with a safety chain to be fixed by
means of a screw (not supplied with the cooker) to
the wall behind the appliance, at the same height as
the chain is attached to the appliance.
Choose the screw and the screw anchor according
to the type of material of the wall behind the applian-
ce. If the head of the screw has a diameter smaller
than 9mm, a washer should be used. Concrete wall
requires the screw of at least 8mm of diameter, and
60mm of length.
Ensure that the chain is fixed to the rear wall of the
cooker and to the wall, as shown in figure, so that
after installation it is tensioned and parallel to the
ground level.

10
GB Table of burner and nozzle specifications
S S
R
A
Table1 (for Poland) G20 (GZ50) G2.350 (GZ35) G30 (GPB)
Burner Diameter
(mm)
Thermal
Power
kW (p.c.s.*)
Nozzle
1/100
(mm)
Flow*
l/h
Nozzle
1/100
(mm)
Flow*
l/h
Thermal
power
(p.c.i.*)
kW
Dysza
1/100
(mm)
Flow*
g/h
Fast (Large)(R) 100 3,00 128 286 158 397 3,40 87 247
Semi Fast
(Medium)(S) 75 1,90 104 181 143 251 2,20 70 160
Auxiliary (Small)(A) 51 1,00
76 95 106 132 1,30 52 95
Supply Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
16
20
25
10
13
16
29
37
44
* A 15°C 1013 mbar dry gas
G20 (GZ50) p.c.i. = 37,78 MJ/m³
G2.350 (GZ35) p.c.i. = 27,20 MJ/m³
G30
(
GPB
)
p.c.i. = 125,81 MJ/m³
TECHNICAL DATA
Oven dimensions
(HxWxD)
Volume
61 l
Useful
measurements
relating to the
oven
compartment
width 42 cm
depth 44 cm
height 17 cm
Power supply
voltage and
frequency
see data plate
Burners
may be adapted for use with any
type of gas shown on the data
plate, which is located inside the
flap or, after the oven compartment
has been opened, on the left-hand
wall inside the oven.
ENERGY LABEL
Directive 2002/40/EC on the label
of electric ovens. Standard EN
50304
Declared energy consumption for
Natural convection Class – heating
mode:

Static
EC Directives: 2006/95/EC dated
12/12/06 (Low Voltage) and
subsequent amendments -
2004/108/EC dated 15/12/04
(Electromagnetic Compatibility) and
subsequent amendments -
90/369/EC dated 29/06/90 (Gas)
and subsequent amendments -
93/68/EEC dated 22/07/93 and
subsequent amendments -
2002/96/EC.
1275/2008 (Stand-by/Off mode)
(x)
Data plate, is located inside the flap or, after the oven
compartment has been opened, on the left-hand wall
inside the oven.
I5NSH1AE U I5GSHA U
S
R
ø 145
ø 180
340x391x455 mm
