INDIWORK A-LINK2-LX User manual

Release Date: 2019 – 09 - 17
Instruction Manual
A-LINK2-LX
Model Name A-LINK2-LX
Latest Firmware Date 2019 - 05 - 02
Manual Version Rev. 1.0
Language English
All in One Type Android System
POWER/CAN LVDS OUTLVDS IN
KEYPAD AV IN AV IN/OUT SW GPS WIFI / BT
DEBUG
DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD
ANDROID
INTERFACE

Main Specications
OS Android 7.1.2(Nougat)
CPU Six-Core 64bit Server Class Cortex-A72 Core @2.0Ghz,
Mali-T860 Quad-Core GPU (Total Ten-Core)
VPN H.264/H.265/VP9 up to 4Kx2K@60fps (4K Video)
Memory 2GB DDR3
USB USB2.0 High Speed Port
USB 3.0 USB3.0 5.0Gbps Port
Wireless 2.4GHz/5GHz Dual-Band WiFi,
Support 802.11a/b/g/n/ac, Bluetooth 4.1
GPS Ublox8 GPS
(GLONASS/BEIDOU/GALILEO/QZSS/SBAS)
HDMI IN DC 12V ~ 24V
HDMI OUT HDMI 2.0, Support maximum 4K@60Hz display
Speaker 2W
I / O Stereo Audio Out, Mic (voice recognition),
CVBS Out(On LVDS Out)
Input Power DC 8V ~ 24V
Temperature -20°C ~ 80°C
Operationg -15°C ~ 70°C
Product Warranty
Thank you for purchasing our product.
We o󰀨er the warranty for 1 year from the date of purchase.
This product has been tested and have passed under our strict and qualied control. If the
failure occurred due to the carelessness of workmanship within one year after the purchase,
we are responsible to repair free of charge.
• Free service : Manufacturing defects, When naturally occurring failures within the warranty
period.
* When the warranty period has elapsed, Failure the caused by customer’s mistake,
Failure thecaused by natural disasters.
Warranty : One years from the original date of purchase.(12 months)

Components
Power Cable
Capacitive Touch Cable
BT / WIFI Antenna
External GPS
External Speaker
LVDS Cable
KEYPAD
AV IN / OUT Cable
MicroPhone
AV Cable Resistive Touch Cable
IR Sensor
OLD Type GVIF NEW Type GVIF
Option Parts (It must be checked Main harness, GVIF type)
Important !!
? ?

Option Parts (It must be checked Main harness, GVIF type)
MAIN Harness
1 on 1 Type
Package
Interface Power CableOEM Radio Unit Main Harness
MAIN Harness
W/O NAVI Type
Package
Interface Power CableOEM Radio Unit Harness #1 OEM Radio Unit Harness #2 OEM Radio Unit Harness #3
MAIN Harness
Toyora Type
Package
Interface Power CableOEM Radio Unit Harness
MAIN Harness
New LCD Type
Package
Interface Power CableOEM Radio Unit Harness #1 OEM Radio Unit Harness #2
Important !!

Car Model Years Screen Size Main Harness Type GVIF type
ES (XZ10)
LS (XF50) 2018 ~ 8 inch, 12 inch New LCD Type New GVIF Type
NX (AZ10)
UX (ZA10) 2018 ~ 8 inch, 10 inch New LCD Type New GVIF Type
New LCD Type
Package
Interface Power CableOEM Radio Unit Harness #1 OEM Radio Unit Harness #2 NEW Type GVIF
W/O NAVI Type
Package
Interface Power CableOEM Radio Unit Harness #1 OEM Radio Unit Harness #2 OEM Radio Unit Harness #3 OLD Type GVIF
Car Model Years Screen Size Main Harness Type GVIF type
ES (XV60) 2013 ~ 2017 7 inch, 8inch W/O NAVI Type OLD GVIF Type
IS (XE30) 2013 ~ 2018 7 inch W/O NAVI Type OLD GVIF Type
RX (AL20) 2017 ~ 8inch W/O NAVI Type OLD GVIF Type
CT (A10) 2015 ~ 7 inch W/O NAVI Type OLD GVIF Type
NX (AZ10) 2015 ~ 2017 7 inch W/O NAVI Type OLD GVIF Type
Option Parts (It must be checked Main harness, GVIF type)
Important !!

Car Model Years Screen Size Main Harness Type GVIF type
ES (XV60) 2013 ~ 2017 8 inch 1 on 1 Type OLD GVIF Type
IS (XE30) 2013 ~ 2016 7 inch 1 on 1 Type OLD GVIF Type
RX (AL20) 2016 ~ 8 inch , 12 inch 1 on 1 Type OLD GVIF Type
GS (L10) 2012 ~ 8 inch, 12 inch 1 on 1 Type OLD GVIF Type
CT200 (A10) 2011 ~ 7 inch 1 on 1 Type OLD GVIF Type
LS (XF40) 2012 ~ 2017 12 inch 1 on 1 Type OLD GVIF Type
LX570 (J200) 2016 ~ 12 inch 1 on 1 Type OLD GVIF Type
NX (AZ10) 2015 ~ 2017 7 inch 1 on 1 Type OLD GVIF Type
OLD Type GVIFInterface Power CableOEM Radio Unit Main Harness
OLD Type GVIF
Car Model Years Screen Size Main Harness Type GVIF type
IS (XE30) 2017 ~ 10 inch 1 on 1 Type New GVIF Type
Interface Power Cable
OEM Radio Unit Main Harness NEW Type GVIF
Car Model Years Screen Size Main Harness Type GVIF type
Land Cruiser (J200) 2008 Toyota Type OLD GVIF Type
Toyora Type
Package
Interface Power CableOEM Radio Unit Harness
1 on 1 Type
1 on 1 Type
New GVIF Type
Package
OLD GVIF Type
Package

POWER/CAN
CABLE (LEXUS)
POWER/CAN
CABLE (TOYOTA)
Power/Can
Keypad
LVDS
IN
LVDS
OUT
AV IN SW
GPS WIFI BT
AV IN/OUT
POWER / CAN CABLE <Lexus>
1 BATTERY POWER INPUT 9 PAD_CAN_OUT_H
2 GROUND 10 PAD_CAN_OUT_L
3 REVERSE 12V IN 11 PAD_CAN_IN_H
4 DVD_IR 12 PAD_CAN_IN_L
5 ST_ADC_1 13 TOYOTA_BUS_P
6 14 TOYOTA_BUS_M
7 ST_ADC_2 15 ECH_CAN_H
8 RELAY B/L 16 ECH_CAN_L
POWER / CAN CABLE <Toyota>
1 BATTERY POWER INPUT 9
2 GROUND 10
3 REVERSE 12V IN 11 PAD_CAN_IN_H
4 12 PAD_CAN_IN_L
5 TOUCH_SW 13 TOYOTA_BUS_P
6 14 TOYOTA_BUS_M
7 ST_ADC_2 15
8 RELAY B/L 16
AV CABLE
1 DVBT VIDEO INPUT 9 GND_DVBT VIDEO
2DVBT AUDIO R 10 GND_DVBT AUDIO R
3DVBT AUDIO L 11 GND_DVBT AUDIO L
4 DVD VIDEO INPUT 12 GND_DVD VIDEO
5DVD AUDIO R 13 GND_DVD AUDIO R
6DVD AUDIO L 14 GND_DVD AUDIO L
7 FRONT-CAM VIDEO INPUT 15 GND_FRONT-CAM VIDEO
8RV-CAM VIDEO INPUT 16 GND_RV-CAM VIDEO
AV CABLE
1 EXTERNAL_SPEAKER + 12 GND (EXTERNAL_SPEAKER)
2AUX AUDIO L 13 GND (AUX AUDIO L)
3AUX AUDIO R 14 GND (AUX AUDIO R)
4 MIC + 15 GND (MIC)
5 CAPACITIVE_SCL 16 CAPACITIVE_GND
6 CAPACITIVE_SDA 17 CAPACITIVE_VDD
7 CAPACITIVE_INT 18 CAPACITIVE_RST
8RESISTIVE TOUCH_X- 19 DVBT_IR
9RESISTIVE TOUCH_Y- 20 IR_SIGNAL
10 RESISTIVE TOUCH_X+ 21 IR_GND
11 RESISTIVE TOUCH_Y+ 22 IR_POWER
ACC IN ACC IN
REVERSE 12V IN REVERSE 12V IN
ST ADC 1
TOUCH_SW
GND GND
DVD IR
RELAY B/L
RELAY 12V
PAD CAN OUT L
ST ADC 2 ST ADC 2
1 19 95 513 1315 15
2 210 1012 1214 1416 166 64 48 8
3 311 117 7
DVBT IN VIDEO
DVBT IN AUDIO R
DVBT IN AUDIO L
DVD IN AUDIO R
DVD IN VIDEO
DVD IN AUDIO L
FRONT IN
REAR IN
81
169
IR IN
CAP-TOUCH
MIC
DVB-T IR
AUX OUT R
AUX OUT L
SPEAKER
IR IN
111
2212
Capacitive Touch
CABLE
Capacitive Touch Cable
1 Blue SCL
2 White SDA
3 Yellow INT
4 Black GND
5 Red VDD
6Green RST
16
ON 1 2
PAD CAN IN H PAD CAN IN H
TBUS P TBUS P
TBUS M TBUS M
ECH CAN L
ECH CAN H
PAD CAN IN L PAD CAN IN L
PAD CAN OUT H
REG-TOUCH

ON
Body Connector specications
HDMI IN
R-KEY
HDMI OUT
USB 3.0 USB 2.0
Micro SD
DIP SWITCH
Supports Only 720P
HDMI OUT
HDMI 2.0 Support
Maximum 4K@60Hz display
HDMI
Class 10
Maximum 128G
USB 3.0
5.0Gbps Port
MicroSD
Card
128G
!Important
Using for "HDMI" port should be select
"Input Device Model"in setting menu
If it does not selected input device model
The screen might be able to white,black screen(not vworking)

Car Compatibility Chart
Car Models Production
Year Specic Models
IS (XE30) 2013 ~ 2016 7 inch
IS (XE30) 2017 ~ 10 inch
CT (A10) 2015 ~ 7 inch
CT200 (A10) 2011 ~ 7 inch
NX (AZ10) 2015 ~ 2018 7 inch,10inch
UX (ZA10) 2018 ~ 7inch, 10 inch
RX (AL20) 2017 ~ 8inch, 12 inch
ES (XV60) 2013 ~ 2017 8 inch
ES (XZ10) 2018 ~ 8 inch, 12 inch
GS (L10) 2012 ~ 8 inch, 12 inch
LS (XF40) 2012 ~ 2017 12 inch
LS (XF50) 2018 ~ 12 inch
Land Cruiser (J200) 2008 12 inch
LX570 (J200) 2016 ~ 12 inch
Lexus IS(XE30)
Lexus ES(XV60) Lexus GS(L10)
Lexus RX(AL20)
Lexus CT(A10) Lexus NX((AZ10)
Lexus UX(ZA10)
Lexus ES(XZ10)

POWER/CAN LVDS OUTLVDS IN
KEYPAD AV IN AV IN/OUT SW GPS WIFI / BT
DEBUG
DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD
ANDROID
INTERFACE
Full Installation Diagram
<New LCD Type>
DOWN UP SEL MANU
AV IN Port
DTV and DVD Front Camera Rear Camera
DVBT IN VIDEO
DVBT IN AUDIO R
DVBT IN AUDIO L
DVD IN AUDIO R
DVD IN VIDEO
DVD IN AUDIO L
REAR IN
FRONT IN
Reset Switch
Operation Operation
Press Shot time
1 seconds Start the Touch Calibration
Press Long time
5 seconds Restart the Device
Microphone
AUX
AV IN/OUT Port
External Speaker
DVB-T , DVD
AUX OUT R
AUX OUT L
SPEAKER
MIC
DVB-T IR
DVD IR
IR IN
CAP-TOUCH
Capacitive Touch
Film
Bottom
OEM
GVIF Cable
Provided
GVIF Cable
Provided
GVIF Cable
AUX OUT R
AUX OUT L
REVERSE IN
DVD IR
RELAY B/L
2
1
21
NEW Type

POWER/CAN LVDS OUTLVDS IN
KEYPAD AV IN AV IN/OUT SW GPS WIFI / BT
DEBUG
DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD
ANDROID
INTERFACE
DOWN UP SEL MANU
AV IN Port
DTV and DVD Front Camera Rear Camera
DVBT IN VIDEO
DVBT IN AUDIO R
DVBT IN AUDIO L
DVD IN AUDIO R
DVD IN VIDEO
DVD IN AUDIO L
REAR IN
FRONT IN
Reset Switch
Operation Operation
Press Shot time
1 seconds Start the Touch Calibration
Press Long time
5 seconds Restart the Device
Microphone
AUX
AV IN/OUT Port
External Speaker
DVB-T , DVD
AUX OUT R
AUX OUT L
SPEAKER
MIC
DVB-T IR
DVD IR
IR IN
CAP-TOUCH
Capacitive Touch
Film
Bottom
OEM
GVIF Cable
Provided
GVIF Cable
Provided
GVIF Cable
Full Installation Diagram
<1 ON 1 Type>
REVERSE IN
DVD IR
RELAY B/L
OLD Type

POWER/CAN LVDS OUTLVDS IN
KEYPAD AV IN AV IN/OUT SW GPS WIFI / BT
DEBUG
DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD
ANDROID
INTERFACE
DOWN UP SEL MANU
AV IN Port
DTV and DVD Front Camera Rear Camera
DVBT IN VIDEO
DVBT IN AUDIO R
DVBT IN AUDIO L
DVD IN AUDIO R
DVD IN VIDEO
DVD IN AUDIO L
REAR IN
FRONT IN
Reset Switch
Operation Operation
Press Shot time
1 seconds Start the Touch Calibration
Press Long time
5 seconds Restart the Device
Microphone
AUX
AV IN/OUT Port
External Speaker
DVB-T , DVD
AUX OUT R
AUX OUT L
SPEAKER
MIC
DVB-T IR
DVD IR
IR IN
CAP-TOUCH
Capacitive Touch
Film
Bottom
OEM
GVIF Cable
OLD Type
Provided
GVIF Cable
Provided
GVIF Cable
Full Installation Diagram
<W/O Navi Type>
REVERSE IN
DVD IR
RELAY B/L
2
2
3
3
1
1
AUX OUT R
AUX OUT L

POWER/CAN
CABLE (LEXUS)
POWER / CAN CABLE <Lexus>
1 BATTERY POWER INPUT 9 PAD_CAN_OUT_H
2 GROUND 10 PAD_CAN_OUT_L
3 REVERSE 12V IN 11 PAD_CAN_IN_H
4 DVD_IR 12 PAD_CAN_IN_L
5 ST_ADC_1 13 TOYOTA_BUS_P
6 14 TOYOTA_BUS_M
7 ST_ADC_2 15 ECH_CAN_H
8 RELAY B/L 16 ECH_CAN_L
ACC IN
REVERSE 12V IN
ST ADC 1
GND
DVD IR
RELAY B/L
PAD CAN OUT L
ST ADC 2
1 95 13 15
2 10 12 14 1664 8
3117
PAD CAN IN H
TBUS P
TBUS M
ECH CAN L
ECH CAN H
PAD CAN IN L
PAD CAN OUT H

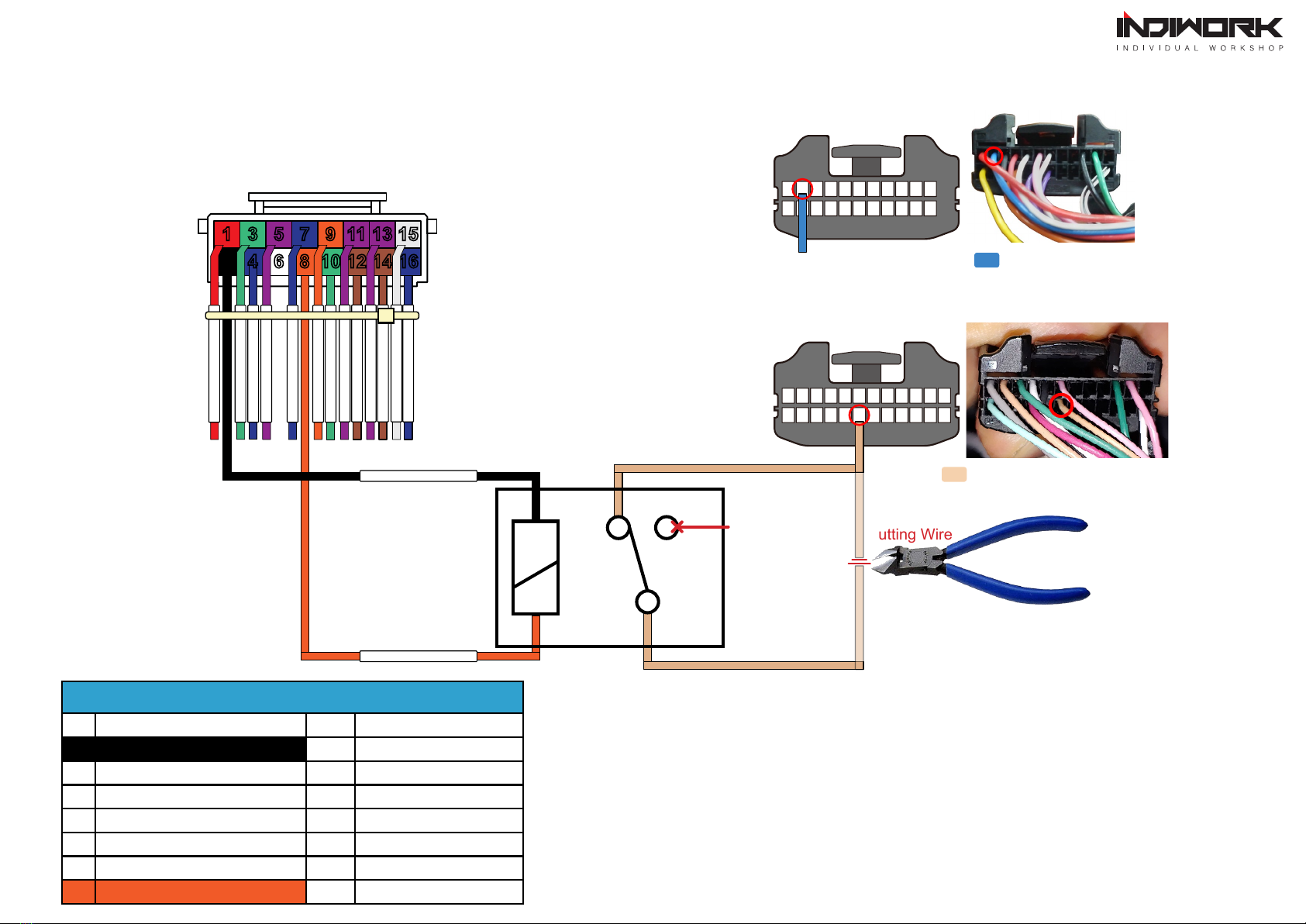

Connect 5P Relay
<How to solve blinking the screen>
86
85 30
87a87
1
1
12
13
13
24
Not Use Cutting Wire
Lexus UX
19
12
24
Lexus 2015 ES
11
Pin # 19 = Light Brwon
Pin # 11 = Blue
Depending on the vehicle, there is a vehicle which screen blinking periodically.
In this case, cut the wire of the power connector of the monitor.
And please connect wire which cut to NC ( Normal Close ) of Relay.
When the screen is switched to the interface screen, 12V is supplied to the Relay
※ Wire colors may be di󰀨erent for each vehicle.

DIP Switch Settings
OFF
ON
OFF:ON:
No.3 No.7 No.8 No.9 No.10 Car Model Screen Size Year
OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) RX (AL20) 12 inch 2016 ~
LX570 (J200)
ON (▼) OFF(▲) OFF(▲) OFF(▲) ON (▼) GS (L10) 12 inch 2016 ~
ON (▼) OFF(▲) OFF(▲) ON (▼) OFF(▲)
NX (AZ10) 7 inch, 8 inch 2015 ~ 2017
IS (XE30) 10 inch 2017 ~
ES (XV60) 7 inch 2013 ~ 2017
ON (▼) OFF(▲) OFF(▲) ON (▼) ON (▼) CT200 (A10) 7 inch 2011 ~
OFF(▲) OFF(▲) ON (▼) OFF(▲) OFF(▲)
UX (ZA10)
10 inch
12 inch 2018 ~
LS (XF50)
ES (XZ10)
ON (▼) OFF(▲) ON (▼) OFF(▲) ON (▼)
UX (ZA10)
7 inch
8 inch 2018 ~
LS (XF50)
ES (XZ10)
ON (▼) OFF(▲) ON (▼) ON (▼) OFF(▲) Land Cruiser (J200) 2008
ON (▼) OFF(▲) ON (▼) ON (▼) ON (▼) ES (XV60) 8 inch 2016
ON (▼) ON (▼) OFF(▲) OFF(▲) OFF(▲) Acura-MDX
PIN ON (▼) OFF(▲)
1Capacitive Touch Resistive Touch, UART Touch
2GOODIX Capacitive Touch
(INDIWORK Products) ILITEK Capacitive Touch
3Selection of car mode
4External Rear View Camera Original Rear View Mode
(OEM CAMERA)
5External Front View
Camera(AV1 Mode)
Skip External Front View
Camera(AV1 Mode)
6Not Used Default (OFF)
7Not Used Default (OFF)
8
Selection of car mode
9
10
PIN ON (▼) OFF(▲)
1Not Used Default (OFF)
2External GPS Antenna GPS FAKRA
DIP Switch Settings
OFF
ON
OFF:ON:
ON 1 2

Activation by original buttons
Control Some of Function of Android by original buttons (Only Touch Pad)
2015 Lexus ES (XV60)
2019 New Lexus ES (XZ10)
2015 CT200 (A10)
Button Function Operation Remarks
Phone Button
O󰀨 Hook
Changing
Modes
Press the button 2 seconds Order : Android → DVB-T →DVD → OEM
Press the button short time Return to the OEM mode in any modes.
Seek + / -
IR
DVB-T, DVD Channel UP / Down You can control DVB-T and DVD after connection and setting
8
9
14
6
9
8
1
4
9
8
7
5
Button Function Operation Remarks
Map
Manu
Changing
Modes
Press the button 2 seconds Order : Android → DVB-T →DVD → OEM
Press the button short time Return to the OEM mode in any modes.
Mouse
Touch pad
Dial
IR
DVB-T, DVD
Menu Control
Controlled with
Mouse module and Touch pad
You can control DVB-T and DVD
after connection and setting
Mouse
Touch pad
Android
Control
Controlled with
Mouse module and Touch pad You can control Android
Back
Changing
Modes
(Front Cam)
Press the button 2 seconds Order : AV1 (Front View Camera)
Press the button short time Order : "Android Back Button"
UP, Down
Changing
Modes
Press the button 2 seconds Order : Android → DVB-T →DVD → OEM
Press the button short time Order : → OEM
Button
Zoom In Controlled with
Mouse module and Touch pad
You can control DVB-T and DVD
after connection and setting
1
4
65
5
3
7
1
4
9
8
5
3
Click
Push Touch Pad
Drag
Push Touch Pad and Sliding
Scroll
Slide two ngers up or down the
touch pad to scroll

Set User Boot Logo
• File Format : PNG, JPG, BMP
• Image Size : 1280px X 720px
Digital Out Settings
Adjust the screen size and position and color
Press the Button 2sec
※ Some applications may not supports PIP function.
"PIP" Function Calibration
Capacitive and Resistive Touch
Android User Interface (Main Page)

Android Firmware
A-LINK DEVICE SETTING
THERE ARE TWO WAYS FOR START THE FIRMWARE.
2. Copy the "system_roik10"folder to
the sd card root directory
* USB format type = FAT32
- Push hold “Recovery Key” and turn on (re-connect power cable),
It will start upgrade
- Select the ‘setting > system update’, and press the OK button.
It will start upgrade
- Copy the ‘system_roik10’ folder to the root of the SD card.
* Update Time will 4~5 min, and rst booting time will be 4~5 min.
* Should be factory reset. when it done rmware
ON
USB 2.0Recovery Key
Only USB2.0 port supports for Android Firmware
!
http://indiwork.co.kr/a-link-rmware-update-international/
1. Download rmware in "indiwork" website
system_roik10 system_roik10
system_roik10

DVB-T DEVICE
POWER
SIGNAL
GROUND
DVB-TV IR Sensor
Red
White
Black
IR IN
IR SIGNAL IN
HDMI
OR
CVBS
DVB-T Diagram
DVD IR
Wire To DVB-T IR
AV IN
AV IN
AV IN/OUT
ON 1 2
CAP-TOUCH
MIC
AUX OUT R
AUX OUT L
SPEAKER
111
2212
REG-TOUCH
IR IN
DVB-T IR

1
2
3 4
Button Function Operation
MENU
Back to previous menu
When press the button short. Press the button short time
SEL
Select the setting menu
and setting values. Press the button short time
UP DOWN
Move the menu-pointer
and adjust the setting values Press the button short time
DOWN
Quick information
Check the Firmware date Press the button 3Sec Long time
KEYPAD - Function #1
KEYPAD - Function #2
1
2
Button Function Operation Remarks
MENU
Changing
Modes Press the button short time Order : Android → HDMI
→ DVB-T →DVD → OEM
SEL
Setting Menu
※Only in a Android,
HDMI,DVB-T,DVD screen
Press the button short time
DOWN UP SEL MENU
iw-evo-n23
digital multi interface
for evo id5,id6
1
2
3
4
POWER/CAN LVDS OUTLVDS IN
KEYPAD AV IN AV IN/OUT SW GPS WIFI / BT
DEBUG
DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD
ANDROID
INTERFACE
Settings (How To Use KEYPAD)
4

Android
HDMI
- Adjust BRIGHT and CONTRAST Settings
- Model Select
DVB-T
DVD
- Adjust BRIGHT and CONTRAST Settings
- Remote Model
- Remote memory
Front Camera
Rear Camera
- Adjust BRIGHT and CONTRAST Settings
- Parking Guide Line On,OFF
- Parking distance control
- Camera Keeping Time
- Warning Message
System
information
- Factory default
- Model name & Firmware info
- Dip switch info
- UI Language
Settings
